Model Whirlpool MT2081XBG0 – Common Parts & Diagrams
05 - OVEN INTERIOR
02 - CONTROL PANEL

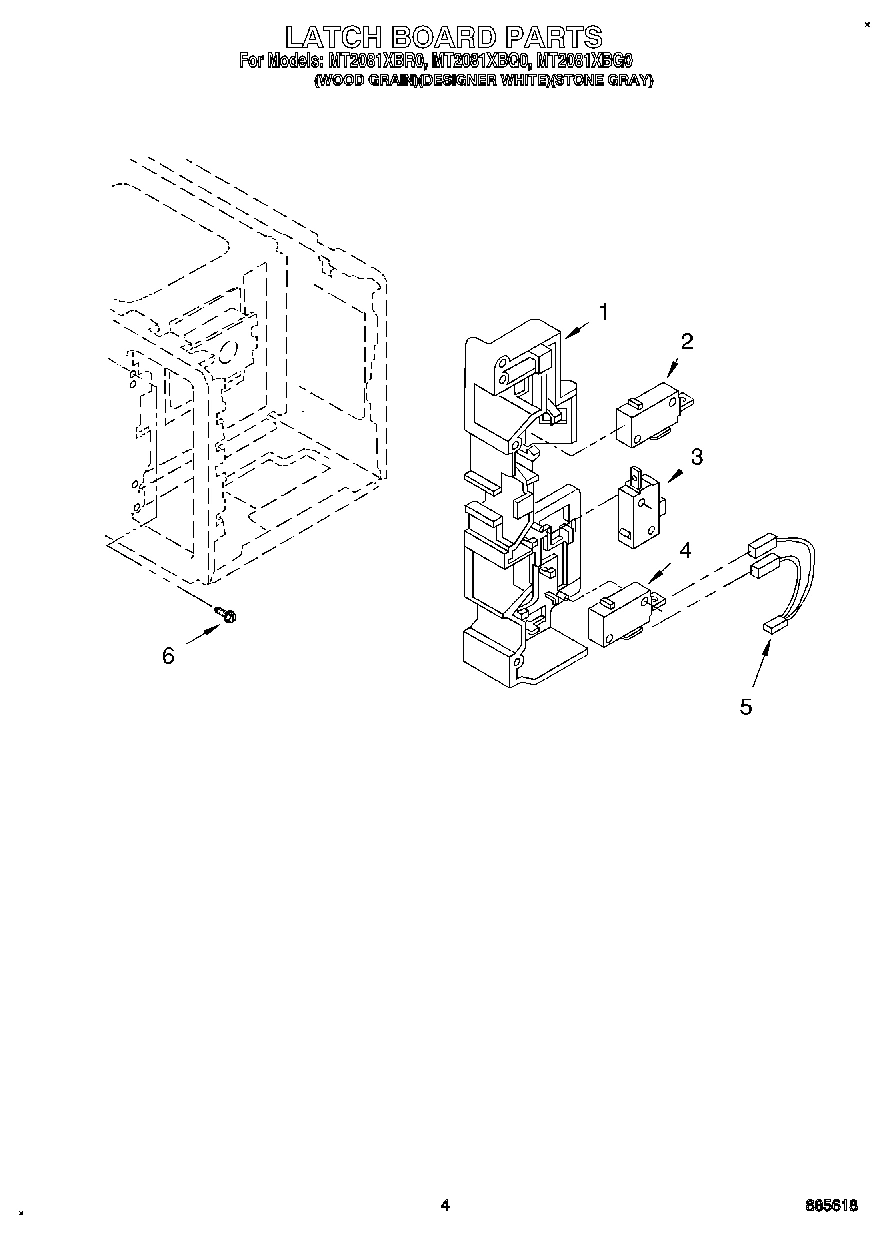

04 - LATCH BOARD

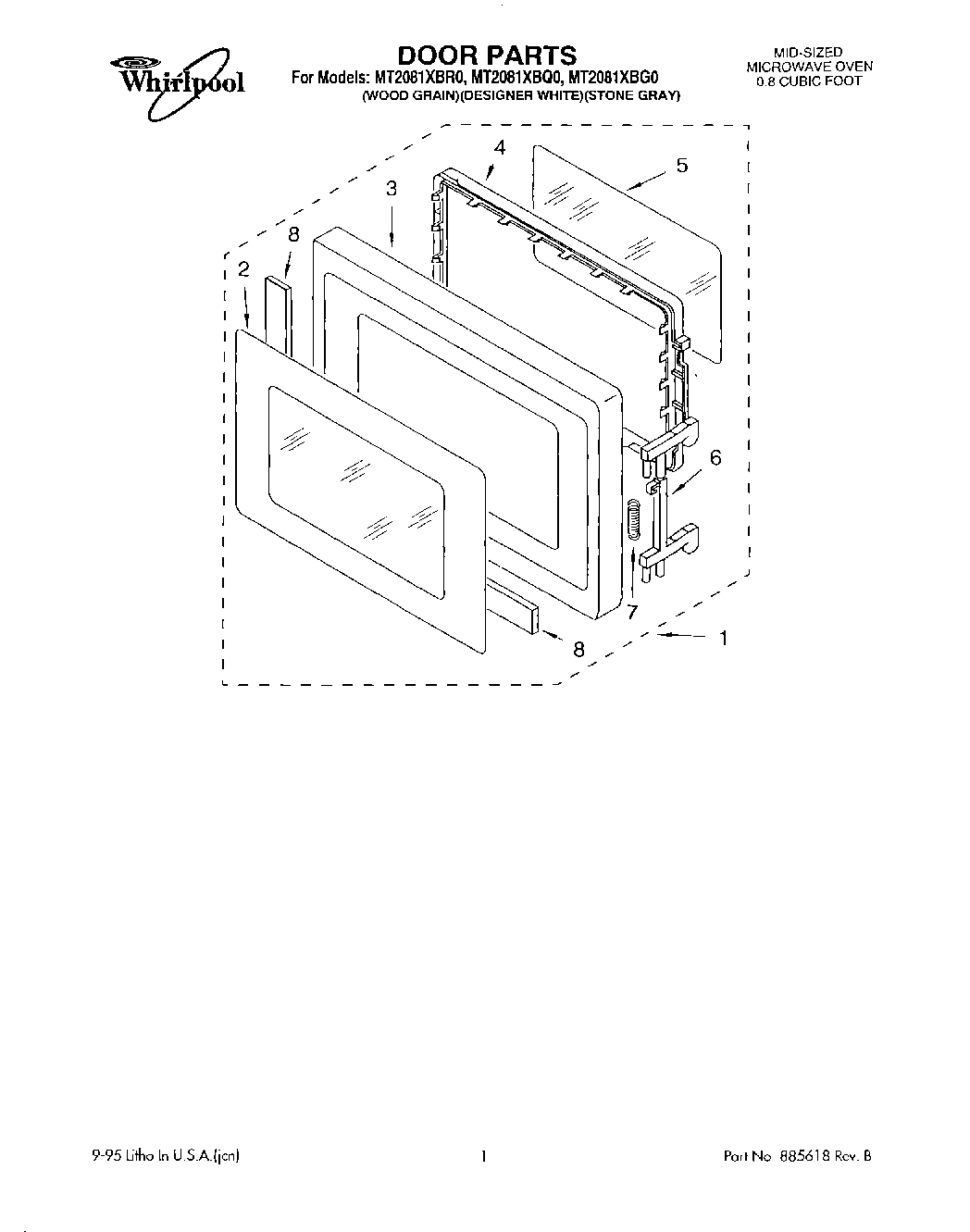

01 - DOOR, LITERATURE

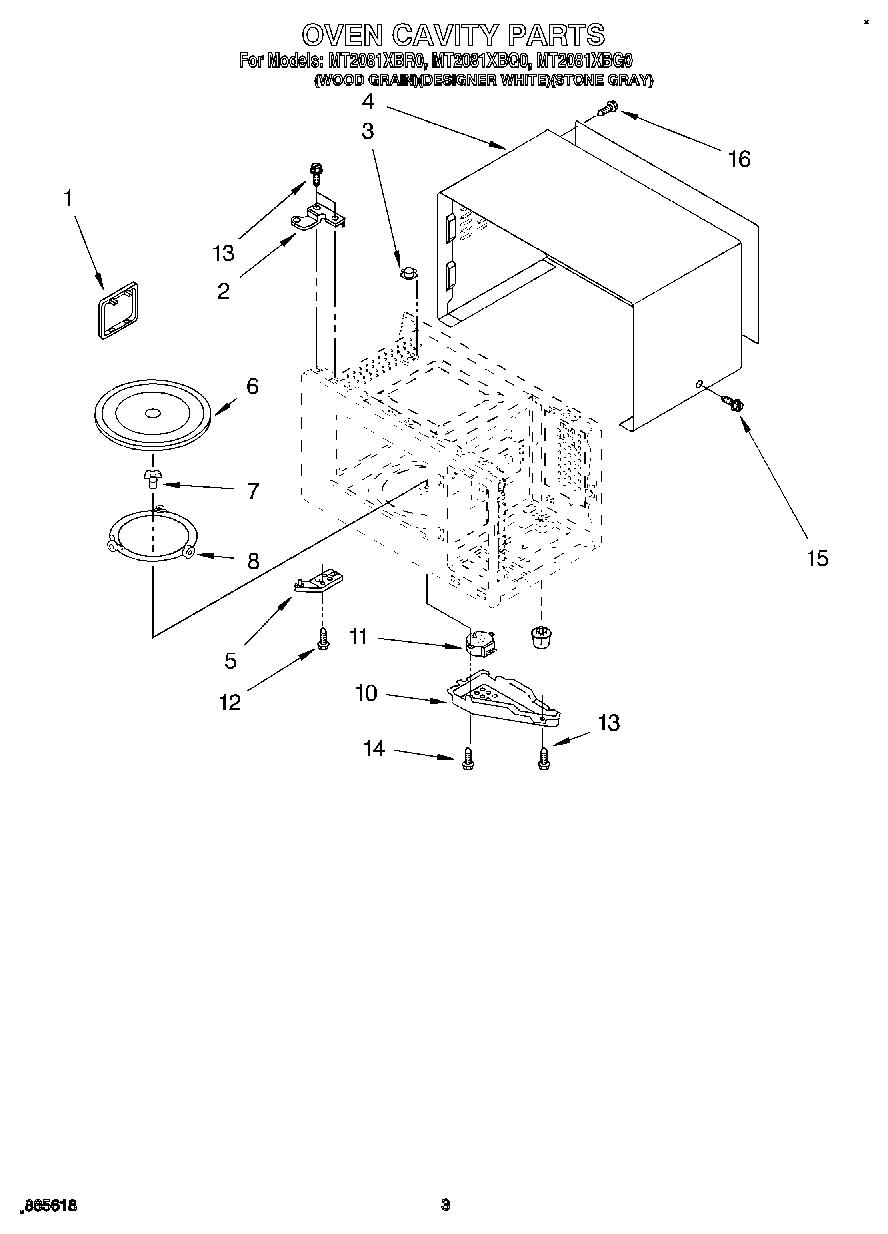

03 - OVEN CAVITY
Common parts from model Whirlpool MT2081XBG0
Guide, Use And Care WPL LIT4358526 Contact Us For Availability
Cook Guide Label WPL LIT4358529 Contact Us For Availability
Tech Sheet WPL LIT4358531 Contact Us For Availability
1
Propeller WPL 4158758 Contact Us For Availability
1
Controller Assembly (Not Serviceable) WPL ARI118851A Contact Us For Availability
1
Latch Board Ass`y WPL 4358635 Contact Us For Availability
1
Door Gross Ass`y (White Model) WPL 4358601 Contact Us For Availability
1
Door Gross Ass`y (Wood Grain & Gray) WPL 4358666 Contact Us For Availability
1
Canopy (Wave Guide) WPL 4358618 Contact Us For Availability
2
Button, Release (White Model) WPL 4358610 Contact Us For Availability
2
Button, Release (Wood Grain & Gray) WPL 4358670 Contact Us For Availability
2
Screen, Front (White Model) WPL 4358602 Contact Us For Availability
2
Screen, Front (Wood Grain & Gray) WPL 4358667 Contact Us For Availability
2
Plate, Hinge WPL 4358619 Contact Us For Availability
3
Spring, Button WPL 4158178 Contact Us For Availability
3
Door Frame Ass`y (White Model) WPL 4358603 Contact Us For Availability
3
Door Frame Ass`y (Wood Grain & Gray) WPL 4358668 Contact Us For Availability
3
Thermostat WPL 4358620 Contact Us For Availability
4
H.V. Capacitor WPL 4358644 Contact Us For Availability
4
Membrane, Key (White Model) WPL 4358612 Contact Us For Availability
4
Membrane, Key (Wood Grain & Gray) WPL 4358671 Contact Us For Availability
4
Cover, Choke WPL 4358604 Contact Us For Availability
4
Case, Outer (White Model) WPL 4358621 Contact Us For Availability
4
Case, Outer (Wood Grain) WPL 4358674 Contact Us For Availability
4
Case, Outer (Gray Model) WPL 4359099 Contact Us For Availability
5
H.V.C. Bracket WPL 4359161 Contact Us For Availability
5
Panel, Control (White Model) WPL 4358613 Contact Us For Availability
5
Panel, Control (Wood Grain & Gray) WPL 4358672 Contact Us For Availability
5
Leadwire Assembly WPL 4358639 Contact Us For Availability
5
Tape, Seal WPL 4358605 Contact Us For Availability
5
Plate, Hinge WPL 4358622 Contact Us For Availability
6
Leadwire Assembly WPL 4358646 Contact Us For Availability
6
P.C.B. Sub Ass`y WPL 4358614 Contact Us For Availability
6
Screw (2) WPL 4358629 Contact Us For Availability
6
Latch WPL 4358606 Contact Us For Availability
6
Tray, Glass WPL 4158813 Contact Us For Availability
7
H.V. Cable Ass`y WPL 4158827 Contact Us For Availability
7
Lever, Release WPL 4358615 Contact Us For Availability
7
Spring, Latch WPL 4358607 Contact Us For Availability
7
Shaft, Turntable WPL 4158786 Contact Us For Availability
8
H.V. Diode Cable Assembly WPL 4158897 Contact Us For Availability
8
Controller Sub Assembly (White Model) WPL 4358616 Contact Us For Availability
8
Controller Sub Assembly (Wood Grain & Gray) WPL 4358673 Contact Us For Availability
8
Tape, Toyo WPL 4358608 Contact Us For Availability
8
Rotating Ring Assembly WPL 4358625 Contact Us For Availability
9
Cord, Power WPL 4358653 Contact Us For Availability
9
Screw (3) WPL 4358451 Contact Us For Availability
9
Leg (4) WPL 4358626 Contact Us For Availability
10
Thermostat WPL 4358650 Contact Us For Availability
10
Cover, Motor WPL 4358627 Contact Us For Availability
11
Lamp, Baseless WPL 4358651 Contact Us For Availability
11
Motor, Synchronous WPL 4358628 Contact Us For Availability
12
Duct, Air WPL 4358652 Contact Us For Availability
12
Screw (3) WPL 4358051 Contact Us For Availability
13
Magnetron WPL 4158798 Contact Us For Availability
14
Transformer WPL 4358654 Contact Us For Availability
14
Screw (2) WPL 4358188 Contact Us For Availability
15
Leadwire Ass`y WPL 4358655 Contact Us For Availability
15
Screw (Wood Grain) WPL 4158084 Contact Us For Availability
16
Holder, Wire WPL 4158413 Contact Us For Availability
17
Cushion WPL 4358657 Contact Us For Availability
18
Fuse WPL 4358263 Contact Us For Availability
19
Cap, Fuse WPL 4358659 Contact Us For Availability
20
Nut (2) WPL 4358475 Contact Us For Availability
23
Screw WPL 4358376 Contact Us For Availability
24
Screw WPL 4358381 Contact Us For Availability
25
Screw (2) WPL 4358190 Contact Us For Availability
× ![]()
