Model Whirlpool MT2080XYR0 – Common Parts & Diagrams

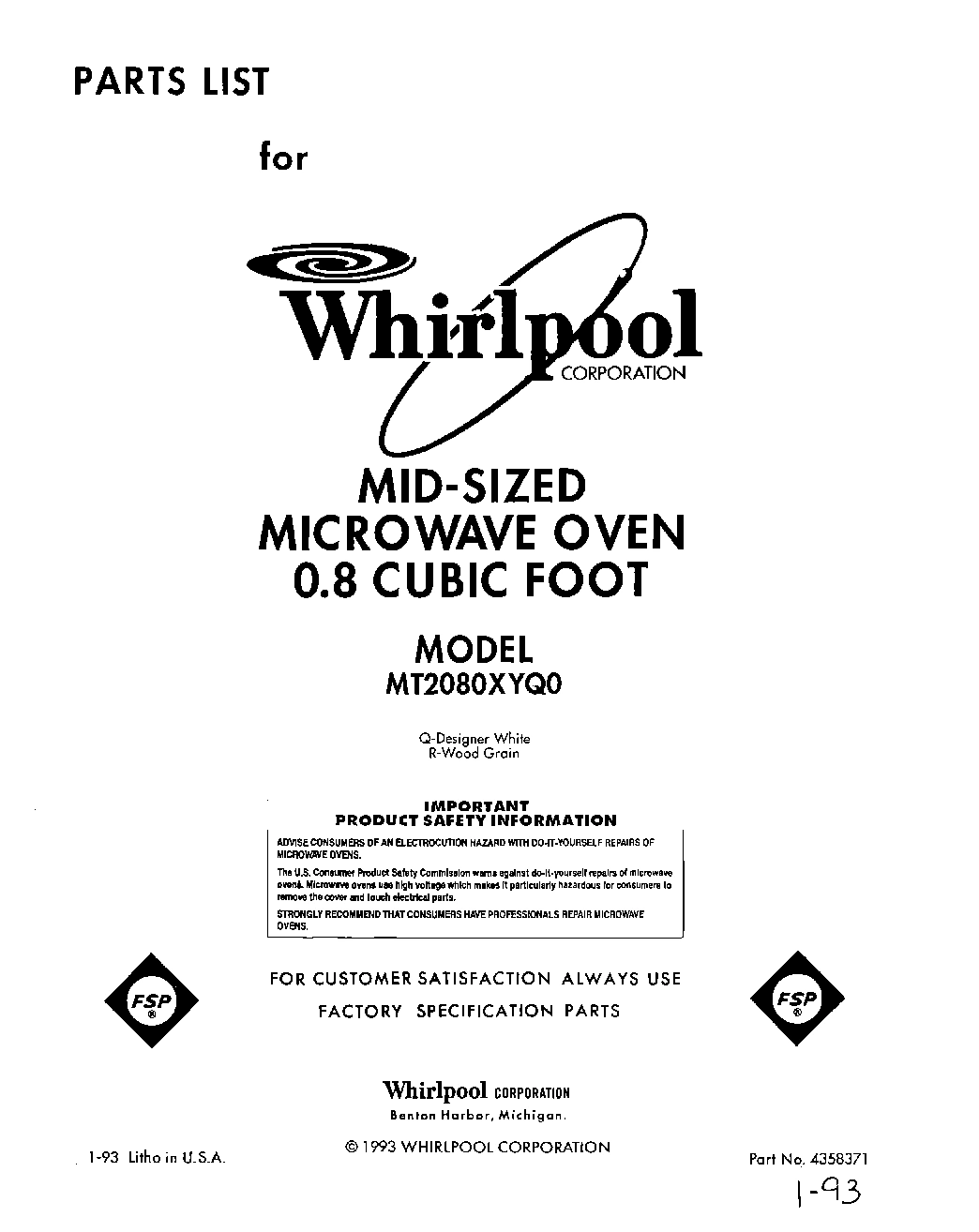

01 - SECTION

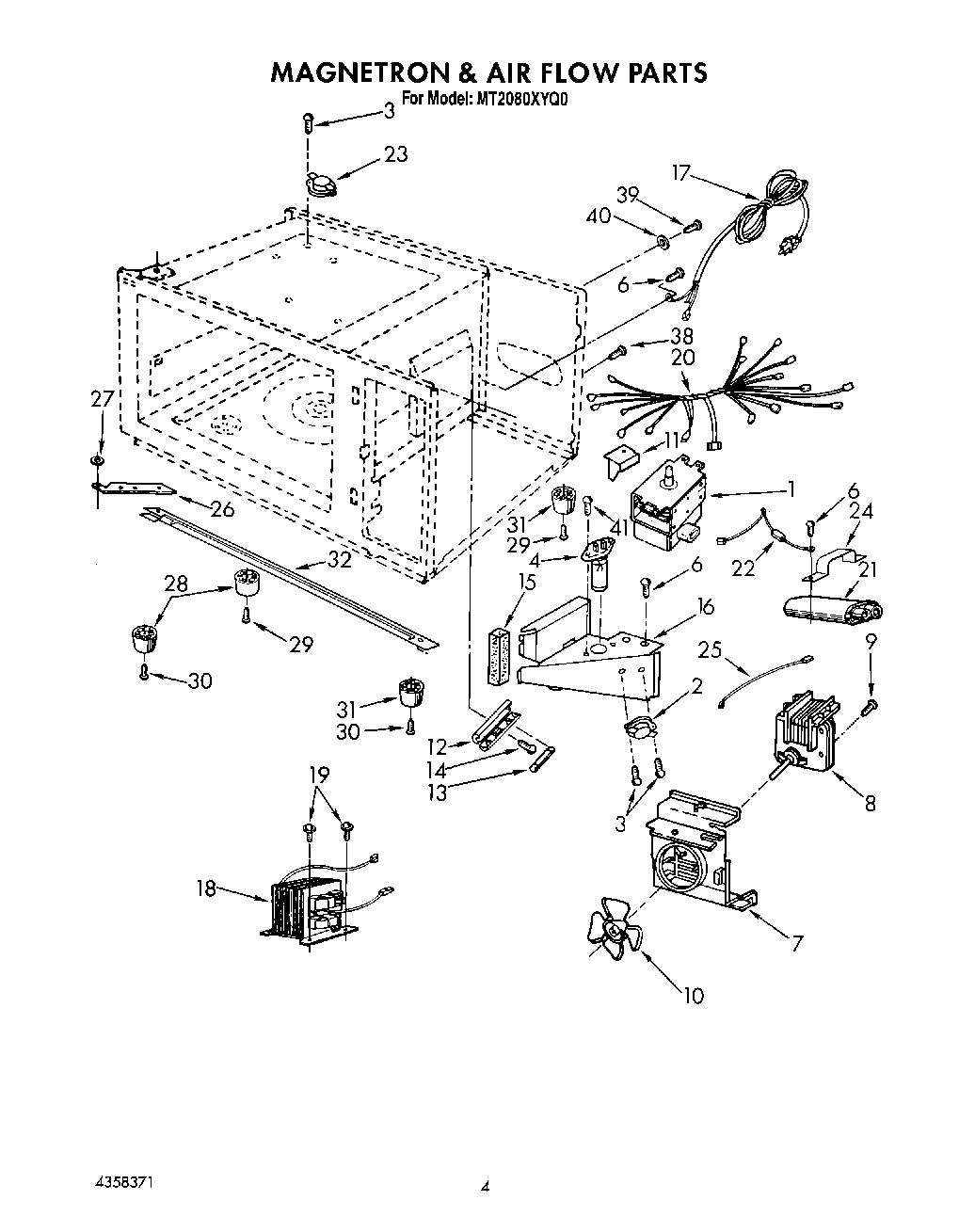

04 - SECTION

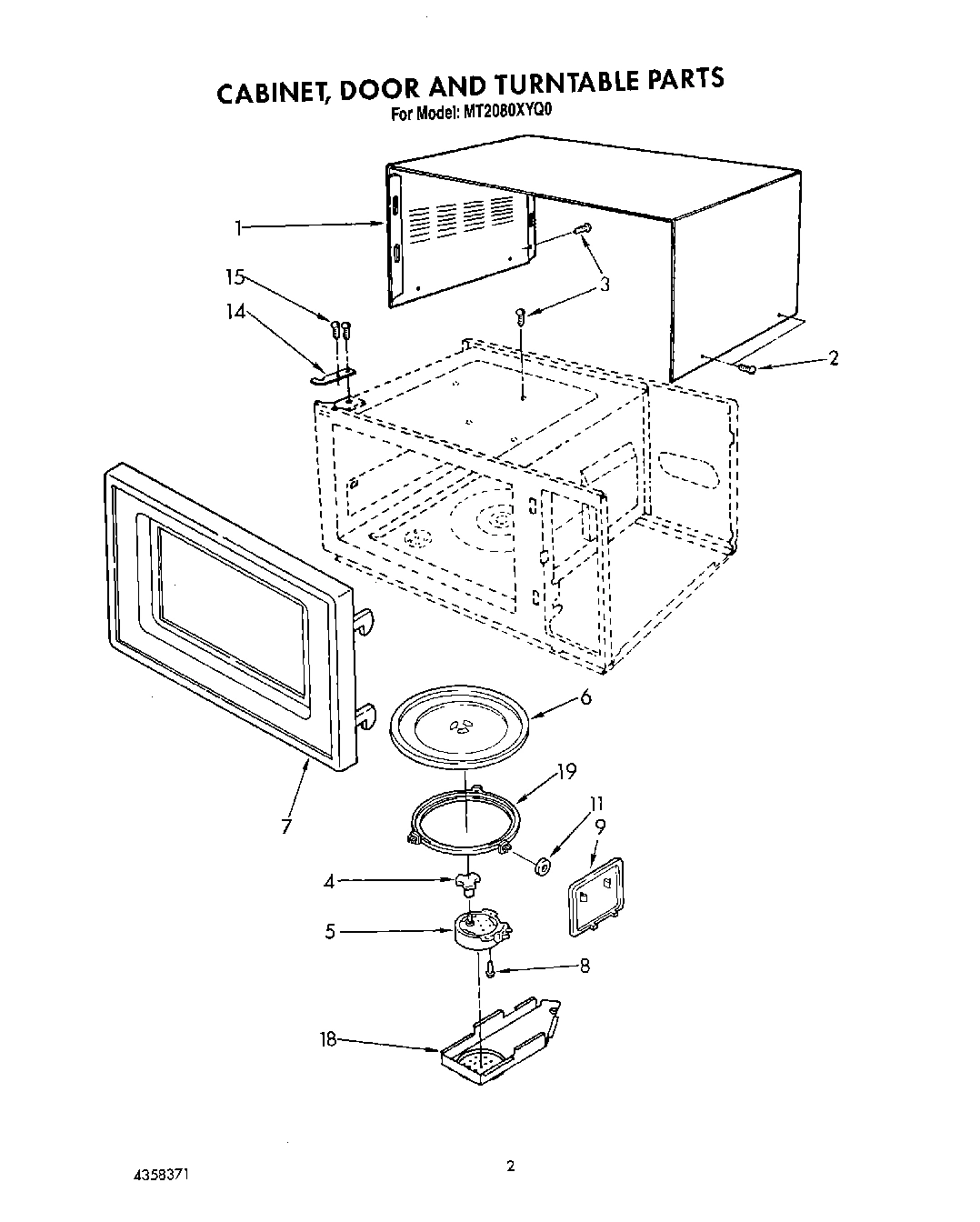

02 - SECTION

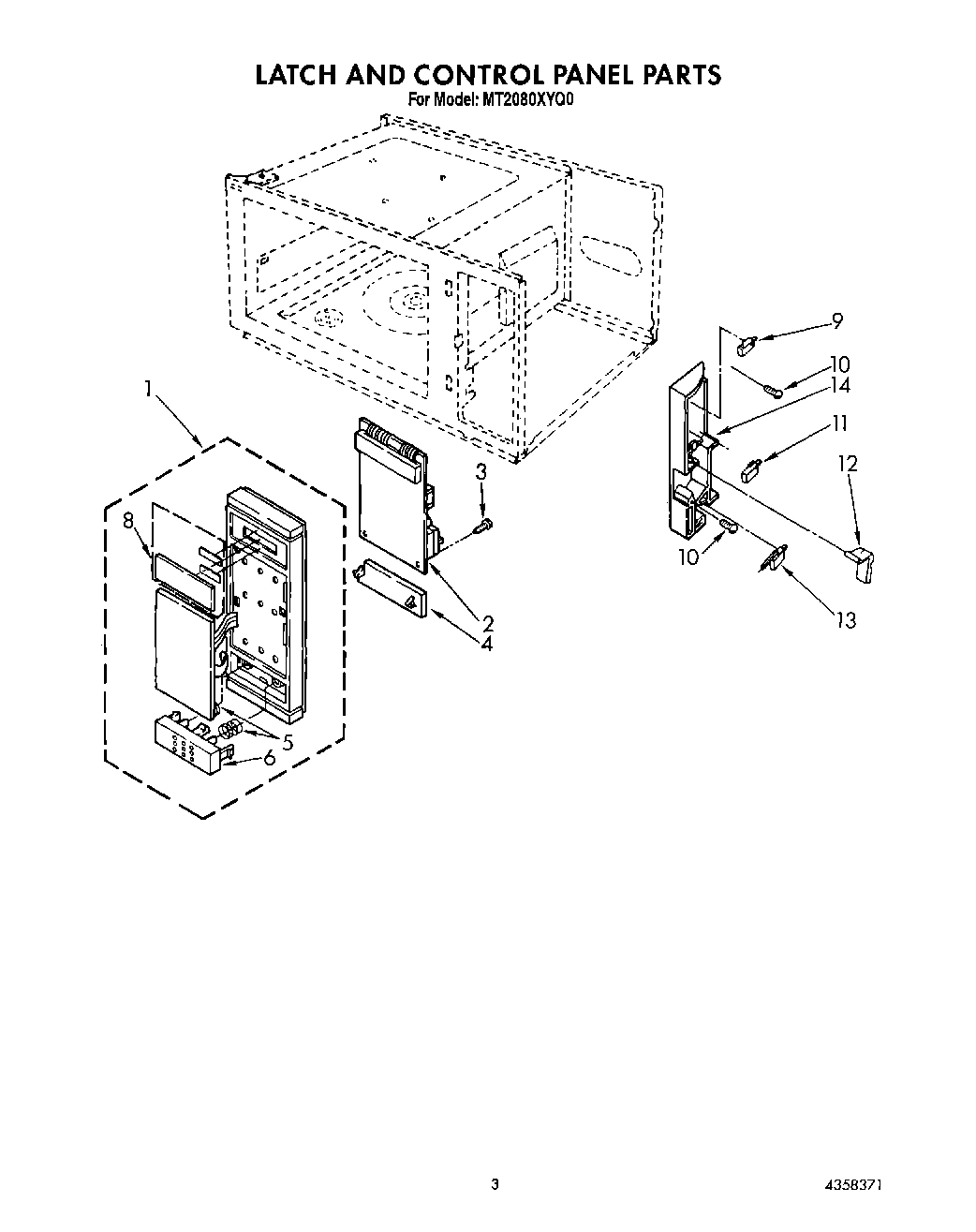

03 - SECTION
Common parts from model Whirlpool MT2080XYR0
Auto Set Chart WPL LIT4158701 Contact Us For Availability
Guide, Use And Care WPL LIT4358196 Contact Us For Availability
Tech Sheet WPL LIT4358226 Contact Us For Availability
Repair Parts List WPL LIT4358371 Contact Us For Availability
1
Cabinet Wrapper (Wood Grain Application) WPL 4158812 Contact Us For Availability
1
Cabinet Wrapper (White) WPL 4358128 Contact Us For Availability
1
Control Panel Complete (Wood Grain Applicatio WPL 4358325 Contact Us For Availability
1
Control Panel Complete (White) WPL 4358326 Contact Us For Availability
2
Screw No.4x12mm (4) WPL 4158084 Contact Us For Availability
2
Microcomputer WPL 4358302 Contact Us For Availability
3
Screw No.3x8mm (4) WPL 4158082 Contact Us For Availability
3
Screw 4 x 10 (2) WPL 4158076 Contact Us For Availability
4
Baseless Lamp WPL 4158586 Contact Us For Availability
4
Shaft, Turntable WPL 4158786 Contact Us For Availability
4
Lever, Release WPL 4158808 Contact Us For Availability
5
Spring, Release Button (2) WPL 4158178 Contact Us For Availability
5
Motor, Turntable WPL 4158782 Contact Us For Availability
6
Screw, No.4 x 8 WPL 4158791 Contact Us For Availability
6
Tray, Glass WPL 4158813 Contact Us For Availability
6
Release Button (Wood Grain Application) WPL 4158810 Contact Us For Availability
6
Release Button (White) WPL 4158960 Contact Us For Availability
7
Bracket, Fan WPL 4158797 Contact Us For Availability
7
Door, Complete (Wood Grain Application) WPL 4358319 Contact Us For Availability
7
Door, Complete (White) WPL 4358320 Contact Us For Availability
8
Motor, Fan WPL 4158796 Contact Us For Availability
8
Screw WPL 4158079 Contact Us For Availability
8
Digitron Window (Wood Grain Application) WPL 4358321 Contact Us For Availability
8
Digitron Window (White) WPL 4358322 Contact Us For Availability
9
Screw No.4x28mm (2) WPL 4158189 Contact Us For Availability
9
Cap, Air Guide WPL 4358094 Contact Us For Availability
10
Screw WPL 4358051 Contact Us For Availability
11
Guide, Air WPL 4358329 Contact Us For Availability
11
Roller, Table (3) WPL 4358370 Contact Us For Availability
12
Holder, Fuse WPL 4158761 Contact Us For Availability
12
Release Rod WPL 4158794 Contact Us For Availability
13
Fuse WPL 4358263 Contact Us For Availability
14
Hinge, Upper WPL 4158739 Contact Us For Availability
14
Latch Board WPL 4158792 Contact Us For Availability
15
Seal, Foam WPL 4158967 Contact Us For Availability
16
Air Duct WPL 4158801 Contact Us For Availability
17
Power Cord WPL 4158957 Contact Us For Availability
18
Transformer WPL 4358367 Contact Us For Availability
18
Cover, Turntable Motor WPL 4158783 Contact Us For Availability
19
Base, Turntable WPL 4358369 Contact Us For Availability
20
Wiring Harness WPL 4358324 Contact Us For Availability
21
Capacitor WPL 4358315 Contact Us For Availability
22
H.V. Cable WPL 4158897 Contact Us For Availability
23
Thermostat, Oven WPL 4158795 Contact Us For Availability
24
Bracket, Capacitor WPL 4158799 Contact Us For Availability
25
H.V. Cable WPL 4358368 Contact Us For Availability
26
Hinge, Lower WPL 4358125 Contact Us For Availability
27
Washer WPL 4158419 Contact Us For Availability
28
Foot, Left WPL 4358255 Contact Us For Availability
29
Screw WPL 4158472 Contact Us For Availability
30
Screw WPL 4158190 Contact Us For Availability
31
Foot, Right WPL 4339375 Contact Us For Availability
32
Bracket, Hinge WPL 4358093 Contact Us For Availability
39
Screw WPL 4158194 Contact Us For Availability
40
Washer WPL 4339419 Contact Us For Availability
× ![]()
