Model Whirlpool MT1195SGB0 – Common Parts & Diagrams
05 - OVEN INTERIOR, LITERATURE
06 - BASE PLATE

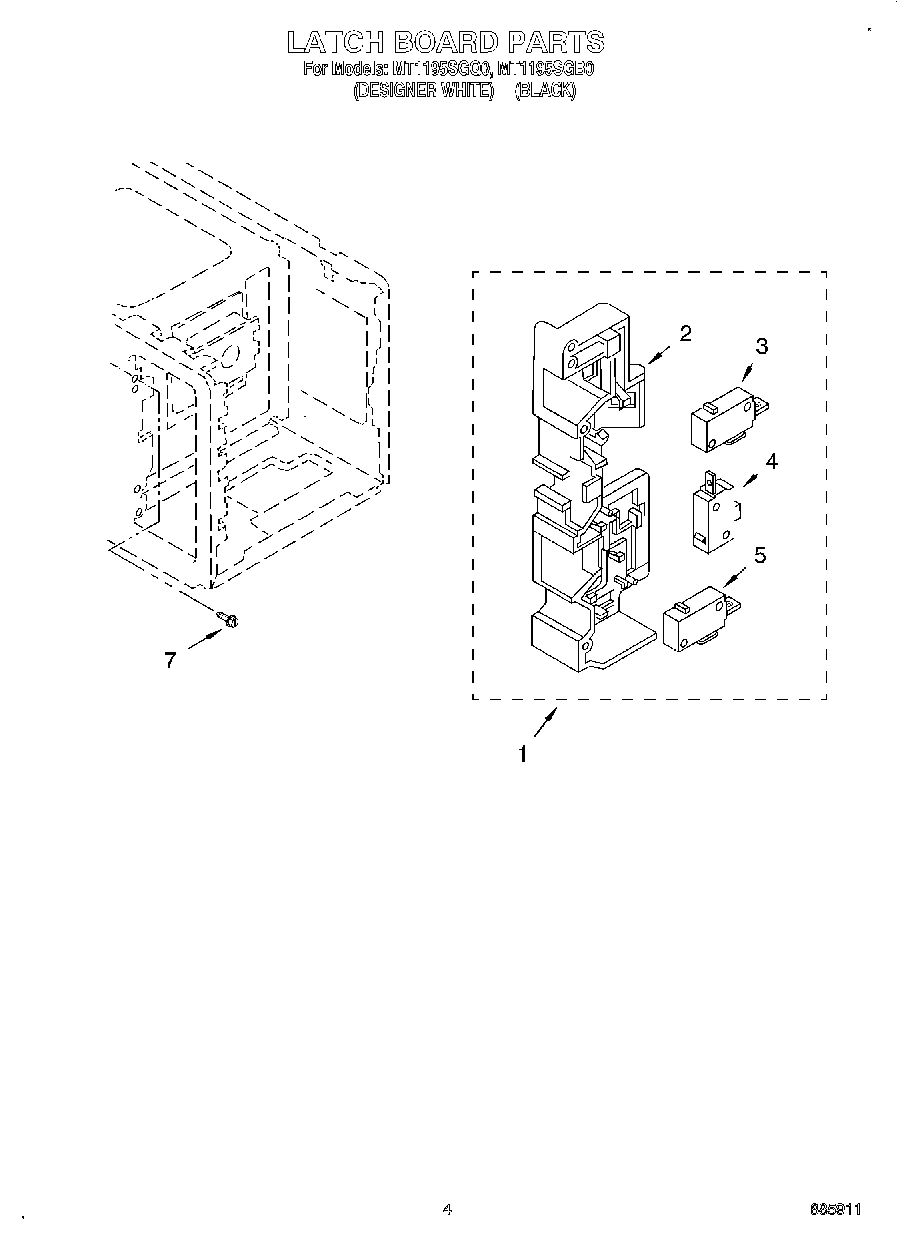

04 - LATCH BOARD

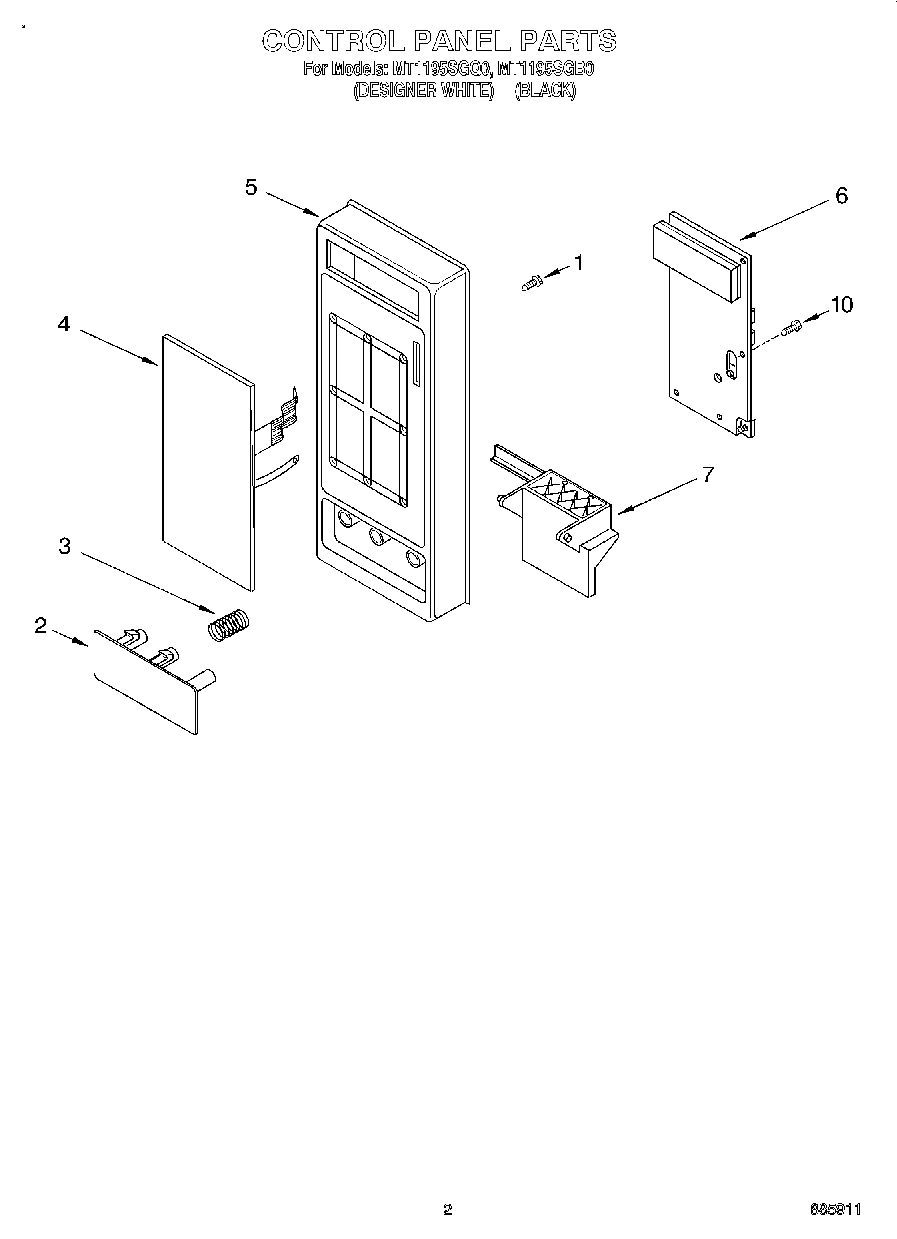

02 - CONTROL PANEL
01 - DOOR

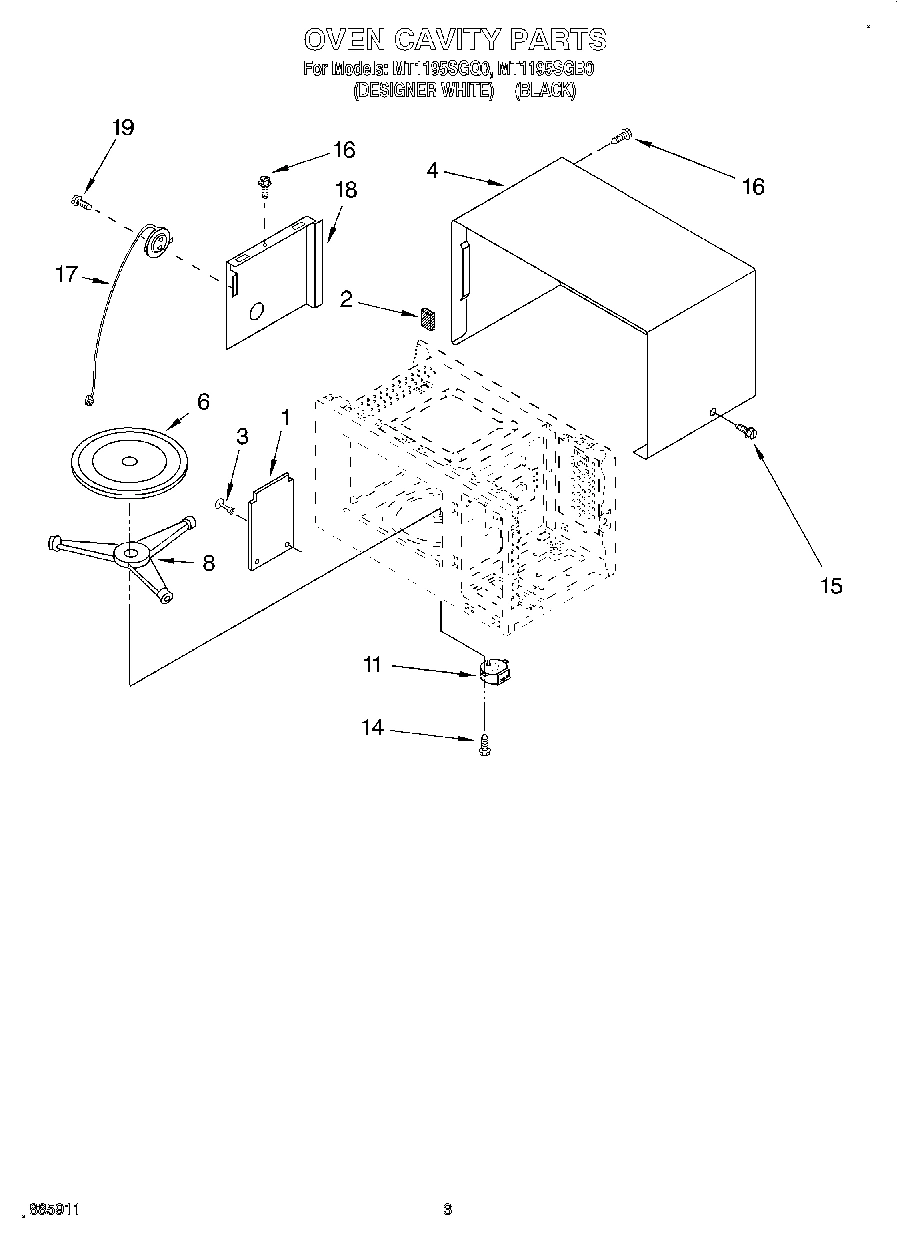

03 - OVEN CAVITY
Common parts from model Whirlpool MT1195SGB0
Tech Sheet WPL LIT4359838 Contact Us For Availability
1
Screw WPL 4358381 Contact Us For Availability
1
Base Plate (L) WPL 4359890 Contact Us For Availability
1
Latch Board Assembly (Not Serviceable) WPL ARI118849A Contact Us For Availability
1
Door Assembly (White) WPL 4359864 Contact Us For Availability
1
Door Assembly (Black) WPL 4359865 Contact Us For Availability
1
Canopy WPL 4359825 Contact Us For Availability
2
Guide, Suction WPL 4359158 Contact Us For Availability
2
Base Plate (R) WPL 4359889 Contact Us For Availability
2
Release Button (White) WPL 4359873 Contact Us For Availability
2
Release Button (Black) WPL 4359874 Contact Us For Availability
2
Front Screen WPL 4359866 Contact Us For Availability
2
Cushion WPL 4359781 Contact Us For Availability
3
Spring, Button WPL 4158178 Contact Us For Availability
3
Motor, Fan WPL 4359886 Contact Us For Availability
3
Leg WPL 4358857 Contact Us For Availability
3
Door Frame Assembly (White) WPL 4359867 Contact Us For Availability
3
Door Frame Assembly (Black) WPL 4359868 Contact Us For Availability
4
Capacitor, H.V. WPL 4359115 Contact Us For Availability
4
Transformer WPL 4359891 Contact Us For Availability
4
Key Membrane (White) WPL 4359875 Contact Us For Availability
4
Key Membrane (Black) WPL 4359876 Contact Us For Availability
4
Choke Cover WPL 4359869 Contact Us For Availability
4
Outer Case (White) WPL 4359881 Contact Us For Availability
4
Outer Case (Black) WPL 4359882 Contact Us For Availability
5
H.V.C. Bracket WPL 4359161 Contact Us For Availability
5
Control Panel (White) WPL 4359877 Contact Us For Availability
5
Control Panel (Black) WPL 4359878 Contact Us For Availability
5
Tape, Seal WPL 4359870 Contact Us For Availability
6
Leadwire Assembly WPL 4359887 Contact Us For Availability
6
P.C.B Sub Assembly WPL 4359879 Contact Us For Availability
6
Latch WPL 4359765 Contact Us For Availability
6
Tray, Glass WPL 4359883 Contact Us For Availability
7
Screw WPL 4358271 Contact Us For Availability
7
Lever, Release WPL 4359718 Contact Us For Availability
7
Spring, Latch WPL 4359707 Contact Us For Availability
8
Support, Turntable WPL 4359884 Contact Us For Availability
9
Power Cord WPL 4359342 Contact Us For Availability
9
Panel, Door (White) WPL 4359871 Contact Us For Availability
9
Panel, Door (Black) WPL 4359872 Contact Us For Availability
10
Thermostat WPL 4359164 Contact Us For Availability
10
Screw WPL 4358883 Contact Us For Availability
11
Lamp, Baseless WPL 4359741 Contact Us For Availability
11
Motor, Synchronous WPL 4359885 Contact Us For Availability
12
Cap, Fuse WPL 4358659 Contact Us For Availability
13
Magnetron WPL 4359119 Contact Us For Availability
14
Screw WPL 4358188 Contact Us For Availability
15
Cushion WPL 4359167 Contact Us For Availability
15
Duct, Air WPL 4359888 Contact Us For Availability
15
Screw (Black) WPL 4358829 Contact Us For Availability
17
Sensor WPL 4359892 Contact Us For Availability
18
Duct-Sensor WPL 4359893 Contact Us For Availability
19
Screw WPL 4358450 Contact Us For Availability
× ![]()
