Model Whirlpool MT1145SLB1 MICROWAVE OVEN 1.4 CUBIC FOOT – Common Parts & Diagrams

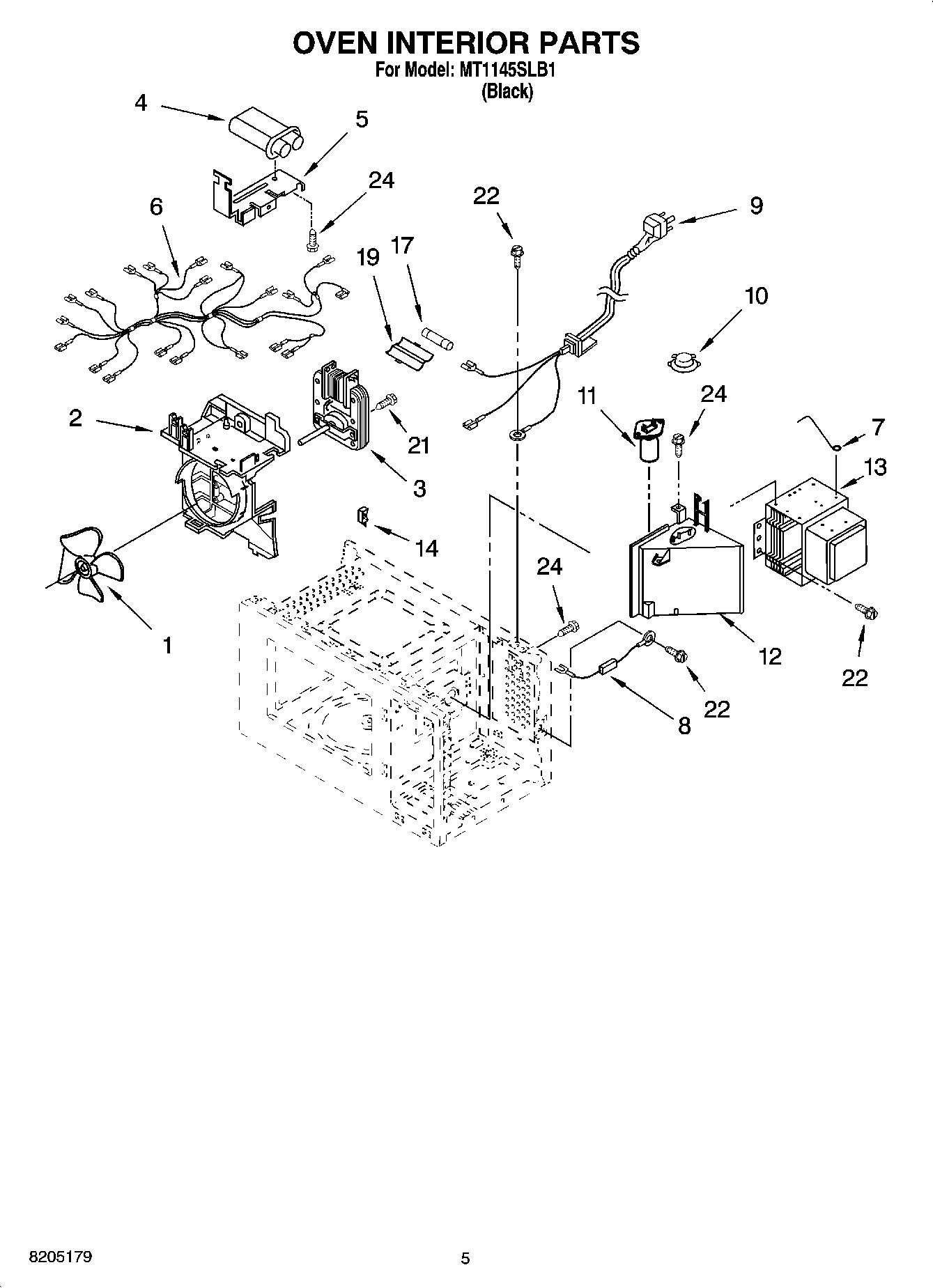

05 - OVEN INTERIOR PARTS

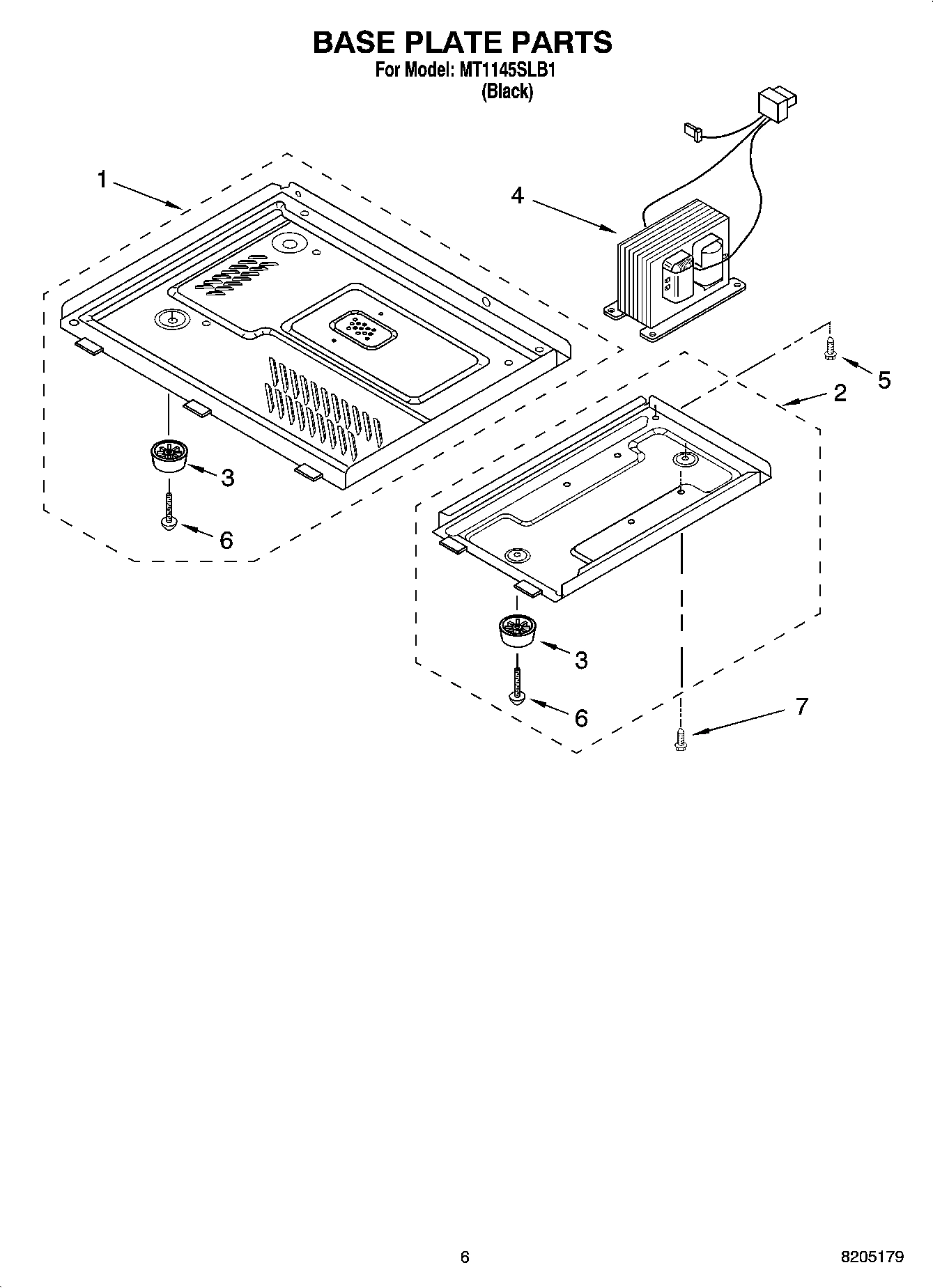

06 - BASE PLATE PARTS

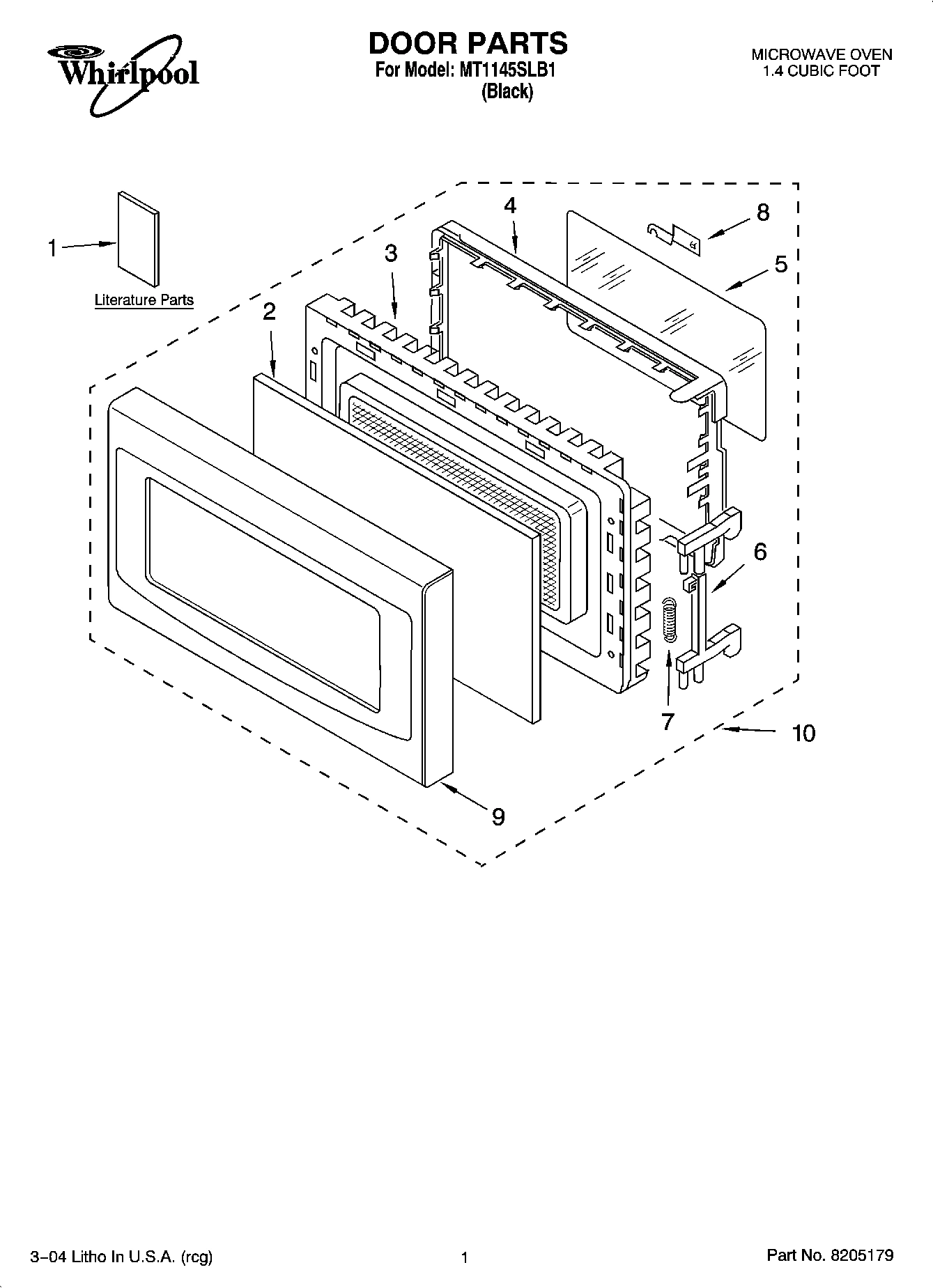

01 - DOOR PARTS

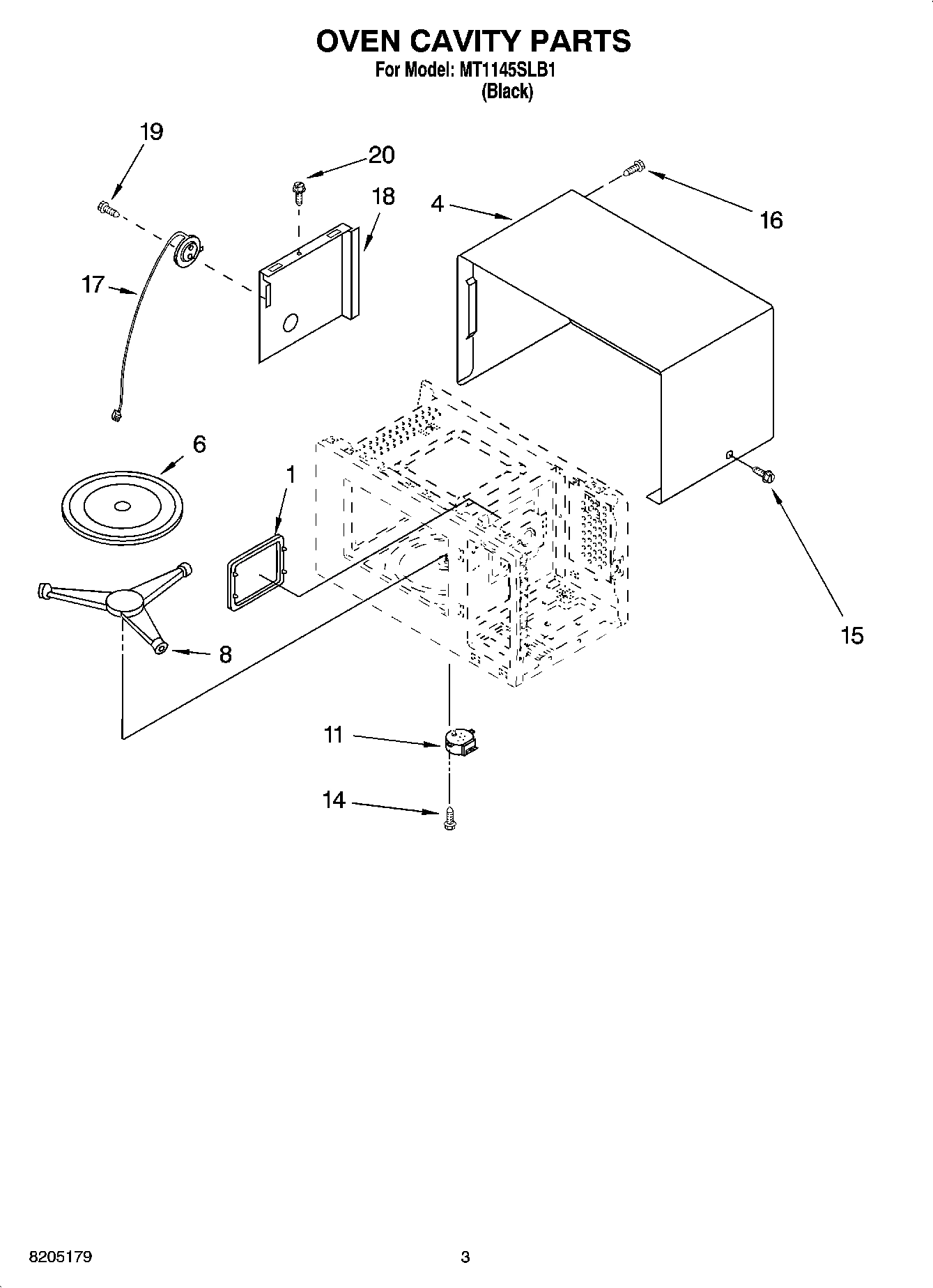

03 - OVEN CAVITY PARTS

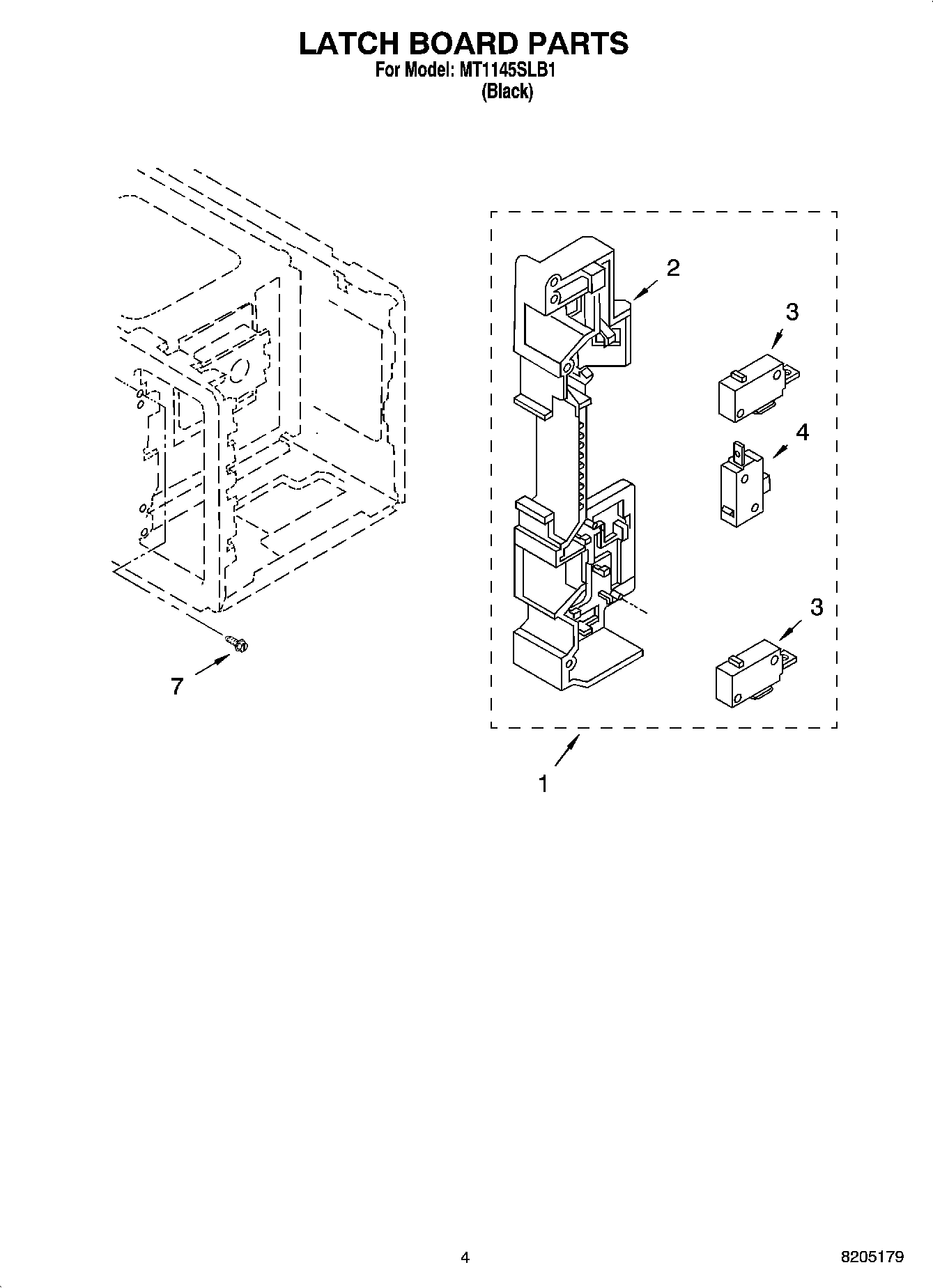

04 - LATCH BOARD PARTS

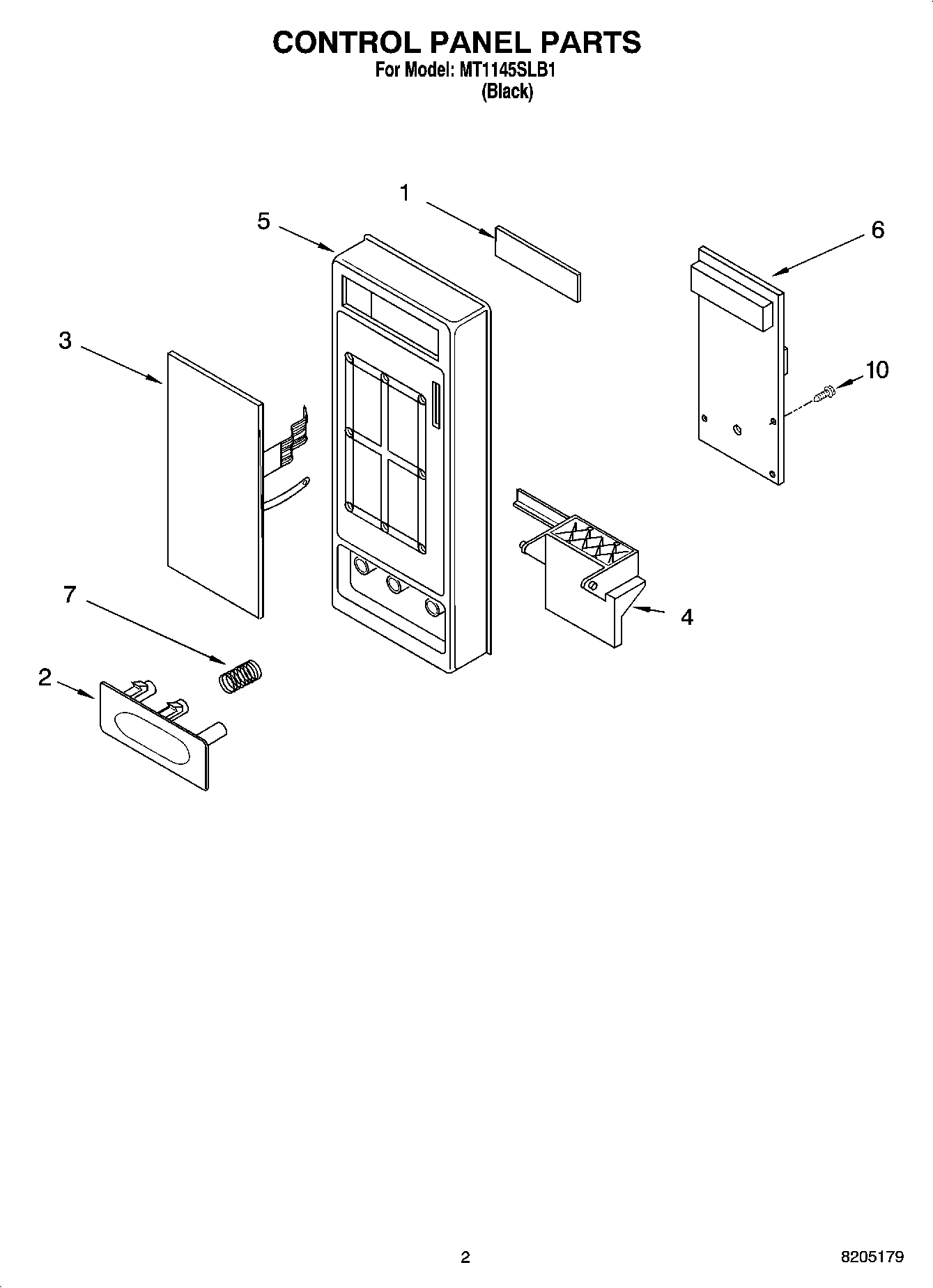

02 - CONTROL PANEL PARTS
Common parts from model Whirlpool MT1145SLB1 MICROWAVE OVEN 1.4 CUBIC FOOT
1
Base Plate (L) WPL 8172002 Contact Us For Availability
1
Literature Parts (Cook Guide Label) WPL LIT8172194 Contact Us For Availability
1
Literature Parts (Use & Care Guide) WPL LIT8184645 Contact Us For Availability
1
Literature Parts (Tech Sheet) WPL LIT8184646 Contact Us For Availability
1
Canopy WPL 8171935 Contact Us For Availability
1
Latch Board Assembly (Non-Serviceable) WPL ARI118846A Contact Us For Availability
1
Window WPL 4359720 Contact Us For Availability
2
Front Screen WPL 4359934 Contact Us For Availability
2
Base Plate (R) WPL 8172001 Contact Us For Availability
2
Button WPL 8184810 Contact Us For Availability
3
Motor, Fan WPL 8183767 Contact Us For Availability
3
Leg WPL 4358487 Contact Us For Availability
3
Door Frame Assembly WPL 4359761 Contact Us For Availability
3
Switch, Membrane WPL 8184808 Contact Us For Availability
4
Transformer WPL 8205102 Contact Us For Availability
4
Choke Cover WPL 4359763 Contact Us For Availability
4
Outer Case WPL 8183611 Contact Us For Availability
4
Lever, Release WPL 4359718 Contact Us For Availability
5
Tape, Seal WPL 4359764 Contact Us For Availability
5
Control Panel WPL 8184809 Contact Us For Availability
6
Screw WPL 4358381 Contact Us For Availability
6
Latch WPL 8205074 Contact Us For Availability
6
Microcomputer WPL 8184811 Contact Us For Availability
7
Spring WPL 4158178 Contact Us For Availability
7
Screw WPL 4358271 Contact Us For Availability
7
Spring, Latch WPL 4359707 Contact Us For Availability
8
Cap WPL 4359710 Contact Us For Availability
8
Turntable Support WPL 4359884 Contact Us For Availability
9
Power Cord WPL 8184339 Contact Us For Availability
9
Panel, Door WPL 8184807 Contact Us For Availability
10
Door Assembly WPL 8184805 Contact Us For Availability
10
Screw WPL 4358883 Contact Us For Availability
11
Lamp, Baseless WPL 4359741 Contact Us For Availability
14
Holder WPL 8184362 Contact Us For Availability
14
Screw WPL 4358188 Contact Us For Availability
15
Screw WPL 4358829 Contact Us For Availability
16
Screw WPL 8171862 Contact Us For Availability
17
Sensor WPL 8184814 Contact Us For Availability
18
Duct-Sensor WPL 8183515 Contact Us For Availability
19
Cap WPL 4358659 Contact Us For Availability
19
Screw WPL 4358450 Contact Us For Availability
21
Screw WPL 4358190 Contact Us For Availability
× ![]()
