Model Whirlpool MT1145SLB0 MICROWAVE – Common Parts & Diagrams

1

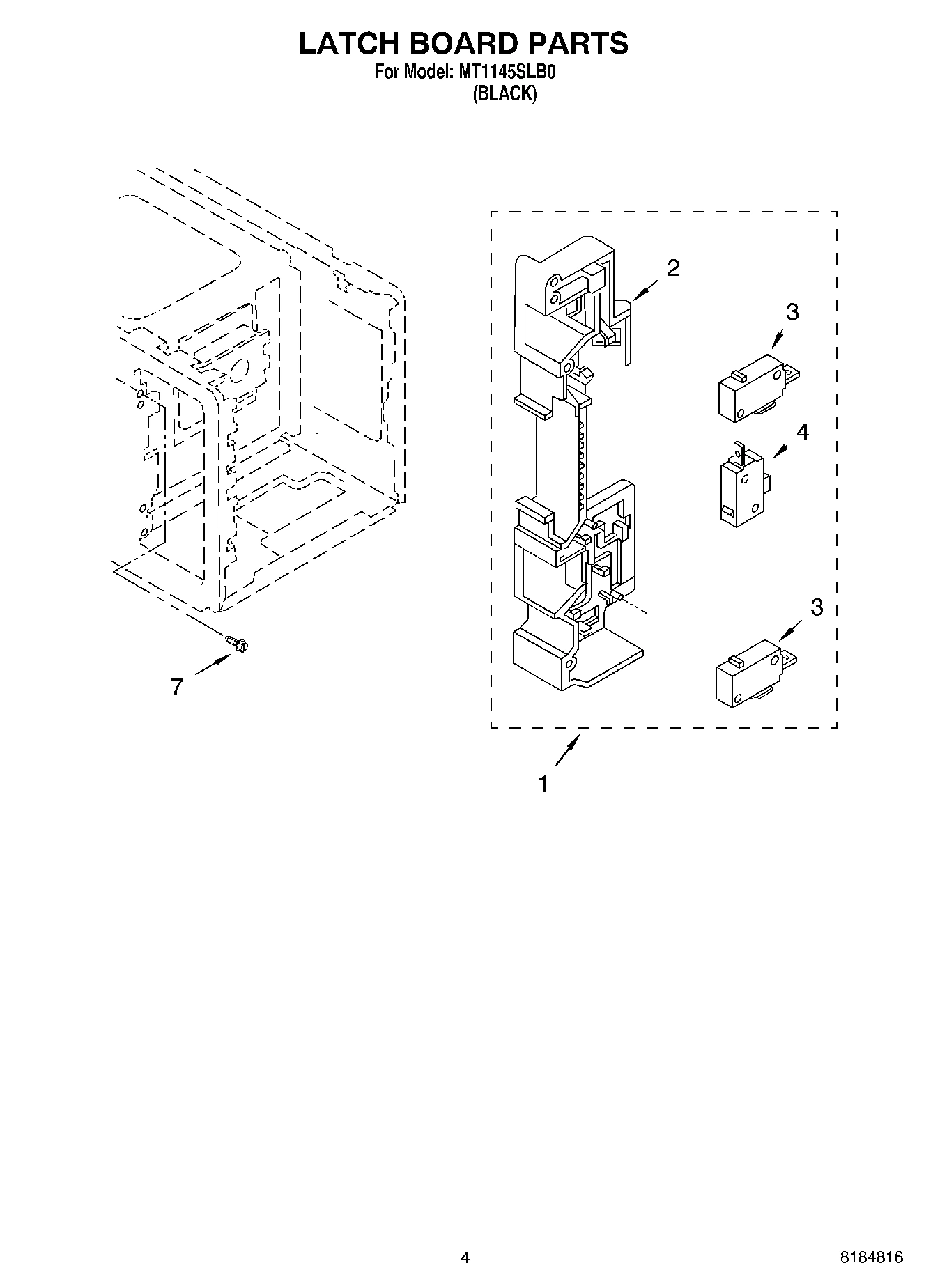

Latch Board Assembly (Non-Serviceable)
Latch Board Assembly (Non-Serviceable) WPL ARI118845A Contact Us For Availability
View on Model
1

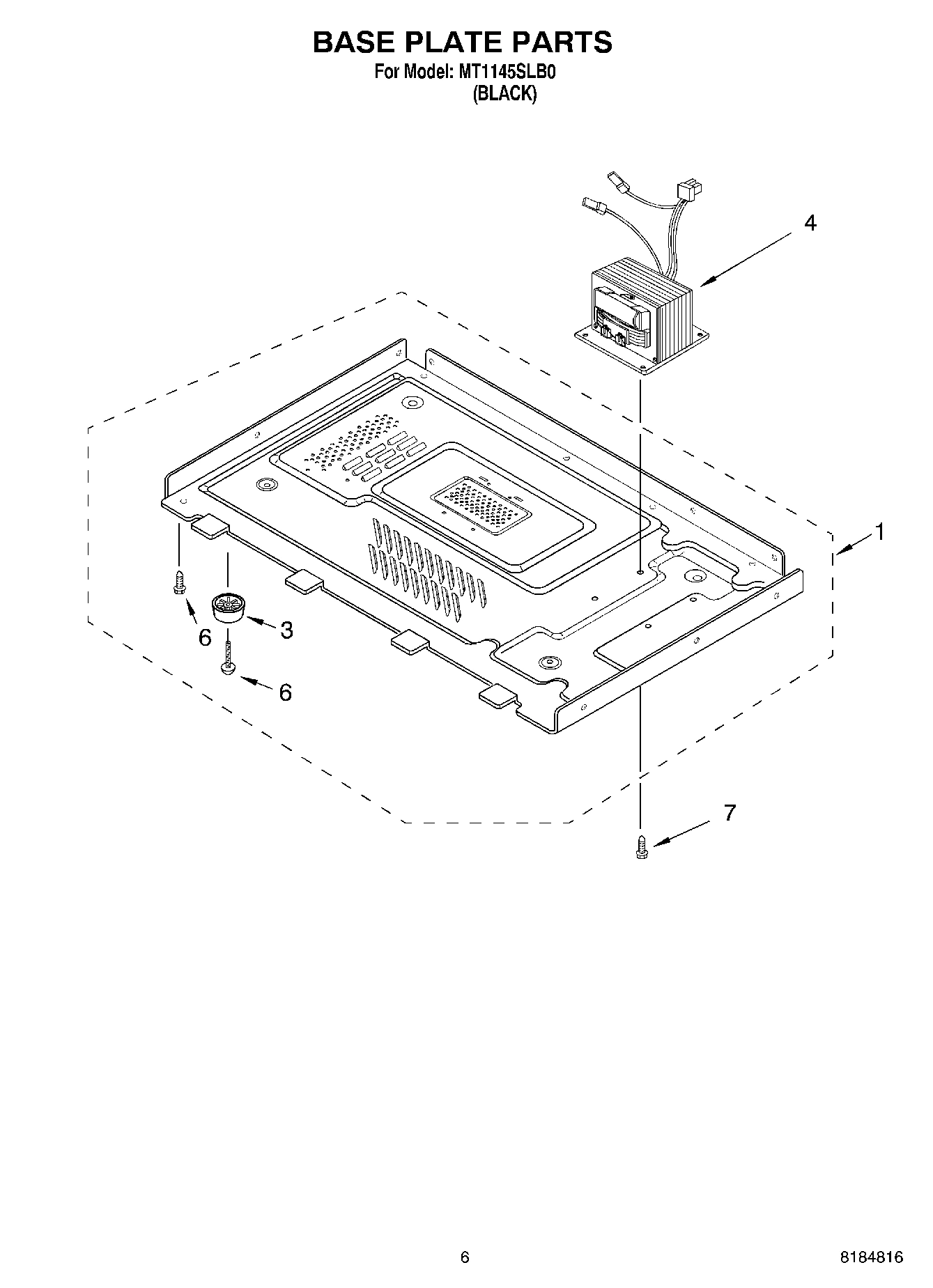

Base Plate
Base Plate WPL 8172002 Contact Us For Availability
View on Model
1
Literature Parts (Cook Guide Label)
Literature Parts (Cook Guide Label) WPL LIT8172194 Contact Us For Availability
View on Model
1
Literature Parts (Guide, U & C)
Literature Parts (Guide, U & C) WPL LIT8184645 Contact Us For Availability
View on Model
1
Literature Parts (Tech Sheet)
Literature Parts (Tech Sheet) WPL LIT8184646 Contact Us For Availability
View on Model
1
Window
Window WPL 4359720 Contact Us For Availability
View on Model
2
Front Screen
Front Screen WPL 4359934 Contact Us For Availability
View on Model
2
Guide, Suction
Guide, Suction WPL 4359158 Contact Us For Availability
View on Model
2
Button
Button WPL 8184810 Contact Us For Availability
View on Model
3
Motor, Fan
Motor, Fan WPL 4359886 Contact Us For Availability
View on Model
3
Leg
Leg WPL 4358487 Contact Us For Availability
View on Model
3
Door Frame Assembly
Door Frame Assembly WPL 4359761 Contact Us For Availability
View on Model
3
Switch, Membrane
Switch, Membrane WPL 8184808 Contact Us For Availability
View on Model
4
Transformer
Transformer WPL 8171809 Contact Us For Availability
View on Model
4
Choke Cover
Choke Cover WPL 4359763 Contact Us For Availability
View on Model
4
Lever, Release
Lever, Release WPL 4359718 Contact Us For Availability
View on Model
5
H.V.C. Bracket
H.V.C. Bracket WPL 4359161 Contact Us For Availability
View on Model
5
Tape, Seal
Tape, Seal WPL 4359764 Contact Us For Availability
View on Model
5

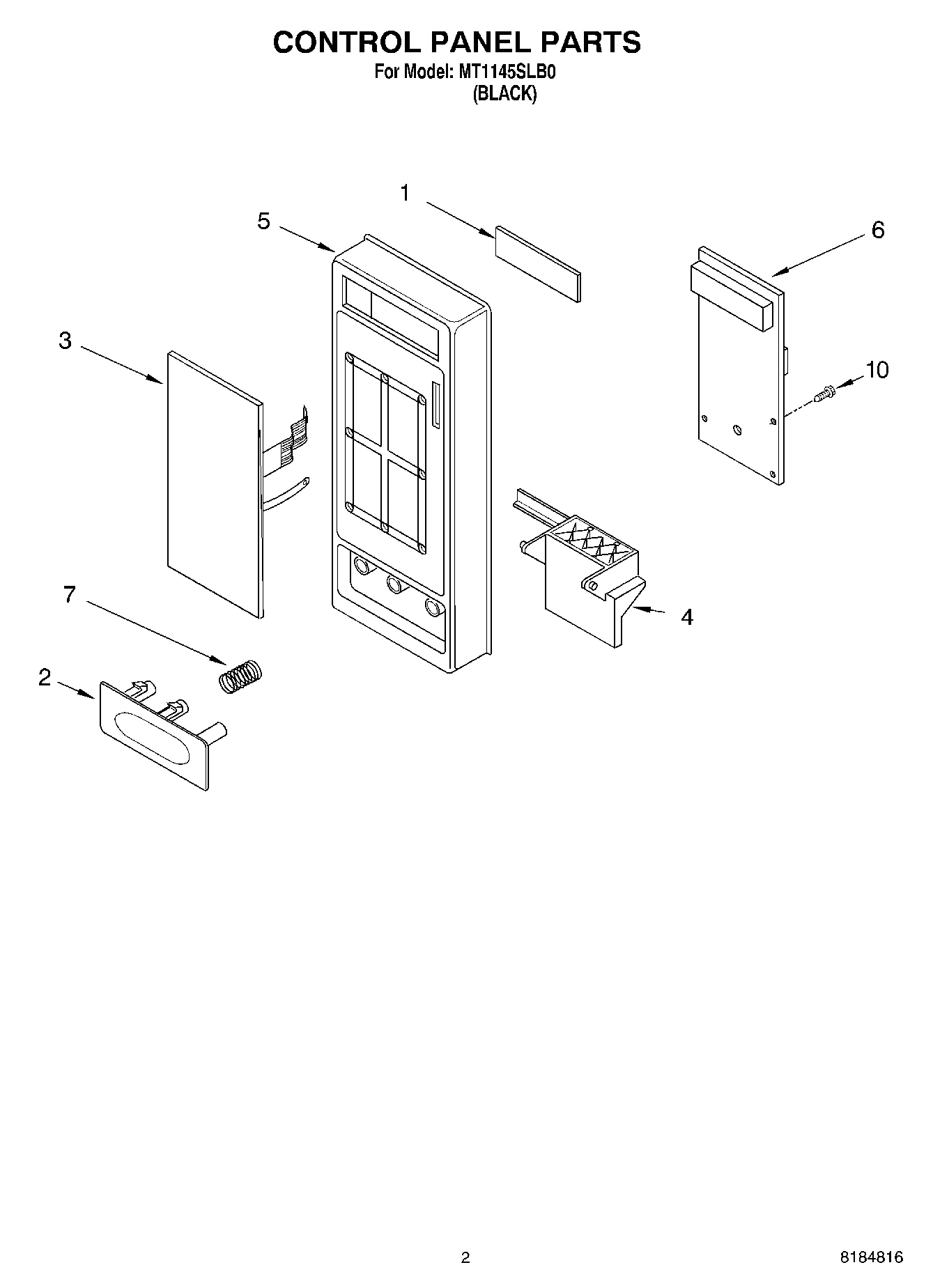

Control Panel
Control Panel WPL 8184809 Contact Us For Availability
View on Model
6
Leadwire Assembly
Leadwire Assembly WPL 8183526 Contact Us For Availability
View on Model
6
Latch
Latch WPL 4359765 Contact Us For Availability
View on Model
6
Microcomputer
Microcomputer WPL 8184811 Contact Us For Availability
View on Model
7
Spring
Spring WPL 4158178 Contact Us For Availability
View on Model
7
Screw
Screw WPL 4358271 Contact Us For Availability
View on Model
7
Bracket, Support
Bracket, Support WPL 8184337 Contact Us For Availability
View on Model
7
Spring, Latch
Spring, Latch WPL 4359707 Contact Us For Availability
View on Model
8
Cap
Cap WPL 4359710 Contact Us For Availability
View on Model
9
Power Cord
Power Cord WPL 8184339 Contact Us For Availability
View on Model
9
Panel, Door
Panel, Door WPL 8184807 Contact Us For Availability
View on Model
10
Thermostat
Thermostat WPL 8183524 Contact Us For Availability
View on Model
10

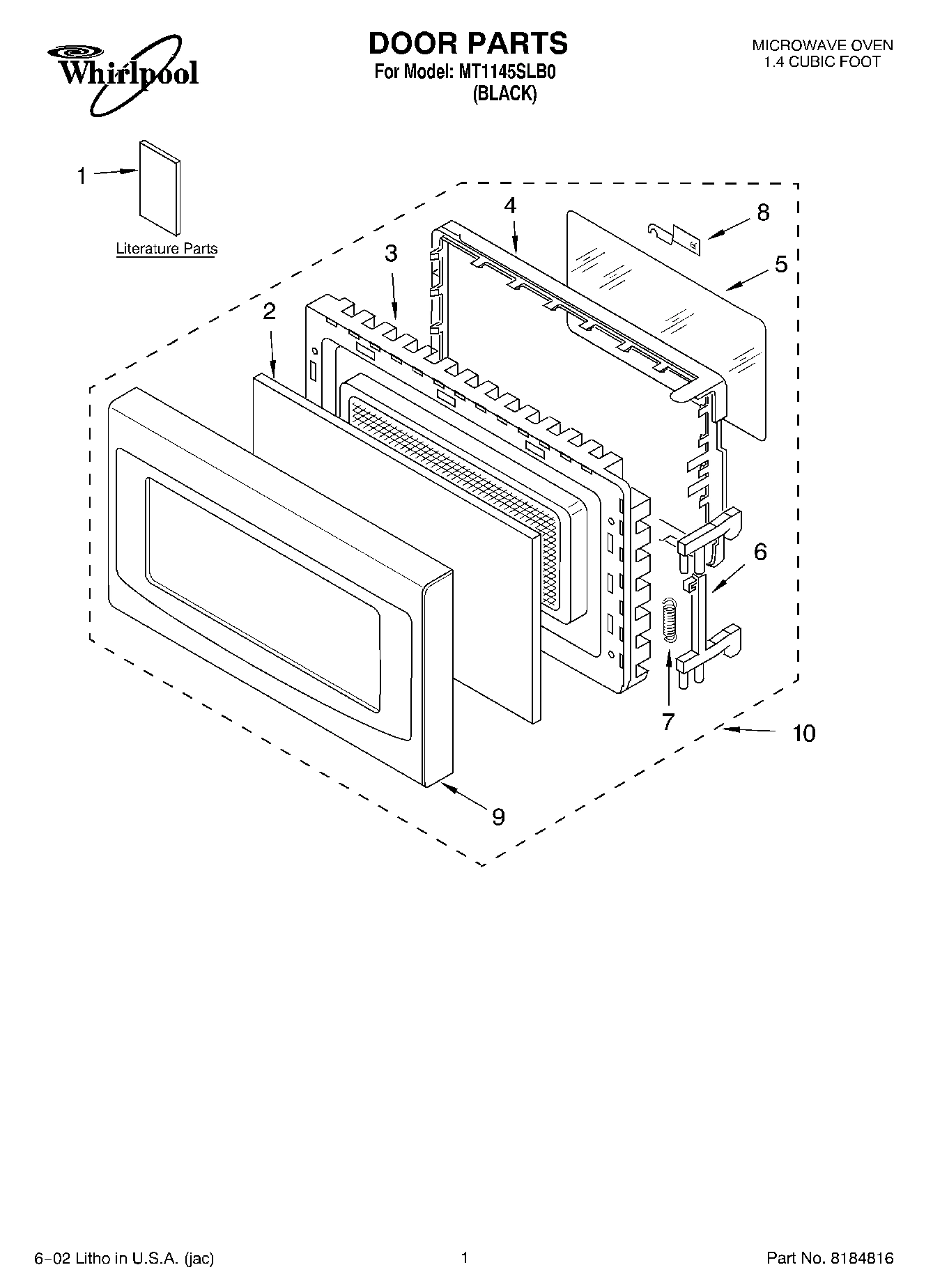

Door Assembly
Door Assembly WPL 8184805 Contact Us For Availability
View on Model
10
Screw
Screw WPL 4358883 Contact Us For Availability
View on Model
11
Lamp, Baseless
Lamp, Baseless WPL 4359741 Contact Us For Availability
View on Model
12
Duct, Air
Duct, Air WPL 8171808 Contact Us For Availability
View on Model
14
Holder
Holder WPL 4359794 Contact Us For Availability
View on Model
18
Duct-Sensor
Duct-Sensor WPL 8183515 Contact Us For Availability
View on Model
19
Screw
Screw WPL 4358450 Contact Us For Availability
View on Model
19
Cap
Cap WPL 4358659 Contact Us For Availability
View on Model
21
Screw
Screw WPL 4358190 Contact Us For Availability
View on Model
24
Screw
Screw WPL 4358381 Contact Us For Availability
View on Model
