Model Whirlpool MT1130SGZ0 – Common Parts & Diagrams
03 - OVEN CAVITY
04 - LATCH BOARD

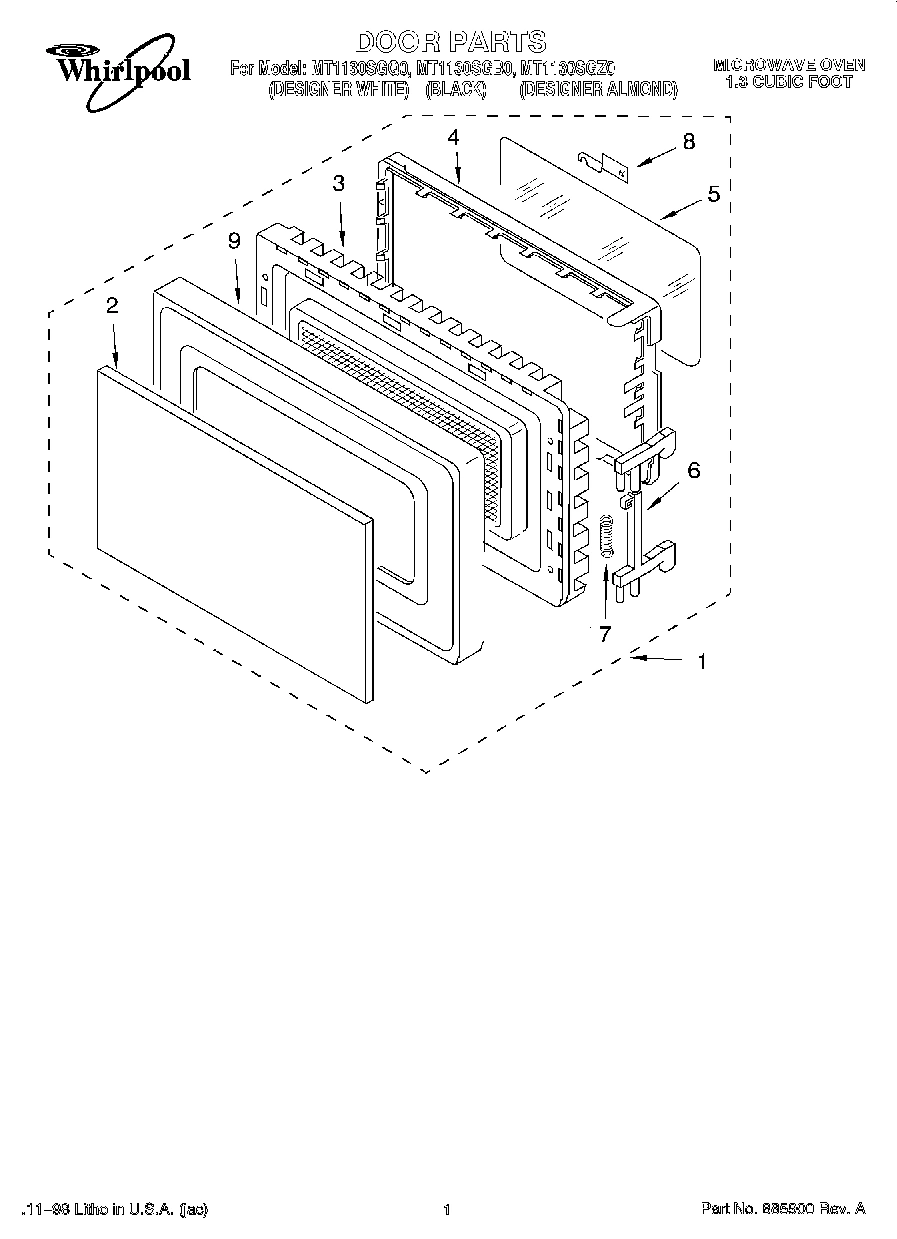

01 - DOOR

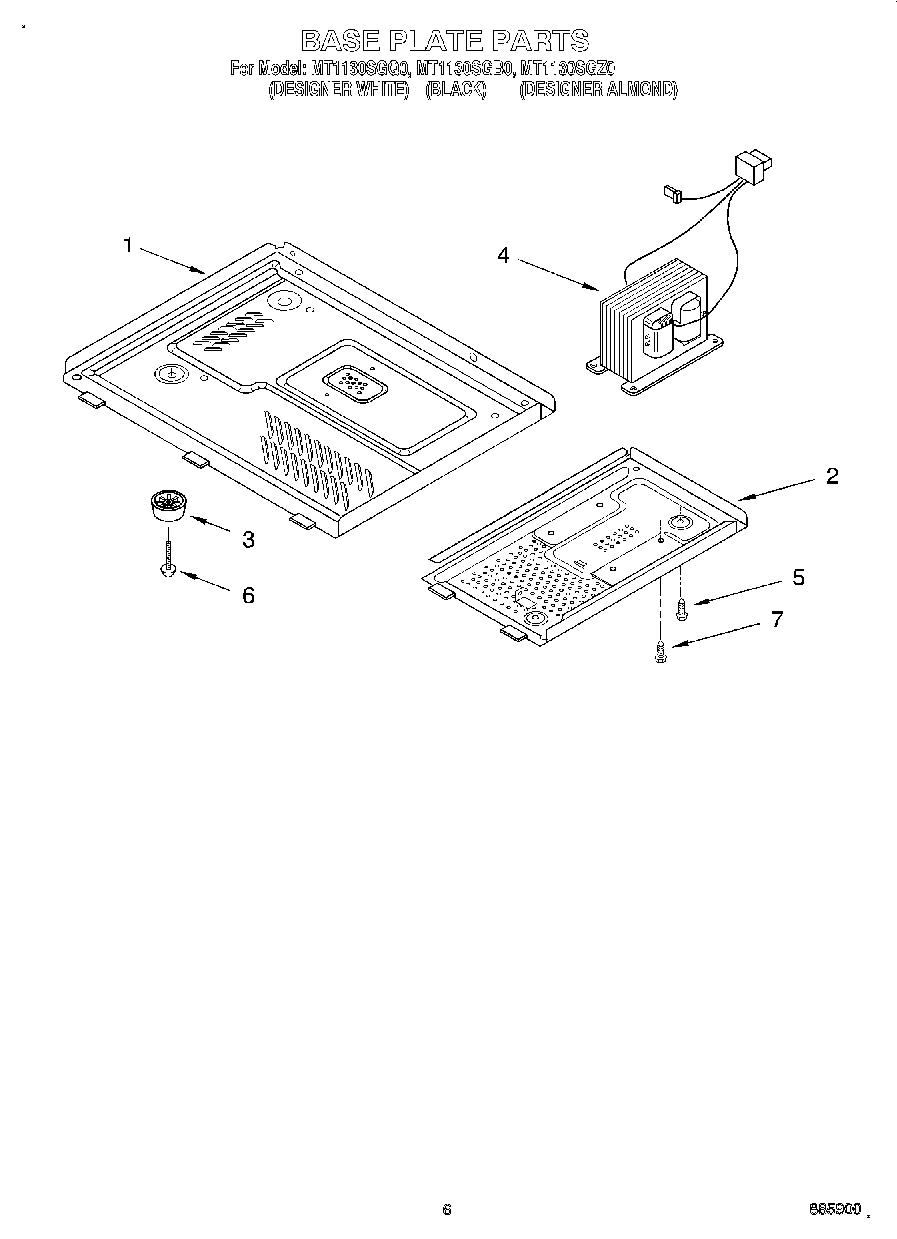

06 - BASE PLATE

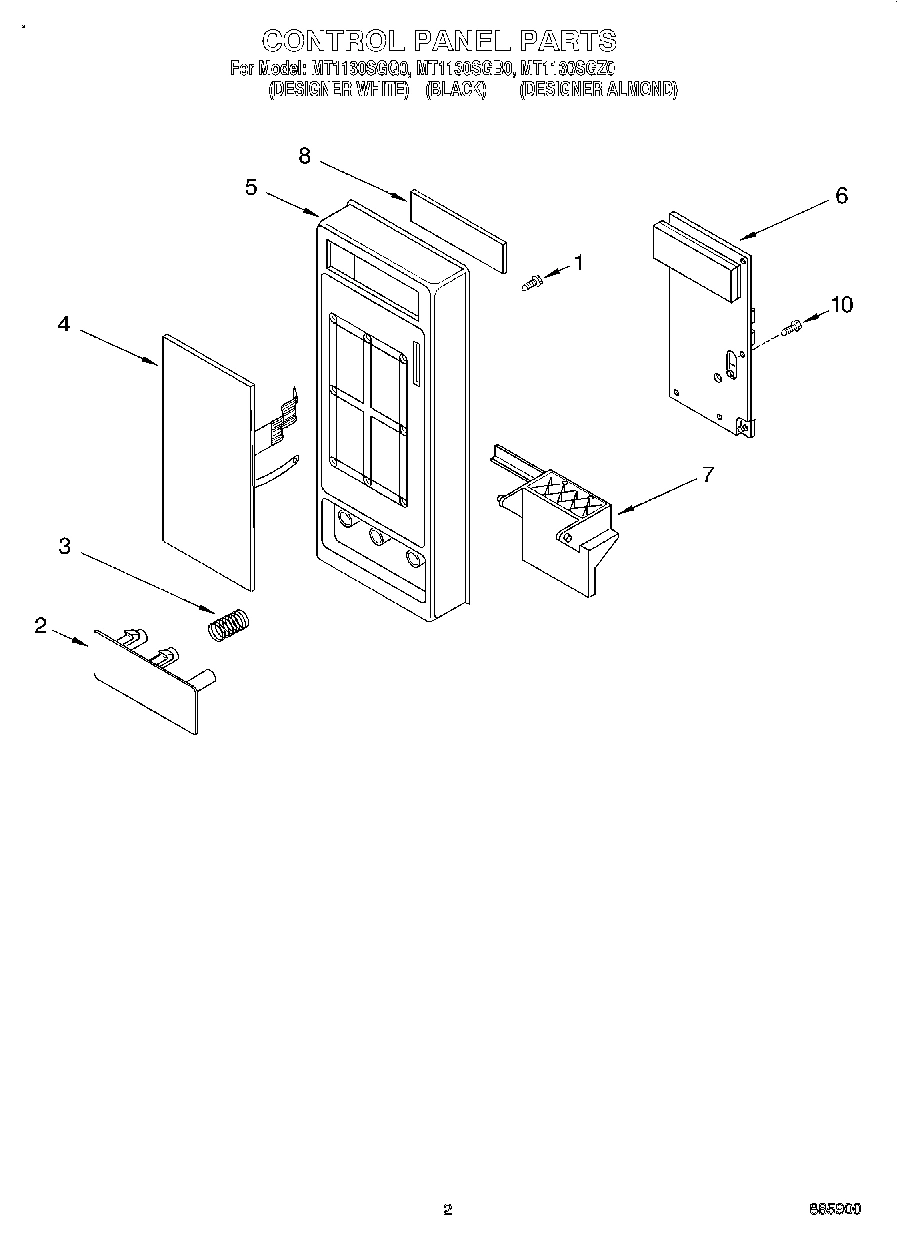

02 - CONTROL PANEL

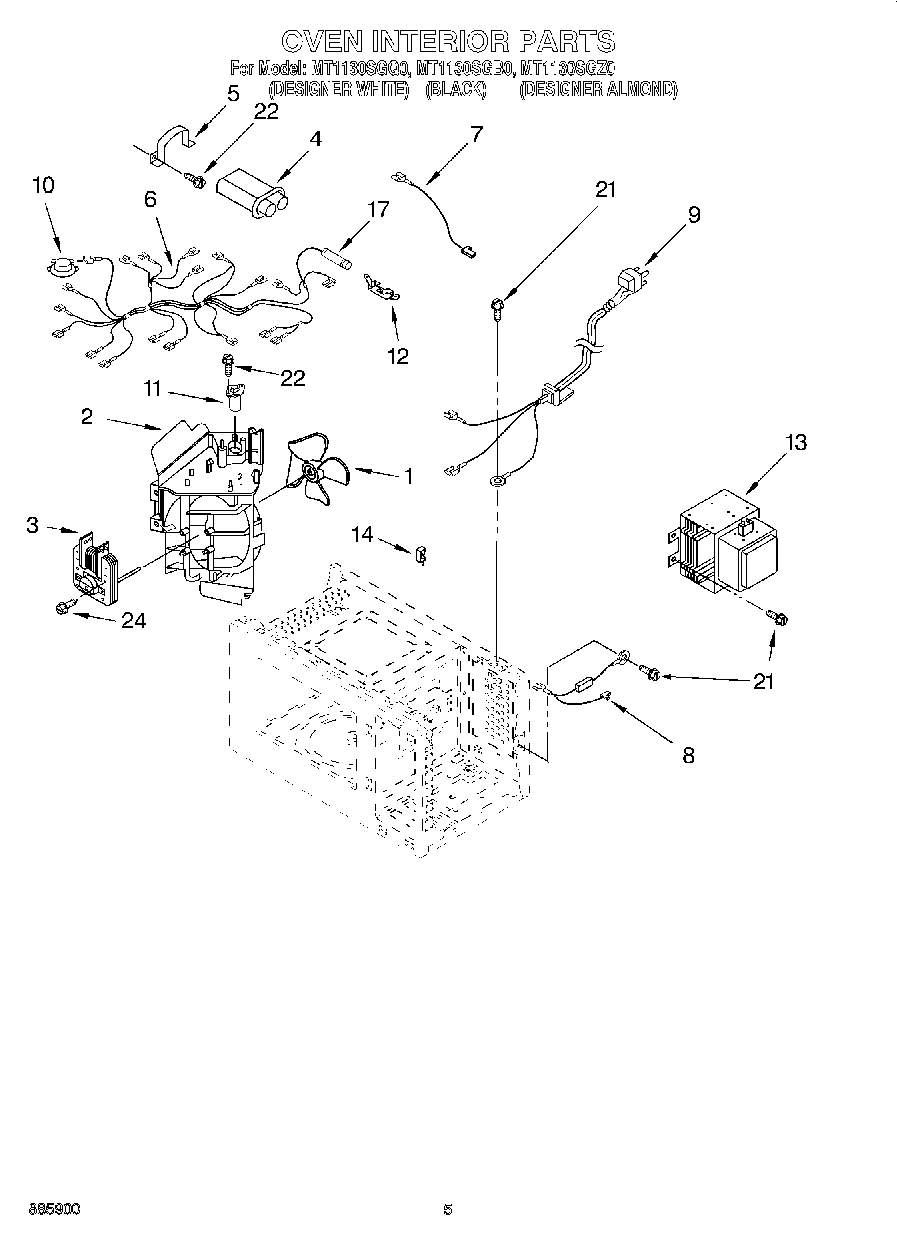

05 - OVEN INTERIOR, LITERATURE
Common parts from model Whirlpool MT1130SGZ0
Use & Care Guide WPL LIT4359603 Contact Us For Availability
Cook Guide Label WPL LIT4359628 Contact Us For Availability
Tech Sheet WPL LIT4359672 Contact Us For Availability
Installation/Instructions Trim Kits (30``) WPL LIT4359691 Contact Us For Availability
Installation/Instructions Trim Kits (27``) WPL LIT4359692 Contact Us For Availability
Installation/Instructions Trim Kits (24``) WPL LIT4359693 Contact Us For Availability
1
Canopy WPL 4359777 Contact Us For Availability
1
Latch Board Assembly (Not Serviceable) WPL ARI118841A Contact Us For Availability
1
Door Assembly (White Model) WPL 4359752 Contact Us For Availability
1
Door Assembly (Black Model) WPL 4359753 Contact Us For Availability
1
Door Assembly (Almond Model) WPL 4359754 Contact Us For Availability
1
Base Plate (L) WPL 4359798 Contact Us For Availability
1
Propeller WPL 4358379 Contact Us For Availability
2
Front Screen (White Model) WPL 4359757 Contact Us For Availability
2
Front Screen (Black Model) WPL 4359758 Contact Us For Availability
2
Front Screen (Almond Model) WPL 4359759 Contact Us For Availability
2
Base Plate (R) WPL 4359795 Contact Us For Availability
2
Release Button (White Model) WPL 4359767 Contact Us For Availability
2
Release Button (Black Model) WPL 4359768 Contact Us For Availability
2
Release Button (Almond Model) WPL 4359769 Contact Us For Availability
2
Guide, Suction WPL 4359786 Contact Us For Availability
3
Spring, Button WPL 4158178 Contact Us For Availability
3
Door Frame Assembly (White Model) WPL 4359760 Contact Us For Availability
3
Door Frame Assembly (Black Model) WPL 4359761 Contact Us For Availability
3
Door Frame Assembly (Almond Model) WPL 4359762 Contact Us For Availability
3
Leg WPL 4358487 Contact Us For Availability
3
Motor, Fan WPL 4359787 Contact Us For Availability
4
Outer Case (Almond) WPL 4359928 Contact Us For Availability
4
Choke Cover WPL 4359763 Contact Us For Availability
4
Transformer WPL 4359796 Contact Us For Availability
4
Key Membrane (White Model) WPL 4359770 Contact Us For Availability
4
Key Membrane (Black Model) WPL 4359771 Contact Us For Availability
4
Key Membrane (Almond Model) WPL 4359772 Contact Us For Availability
4
H.V. Capacitor WPL 4359221 Contact Us For Availability
5
Cushion WPL 4359781 Contact Us For Availability
5
Tape, Seal WPL 4359764 Contact Us For Availability
5
Control Panel (White Model) WPL 4359773 Contact Us For Availability
5
Control Panel (Black Model) WPL 4359774 Contact Us For Availability
5
Control Panel (Almond Model (Also, Order Key WPL 4359775 Contact Us For Availability
5
H.V.C Bracket WPL 4359797 Contact Us For Availability
6
Latch WPL 4359765 Contact Us For Availability
6
P.C.B Sub Assembly WPL 4359743 Contact Us For Availability
6
Leadwire Assembly WPL 4359790 Contact Us For Availability
7
Cushion WPL 4359778 Contact Us For Availability
7
Screw WPL 4358051 Contact Us For Availability
7
Spring, Latch WPL 4359707 Contact Us For Availability
7
Lever, Release WPL 4359718 Contact Us For Availability
7
H.V. Cable Ass`y WPL 4359501 Contact Us For Availability
8
Support, Turntable WPL 4359782 Contact Us For Availability
8
Cap WPL 4359710 Contact Us For Availability
8
Window WPL 4359776 Contact Us For Availability
9
Panel, Door WPL 4359766 Contact Us For Availability
9
Power Cord WPL 4359793 Contact Us For Availability
10
Screw WPL 4358883 Contact Us For Availability
10
Thermostat WPL 4359164 Contact Us For Availability
11
Motor, Synchronous WPL 4359499 Contact Us For Availability
11
Lamp, Baseless WPL 4359788 Contact Us For Availability
12
Holder, Fuse WPL 4359789 Contact Us For Availability
13
Lead Wire Assy WPL 4359784 Contact Us For Availability
13
Magnetron WPL 4359119 Contact Us For Availability
14
Screw WPL 4358188 Contact Us For Availability
14
Holder WPL 4359794 Contact Us For Availability
21
Screw WPL 4358381 Contact Us For Availability
× ![]()
