Model Whirlpool MT1111SKQ0 MICROWAVE – Common Parts & Diagrams

1
Canopy
Canopy WPL 8184278 Contact Us For Availability
View on Model
1
Window
Window WPL 4359720 Contact Us For Availability
View on Model
1

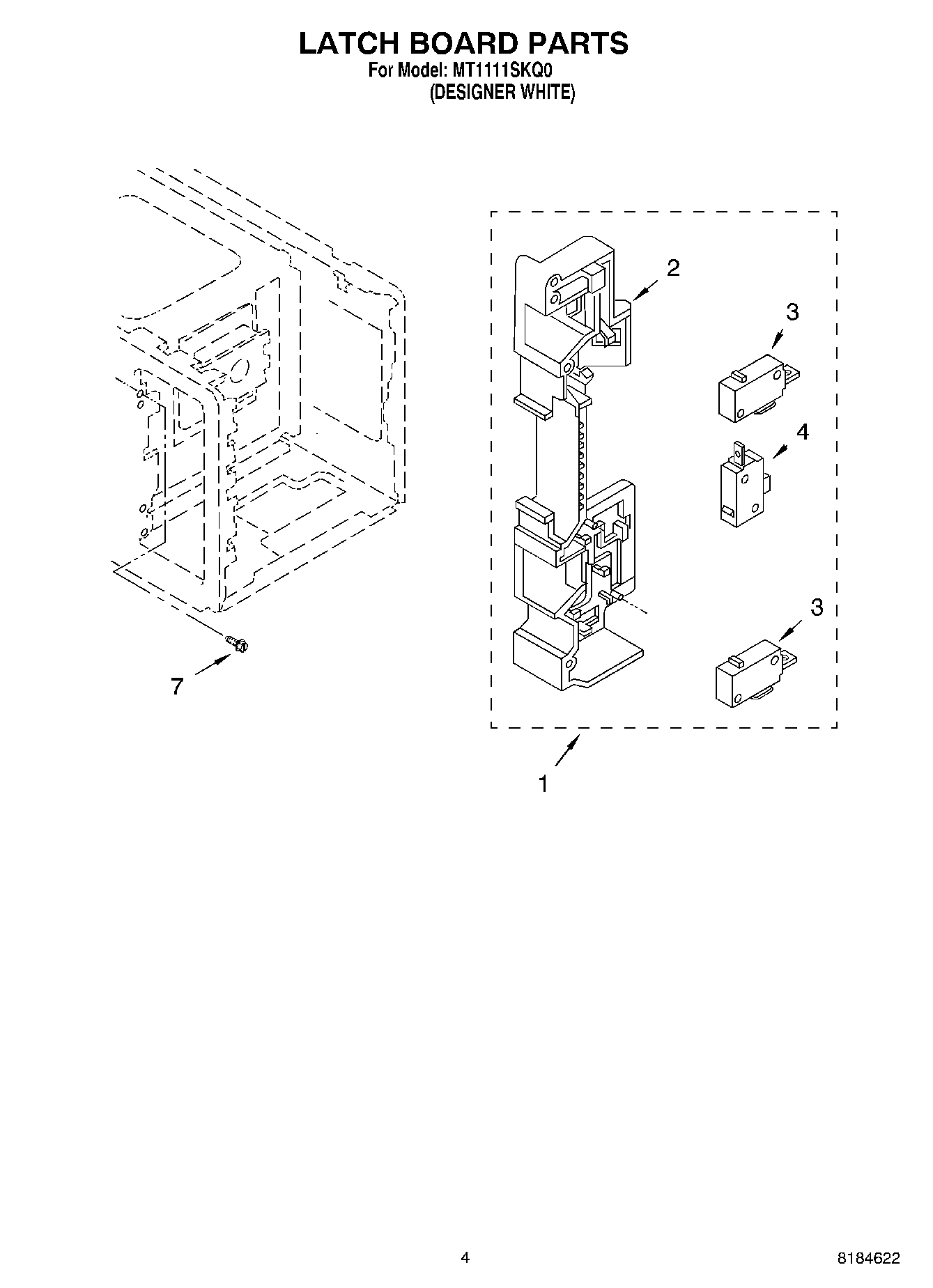

Latch Board Assembly (Non-Serviceable)
Latch Board Assembly (Non-Serviceable) WPL ARI118836A Contact Us For Availability
View on Model
1

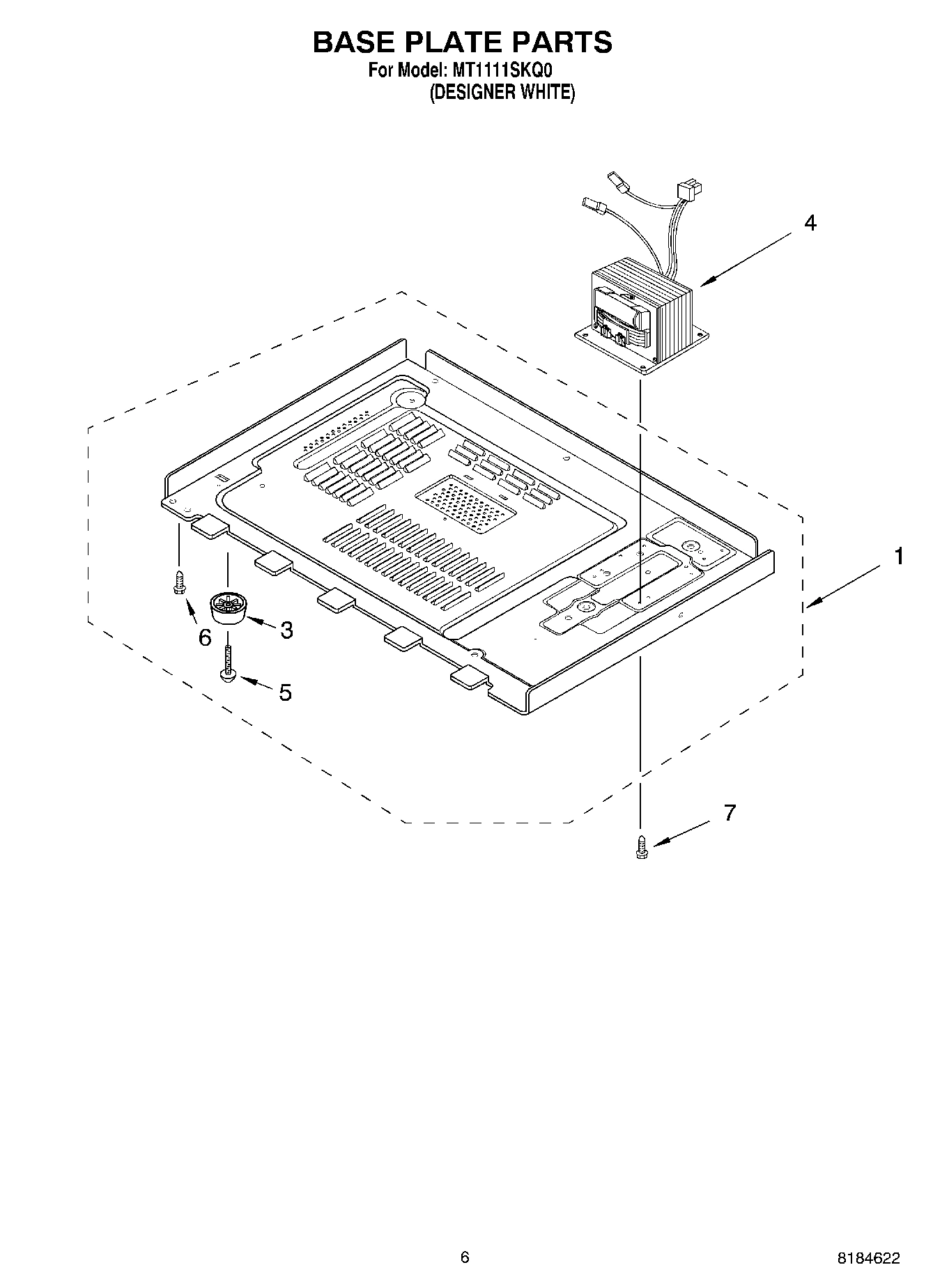

Base Plate
Base Plate WPL 8184297 Contact Us For Availability
View on Model
2
BUTTON
BUTTON WPL 8184630 Contact Us For Availability
View on Model
2
Latch Board
Latch Board WPL 8184284 Contact Us For Availability
View on Model
2
Guide, Suction
Guide, Suction WPL 8184289 Contact Us For Availability
View on Model
3
Motor, Fan
Motor, Fan WPL 8183767 Contact Us For Availability
View on Model
3
Switch, Membrane
Switch, Membrane WPL 8184627 Contact Us For Availability
View on Model
3
Leg
Leg WPL 8184298 Contact Us For Availability
View on Model
4
Lever, Release
Lever, Release WPL 8184269 Contact Us For Availability
View on Model
4
Transformer
Transformer WPL 8184620 Contact Us For Availability
View on Model
4
Outer Case
Outer Case WPL 8184280 Contact Us For Availability
View on Model
4
H.V. Capacitor
H.V. Capacitor WPL 8184619 Contact Us For Availability
View on Model
5
Control Panel
Control Panel WPL 8184629 Contact Us For Availability
View on Model
5
H.V.C Bracket
H.V.C Bracket WPL 8184288 Contact Us For Availability
View on Model
6
Latch
Latch WPL 8184263 Contact Us For Availability
View on Model
6
Microcomputer
Microcomputer WPL 8184628 Contact Us For Availability
View on Model
6
Tray, Glass
Tray, Glass WPL 8171807 Contact Us For Availability
View on Model
6
Leadwire Assembly
Leadwire Assembly WPL 8184621 Contact Us For Availability
View on Model
7
Spring, Latch
Spring, Latch WPL 8171918 Contact Us For Availability
View on Model
7
Screw
Screw WPL 4358271 Contact Us For Availability
View on Model
7
Bracket, Support
Bracket, Support WPL 8184290 Contact Us For Availability
View on Model
8
Cap
Cap WPL 8184265 Contact Us For Availability
View on Model
8
Turntable Support
Turntable Support WPL 8184282 Contact Us For Availability
View on Model
9
Power Cord
Power Cord WPL 8184294 Contact Us For Availability
View on Model
10
Screw
Screw WPL 4358883 Contact Us For Availability
View on Model
10
Thermostat
Thermostat WPL 4359164 Contact Us For Availability
View on Model
11
Motor, Synchronous
Motor, Synchronous WPL 8184283 Contact Us For Availability
View on Model
11
Lamp, Baseless
Lamp, Baseless WPL 8171810 Contact Us For Availability
View on Model
12
Duct, Air
Duct, Air WPL 8184291 Contact Us For Availability
View on Model
14
Screw
Screw WPL 4358188 Contact Us For Availability
View on Model
14
Holder
Holder WPL 4359794 Contact Us For Availability
View on Model
19
Cap
Cap WPL 4358659 Contact Us For Availability
View on Model
21
Screw
Screw WPL 4358190 Contact Us For Availability
View on Model
24
Screw
Screw WPL 4358381 Contact Us For Availability
View on Model
