Model Whirlpool MT1100SHQ1 – Common Parts & Diagrams
03 - OVEN CAVITY
05 - OVEN INTERIOR

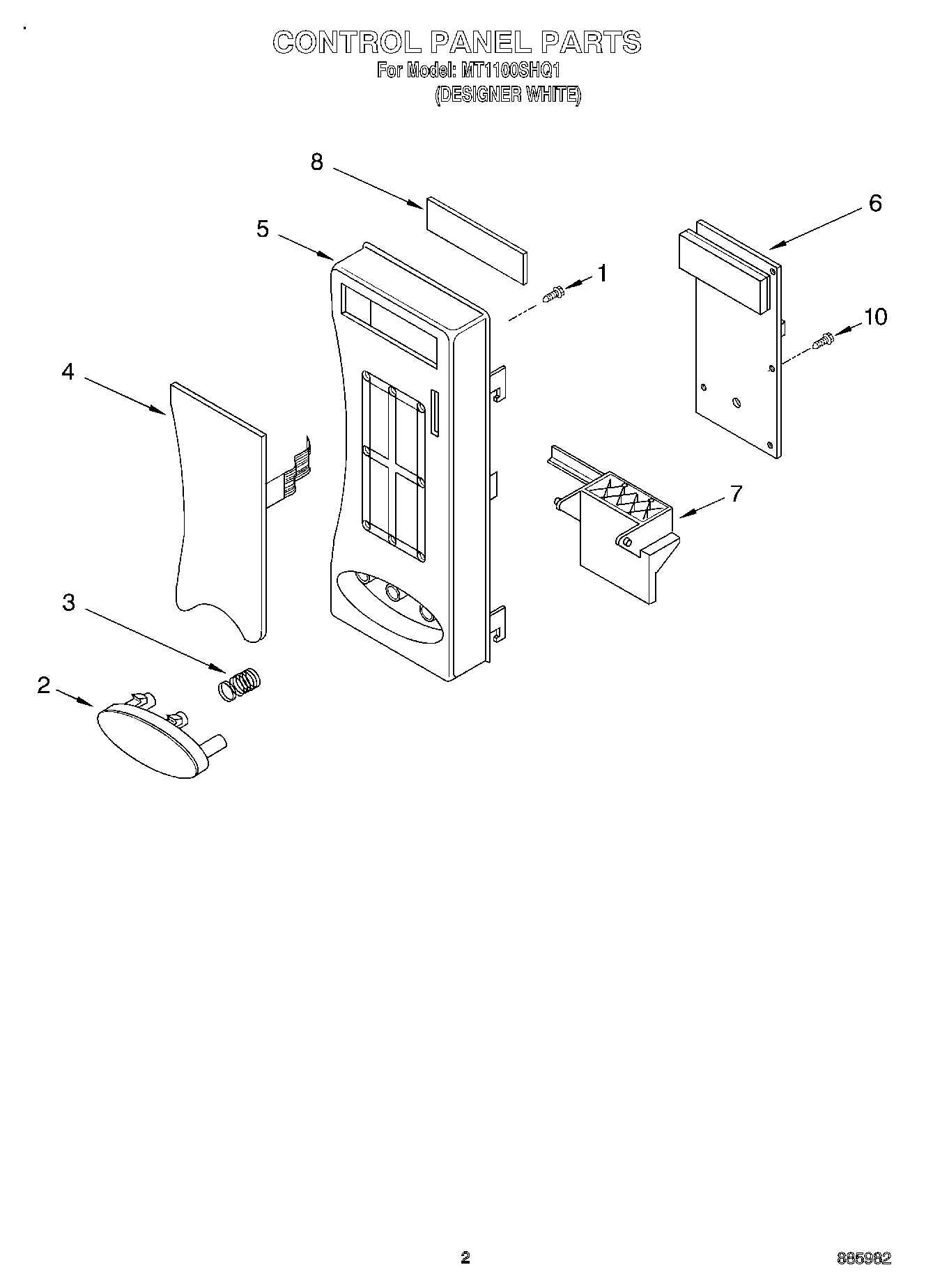

02 - CONTROL PANEL

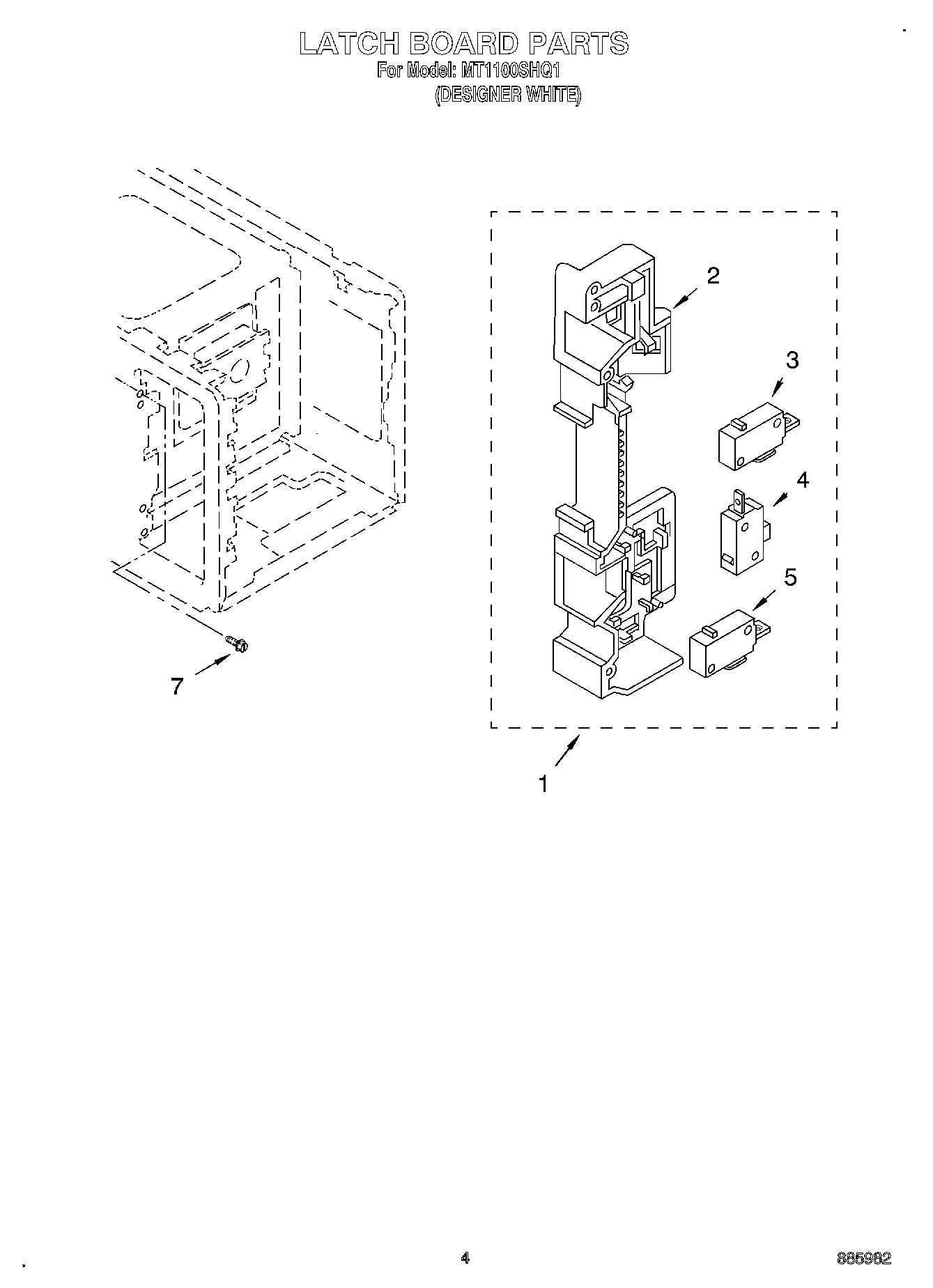

04 - LATCH BOARD

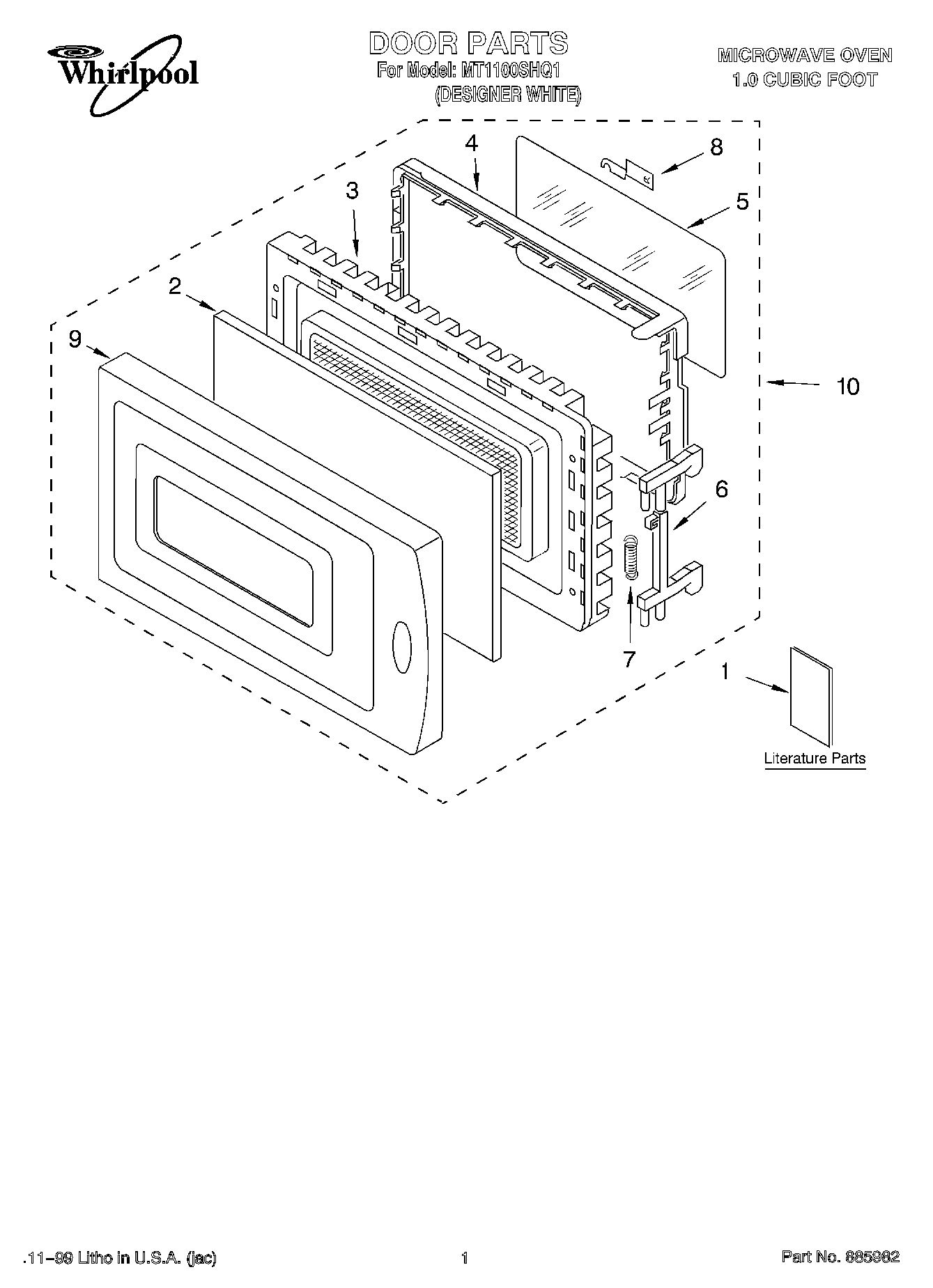

01 - DOOR, LITERATURE

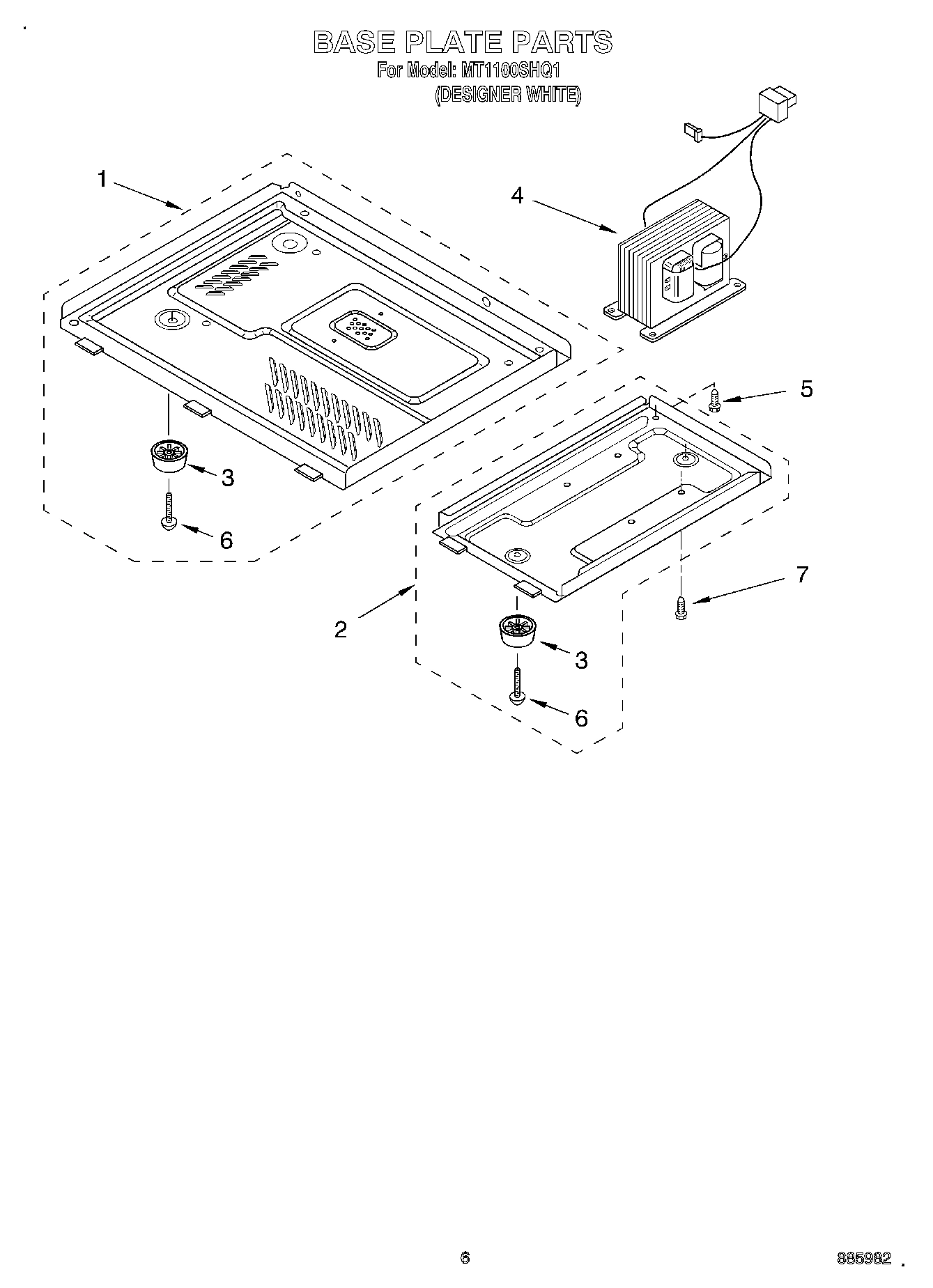

06 - BASE PLATE
Common parts from model Whirlpool MT1100SHQ1
1
Latch Board Assembly (Not Serviceable) WPL ARI118834A Contact Us For Availability
1
Literature Parts (Cook Guide Label) WPL LIT4359628 Contact Us For Availability
1
Literature Parts (Guide, U & C) WPL LIT4359951 Contact Us For Availability
1
Literature Parts (Tech Sheet) WPL LIT4359952 Contact Us For Availability
1
Base Plate (L) WPL 8171812 Contact Us For Availability
2
Guide, Suction WPL 4359158 Contact Us For Availability
2
Release Button WPL 8171799 Contact Us For Availability
2
Front Screen WPL 8171793 Contact Us For Availability
2
Base Plate (R) WPL 8171811 Contact Us For Availability
3
Spring, Button WPL 4158178 Contact Us For Availability
3
Motor, Fan WPL 4359886 Contact Us For Availability
3
Door Frame Assembly WPL 8171794 Contact Us For Availability
3
Leg WPL 4358487 Contact Us For Availability
4
Capacitor, H.V. WPL 4359115 Contact Us For Availability
4
Key Membrane WPL 8171800 Contact Us For Availability
4
Choke Cover WPL 8171795 Contact Us For Availability
4
Transformer WPL 8171809 Contact Us For Availability
5
Screw WPL 8171862 Contact Us For Availability
5
H.V.C. Bracket WPL 4359161 Contact Us For Availability
5
Control Panel WPL 8171801 Contact Us For Availability
5
Tape, Seal WPL 8171796 Contact Us For Availability
6
Tray, Glass WPL 8171806 Contact Us For Availability
6
Leadwire Assembly WPL 4359887 Contact Us For Availability
6
Screw WPL 4358381 Contact Us For Availability
6
P.C.B Sub Assembly WPL 8171802 Contact Us For Availability
6
Latch WPL 4359765 Contact Us For Availability
7
Lever, Release WPL 4359718 Contact Us For Availability
7
Screw WPL 4358051 Contact Us For Availability
7
Spring, Latch WPL 4359707 Contact Us For Availability
8
Support, Turntable WPL 4359782 Contact Us For Availability
8
Window WPL 4359720 Contact Us For Availability
8
Cap WPL 8171798 Contact Us For Availability
9
Power Cord WPL 4359342 Contact Us For Availability
9
Panel, Door WPL 8171797 Contact Us For Availability
10
Thermostat WPL 4359163 Contact Us For Availability
10
Screw WPL 4358883 Contact Us For Availability
10
Door Assembly WPL 8171792 Contact Us For Availability
11
Lamp, Baseless WPL 4359741 Contact Us For Availability
11
Motor, Synchronous WPL 4359885 Contact Us For Availability
12
Duct, Air WPL 8171808 Contact Us For Availability
13
Magnetron WPL 4359119 Contact Us For Availability
14
Screw WPL 4358188 Contact Us For Availability
14
Holder WPL 4359794 Contact Us For Availability
19
Cap WPL 4358659 Contact Us For Availability
21
Screw WPL 4358190 Contact Us For Availability
× ![]()
