Model Whirlpool MT1071SGB0 – Common Parts & Diagrams

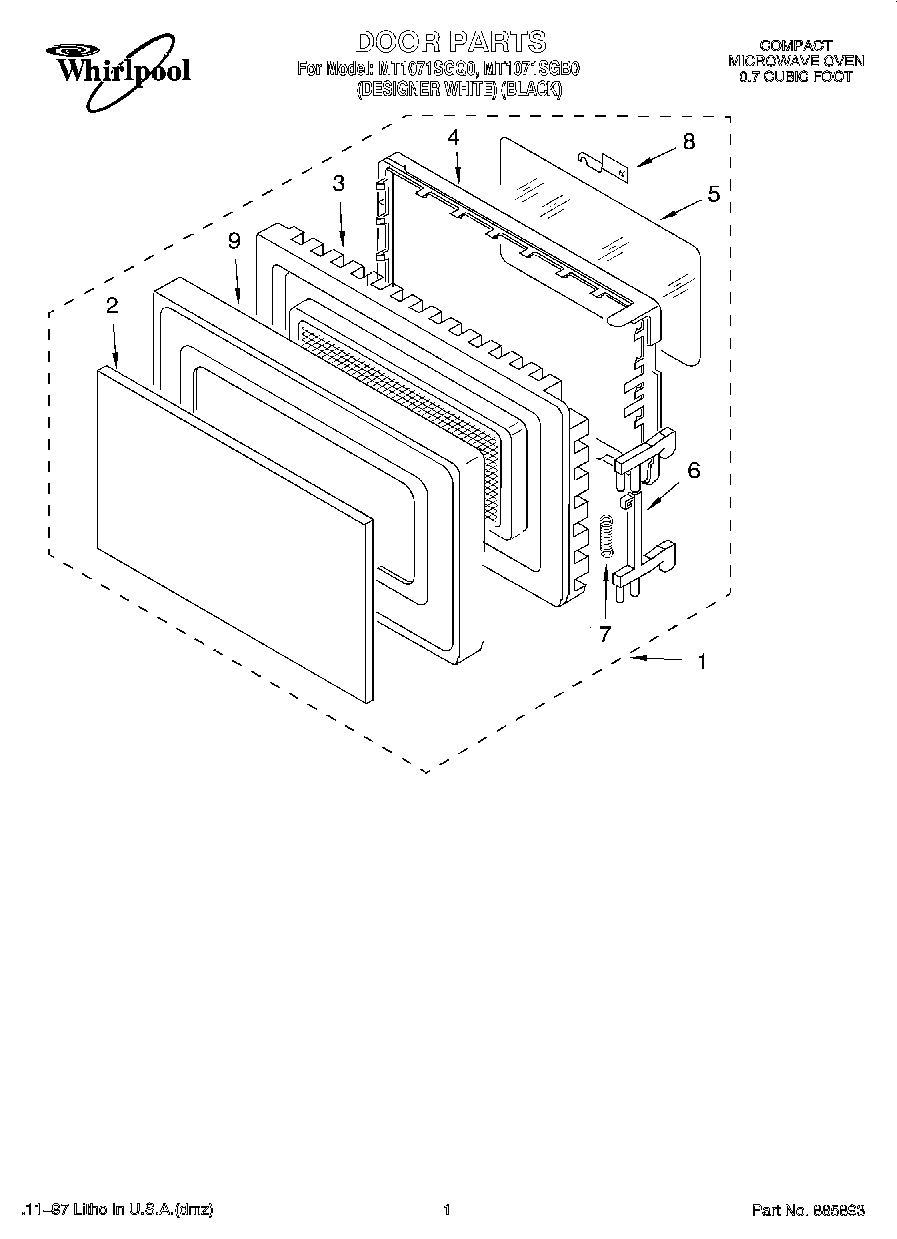

01 - DOOR

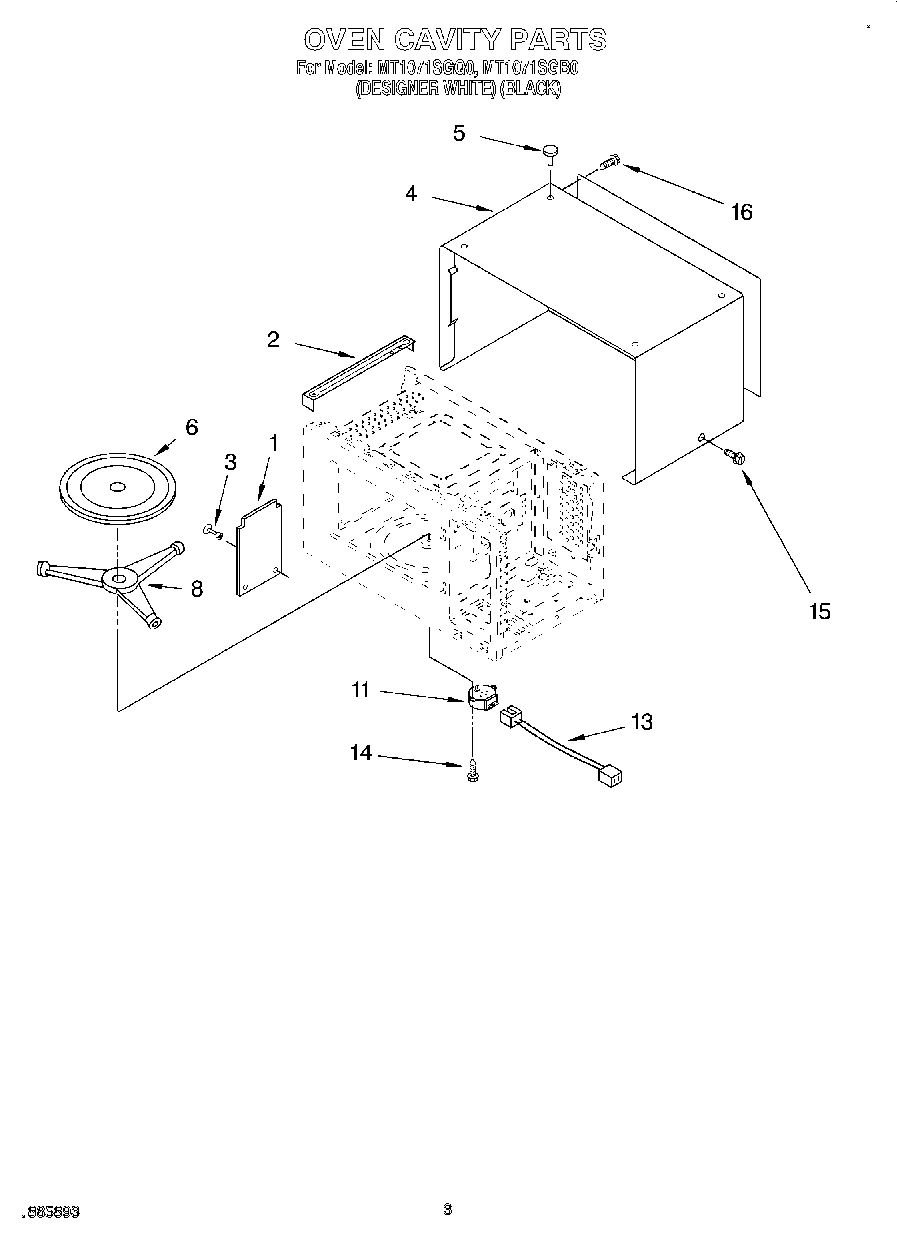

03 - OVEN CAVITY

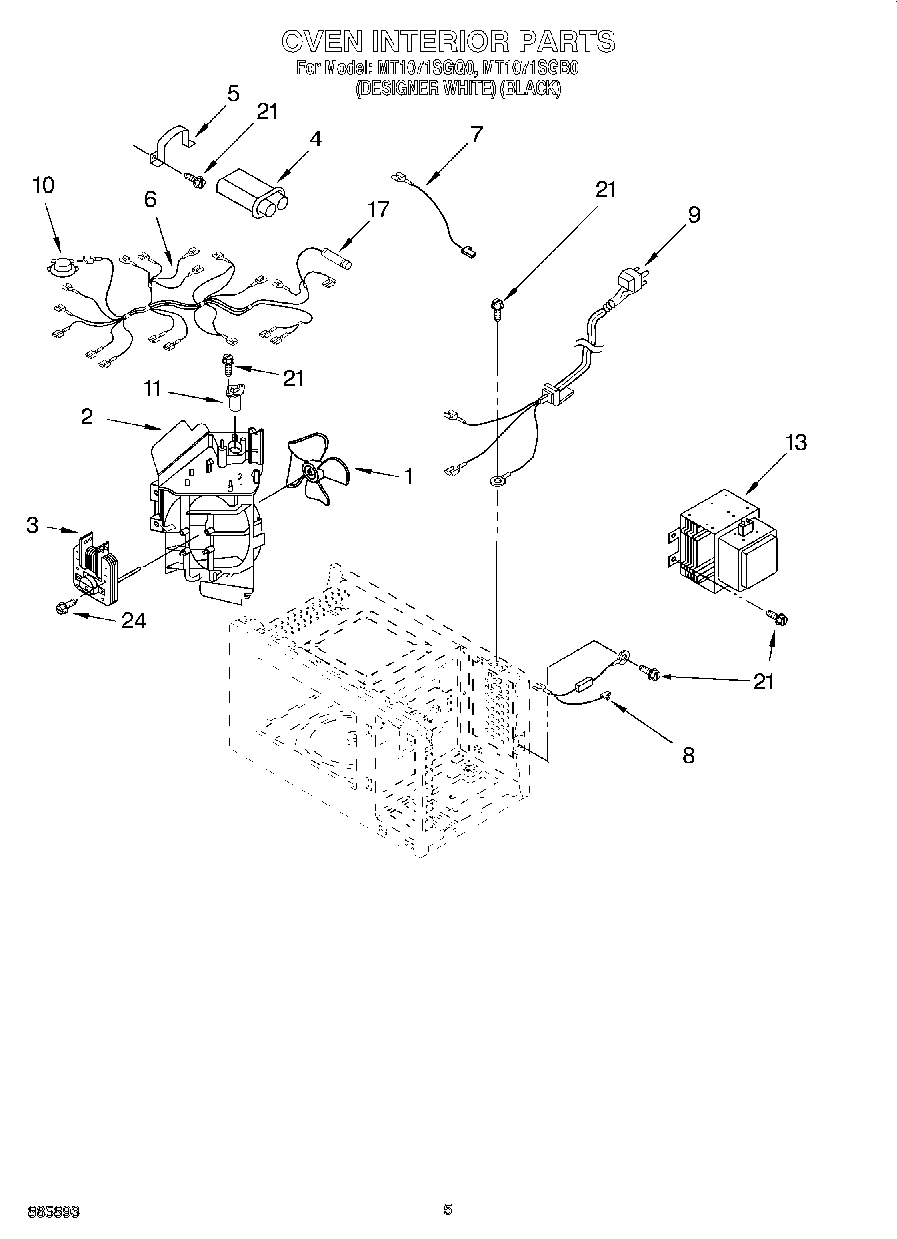

05 - OVEN INTERIOR, LITERATURE

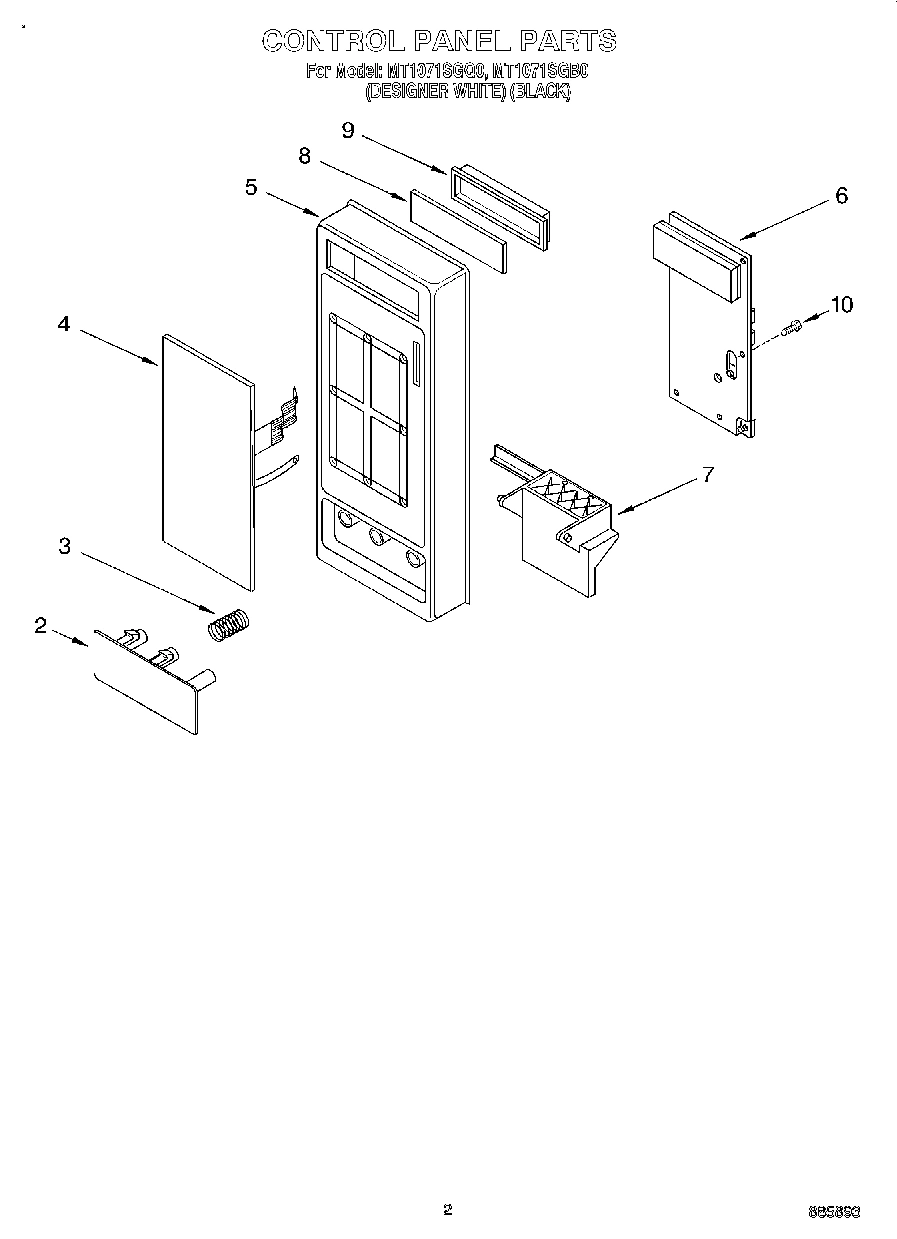

02 - CONTROL PANEL

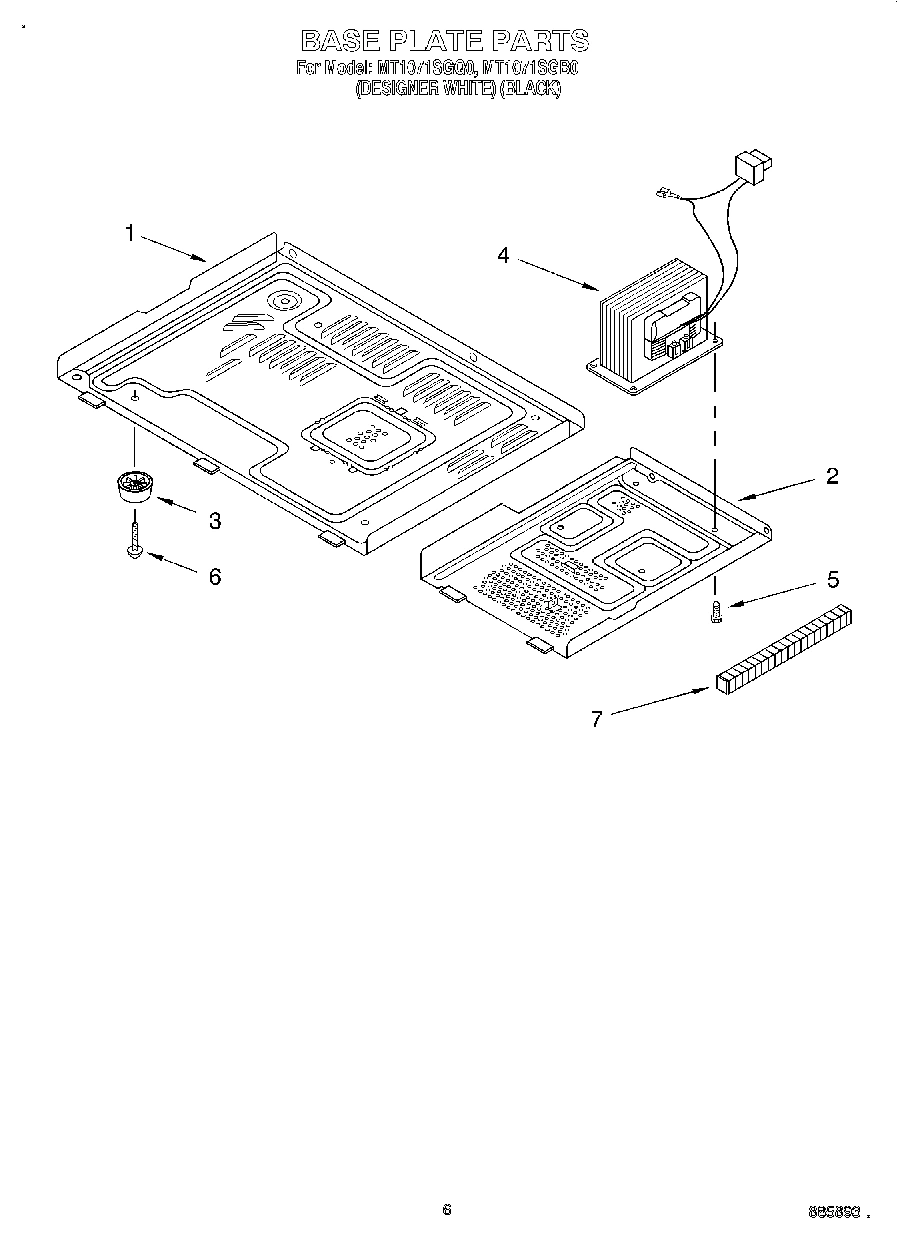

06 - BASE PLATE

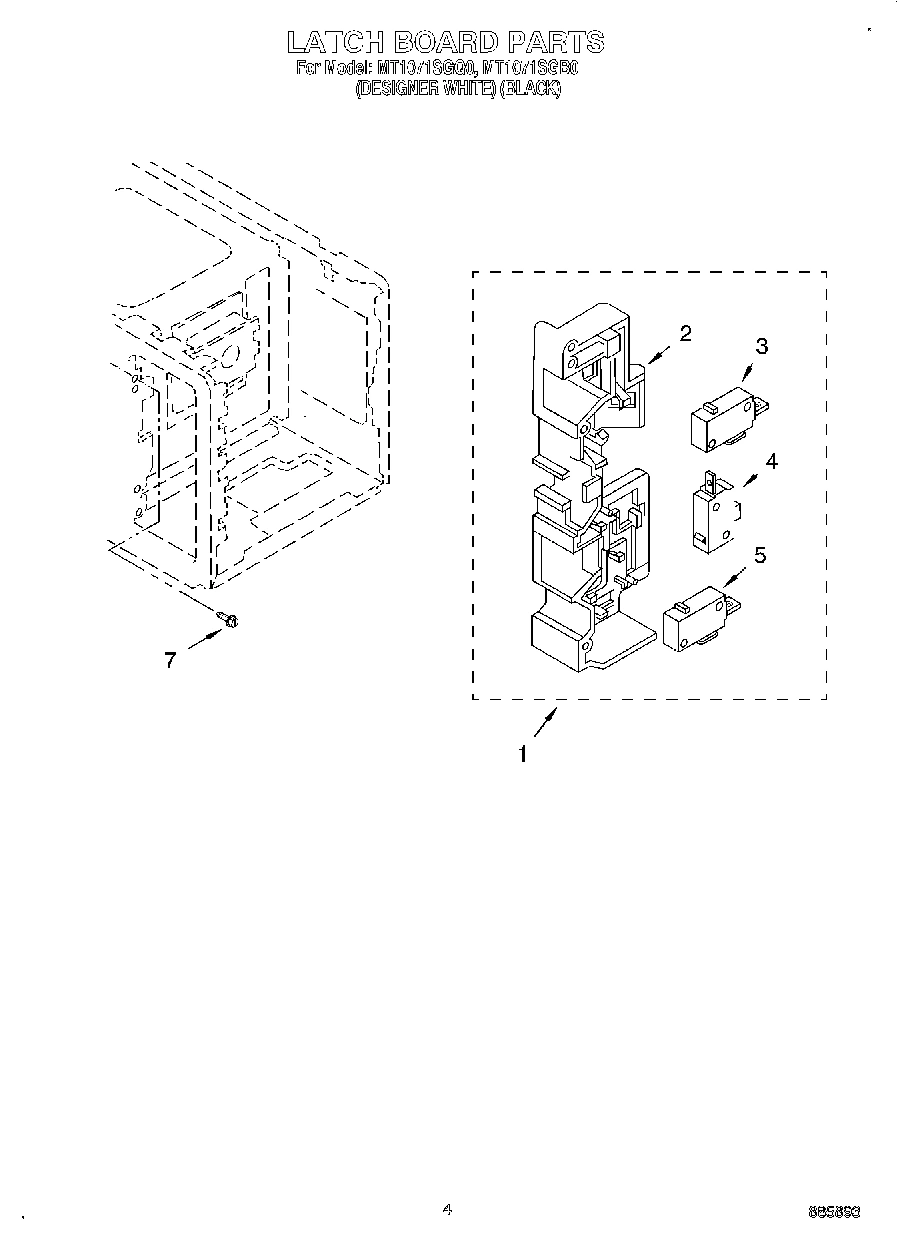

04 - LATCH BOARD
Common parts from model Whirlpool MT1071SGB0
Use & Care Guide WPL LIT4359602 Contact Us For Availability
Cook Guide Label WPL LIT4359669 Contact Us For Availability
Tech Sheet WPL LIT4359671 Contact Us For Availability
1
Canopy WPL 4359721 Contact Us For Availability
1
Propeller WPL 4358379 Contact Us For Availability
1
Base Plate (L) WPL 4359737 Contact Us For Availability
1
Latch Board Assembly (Not Serviceable) WPL ARI118829A Contact Us For Availability
2
UTC Bracket WPL 4359726 Contact Us For Availability
2
Guide, Suction WPL 4359727 Contact Us For Availability
2
Release Button (White Model) WPL 4359711 Contact Us For Availability
2
Release Button (Black Model) WPL 4359712 Contact Us For Availability
2
Base Plate (R) WPL 4359732 Contact Us For Availability
2
Screw WPL 4358381 Contact Us For Availability
2
Latch Board WPL 4358635 Contact Us For Availability
3
Spring, Button WPL 4158178 Contact Us For Availability
3
Door Frame Assembly (White Model) WPL 4359702 Contact Us For Availability
3
Door Frame Assembly (Black Model) WPL 4359703 Contact Us For Availability
3
Motor, Fan WPL 4359728 Contact Us For Availability
3
Leg WPL 4358487 Contact Us For Availability
4
Choke Cover WPL 4359704 Contact Us For Availability
4
Outer Case (White Model) WPL 4359739 Contact Us For Availability
4
Outer Case (Black Model) WPL 4359740 Contact Us For Availability
4
H.V. Capacitor WPL 4359734 Contact Us For Availability
4
Key Membrane (White Model) WPL 4359713 Contact Us For Availability
4
Key Membrane (Black Model) WPL 4359714 Contact Us For Availability
4
Transformer WPL 4359733 Contact Us For Availability
5
Tape, Seal WPL 4359705 Contact Us For Availability
5
Mounting Cap (White Model (4)) WPL 4158748 Contact Us For Availability
5
Mounting Cap (Black Model (4)) WPL 4358857 Contact Us For Availability
5
H.V.C Bracket WPL 4359735 Contact Us For Availability
5
Control Panel (White Model) WPL 4359715 Contact Us For Availability
5
Control Panel (Black Model (Also order key me WPL 4359716 Contact Us For Availability
6
Latch WPL 4359706 Contact Us For Availability
6
Tray, Glass WPL 4359722 Contact Us For Availability
6
Leadwire Assembly WPL 4359729 Contact Us For Availability
6
P.C.B Sub Assembly WPL 4359717 Contact Us For Availability
7
Spring, Latch WPL 4359707 Contact Us For Availability
7
H.V. Cable Ass`y WPL 4359736 Contact Us For Availability
7
Lever, Release WPL 4359718 Contact Us For Availability
7
Trim Kit (MK1074XGQ) WPL 4359642 Contact Us For Availability
7
Trim Kit (MK1074XGB) WPL 4359643 Contact Us For Availability
7
UTC Kit WPL 4359660 Contact Us For Availability
7
Cushion WPL 4359738 Contact Us For Availability
7
Screw WPL 4358051 Contact Us For Availability
8
Cap WPL 4359710 Contact Us For Availability
8
Turntable Support WPL 4359723 Contact Us For Availability
8
Window WPL 4359720 Contact Us For Availability
9
Panel, Door (White Model) WPL 4359708 Contact Us For Availability
9
Panel, Door (Black Model) WPL 4359709 Contact Us For Availability
9
Power Cord WPL 4359730 Contact Us For Availability
9
Holder WPL 4359719 Contact Us For Availability
10
Thermostat WPL 4359164 Contact Us For Availability
10
Screw WPL 4358883 Contact Us For Availability
11
Lamp, Baseless WPL 4359741 Contact Us For Availability
11
Motor, Synchronous WPL 4359724 Contact Us For Availability
13
Lead wire assy. WPL 4359725 Contact Us For Availability
14
Screw WPL 4358188 Contact Us For Availability
17
Fuse WPL 4358704 Contact Us For Availability
24
Screw WPL 4358190 Contact Us For Availability
× ![]()
