Model Whirlpool MT1066XBB0 – Common Parts & Diagrams
03 - OVEN CAVITY
04 - LATCH BOARD

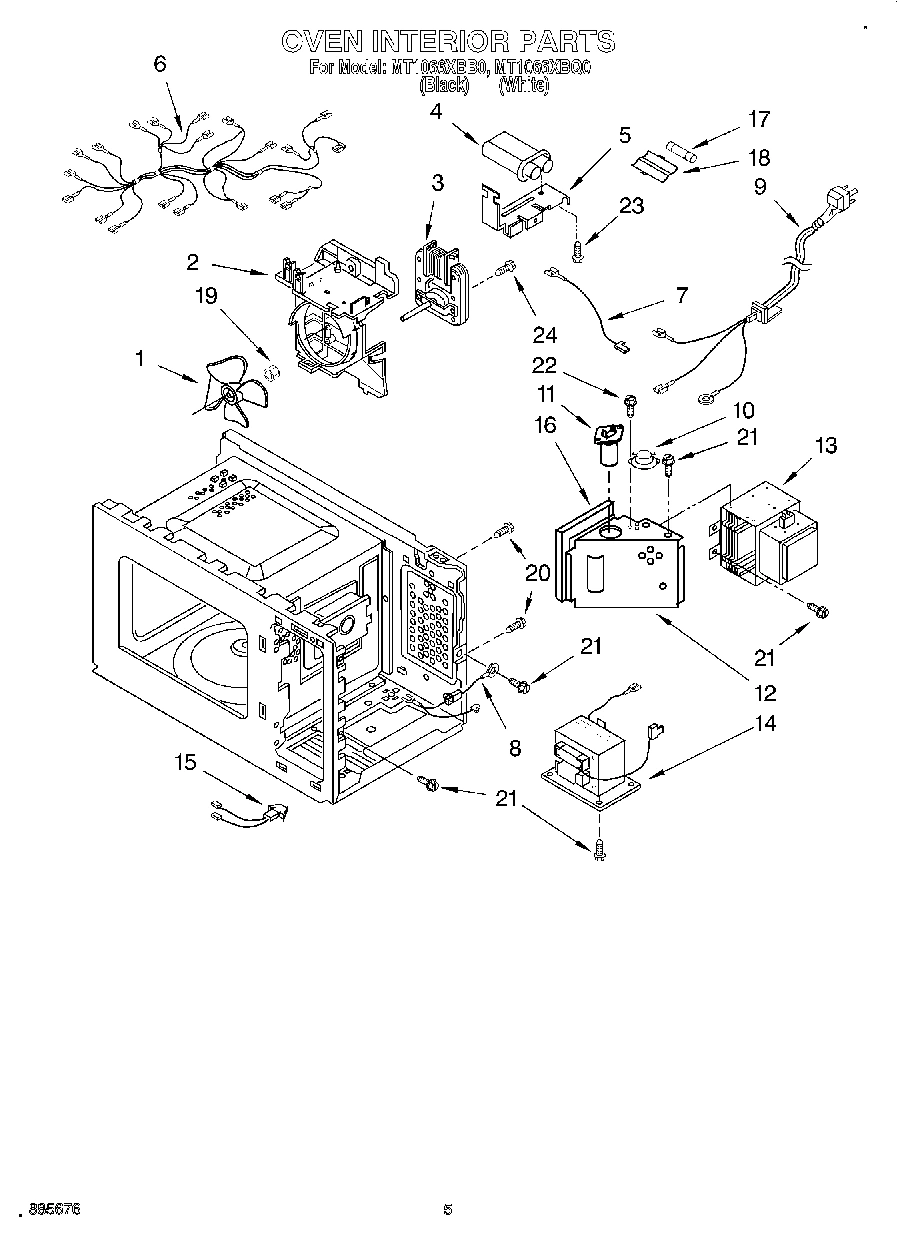

05 - OVEN INTERIOR, LITERATURE

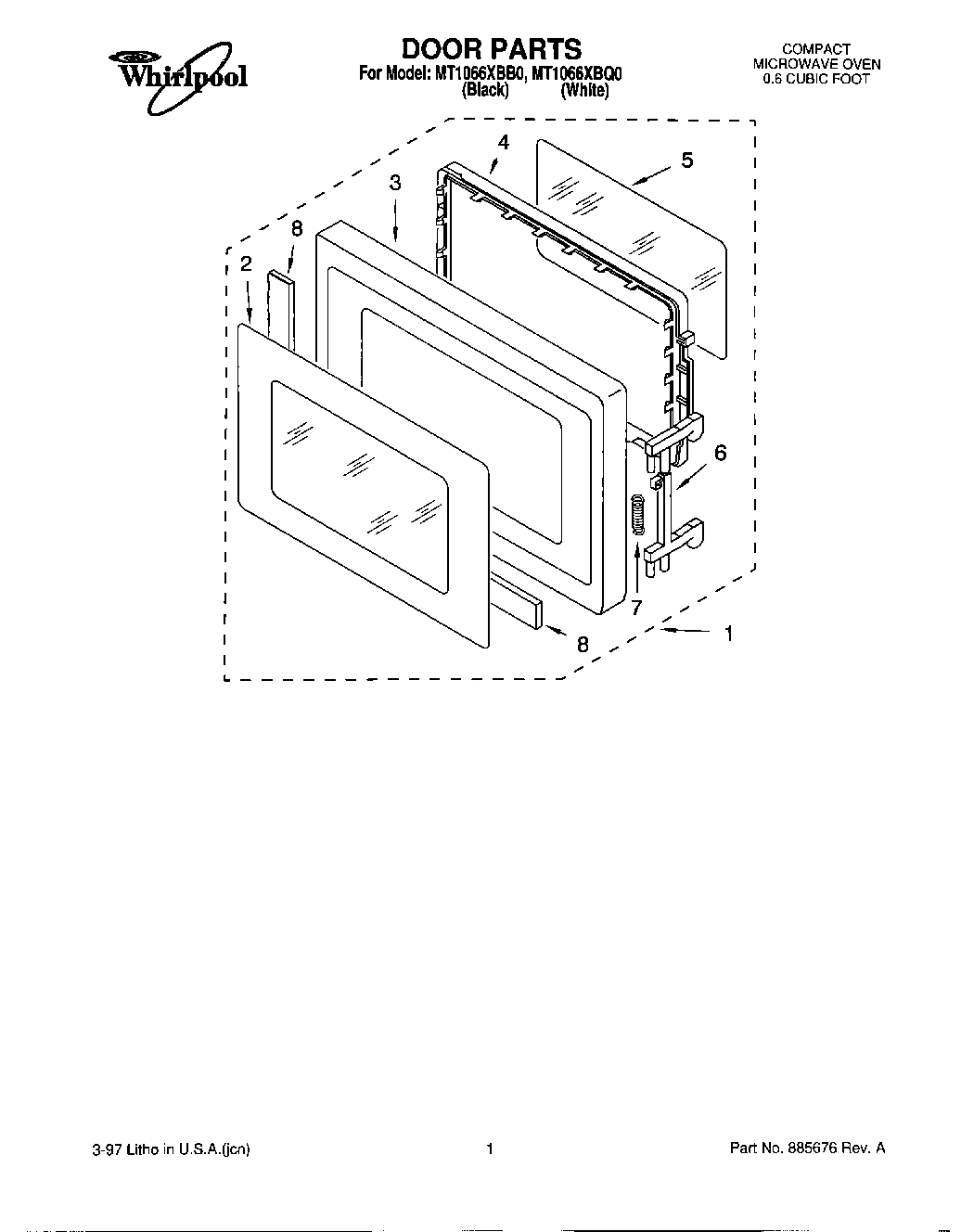

01 - DOOR

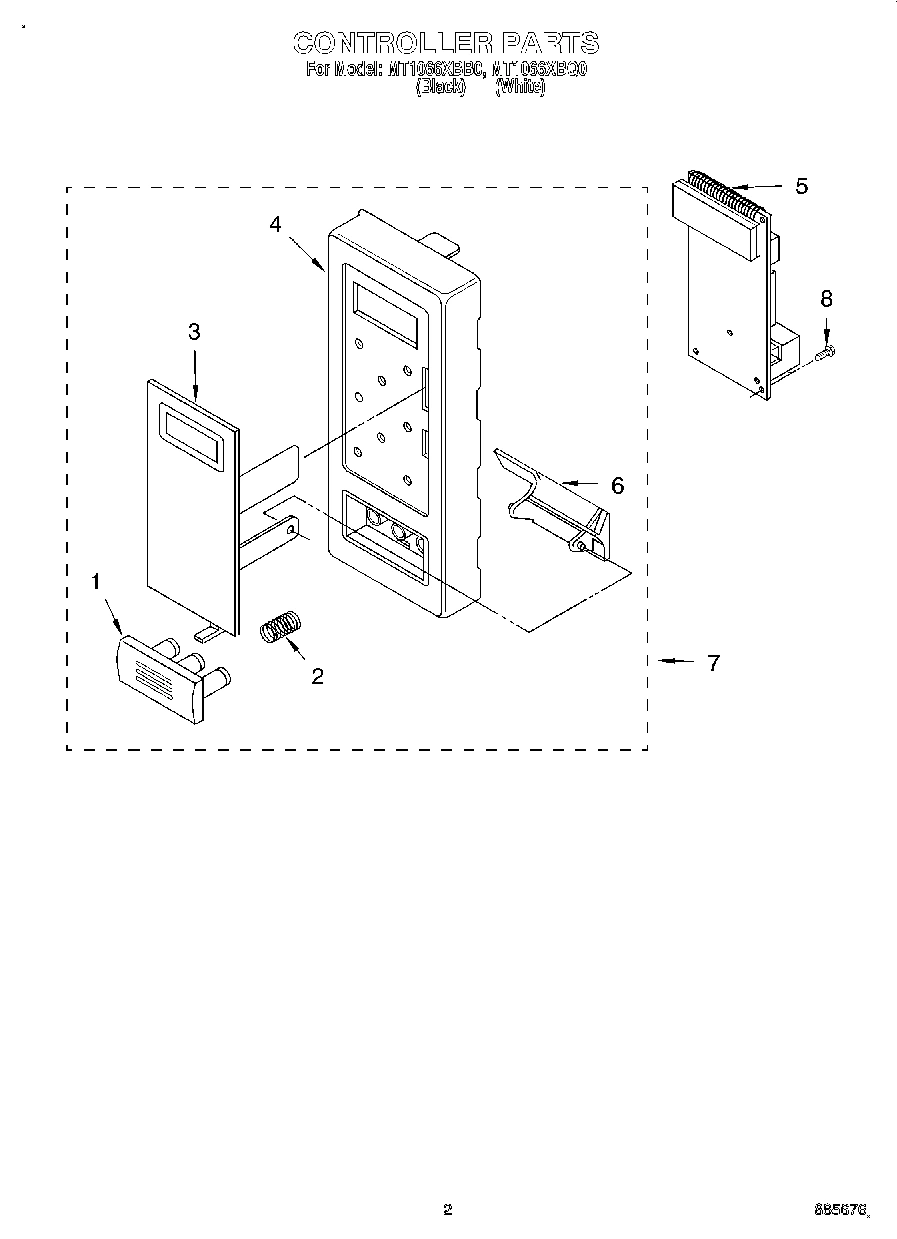

02 - CONTROLLER
Common parts from model Whirlpool MT1066XBB0
Tech Sheet WPL LIT4358584 Contact Us For Availability
Use & Care Guide WPL LIT4358588 Contact Us For Availability
Cooking Guide Label WPL LIT4358589 Contact Us For Availability
1
Latch Board WPL 4358635 Contact Us For Availability
1
Door Assembly (Black Model) WPL 4358893 Contact Us For Availability
1
Door Assembly (White Model) WPL 4358904 Contact Us For Availability
1
Button, Release (White Model) WPL 4358610 Contact Us For Availability
1
Release Button (Black Model) WPL 4358670 Contact Us For Availability
2
Spring WPL 4158178 Contact Us For Availability
2
Guide, Suction WPL 4359158 Contact Us For Availability
2
Front Screen (Black Model) WPL 4358894 Contact Us For Availability
2
Front Screen (White Model) WPL 4358905 Contact Us For Availability
3
Thermostat WPL 4358620 Contact Us For Availability
3
Motor, Fan WPL 4358643 Contact Us For Availability
3
Door Frame (White Model) WPL 4358676 Contact Us For Availability
3
Door Frame (Black Model) WPL 4358703 Contact Us For Availability
3
Key Membrane (White Model) WPL 4358906 Contact Us For Availability
3
Key Membrane (Black Model) WPL 4358912 Contact Us For Availability
4
Outer Case (White Model) WPL 4358685 Contact Us For Availability
4
Outer Case (Black Model) WPL 4358898 Contact Us For Availability
4
H.V. Capacitor WPL 4358695 Contact Us For Availability
4
Choke Cover WPL 4358677 Contact Us For Availability
4
Control Panel (White Model) WPL 4358681 Contact Us For Availability
4
Control Panel (Black Model) WPL 4358706 Contact Us For Availability
5
Plate, Hinge WPL 4358622 Contact Us For Availability
5
Bracket WPL 4359161 Contact Us For Availability
5
Tape, Seal WPL 4358678 Contact Us For Availability
5
P.C.B Sub Assy. WPL 4358907 Contact Us For Availability
6
Tray, Glass WPL 4358686 Contact Us For Availability
6
Lead Wire (Secondary) WPL 4358910 Contact Us For Availability
6
Lead Wire WPL 4358911 Contact Us For Availability
6
Latch WPL 4358606 Contact Us For Availability
6
Lever, Release WPL 4358615 Contact Us For Availability
7
Shaft WPL 4358687 Contact Us For Availability
7
H.V. Cable WPL 4158827 Contact Us For Availability
7
Spring, Latch WPL 4358607 Contact Us For Availability
7
Controller Sub Assembly (White Model) WPL 4358909 Contact Us For Availability
7
Controller Sub Assembly (Black Model) WPL 4358913 Contact Us For Availability
8
Ring, Rotating WPL 4358688 Contact Us For Availability
8
H.V. Diode Cable WPL 4158897 Contact Us For Availability
8
Tape WPL 4358608 Contact Us For Availability
8
Screw WPL 4358451 Contact Us For Availability
9
Leg WPL 4358626 Contact Us For Availability
9
Cord, Power WPL 4358653 Contact Us For Availability
10
Cover, Motor WPL 4358689 Contact Us For Availability
10
Thermostat (M.G.T) WPL 4358698 Contact Us For Availability
11
Motor WPL 4358690 Contact Us For Availability
11
Lamp, Baseless WPL 4358651 Contact Us For Availability
12
Washer WPL 4358691 Contact Us For Availability
12
Duct, Air WPL 4358652 Contact Us For Availability
13
Cap (White Model) WPL 4158748 Contact Us For Availability
13
Cap (Black Model) WPL 4358857 Contact Us For Availability
13
Magnetron WPL 4158798 Contact Us For Availability
14
Transformer WPL 4358699 Contact Us For Availability
15
Screw (Black Model) WPL 4358015 Contact Us For Availability
15
Lead Wire WPL 4358700 Contact Us For Availability
16
Cushion WPL 4358657 Contact Us For Availability
17
Screw WPL 4358188 Contact Us For Availability
17
Fuse WPL 4358263 Contact Us For Availability
18
Cap, Fuse WPL 4358659 Contact Us For Availability
19
Screw (White Model) WPL 4358193 Contact Us For Availability
19
Nut WPL 4358475 Contact Us For Availability
20
Screw WPL 4358051 Contact Us For Availability
20
Screw WPL 4358693 Contact Us For Availability
22
Screw WPL 4358376 Contact Us For Availability
23
Screw WPL 4358381 Contact Us For Availability
24
Screw WPL 4358190 Contact Us For Availability
× ![]()
