Model Whirlpool MT1061XBQ0 – Common Parts & Diagrams
02 - CONTROLLER
04 - LATCH BOARD

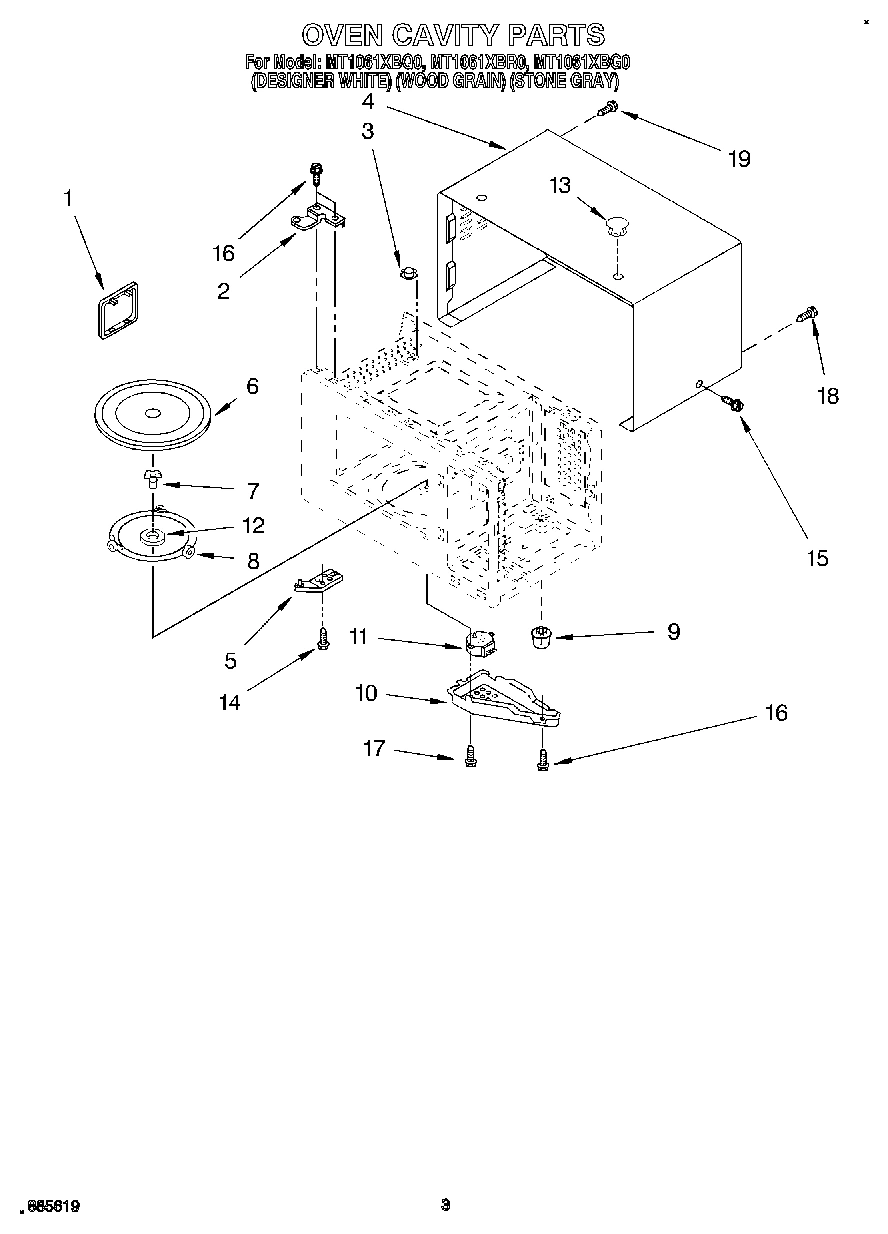

03 - OVEN CAVITY

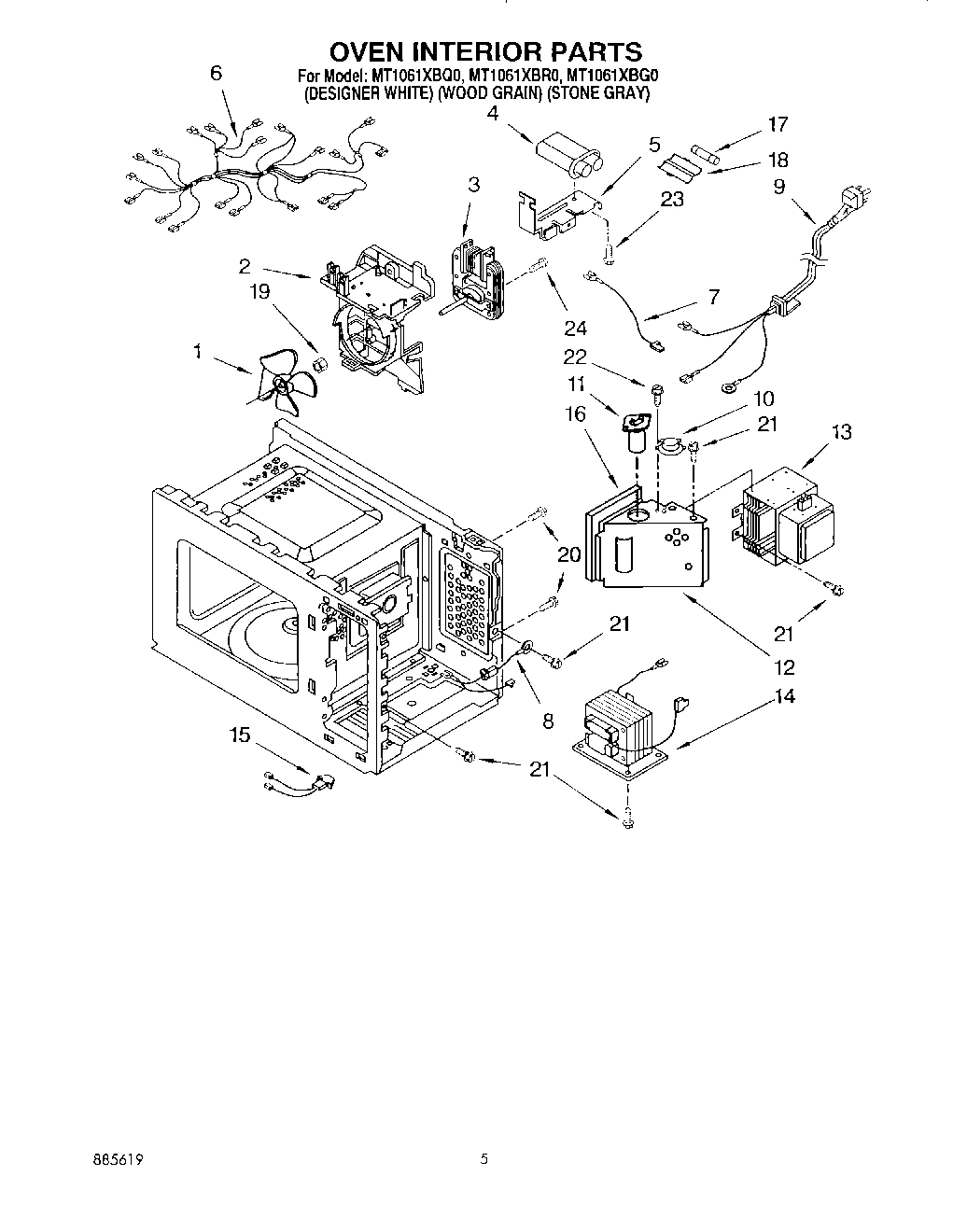

05 - OVEN INTERIOR, LITERATURE

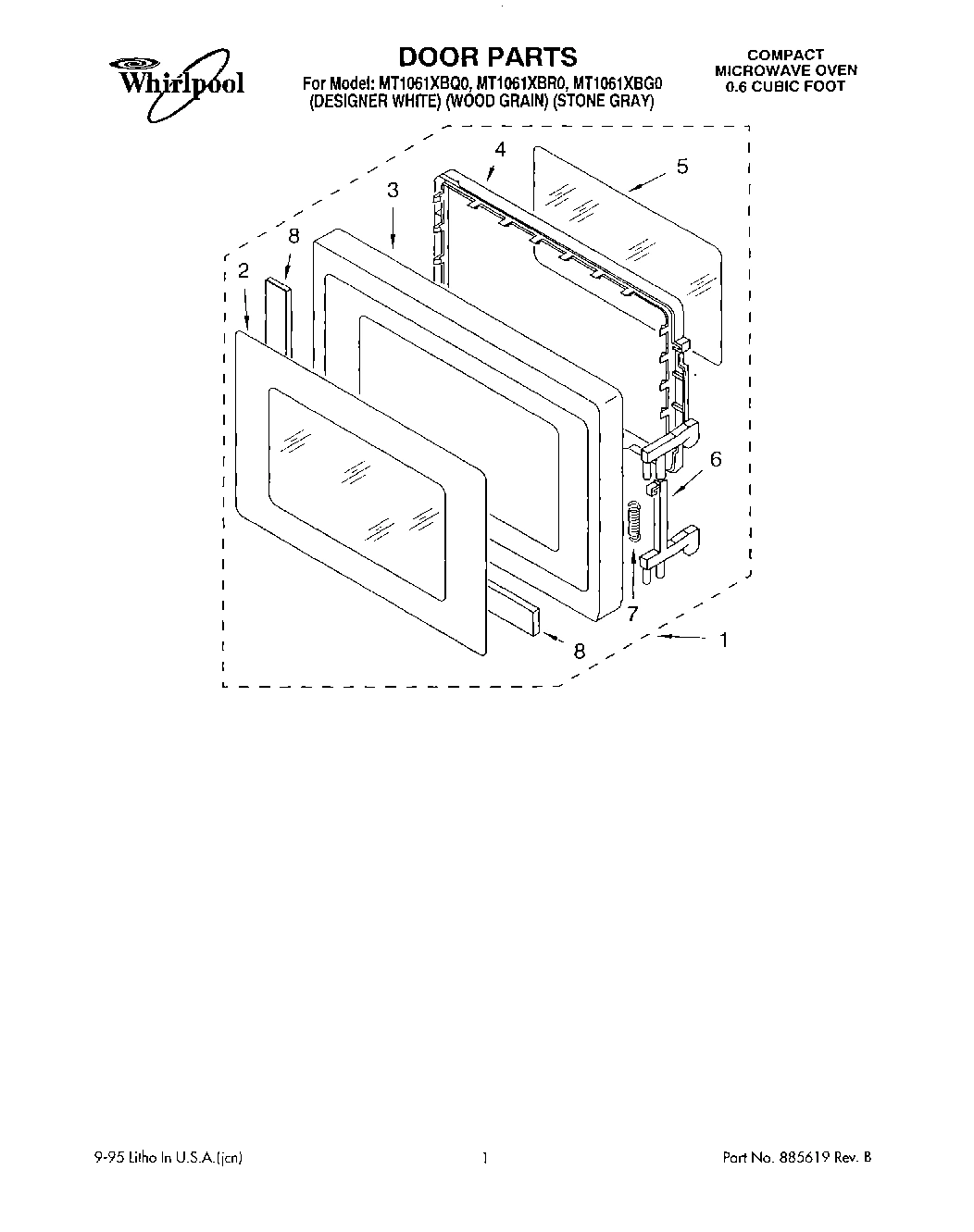

01 - DOOR
Common parts from model Whirlpool MT1061XBQ0
Use & Care Guide WPL LIT4358525 Contact Us For Availability
Cook Guide Label WPL LIT4358528 Contact Us For Availability
Tech Sheet WPL LIT4358530 Contact Us For Availability
Accessory Order Card WPL LIT4378407 Contact Us For Availability
1
Latch Board Assembly (Not Serviceable) WPL ARI118826A Contact Us For Availability
1
Canopy WPL 4358618 Contact Us For Availability
1
Door Assembly (White Model) WPL 4358661 Contact Us For Availability
1
Door Assembly (Wood Grain & Gray Model) WPL 4358701 Contact Us For Availability
2
Release Button (Wood Grain & Gray Model) WPL 4358670 Contact Us For Availability
2
Latch Board WPL 4358635 Contact Us For Availability
2
Plate, Hinge WPL 4358619 Contact Us For Availability
2
Guide, Suction WPL 4359158 Contact Us For Availability
2
Front Screen (White Model) WPL 4358662 Contact Us For Availability
2
Front Screen (Wood Grain & Gray Model) WPL 4358702 Contact Us For Availability
3
Spring, Button WPL 4158178 Contact Us For Availability
3
Thermostat WPL 4359064 Contact Us For Availability
3
Motor, Fan WPL 4358643 Contact Us For Availability
3
Door Frame Assembly (White Model) WPL 4358676 Contact Us For Availability
3
Door Frame Assembly (Wood Grain & Gray Model) WPL 4358703 Contact Us For Availability
4
Key Membrane (White Model) WPL 4358680 Contact Us For Availability
4
Key Membrane (Wood Grain & Gray Model) WPL 4358705 Contact Us For Availability
4
Outer Case (White Model) WPL 4358685 Contact Us For Availability
4
Outer Case (Wood Grain Model) WPL 4358708 Contact Us For Availability
4
Outer Case (Gray Model) WPL 4359066 Contact Us For Availability
4
H.V. Capacitor WPL 4358695 Contact Us For Availability
4
Choke Cover WPL 4358677 Contact Us For Availability
5
Control Panel (White Model) WPL 4358681 Contact Us For Availability
5
Control Panel (Wood Grain & Gray Model) WPL 4358706 Contact Us For Availability
5
Plate, Hinge WPL 4358622 Contact Us For Availability
5
H.V.C. Bracket WPL 4359161 Contact Us For Availability
5
Tape, Seal WPL 4358678 Contact Us For Availability
6
P.C.B Sub Assembly WPL 4358682 Contact Us For Availability
6
Leadwire Assembly WPL 4358694 Contact Us For Availability
6
Tray, Glass WPL 4358686 Contact Us For Availability
6
Leadwire Assembly WPL 4358696 Contact Us For Availability
6
Latch WPL 4358606 Contact Us For Availability
7
Lever, Release WPL 4358615 Contact Us For Availability
7
Shaft, Turn Table WPL 4358687 Contact Us For Availability
7
H.V. Cable Ass`y WPL 4158827 Contact Us For Availability
7
Spring, Latch WPL 4358607 Contact Us For Availability
8
Cap, Boss WPL 4358683 Contact Us For Availability
8
Rotating Ring Ass`y WPL 4358688 Contact Us For Availability
8
H.V. Diode Cable WPL 4158897 Contact Us For Availability
8
Tape, Toyo WPL 4358608 Contact Us For Availability
9
Controller Sub Assembly (White Model) WPL 4358684 Contact Us For Availability
9
Controller Sub Assembly (Wood Grain & Gray Mo WPL 4358707 Contact Us For Availability
9
Leg (4) WPL 4358626 Contact Us For Availability
9
Cord, Power WPL 4358653 Contact Us For Availability
10
Screw (3) WPL 4358451 Contact Us For Availability
10
Cover, Motor WPL 4358689 Contact Us For Availability
10
Thermostat WPL 4358698 Contact Us For Availability
11
Motor, Synchronous WPL 4358690 Contact Us For Availability
11
Lamp, Baseless WPL 4358651 Contact Us For Availability
12
Washer, Shaft WPL 4358691 Contact Us For Availability
12
Duct, Air WPL 4358652 Contact Us For Availability
13
Mounting Cap (2) (White Model) WPL 4158748 Contact Us For Availability
13
Mounting Cap (2) (Wood Grain Model) WPL 4158918 Contact Us For Availability
13
Mounting Cap (2) (Gray Model) WPL 4358857 Contact Us For Availability
13
Magnetron WPL 4158798 Contact Us For Availability
14
H.V. Transformer WPL 4358699 Contact Us For Availability
15
Screw (Wood Grain Model) WPL 4158084 Contact Us For Availability
15
Leadwire Ass`y WPL 4358700 Contact Us For Availability
16
Cushion WPL 4358657 Contact Us For Availability
17
Screw (2) WPL 4358188 Contact Us For Availability
17
Fuse WPL 4358263 Contact Us For Availability
18
Cap, Fuse WPL 4358659 Contact Us For Availability
19
Screw WPL 4358693 Contact Us For Availability
19
Nut (2) WPL 4358475 Contact Us For Availability
20
Screw (2) WPL 4358051 Contact Us For Availability
22
Screw WPL 4358376 Contact Us For Availability
23
Screw WPL 4358381 Contact Us For Availability
24
Screw (2) WPL 4358190 Contact Us For Availability
× ![]()
