Model Whirlpool MT0150SJQ0 – Common Parts & Diagrams
06 - BASE PLATE
02 - CONTROL PANEL

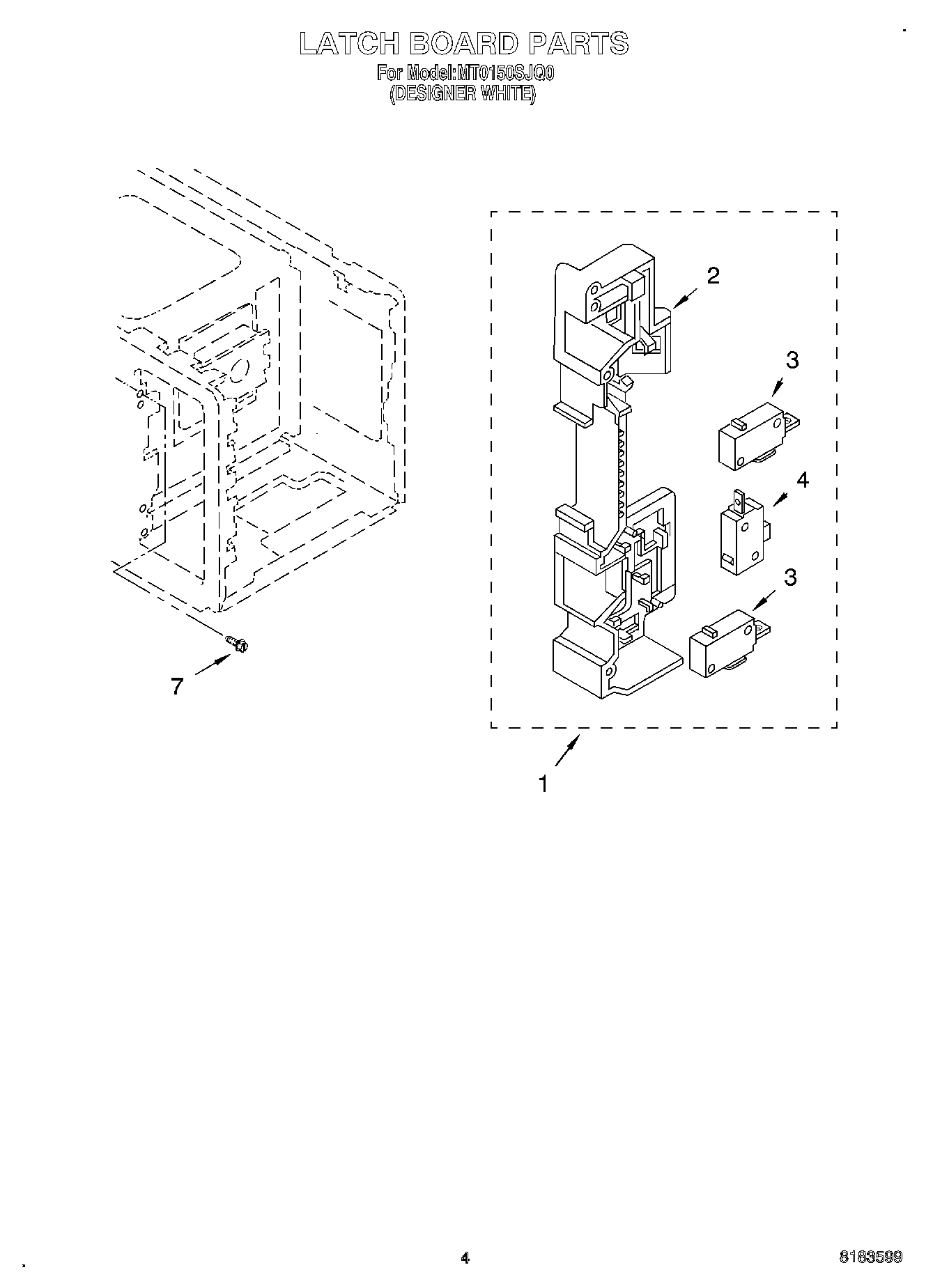

04 - LATCH BOARD

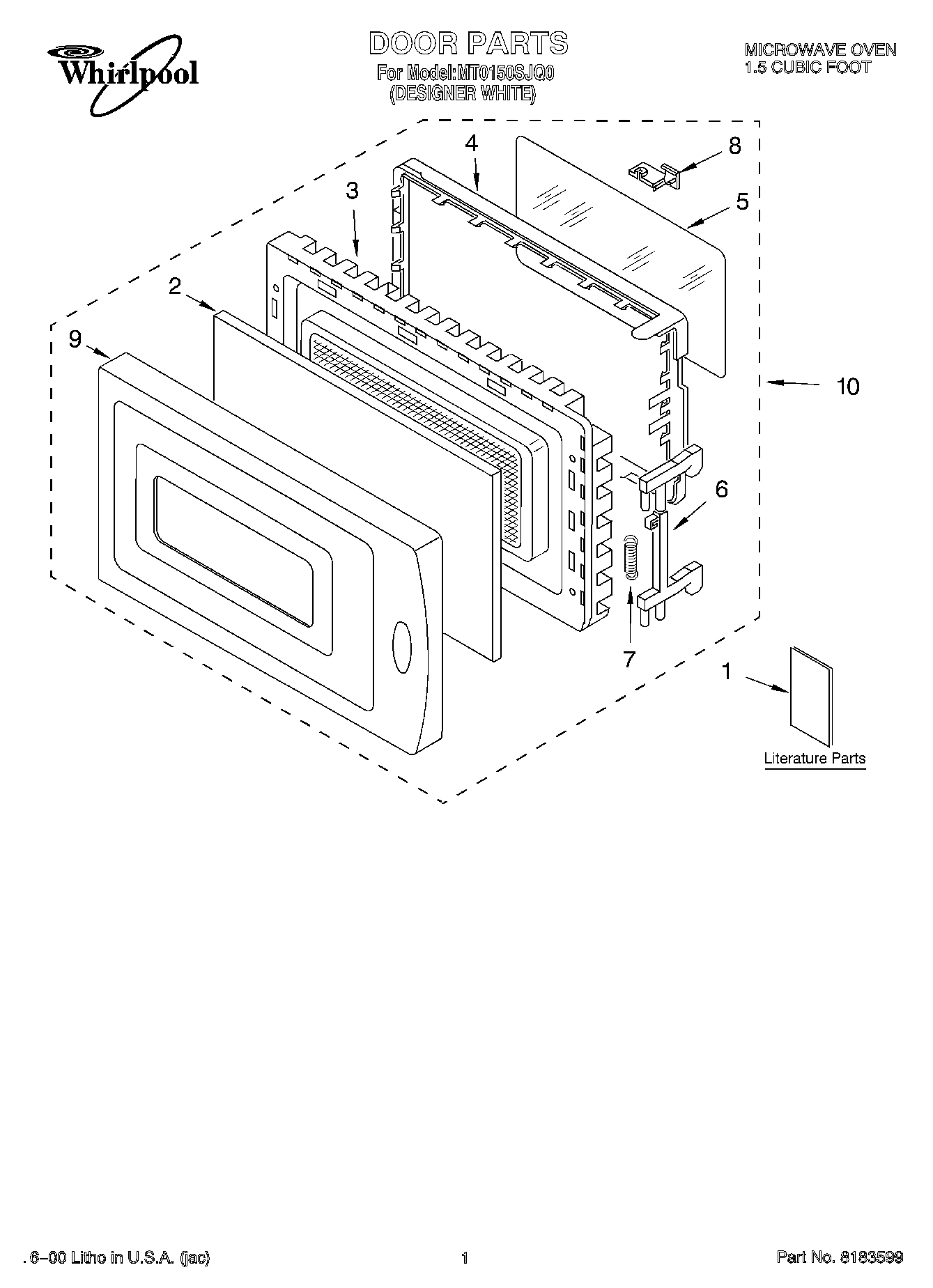

01 - DOOR, LITERATURE

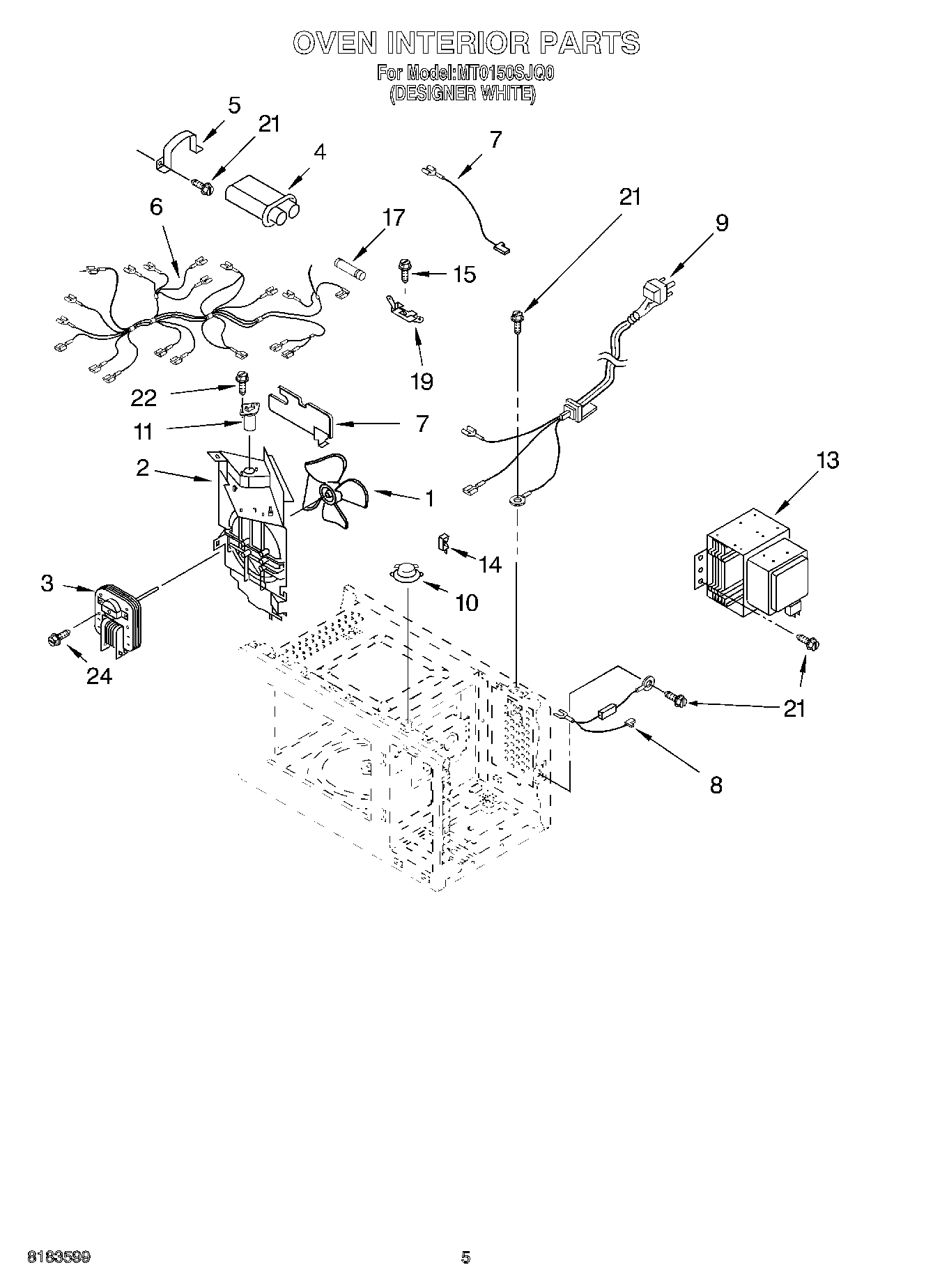

05 - OVEN INTERIOR

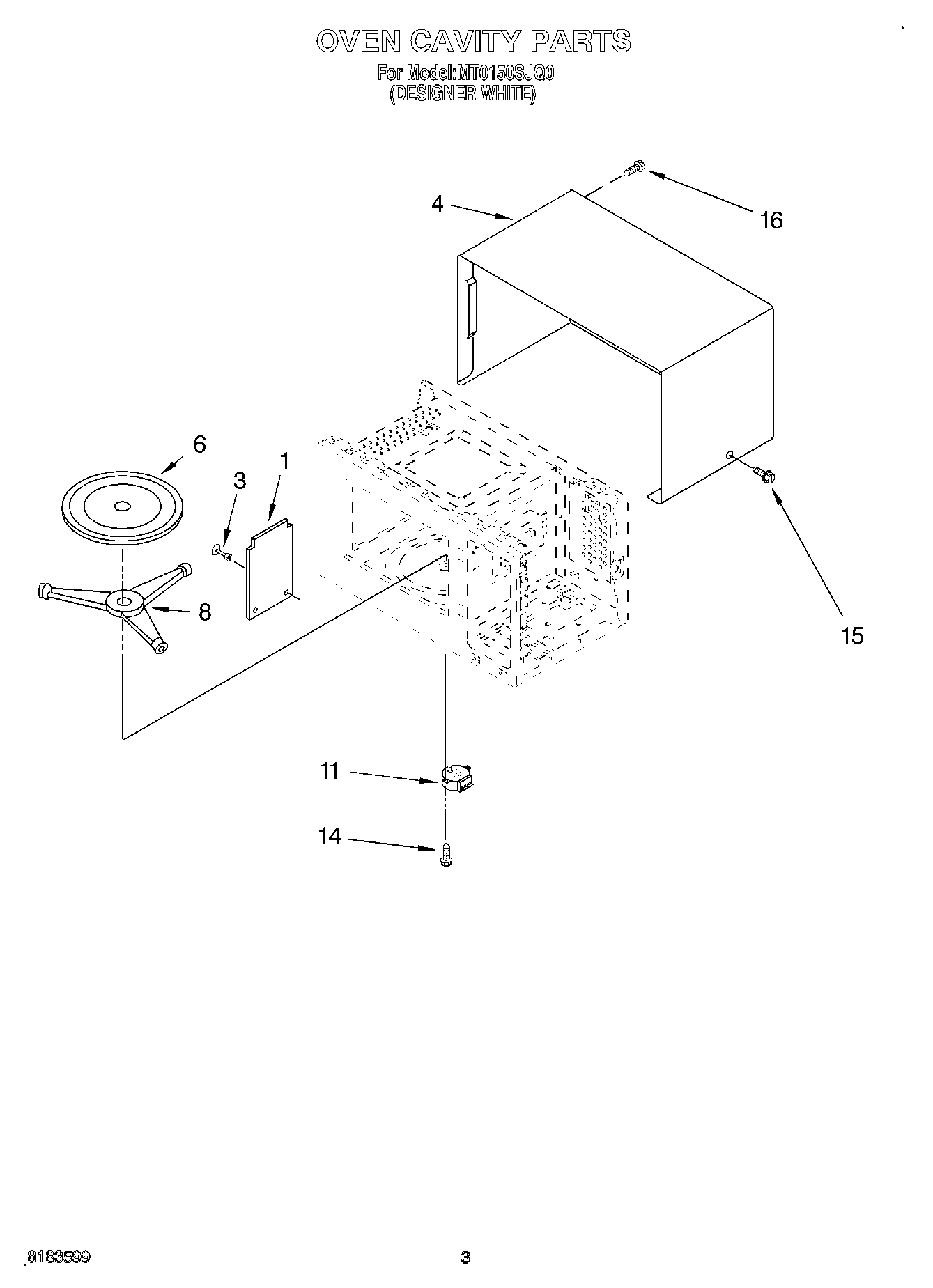

03 - OVEN CAVITY
Common parts from model Whirlpool MT0150SJQ0
1
Latch Board Assembly (Not Serviceable) WPL ARI118822A Contact Us For Availability
1
Literature Parts (Tech Sheet) WPL LIT8172247 Contact Us For Availability
1
Literature Parts (Guide, U & C) WPL LIT8172248 Contact Us For Availability
1
Literature Parts (Cook Guide Label) WPL LIT8172249 Contact Us For Availability
1
Propeller WPL 4358379 Contact Us For Availability
1
Canopy WPL 4359825 Contact Us For Availability
2
Release Button WPL 8171799 Contact Us For Availability
2
Front Screen WPL 8183616 Contact Us For Availability
2
Guide, Suction WPL 4359158 Contact Us For Availability
3
Spring, Button WPL 4158178 Contact Us For Availability
3
Door Frame Assembly WPL 8183615 Contact Us For Availability
3
Motor, Fan WPL 4359787 Contact Us For Availability
4
Key Membrane WPL 8183621 Contact Us For Availability
4
Choke Cover WPL 4359815 Contact Us For Availability
4
Capacitor, H.V. WPL 4359115 Contact Us For Availability
4
Outer Case WPL 8183622 Contact Us For Availability
5
Control Panel WPL 8183619 Contact Us For Availability
5
Tape, Seal WPL 4359816 Contact Us For Availability
5
H.V.C Bracket WPL 4359797 Contact Us For Availability
6
P.C.B Sub Assembly WPL 4359744 Contact Us For Availability
6
Latch WPL 4359765 Contact Us For Availability
6
Leadwire Assembly WPL 4359790 Contact Us For Availability
7
Lever, Release WPL 4359718 Contact Us For Availability
7
Screw WPL 4358051 Contact Us For Availability
7
Spring, Latch WPL 4359707 Contact Us For Availability
7
Bracket, Guide WPL 4359827 Contact Us For Availability
8
Window WPL 4359720 Contact Us For Availability
8
Cap WPL 4359710 Contact Us For Availability
8
Support, Turntable WPL 4359884 Contact Us For Availability
9
Panel, Door WPL 8183618 Contact Us For Availability
9
Power Cord WPL 4359793 Contact Us For Availability
10
Screw WPL 4358883 Contact Us For Availability
10
Door Assembly WPL 8183617 Contact Us For Availability
10
Thermostat WPL 8183524 Contact Us For Availability
11
Lamp, Baseless WPL 4359741 Contact Us For Availability
11
Motor, Synchronous WPL 4359499 Contact Us For Availability
14
Holder WPL 4359794 Contact Us For Availability
14
Screw WPL 4358188 Contact Us For Availability
15
Screw WPL 4358451 Contact Us For Availability
16
Screw WPL 8171862 Contact Us For Availability
19
Holder, Fuse WPL 4359789 Contact Us For Availability
22
Screw WPL 4358381 Contact Us For Availability
× ![]()
