Model Whirlpool MT0130SJB0 – Common Parts & Diagrams
02 - CONTROL PANEL
04 - LATCH BOARD

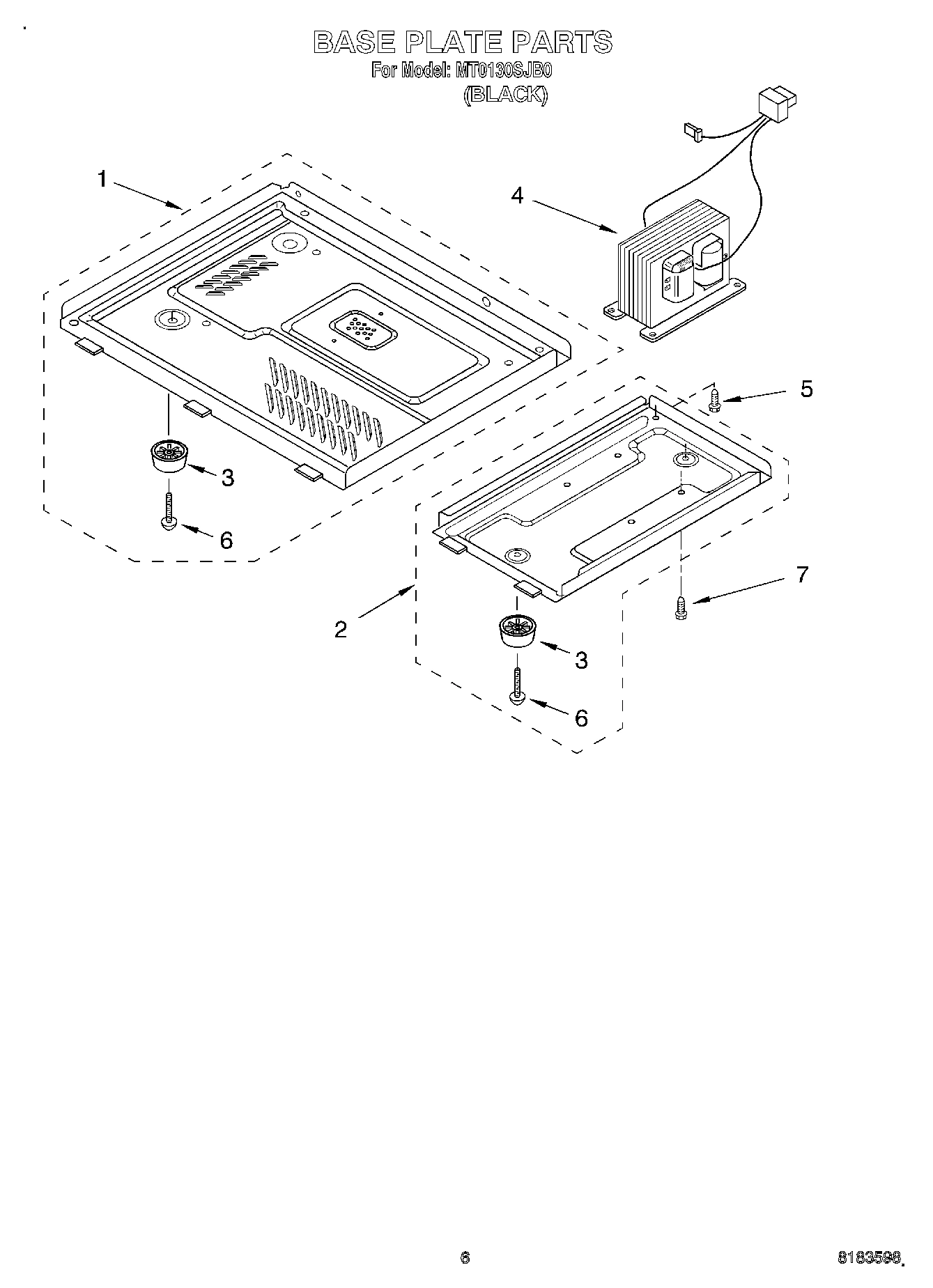

06 - BASE PLATE

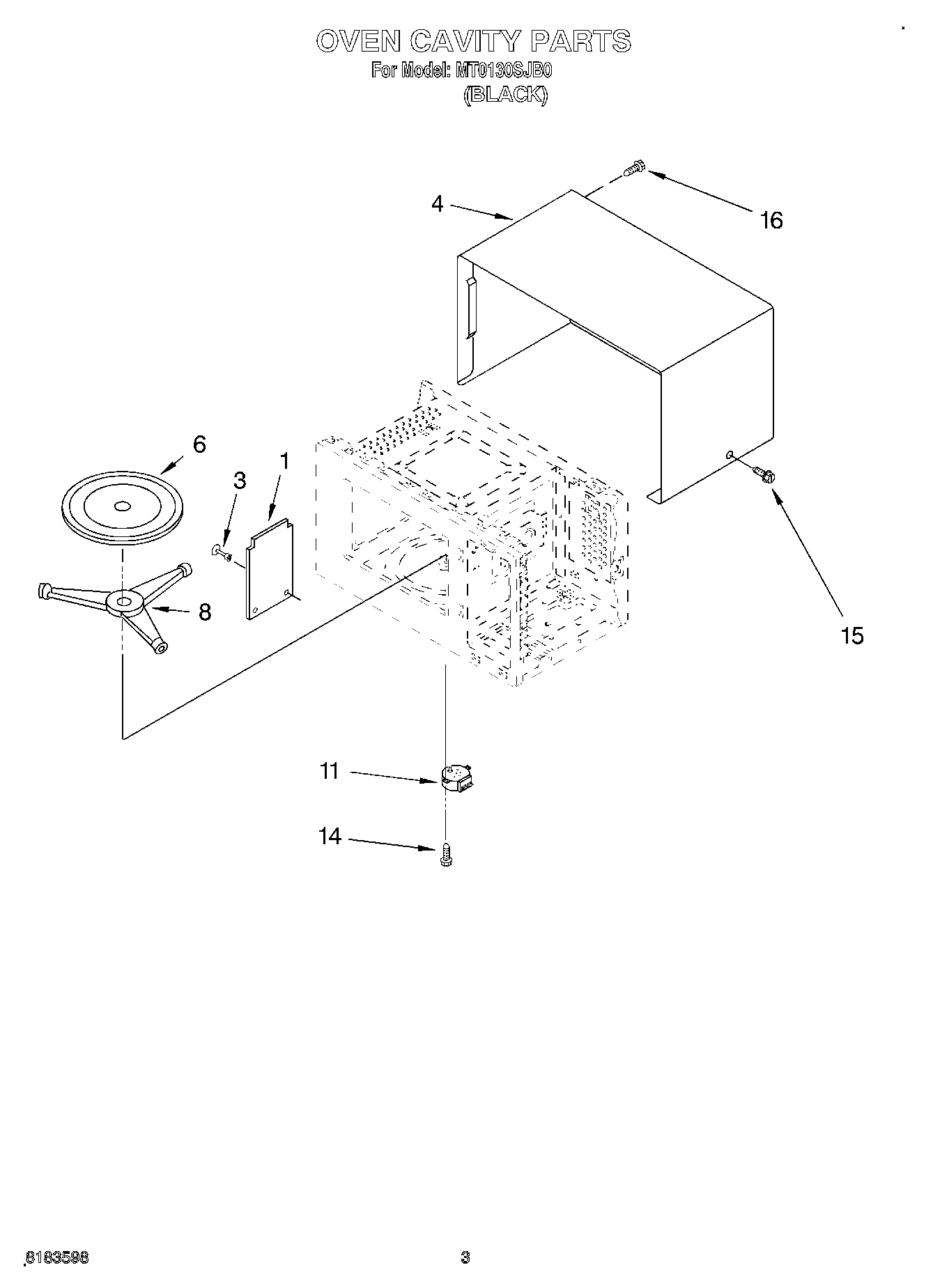

03 - OVEN CAVITY
05 - OVEN INTERIOR

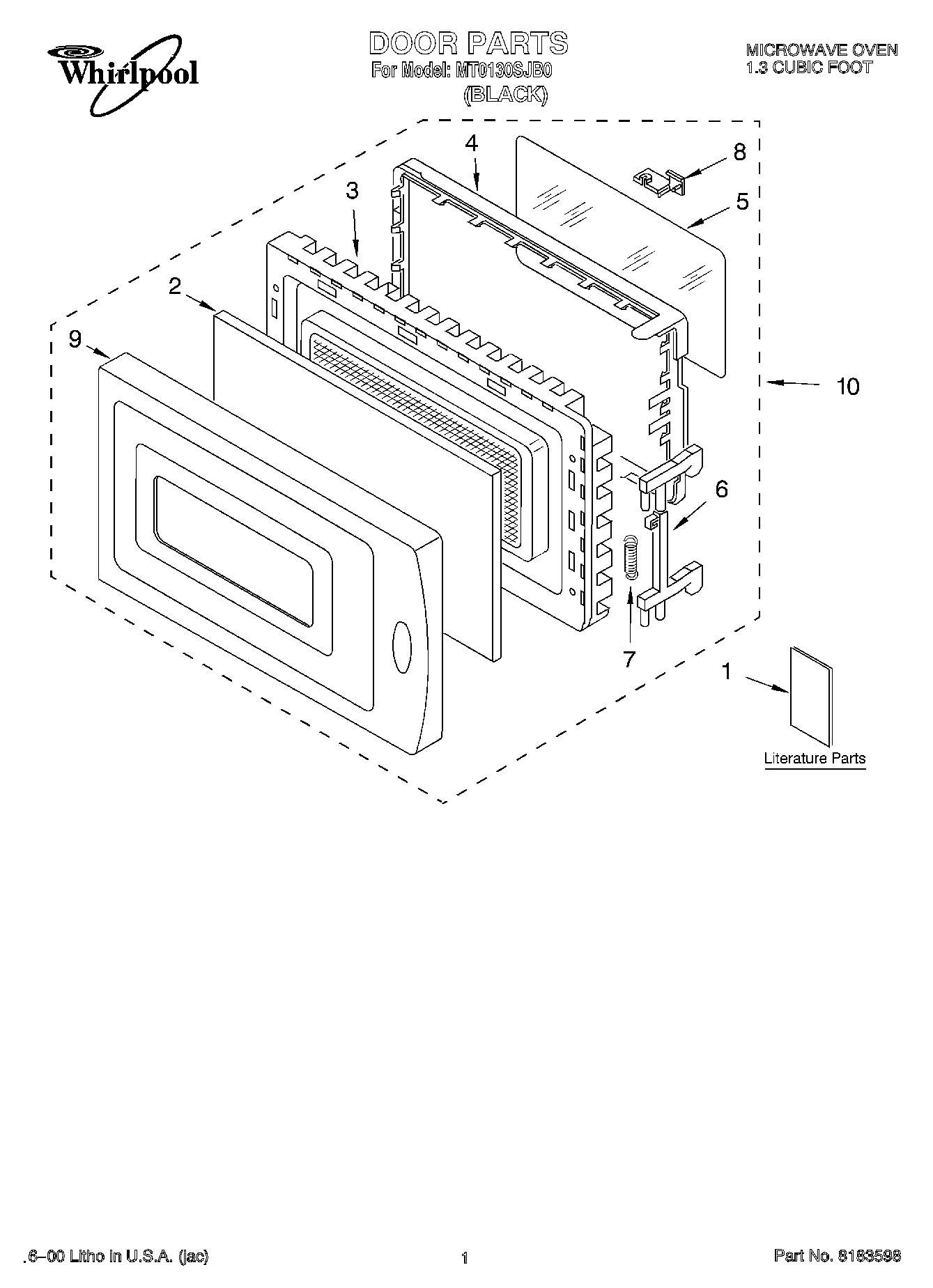

01 - DOOR, LITERATURE
Common parts from model Whirlpool MT0130SJB0
1
Canopy WPL 4359777 Contact Us For Availability
1
Latch Board Assembly (Not Serviceable) WPL ARI118821A Contact Us For Availability
1
Base Plate (L) WPL 8172002 Contact Us For Availability
1
Literature Parts (Instructions, Installation) WPL LIT8172217 Contact Us For Availability
1
Literature Parts (Template, B/I Kit) WPL LIT8172220 Contact Us For Availability
1
Literature Parts (Cook Guide Label) WPL LIT8172246 Contact Us For Availability
1
Literature Parts (Guide, U & C) WPL LIT8172248 Contact Us For Availability
1
Literature Parts (Tech Sheet) WPL LIT8172256 Contact Us For Availability
2
Base Plate (R) WPL 8172001 Contact Us For Availability
2
Guide, Suction WPL 4359158 Contact Us For Availability
2
Front Screen WPL 8183605 Contact Us For Availability
3
Spring, Button WPL 4158178 Contact Us For Availability
3
Leg WPL 4358487 Contact Us For Availability
3
Motor, Fan WPL 4359886 Contact Us For Availability
3
Door Frame Assembly WPL 4359761 Contact Us For Availability
4
Transformer WPL 8183613 Contact Us For Availability
4
Outer Case WPL 8183611 Contact Us For Availability
4
Capacitor, H.V. WPL 4359115 Contact Us For Availability
4
Choke Cover WPL 4359763 Contact Us For Availability
5
H.V.C. Bracket WPL 4359161 Contact Us For Availability
5
Tape, Seal WPL 4359764 Contact Us For Availability
6
Leadwire Assembly WPL 8183526 Contact Us For Availability
6
Latch WPL 4359765 Contact Us For Availability
7
Screw WPL 4358271 Contact Us For Availability
7
Spring, Latch WPL 4359707 Contact Us For Availability
8
Support, Turntable WPL 4359884 Contact Us For Availability
8
Cap WPL 4359710 Contact Us For Availability
9
Cord, Power WPL 4358653 Contact Us For Availability
9
Panel, Door WPL 8183607 Contact Us For Availability
10
Screw WPL 4358883 Contact Us For Availability
10
Thermostat WPL 8183524 Contact Us For Availability
10
Door Assembly WPL 8183606 Contact Us For Availability
11
Lamp, Baseless WPL 4359741 Contact Us For Availability
11
Motor, Synchronous WPL 8183612 Contact Us For Availability
12
Duct, Air WPL 8171808 Contact Us For Availability
14
Screw WPL 4358188 Contact Us For Availability
14
Holder WPL 4359794 Contact Us For Availability
16
Screw WPL 8171862 Contact Us For Availability
19
Cap WPL 4358659 Contact Us For Availability
21
Screw WPL 4358190 Contact Us For Availability
24
Screw WPL 4358381 Contact Us For Availability
× ![]()
