Model Whirlpool MT0060XBB0 – Common Parts & Diagrams

Tech Sheet
Tech Sheet WPL LIT4358583 Contact Us For Availability
View on Model
Use & Care Guide
Use & Care Guide WPL LIT4358587 Contact Us For Availability
View on Model
Accessory Order Card
Accessory Order Card WPL LIT4378047 Contact Us For Availability
View on Model
1
Canopy
Canopy WPL 4358618 Contact Us For Availability
View on Model
1

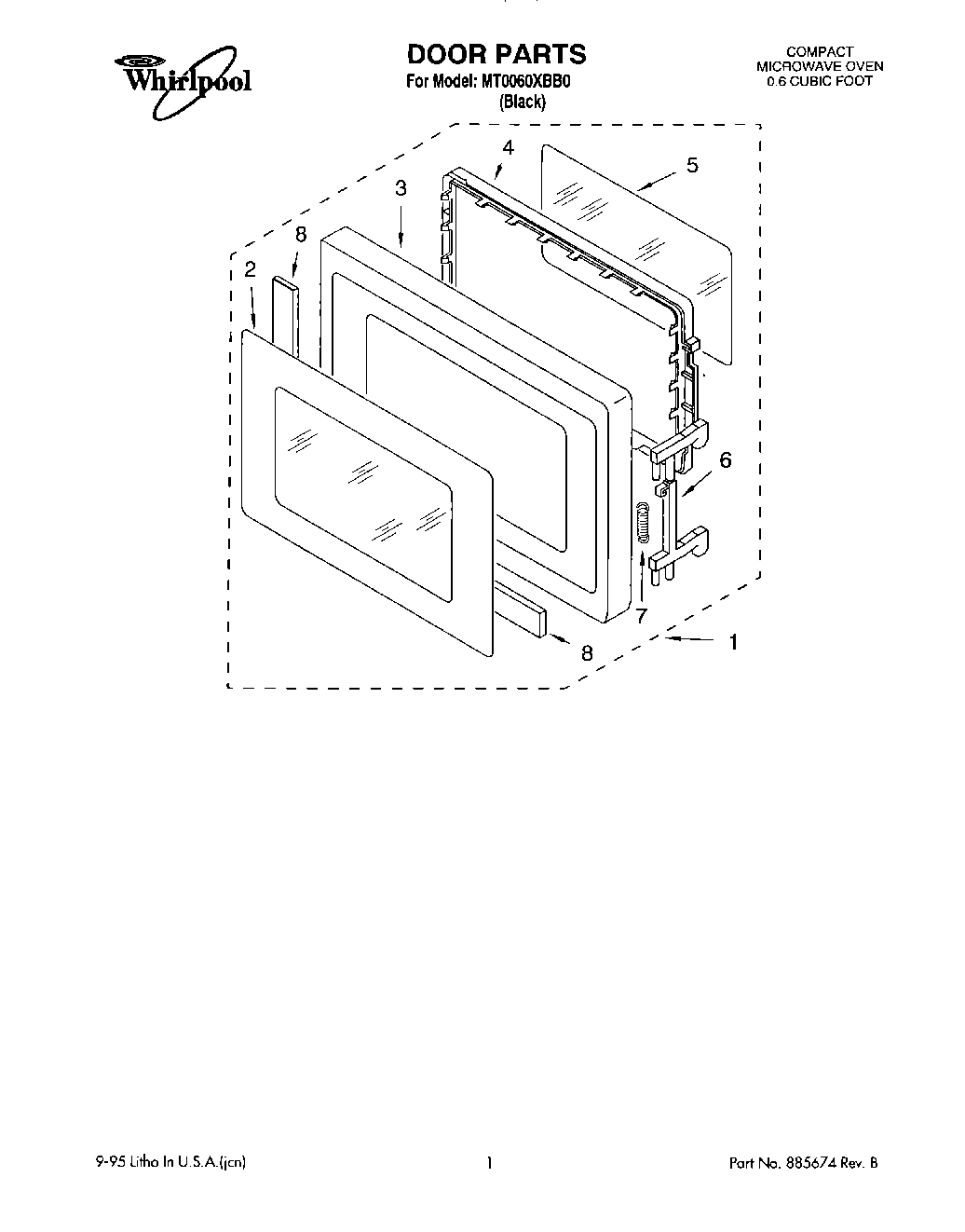

Door Assembly
Door Assembly WPL 4358893 Contact Us For Availability
View on Model
1

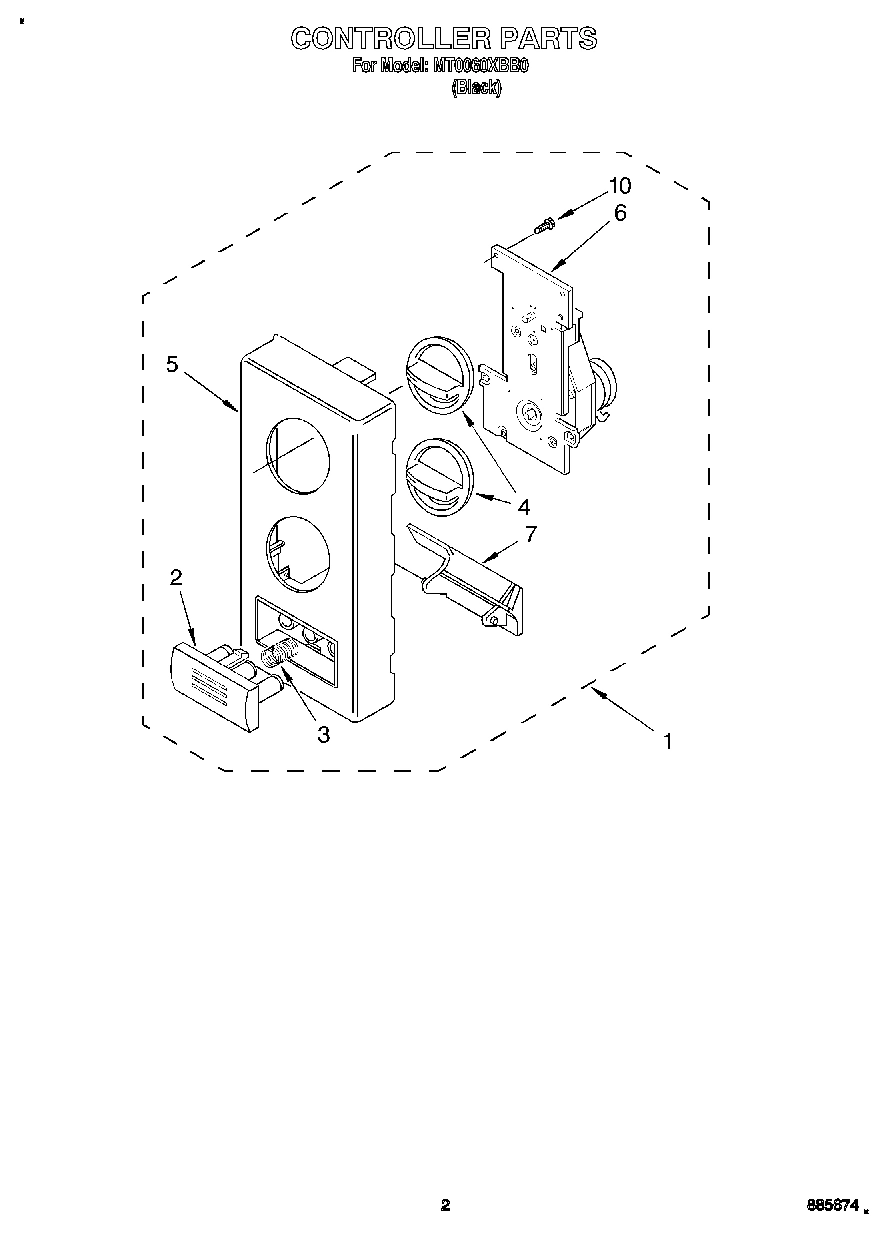

Controller Assembly
Controller Assembly WPL ARI118817A Contact Us For Availability
View on Model
2
Guide, Suction
Guide, Suction WPL 4359158 Contact Us For Availability
View on Model
2
Plate, Hinge
Plate, Hinge WPL 4358619 Contact Us For Availability
View on Model
2
Front Screen
Front Screen WPL 4358894 Contact Us For Availability
View on Model
2
Release Button
Release Button WPL 4358670 Contact Us For Availability
View on Model
3
Spring, Button
Spring, Button WPL 4158178 Contact Us For Availability
View on Model
3
Motor, Fan
Motor, Fan WPL 4358643 Contact Us For Availability
View on Model
3
Thermostat
Thermostat WPL 4358620 Contact Us For Availability
View on Model
3
Door Frame Assembly
Door Frame Assembly WPL 4358703 Contact Us For Availability
View on Model
4
H.V. Capacitor
H.V. Capacitor WPL 4358695 Contact Us For Availability
View on Model
4
Outer Case
Outer Case WPL 4358898 Contact Us For Availability
View on Model
4
Choke Cover
Choke Cover WPL 4358677 Contact Us For Availability
View on Model
4
Knob
Knob WPL 4358896 Contact Us For Availability
View on Model
5
H.V.C. Bracket
H.V.C. Bracket WPL 4359161 Contact Us For Availability
View on Model
5
Plate, Hinge
Plate, Hinge WPL 4358622 Contact Us For Availability
View on Model
5
Tape, Seal
Tape, Seal WPL 4358678 Contact Us For Availability
View on Model
5
Control Panel
Control Panel WPL 4358895 Contact Us For Availability
View on Model
6
Leadwire Assembly
Leadwire Assembly WPL 4358899 Contact Us For Availability
View on Model
6
Tray, Glass
Tray, Glass WPL 4358686 Contact Us For Availability
View on Model
6
Latch
Latch WPL 4358606 Contact Us For Availability
View on Model
6
Motor, Timer
Motor, Timer WPL 4358897 Contact Us For Availability
View on Model
7
H.V. Cable Ass`y
H.V. Cable Ass`y WPL 4158827 Contact Us For Availability
View on Model
7
Shaft, Turn Table
Shaft, Turn Table WPL 4358687 Contact Us For Availability
View on Model
7
Spring, Latch
Spring, Latch WPL 4358607 Contact Us For Availability
View on Model
7
Lever, Release
Lever, Release WPL 4358615 Contact Us For Availability
View on Model
8
H.V. Diode Cable
H.V. Diode Cable WPL 4158897 Contact Us For Availability
View on Model
8
Rotating Ring Ass`y
Rotating Ring Ass`y WPL 4358688 Contact Us For Availability
View on Model
8
Tape, Toyo
Tape, Toyo WPL 4358608 Contact Us For Availability
View on Model
9
Cord, Power
Cord, Power WPL 4358653 Contact Us For Availability
View on Model
9
Leg (4)
Leg (4) WPL 4358626 Contact Us For Availability
View on Model
10
Thermostat
Thermostat WPL 4358698 Contact Us For Availability
View on Model
10
Cover, Motor
Cover, Motor WPL 4358689 Contact Us For Availability
View on Model
10
Screw (3)
Screw (3) WPL 4358479 Contact Us For Availability
View on Model
11
Lamp, Baseless
Lamp, Baseless WPL 4358651 Contact Us For Availability
View on Model
11
Motor, Synchronous
Motor, Synchronous WPL 4358690 Contact Us For Availability
View on Model
12
Duct, Air
Duct, Air WPL 4358652 Contact Us For Availability
View on Model
12
Washer, Shaft
Washer, Shaft WPL 4358691 Contact Us For Availability
View on Model
13
Magnetron
Magnetron WPL 4158798 Contact Us For Availability
View on Model
13
Mounting Cap (2)
Mounting Cap (2) WPL 4358857 Contact Us For Availability
View on Model
14
Screw
Screw WPL 4358051 Contact Us For Availability
View on Model
14
H.V. Transformer
H.V. Transformer WPL 4358699 Contact Us For Availability
View on Model
15
Leadwire Ass`y
Leadwire Ass`y WPL 4358700 Contact Us For Availability
View on Model
15
Screw
Screw WPL 4358015 Contact Us For Availability
View on Model
16
Cushion
Cushion WPL 4358657 Contact Us For Availability
View on Model
17
Fuse
Fuse WPL 4358263 Contact Us For Availability
View on Model
17
Screw (2)
Screw (2) WPL 4358188 Contact Us For Availability
View on Model
18
Cap, Fuse
Cap, Fuse WPL 4358659 Contact Us For Availability
View on Model
19
Nut (2)
Nut (2) WPL 4358475 Contact Us For Availability
View on Model
19
Screw
Screw WPL 4358693 Contact Us For Availability
View on Model
22
Screw
Screw WPL 4358376 Contact Us For Availability
View on Model
23
Screw
Screw WPL 4358381 Contact Us For Availability
View on Model
24
Screw (2)
Screw (2) WPL 4358190 Contact Us For Availability
View on Model
