Model Maytag MSS26C6MFZ01 REFRIGERATOR, SIDE-BY-SIDE – Common Parts & Diagrams

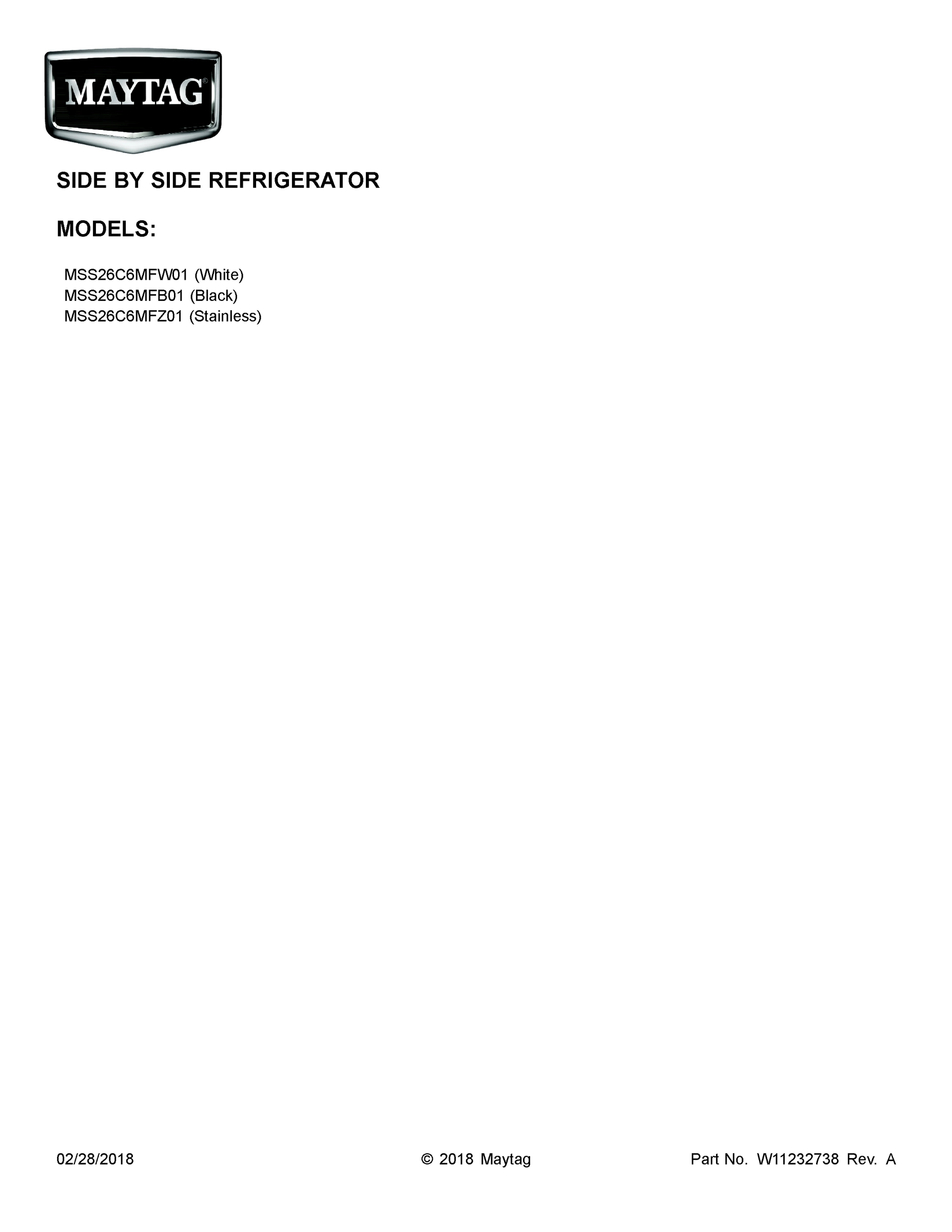

01 - COVER SHEET

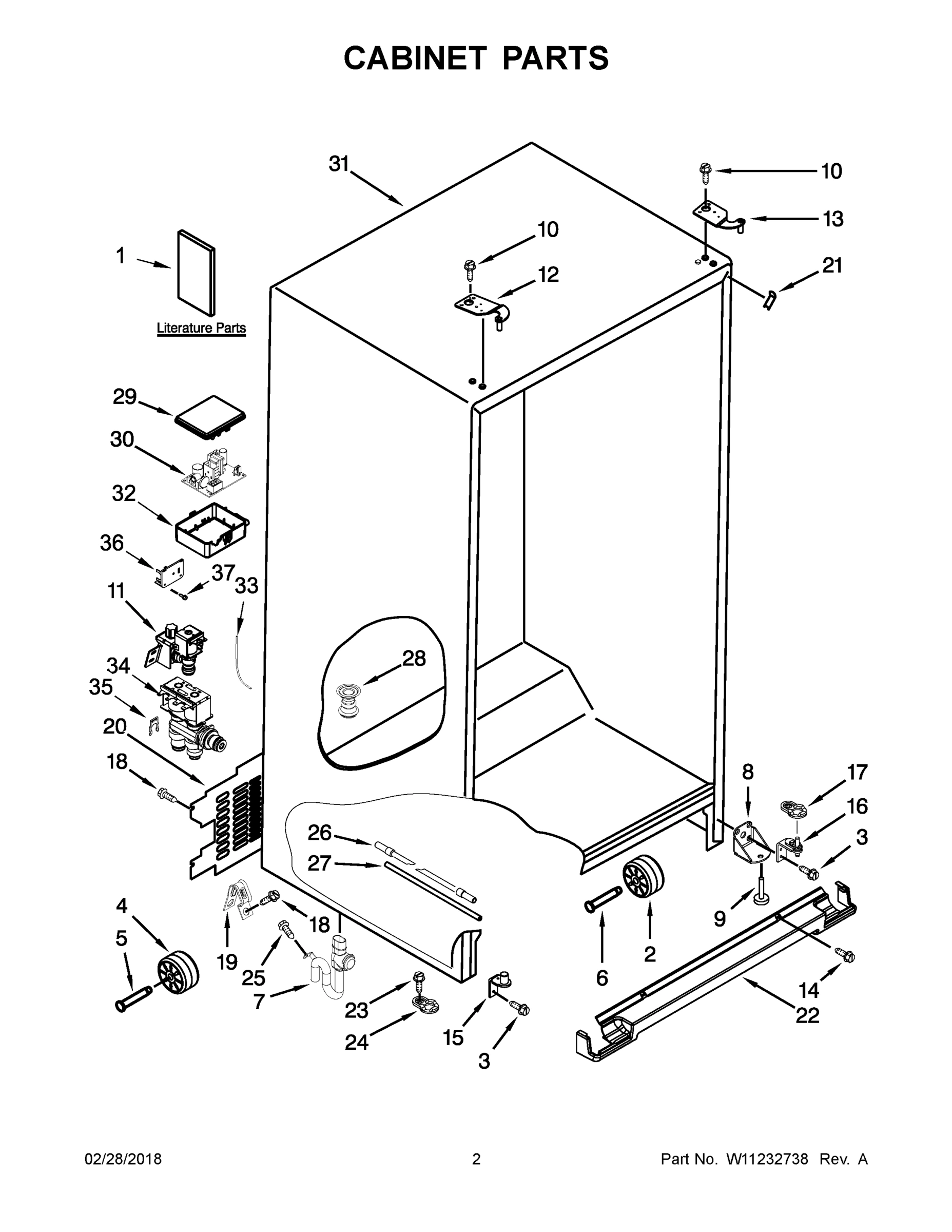

02 - CABINET PARTS

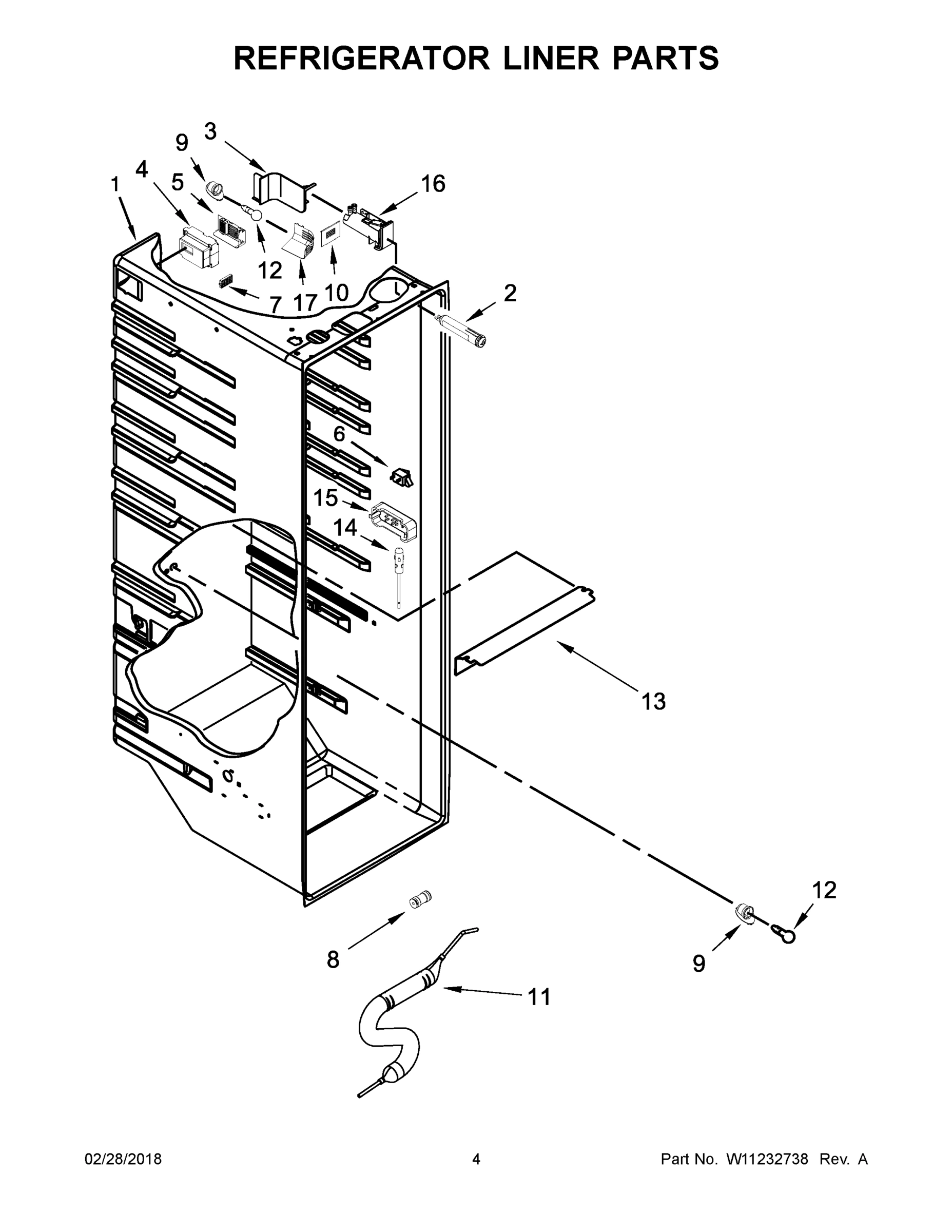

03 - REFRIGERATOR LINER PARTS

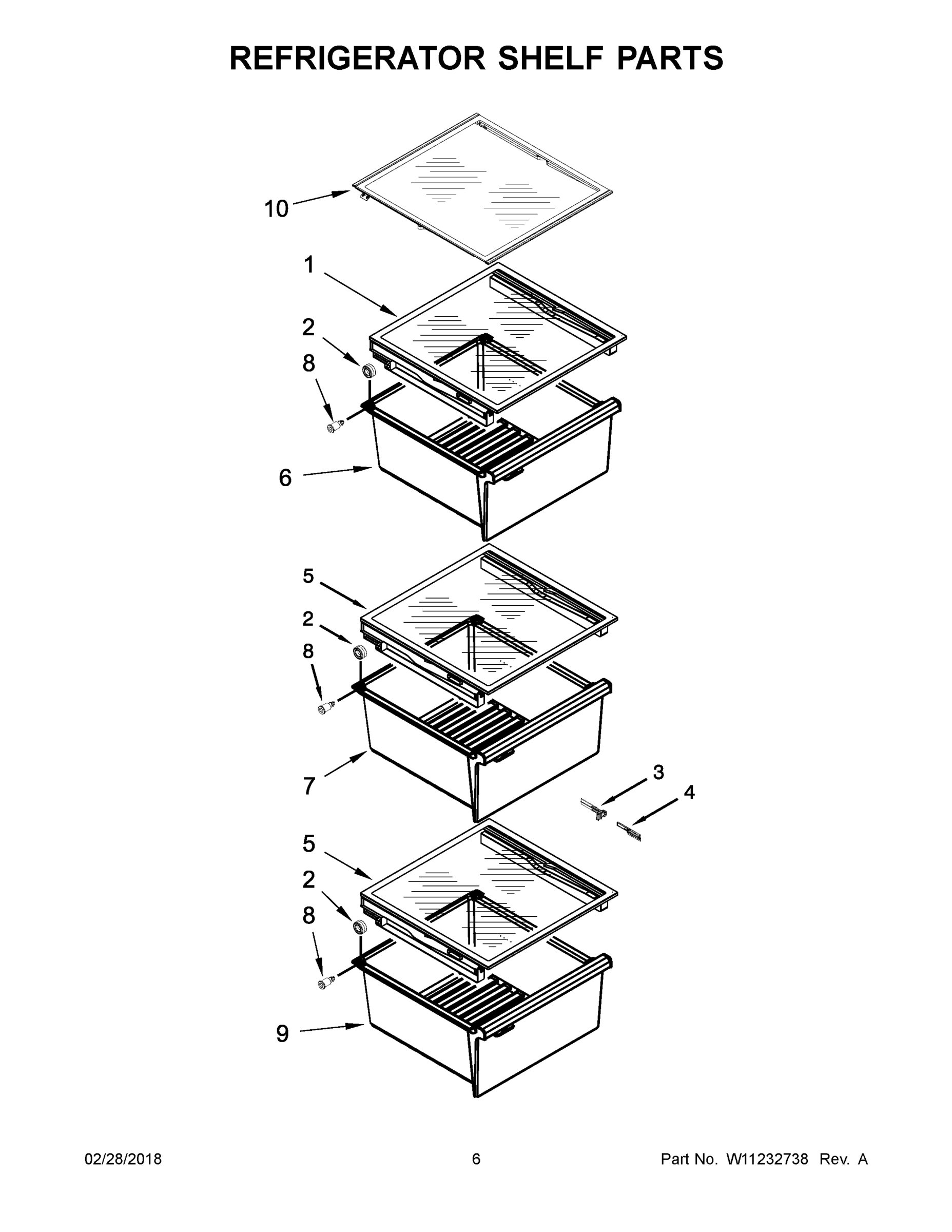

04 - REFRIGERATOR SHELF PARTS

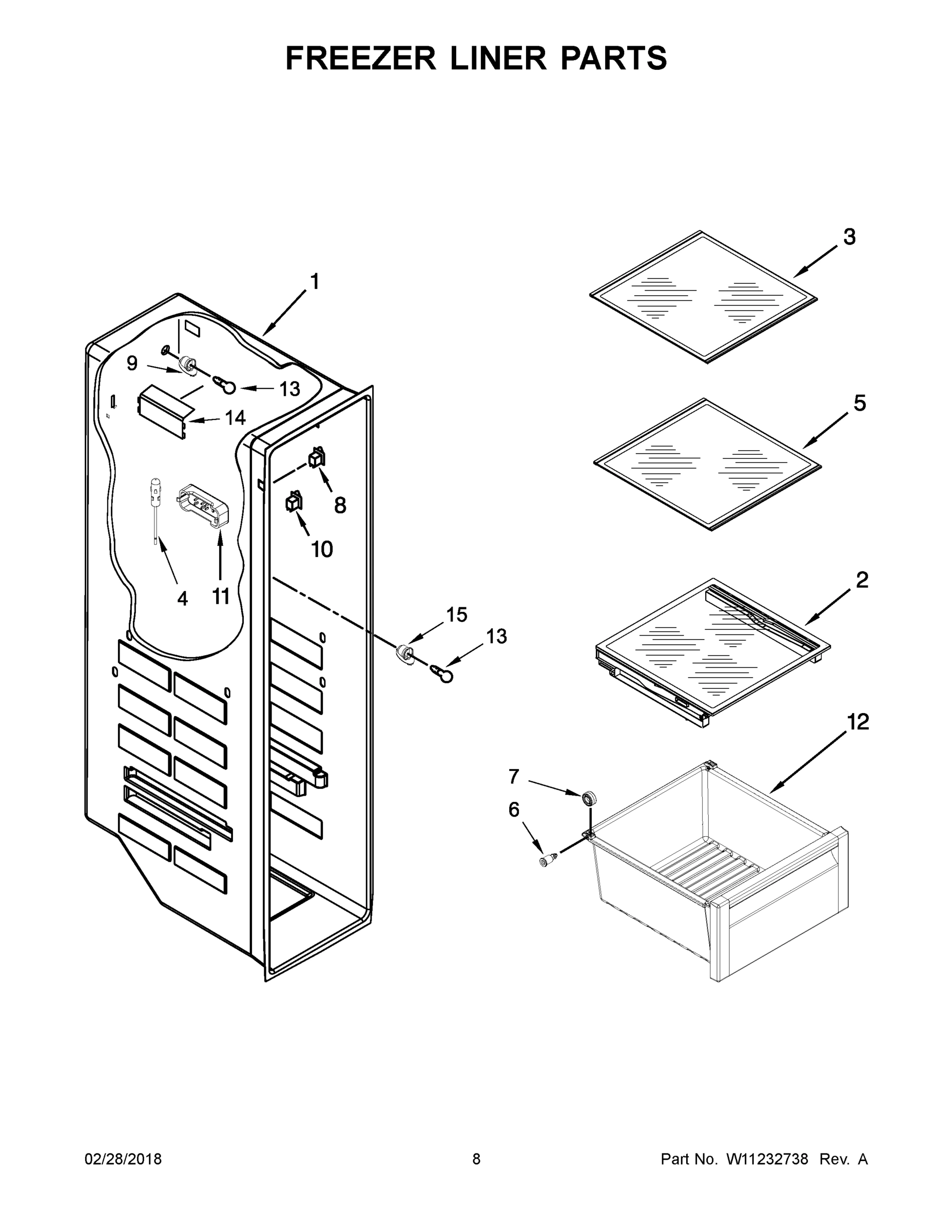

05 - FREEZER LINER PARTS

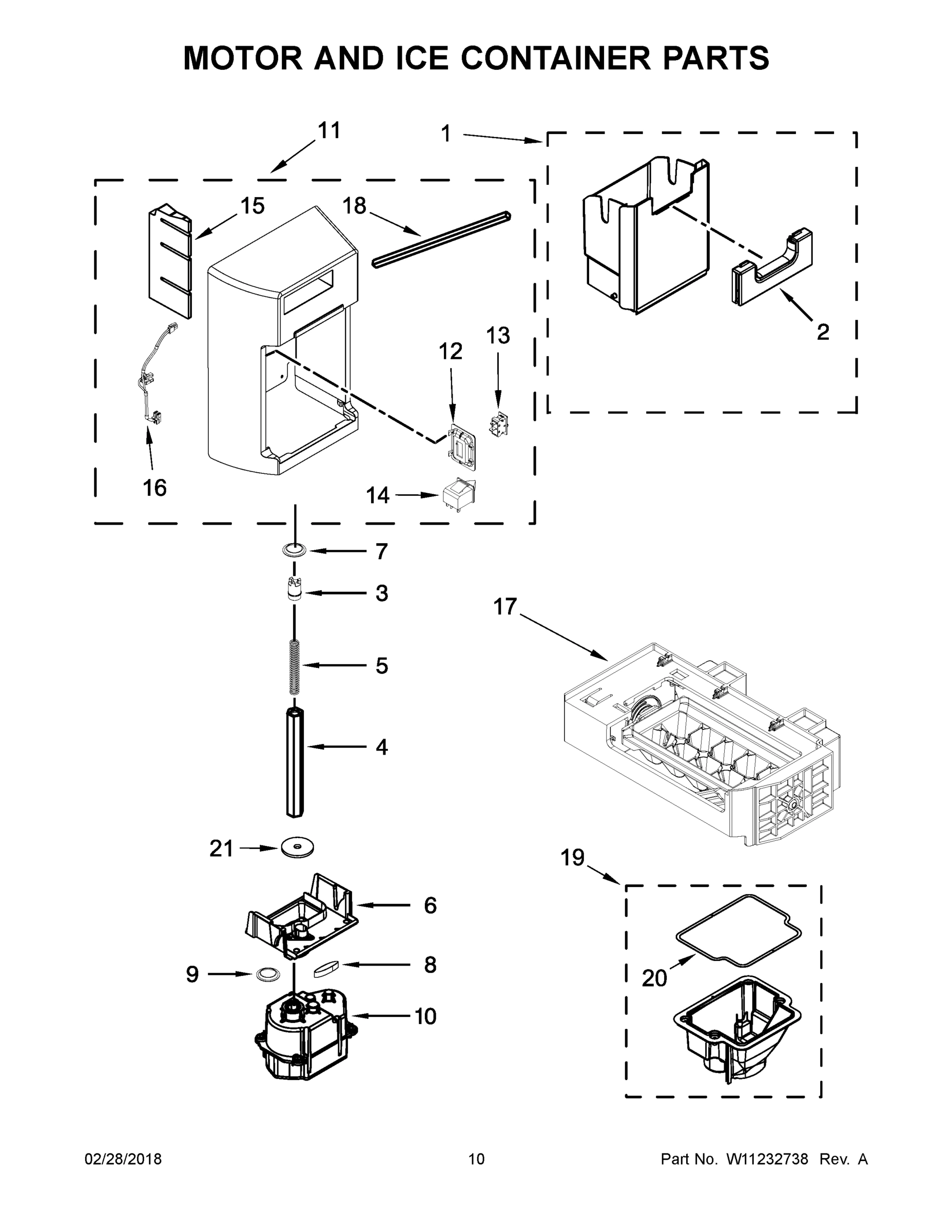

06 - MOTOR AND ICE CONTAINER PARTS

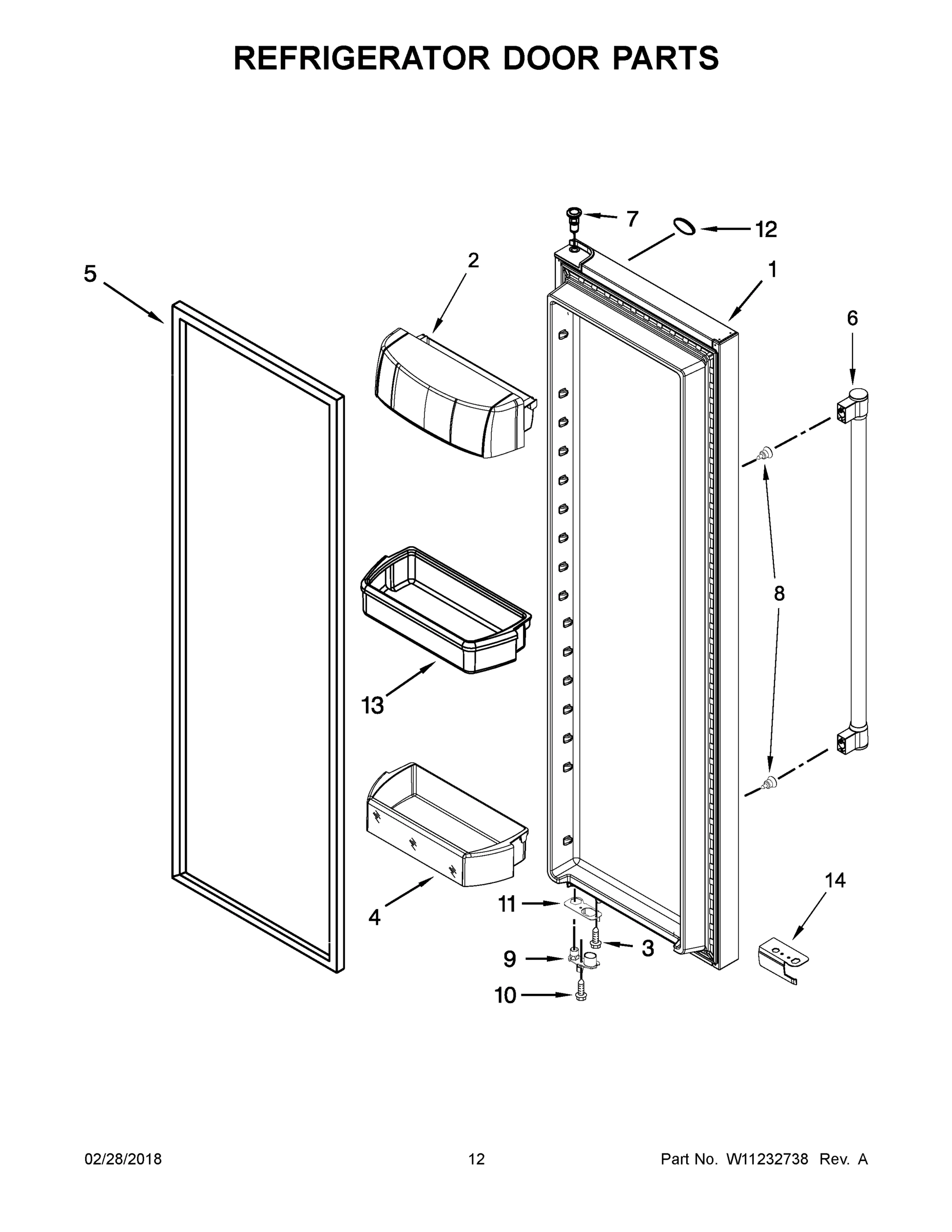

07 - REFRIGERATOR DOOR PARTS

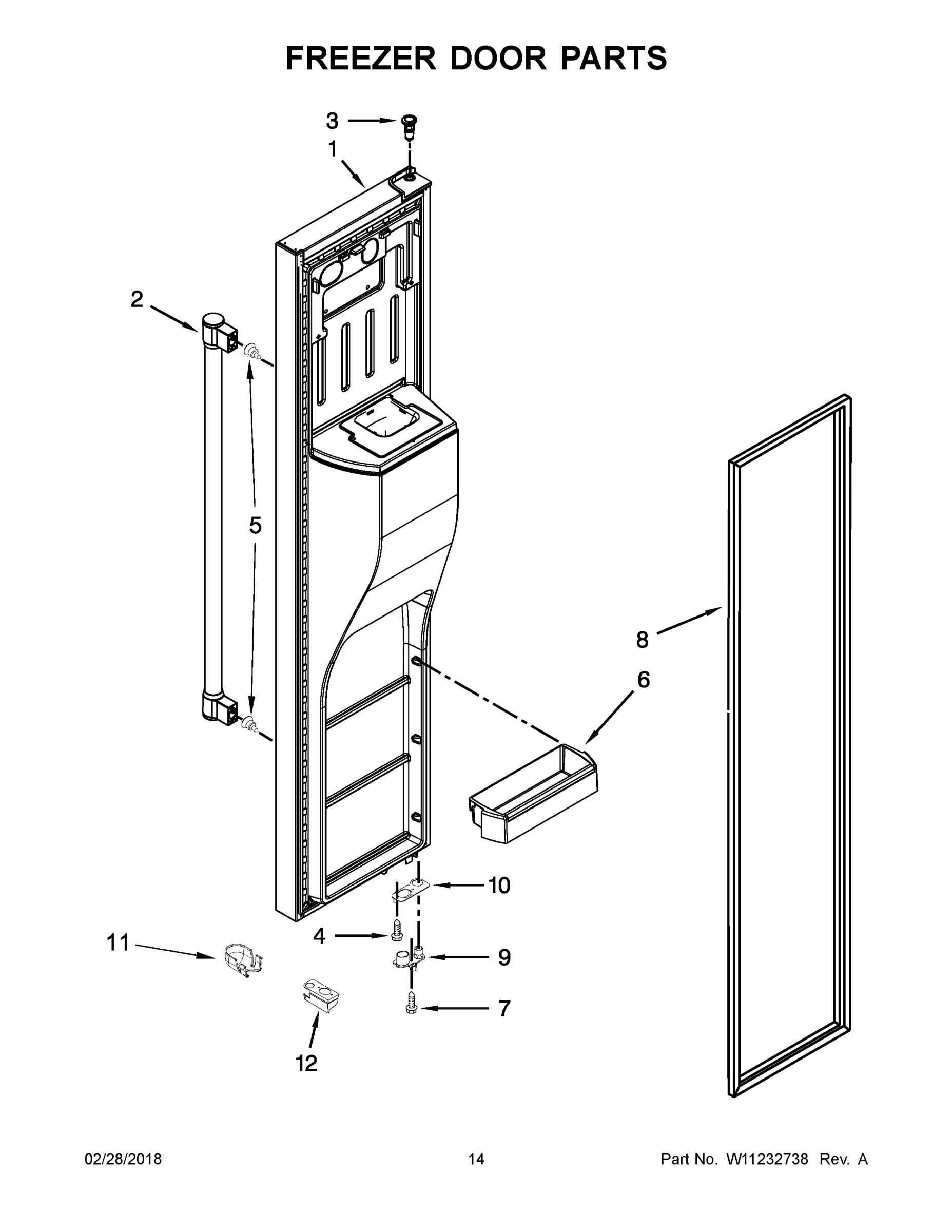

08 - FREEZER DOOR PARTS

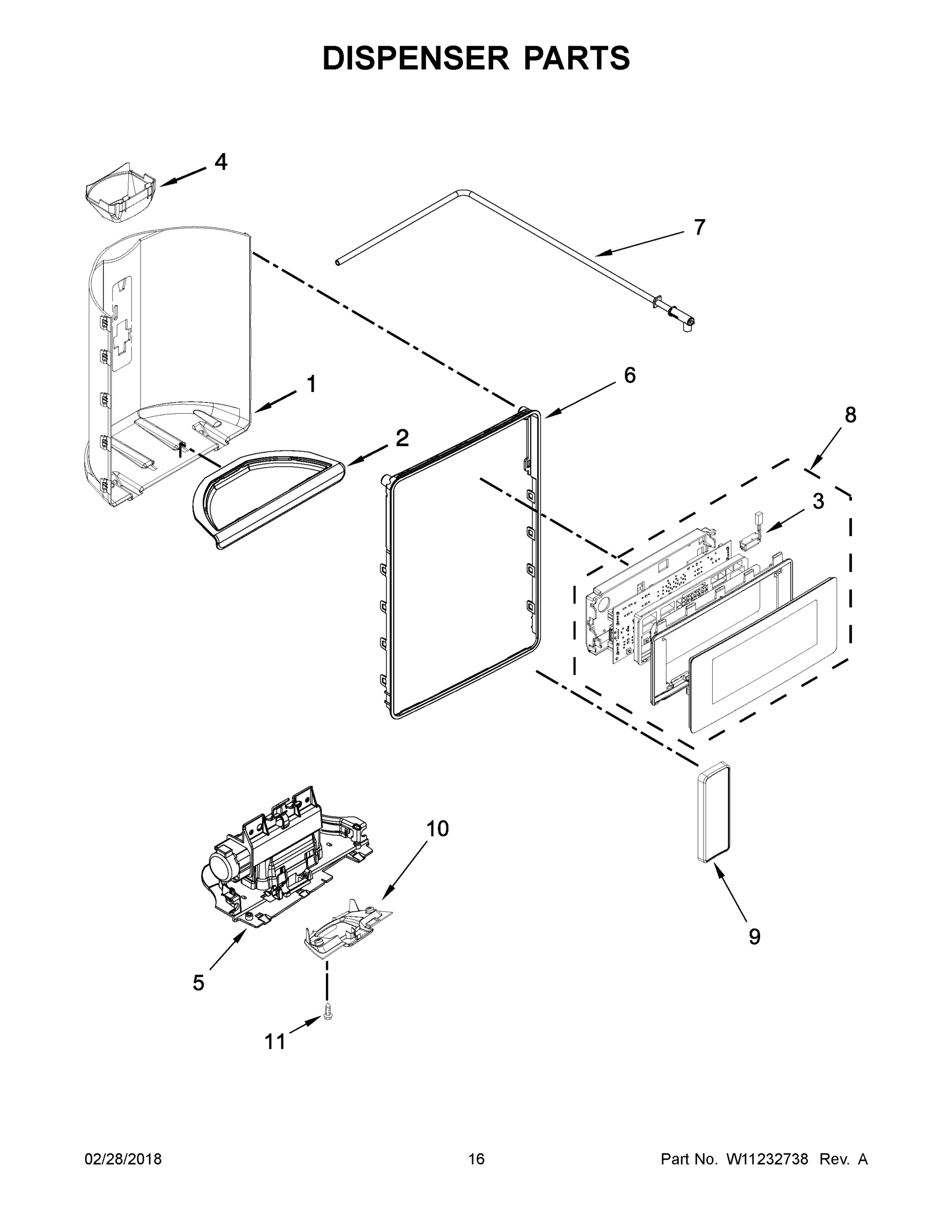

09 - DISPENSER PARTS

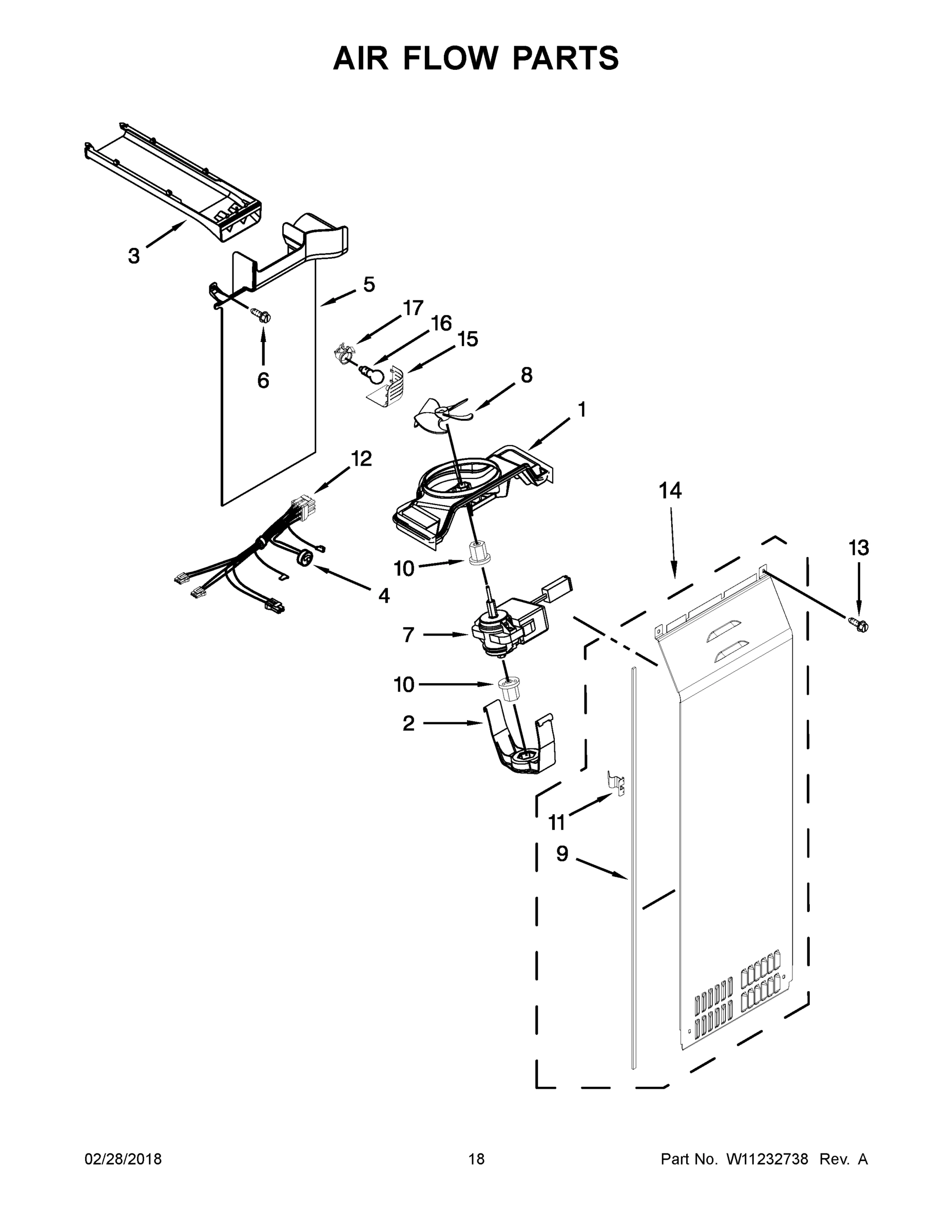

10 - AIR FLOW PARTS

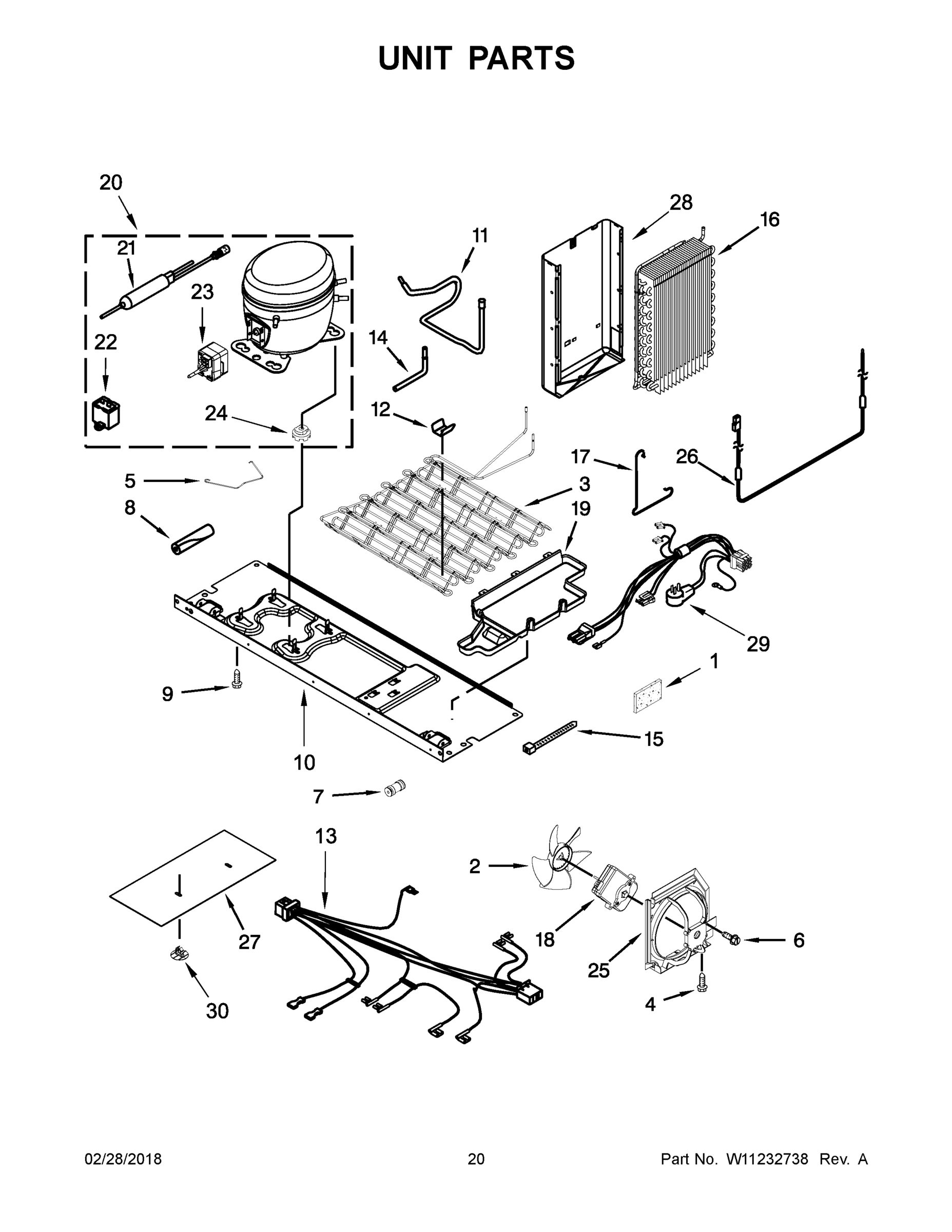

11 - UNIT PARTS
12 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MSS26C6MFZ01 REFRIGERATOR, SIDE-BY-SIDE
1
USE AND CARE GUIDE MAY W10853485 Contact Us For Availability
1
SHELF, SNACK PAN MAY W10463649 Contact Us For Availability
1
ASSEMBLY, ICE BIN MAY W10781441 Contact Us For Availability
1
REFRIGERATOR DOOR (INCLUDES ITEM 5) (WHITE) MAY W10839553 Contact Us For Availability
1
DOOR, FREEZER (INCLUDES ITEM 8 AND DISPENSER MAY W10839558 Contact Us For Availability
1
HOUSING, DISPENSER (WHITE) MAY W10520867 Contact Us For Availability
1
SCROLL, FAN MAY W10251462 Contact Us For Availability
1
SEALER, INSULATION MAY 2169104 Contact Us For Availability
1A
TECH SHEET MAY W11040479 Contact Us For Availability
1A
REFRIGERATOR DOOR (INCLUDES ITEM 5) (BLACK) MAY W10839523 Contact Us For Availability
1A
DOOR, FREEZER (INCLUDES ITEM 8 AND DISPENSER MAY W10839545 Contact Us For Availability
1A
HOUSING, DISPENSER (BLACK) MAY W10520868 Contact Us For Availability
1B
ENERGY GUIDE MAY W10922057 Contact Us For Availability
1B
REFRIGERATOR DOOR (INCLUDES ITEM 5) (STAINLES MAY W10839084 Contact Us For Availability
1B
DOOR, FREEZER (INCLUDES ITEM 8 AND DISPENSER MAY W10839374 Contact Us For Availability
1B
HOUSING, DISPENSER (GREY) MAY W10520869 Contact Us For Availability
2
ROLLER MAY 2150304 Contact Us For Availability
2
FILTER, WATER MAY W10735398 Contact Us For Availability
2
COVER ASSEMBLY MAY W10463654 Contact Us For Availability
2
ASSEMBLY, LATCH MAY W10693542 Contact Us For Availability
2
ASSEMBLY, UTILITY COMPARTMENT MAY W10324760 Contact Us For Availability
2
HANDLE (WHITE) MAY W10891380 Contact Us For Availability
2
GRATE, DRIP TRAY (WHITE) MAY W10322872 Contact Us For Availability
2
RETAINER, FAN MOTOR MAY W10260421 Contact Us For Availability
2
BLADE, FAN MAY 2225834 Contact Us For Availability
2A
HANDLE (BLACK) MAY W10891379 Contact Us For Availability
2A
GRATE, DRIP TRAY (BLACK) MAY W10322873 Contact Us For Availability
2B
HANDLE (STAINLESS) MAY W10838130 Contact Us For Availability
2B
GRATE, DRIP TRAY (GREY) MAY W10410105 Contact Us For Availability
3
SCREW MAY W10297485 Contact Us For Availability
3
COVER, WATER FILTER MAY W10300482 Contact Us For Availability
3
SLIDE, HUMIDITY MAY W10282883 Contact Us For Availability
3
SHELF, GLASS UPPER MAY W10463643 Contact Us For Availability
3
COUPLING, BOTTOM MAY 2220458 Contact Us For Availability
3
THIMBLE, TOP MAY 2200086 Contact Us For Availability
3
ASSEMBLY, LED MAY W10470750 Contact Us For Availability
3
DUCT, UPPER AIR MAY W10550199 Contact Us For Availability
3
CONDENSER MAY W10276899 Contact Us For Availability
4
ROLLER MAY 12477102 Contact Us For Availability
4
MAY W11175955 MAY W11175955 Contact Us For Availability
4
HOUSING, HUMIDITY MAY W10282880 Contact Us For Availability
4
THERMISTOR MAY W10280386 Contact Us For Availability
4
SHAFT, DRIVE MAY W10258544 Contact Us For Availability
4
DOOR BIN, GALLON MAY W10672344 Contact Us For Availability
4
SCREW MAY W10296804 Contact Us For Availability
4
GUIDE, ICE MAY W10435760 Contact Us For Availability
4
SCREW MAY W10142255 Contact Us For Availability
5
AXLE, ROLLER MAY 12477202 Contact Us For Availability
5
COVER, AIR DIFFUSER MAY W10457601 Contact Us For Availability
5
COVER, ASSEMBLY MAY W10463651 Contact Us For Availability
5
SHELF, GLASS LOWER MAY W10463645 Contact Us For Availability
5
SPRING, COUPLING MAY W10754509 Contact Us For Availability
5
DOOR GASKET, MAGNETIC (BEIGE) MAY W10247884 Contact Us For Availability
5
SCREW MAY W10460893 Contact Us For Availability
5
ASSEMBLY, SEPERATOR MAY W10781995 Contact Us For Availability
5
DUCT, FREEZER AIR MAY W10260378 Contact Us For Availability
5
STRAP, BALE MAY 2212996 Contact Us For Availability
5A
DOOR GASKET, MAGNETIC (BLACK) MAY W10249912 Contact Us For Availability
5B
DOOR GASKET, MAGNETIC (GREY) MAY W10249916 Contact Us For Availability
6
RIVET, ROLLER MAY 981125 Contact Us For Availability
6
SWITCH, LIGHT MAY W10656773 Contact Us For Availability
6
PAN, SNACK MAY W10256770 Contact Us For Availability
6
AXLE, ROLLER MAY W10628712 Contact Us For Availability
6
ASSEMBLY, MOUNTING PLATE MAY W10293212 Contact Us For Availability
6
DOOR BIN MAY W10646629 Contact Us For Availability
6
TRIM RING (WHITE) MAY W10587907 Contact Us For Availability
6
SCREW MAY W10001260 Contact Us For Availability
6
SCREW MAY W10171469 Contact Us For Availability
6A
TRIM RING (BLACK) MAY W10587908 Contact Us For Availability
6B
TRIM RING (GREY) MAY W10587909 Contact Us For Availability
7
TUBE, DRAIN MAY W10379525 Contact Us For Availability
7
FILTER, AIR MAY W10315189 Contact Us For Availability
7
ROLLER, PAN MAY W10628713 Contact Us For Availability
7
PAN, MEAT MAY W10256774 Contact Us For Availability
7
SEAL MAY 2198628 Contact Us For Availability
7
SCREW MAY W10296816 Contact Us For Availability
7
TUBE, WATER (WITH SPIGOT) MAY W10294737 Contact Us For Availability
7
MOTOR, FAN MAY 2315549 Contact Us For Availability
7
CONNECTOR, WATER MAY W10277958 Contact Us For Availability
8
BRACKET, FOOT MAY W10900758 Contact Us For Availability
8
CONNECTOR, WATER TUBE MAY W10271543 Contact Us For Availability
8
SWITCH, ROCKER ARM MAY W10656771 Contact Us For Availability
8
GASKET MAY W10291905 Contact Us For Availability
8
GASKET, DOOR (BEIGE) MAY W10247885 Contact Us For Availability
8
ELECTRONIC CONTROL ASSEMBLY (INCLUDES LIGHT F MAY W10841976 Contact Us For Availability
8
BLADE, FAN MAY 2169142 Contact Us For Availability
8
SLEEVE MAY W10303521 Contact Us For Availability
8A
GASKET, DOOR (BLACK) MAY W10249913 Contact Us For Availability
8A
ELECTRONIC CONTROL ASSEMBLY (INCLUDES LIGHT F MAY W10841971 Contact Us For Availability
8B
GASKET, DOOR (GREY) MAY W10249917 Contact Us For Availability
9
BRAKE, ROLLER MAY W10141622 Contact Us For Availability
9
PAN, CRISPER MAY W10278653 Contact Us For Availability
9
WASHER MAY 2212370 Contact Us For Availability
9
DOOR CLOSER, UPPER CAM (WHITE) MAY W10248011 Contact Us For Availability
9
CLOSER, UPPER CAM DOOR (WHITE) MAY W10248015 Contact Us For Availability
9
PAD, ICE & WATER (SILVER) MAY W10348739 Contact Us For Availability
9
GASKET, EVAPORATOR COVER MAY W10240370 Contact Us For Availability
9
BOLT MAY W10142287 Contact Us For Availability
9A
DOOR CLOSER, UPPER CAM (BLACK) MAY W10257201 Contact Us For Availability
9A
CLOSER, UPPER CAM DOOR (BLACK) MAY W10257204 Contact Us For Availability
9A
PAD, ICE & WATER (BLACK) MAY W10410098 Contact Us For Availability
9B
DOOR CLOSER, UPPER CAM (GREY) MAY W10257203 Contact Us For Availability
9B
CLOSER, UPPER CAM DOOR (GREY) MAY W10257206 Contact Us For Availability
10
SCREW (WHITE) MAY W10308750 Contact Us For Availability
10
COVER, AIR FILTER MAY W10457603 Contact Us For Availability
10
SHELF ASSEMBLY MAY W10463259 Contact Us For Availability
10
MOTOR, DISPENSER MAY W11117906 Contact Us For Availability
10
BRACKET, DOOR STOP MAY W10247907 Contact Us For Availability
10
COVER, SEPERATOR MAY W10549235 Contact Us For Availability
10
GROMMET, MOTOR MAY 2176759 Contact Us For Availability
10
BASEPLATE MAY W10680691 Contact Us For Availability
10A
SCREW (BLACK) MAY W10308751 Contact Us For Availability
11
VALVE, INLET MAY W10498992 Contact Us For Availability
11
RESERVOIR MAY W10366790 Contact Us For Availability
11
COVER, THERMISTOR MAY W10425252 Contact Us For Availability
11
COVER, CONTAINER MAY W10669473 Contact Us For Availability
11
BRACKET, DOOR STOP MAY W10888898 Contact Us For Availability
11
COVER, WIRE MAY W10323148 Contact Us For Availability
11
SCREW (STAINLESS) MAY 3400065 Contact Us For Availability
11
CLIP, EVAPORATOR COVER MAY W10369602 Contact Us For Availability
11
TUBE, SUCTION MAY W10219381 Contact Us For Availability
12
HINGE, TOP (FREEZER) (WHITE) MAY W10901051 Contact Us For Availability
12
PAN, FREEZER MAY W10260985 Contact Us For Availability
12
PLATE, SWITCH MAY W10691248 Contact Us For Availability
12
BADGE MAY W10612926 Contact Us For Availability
12
COVER, DOOR STOP (WHITE) MAY W10632059 Contact Us For Availability
12
ASSEMBLY, EVAPORATOR FAN WIRE (INCLUDES BI-ME MAY W10242409 Contact Us For Availability
12
CLIP, CONDENSER MAY W10248621 Contact Us For Availability
12A
COVER, DOOR STOP (BLACK) MAY W10632060 Contact Us For Availability
12B
HINGE, TOP (FREEZER) (BLACK) MAY W10901052 Contact Us For Availability
12B
COVER, DOOR STOP (GREY) MAY W10632062 Contact Us For Availability
12C
HINGE, TOP (FREEZER) (GREY) MAY W10901054 Contact Us For Availability
13
HINGE, TOP (REFRIGERATOR) (WHITE) MAY W10901046 Contact Us For Availability
13
LAMP, LED MAY W10805744 Contact Us For Availability
13
LENS, LIGHT MAY W10269099 Contact Us For Availability
13
ROCKER, SWITCH MAY W10666871 Contact Us For Availability
13
DOOR BIN, SHALLOW MAY W10672337 Contact Us For Availability
13
SCREW MAY W10142292 Contact Us For Availability
13
ASSEMBLY, UNIT WIRE MAY W10670174 Contact Us For Availability
13A
HINGE, TOP (REFRIGERATOR) (BLACK) MAY W10901047 Contact Us For Availability
13B
HINGE, TOP (REFRIGERATOR) (GREY) MAY W10901049 Contact Us For Availability
14
SCREW (WHITE) MAY W10142283 Contact Us For Availability
14
THERMISTOR MAY W10280385 Contact Us For Availability
14
SWITCH, ROCKER ARM MAY W10656772 Contact Us For Availability
14
LENS MAY W10269101 Contact Us For Availability
14
COVER, DOOR STOP (WHITE) MAY W10789144 Contact Us For Availability
14
COVER, EVAPORATOR MAY W10388268 Contact Us For Availability
14
TUBE, PROCESS MAY 2325479 Contact Us For Availability
14A
SCREW (BLACK) MAY W10308487 Contact Us For Availability
14A
COVER, DOOR STOP (BLACK) MAY W10789145 Contact Us For Availability
14B
SCREW (GREY) MAY W10308489 Contact Us For Availability
14B
COVER, DOOR STOP (GREY) MAY W10789147 Contact Us For Availability
15
HINGE, BOTTOM (FREEZER) (WHITE) MAY W11088197 Contact Us For Availability
15
SOCKET, LIGHT MAY 2155597 Contact Us For Availability
15
FILLER, EPS ICEMAKER COVER MAY W10749467 Contact Us For Availability
15
COVER, LIGHT MAY W10260382 Contact Us For Availability
15
TIE, WIRE MAY 2205813 Contact Us For Availability
15A
HINGE, BOTTOM (FREEZER) (BLACK) MAY W11088196 Contact Us For Availability
15B
HINGE, BOTTOM (FREEZER) (GREY) MAY W10249952 Contact Us For Availability
16
HINGE, BOTTOM (REFRIGERATOR) (WHITE) MAY W10666898 Contact Us For Availability
16
HOUSING, WATER FILTER MAY W10394053 Contact Us For Availability
16
ASSEMBLY, WIRE JUMPER SWITCH MAY W10646076 Contact Us For Availability
16
LAMP, LED MAY W10820003 Contact Us For Availability
16
EVAPORATOR MAY 2188822 Contact Us For Availability
16A
HINGE, BOTTOM (REFRIGERATOR) (BLACK) MAY W11084348 Contact Us For Availability
16B
HINGE, BOTTOM (REFRIGERATOR) (GREY) MAY W11084346 Contact Us For Availability
17
CLOSER, DOOR (REFRIGERATOR) (WHITE) MAY W10738913 Contact Us For Availability
17
SOCKET, LIGHT MAY 2162085 Contact Us For Availability
17
COVER, LIGHT MAY W10893232 Contact Us For Availability
17
ASSEMBLY, ICE MAKER MAY W11130444 Contact Us For Availability
17
CLIP, DEFROST HEATER MAY 2161324 Contact Us For Availability
17A
CLOSER, DOOR (REFRIGERATOR) (BLACK) MAY W10738914 Contact Us For Availability
17B
CLOSER, DOOR (REFRIGERATOR) (GREY) MAY W10738911 Contact Us For Availability
18
SCREW MAY W10141645 Contact Us For Availability
18
GASKET, FOAM MAY W10400435 Contact Us For Availability
18
MOTOR, CONDENSER FAN MAY W10909387 Contact Us For Availability
19
CLAMP, POWER CORD MAY 549193 Contact Us For Availability
19
MAY W10771442 MAY W10771442 Contact Us For Availability
19
TRAY, EVAPORATOR MAY W10703218 Contact Us For Availability
20
COVER, UNIT MAY W10257238 Contact Us For Availability
20
GASKET MAY W10166854 Contact Us For Availability
20
COMPRESSOR MAY W10200250 Contact Us For Availability
21
FILLER, WRAPPER (WHITE) MAY 12587703W Contact Us For Availability
21
BOOT, RUBBER MAY 2305382 Contact Us For Availability
21
DRIER MAY W10771114 Contact Us For Availability
21A
FILLER, WRAPPER (BLACK) MAY 12587703B Contact Us For Availability
21B
FILLER, WRAPPER (GREY) MAY 12587703AP Contact Us For Availability
22
GRILLE (WHITE) MAY W10713160 Contact Us For Availability
22
CAPACITOR MAY W10350564 Contact Us For Availability
22A
GRILLE (BLACK) MAY W10713158 Contact Us For Availability
22B
GRILLE (GREY) MAY W10713153 Contact Us For Availability
23
SCREW MAY W10142234 Contact Us For Availability
23
DEVICE, COMBINATION START (START RELAY AND OV MAY W10197428 Contact Us For Availability
24
CLOSER, DOOR (FREEZER) (WHITE) MAY W10770896 Contact Us For Availability
24
GROMMET MAY 2183042 Contact Us For Availability
24A
CLOSER, DOOR (FREEZER) (BLACK) MAY W10770895 Contact Us For Availability
24B
CLOSER, DOOR (FREEZER) (GREY) MAY W10770893 Contact Us For Availability
25
SCREW MAY W10001250 Contact Us For Availability
25
BAFFLE, AIR MAY W10251467 Contact Us For Availability
26
TUBE, FILTER INLET MAY W10279882 Contact Us For Availability
26
HEATER, DEFROST MAY W10495967 Contact Us For Availability
27
TUBE, FILTER OUTLET MAY W10279884 Contact Us For Availability
27
COVER, CONDENSER (BOTTOM) MAY W10278140 Contact Us For Availability
28
FITTING, DRAIN MAY W10370680 Contact Us For Availability
28
SHIELD, HEAT MAY W10274575 Contact Us For Availability
29
LID, MAY 12957702 Contact Us For Availability
29
CORD, POWER MAY W10242407 Contact Us For Availability
30
MAY W10887255 MAY W10887255 Contact Us For Availability
30
CLIP, BOTTOM COVER MAY W10815861 Contact Us For Availability
32
MAY W10247993 MAY W10247993 Contact Us For Availability
33
MAY W10238092 MAY W10238092 Contact Us For Availability
34
MAY W10341320 MAY W10341320 Contact Us For Availability
35
MAY W11175632 MAY W11175632 Contact Us For Availability
35A
MAY W11175631 MAY W11175631 Contact Us For Availability
36
MAY W10237915 MAY W10237915 Contact Us For Availability
37
MAY W10141625 MAY W10141625 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
VALVE, ACCESS (3/16") MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS (1/4") MAY 978025 Contact Us For Availability
NI
VALVE, ACCESS (5/16") MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS (3/8") MAY 978027 Contact Us For Availability
NI
VALVE, ACCESS (5/8") MAY 978029 Contact Us For Availability
NI
VALVE, ACCESS (3/4") MAY 978030 Contact Us For Availability
NI
TORX SCREW WRENCH, TORX KEY MAY 1117510 Contact Us For Availability
NI
MISCELLANEOUS, SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. ENAMEL, BLACK MAY 350939 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. WHITE PRIMER) MAY 350942 Contact Us For Availability
NI
MISCELLANEOUS, SEALER MAY 4318168 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
PAINT, BULK (1 QT. BISCUIT/BISQUE) MAY 4392900 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. BISCUIT/BISQU MAY 4392901 Contact Us For Availability
NI
MISCELLANEOUS, TAPE, VINYL (3/4 X 108") MAY 479502 Contact Us For Availability
NI
MISCELLANEOUS, CORK, SEALER MAY 503695 Contact Us For Availability
NI
MISCELLANEOUS, SEALER, MASTIC (1 QT) MAY 505587 Contact Us For Availability
NI
MISCELLANEOUS, GREASE, SILICONE (1/2 OZ.) MAY 542638 Contact Us For Availability
NI
MISCELLANEOUS, CEMENT, ALUMILASTIC (1 1/4 OZ. MAY 542639 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BLACK) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
MISCELLANEOUS, KIT, WATER INLET MAY 8003RP Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. GRAPHITE) MAY 80051 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. GRAPHITE) MAY 8171357 Contact Us For Availability
NI
PAINT, BULK (1 QT. GRAPHITE) MAY 8171358 Contact Us For Availability
NI
MISCELLANEOUS, KIT, TERMINAL CONNECTOR MAY 833938 Contact Us For Availability
NI
MISCELLANEOUS, HANDLE INSTALLATION KIT MAY W10300794 Contact Us For Availability
× ![]()
Login and Registration Form
