Model Maytag MSS25C4MGK03 REFRIGERATOR, SIDE-BY-SIDE – Common Parts & Diagrams
01 - COVER SHEET
02 - CABINET PARTS

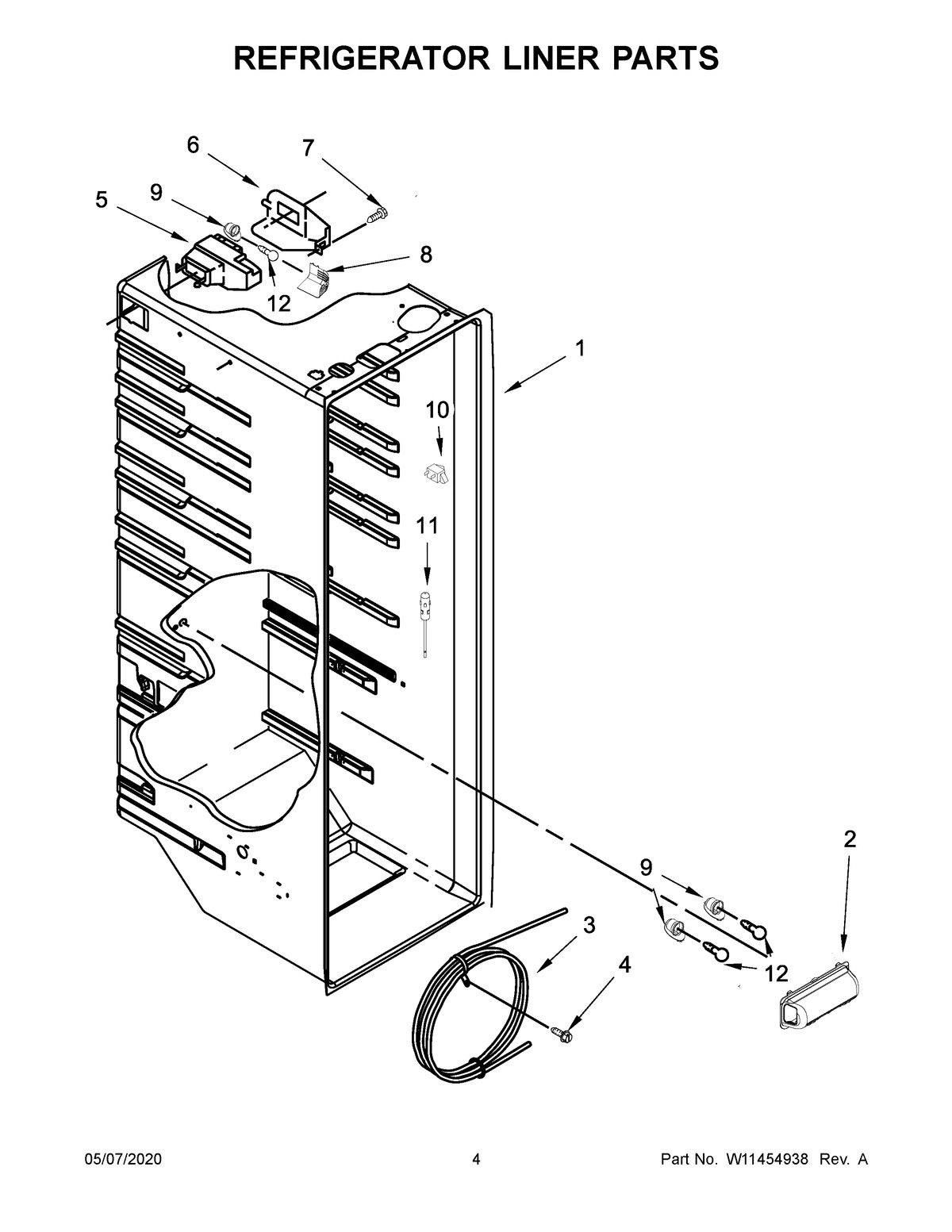

03 - REFRIGERATOR LINER PARTS

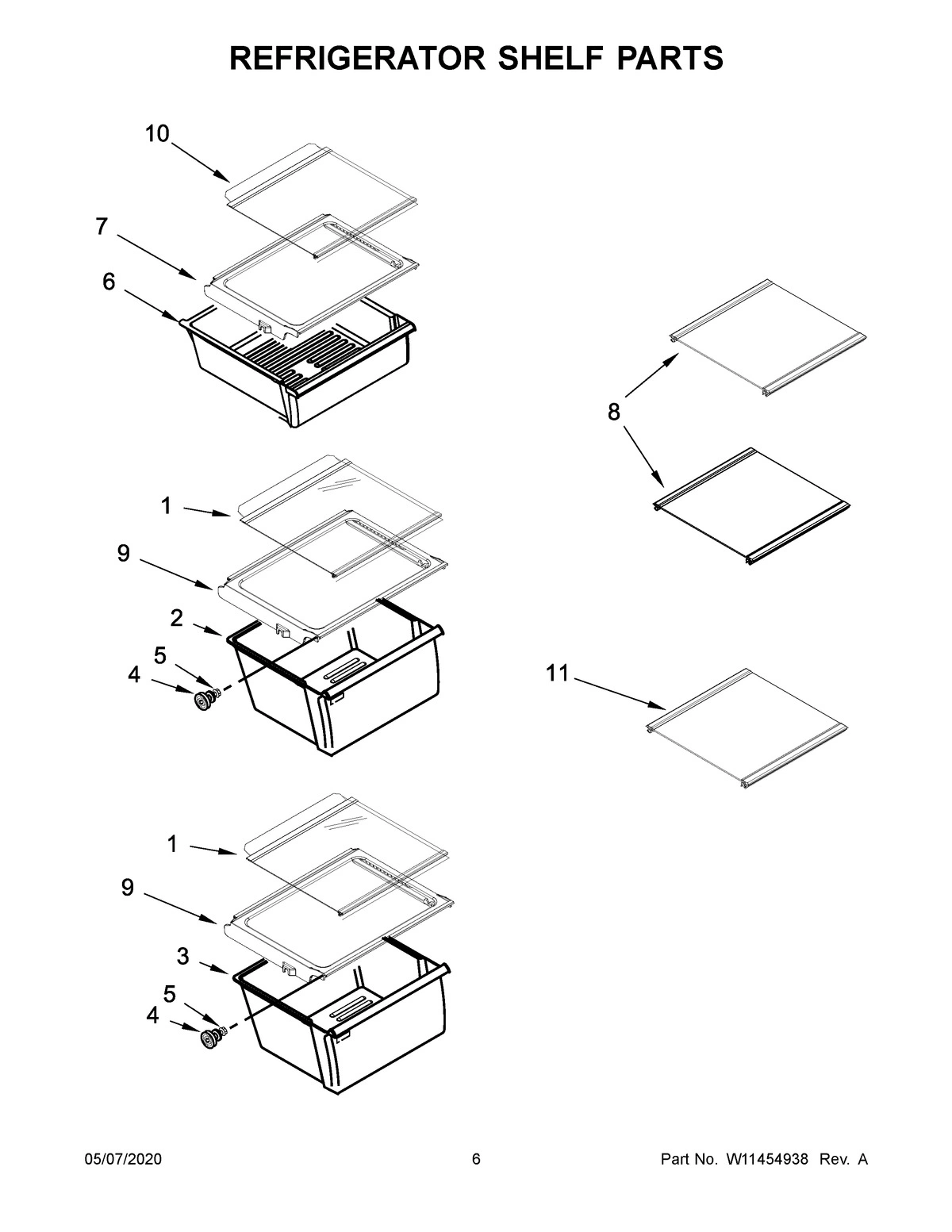

04 - REFRIGERATOR SHELF PARTS

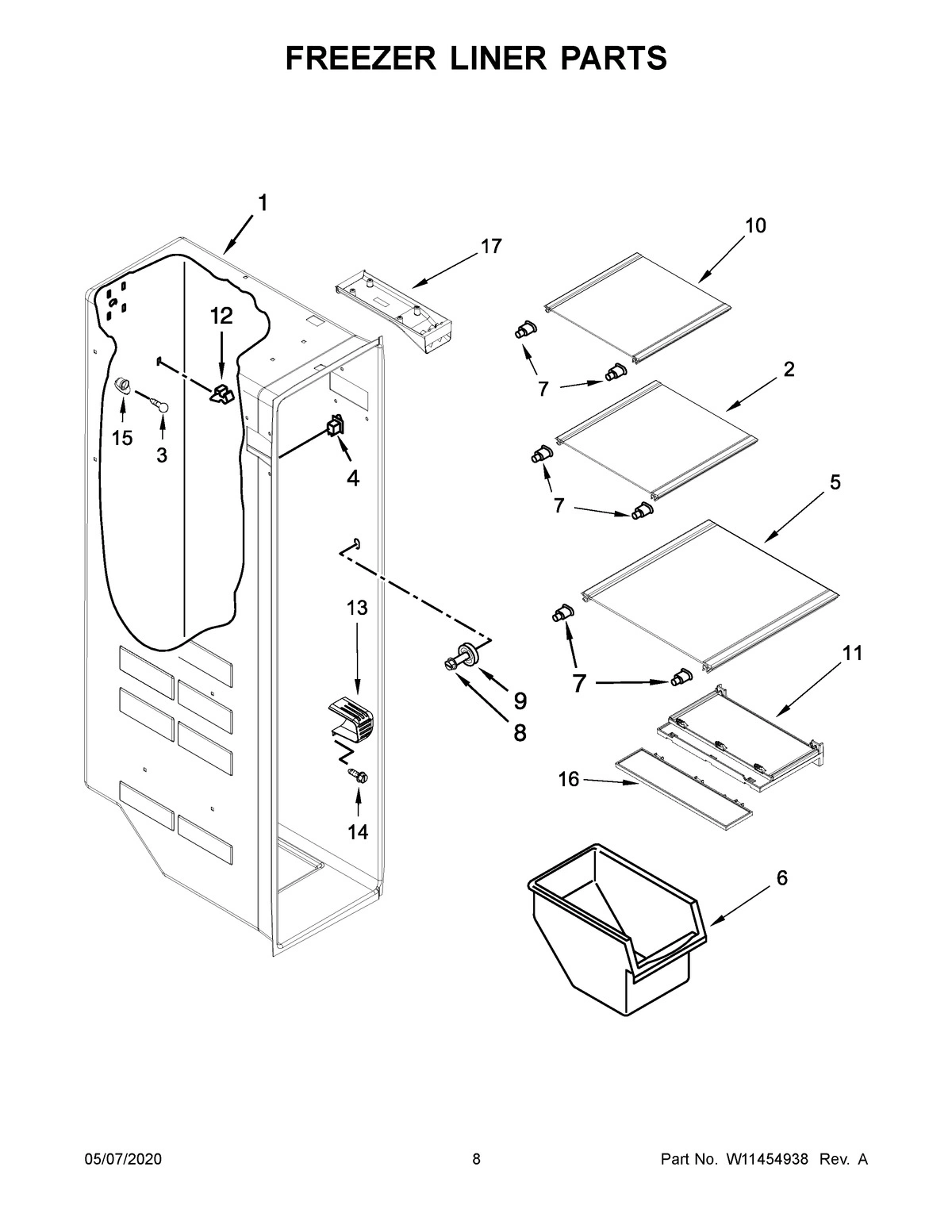

05 - FREEZER LINER PARTS

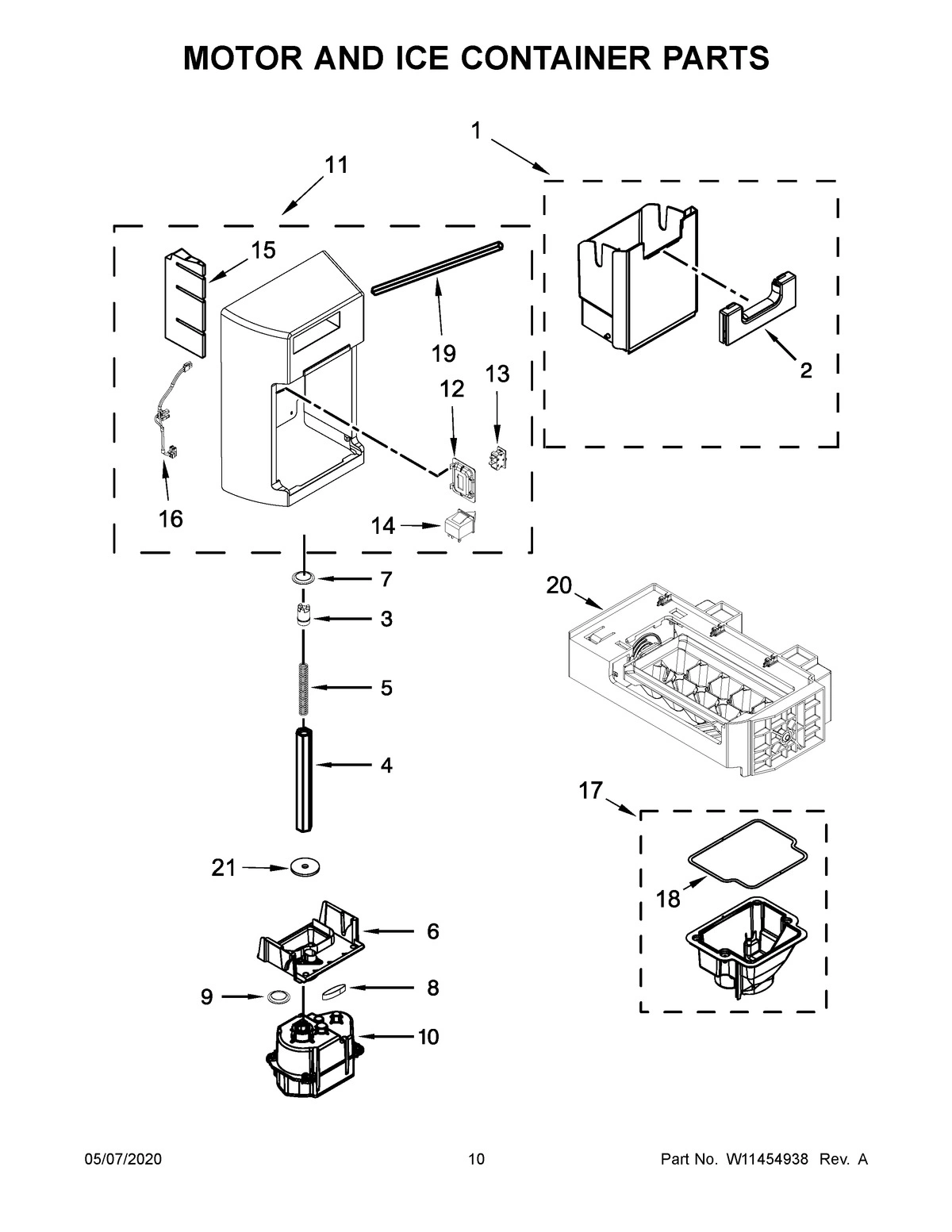

06 - MOTOR AND ICE CONTAINER PARTS

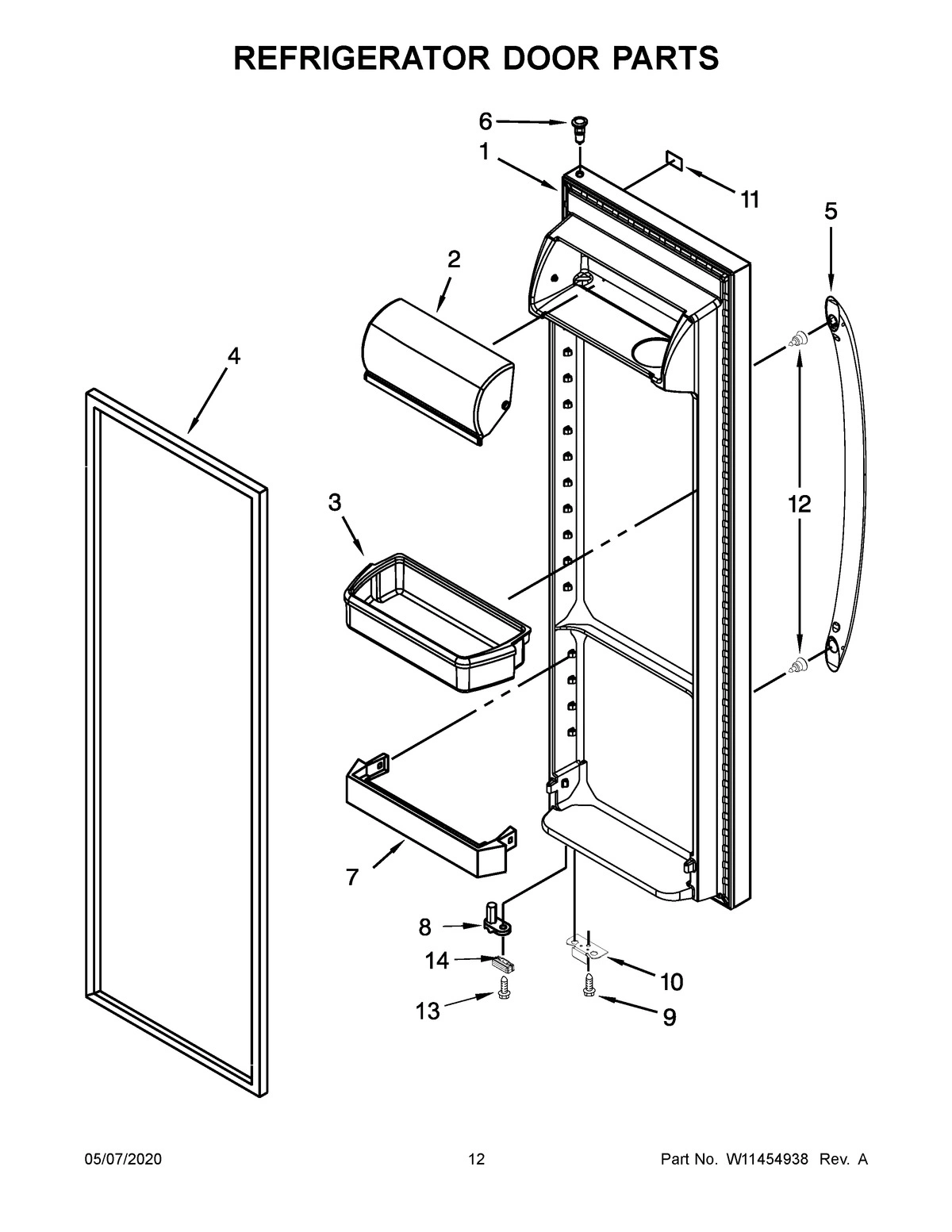

07 - REFRIGERATOR DOOR PARTS

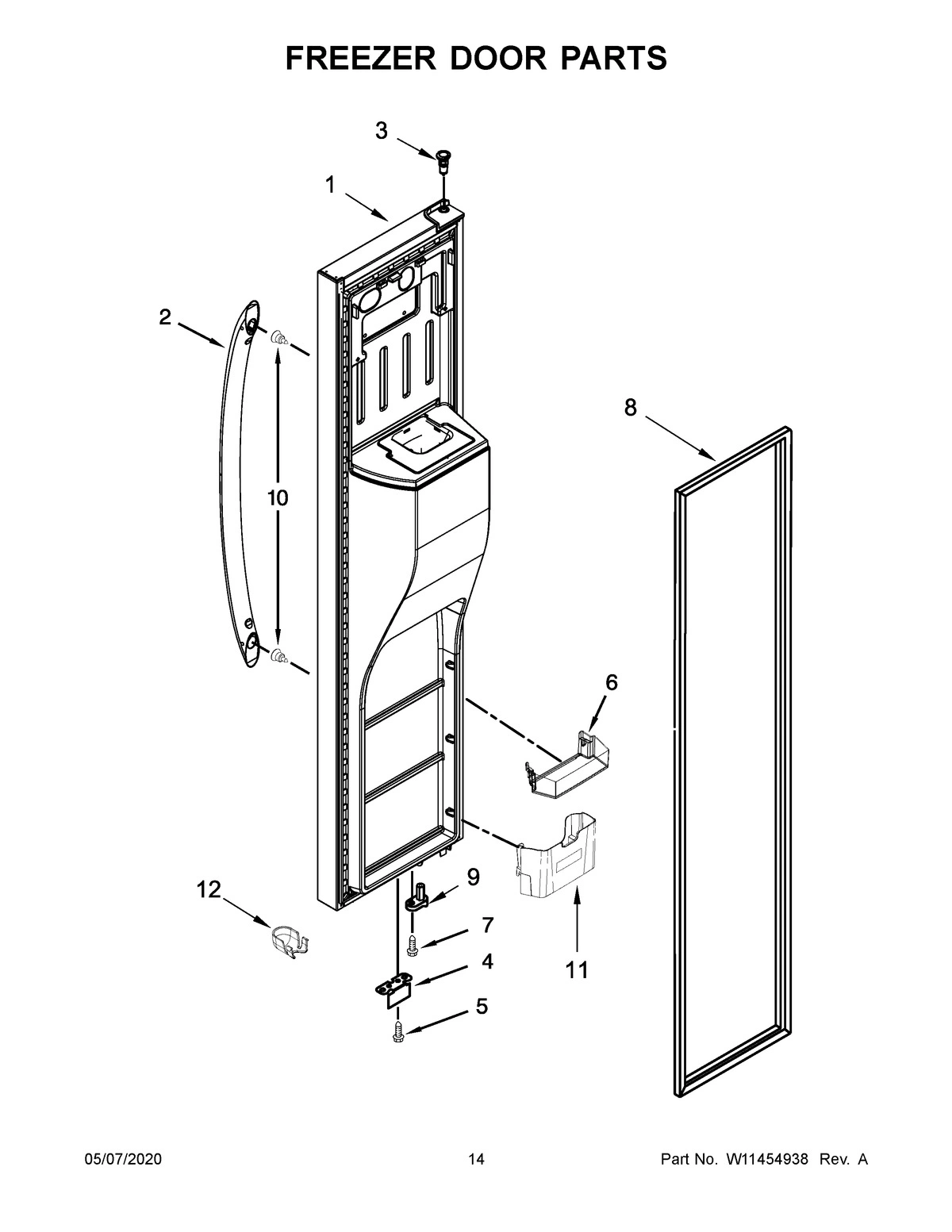

08 - FREEZER DOOR PARTS

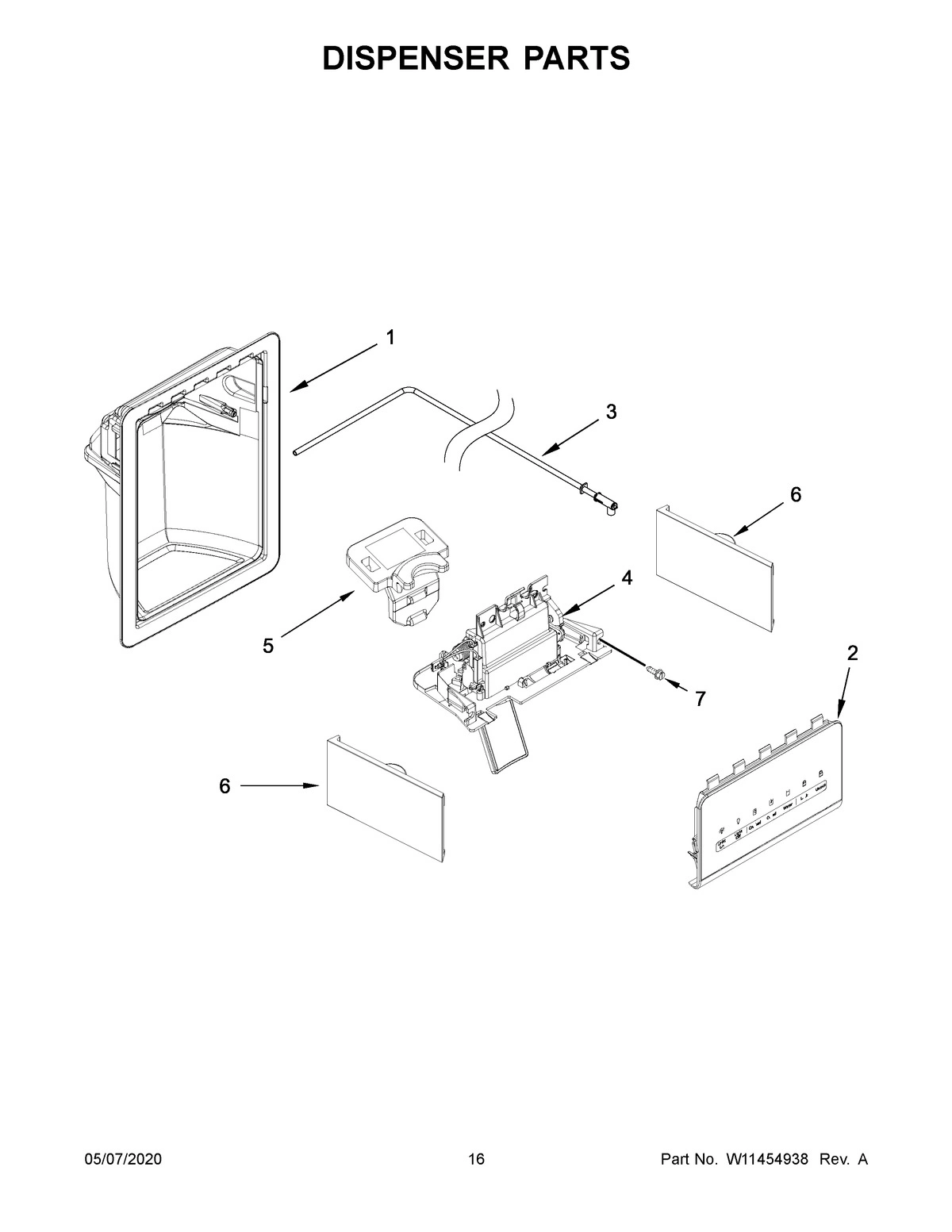

09 - DISPENSER PARTS

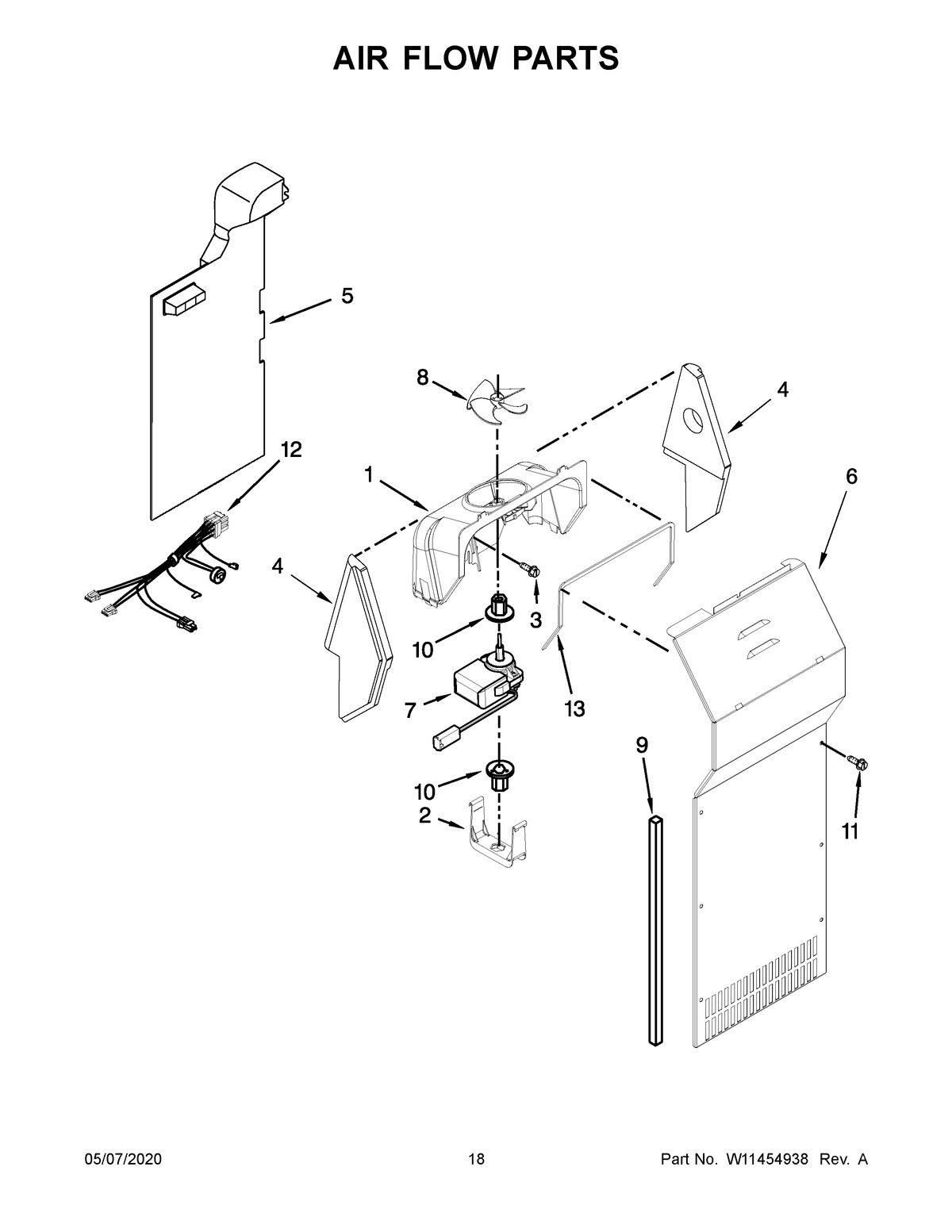

10 - AIR FLOW PARTS

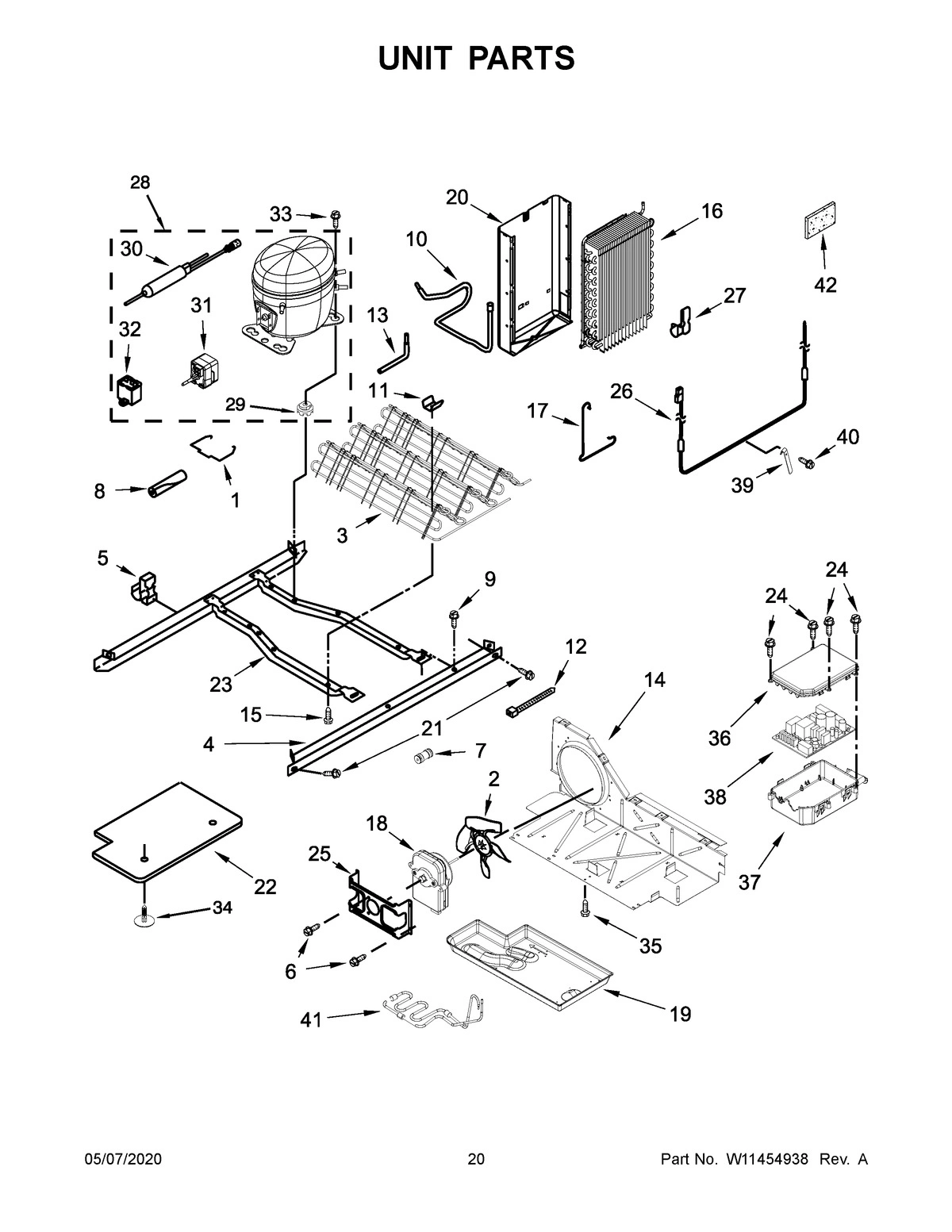

11 - UNIT PARTS
12 - OPTIONAL PARTS
Common parts from model Maytag MSS25C4MGK03 REFRIGERATOR, SIDE-BY-SIDE
1
USE AND CARE GUIDE MAY W11105301 Contact Us For Availability
1
COVER, CRISPER MAY W11205399 Contact Us For Availability
1
ICE CONTAINER (COMPLETE) MAY W11196076 Contact Us For Availability
1
DOOR, REFRIGERATOR (INCLUDES DOOR GASKET) (WH MAY W10912118 Contact Us For Availability
1
DOOR, FREEZER (INCLUDES DOOR GASKET) (WHITE) MAY W11026430 Contact Us For Availability
1
SCROLL, FAN MAY W11228713 Contact Us For Availability
1
STRAP, BALE MAY 2212996 Contact Us For Availability
1A
TECH SHEET MAY W11125075 Contact Us For Availability
1A
DOOR, REFRIGERATOR (INCLUDES DOOR GASKET) (BL MAY W10912126 Contact Us For Availability
1A
DOOR, FREEZER (INCLUDES DOOR GASKET) (BLACK) MAY W11026433 Contact Us For Availability
1B
ENERGY GUIDE MAY W11239609 Contact Us For Availability
1B
DOOR, REFRIGERATOR (INCLUDES DOOR GASKET) (ST MAY W10912110 Contact Us For Availability
1B
DOOR, FREEZER (INCLUDES DOOR GASKET) (STAINLE MAY W11026429 Contact Us For Availability
1C
DOOR, REFRIGERATOR (INCLUDES DOOR GASKET) (BL MAY W11207739 Contact Us For Availability
1C
DOOR, FREEZER (INCLUDES DOOR GASKET) (BLACK C MAY W11207738 Contact Us For Availability
2
ASSEMBLY, ROLLER (LEFT HAND) MAY W10304660 Contact Us For Availability
2
LENS, LIGHT (INCLUDES GASKET) MAY W10166130 Contact Us For Availability
2
PAN, CRISPER MAY W11108890 Contact Us For Availability
2
SHELF, GLASS (MIDDLE) MAY W10912336 Contact Us For Availability
2
ASSEMBLY, LATCH MAY W10693542 Contact Us For Availability
2
DOOR, COMPARTMENT MAY 2256101 Contact Us For Availability
2
HANDLE (WHITE) MAY W10891380 Contact Us For Availability
2
ASSEMBLY, USER INTERFACE (INCLUDES LIGHT FEAT MAY W11169238 Contact Us For Availability
2
RETAINER, FAN MOTOR MAY W10188846 Contact Us For Availability
2
BLADE, FAN MAY 2225834 Contact Us For Availability
2A
HANDLE (BLACK) MAY W10891379 Contact Us For Availability
2A
ASSEMBLY, USER INTERFACE (INCLUDES LIGHT FEAT MAY W11169237 Contact Us For Availability
2B
HANDLE (STAINLESS) MAY W10838130 Contact Us For Availability
2B
ASSEMBLY, USER INTERFACE (INCLUDES LIGHT FEAT MAY W11169236 Contact Us For Availability
3
SCREW MAY 2152958 Contact Us For Availability
3
TUBING, WATER RESERVOIR MAY W11222026 Contact Us For Availability
3
LAMP, LED MAY W11125625 Contact Us For Availability
3
PAN, MEAT MAY W10898371 Contact Us For Availability
3
COUPLING, BOTTOM MAY 2220458 Contact Us For Availability
3
BIN, DOOR MAY W11034658 Contact Us For Availability
3
THIMBLE MAY 2200087 Contact Us For Availability
3
ASSEMBLY, WATER FITTING MAY W10898317 Contact Us For Availability
3
ASSEMBLY, CONDENSER MAY W10904626 Contact Us For Availability
4
ROLLER MAY 2150304 Contact Us For Availability
4
SCREW MAY W10141518 Contact Us For Availability
4
ASSEMBLY, SHELF STUD MAY W10173126 Contact Us For Availability
4
SWITCH, LIGHT MAY W10847849 Contact Us For Availability
4
SHAFT, DRIVE MAY W10258544 Contact Us For Availability
4
BRACKET, DOOR STOP (BLACK) MAY W10900531 Contact Us For Availability
4
ASSEMBLY, SEPARATOR (WHITE) MAY W11231386 Contact Us For Availability
4
SUPPORT, FAN SCROLL (LEFT HAND) MAY 2203596 Contact Us For Availability
4
RAIL, UNIT MOUNTING MAY W10900442 Contact Us For Availability
4A
ASSEMBLY, SEPARATOR (BLACK) MAY W11231385 Contact Us For Availability
4A
SUPPORT, FAN SCROLL (RIGHT HAND) MAY 2203595 Contact Us For Availability
4B
ASSEMBLY, SEPARATOR (GREY) MAY W11231384 Contact Us For Availability
5
AXLE, ROLLER MAY 2262072 Contact Us For Availability
5
ASSEMBLY, AIR DIFFUSER MAY W11204060 Contact Us For Availability
5
SCREW MAY W10191954 Contact Us For Availability
5
SHELF, GLASS (BOTTOM) MAY W11252831 Contact Us For Availability
5
SPRING, COUPLING MAY W10754509 Contact Us For Availability
5
SCREW MAY W10296816 Contact Us For Availability
5
RETAINER, SEPARATOR HOSE MAY W11039857 Contact Us For Availability
5
DUCT, FREEZER AIR MAY W11084384 Contact Us For Availability
5
CLIP, WIRE MAY 2326941 Contact Us For Availability
6
CLIP, GRILLE MAY 2155013 Contact Us For Availability
6
COVER, AIR DIFFUSER MAY W11048608 Contact Us For Availability
6
PAN, SNACK MAY W10898365 Contact Us For Availability
6
BIN, FREEZER MAY 2309757 Contact Us For Availability
6
ASSEMBLY, MOUNTING PLATE MAY W10293212 Contact Us For Availability
6
TRIVET MAY W11034206 Contact Us For Availability
6
COVER, DISPENSER FRONT (WHITE (LEFT HAND)) MAY W11183318 Contact Us For Availability
6
COVER, EVAPORATOR MAY W10505307 Contact Us For Availability
6
SCREW MAY 8533993 Contact Us For Availability
6A
COVER, DISPENSER FRONT (WHITE (RIGHT HAND)) MAY W11183314 Contact Us For Availability
6B
COVER, DISPENSER FRONT (BLACK (LEFT HAND)) MAY W11183317 Contact Us For Availability
6C
COVER, DISPENSER FRONT (BLACK (RIGHT HAND)) MAY W11183313 Contact Us For Availability
6D
COVER, DISPENSER FRONT (NEPTUNE FROST (LEFT H MAY W11183319 Contact Us For Availability
6E
COVER, DISPENSER FRONT (NEPTUNE FROST (RIGHT MAY W11183311 Contact Us For Availability
7
PLATE, SCREW (REFRIGERATOR) MAY W11036715 Contact Us For Availability
7
SCREW MAY 486298 Contact Us For Availability
7
HOLDER, SNACK PAN MAY W10912335 Contact Us For Availability
7
CUP, SHELF MAY W10130299 Contact Us For Availability
7
SEAL MAY 2198628 Contact Us For Availability
7
TRIVET MAY 2309941 Contact Us For Availability
7
SCREW MAY W10296804 Contact Us For Availability
7
SCREW (STAINLESS) MAY 8281163 Contact Us For Availability
7
MOTOR, FAN MAY 2315549 Contact Us For Availability
7
CONNECTOR, UNION MAY W10271541 Contact Us For Availability
7A
PLATE, SCREW (FREEZER) MAY W10904380 Contact Us For Availability
8
CLIP, ROLLER MAY W11087168 Contact Us For Availability
8
COVER, LIGHT MAY W10900030 Contact Us For Availability
8
ASSEMBLY, SHELF MAY W11135530 Contact Us For Availability
8
SCREW MAY W10191952 Contact Us For Availability
8
GASKET MAY W10291905 Contact Us For Availability
8
GASKET, DOOR (BEIGE) MAY W10911412 Contact Us For Availability
8
THIMBLE, CAM MAY W10900464 Contact Us For Availability
8
BLADE, FAN MAY 2169142 Contact Us For Availability
8
SLEEVE MAY 2161302 Contact Us For Availability
8A
GASKET, DOOR (BLACK) MAY W10911422 Contact Us For Availability
8B
GASKET, DOOR (GREY) MAY W10911389 Contact Us For Availability
9
HINGE, TOP (WHITE (REFRIGERATOR)) MAY W10922200 Contact Us For Availability
9
SOCKET, LIGHT MAY W10134764 Contact Us For Availability
9
HOLDER, PAN MAY W10904001 Contact Us For Availability
9
ASSEMBLY, STUD MAY 2196208 Contact Us For Availability
9
WASHER MAY 2212370 Contact Us For Availability
9
THIMBLE, CAM MAY W10900532 Contact Us For Availability
9
GASKET MAY 2304241 Contact Us For Availability
9
SCREW MAY 489427 Contact Us For Availability
9A
HINGE, TOP (WHITE (FREEZER)) MAY W10922201 Contact Us For Availability
9B
HINGE, TOP (BLACK (REFRIGERATOR)) MAY W10922216 Contact Us For Availability
9C
HINGE, TOP (BLACK (FREEZER)) MAY W10922217 Contact Us For Availability
9D
HINGE, TOP (GREY (REFRIGERATOR)) MAY W10900868 Contact Us For Availability
9E
HINGE, TOP (GREY (FREEZER)) MAY W10900869 Contact Us For Availability
10
SCREW MAY 489500 Contact Us For Availability
10
SWITCH, ROCKER ARM MAY 1118894 Contact Us For Availability
10
SHELF, SNACK PAN MAY W11166551 Contact Us For Availability
10
SHELF, GLASS (TOP) MAY W10758884 Contact Us For Availability
10
MOTOR, DISPENSER MAY W11117906 Contact Us For Availability
10
BRACKET, DOOR STOP (BLACK) MAY W10900463 Contact Us For Availability
10
SCREW MAY W10170540 Contact Us For Availability
10
GROMMET, MOTOR MAY 2176759 Contact Us For Availability
10
TUBE, SUCTION MAY W10745337 Contact Us For Availability
11
SCREW MAY 8281149 Contact Us For Availability
11
THERMISTOR MAY W10384183 Contact Us For Availability
11
ASSEMBLY, METAL SHELF MAY W11327860 Contact Us For Availability
11
ASSEMBLY, PIZZA POCKET MAY W11183656 Contact Us For Availability
11
COVER, CONTAINER MAY W10903898 Contact Us For Availability
11
BADGE MAY W10612926 Contact Us For Availability
11
TRIVET MAY W11223483 Contact Us For Availability
11
SCREW MAY W10142292 Contact Us For Availability
11
CLIP, CONDENSER MAY 2311725 Contact Us For Availability
12
TUBE, FILTER OUTLET MAY W10900447 Contact Us For Availability
12
CLIP, AIR DUCT MAY 2315163 Contact Us For Availability
12
PLATE, SWITCH MAY W10691248 Contact Us For Availability
12
COVER, WIRE MAY W11047371 Contact Us For Availability
12
HARNESS, EVAPORATOR FAN (INCLUDES THERMAL FUS MAY W10911770 Contact Us For Availability
12
TIE, WIRE MAY 2263990 Contact Us For Availability
13
ASSEMBLY, BOTTOM HINGE (FREEZER) MAY W11093938 Contact Us For Availability
13
COVER, LIGHT LENS MAY 2212340 Contact Us For Availability
13
ROCKER, SWITCH MAY W10666871 Contact Us For Availability
13
SCREW MAY 3400012 Contact Us For Availability
13
GASKET MAY 2155789 Contact Us For Availability
13
TUBE, PROCESS MAY 2325479 Contact Us For Availability
14
SCREW MAY 3400113 Contact Us For Availability
14
SCREW MAY 3400893 Contact Us For Availability
14
SWITCH, ROCKER ARM MAY W11032814 Contact Us For Availability
14
BUMPER, DOOR (WHITE) MAY W10407175 Contact Us For Availability
14
BAFFLE, AIR MAY W10897567 Contact Us For Availability
14A
BUMPER, DOOR (BLACK) MAY W10407187 Contact Us For Availability
14B
BUMPER, DOOR (GREY) MAY W10407188 Contact Us For Availability
15
ASSEMBLY, ROLLER (RIGHT HAND) MAY W10304659 Contact Us For Availability
15
SOCKET, LIGHT MAY 2155597 Contact Us For Availability
15
FILLER, EPS ICEMAKER COVER MAY W10905506 Contact Us For Availability
15
SCREW MAY 8281232 Contact Us For Availability
16
FILLER, WRAPPER (WHITE) MAY W11219639 Contact Us For Availability
16
PIVOTING SHELF MAY W11108242 Contact Us For Availability
16
ASSEMBLY, WIRE JUMPER SWITCH MAY W10646076 Contact Us For Availability
16
EVAPORATOR MAY 2188823 Contact Us For Availability
16A
FILLER, WRAPPER (BLACK) MAY W11219641 Contact Us For Availability
16B
FILLER, WRAPPER (GREY) MAY W11219642 Contact Us For Availability
17
GRILLE (WHITE) MAY W11226340 Contact Us For Availability
17
DUCT AIR, FREEZER MAY W11084314 Contact Us For Availability
17
ASSEMBLY, MOTOR BOX MAY W10771442 Contact Us For Availability
17A
GRILLE (BLACK) MAY W11226342 Contact Us For Availability
17B
GRILLE (GREY) MAY W11226338 Contact Us For Availability
18
SCREW (WHITE) MAY W10308750 Contact Us For Availability
18
GASKET MAY W10166854 Contact Us For Availability
18
MOTOR, CONDENSER FAN MAY W10522629 Contact Us For Availability
18A
SCREW (BLACK) MAY W10308751 Contact Us For Availability
19
ASSEMBLY, FILTER VALVE MAY W10179146 Contact Us For Availability
19
GASKET, FOAM MAY W10400435 Contact Us For Availability
19
TRAY, EVAPORATOR MAY W10897557 Contact Us For Availability
20
SCREW MAY 489290 Contact Us For Availability
20
ASSEMBLY, ICE MAKER MAY W11130444 Contact Us For Availability
20
ASSEMBLY, HEAT SHIELD AND DRAIN PAN MAY W10194475 Contact Us For Availability
21
CONNECTOR, DOUBLE LOCK MAY W11091654 Contact Us For Availability
21
BOOT, RUBBER MAY 2305382 Contact Us For Availability
21
BOLT MAY 489340 Contact Us For Availability
22
FITTING, DRAIN MAY 2304888 Contact Us For Availability
22
ASSEMBLY, UNIT COVER (BOTTOM) MAY W10897560 Contact Us For Availability
23
EXTENSION, DRAIN FITTING MAY W10153550 Contact Us For Availability
23
FRAME, UNIT MOUNTING (INCLUDES UNIT MOUNTING MAY W10900446 Contact Us For Availability
24
COVER, UNIT MAY W10904634 Contact Us For Availability
24
SCREW MAY 8533859 Contact Us For Availability
25
ASSEMBLY, BOTTOM HINGE (REFRIGERATOR) MAY W11097327 Contact Us For Availability
25
BRACKET, FAN MOUNTING MAY 2181929 Contact Us For Availability
26
TUBE, FILTER INLET MAY W10900449 Contact Us For Availability
26
HEATER, DEFROST MAY 2188175 Contact Us For Availability
27
FILTER, WATER MAY W10735398 Contact Us For Availability
27
CLIP, DEFROST HEATER MAY 2161324 Contact Us For Availability
28
CLAMP, POWER CORD MAY W11242280 Contact Us For Availability
28
COMPRESSOR (ALSO ORDER 876765 TUBE KIT) MAY W10391109 Contact Us For Availability
29
SCREW MAY W10141645 Contact Us For Availability
29
GROMMET, COMPRESSOR MAY W10836504 Contact Us For Availability
30
CLOSER, DOOR (FREEZER) MAY W11095731 Contact Us For Availability
30
DRIER MAY W10771114 Contact Us For Availability
31
SCREW MAY W10142234 Contact Us For Availability
31
DEVICE, COMBINATION START (START RELAY AND OV MAY W10197428 Contact Us For Availability
32
HOUSING, WATER FILTER (WHITE) MAY W11036340 Contact Us For Availability
32
CAPACITOR MAY W10350564 Contact Us For Availability
32A
HOUSING, WATER FILTER (BLACK) MAY W11036341 Contact Us For Availability
32B
HOUSING, WATER FILTER (GREY) MAY W11036338 Contact Us For Availability
33
SCREW MAY 489473 Contact Us For Availability
34
ASSEMBLY, BRACKET MAY W10897565 Contact Us For Availability
34
CLIP MAY 489396 Contact Us For Availability
35
LOCKING RING (1/4) MAY W11175632 Contact Us For Availability
35
SCREW MAY 489464 Contact Us For Availability
35A
LOCKING RING (5/16) MAY W11175631 Contact Us For Availability
36
CLOSER, LOWE MAY W10905504 Contact Us For Availability
36
COVER, CONTROL MAY W10334855 Contact Us For Availability
37
MAY W10691732 MAY W10691732 Contact Us For Availability
37
BOX, CONTROL MAY 2323186 Contact Us For Availability
38
MAY W10277958 MAY W10277958 Contact Us For Availability
38
CONTROL, ELECTRONIC MAY W11023172 Contact Us For Availability
39
MAY W11252188 MAY W11252188 Contact Us For Availability
39
PROBE, HEAT MAY W10895163 Contact Us For Availability
40
SCREW MAY 489478 Contact Us For Availability
41
ASSEMBLY, PRECOOLER FORMED MAY W11189542 Contact Us For Availability
42
INSULATION, SOUND DEADENING MAY 2169104 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
VALVE, ACCESS (3/16") MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS (1/4") MAY 978025 Contact Us For Availability
NI
VALVE, ACCESS (5/16") MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS (3/8") MAY 978027 Contact Us For Availability
NI
VALVE, ACCESS (5/8") MAY 978029 Contact Us For Availability
NI
VALVE, ACCESS (3/4") MAY 978030 Contact Us For Availability
NI
TORX SCREW WRENCH, TORX KEY MAY 1117510 Contact Us For Availability
NI
MISCELLANEOUS, SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. ENAMEL, BLAC MAY 350939 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE PRIMER MAY 350942 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BISCUIT/BISQ MAY 4392901 Contact Us For Availability
NI
MISCELLANEOUS, TAPE, VINYL (3/4 X 108") MAY 479502 Contact Us For Availability
NI
MISCELLANEOUS, CORK, SEALER MAY 503695 Contact Us For Availability
NI
MISCELLANEOUS, SEALER, MASTIC (1 QT) MAY 505587 Contact Us For Availability
NI
MISCELLANEOUS, GREASE, SILICONE (1/2 OZ.) MAY 542638 Contact Us For Availability
NI
MISCELLANEOUS, CEMENT, ALUMILASTIC (1 1/4 OZ. MAY 542639 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BLACK) MAY 72032 Contact Us For Availability
NI
MISCELLANEOUS, KIT, WATER INLET MAY 8003RP Contact Us For Availability
NI
MISCELLANEOUS, KIT, TERMINAL CONNECTOR MAY 833938 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. APOLLO GREY) MAY W10134625 Contact Us For Availability
NI
MISCELLANEOUS, KIT, HANDLE INSTALLATION MAY W10300794 Contact Us For Availability
NI
MISCELLANEOUS, ICE MAKER ASSEMBLY (ECKMF95) MAY W10715708 Contact Us For Availability
× ![]()
