Model Electrolux MSF312BFWF RANGE – Common Parts & Diagrams
01 - COVER
03 - DOOR

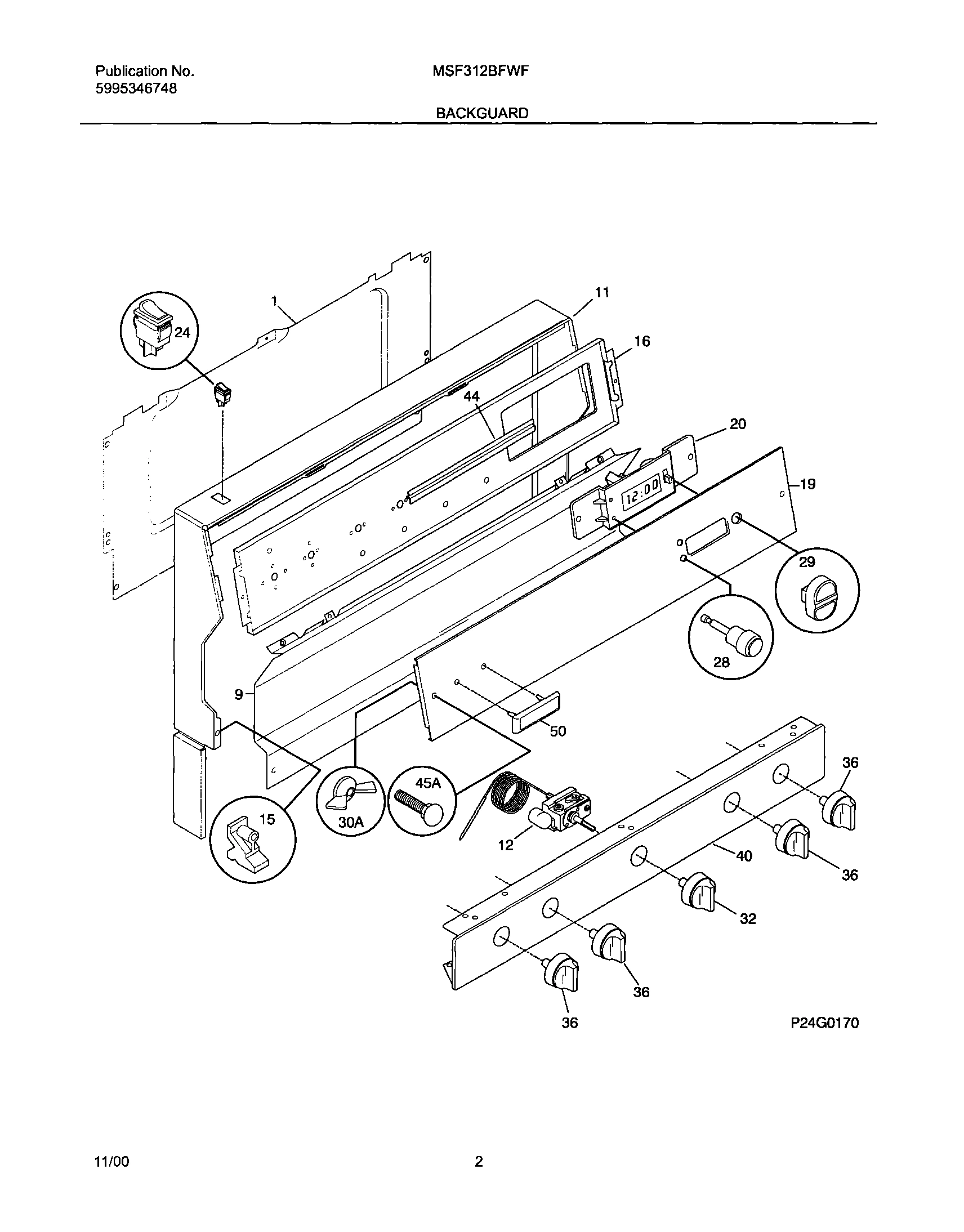

05 - BACKGUARD

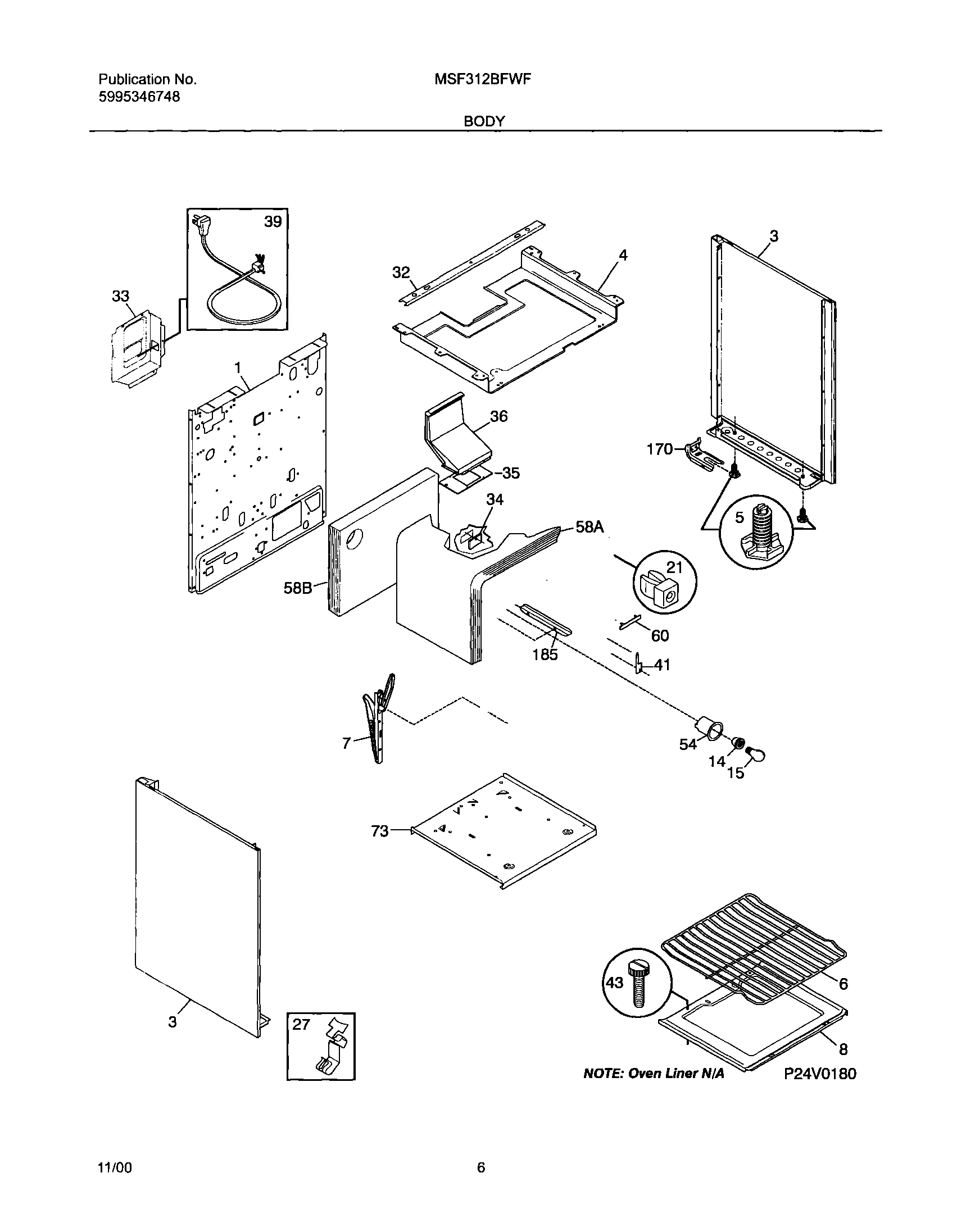

07 - BODY

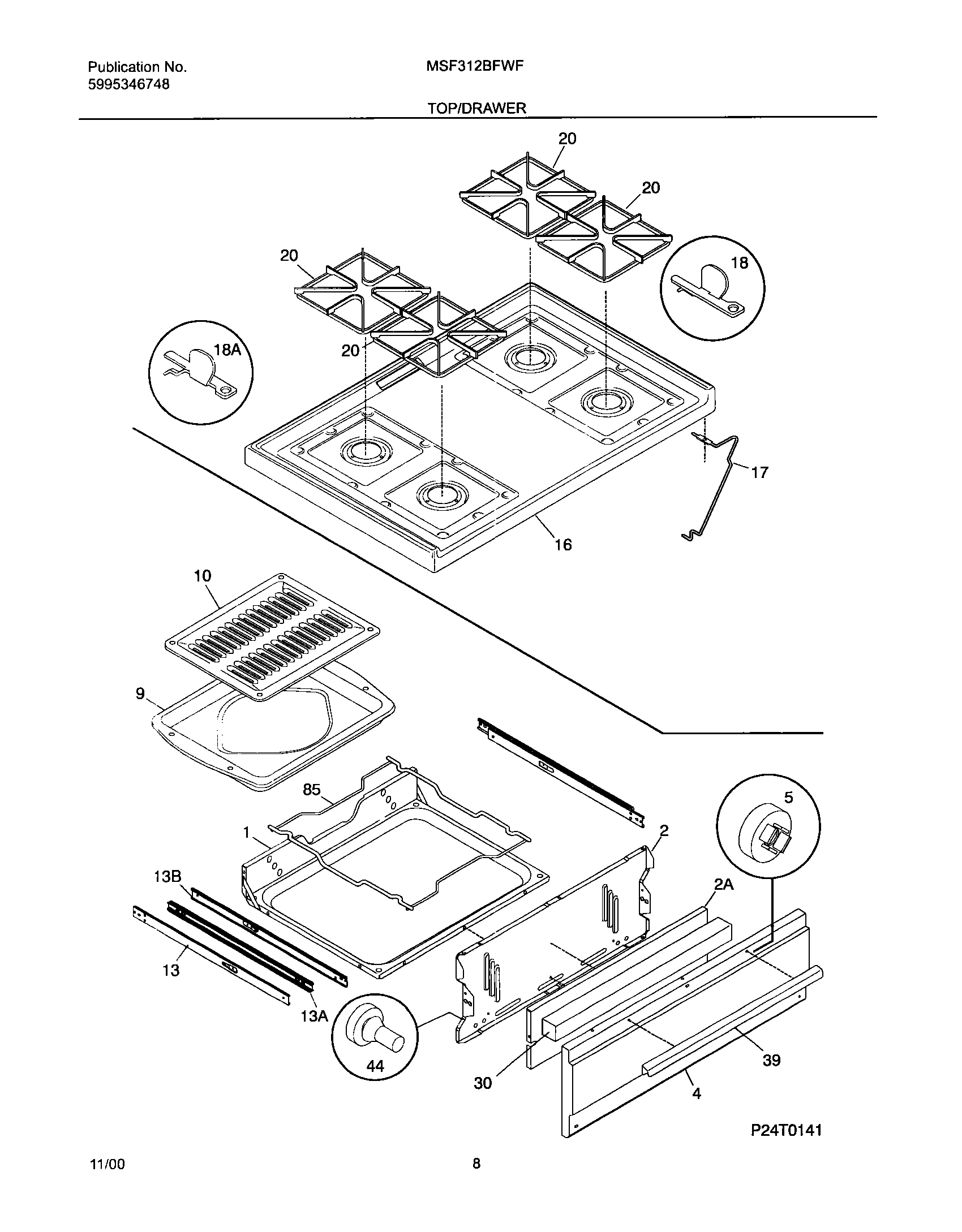

09 - TOP/DRAWER

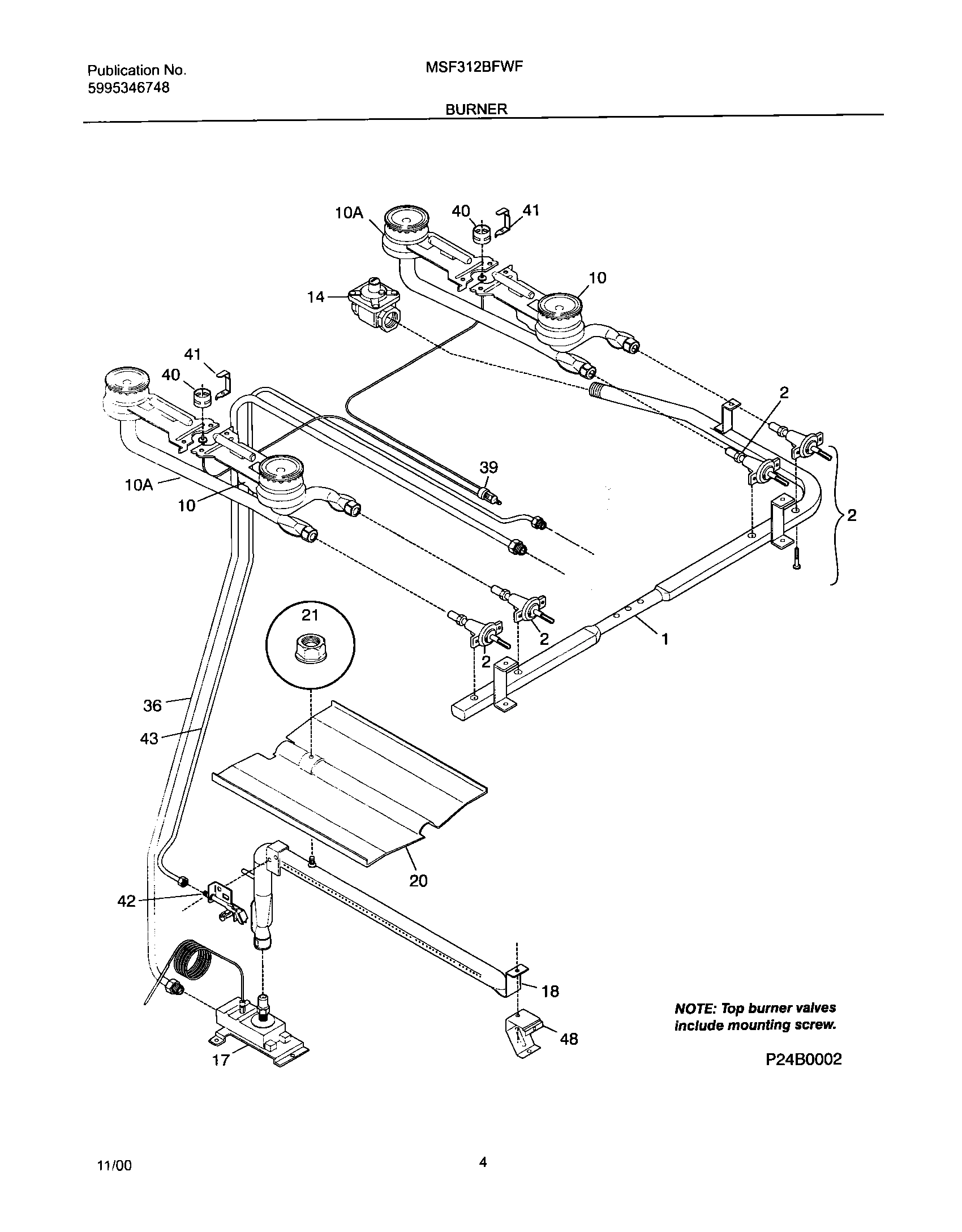

11 - BURNER

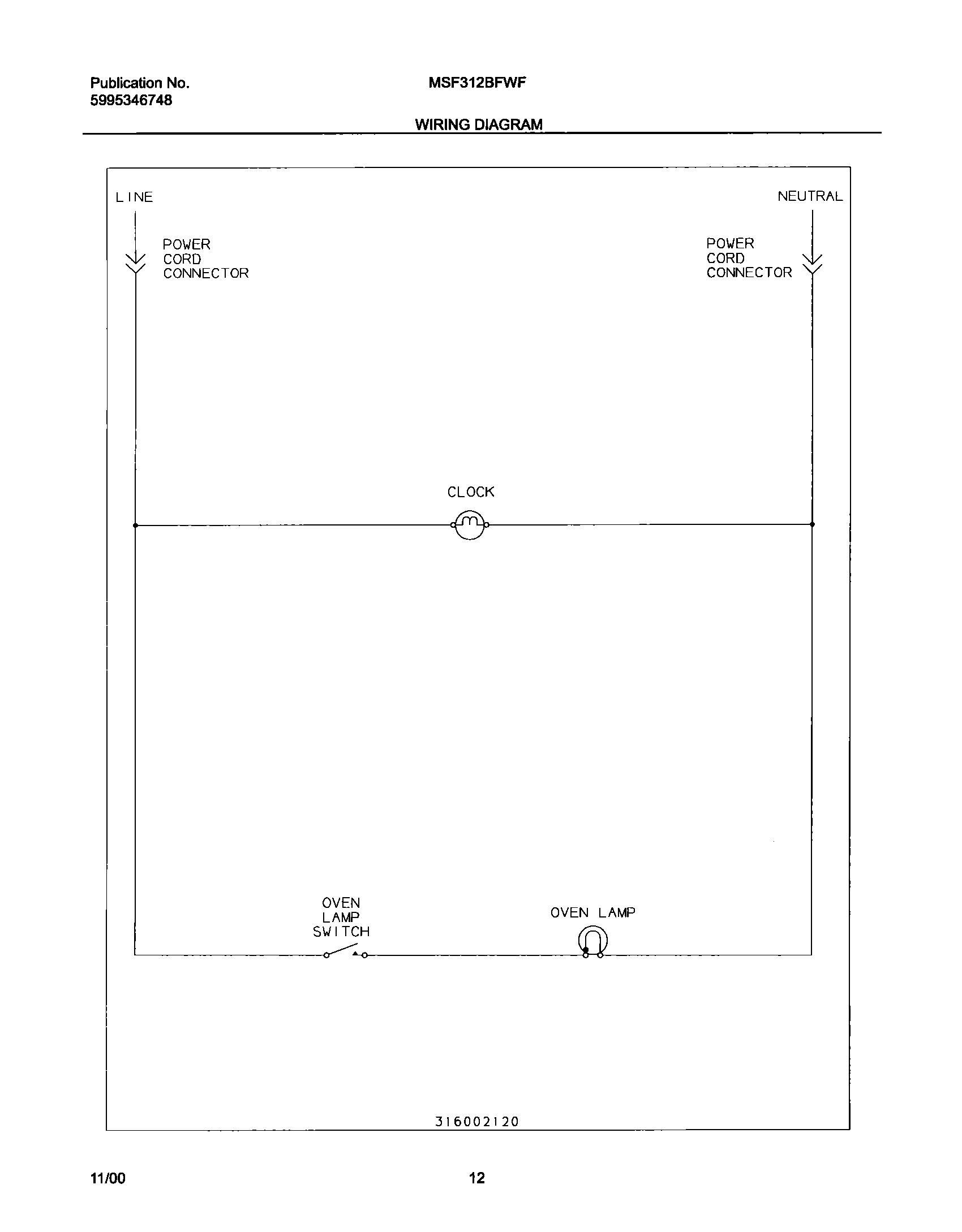

12 - WIRING DIAGRAM
Common parts from model Electrolux MSF312BFWF RANGE
1
CARRIAGE, BROILER WCI 316110201 Contact Us For Availability
1
Shield,rear wall WCI 5303289640 Contact Us For Availability
1
WCI 316134401 WCI 316134401 Contact Us For Availability
2
WCI 316134201 WCI 316134201 Contact Us For Availability
5
WCI 316129200 WCI 316129200 Contact Us For Availability
5
Fastener-spacer,push-in nut ,nylon WCI 316129100 Contact Us For Availability
7
Hinge,oven door ,(2) WCI 316007001 Contact Us For Availability
8
WCI 316088600 WCI 316088600 Contact Us For Availability
9
Pan,broiler WCI 316081900 Contact Us For Availability
10
Insert-broiler pan WCI 316082000 Contact Us For Availability
10
SCREW-HANDLE MTG, WAFER HEAD, 10-24(F) X 3 WCI 5303281378 Contact Us For Availability
13B
WCI 316111501 WCI 316111501 Contact Us For Availability
14
WCI 316113601 WCI 316113601 Contact Us For Availability
16
WCI 3131351 WCI 3131351 Contact Us For Availability
17
WCI 316066900 WCI 316066900 Contact Us For Availability
17
WCI 5303285054 WCI 5303285054 Contact Us For Availability
18
WCI 5303280585 WCI 5303280585 Contact Us For Availability
18
BRACKET-HINGE,MAIN TOP RH WCI 08067747 Contact Us For Availability
18A
BRACKET-HINGE,MAIN TOP LH WCI 08067746 Contact Us For Availability
20
GRATE,BLACK ,(4) WCI 316085201 Contact Us For Availability
20
WCI 3203265 WCI 3203265 Contact Us For Availability
21
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
29
BUTTON-SELECTOR, CLOCK/TIMER, BLACK WCI 5303272305 Contact Us For Availability
30
WCI 316111400 WCI 316111400 Contact Us For Availability
32
WCI 316102304 WCI 316102304 Contact Us For Availability
34
WCI 3018607 WCI 3018607 Contact Us For Availability
36
KNOB-TOP VALVE, (4) WCI 316009008 No Longer Available
36
WCI 316060800 WCI 316060800 Contact Us For Availability
39
WCI 316020204 WCI 316020204 Contact Us For Availability
39
TUBING-TOP PILOT, DUAL WCI 5303211133 Contact Us For Availability
39
HANDLE-DRAWER, BRUSHED CHROME WCI 3201268 Contact Us For Availability
40
CAP-TOP PILOT, (2) WCI 5303211191 Contact Us For Availability
41
WCI 3131570 WCI 3131570 Contact Us For Availability
41
SHIELD-PILOT, STAINLESS STEEL, (2) WCI 3202798 Contact Us For Availability
42
WCI 5303280589 WCI 5303280589 Contact Us For Availability
43
Tubing`thermo/pilot `3/16 ,alum WCI 3203398 Contact Us For Availability
48
Bracket,support ,oven burner WCI 3018603 Contact Us For Availability
58A
INSULATION, OVEN WRAPPER WCI 3017142 Contact Us For Availability
73
WCI 316109902 WCI 316109902 Contact Us For Availability
85
WCI 316115600 WCI 316115600 Contact Us For Availability
NI
Screw,cup pt ,8-18 x 0.375 ,chrome ,hinge,ind WCI 316021108 Contact Us For Availability
NI
Screw,wafer hd sq dr ,10-32 x 0.312 ,(2) WCI 5303280311 Contact Us For Availability
NI
WCI 316021120 WCI 316021120 Contact Us For Availability
× ![]()
