Model Electrolux MSF312BFWD RANGE – Common Parts & Diagrams
01 - COVER
02 - BACKGUARD

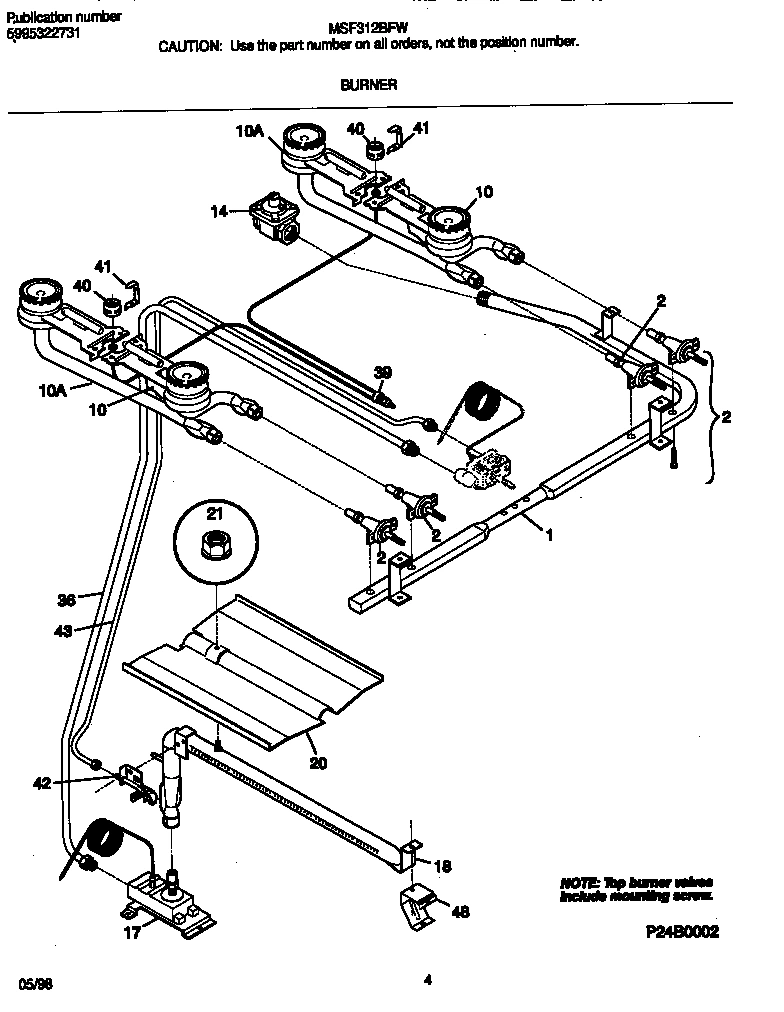

03 - BURNER

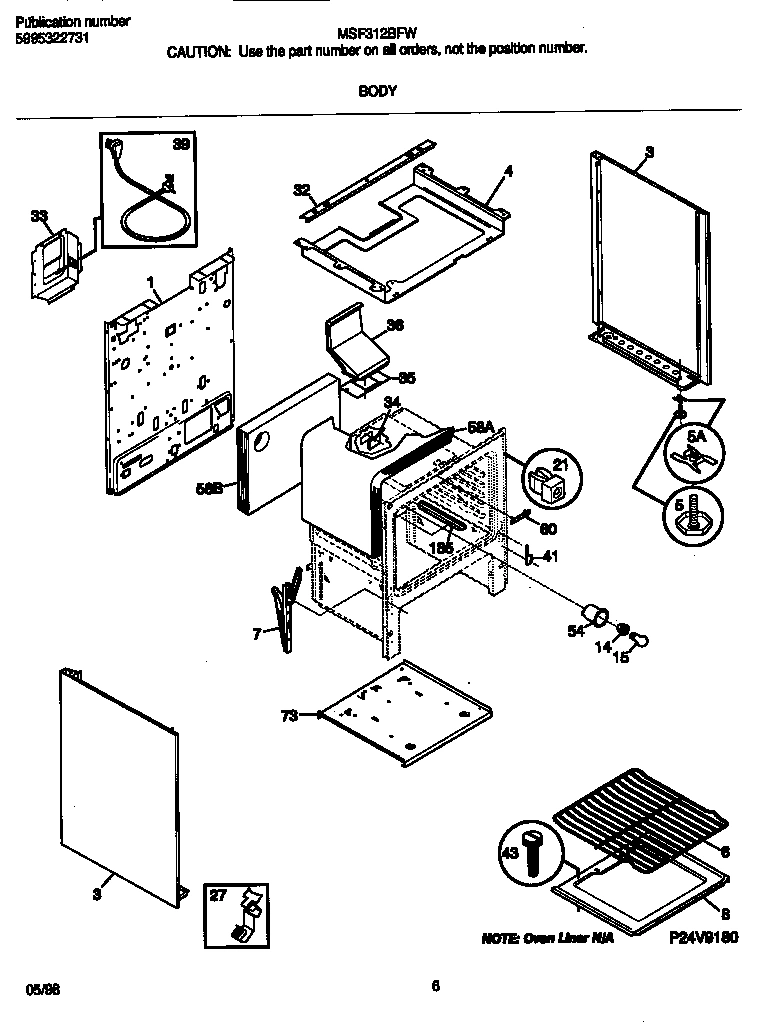

04 - BODY

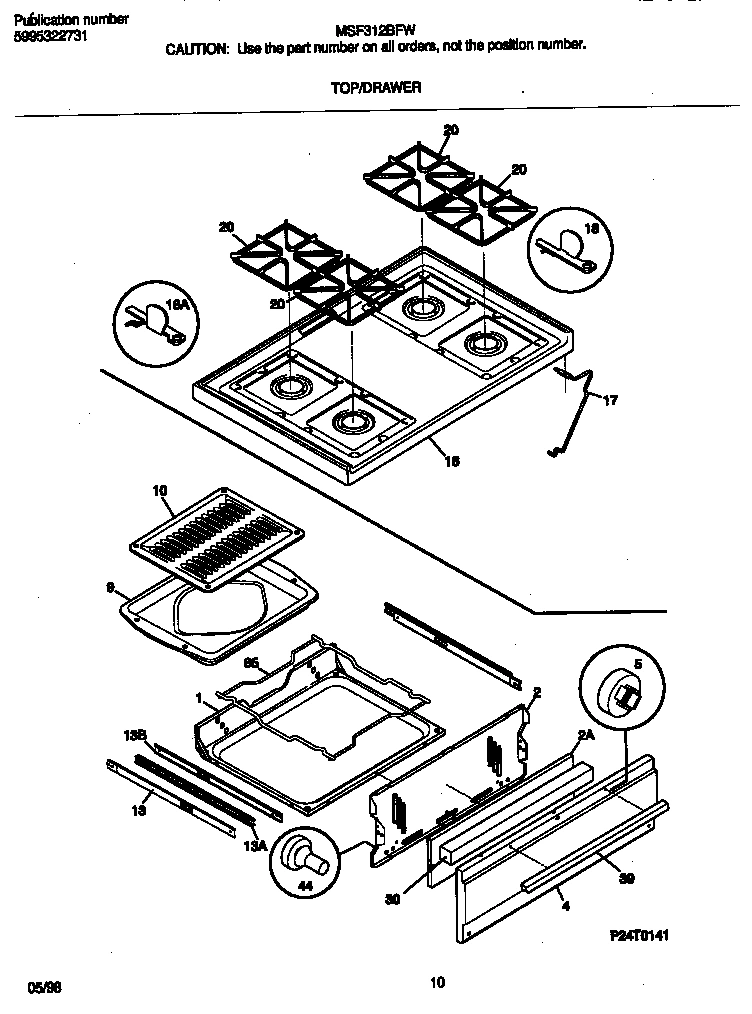

05 - TOP/DRAWER

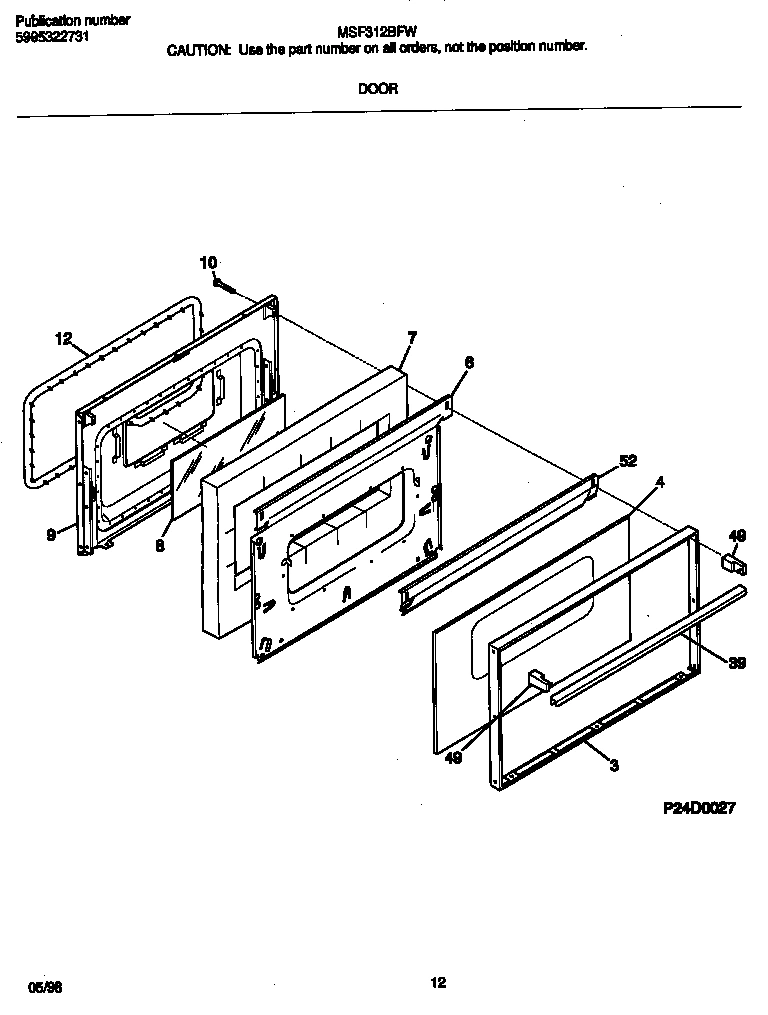

06 - DOOR

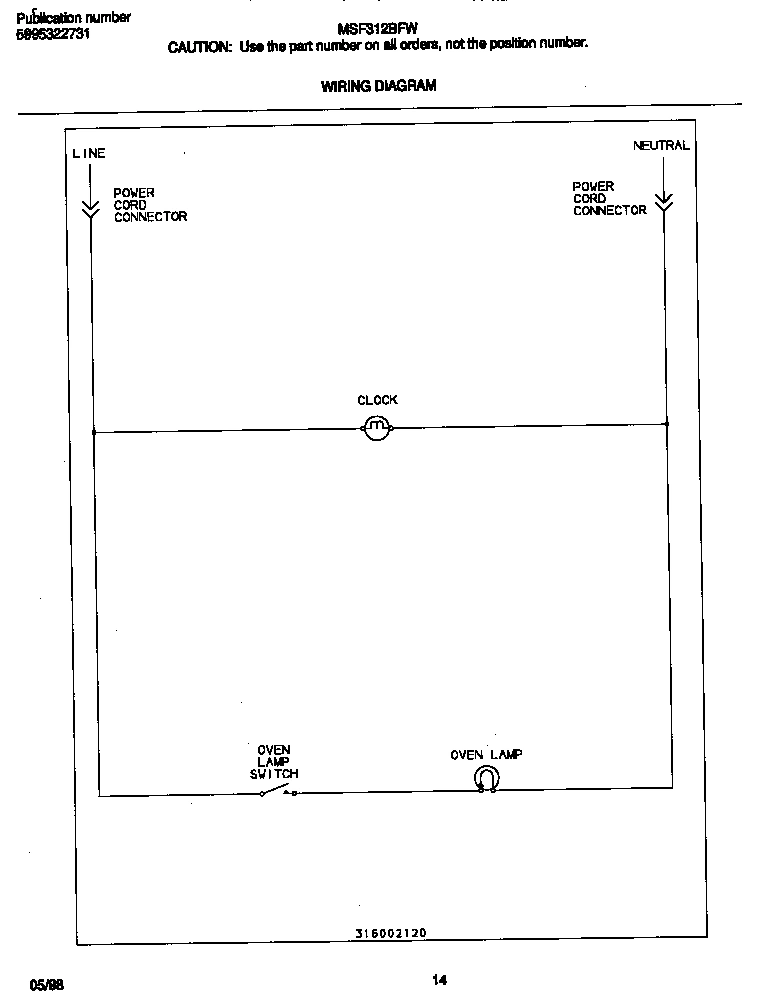

07 - WIRING DIAGRAM
Common parts from model Electrolux MSF312BFWD RANGE
*35729
SCREW,CUP PT ,8-18 X 3/8 ,HINGE ,IND LGHT BRK WCI 316021108 Contact Us For Availability
*35740
SCREW, WAF HD SDR, 10-32 X 5/16, (2) WCI 5303280311 Contact Us For Availability
*35744
SCREW, CR PAN HD SEMS, 8-32BP X 1.00 WCI 5303212671 Contact Us For Availability
1
CARRIAGE, BROILER WCI 316110201 Contact Us For Availability
2
WCI 316110101 WCI 316110101 Contact Us For Availability
2
WCI 316110800 WCI 316110800 Contact Us For Availability
3
Trim,oven door ,black WCI 316067802 Contact Us For Availability
4
WCI 316056205 WCI 316056205 Contact Us For Availability
4
GLASS-OVEN DOOR,BLACK ,OUTER WCI 316089000 Contact Us For Availability
5
FASTENER-SPACER, PUSH-IN NUT, NYLON WCI 3131387 Contact Us For Availability
6
WCI 316088403 WCI 316088403 Contact Us For Availability
7
Hinge,oven door ,(2) WCI 316007001 Contact Us For Availability
7
WCI 316076401 WCI 316076401 Contact Us For Availability
8
WCI 316088600 WCI 316088600 Contact Us For Availability
9
WCI 316073800 WCI 316073800 Contact Us For Availability
9
WCI 316066610 WCI 316066610 Contact Us For Availability
10
SCREW-HANDLE MTG, WAFER HEAD, 10-24(F) X 3 WCI 5303281378 Contact Us For Availability
10
WCI 3205234 WCI 3205234 Contact Us For Availability
13
WCI 316111501 WCI 316111501 Contact Us For Availability
13
GLIDE-DRAWER,OUTER WCI 316111500 Contact Us For Availability
13
GLIDE-DRAWER,INNER WCI 316111600 Contact Us For Availability
16
WCI 3131351 WCI 3131351 Contact Us For Availability
17
WCI 316066900 WCI 316066900 Contact Us For Availability
18
WCI 5303280585 No Longer Available
18
BRACKET-HINGE,MAIN TOP LH WCI 08067746 Contact Us For Availability
18
BRACKET-HINGE,MAIN TOP RH WCI 08067747 Contact Us For Availability
19
WCI 316011402 WCI 316011402 Contact Us For Availability
20
GRATE, BLACK WCI 316085201 Contact Us For Availability
21
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
29A
BUTTON-SELECTOR, CLOCK/TIMER, BLACK WCI 5303272305 Contact Us For Availability
30
WCI 316111400 WCI 316111400 Contact Us For Availability
32
WCI 316102304 WCI 316102304 Contact Us For Availability
34
WCI 3018607 WCI 3018607 Contact Us For Availability
36
KNOB-TOP VALVE, (4) WCI 316009008 No Longer Available
36
WCI 316060800 WCI 316060800 Contact Us For Availability
36
WCI 3131931 WCI 3131931 Contact Us For Availability
39
WCI 316020204 WCI 316020204 Contact Us For Availability
39
TUBING-TOP PILOT, DUAL WCI 5303211133 Contact Us For Availability
39
HANDLE-DRAWER, BRUSHED CHROME WCI 3201268 Contact Us For Availability
39A
WCI 316001220 WCI 316001220 Contact Us For Availability
39B
WCI 316047600 WCI 316047600 Contact Us For Availability
41
WCI 3131570 WCI 3131570 Contact Us For Availability
42
WCI 5303280589 WCI 5303280589 Contact Us For Availability
43
Tubing`thermo/pilot `3/16 ,alum WCI 3203398 Contact Us For Availability
52
WCI 316081303 WCI 316081303 Contact Us For Availability
54
WCI 5303271606 WCI 5303271606 Contact Us For Availability
58
INSULATION, OVEN WRAPPER WCI 3017142 Contact Us For Availability
58
INSULATION, OVEN BACK WCI 3203541 Contact Us For Availability
60
COVER-OVEN FRONT WCI 5303015372 Contact Us For Availability
73
WCI 316109902 WCI 316109902 Contact Us For Availability
85
WCI 316115600 WCI 316115600 Contact Us For Availability
185
WCI 316112900 WCI 316112900 Contact Us For Availability
× ![]()
