Model Maytag MSF25D4MDE03 REFRIGERATOR – Common Parts & Diagrams
01 - COVER SHEET

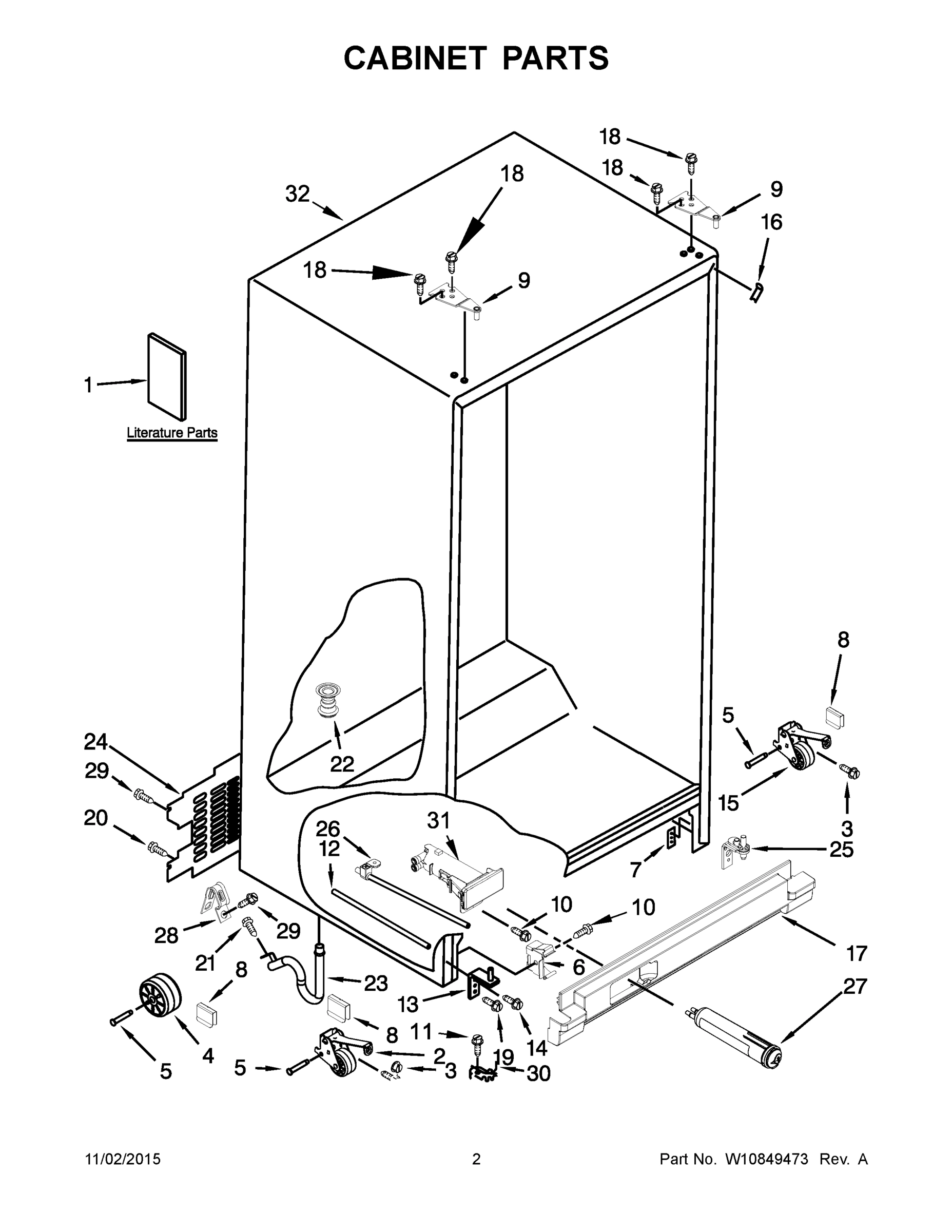

02 - CABINET PARTS
03 - REFRIGERATOR LINER PARTS
04 - REFRIGERATOR SHELF PARTS
05 - FREEZER LINER PARTS
06 - MOTOR AND ICE CONTAINER PARTS
07 - REFRIGERATOR DOOR PARTS
08 - FREEZER DOOR PARTS
09 - DISPENSER PARTS
10 - UNIT PARTS
11 - ICE MAKER PARTS
12 - AIR FLOW PARTS
13 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MSF25D4MDE03 REFRIGERATOR
1
MAY W10611005 MAY W10611005 Contact Us For Availability
1
MAY W10645500 MAY W10645500 Contact Us For Availability
1
MAY W10397980 MAY W10397980 Contact Us For Availability
1
REFRIGERATOR DOOR (INCLUDES ITEM #6) (BLACK) MAY W10750034 Contact Us For Availability
1
MAY W10763105 MAY W10763105 Contact Us For Availability
1
MAY W10204187 MAY W10204187 Contact Us For Availability
1
SCREW MAY 488208 Contact Us For Availability
1
MAY 2182120 MAY 2182120 Contact Us For Availability
1A
MAY W10621140 MAY W10621140 Contact Us For Availability
1B
MAY W10449647 MAY W10449647 Contact Us For Availability
1C
ICEMAKER SERVICE SHEET MAY 628370 Contact Us For Availability
2
ROLLER, LEFT HAND MAY W10304660 Contact Us For Availability
2
MAY W10276792 MAY W10276792 Contact Us For Availability
2
MAY 2179259 MAY 2179259 Contact Us For Availability
2
MAY 489100 MAY 489100 Contact Us For Availability
2
MAY W10317991 MAY W10317991 Contact Us For Availability
2
HANDLE (STAINLESS) MAY W10643725 Contact Us For Availability
2
SCREW (STAINLESS) MAY 8281163 Contact Us For Availability
2
BLADE, FAN MAY 2225834 Contact Us For Availability
2
MAY 2209774 MAY 2209774 Contact Us For Availability
2
MAY W10260421 MAY W10260421 Contact Us For Availability
3
MAY 2152958 MAY 2152958 Contact Us For Availability
3
MAY W10636045 MAY W10636045 Contact Us For Availability
3
MAY 3400893 MAY 3400893 Contact Us For Availability
3
ASSEMBLY, SOLENOID MAY 2152713 Contact Us For Availability
3
THIMBLE MAY 2182181 Contact Us For Availability
3
DOOR, COMPARTMENT MAY 2256101 Contact Us For Availability
3
MAY W10397394 MAY W10397394 Contact Us For Availability
3
MAY 2324712 MAY 2324712 Contact Us For Availability
3
CLIP, THERMAL FUSE MAY 628379 Contact Us For Availability
3
SCREW MAY W10142292 Contact Us For Availability
4
MAY W10475495 MAY W10475495 Contact Us For Availability
4
MAY 489464 MAY 489464 Contact Us For Availability
4
ASSEMBLY, LED LIGHT (TAPERED LENS) MAY W10515057 Contact Us For Availability
4
MAY W10550195 MAY W10550195 Contact Us For Availability
4
ASSEMBLY, SHELF STUD MAY W10173126 Contact Us For Availability
4
MAY W10698645 MAY W10698645 Contact Us For Availability
4
TRIVET MAY 2309941 Contact Us For Availability
4
MAY W10460893 MAY W10460893 Contact Us For Availability
4
ASSEMBLY, WATER FITTING MAY W10397435 Contact Us For Availability
4
MAY 489478 MAY 489478 Contact Us For Availability
5
AXLE, ROLLER MAY 2262072 Contact Us For Availability
5
ASSEMBLY, LED LIGHT (FLAT LENS) MAY W10515058 Contact Us For Availability
5
PAN, MEAT MAY 2188654 Contact Us For Availability
5
MAY W10698646 MAY W10698646 Contact Us For Availability
5
MAY 1129563 MAY 1129563 Contact Us For Availability
5
MAY W10710203 MAY W10710203 Contact Us For Availability
5
MAY 2309533 MAY 2309533 Contact Us For Availability
5
MAY W10714979 MAY W10714979 Contact Us For Availability
5
MAY 2311725 MAY 2311725 Contact Us For Availability
5
ASSEMBLY, FILTER VALVE MAY W10179146 Contact Us For Availability
5
MAY W10177781 MAY W10177781 Contact Us For Availability
6
MAY 2155013 MAY 2155013 Contact Us For Availability
6
MAY 489084 MAY 489084 Contact Us For Availability
6
MAY W10191954 MAY W10191954 Contact Us For Availability
6
MAY 2315163 MAY 2315163 Contact Us For Availability
6
ASSEMBLY, ICE DISPENSER WIRING MAY W10417930 Contact Us For Availability
6
MAY 2309529 MAY 2309529 Contact Us For Availability
6
MAY W10307494 MAY W10307494 Contact Us For Availability
6
MAY W10606407 MAY W10606407 Contact Us For Availability
6
MAY 8533993 MAY 8533993 Contact Us For Availability
6
MAY W10357076 MAY W10357076 Contact Us For Availability
6
MAY W10225581 MAY W10225581 Contact Us For Availability
7
MAY 2304249 MAY 2304249 Contact Us For Availability
7
SCREW MAY 488280 Contact Us For Availability
7
ASSEMBLY, SHELF STUD MAY W10173127 Contact Us For Availability
7
MAY 489399 MAY 489399 Contact Us For Availability
7
MAY 3400012 MAY 3400012 Contact Us For Availability
7
MAY W10194475 MAY W10194475 Contact Us For Availability
7
MAY W10289690 MAY W10289690 Contact Us For Availability
7
MOTOR, EVAPORATOR FAN MAY W10312647 Contact Us For Availability
8
CLIP, ROLLER MAY 2174706 Contact Us For Availability
8
CLIP, CONTROL BOX MAY 2311612 Contact Us For Availability
8
MAY W10191952 MAY W10191952 Contact Us For Availability
8
CUP, SHELF MAY W10130299 Contact Us For Availability
8
MAY W10169511 MAY W10169511 Contact Us For Availability
8
THIMBLE, CAM MAY 2223752 Contact Us For Availability
8
MAY W10576260 MAY W10576260 Contact Us For Availability
8
MAY 488649 MAY 488649 Contact Us For Availability
8
MAY 2169142 MAY 2169142 Contact Us For Availability
9
HINGE TOP (FREEER) (BLACK) MAY W10704884 Contact Us For Availability
9
ASSEMBLY, AIR DIFFUSER MAY W10128734 Contact Us For Availability
9
MAY W10178772 MAY W10178772 Contact Us For Availability
9
SLIDE, ICE CONTAINER (LEFT) MAY 1119237 Contact Us For Availability
9
MAY W10189191 MAY W10189191 Contact Us For Availability
9
MAY 489420 MAY 489420 Contact Us For Availability
9
MAY 489427 MAY 489427 Contact Us For Availability
9
ASSEMBLY, MOLD AND HEATER MAY W10300025 Contact Us For Availability
9
GASKET MAY 2304241 Contact Us For Availability
9A
SLIDE, ICE CONTAINER (RIGHT) MAY 1119293 Contact Us For Availability
10
MAY 489500 MAY 489500 Contact Us For Availability
10
MAY W10128735 MAY W10128735 Contact Us For Availability
10
PAN, SNACK MAY 2309518 Contact Us For Availability
10
MAY 2309757 MAY 2309757 Contact Us For Availability
10
MAY W10406980 MAY W10406980 Contact Us For Availability
10
NAMEPLATE (GREY) MAY W10612926 Contact Us For Availability
10
MAY 2306940B MAY 2306940B Contact Us For Availability
10
MAY 8281232 MAY 8281232 Contact Us For Availability
10
MAY W10435665 MAY W10435665 Contact Us For Availability
10
GROMMET, MOTOR MAY 2176759 Contact Us For Availability
11
MAY W10142234 MAY W10142234 Contact Us For Availability
11
MAY 2188819 MAY 2188819 Contact Us For Availability
11
MAY W10636070 MAY W10636070 Contact Us For Availability
11
MAY 2321285 MAY 2321285 Contact Us For Availability
11
MAY W10670845 MAY W10670845 Contact Us For Availability
11
THIMBLE, CAM MAY 2182178 Contact Us For Availability
11
MAY 2309718 MAY 2309718 Contact Us For Availability
11
MAY 2161324 MAY 2161324 Contact Us For Availability
11
MAY W10318914 MAY W10318914 Contact Us For Availability
11
MAY W10539759 MAY W10539759 Contact Us For Availability
12
MAY W10350006 MAY W10350006 Contact Us For Availability
12
MAY W10141518 MAY W10141518 Contact Us For Availability
12
MAY W10636041 MAY W10636041 Contact Us For Availability
12
MAY W10698644 MAY W10698644 Contact Us For Availability
12
MAY W10189661 MAY W10189661 Contact Us For Availability
12
MAY 8533859 MAY 8533859 Contact Us For Availability
12
STRIPPER, ICE MAY W10122563 Contact Us For Availability
12
GASKET MAY 2155789 Contact Us For Availability
13
ASSEMBLY, BOTTOM HINGE (FREEZER) MAY W10414753 Contact Us For Availability
13
SWITCH, ROCKER ARM MAY 1118894 Contact Us For Availability
13
MAY 2179342 MAY 2179342 Contact Us For Availability
13
STUD, SUPPORT MAY 2196206 Contact Us For Availability
13
MAY W10189658 MAY W10189658 Contact Us For Availability
13
MAY W10219802 MAY W10219802 Contact Us For Availability
13
DEVICE, COMBINATION START (START RELAY AND OV MAY W10197428 Contact Us For Availability
13
SUPPORT, HOUSING MAY 2195914 Contact Us For Availability
13
MAY W10252477 MAY W10252477 Contact Us For Availability
14
MAY 3400113 MAY 3400113 Contact Us For Availability
14
CUP, LED BRACKET MAY W10445802 Contact Us For Availability
14
BODY, HUMIDITY CONTROL MAY 2179343 Contact Us For Availability
14
MAY W10278731 MAY W10278731 Contact Us For Availability
14
MAY W10350564 MAY W10350564 Contact Us For Availability
14
MAY 2315522 MAY 2315522 Contact Us For Availability
14
MAY W10463013 MAY W10463013 Contact Us For Availability
15
ROLLER, RIGHT HAND MAY W10304659 Contact Us For Availability
15
PAN, CRISPER MAY 2188652 Contact Us For Availability
15
MAY W10278732 MAY W10278732 Contact Us For Availability
15
CONNECTOR, UNION MAY W10271541 Contact Us For Availability
15
THERMOSTAT (ALSO ORDER #542369) MAY 2321258 Contact Us For Availability
15
SUPPORT, FAN SCROLL (LEFT HAND) MAY 2203596 Contact Us For Availability
15A
SUPPORT, FAN SCROLL (RIGHT HAND) MAY 2203595 Contact Us For Availability
16
FILLER, WRAPPER (BLACK) MAY W10283960 Contact Us For Availability
16
MAY W10278733 MAY W10278733 Contact Us For Availability
16
MAY 2161302 MAY 2161302 Contact Us For Availability
16
MAY W10001280 MAY W10001280 Contact Us For Availability
17
MAY W10348651 MAY W10348651 Contact Us For Availability
17
ASSEMBLY, UNIT COVER (BOTTOM) MAY W10466698 Contact Us For Availability
17
MAY W10001240 MAY W10001240 Contact Us For Availability
18
SCREW (BLACK) MAY W10308751 Contact Us For Availability
18
MAY W10181990 MAY W10181990 Contact Us For Availability
18
MAY 489396 MAY 489396 Contact Us For Availability
18
ASSEMBLY, SHUT OFF ARM MAY 2304354 Contact Us For Availability
19
MAY 3400103 MAY 3400103 Contact Us For Availability
19
MOTOR (NOT SERVICED, ORDER #20) MAY N/P Contact Us For Availability
19
MAY W10189708 MAY W10189708 Contact Us For Availability
19
EVAPORATOR MAY 2188823 Contact Us For Availability
20
SCREW MAY 489290 Contact Us For Availability
20
PIN, ROLL MAY 489229 Contact Us For Availability
20
MAY W10527155 MAY W10527155 Contact Us For Availability
20
ASSEMBLY, MODULE AND MOTOR MAY 626691 Contact Us For Availability
21
MAY W10295082 MAY W10295082 Contact Us For Availability
21
MAY W10614158 MAY W10614158 Contact Us For Availability
21
MAY W10508644 MAY W10508644 Contact Us For Availability
22
FITTING, DRAIN MAY 2304888 Contact Us For Availability
22
MAY W10698642 MAY W10698642 Contact Us For Availability
22
MAY W10421559 MAY W10421559 Contact Us For Availability
23
EXTENSION, DRAIN FITTING MAY W10153550 Contact Us For Availability
23
MAY W10403781 MAY W10403781 Contact Us For Availability
23
MAY W10771114 MAY W10771114 Contact Us For Availability
24
MAY 2188739 MAY 2188739 Contact Us For Availability
24
MAY 1119018 MAY 1119018 Contact Us For Availability
24
TUBE, PROCESS MAY 2325479 Contact Us For Availability
25
MAY W10714071 MAY W10714071 Contact Us For Availability
25
ARM, CONTROL MAY 2155231 Contact Us For Availability
25
MAY W10196321 MAY W10196321 Contact Us For Availability
26
MAY W10350007 MAY W10350007 Contact Us For Availability
26
MAY 1119020 MAY 1119020 Contact Us For Availability
26
BRACKET, FAN MOTOR MAY 2181929 Contact Us For Availability
27
MAY W10735398 MAY W10735398 Contact Us For Availability
27
CLIP, RETAINER (DISPENSER ROD) MAY 1119021 Contact Us For Availability
27
MAY 2188175 MAY 2188175 Contact Us For Availability
28
CLAMP, POWER CORD MAY 549193 Contact Us For Availability
28
SCREW MAY 488886 Contact Us For Availability
28
COMPRESSOR MAY W10200250 Contact Us For Availability
29
MAY W10185018 MAY W10185018 Contact Us For Availability
29
MAY W10476309 MAY W10476309 Contact Us For Availability
30
CLOSER, DOOR (FREEZER) MAY 2223751 Contact Us For Availability
30
DEFLECTER, ICE MAY 1119017 Contact Us For Availability
30
GROMMET MAY 10835903 Contact Us For Availability
31
MAY W10778315 MAY W10778315 Contact Us For Availability
31
WASHER, PLAIN UPPER CAM MAY 489234 Contact Us For Availability
31
BOLT MAY 489340 Contact Us For Availability
32
RING, RETAINER MAY 489236 Contact Us For Availability
32
MAY W10332806 MAY W10332806 Contact Us For Availability
33
MAY W10698668 MAY W10698668 Contact Us For Availability
33
MAY W10196313 MAY W10196313 Contact Us For Availability
34
MAY W10334855 MAY W10334855 Contact Us For Availability
35
MAY W10617097 MAY W10617097 Contact Us For Availability
36
BOX, CONTROL MAY 2323186 Contact Us For Availability
100
MAY W10558423 MAY W10558423 Contact Us For Availability
100
MAY W10300022 MAY W10300022 Contact Us For Availability
NI
VALVE, ACCESS MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS MAY 978025 Contact Us For Availability
NI
VALVE, ACCESS MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS MAY 978027 Contact Us For Availability
NI
VALVE, ACCESS MAY 978028 Contact Us For Availability
NI
VALVE, ACCESS MAY 978029 Contact Us For Availability
NI
VALVE, ACCESS MAY 978030 Contact Us For Availability
NI
TORX SCREW WRENCH, TORX KEY MAY 1117510 Contact Us For Availability
NI
MISCELLANEOUS, SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
MAY 350930 MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. ENAMEL, BLAC MAY 350939 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE PRIMER MAY 350942 Contact Us For Availability
NI
MISCELLANEOUS, TAPE, VINYL (3/4 X 108") MAY 479502 Contact Us For Availability
NI
MISCELLANEOUS, CORK, SEALER MAY 503695 Contact Us For Availability
NI
MISCELLANEOUS, SEALER, MASTIC (1 QT) MAY 505587 Contact Us For Availability
NI
MISCELLANEOUS, GREASE, SILICONE (1/2 OZ.) MAY 542638 Contact Us For Availability
NI
MISCELLANEOUS, CEMENT, ALUMILASTIC (1 1/4 OZ. MAY 542639 Contact Us For Availability
NI
MAY 72017 MAY 72017 Contact Us For Availability
NI
MAY 72032 MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. GRAPHITE) MAY 80051 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. GRAPHITE) MAY 8171357 Contact Us For Availability
NI
PAINT, BULK (1 QT. GRAPHITE) MAY 8171358 Contact Us For Availability
NI
MISCELLANEOUS, KIT, TERMINAL CONNECTOR MAY 833938 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. APOLLO GREY) MAY W10134625 Contact Us For Availability
× ![]()
