Model Maytag MSF22D4XAW00 REFRIGERATOR – Common Parts & Diagrams

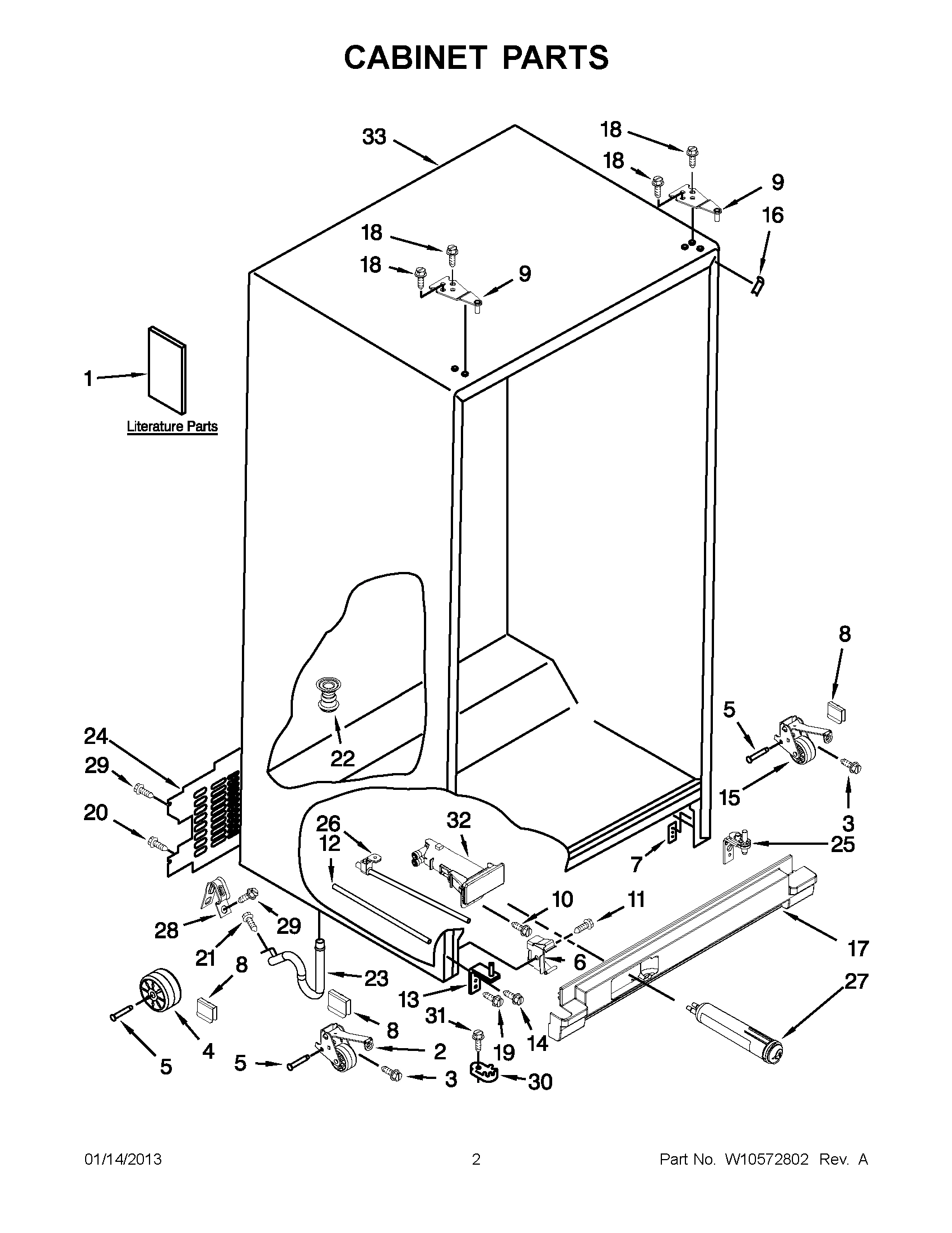

01 - CABINET PARTS

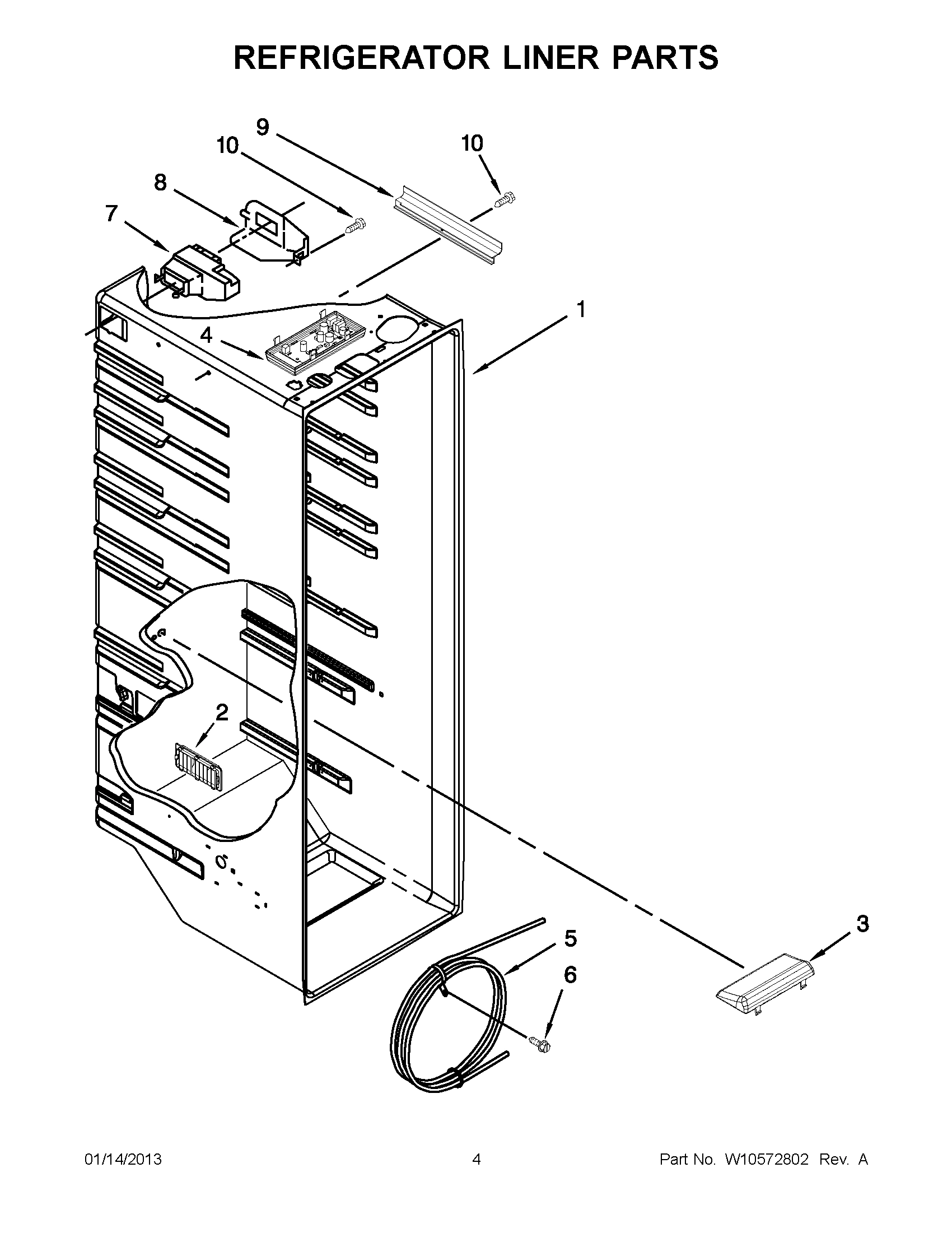

02 - REFRIGERATOR LINER PARTS

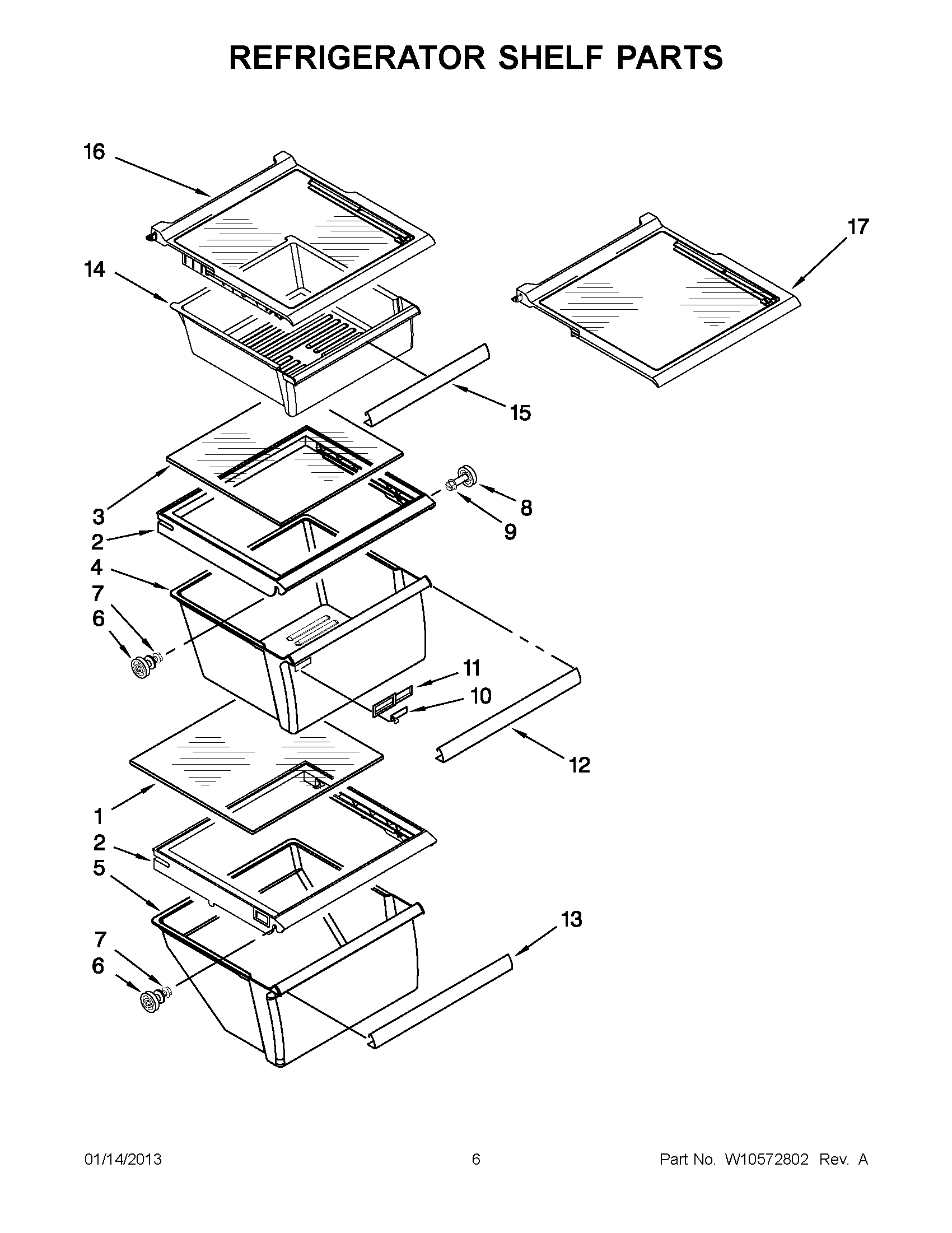

03 - REFRIGERATOR SHELF PARTS

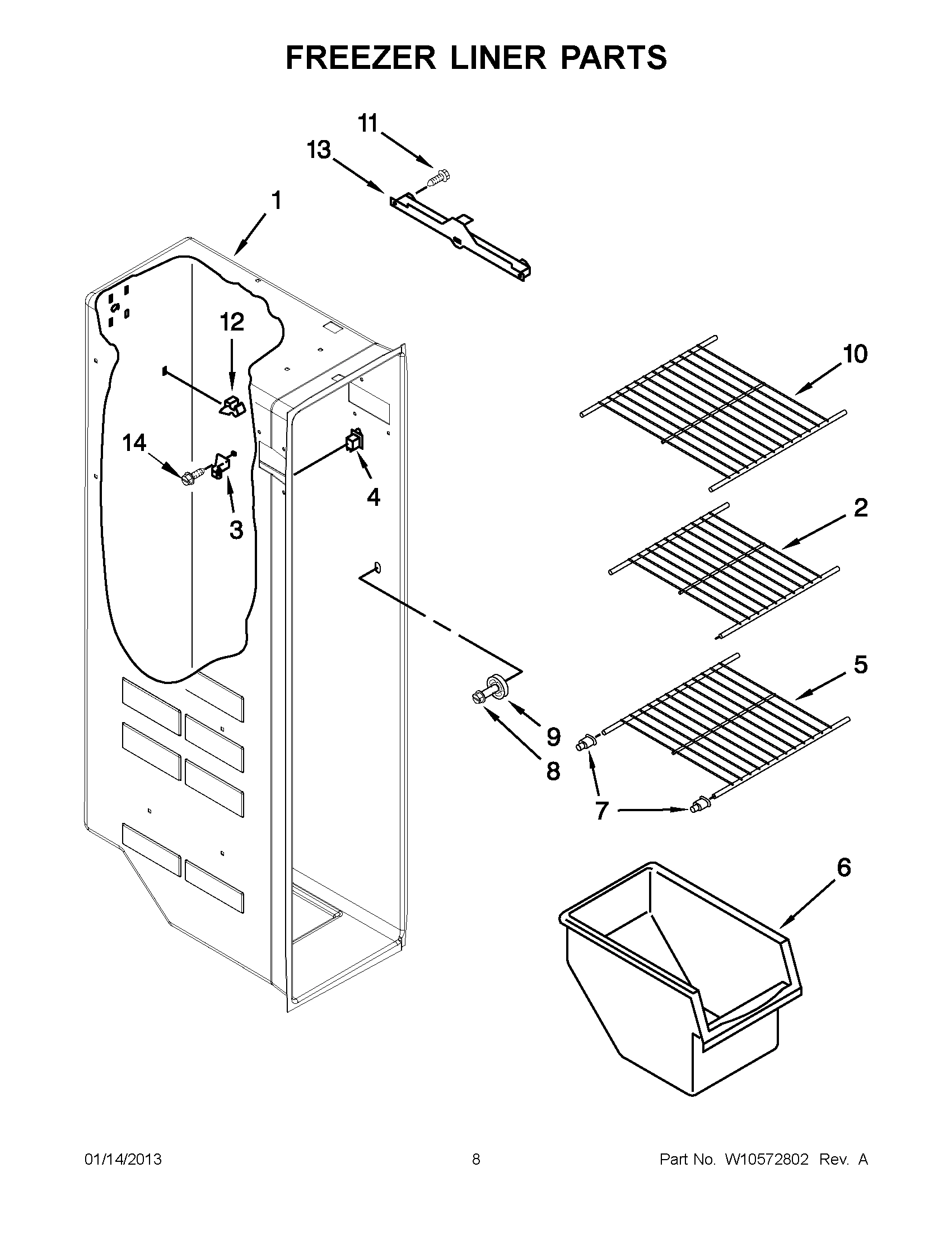

04 - FREEZER LINER PARTS

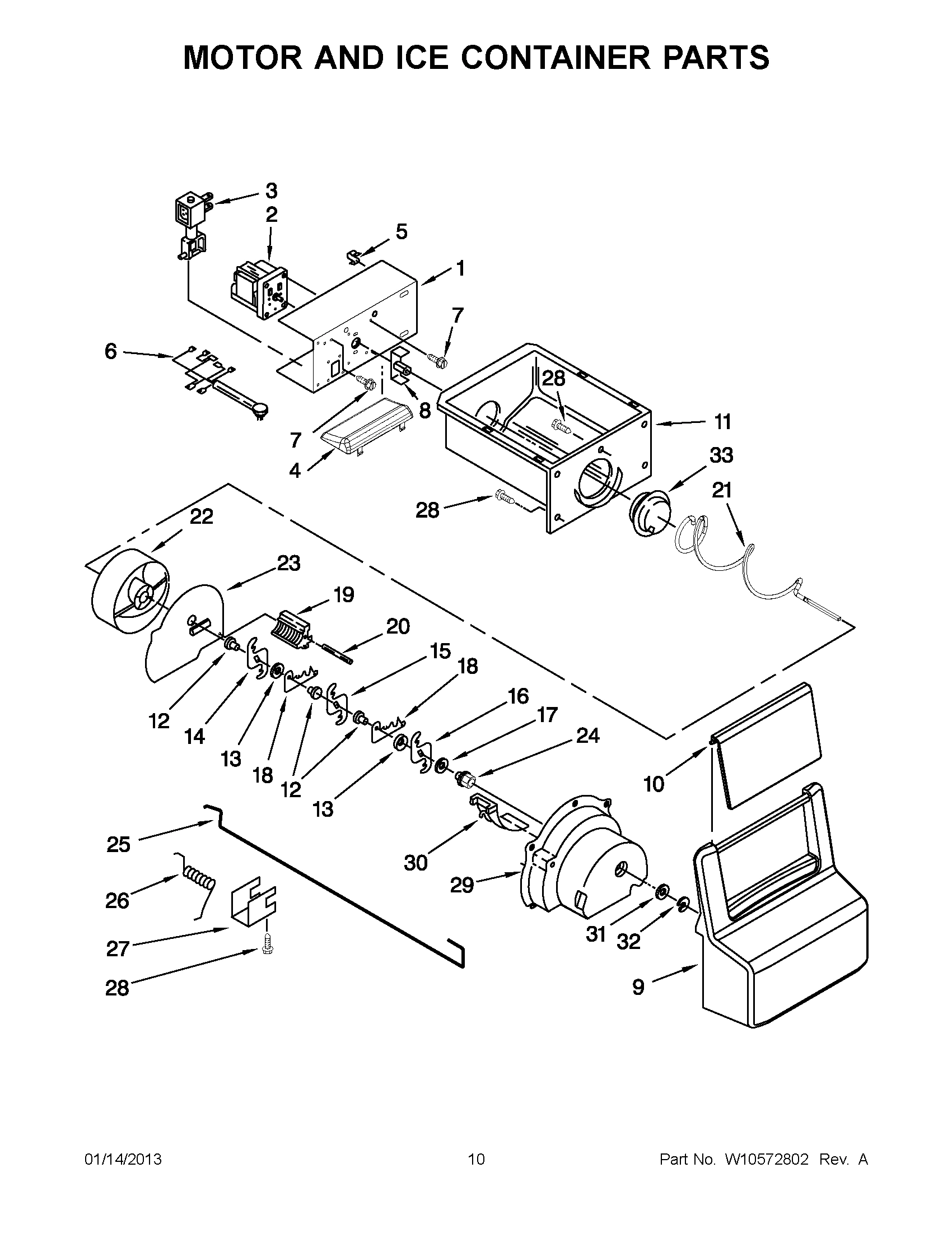

05 - MOTOR AND ICE CONTAINER PARTS

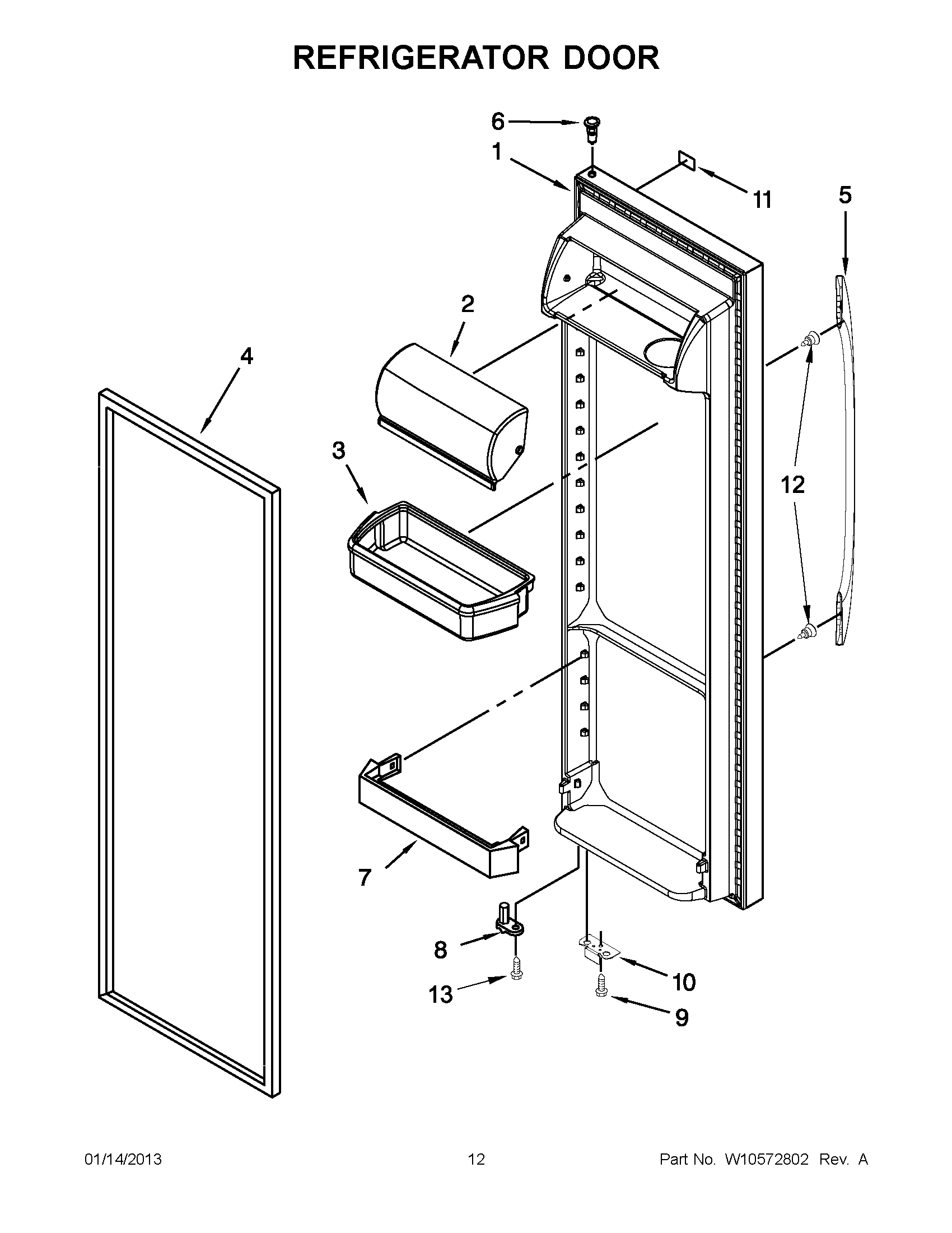

06 - REFRIGERATOR DOOR

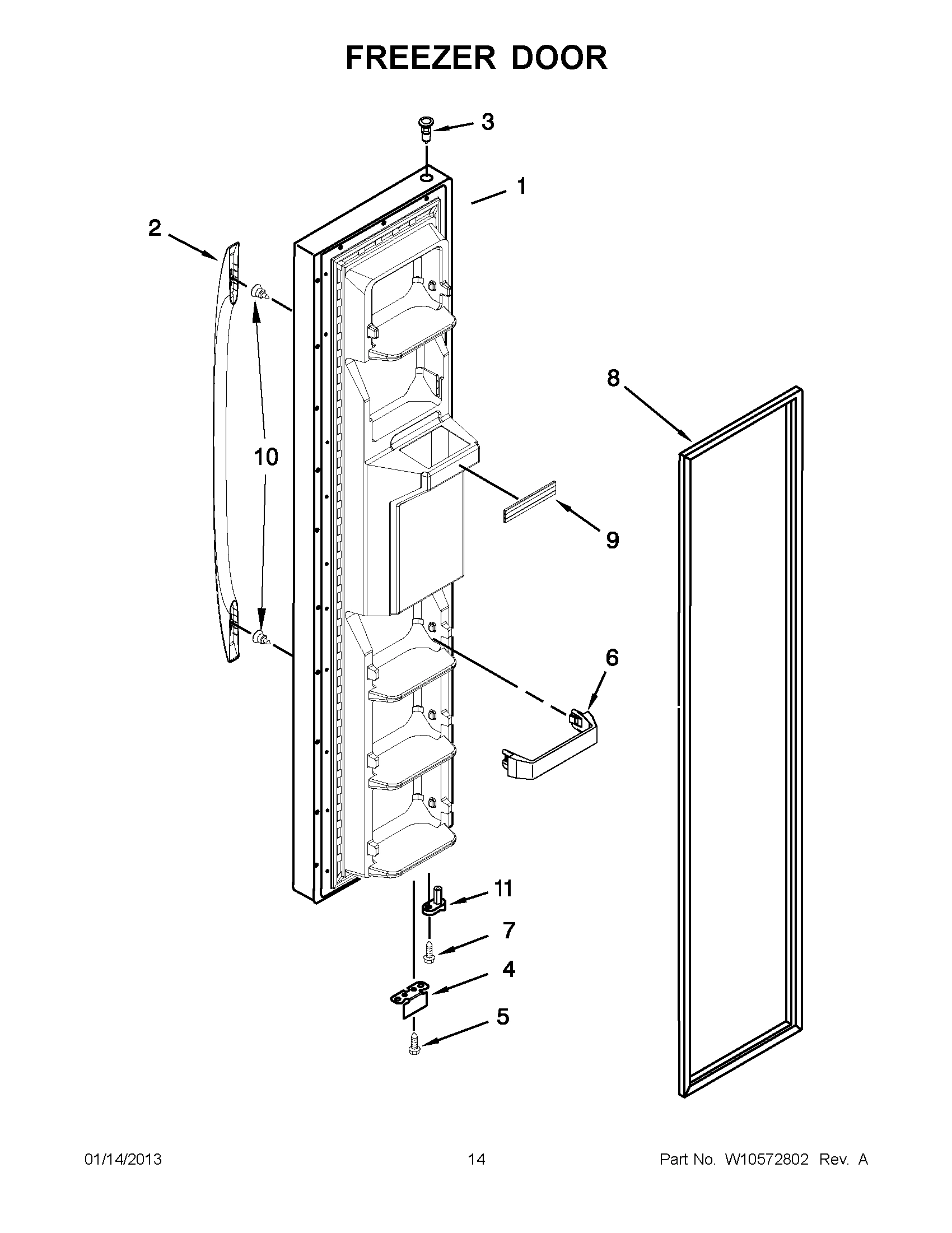

07 - FREEZER DOOR

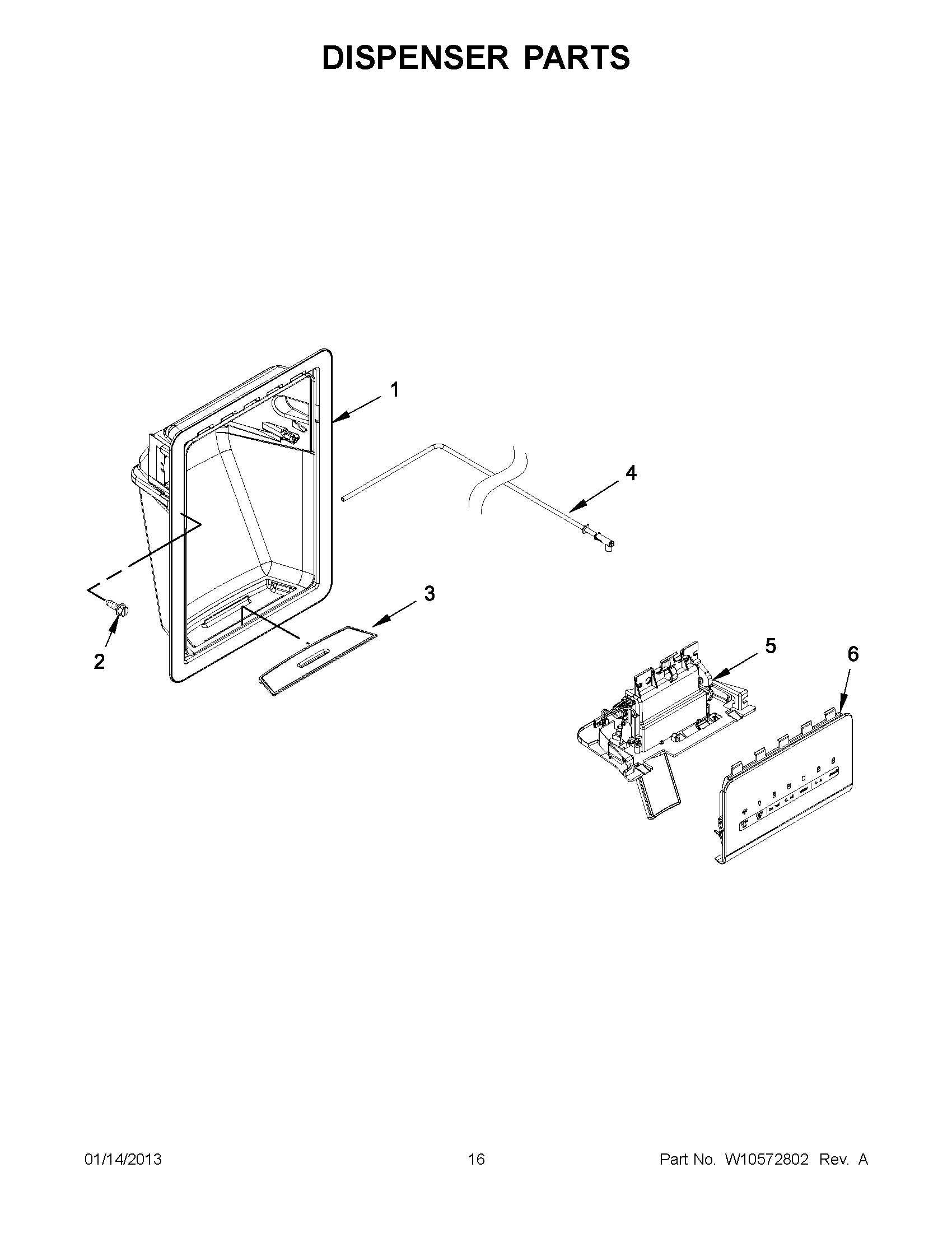

08 - DISPENSER PARTS

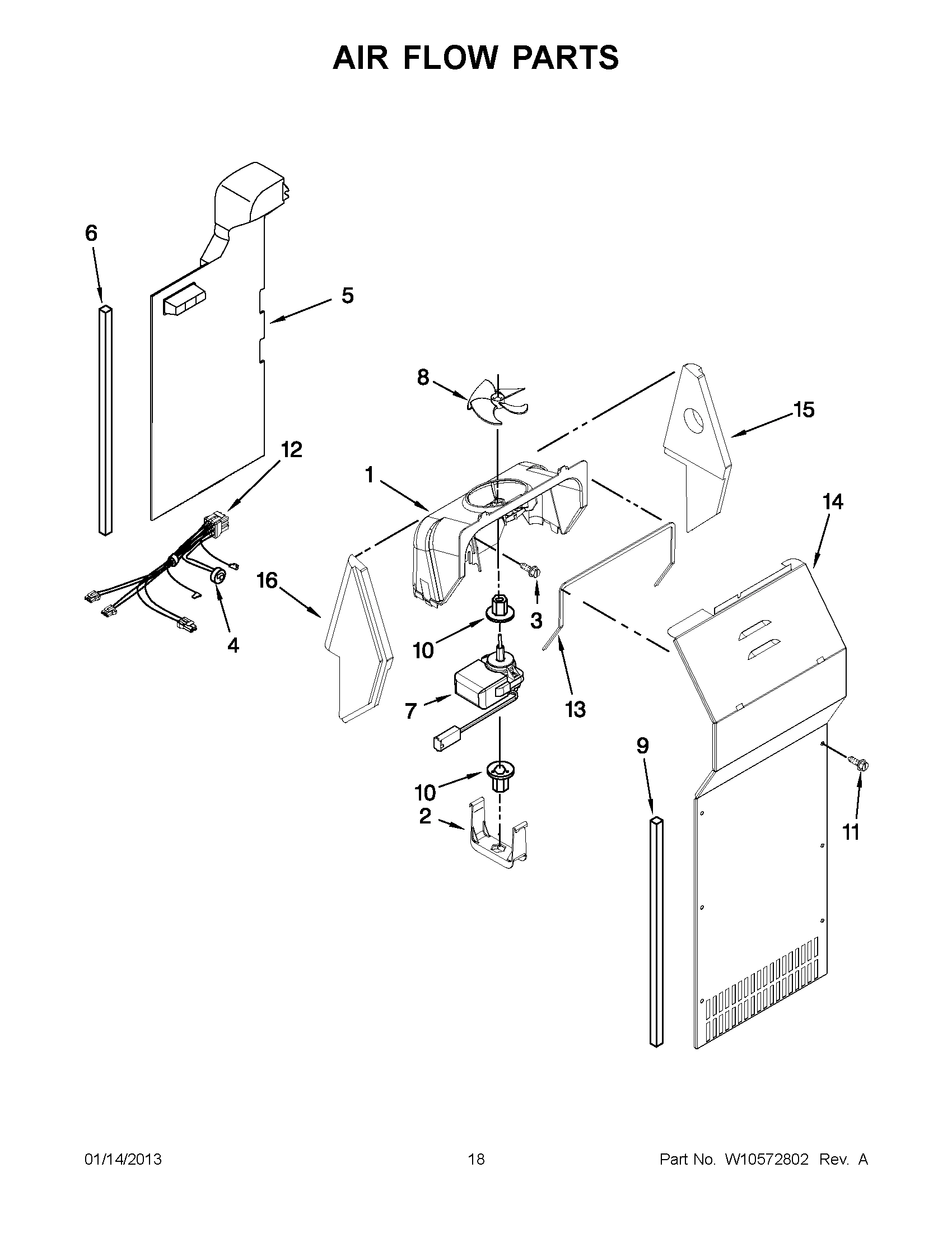

09 - AIR FLOW PARTS

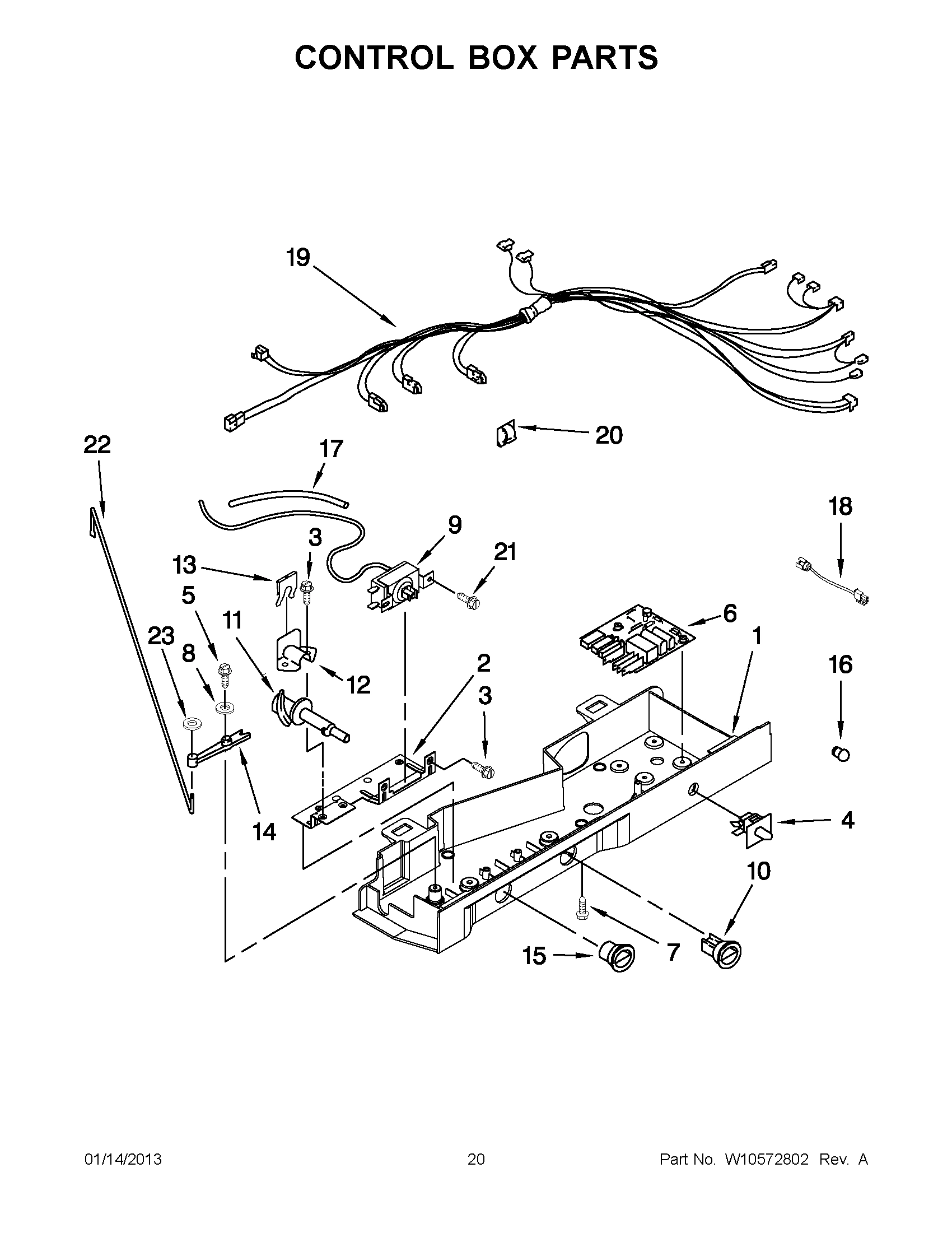

10 - CONTROL BOX PARTS

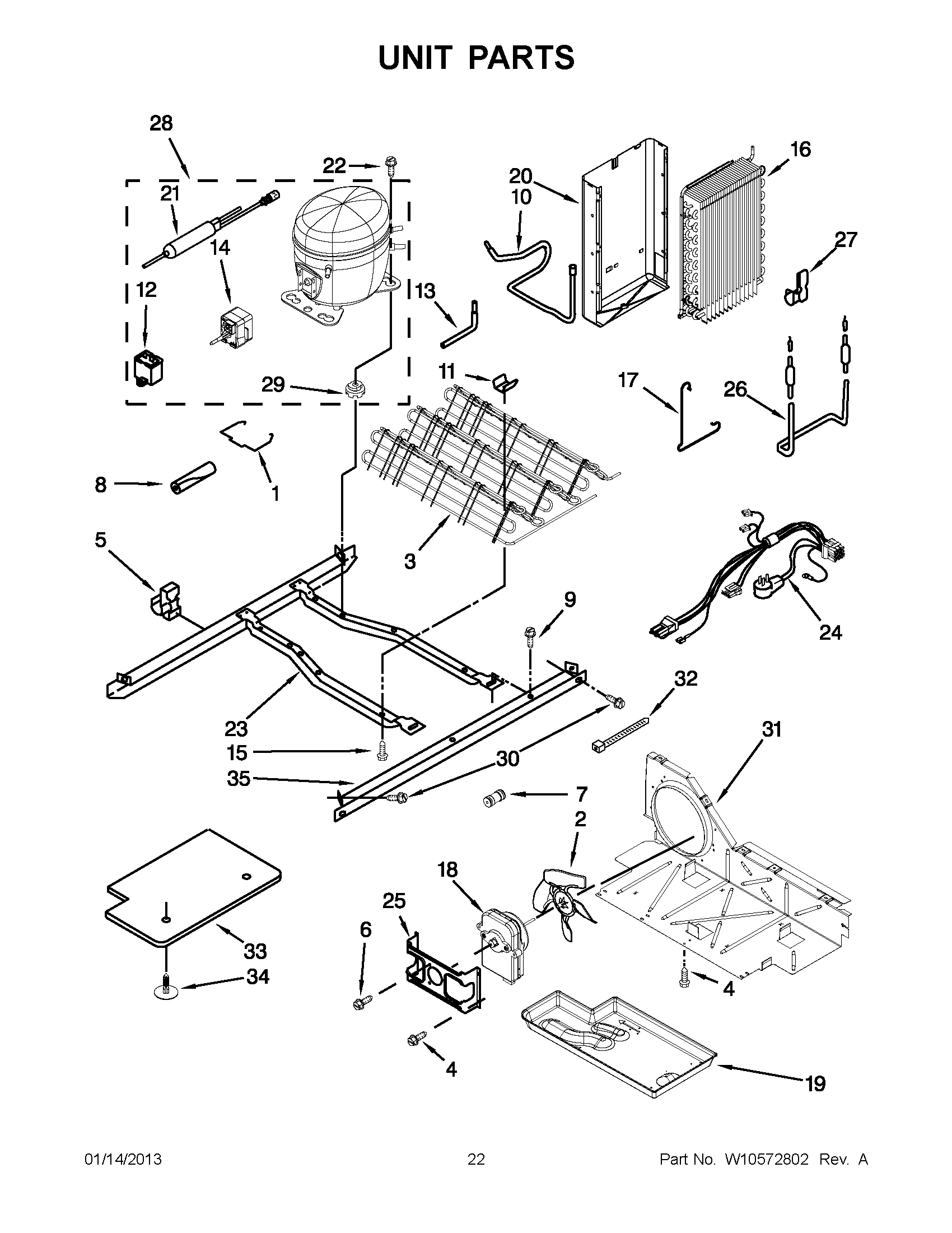

11 - UNIT PARTS

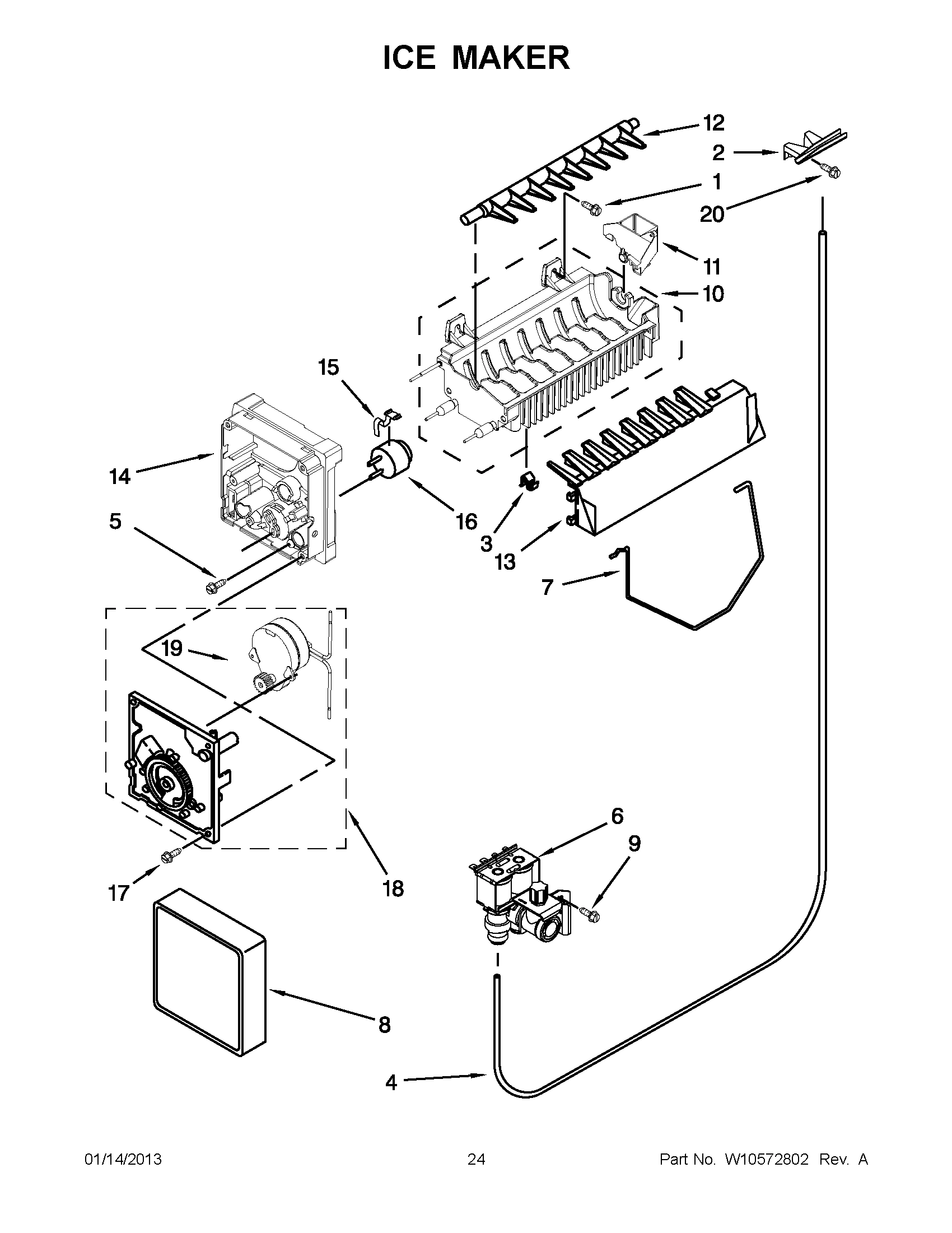

12 - ICE MAKER
13 - OPTIONAL PARTS
Common parts from model Maytag MSF22D4XAW00 REFRIGERATOR
1
MAY W10393020 MAY W10393020 Contact Us For Availability
1
MAY W10436739 MAY W10436739 Contact Us For Availability
1
MAY W10436741 MAY W10436741 Contact Us For Availability
1
MAY W10397979 MAY W10397979 Contact Us For Availability
1
MAY W10407738 MAY W10407738 Contact Us For Availability
1
MAY W10424384 MAY W10424384 Contact Us For Availability
1
MAY W10428790 MAY W10428790 Contact Us For Availability
1
MAY W10408341 MAY W10408341 Contact Us For Availability
1
MAY W10408342 MAY W10408342 Contact Us For Availability
1
MAY W10408343 MAY W10408343 Contact Us For Availability
1
SCROLL, FAN MAY 2182119 Contact Us For Availability
1
MAY W10402260 MAY W10402260 Contact Us For Availability
1
MAY W10204187 MAY W10204187 Contact Us For Availability
1
Screw MAY 488208 Contact Us For Availability
2
ROLLER MAY W10304660 Contact Us For Availability
2
MAY 2257741 MAY 2257741 Contact Us For Availability
2
Cover, Crisper MAY 2209698 Contact Us For Availability
2
MAY W10318953 MAY W10318953 Contact Us For Availability
2
MAY W10317991 MAY W10317991 Contact Us For Availability
2
Door, Compartment MAY 2256101 Contact Us For Availability
2
HANDLE (GREY) MAY W10439132 Contact Us For Availability
2
MAY W10439228 MAY W10439228 Contact Us For Availability
2
HANDLE (BLACK) MAY W10439229 Contact Us For Availability
2
MAY W10188846 MAY W10188846 Contact Us For Availability
2
MAY 2311611 MAY 2311611 Contact Us For Availability
2
MAY 12825802 MAY 12825802 Contact Us For Availability
2
MAY 2209774 MAY 2209774 Contact Us For Availability
3
MAY 2152958 MAY 2152958 Contact Us For Availability
3
GLASS COVER MAY 2179259 Contact Us For Availability
3
SUPPORT, STUD MAY 2196206 Contact Us For Availability
3
MAY 2152713 MAY 2152713 Contact Us For Availability
3
BIN, DOOR MAY W10321304 Contact Us For Availability
3
THIMBLE MAY 2182181 Contact Us For Availability
3
Screw MAY 3196537 Contact Us For Availability
3
MAY W10397392 MAY W10397392 Contact Us For Availability
3
MAY W10397394 MAY W10397394 Contact Us For Availability
3
MAY W10397395 MAY W10397395 Contact Us For Availability
3
MAY 489478 MAY 489478 Contact Us For Availability
3
Condenser Assembly MAY 2324712 Contact Us For Availability
3
CLIP, THERMAL FUSE MAY 628379 Contact Us For Availability
4
MAY W10475495 MAY W10475495 Contact Us For Availability
4
MAY 489464 MAY 489464 Contact Us For Availability
4
MAY W10398007 MAY W10398007 Contact Us For Availability
4
MAY W10522611 MAY W10522611 Contact Us For Availability
4
MAY 2188652 MAY 2188652 Contact Us For Availability
4
SWITCH, ROCKER ARM, COMBINATION MAY 1115373 Contact Us For Availability
4
DOOR GASKET, MAGNETIC (BEIGE) MAY 2309600 Contact Us For Availability
4
MAY 2309653 MAY 2309653 Contact Us For Availability
4
Door Gasket, Magnetic (Grey) MAY 2327161 Contact Us For Availability
4
MAY 2306940 MAY 2306940 Contact Us For Availability
4
MAY W10397435 MAY W10397435 Contact Us For Availability
4
MAY W10225581 MAY W10225581 Contact Us For Availability
4
SWITCH, LIGHT MAY 2219875 Contact Us For Availability
4
MAY W10437857 MAY W10437857 Contact Us For Availability
5
AXLE, ROLLER MAY 2262072 Contact Us For Availability
5
RESERVOIR MAY W10276792 Contact Us For Availability
5
PAN, MEAT MAY 2188654 Contact Us For Availability
5
MAY W10318952 MAY W10318952 Contact Us For Availability
5
MAY 489420 MAY 489420 Contact Us For Availability
5
MAY W10397481 MAY W10397481 Contact Us For Availability
5
MAY W10397482 MAY W10397482 Contact Us For Availability
5
MAY W10397483 MAY W10397483 Contact Us For Availability
5
MAY W10166220 MAY W10166220 Contact Us For Availability
5
MAY 627068 MAY 627068 Contact Us For Availability
5
MAY 2326941 MAY 2326941 Contact Us For Availability
5
MAY W10001280 MAY W10001280 Contact Us For Availability
6
MAY 2155013 MAY 2155013 Contact Us For Availability
6
SCREWS MAY 488280 Contact Us For Availability
6
MAY W10173126 MAY W10173126 Contact Us For Availability
6
MAY 2309758 MAY 2309758 Contact Us For Availability
6
MAY W10417930 MAY W10417930 Contact Us For Availability
6
TRIM, DOOR MAY 2309717 Contact Us For Availability
6
MAY W10397953 MAY W10397953 Contact Us For Availability
6
MAY W10405072 MAY W10405072 Contact Us For Availability
6
MAY W10405073 MAY W10405073 Contact Us For Availability
6
MAY W10252476 MAY W10252476 Contact Us For Availability
6
MAY W10366605 MAY W10366605 Contact Us For Availability
6
MAY 8533993 MAY 8533993 Contact Us For Availability
6
MAY W10179146 MAY W10179146 Contact Us For Availability
7
MAY 2304249 MAY 2304249 Contact Us For Availability
7
MAY W10151374 MAY W10151374 Contact Us For Availability
7
MAY W10191954 MAY W10191954 Contact Us For Availability
7
Cup, Shelf MAY W10130299 Contact Us For Availability
7
MAY 489399 MAY 489399 Contact Us For Availability
7
Trivet MAY 2309941 Contact Us For Availability
7
MAY 3400012 MAY 3400012 Contact Us For Availability
7
FAN MOTOR MAY W10236142 Contact Us For Availability
7
Screw MAY 489398 Contact Us For Availability
7
CONNECTOR, WATER TUBE MAY W10271541 Contact Us For Availability
7
ARM, SHUT OFF MAY 2304354 Contact Us For Availability
8
CLIP, ROLLER MAY 2174706 Contact Us For Availability
8
MAY 2152019 MAY 2152019 Contact Us For Availability
8
MAY W10191952 MAY W10191952 Contact Us For Availability
8
MAY W10169511 MAY W10169511 Contact Us For Availability
8
DOOR CLOSER, UPPER CAM (BLACK) MAY 2182178 Contact Us For Availability
8
DOOR GASKET, MAGNETIC (BEIGE) MAY 2309604 Contact Us For Availability
8
MAY 2309654 MAY 2309654 Contact Us For Availability
8
Door Gasket, Magnetic (Grey) MAY 2327162 Contact Us For Availability
8
MAY 2169142 MAY 2169142 Contact Us For Availability
8
Spring Washer MAY 489203 Contact Us For Availability
8
Sleeve, Pressure Switch Hose MAY 2161302 Contact Us For Availability
8
MAY W10289690 MAY W10289690 Contact Us For Availability
9
MAY W10398820 MAY W10398820 Contact Us For Availability
9
TOP HINGE (GREY) MAY W10400479 Contact Us For Availability
9
TOP HINGE (WHITE) MAY W10402730 Contact Us For Availability
9
COVER, WIRING MAY W10252495 Contact Us For Availability
9
MAY W10173127 MAY W10173127 Contact Us For Availability
9
MAY W10189274 MAY W10189274 Contact Us For Availability
9
MAY W10307492 MAY W10307492 Contact Us For Availability
9
MAY W10499478 MAY W10499478 Contact Us For Availability
9
MAY 489427 MAY 489427 Contact Us For Availability
9
MAY 488649 MAY 488649 Contact Us For Availability
10
MAY 489500 MAY 489500 Contact Us For Availability
10
MAY 486298 MAY 486298 Contact Us For Availability
10
MAY 2179342 MAY 2179342 Contact Us For Availability
10
MAY W10318951 MAY W10318951 Contact Us For Availability
10
MAY W10406979 MAY W10406979 Contact Us For Availability
10
MAY W10219801 MAY W10219801 Contact Us For Availability
10
MAY W10460893 MAY W10460893 Contact Us For Availability
10
GROMMET, MOTOR MAY 2176759 Contact Us For Availability
10
KNOB, THERMOSTAT MAY 2311614 Contact Us For Availability
10
Tube Suction MAY 2205764 Contact Us For Availability
10
ASSEMBLY, MOLD & HEATER MAY W10300025 Contact Us For Availability
11
MAY 488500 MAY 488500 Contact Us For Availability
11
Body, Humidity Control MAY 2179343 Contact Us For Availability
11
MAY 489100 MAY 489100 Contact Us For Availability
11
MAY W10138193 MAY W10138193 Contact Us For Availability
11
NAMEPLATE. MAYTAG MAY W10170766 Contact Us For Availability
11
DOOR CLOSER, UPPER CAM (BLACK) MAY 2223752 Contact Us For Availability
11
MAY 8281159 MAY 8281159 Contact Us For Availability
11
CAM ASSEMBLY HARNESS MAY 2182195 Contact Us For Availability
11
MAY 2311725 MAY 2311725 Contact Us For Availability
11
MAY W10435665 MAY W10435665 Contact Us For Availability
12
MAY W10350006 MAY W10350006 Contact Us For Availability
12
MAY W10393041 MAY W10393041 Contact Us For Availability
12
MAY 2315163 MAY 2315163 Contact Us For Availability
12
MAY W10189661 MAY W10189661 Contact Us For Availability
12
MAY W10297480 MAY W10297480 Contact Us For Availability
12
MAY 1110560 MAY 1110560 Contact Us For Availability
12
MAY 2264017 MAY 2264017 Contact Us For Availability
12
EJECTOR, ARM MAY W10318914 Contact Us For Availability
13
MAY W10414753 MAY W10414753 Contact Us For Availability
13
Trim, Pan MAY 2179234 Contact Us For Availability
13
SLIDE, ICE CONTAINER (LEFT) MAY 1119237 Contact Us For Availability
13
SLIDE, ICE CONTAINER (RIGHT) MAY 1119293 Contact Us For Availability
13
MAY W10189658 MAY W10189658 Contact Us For Availability
13
GASKET, EVAPORATOR COVER MAY 2304241 Contact Us For Availability
13
Damper Control MAY 2196062 Contact Us For Availability
13
TUBE, PROCESS MAY 2325479 Contact Us For Availability
13
STRIPPER, ICE MAY W10122563 Contact Us For Availability
14
MAY 3400113 MAY 3400113 Contact Us For Availability
14
PAN, SNACK MAY 2309518 Contact Us For Availability
14
SCREW, SEVICEABLE PART, FREEZER MAY 3400893 Contact Us For Availability
14
MAY W10278731 MAY W10278731 Contact Us For Availability
14
MAY W10463012 MAY W10463012 Contact Us For Availability
14
MAY 1110559 MAY 1110559 Contact Us For Availability
14
START DEVICE, COMBINATION (START RELAY AND OV MAY W10194431 Contact Us For Availability
14
MAY 2195914 MAY 2195914 Contact Us For Availability
15
FRONT ROLLER, RIGHT MAY W10304659 Contact Us For Availability
15
MAY 2309519 MAY 2309519 Contact Us For Availability
15
MAY W10278732 MAY W10278732 Contact Us For Availability
15
SUPPORT, RIGHT HAND MAY 2203595 Contact Us For Availability
15
KNOB, CONTROL MAY 2311615 Contact Us For Availability
15
MAY 8281232 MAY 8281232 Contact Us For Availability
15
MAY 2315522 MAY 2315522 Contact Us For Availability
16
MAY W10283959 MAY W10283959 Contact Us For Availability
16
FILLER, WRAPPER (BLACK) MAY W10283960 Contact Us For Availability
16
MAY W10283961 MAY W10283961 Contact Us For Availability
16
MAY W10276341 MAY W10276341 Contact Us For Availability
16
MAY W10278733 MAY W10278733 Contact Us For Availability
16
SUPPORT, LEFT HAND MAY 2203596 Contact Us For Availability
16
LENS, LIGHT MAY 2200096 Contact Us For Availability
16
EVAPORATOR, FC MAY 2188822 Contact Us For Availability
16
THERMOSTAT (ALSO ORDER No.54236) MAY 2321258 Contact Us For Availability
17
MAY W10393044 MAY W10393044 Contact Us For Availability
17
MAY W10393045 MAY W10393045 Contact Us For Availability
17
MAY W10393046 MAY W10393046 Contact Us For Availability
17
SHELF ASSEMBLY, SPILLGUARD MAY W10276348 Contact Us For Availability
17
TUBE-BARRIER, THERMOSTAT MAY 2196001 Contact Us For Availability
17
MAY W10001240 MAY W10001240 Contact Us For Availability
18
MAY W10308750 MAY W10308750 Contact Us For Availability
18
SCREW, HINGE (BLACK) MAY W10308751 Contact Us For Availability
18
MAY W10181990 MAY W10181990 Contact Us For Availability
18
LED LIGHT ASSEMBLY MAY 2213462 Contact Us For Availability
18
MAY 2188874 MAY 2188874 Contact Us For Availability
18
ASSEMBLY, MODULE MAY 626691 Contact Us For Availability
19
MAY 3400103 MAY 3400103 Contact Us For Availability
19
MOTOR (NOT SERVICED, ORDER No.18) MAY N/P Contact Us For Availability
19
MAY W10189708 MAY W10189708 Contact Us For Availability
19
MAY W10417924 MAY W10417924 Contact Us For Availability
19
MAY 1105523 MAY 1105523 Contact Us For Availability
20
Screw MAY 489290 Contact Us For Availability
20
MAY 489084 MAY 489084 Contact Us For Availability
20
CLIP, WIRE MAY 1115374 Contact Us For Availability
20
MAY 489229 MAY 489229 Contact Us For Availability
20
MAY W10194474 MAY W10194474 Contact Us For Availability
21
MAY W10295082 MAY W10295082 Contact Us For Availability
21
Screw MAY 487869 Contact Us For Availability
21
Drier MAY W10177049 Contact Us For Availability
22
MAY 2304888 MAY 2304888 Contact Us For Availability
22
MAY 2305377 MAY 2305377 Contact Us For Availability
22
MAY 2311631 MAY 2311631 Contact Us For Availability
22
MAY W10476309 MAY W10476309 Contact Us For Availability
23
EXTENSION, DRAIN FITTING MAY W10153550 Contact Us For Availability
23
Baffle, Floating MAY 2171682 Contact Us For Availability
23
MAY 489285 MAY 489285 Contact Us For Availability
23
Frame, Unit Mounting MAY 2304903 Contact Us For Availability
24
MAY 2188734 MAY 2188734 Contact Us For Availability
24
MAY 1119018 MAY 1119018 Contact Us For Availability
24
MAY W10417928 MAY W10417928 Contact Us For Availability
25
MAY W10409481 MAY W10409481 Contact Us For Availability
25
MAY 2155231 MAY 2155231 Contact Us For Availability
25
Bracket, Fan Motor MAY 2181929 Contact Us For Availability
26
MAY W10350007 MAY W10350007 Contact Us For Availability
26
MAY 1119020 MAY 1119020 Contact Us For Availability
26
HEARTER, DEFROST MAY 2188174 Contact Us For Availability
27
MAY W10217316 MAY W10217316 Contact Us For Availability
27
RETAINER CLIP, ROD DISPENSER MAY 1119021 Contact Us For Availability
27
MAY 2161324 MAY 2161324 Contact Us For Availability
28
Clamp, Power Cord MAY 549193 Contact Us For Availability
28
SCREW MAY 488886 Contact Us For Availability
28
MAY W10391109 MAY W10391109 Contact Us For Availability
29
MAY W10185018 MAY W10185018 Contact Us For Availability
29
GROMMET MAY 10835903 Contact Us For Availability
30
DOOR CLOSER, FREEZER MAY 2223751 Contact Us For Availability
30
DEFLECTER, ICE MAY 1119017 Contact Us For Availability
30
BOLT MAY 489340 Contact Us For Availability
31
MAY W10142234 MAY W10142234 Contact Us For Availability
31
WASHER, PLAIN UPPER CAM MAY 489234 Contact Us For Availability
31
AIR BAFFLE MAY W10332806 Contact Us For Availability
32
MAY W10350062 MAY W10350062 Contact Us For Availability
32
MAY W10350063 MAY W10350063 Contact Us For Availability
32
MAY W10350065 MAY W10350065 Contact Us For Availability
32
RING, RETAINER MAY 489236 Contact Us For Availability
32
TIE, WIRE MAY 2263990 Contact Us For Availability
33
COUPLING, ICE CONVEYOR MAY 983668 Contact Us For Availability
33
MAY W10466699 MAY W10466699 Contact Us For Availability
34
MAY 489396 MAY 489396 Contact Us For Availability
35
RAIL, UNIT MOUNTING MAY W10207512 Contact Us For Availability
100
MAY W10558424 MAY W10558424 Contact Us For Availability
100
MAY W10300022 MAY W10300022 Contact Us For Availability
NI
VALVE, ACCESS MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS MAY 978025 Contact Us For Availability
NI
VALVE, ACCESS MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS MAY 978027 Contact Us For Availability
NI
VALVE, ACCESS MAY 978028 Contact Us For Availability
NI
VALVE, ACCESS MAY 978029 Contact Us For Availability
NI
VALVE, ACCESS MAY 978030 Contact Us For Availability
NI
TORX SCREW WRENCH, TORX KEY MAY 1117510 Contact Us For Availability
NI
MISCELLANEOUS, SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. ENAMEL, BLACK MAY 350939 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. WHITE PRIMER) MAY 350942 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
PAINT, BULK (1 QT. BISCUIT/BISQUE) MAY 4392900 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. BISCUIT/BISQU MAY 4392901 Contact Us For Availability
NI
MISCELLANEOUS, TAPE, VINYL (3/4 X 108``) MAY 479502 Contact Us For Availability
NI
MISCELLANEOUS, CORK, SEALER MAY 503695 Contact Us For Availability
NI
MISCELLANEOUS, SEALER, MASTIC (1 QT) MAY 505587 Contact Us For Availability
NI
MISCELLANEOUS, GREASE, SILICONE (1/2 OZ.) MAY 542638 Contact Us For Availability
NI
MISCELLANEOUS, CEMENT, ALUMILASTIC (1 1/4 OZ. MAY 542639 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (White) MAY 799344 Contact Us For Availability
NI
MISCELLANEOUS, KIT, TERMINAL CONNECTOR MAY 833938 Contact Us For Availability
× ![]()
