Model Maytag MSD2578VEM01 REFRIGERATOR – Common Parts & Diagrams

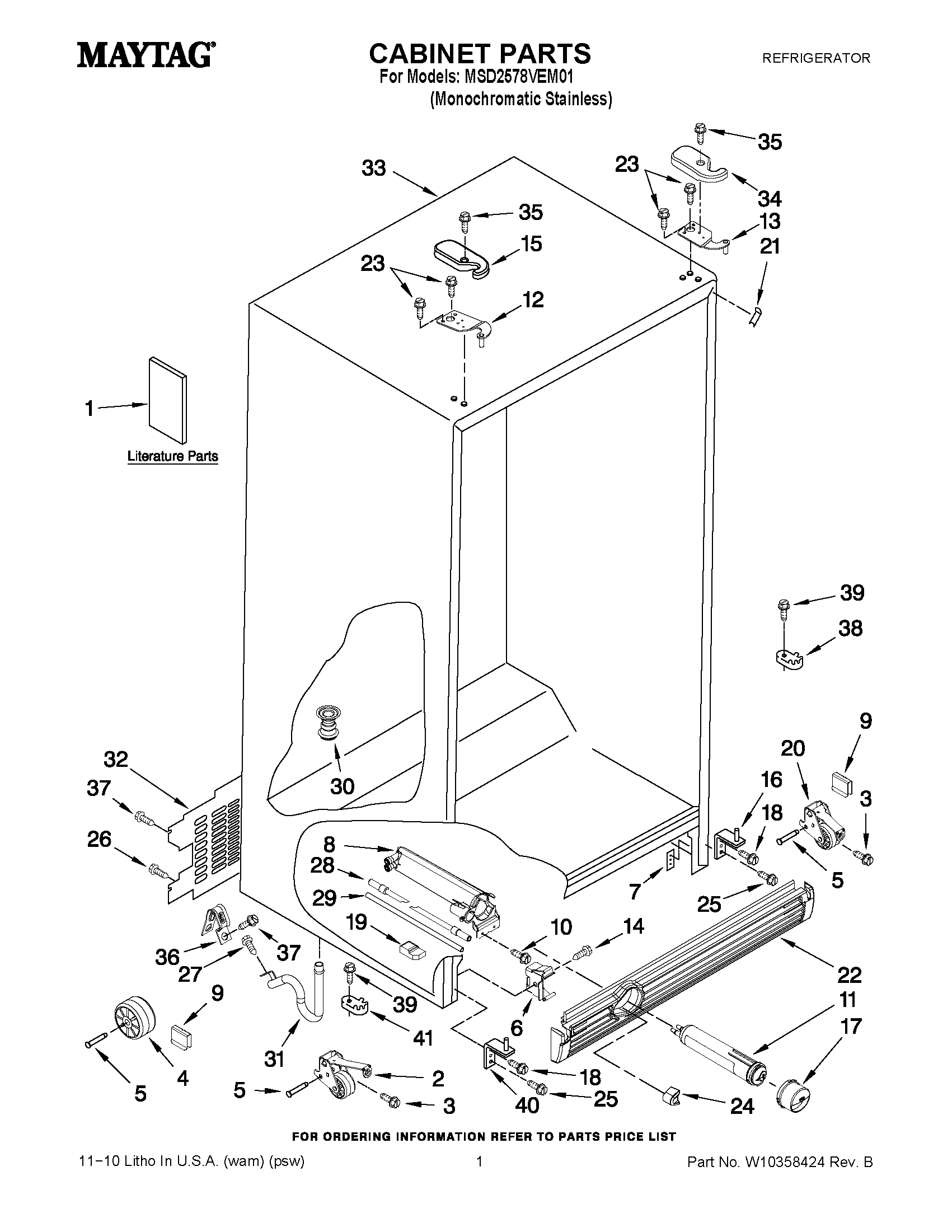

01 - CABINET PARTS

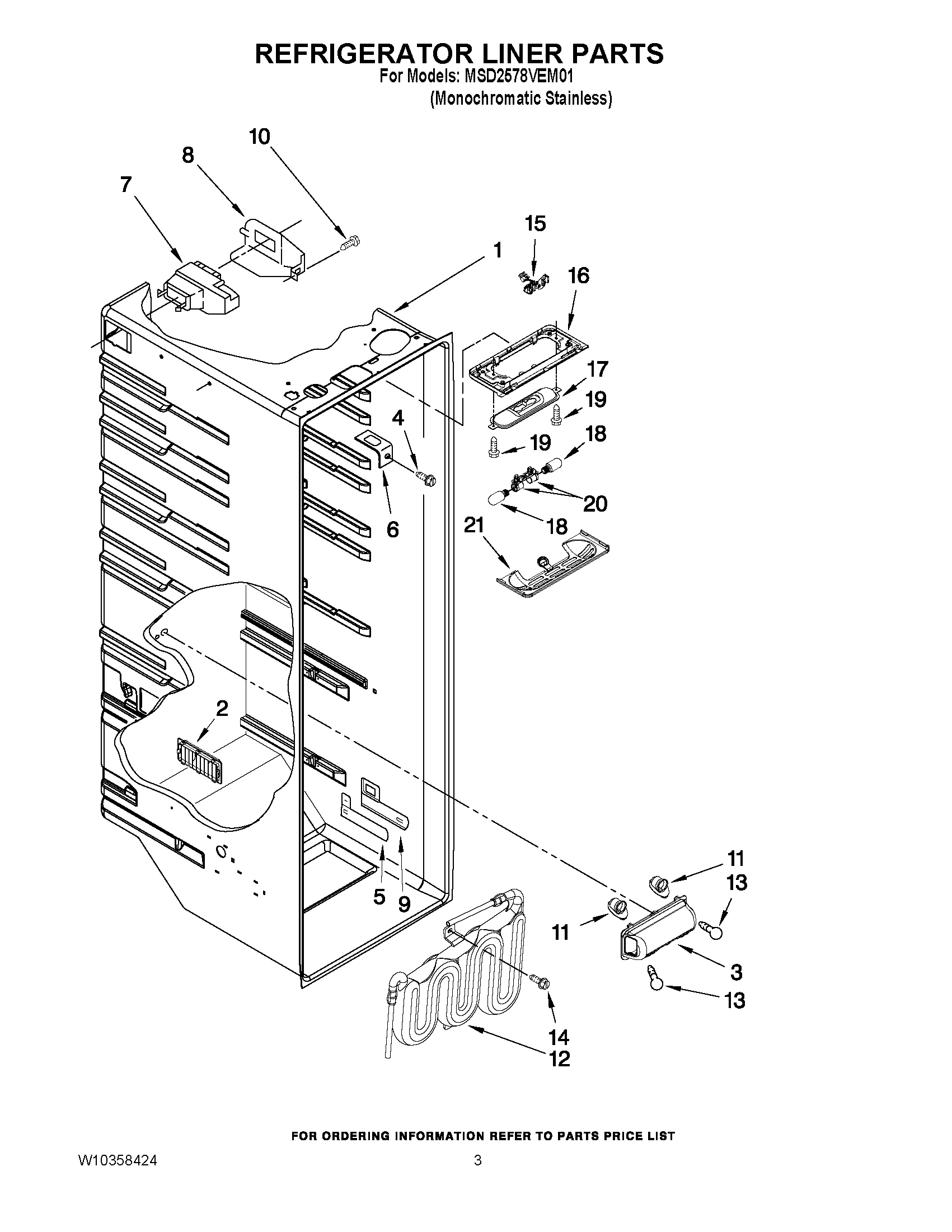

02 - REFRIGERATOR LINER PARTS

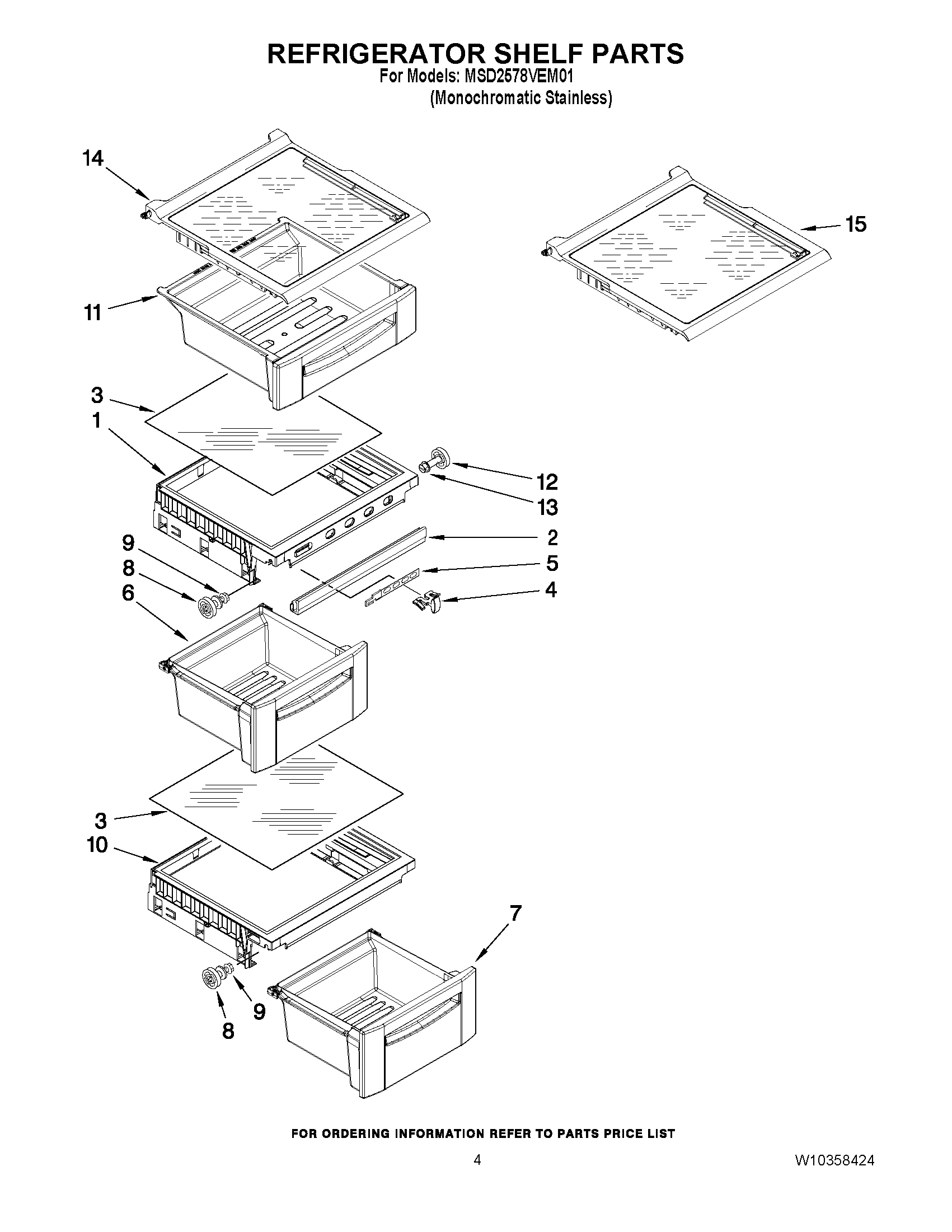

03 - REFRIGERATOR SHELF PARTS

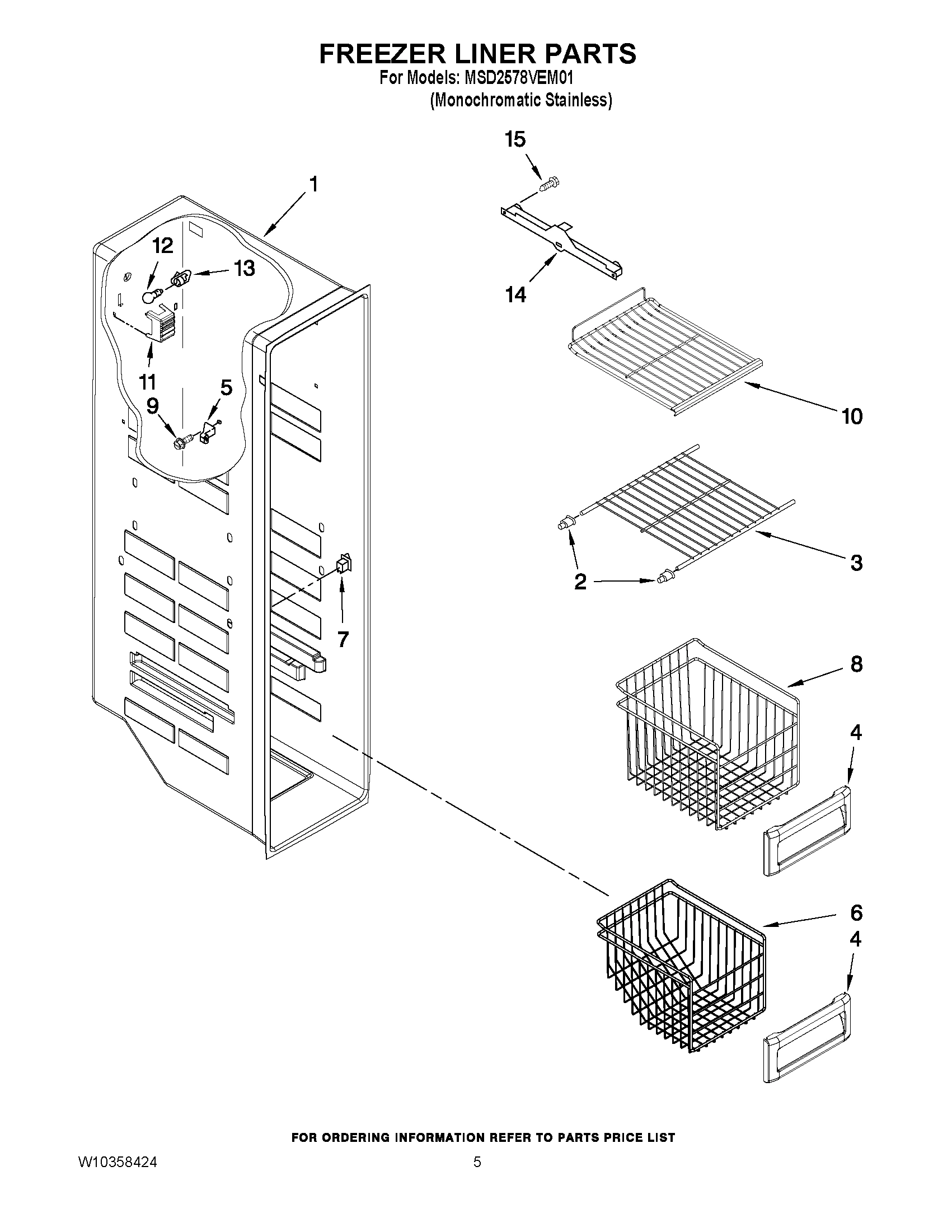

04 - FREEZER LINER PARTS

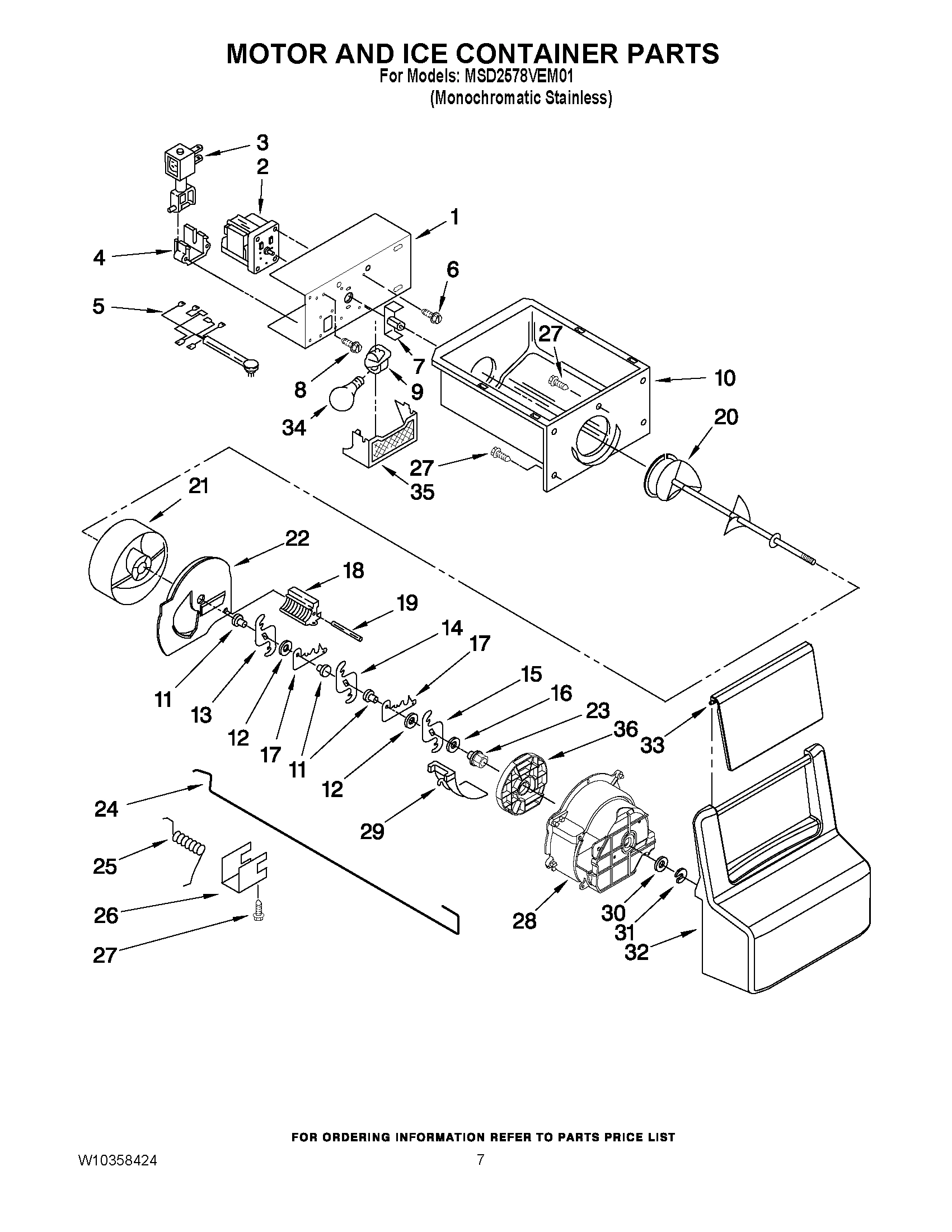

05 - MOTOR AND ICE CONTAINER PARTS

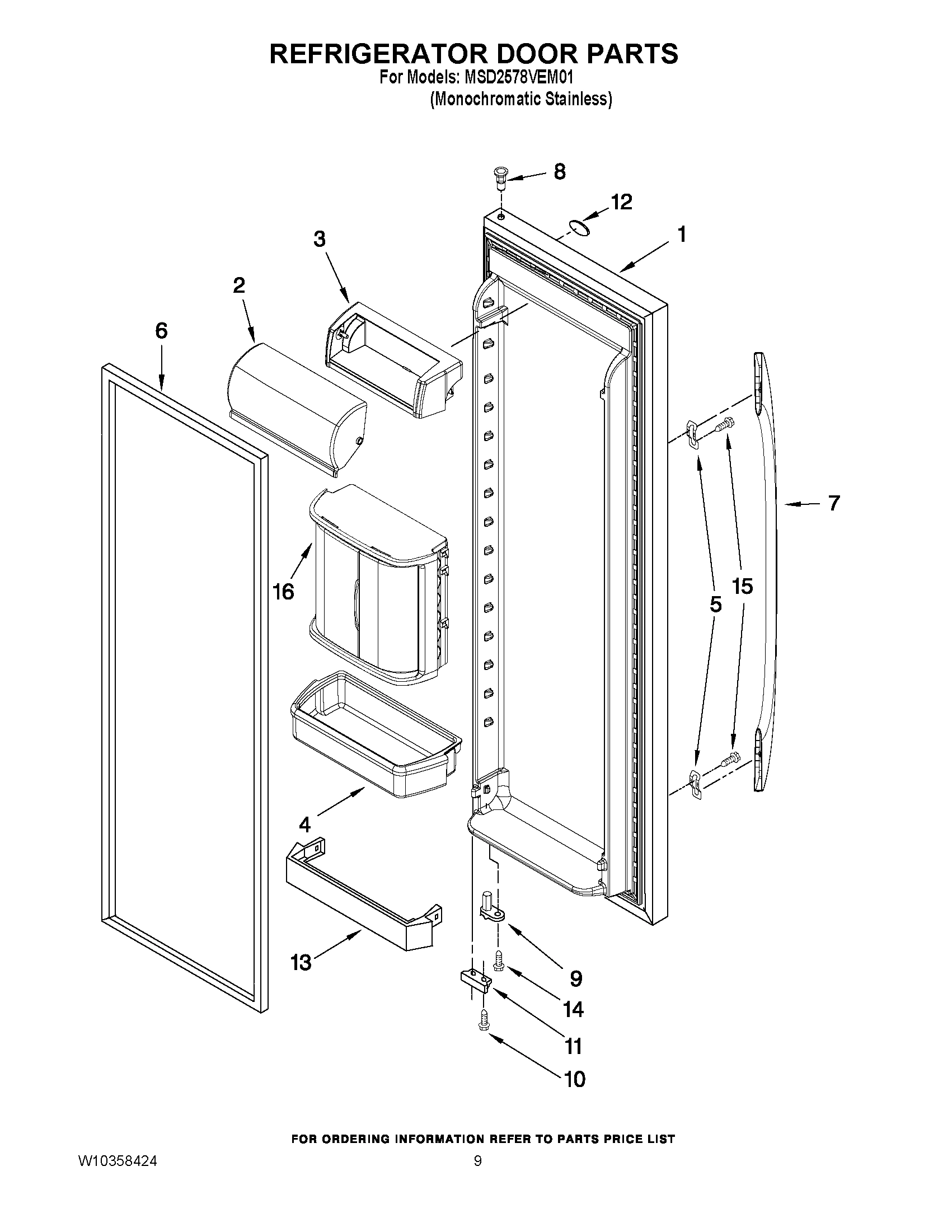

06 - REFRIGERATOR DOOR PARTS

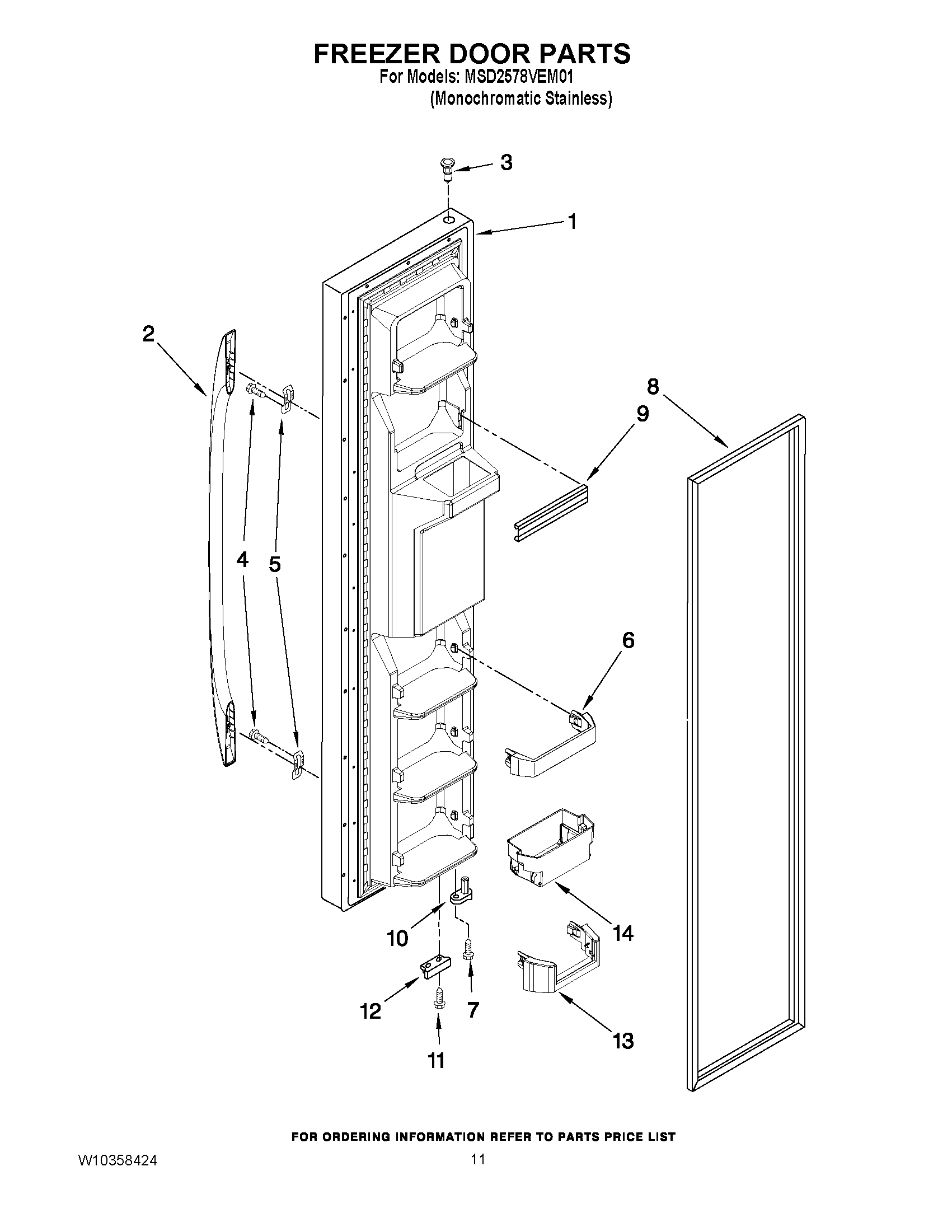

07 - FREEZER DOOR PARTS

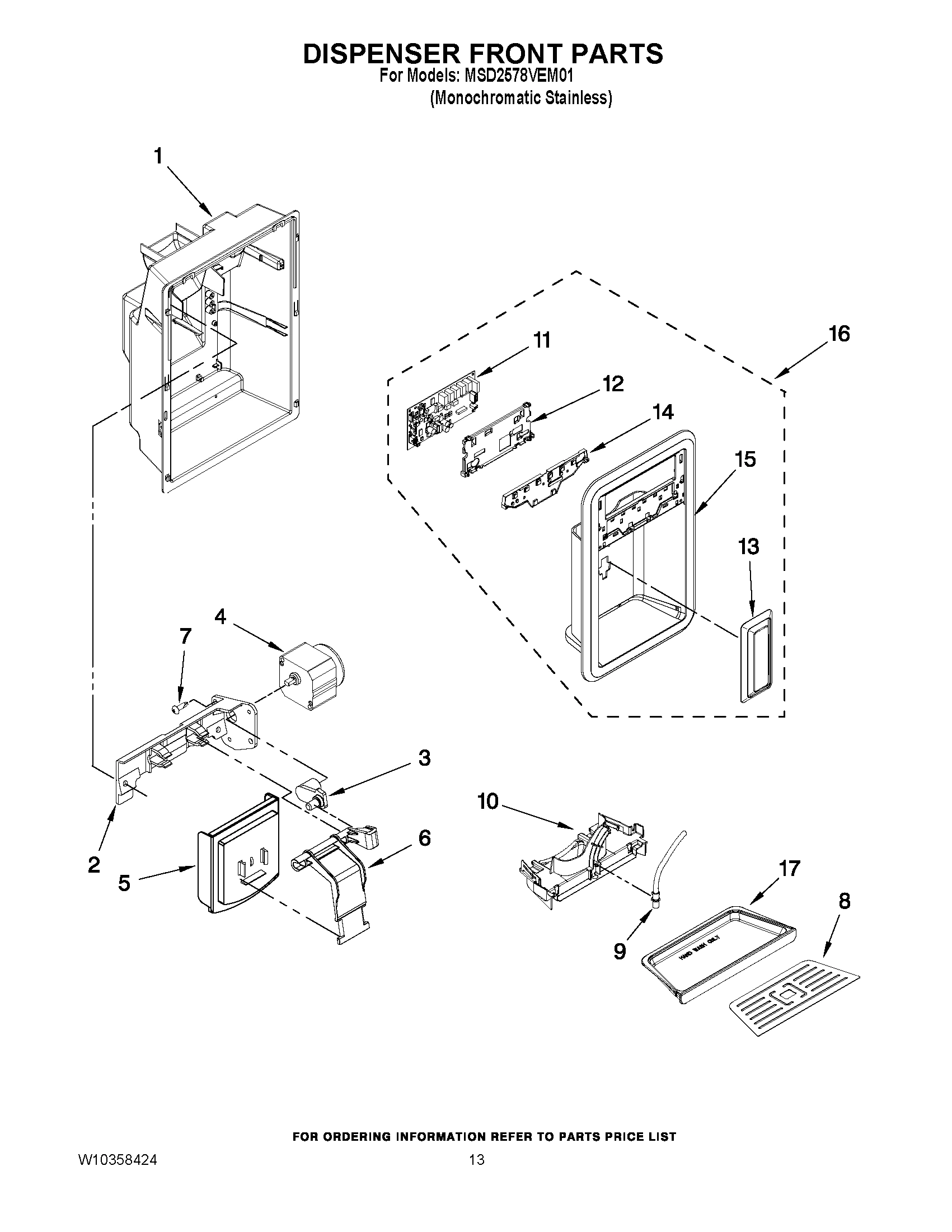

08 - DISPENSER FRONT PARTS

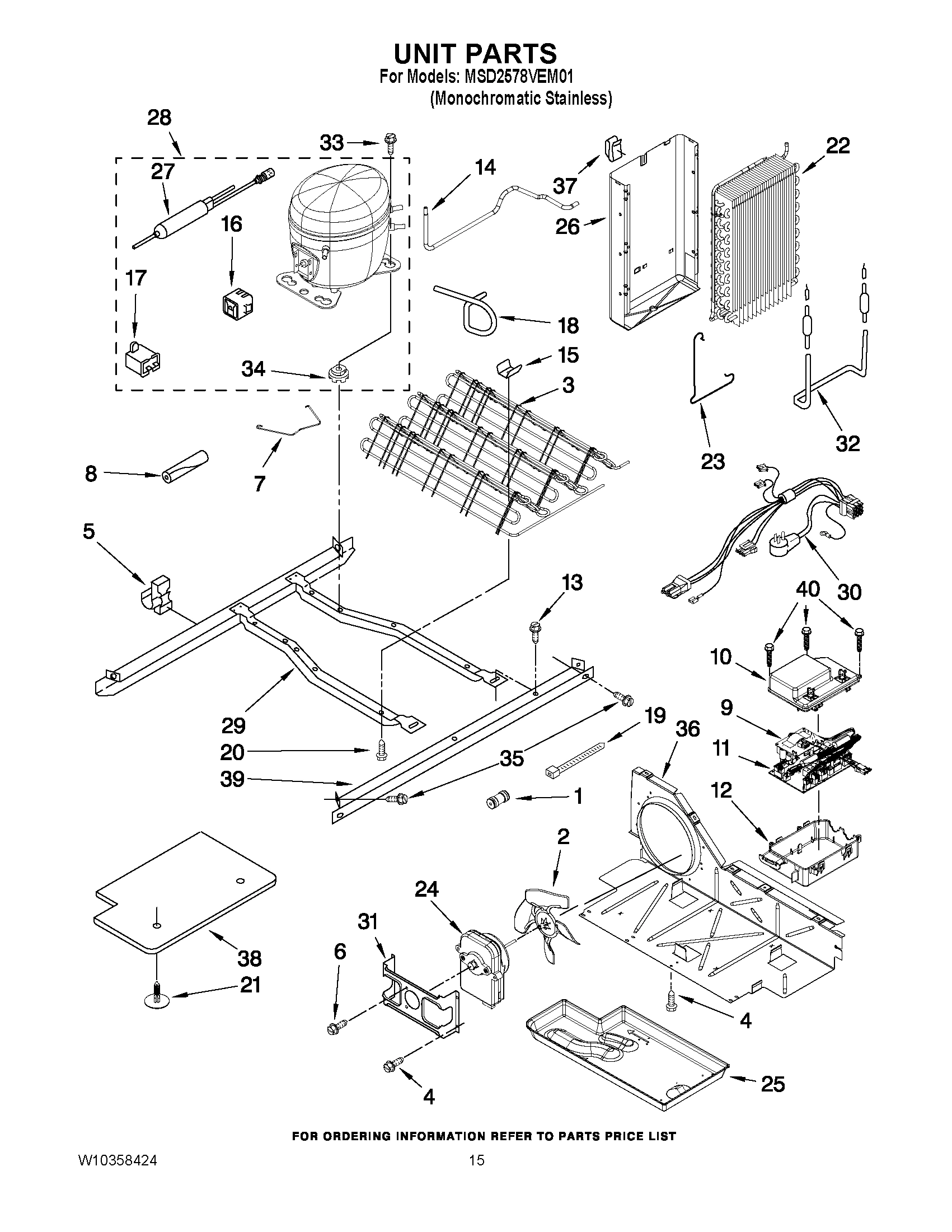

09 - UNIT PARTS

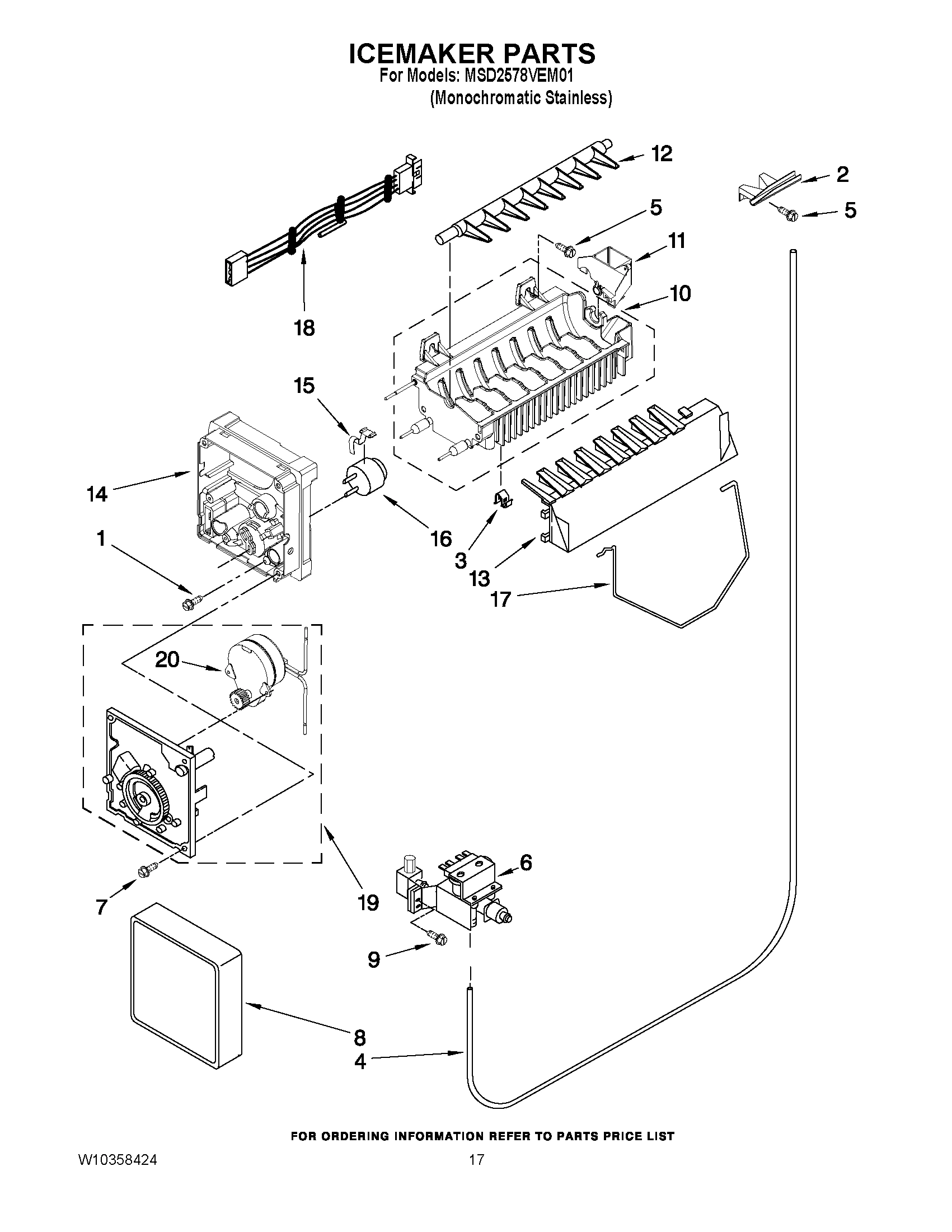

10 - ICEMAKER PARTS

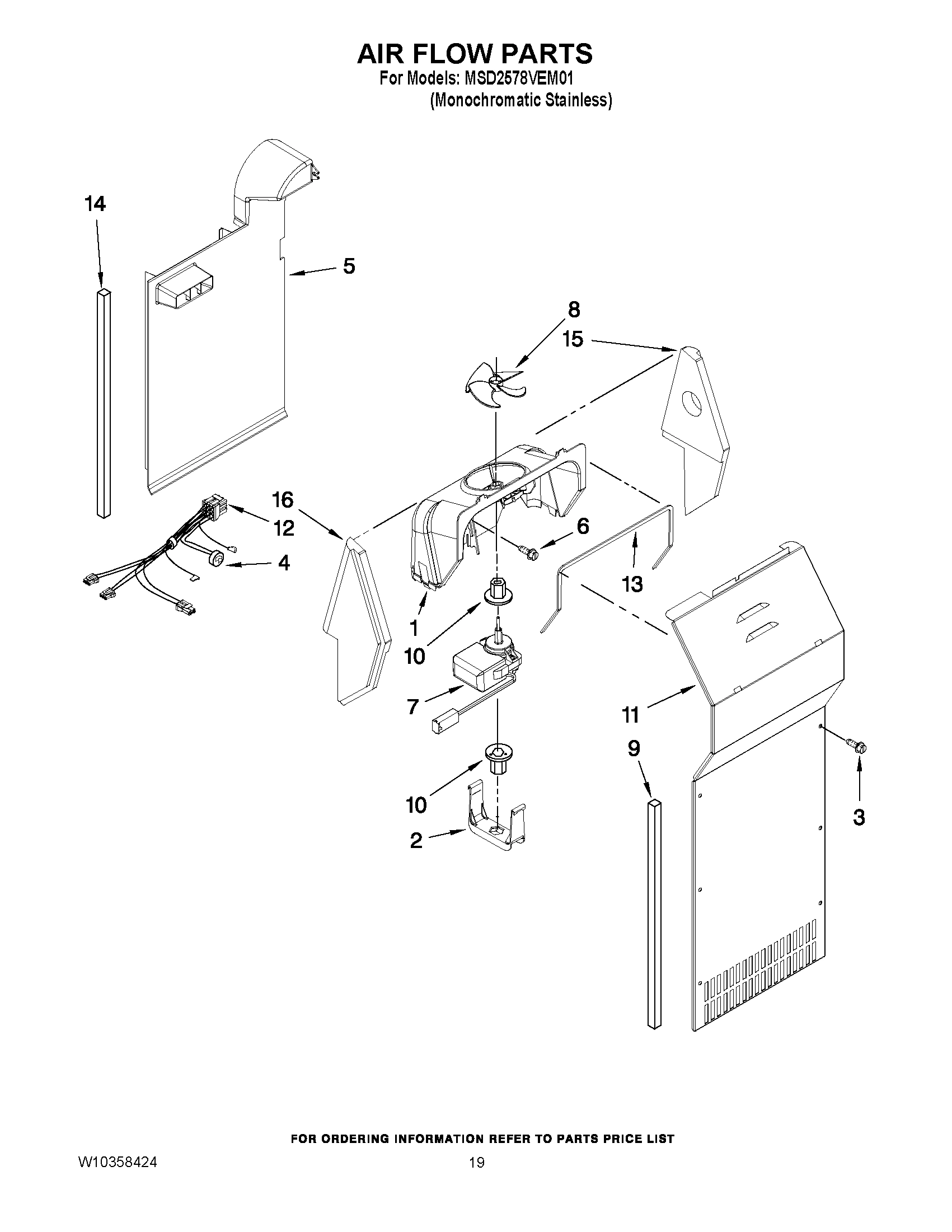

11 - AIR FLOW PARTS
12 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MSD2578VEM01 REFRIGERATOR
1
MAY 628370 MAY 628370 Contact Us For Availability
1
MAY W10158696 MAY W10158696 Contact Us For Availability
1
MAY W10161536 MAY W10161536 Contact Us For Availability
1
MAY W10216897 MAY W10216897 Contact Us For Availability
1
MAY W10207535 MAY W10207535 Contact Us For Availability
1
MAY W10284485 MAY W10284485 Contact Us For Availability
1
REFRIGERATOR DOOR (INCLUDES ITEM 6) (MONO STA MAY W10313190 Contact Us For Availability
1
MAY W10313200 MAY W10313200 Contact Us For Availability
1
Union, Assembly MAY W10155576 Contact Us For Availability
1
MAY 8533917 MAY 8533917 Contact Us For Availability
1
Fan Scroll MAY 2182120 Contact Us For Availability
2
FRONT ROLLER, LEFT MAY W10304660 Contact Us For Availability
2
MAY 2257741 MAY 2257741 Contact Us For Availability
2
Gasket MAY 2301116 Contact Us For Availability
2
Cup, Shelf Mounting (12) MAY W10130299 Contact Us For Availability
2
MAY W10181208 MAY W10181208 Contact Us For Availability
2
MAY W10252009 MAY W10252009 Contact Us For Availability
2
HANDLE MAY W10170739 Contact Us For Availability
2
MAY 2305202 MAY 2305202 Contact Us For Availability
2
Fan, Blade MAY 12825802 Contact Us For Availability
2
MAY 2209774 MAY 2209774 Contact Us For Availability
2
MAY 2155590 MAY 2155590 Contact Us For Availability
3
Glass, Cover MAY 2301028 Contact Us For Availability
3
MAY W10318946 MAY W10318946 Contact Us For Availability
3
Soleniod Assembly MAY 2152713 Contact Us For Availability
3
MAY W10128148 MAY W10128148 Contact Us For Availability
3
MAY 2200087 MAY 2200087 Contact Us For Availability
3
MAY 2305242 MAY 2305242 Contact Us For Availability
3
MAY W10196260 MAY W10196260 Contact Us For Availability
3
CLIP,FUSE MAY 628379 Contact Us For Availability
3
MAY 8281159 MAY 8281159 Contact Us For Availability
4
ROLLER, REAR MAY 2150304 Contact Us For Availability
4
MAY 489464 MAY 489464 Contact Us For Availability
4
MAY 489084 MAY 489084 Contact Us For Availability
4
Button Hunidity Control MAY 2301025 Contact Us For Availability
4
MAY W10153254 MAY W10153254 Contact Us For Availability
4
MAY 2149100 MAY 2149100 Contact Us For Availability
4
MAY W10252006 MAY W10252006 Contact Us For Availability
4
Screw MAY W10129563 Contact Us For Availability
4
MAY W10174787 MAY W10174787 Contact Us For Availability
4
Tube, Water MAY W10175644 Contact Us For Availability
4
MAY 2321799 MAY 2321799 Contact Us For Availability
5
AXLE, ROLLER MAY 2262072 Contact Us For Availability
5
MAY 2182757 MAY 2182757 Contact Us For Availability
5
MAY 2301026 MAY 2301026 Contact Us For Availability
5
Support, Stud (4) MAY 2196206 Contact Us For Availability
5
MAY W10281336 MAY W10281336 Contact Us For Availability
5
MAY 2255411 MAY 2255411 Contact Us For Availability
5
MAY 2328019 MAY 2328019 Contact Us For Availability
5
Clip, Wire MAY 2208280 Contact Us For Availability
5
Screw MAY 488208 Contact Us For Availability
5
AIR DUCT FREEZER MAY W10177781 Contact Us For Availability
6
MAY 2155013 MAY 2155013 Contact Us For Availability
6
Clip, Control Box (2) MAY 2256085 Contact Us For Availability
6
MAY 489478 MAY 489478 Contact Us For Availability
6
MAY W10128132 MAY W10128132 Contact Us For Availability
6
BASKET, WIRE LOWER MAY W10153523 Contact Us For Availability
6
Screw (6) MAY 489399 Contact Us For Availability
6
DOOR GASKET, MAGNETIC MAY 2327163 Contact Us For Availability
6
Trivet MAY 2171157 Contact Us For Availability
6
MAY 2328018 MAY 2328018 Contact Us For Availability
6
MAY 8533993 MAY 8533993 Contact Us For Availability
6
Filter Valve Asm MAY 2321753 Contact Us For Availability
7
Screw Plate (2) MAY 2304249 Contact Us For Availability
7
Air Diffuser Assembly (Includes RC & FC Therm MAY W10128734 Contact Us For Availability
7
MAY W10128133 MAY W10128133 Contact Us For Availability
7
Switch, Rocker Arm MAY 1115373 Contact Us For Availability
7
MAY W10169511 MAY W10169511 Contact Us For Availability
7
MAY 3400012 MAY 3400012 Contact Us For Availability
7
MAY 4449745 MAY 4449745 Contact Us For Availability
7
Clip, Retaining MAY W10174384 Contact Us For Availability
7
MAY W10131845 MAY W10131845 Contact Us For Availability
8
Housing, Water Filter MAY W10121138 Contact Us For Availability
8
Air Diffuser Cover MAY W10128735 Contact Us For Availability
8
MAY W10173126 MAY W10173126 Contact Us For Availability
8
MAY W10153519 MAY W10153519 Contact Us For Availability
8
DOOR GASKET, MAGNETIC MAY 2327164 Contact Us For Availability
8
GRILLE MAY W10144018 Contact Us For Availability
8
MAY 2161302 MAY 2161302 Contact Us For Availability
8
COVER MAY W10289690 Contact Us For Availability
8
Fan Blade MAY 2169142 Contact Us For Availability
9
CLIP, AXLE MAY 2174706 Contact Us For Availability
9
MAY W10175967 MAY W10175967 Contact Us For Availability
9
Socket, Light MAY 2162085 Contact Us For Availability
9
MAY W10191954 MAY W10191954 Contact Us For Availability
9
MAY 3400893 MAY 3400893 Contact Us For Availability
9
DOOR CLOSER UPPER CAM MAY 2182178 Contact Us For Availability
9
MAY W10307490 MAY W10307490 Contact Us For Availability
9
MAY W10176589 MAY W10176589 Contact Us For Availability
9
CONTROL ELEK I/O MAY W10143221 Contact Us For Availability
9
MAY 488649 MAY 488649 Contact Us For Availability
9
MAY 2304241 MAY 2304241 Contact Us For Availability
10
Screw (2) MAY 489500 Contact Us For Availability
10
MAY 486298 MAY 486298 Contact Us For Availability
10
Cover, Meat Pan MAY 2301033 Contact Us For Availability
10
Shelf, Wire Slide-Out MAY 2211746K Contact Us For Availability
10
MAY 2196091 MAY 2196091 Contact Us For Availability
10
MAY 2323535 MAY 2323535 Contact Us For Availability
10
MAY 2328015 MAY 2328015 Contact Us For Availability
10
Box Cover MAY 2323188 Contact Us For Availability
10
MOLD & HEATER ASSEMBLY (ALSO ORDER 542638) MAY W10300025 Contact Us For Availability
10
Fan Grommet (2) MAY 2176759 Contact Us For Availability
11
MAY 4396841 MAY 4396841 Contact Us For Availability
11
MAY W10170856 MAY W10170856 Contact Us For Availability
11
MAY 2212340 MAY 2212340 Contact Us For Availability
11
Spacer, Step (3) MAY W10189661 Contact Us For Availability
11
MAY 489420 MAY 489420 Contact Us For Availability
11
BRACKET, DOOR STOP MAY 2206629B Contact Us For Availability
11
MAY W10144587 MAY W10144587 Contact Us For Availability
11
ELEC. CONTROL P/S MAY W10120824 Contact Us For Availability
11
MAY W10122561 MAY W10122561 Contact Us For Availability
11
MAY W10194476 MAY W10194476 Contact Us For Availability
12
HINGE TOP FC MAY W10287685 Contact Us For Availability
12
MAY W10204356 MAY W10204356 Contact Us For Availability
12
MAY W10173127 MAY W10173127 Contact Us For Availability
12
Spacer, Flat (2) MAY W10189658 Contact Us For Availability
12
Nameplate MAY W10170766 Contact Us For Availability
12
MAY 2323534B MAY 2323534B Contact Us For Availability
12
MAY W10144040 MAY W10144040 Contact Us For Availability
12
CONTROL, BOX MAY 2323186 Contact Us For Availability
12
MAY 2323524 MAY 2323524 Contact Us For Availability
12
MAY W10281330 MAY W10281330 Contact Us For Availability
13
MAY 489427 MAY 489427 Contact Us For Availability
13
HINGE, TOP RC MAY W10287684 Contact Us For Availability
13
MAY W10191952 MAY W10191952 Contact Us For Availability
13
MAY W10278731 MAY W10278731 Contact Us For Availability
13
MAY 2309941 MAY 2309941 Contact Us For Availability
13
TRIVET, TILT-OUT MAY 2223334 Contact Us For Availability
13
PAD MAY W10144511 Contact Us For Availability
13
MAY W10122563 MAY W10122563 Contact Us For Availability
13
Gasket, Fan Scroll MAY 2155789 Contact Us For Availability
14
MAY 488500 MAY 488500 Contact Us For Availability
14
MAY 488280 MAY 488280 Contact Us For Availability
14
MAY W10276346 MAY W10276346 Contact Us For Availability
14
Slide, Container (Left Side) MAY 1119237 Contact Us For Availability
14
Slide, Container (Right Side) MAY 1119293 Contact Us For Availability
14
MAY W10278732 MAY W10278732 Contact Us For Availability
14
BIN, TILT-OUT MAY W10142356 Contact Us For Availability
14
MAY W10182888 MAY W10182888 Contact Us For Availability
14
MAY W10210786 MAY W10210786 Contact Us For Availability
14
MAY 2195914 MAY 2195914 Contact Us For Availability
14
GASKET MAY W10252477 Contact Us For Availability
15
HINGE COVER MAY W10138584 Contact Us For Availability
15
Wire Assembly Top Light MAY 2310527 Contact Us For Availability
15
MAY W10276357 MAY W10276357 Contact Us For Availability
15
Screw (4) MAY 489100 Contact Us For Availability
15
MAY W10278733 MAY W10278733 Contact Us For Availability
15
Clip, Condenser(2) MAY 2311725 Contact Us For Availability
15
MAY 2315522 MAY 2315522 Contact Us For Availability
15
MAY 2203595 MAY 2203595 Contact Us For Availability
16
HINGE BOTTOM FC MAY W10289528 Contact Us For Availability
16
Trim, Light MAY W10221664 Contact Us For Availability
16
MAY W10189660 MAY W10189660 Contact Us For Availability
16
MAY W10252010 MAY W10252010 Contact Us For Availability
16
FRONT COVER ASSEMBLY (INCLUDES ITEMS 11, 12, MAY W10179039 Contact Us For Availability
16
Start-Device, Combination (Start Relay and Ov MAY W10189190 Contact Us For Availability
16
Start-Device, Combination (Start Relay and Ov MAY W10197427 Contact Us For Availability
16
MAY 628532 MAY 628532 Contact Us For Availability
16
MAY 2203596 MAY 2203596 Contact Us For Availability
17
CAP, WATER FILTER MAY 2260502MG Contact Us For Availability
17
MAY 2223680 MAY 2223680 Contact Us For Availability
17
Blade, Fixed (2) MAY W10181990 Contact Us For Availability
17
Drip Tray, Stainless MAY W10177382 Contact Us For Availability
17
Capacitor (Production) MAY 2264017 Contact Us For Availability
17
MAY 2304354 MAY 2304354 Contact Us For Availability
18
Screw (4) MAY 3400113 Contact Us For Availability
18
Bulb, Light MAY 2326255 Contact Us For Availability
18
MAY W10189708 MAY W10189708 Contact Us For Availability
18
Process Tube MAY W10171238 Contact Us For Availability
18
HARNESS, WIRE MAY 2187467 Contact Us For Availability
19
Block, Housing Support MAY 2260519 Contact Us For Availability
19
MAY 489229 MAY 489229 Contact Us For Availability
19
MAY 2263990 MAY 2263990 Contact Us For Availability
19
MODULE ASSEMBLY (INCLUDES No.20) MAY 626691 Contact Us For Availability
20
FRONT ROLLER, RIGHT MAY W10304659 Contact Us For Availability
20
MOTOR (NOT SERVICED, ORDER No.19) MAY N/P Contact Us For Availability
20
MAY 2223857 MAY 2223857 Contact Us For Availability
20
MAY 2196295 MAY 2196295 Contact Us For Availability
20
MAY 8281232 MAY 8281232 Contact Us For Availability
21
FILLER, WRAPPER MAY W10283961 Contact Us For Availability
21
Lens, Top Light MAY 2223506 Contact Us For Availability
21
MAY 2305377 MAY 2305377 Contact Us For Availability
21
MAY 489396 MAY 489396 Contact Us For Availability
22
GRILLE MAY W10201138 Contact Us For Availability
22
MAY 2171682 MAY 2171682 Contact Us For Availability
22
Evaporator MAY 2188823 Contact Us For Availability
23
MAY 489497 MAY 489497 Contact Us For Availability
23
MAY 1119018 MAY 1119018 Contact Us For Availability
23
Clamp MAY 2161324 Contact Us For Availability
24
BUTTON, WATER FILTER MAY 2260503MG Contact Us For Availability
24
MAY 2155231 MAY 2155231 Contact Us For Availability
24
Fan, Motor MAY 2188874 Contact Us For Availability
25
Screw (2) MAY 3400103 Contact Us For Availability
25
MAY 1119020 MAY 1119020 Contact Us For Availability
25
MAY 1105523 MAY 1105523 Contact Us For Availability
26
Screw MAY 489290 Contact Us For Availability
26
MAY 1119021 MAY 1119021 Contact Us For Availability
26
Heat Shield MAY W10194475 Contact Us For Availability
27
SCREW MAY 488886 Contact Us For Availability
27
MAY W10143759 MAY W10143759 Contact Us For Availability
27
MAY W10177049 MAY W10177049 Contact Us For Availability
28
MAY W10281289 MAY W10281289 Contact Us For Availability
28
MAY W10185018 MAY W10185018 Contact Us For Availability
28
Compressor (Includes Items 16, 17, 27, & 34) MAY W10183575 Contact Us For Availability
29
Tube, Filter Outlet MAY 2255012 Contact Us For Availability
29
MAY 1119017 MAY 1119017 Contact Us For Availability
29
Unit Mounting Frame MAY W10196321 Contact Us For Availability
30
MAY 2304888 MAY 2304888 Contact Us For Availability
30
MAY 489234 MAY 489234 Contact Us For Availability
30
UNIT, HARNESS (INCLUDES POWER CORD) MAY W10139181 Contact Us For Availability
31
MAY W10153550 MAY W10153550 Contact Us For Availability
31
MAY 489236 MAY 489236 Contact Us For Availability
31
MAY 2181929 MAY 2181929 Contact Us For Availability
32
MAY 2188735 MAY 2188735 Contact Us For Availability
32
Front Cover, Ice Container MAY W10189191 Contact Us For Availability
32
MAY 2188175 MAY 2188175 Contact Us For Availability
33
MAY W10189202 MAY W10189202 Contact Us For Availability
33
MAY 489473 MAY 489473 Contact Us For Availability
34
HINGE COVER MAY W10138579 Contact Us For Availability
34
MAY W10311505 MAY W10311505 Contact Us For Availability
34
GROMMET (SERVICE) MAY 1100826 Contact Us For Availability
34
GROMMET (PRODUCTION) MAY 2183042 Contact Us For Availability
35
MAY 8281227 MAY 8281227 Contact Us For Availability
35
MAY 2171706 MAY 2171706 Contact Us For Availability
35
MAY 489340 MAY 489340 Contact Us For Availability
36
CLAMP, SERVICE CORD MAY 549193 Contact Us For Availability
36
MAY W10138206 MAY W10138206 Contact Us For Availability
36
AIR BAFFLE MAY W10332806 Contact Us For Availability
37
MAY 2155547 MAY 2155547 Contact Us For Availability
38
MAY 2155311 MAY 2155311 Contact Us For Availability
38
Unit Cover, Bottom MAY 2304899 Contact Us For Availability
39
MAY W10029680 MAY W10029680 Contact Us For Availability
39
Unit Mounting Rail MAY W10196313 Contact Us For Availability
40
MAY W10289530 MAY W10289530 Contact Us For Availability
40
MAY 8533859 MAY 8533859 Contact Us For Availability
41
SCREW (2) HINGE BOTTOM FC MAY 2223751 Contact Us For Availability
100
MAY W10138192 MAY W10138192 Contact Us For Availability
100
MAY W10300022 MAY W10300022 Contact Us For Availability
NI
MAY 876764 MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS (1/4``) MAY 978025 Contact Us For Availability
NI
Valve, Access (5/16``) MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS (3/8``) MAY 978027 Contact Us For Availability
NI
Valve, Access (1/2``) MAY 978028 Contact Us For Availability
NI
Valve, Access (5/8``) MAY 978029 Contact Us For Availability
NI
Valve, Access (3/4``) MAY 978030 Contact Us For Availability
NI
MAY 1117510 MAY 1117510 Contact Us For Availability
NI
SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (BLACK) MAY 350939 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, WH MAY 350942 Contact Us For Availability
NI
MAY 479502 MAY 479502 Contact Us For Availability
NI
MAY 503695 MAY 503695 Contact Us For Availability
NI
MAY 505587 MAY 505587 Contact Us For Availability
NI
MAY 542638 MAY 542638 Contact Us For Availability
NI
MAY 542639 MAY 542639 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (Black) MAY 799340 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (White) MAY 799344 Contact Us For Availability
NI
MAY 80051 MAY 80051 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. GRAPHITE) MAY 8171357 Contact Us For Availability
NI
PAINT, BULK (1 QT. GRAPHITE) MAY 8171358 Contact Us For Availability
NI
MAY 833938 MAY 833938 Contact Us For Availability
× ![]()
