Model Maytag MSD2559XEM00 REFRIGERATOR – Common Parts & Diagrams
01 - CABINET PARTS
02 - REFRIGERATOR LINER PARTS

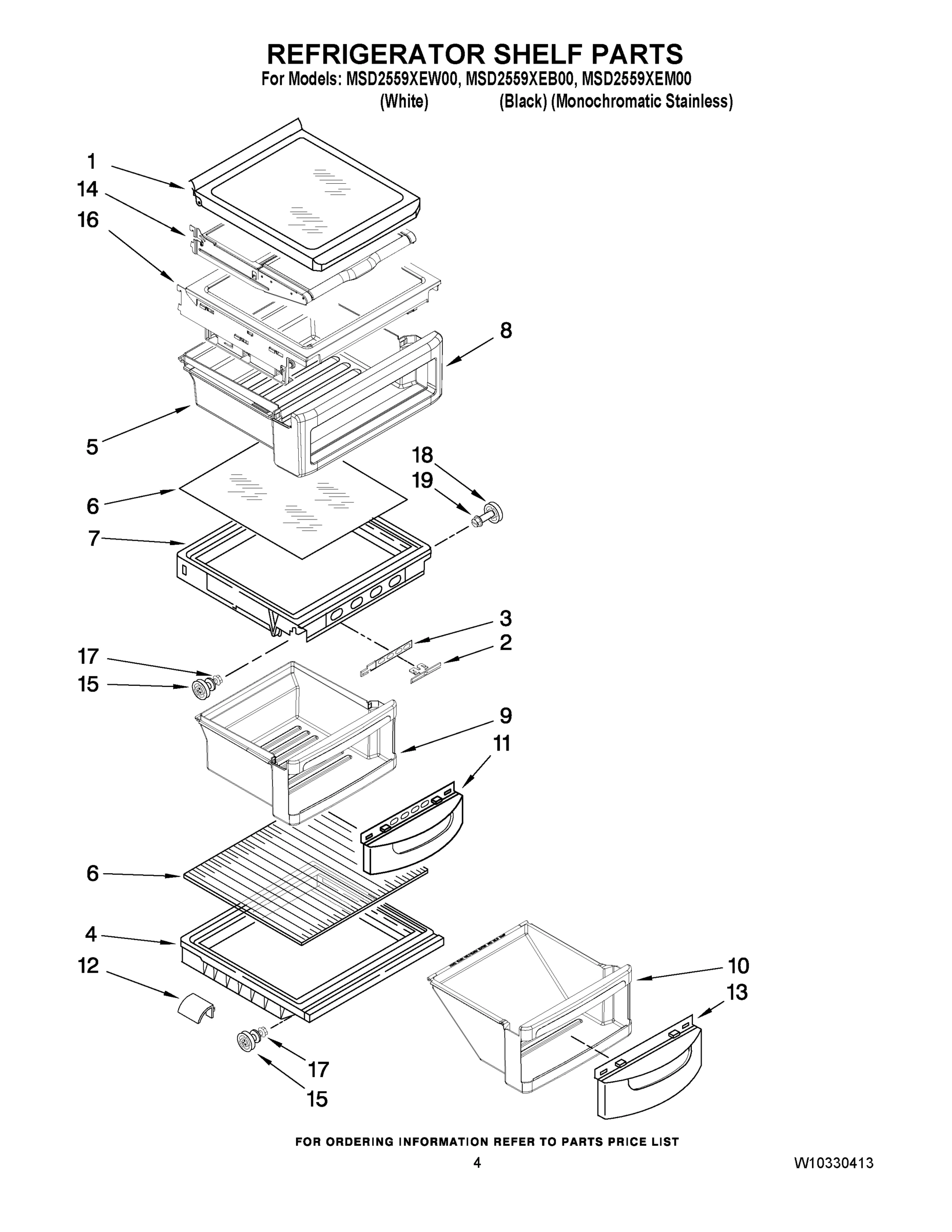

03 - REFRIGERATOR SHELF PARTS

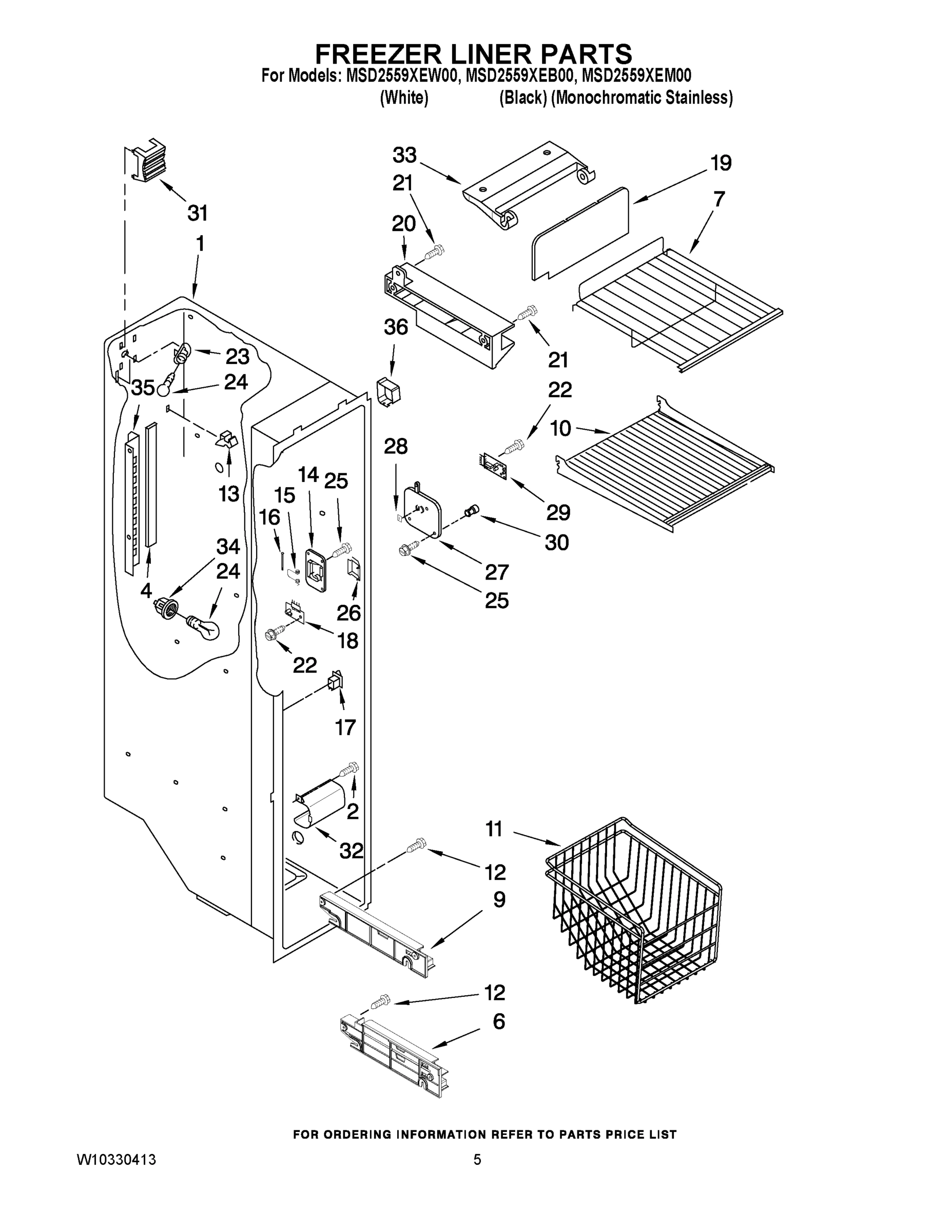

04 - FREEZER LINER PARTS

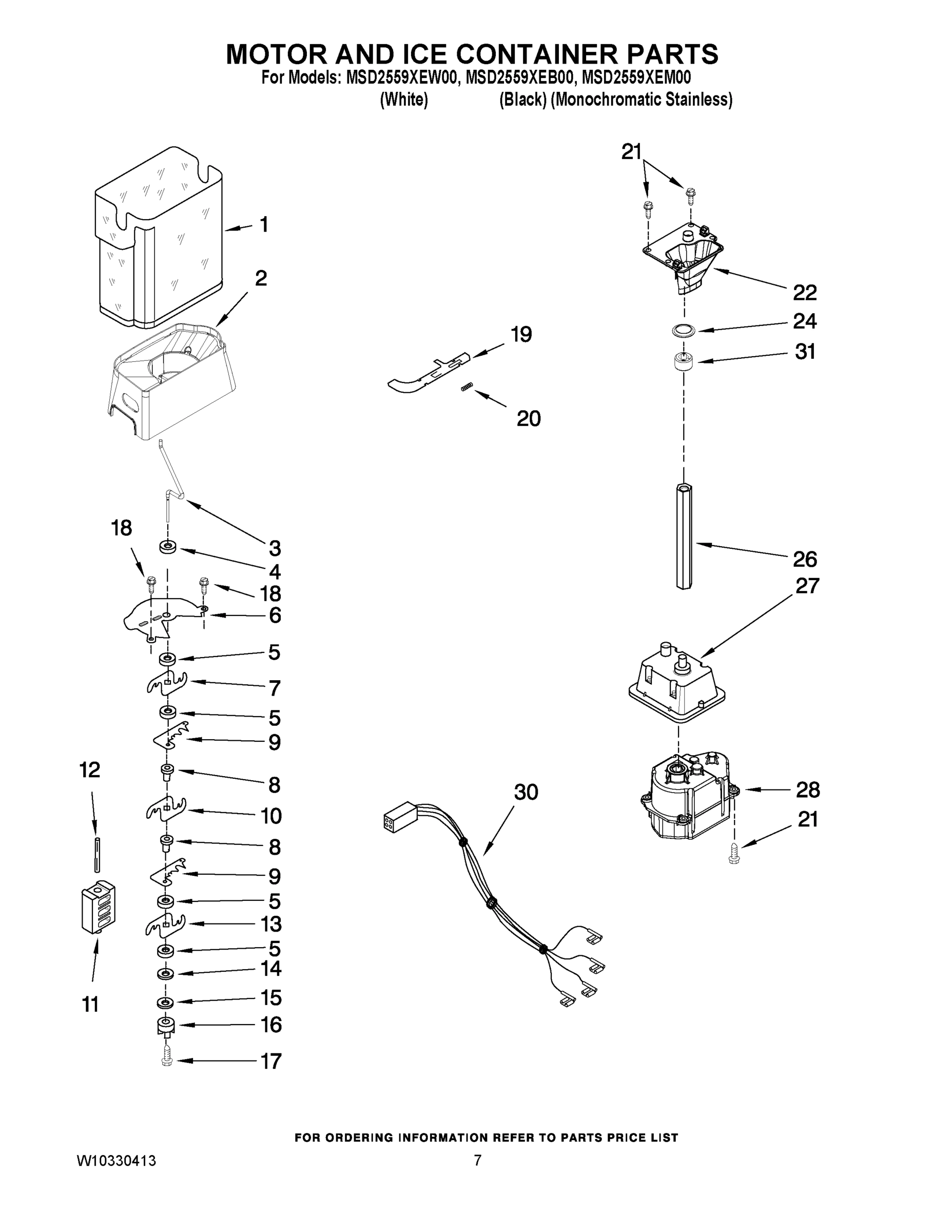

05 - MOTOR AND ICE CONTAINER PARTS

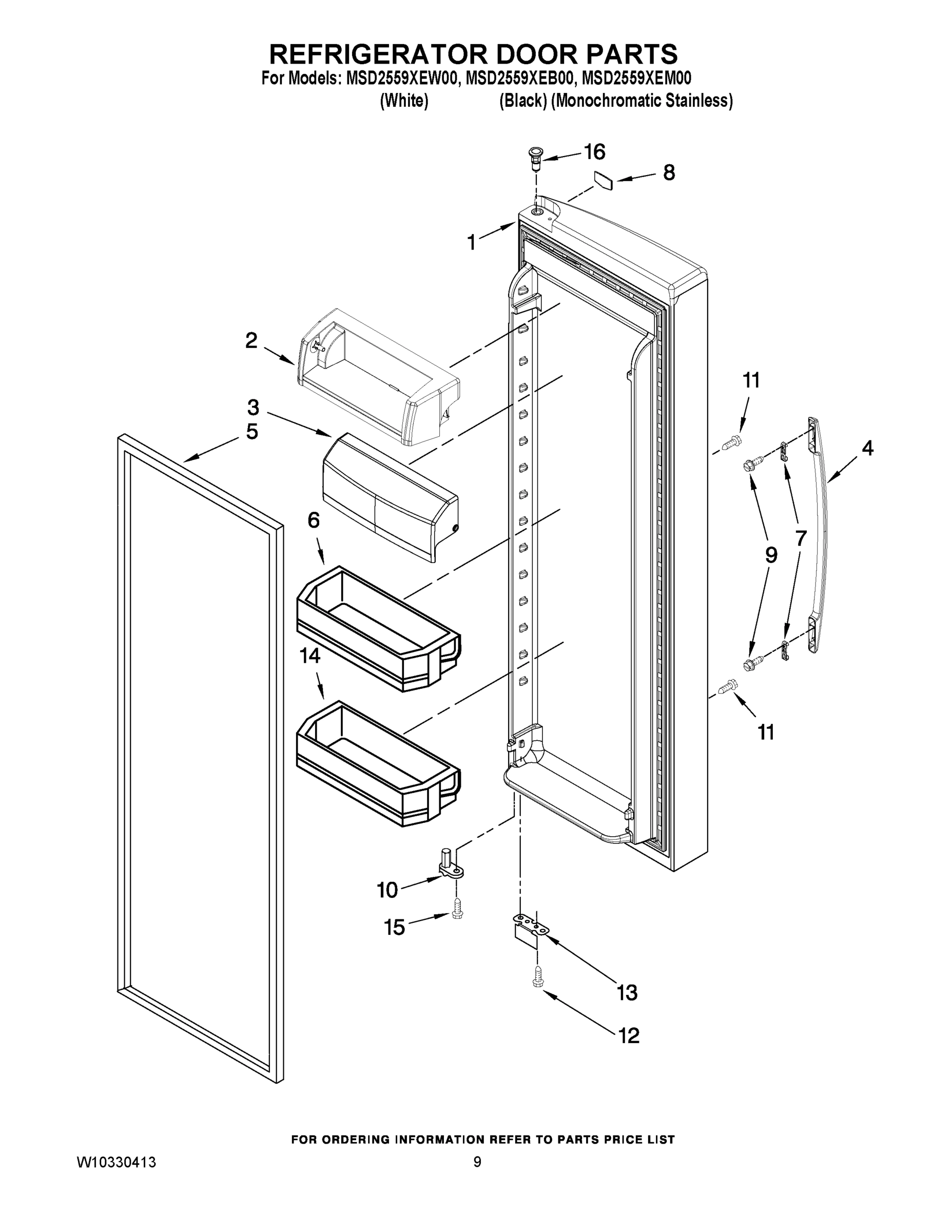

06 - REFRIGERATOR DOOR PARTS

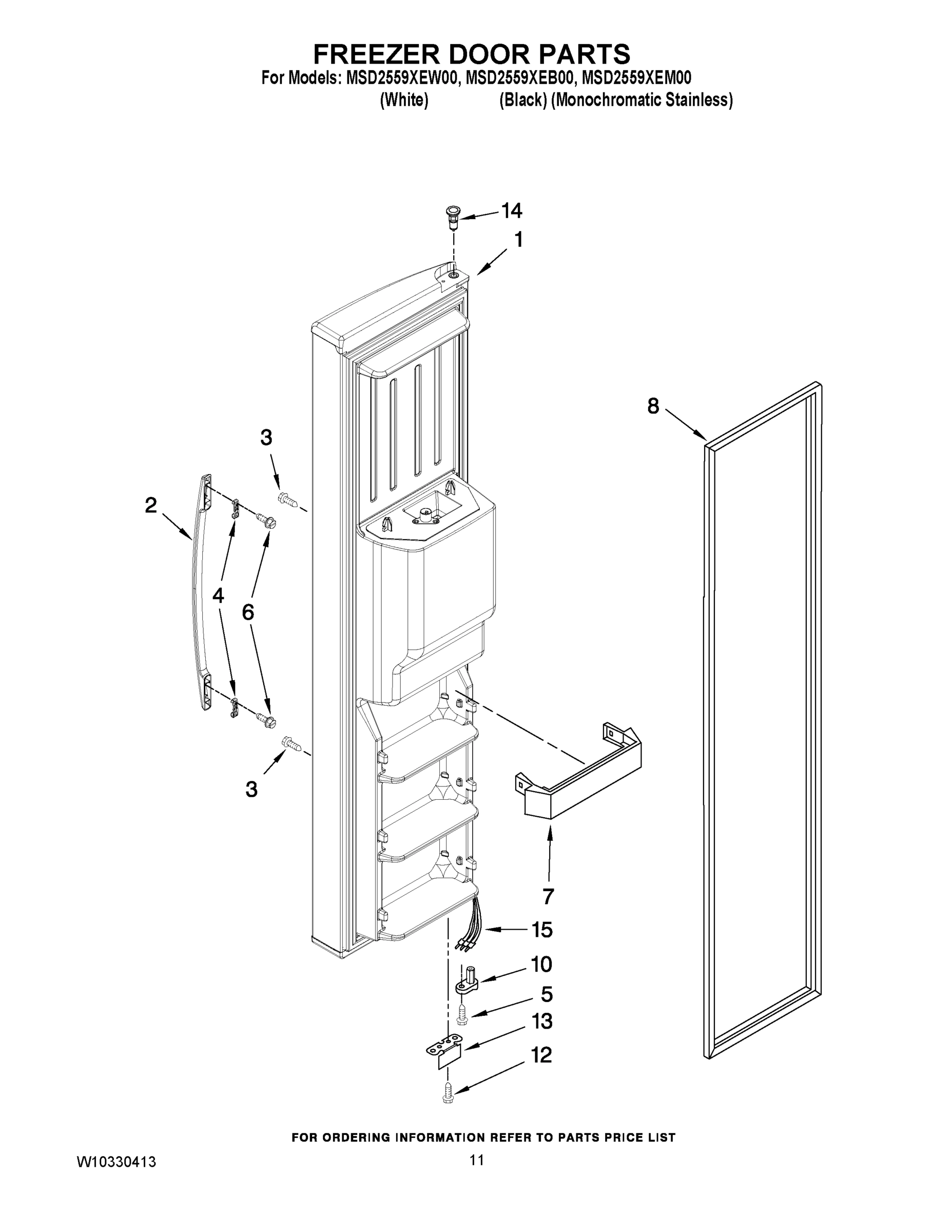

07 - FREEZER DOOR PARTS

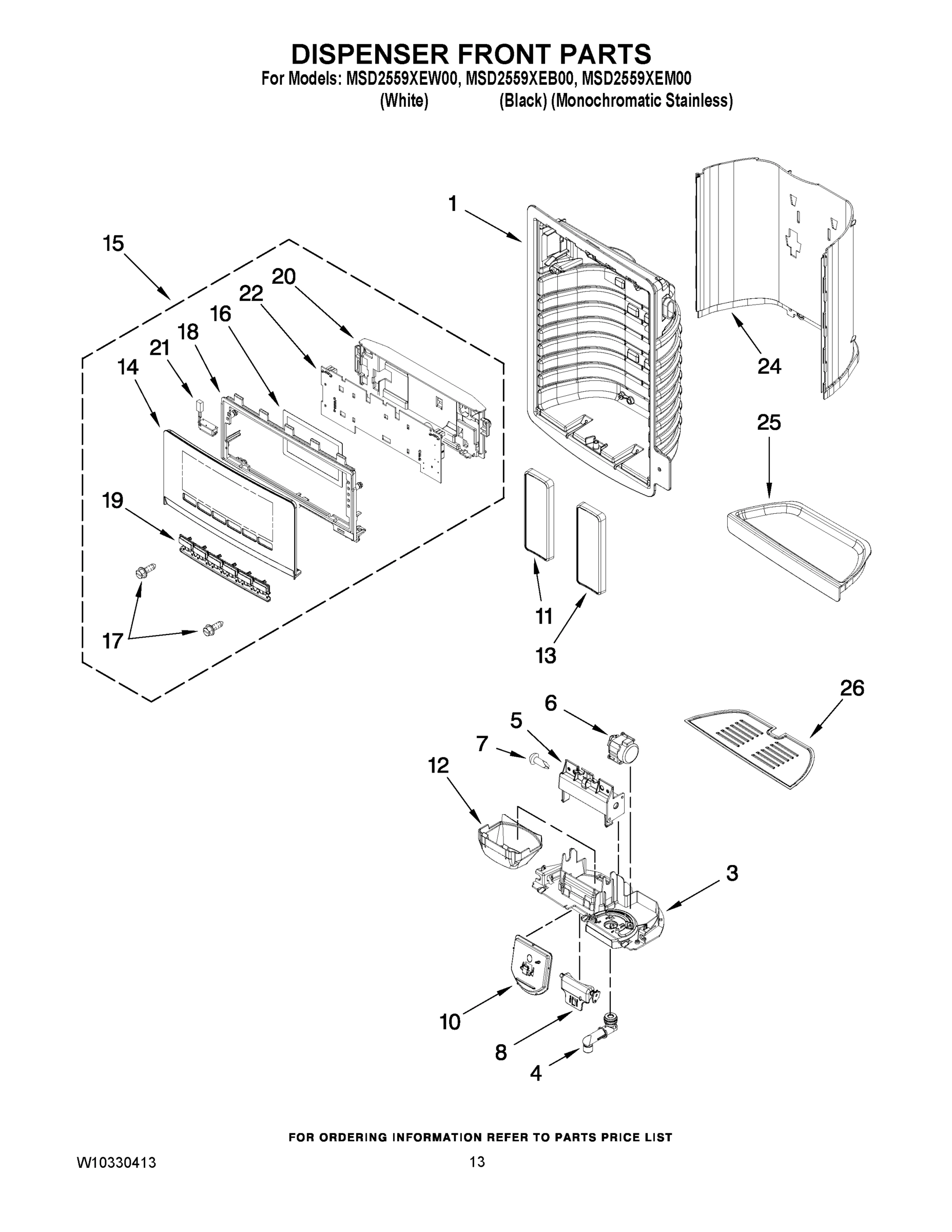

08 - DISPENSER FRONT PARTS

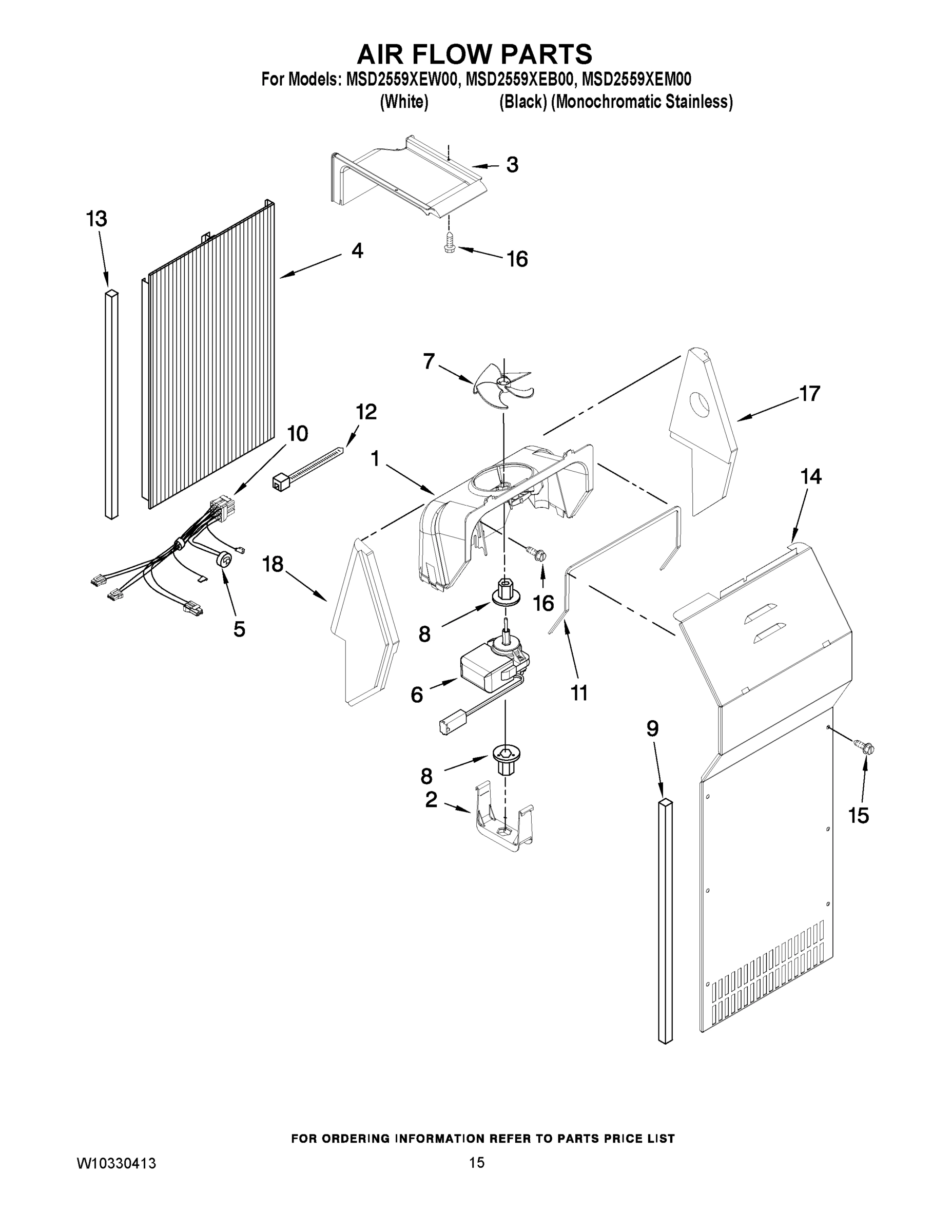

09 - AIR FLOW PARTS

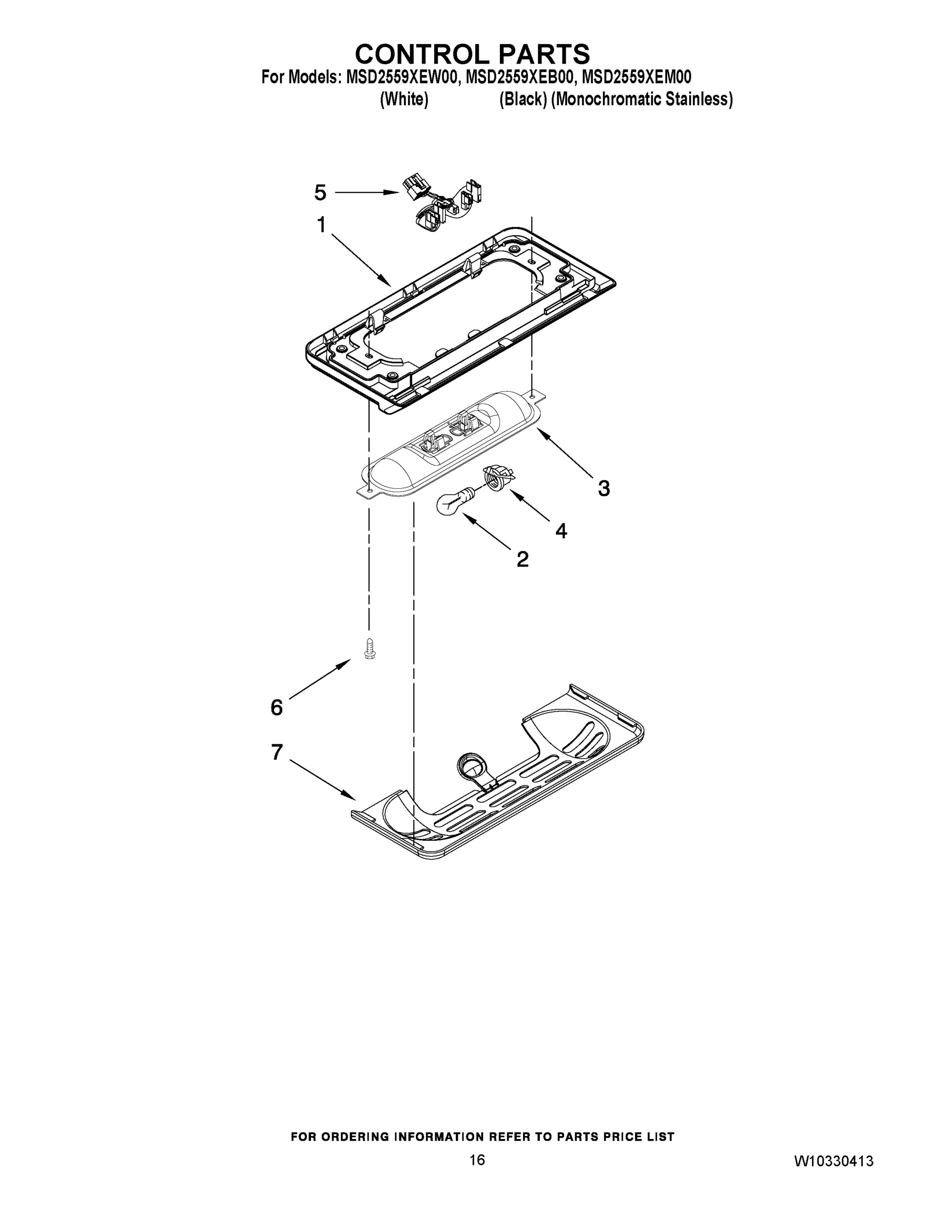

10 - CONTROL PARTS

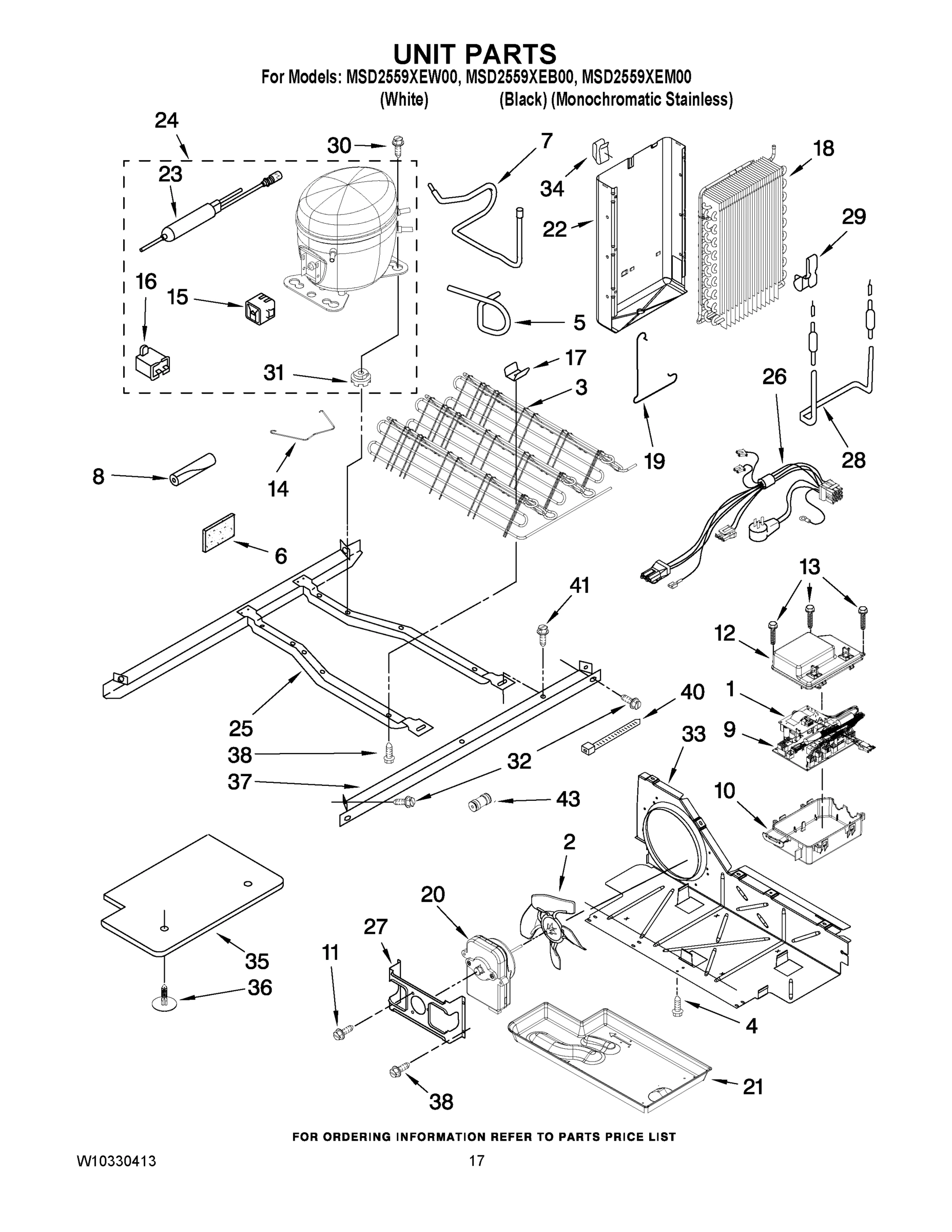

11 - UNIT PARTS

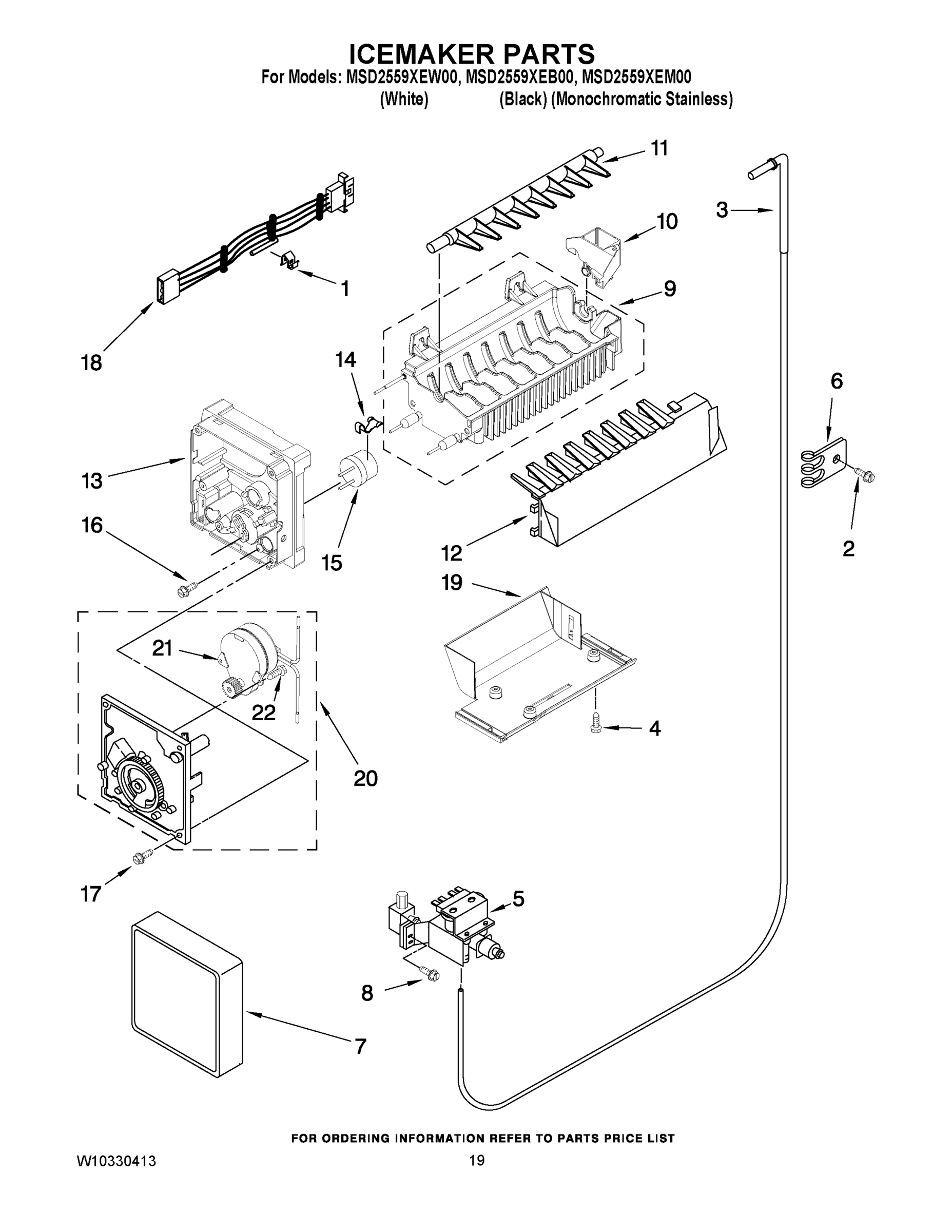

12 - ICEMAKER PARTS
13 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MSD2559XEM00 REFRIGERATOR
1
MAY 2220407 MAY 2220407 Contact Us For Availability
1
INSTR SHEET-DOOR REMOVAL MAY W10206334 Contact Us For Availability
1
MAY W10289676 MAY W10289676 Contact Us For Availability
1
MAY W10289812 MAY W10289812 Contact Us For Availability
1
MAY W10320901 MAY W10320901 Contact Us For Availability
1
SHELF ASSEMBLY, CANTILEVER MAY W10141749 Contact Us For Availability
1
MAY W10286861 MAY W10286861 Contact Us For Availability
1
REFRIGERATOR DOOR (INCLUDES No.7) (WHITE) MAY W10189214 Contact Us For Availability
1
REFRIGERATOR DOOR (INCLUDES No.7) (MONO STAIN MAY W10257897 Contact Us For Availability
1
MAY W10317497 MAY W10317497 Contact Us For Availability
1
MAY W10294123 MAY W10294123 Contact Us For Availability
1
MAY W10294124 MAY W10294124 Contact Us For Availability
1
MAY W10317487 MAY W10317487 Contact Us For Availability
1
Fan Scroll MAY 2182120 Contact Us For Availability
1
TRIM, LIGHT MAY W10284480 Contact Us For Availability
1
MAY W10268607 MAY W10268607 Contact Us For Availability
1
CLIP,FUSE MAY 628379 Contact Us For Availability
2
MAY 2174748 MAY 2174748 Contact Us For Availability
2
MAY W10141645 MAY W10141645 Contact Us For Availability
2
MAY W10175967 MAY W10175967 Contact Us For Availability
2
Bulb, Light MAY 2326255 Contact Us For Availability
2
BUTTON, HUMIDITY MAY 2179343 Contact Us For Availability
2
MAY W10142289 MAY W10142289 Contact Us For Availability
2
MAY W10286870 MAY W10286870 Contact Us For Availability
2
DOOR, COMPARTMENT MAY 2255420 Contact Us For Availability
2
HANDLE (STAINLESS STEEL) MAY W10170743 Contact Us For Availability
2
HANDLE (WHITE) MAY W10170749 Contact Us For Availability
2
HANDLE (BLACK) MAY W10170750 Contact Us For Availability
2
MAY W10188846 MAY W10188846 Contact Us For Availability
2
Fan, Blade MAY 12825802 Contact Us For Availability
3
MAY 3400517 MAY 3400517 Contact Us For Availability
3
MAY 2182757 MAY 2182757 Contact Us For Availability
3
SLIDE, HUMIDITY MAY 2179342 Contact Us For Availability
3
MAY W10166869 MAY W10166869 Contact Us For Availability
3
MAY 2255421 MAY 2255421 Contact Us For Availability
3
STUD, HANDLE MAY W10129563 Contact Us For Availability
3
MAY W10286902 MAY W10286902 Contact Us For Availability
3
MAY W10272514 MAY W10272514 Contact Us For Availability
3
MAY 2223680 MAY 2223680 Contact Us For Availability
3
Condenser Assembly MAY 2324712 Contact Us For Availability
3
TUBE, WATER MAY 2303216 Contact Us For Availability
4
MAY W10250570 MAY W10250570 Contact Us For Availability
4
MAY W10001250 MAY W10001250 Contact Us For Availability
4
MAY 2257741 MAY 2257741 Contact Us For Availability
4
MAY W10001260 MAY W10001260 Contact Us For Availability
4
MAY 2311726 MAY 2311726 Contact Us For Availability
4
MAY 2198697 MAY 2198697 Contact Us For Availability
4
MAY 2258220 MAY 2258220 Contact Us For Availability
4
CLIP, HANDLE MAY 2255411 Contact Us For Availability
4
SPIGOT-BODY ASSY MAY 2305235 Contact Us For Availability
4
MAY 2198580 MAY 2198580 Contact Us For Availability
4
MAY 2223857 MAY 2223857 Contact Us For Availability
5
SNACK PAN MAY 2188667 Contact Us For Availability
5
SPACER, FLAT (4) MAY W10189658 Contact Us For Availability
5
Door Gasket, Magnetic (Mist Beige) MAY 2221302 Contact Us For Availability
5
Door Gasket, Magnetic (Black) MAY 2221313 Contact Us For Availability
5
MAY W10142285 MAY W10142285 Contact Us For Availability
5
MAY W10174827 MAY W10174827 Contact Us For Availability
5
MAY W10225581 MAY W10225581 Contact Us For Availability
5
WIRE ASSY, LIGHT MAY 2310527 Contact Us For Availability
5
TUBE, PROCESS MAY 2325479 Contact Us For Availability
5
VALVE, SOLENOID MAY W10179146 Contact Us For Availability
6
MAY 2155013 MAY 2155013 Contact Us For Availability
6
GLASS COVER MAY 2179259 Contact Us For Availability
6
TRACK, BASKET-DUAL (RIGHT SIDE) MAY 2301291 Contact Us For Availability
6
TRACK, BASKET-DUAL (LEFT SIDE) MAY 2301292 Contact Us For Availability
6
MAY 2317248 MAY 2317248 Contact Us For Availability
6
DOOR BIN (4) MAY 2304235 Contact Us For Availability
6
SCREW, CLIP MAY W10184500 Contact Us For Availability
6
MAY W10205978 MAY W10205978 Contact Us For Availability
6
SCREW (2) MAY W10141632 Contact Us For Availability
6
FAN MOTOR MAY W10236142 Contact Us For Availability
6
INSULATION, SOUND MAY 2169104 Contact Us For Availability
6
TUBE CLIP MAY W10245516 Contact Us For Availability
7
SCREW MAY W10141604 Contact Us For Availability
7
Cover, Crisper MAY 2209698 Contact Us For Availability
7
MAY 2211746 MAY 2211746 Contact Us For Availability
7
BLADE, ROTARY MAY W10278731 Contact Us For Availability
7
SHELF BIN (3) MAY 2309718 Contact Us For Availability
7
CLIP, MTR COUP MAY W10174818 Contact Us For Availability
7
Fan Blade MAY 2169142 Contact Us For Availability
7
MAY 2223506 MAY 2223506 Contact Us For Availability
7
MAY 2205765 MAY 2205765 Contact Us For Availability
7
COVER MAY W10289690 Contact Us For Availability
8
HINGE TOP RC MAY 2203771 Contact Us For Availability
8
MAY 2319866 MAY 2319866 Contact Us For Availability
8
TRIM, SNACK PAN MAY 2179243 Contact Us For Availability
8
SPACER, STEP (2) MAY W10189661 Contact Us For Availability
8
Nameplate MAY W10170766 Contact Us For Availability
8
Door Gasket, Magnetic (Mist Beige) MAY 2221303 Contact Us For Availability
8
Door Gasket, Magnetic (Black) MAY 2221314 Contact Us For Availability
8
SUPPORT-ICE DOOR MAY W10174809 Contact Us For Availability
8
Fan Grommet (2) MAY 2176759 Contact Us For Availability
8
MAY 2161302 MAY 2161302 Contact Us For Availability
8
MAY W10068250 MAY W10068250 Contact Us For Availability
9
MAY W10142288 MAY W10142288 Contact Us For Availability
9
CRISPER PAN MAY W10178772 Contact Us For Availability
9
MAY 2301289 MAY 2301289 Contact Us For Availability
9
MAY 2301290 MAY 2301290 Contact Us For Availability
9
MAY 2198601 MAY 2198601 Contact Us For Availability
9
MAY 2304241 MAY 2304241 Contact Us For Availability
9
CTRL-ELEK, MAIN MAY W10210789 Contact Us For Availability
9
Mold & Heater Assembly (Also Order 542638) MAY W10136595 Contact Us For Availability
10
Hinge Cover (FC) (White) MAY W10138581 Contact Us For Availability
10
MAY W10138582 MAY W10138582 Contact Us For Availability
10
HINGE COVER, FC (APOLLO GRAY) MAY W10138584 Contact Us For Availability
10
MAY 2188665 MAY 2188665 Contact Us For Availability
10
SHELF (2) MAY 2205837 Contact Us For Availability
10
BLADE, ROTARY MAY W10278732 Contact Us For Availability
10
DOOR CLOSER UPPER CAM MAY 2182178 Contact Us For Availability
10
MAY 2323535 MAY 2323535 Contact Us For Availability
10
MAY W10174811 MAY W10174811 Contact Us For Availability
10
HARNESS, FAN EVAPORATOR (INCLUDES No.5) MAY W10297480 Contact Us For Availability
10
CONTROL, BOX MAY 2323186 Contact Us For Availability
10
MAY W10272168 MAY W10272168 Contact Us For Availability
11
Hinge Bottom MAY W10138965 Contact Us For Availability
11
MAY 2255593 MAY 2255593 Contact Us For Availability
11
BIN, SLOPED MAY 2182971 Contact Us For Availability
11
MAY W10178238 MAY W10178238 Contact Us For Availability
11
PAD, ICE DISPENSER (WHITE) MAY W10308362 Contact Us For Availability
11
PAD, ICE DISPENSER (BLACK) MAY W10308363 Contact Us For Availability
11
Gasket Cover MAY 2155789 Contact Us For Availability
11
MAY 8533993 MAY 8533993 Contact Us For Availability
11
MAY 2323524 MAY 2323524 Contact Us For Availability
12
MAY 2304846 MAY 2304846 Contact Us For Availability
12
MAY 2304848 MAY 2304848 Contact Us For Availability
12
FILLER, WRAPPER (APOLLO GRAY) MAY W10143043 Contact Us For Availability
12
MAY W10004810 MAY W10004810 Contact Us For Availability
12
MAY 2179350 MAY 2179350 Contact Us For Availability
12
ROLL PIN MAY W10166878 Contact Us For Availability
12
MAY W10142233 MAY W10142233 Contact Us For Availability
12
GUIDE, ICE MAY W10174808 Contact Us For Availability
12
CONTROL, COVER MAY 2323188 Contact Us For Availability
12
ICE STRIPER MAY W10272161 Contact Us For Availability
13
MAY W10184886 MAY W10184886 Contact Us For Availability
13
MAY W10184888 MAY W10184888 Contact Us For Availability
13
GRILLE (APOLLO GRAY) MAY W10184890 Contact Us For Availability
13
Air Diffuser Assembly (Includes RC & FC Therm MAY W10128734 Contact Us For Availability
13
MAY 2255592 MAY 2255592 Contact Us For Availability
13
CLIP, AIR DUCT (2) MAY 2315163 Contact Us For Availability
13
BLADE, ROTARY MAY W10278733 Contact Us For Availability
13
MAY W10175740 MAY W10175740 Contact Us For Availability
13
MAY W10175741 MAY W10175741 Contact Us For Availability
13
MAY W10175735 MAY W10175735 Contact Us For Availability
13
MAY W10175736 MAY W10175736 Contact Us For Availability
13
PAD, WATER DISPENSER (WHITE) MAY W10307625 Contact Us For Availability
13
PAD, WATER DISPENSER (BLACK) MAY W10307626 Contact Us For Availability
13
MAY 2203876 MAY 2203876 Contact Us For Availability
13
MAY 8533859 MAY 8533859 Contact Us For Availability
13
Support MAY 2194712 Contact Us For Availability
14
MAY 489497 MAY 489497 Contact Us For Availability
14
Air Diffuser Cover MAY W10128735 Contact Us For Availability
14
SHELF, FLIP BACK ASSEMBLY MAY 2317451 Contact Us For Availability
14
MAY 2198587 MAY 2198587 Contact Us For Availability
14
MAY 489235 MAY 489235 Contact Us For Availability
14
DOOR BIN, LARGE MAY 2156022 Contact Us For Availability
14
MAY 2200087 MAY 2200087 Contact Us For Availability
14
MAY W10286927 MAY W10286927 Contact Us For Availability
14
MAY W10286928 MAY W10286928 Contact Us For Availability
14
MAY 2206314 MAY 2206314 Contact Us For Availability
14
Clip, Retaining MAY W10204187 Contact Us For Availability
14
MAY 2315522 MAY 2315522 Contact Us For Availability
15
HINGE TOP, FC MAY 2203770 Contact Us For Availability
15
MAY W10173126 MAY W10173126 Contact Us For Availability
15
MAY 2198635 MAY 2198635 Contact Us For Availability
15
MAY 2198661 MAY 2198661 Contact Us For Availability
15
MAY W10295774 MAY W10295774 Contact Us For Availability
15
MAY W10286924 MAY W10286924 Contact Us For Availability
15
SCREW (6) MAY W10142292 Contact Us For Availability
15
START-DEVICE, COMBINATION (START RELAY AND OV MAY W10197427 Contact Us For Availability
15
MAY 628532 MAY 628532 Contact Us For Availability
16
MAY 2307107 MAY 2307107 Contact Us For Availability
16
SHELF, SNACK PAN MAY W10141750 Contact Us For Availability
16
MAY 2198634 MAY 2198634 Contact Us For Availability
16
MAY 2188918 MAY 2188918 Contact Us For Availability
16
MAY W10254293 MAY W10254293 Contact Us For Availability
16
MAY 2264017 MAY 2264017 Contact Us For Availability
16
MAY 8533917 MAY 8533917 Contact Us For Availability
17
MAY 2304888 MAY 2304888 Contact Us For Availability
17
MAY W10191954 MAY W10191954 Contact Us For Availability
17
Switch, Rocker Arm MAY 1115373 Contact Us For Availability
17
MAY 8281164 MAY 8281164 Contact Us For Availability
17
MAY 2203595 MAY 2203595 Contact Us For Availability
17
MAY 2216914 MAY 2216914 Contact Us For Availability
17
MAY W10001240 MAY W10001240 Contact Us For Availability
18
TUBE, EXTENSION MAY W10153550 Contact Us For Availability
18
MAY W10242623 MAY W10242623 Contact Us For Availability
18
MAY W10173127 MAY W10173127 Contact Us For Availability
18
MAY W10193840 MAY W10193840 Contact Us For Availability
18
MAY 3400065 MAY 3400065 Contact Us For Availability
18
MAY W10286907 MAY W10286907 Contact Us For Availability
18
MAY 2203596 MAY 2203596 Contact Us For Availability
18
Evaporator MAY 2188823 Contact Us For Availability
18
MAY 2187467 MAY 2187467 Contact Us For Availability
19
MAY 2188735 MAY 2188735 Contact Us For Availability
19
MAY W10141518 MAY W10141518 Contact Us For Availability
19
MAY W10191952 MAY W10191952 Contact Us For Availability
19
MAY 2255720 MAY 2255720 Contact Us For Availability
19
MAY W10166863 MAY W10166863 Contact Us For Availability
19
MAY W10286926 MAY W10286926 Contact Us For Availability
19
Clamp MAY 2161324 Contact Us For Availability
19
Bracket, Ice Maker Mounting MAY 2303583 Contact Us For Availability
20
Hinge Cover (RC) (White) MAY W10138576 Contact Us For Availability
20
MAY W10138577 MAY W10138577 Contact Us For Availability
20
HINGE COVER, RC (APOLLO GRAY) MAY W10138579 Contact Us For Availability
20
MAY 2212321 MAY 2212321 Contact Us For Availability
20
MAY 2198608 MAY 2198608 Contact Us For Availability
20
MAY W10254277 MAY W10254277 Contact Us For Availability
20
Fan, Motor MAY 2188874 Contact Us For Availability
20
MAY 626691 MAY 626691 Contact Us For Availability
21
CLAMP, SERVICE CORD MAY 549193 Contact Us For Availability
21
Screw MAY 8281163 Contact Us For Availability
21
LED ASSY MAY W10238083 Contact Us For Availability
21
MAY 1105523 MAY 1105523 Contact Us For Availability
21
MAY 626683 MAY 626683 Contact Us For Availability
22
Screw MAY 489214 Contact Us For Availability
22
MAY W10286869 MAY W10286869 Contact Us For Availability
22
MAY W10291367 MAY W10291367 Contact Us For Availability
22
Heat Shield MAY 2217194 Contact Us For Availability
22
Screw MAY 489136 Contact Us For Availability
23
MAY 2155311 MAY 2155311 Contact Us For Availability
23
Light Socket MAY 2162085 Contact Us For Availability
23
Drier MAY W10177049 Contact Us For Availability
24
MAY 489483 MAY 489483 Contact Us For Availability
24
MAY 2198628 MAY 2198628 Contact Us For Availability
24
MAY W10286898 MAY W10286898 Contact Us For Availability
24
MAY W10286899 MAY W10286899 Contact Us For Availability
24
MAY W10286900 MAY W10286900 Contact Us For Availability
24
COMPRESSOR (ALSO ORDER 876765 TUBE KIT) MAY W10120457 Contact Us For Availability
25
MAY 2260507 MAY 2260507 Contact Us For Availability
25
SCREW MAY W10142283 Contact Us For Availability
25
MAY W10286894 MAY W10286894 Contact Us For Availability
25
MAY W10286895 MAY W10286895 Contact Us For Availability
25
MAY W10286896 MAY W10286896 Contact Us For Availability
25
MAY 2304904 MAY 2304904 Contact Us For Availability
26
MAY 4396841 MAY 4396841 Contact Us For Availability
26
MAY 2198633 MAY 2198633 Contact Us For Availability
26
MAY W10317613 MAY W10317613 Contact Us For Availability
26
MAY W10286920 MAY W10286920 Contact Us For Availability
26
MAY W10286921 MAY W10286921 Contact Us For Availability
26
MAY W10286922 MAY W10286922 Contact Us For Availability
26
UNIT, HARNESS MAY W10291106 Contact Us For Availability
27
MAY 489500 MAY 489500 Contact Us For Availability
27
MAY W10173569 MAY W10173569 Contact Us For Availability
27
MAY W10258546 MAY W10258546 Contact Us For Availability
27
MAY 2181929 MAY 2181929 Contact Us For Availability
28
MAY 2260502B MAY 2260502B Contact Us For Availability
28
CAP, WATER FILTER (APOLLO GRAY) MAY 2260502MG Contact Us For Availability
28
MAY 2260502W MAY 2260502W Contact Us For Availability
28
MAY 2315398 MAY 2315398 Contact Us For Availability
28
DISPENSER, MOTOR MAY W10215646 Contact Us For Availability
28
MAY 2323198 MAY 2323198 Contact Us For Availability
29
MAY W10279461 MAY W10279461 Contact Us For Availability
29
MAY 2304287 MAY 2304287 Contact Us For Availability
30
MAY 8281227 MAY 8281227 Contact Us For Availability
30
MAY 2198643 MAY 2198643 Contact Us For Availability
30
MAY W10295559 MAY W10295559 Contact Us For Availability
30
MAY 489373 MAY 489373 Contact Us For Availability
31
SCREW MAY W10142235 Contact Us For Availability
31
MAY 2198589 MAY 2198589 Contact Us For Availability
31
MAY W10317615 MAY W10317615 Contact Us For Availability
31
Grommet (4) MAY 1100826 Contact Us For Availability
32
Tube, Filter Outlet MAY 2255012 Contact Us For Availability
32
MAY 2212340 MAY 2212340 Contact Us For Availability
32
MAY 489340 MAY 489340 Contact Us For Availability
33
MAY W10212512 MAY W10212512 Contact Us For Availability
33
Bracket, Ice Maker Cover MAY 2198641 Contact Us For Availability
33
MAY 2196202 MAY 2196202 Contact Us For Availability
34
Block, Housing Support MAY 2260519 Contact Us For Availability
34
Socket, Light MAY 2155597 Contact Us For Availability
34
MAY 2155547 MAY 2155547 Contact Us For Availability
35
MAY 2260503B MAY 2260503B Contact Us For Availability
35
BUTTON, WATER FILTER (APOLLO GRAY) MAY 2260503MG Contact Us For Availability
35
Button, Water Filter (White) MAY 2260503W Contact Us For Availability
35
MAY 2198609 MAY 2198609 Contact Us For Availability
35
MAY 2198610 MAY 2198610 Contact Us For Availability
35
Unit Cover, Bottom MAY 2304899 Contact Us For Availability
36
MAY 2303234 MAY 2303234 Contact Us For Availability
36
MAY 489396 MAY 489396 Contact Us For Availability
37
MAY 2305374 MAY 2305374 Contact Us For Availability
38
MAY 8281232 MAY 8281232 Contact Us For Availability
40
MAY 2172840 MAY 2172840 Contact Us For Availability
41
MAY W10146358 MAY W10146358 Contact Us For Availability
43
MAY W10271540 MAY W10271540 Contact Us For Availability
100
MAY W10286864 MAY W10286864 Contact Us For Availability
100
MAY W10272870 MAY W10272870 Contact Us For Availability
NI
REFRIGERANT CHARGE 5.00 OZ. (R-134A) MAY N/P Contact Us For Availability
NI
MAY 876764 MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS (1/4``) MAY 978025 Contact Us For Availability
NI
Valve, Access (5/16``) MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS (3/8``) MAY 978027 Contact Us For Availability
NI
Valve, Access (1/2``) MAY 978028 Contact Us For Availability
NI
Valve, Access (5/8``) MAY 978029 Contact Us For Availability
NI
Valve, Access (3/4``) MAY 978030 Contact Us For Availability
NI
MAY 1117510 MAY 1117510 Contact Us For Availability
NI
SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (BLACK) MAY 350939 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, WH MAY 350942 Contact Us For Availability
NI
MAY 4392899 MAY 4392899 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (Biscuit) MAY 4392900 Contact Us For Availability
NI
MAY 4392901 MAY 4392901 Contact Us For Availability
NI
MAY 479502 MAY 479502 Contact Us For Availability
NI
MAY 503695 MAY 503695 Contact Us For Availability
NI
MAY 505587 MAY 505587 Contact Us For Availability
NI
MAY 542638 MAY 542638 Contact Us For Availability
NI
MAY 542639 MAY 542639 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (Black) MAY 799340 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (White) MAY 799344 Contact Us For Availability
NI
Kit, Evaporator Repair (Aluminum Epoxy) MAY 799833 Contact Us For Availability
NI
MAY 80051 MAY 80051 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. GRAPHITE) MAY 8171357 Contact Us For Availability
NI
PAINT, BULK (1 QT. GRAPHITE) MAY 8171358 Contact Us For Availability
NI
Previous Architect Series Handle Kit (Stainle MAY 8201806 Contact Us For Availability
NI
MAY 833938 MAY 833938 Contact Us For Availability
× ![]()
