Model Maytag MSD2552VEY01 REFRIGERATOR – Common Parts & Diagrams
01 - CABINET PARTS
02 - REFRIGERATOR LINER PARTS

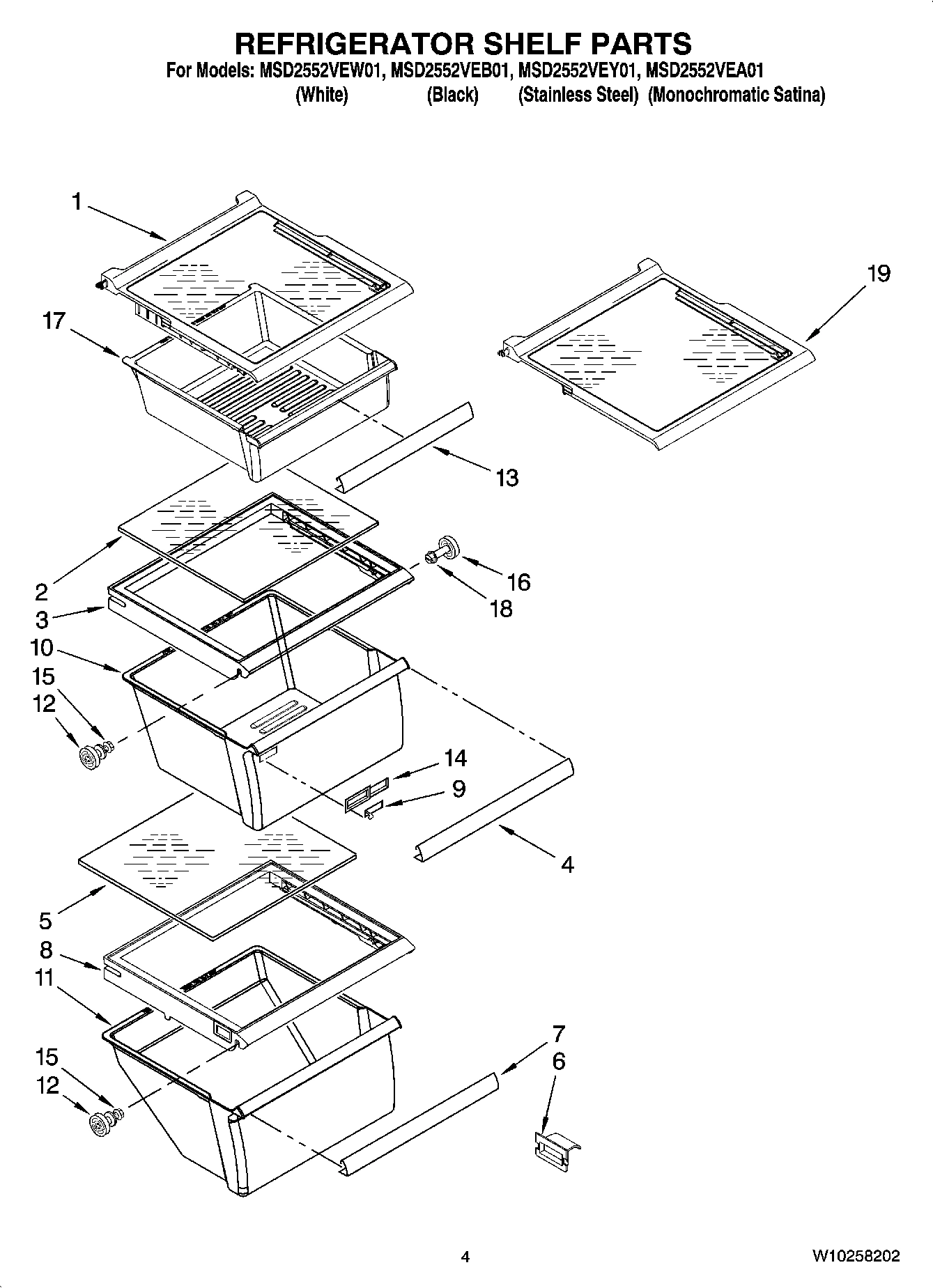

03 - REFRIGERATOR SHELF PARTS

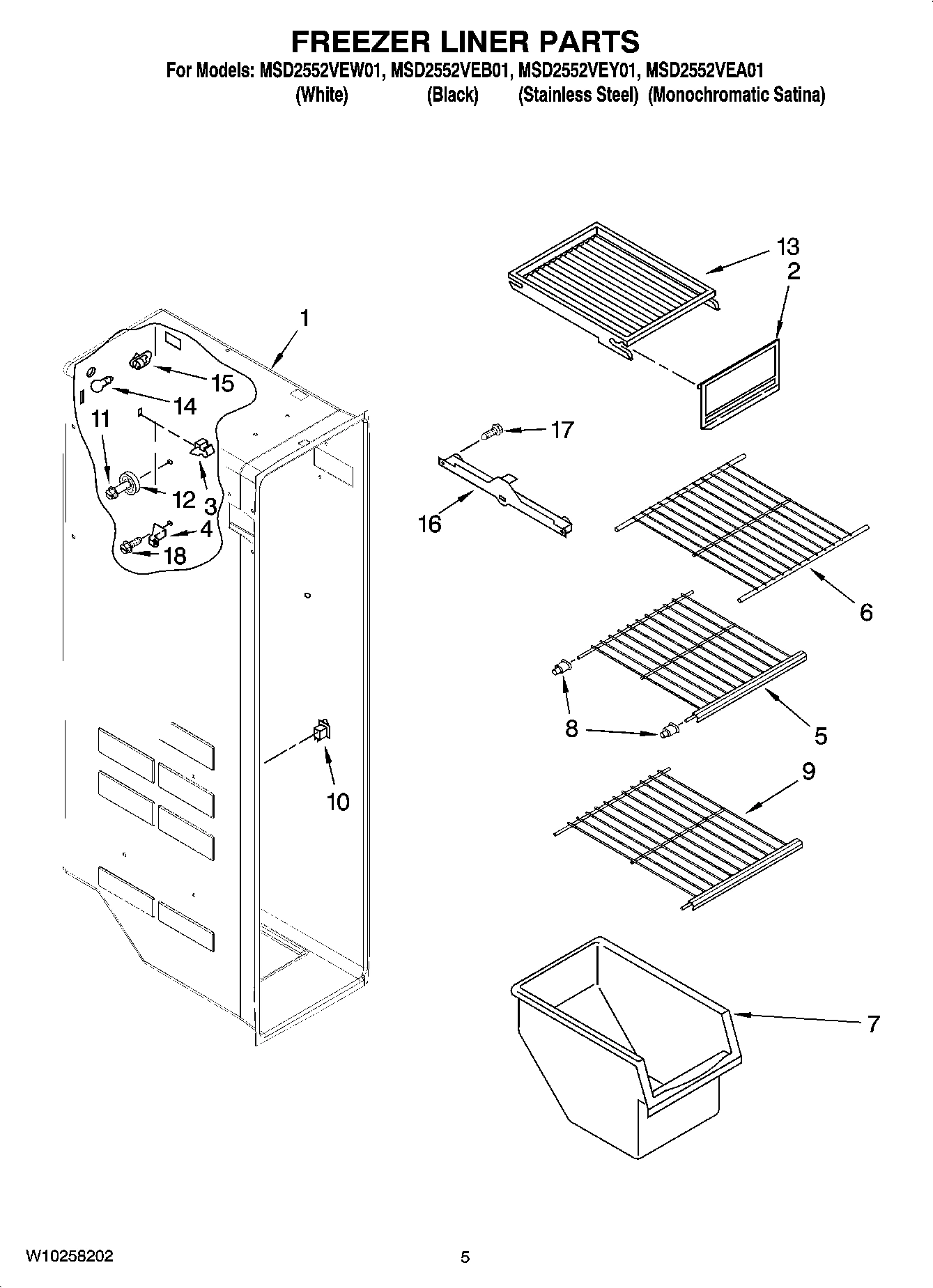

04 - FREEZER LINER PARTS

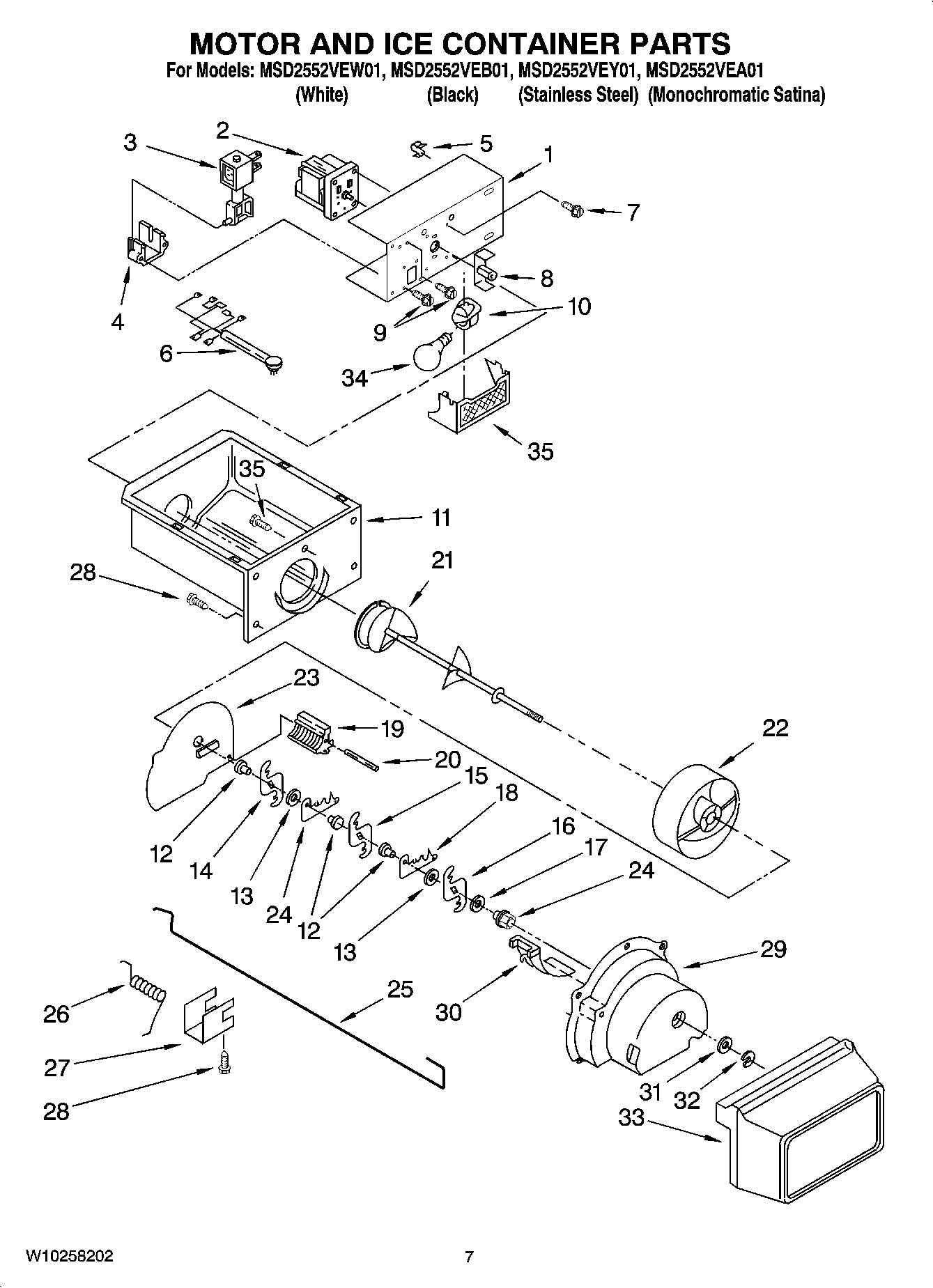

05 - MOTOR AND ICE CONTAINER PARTS

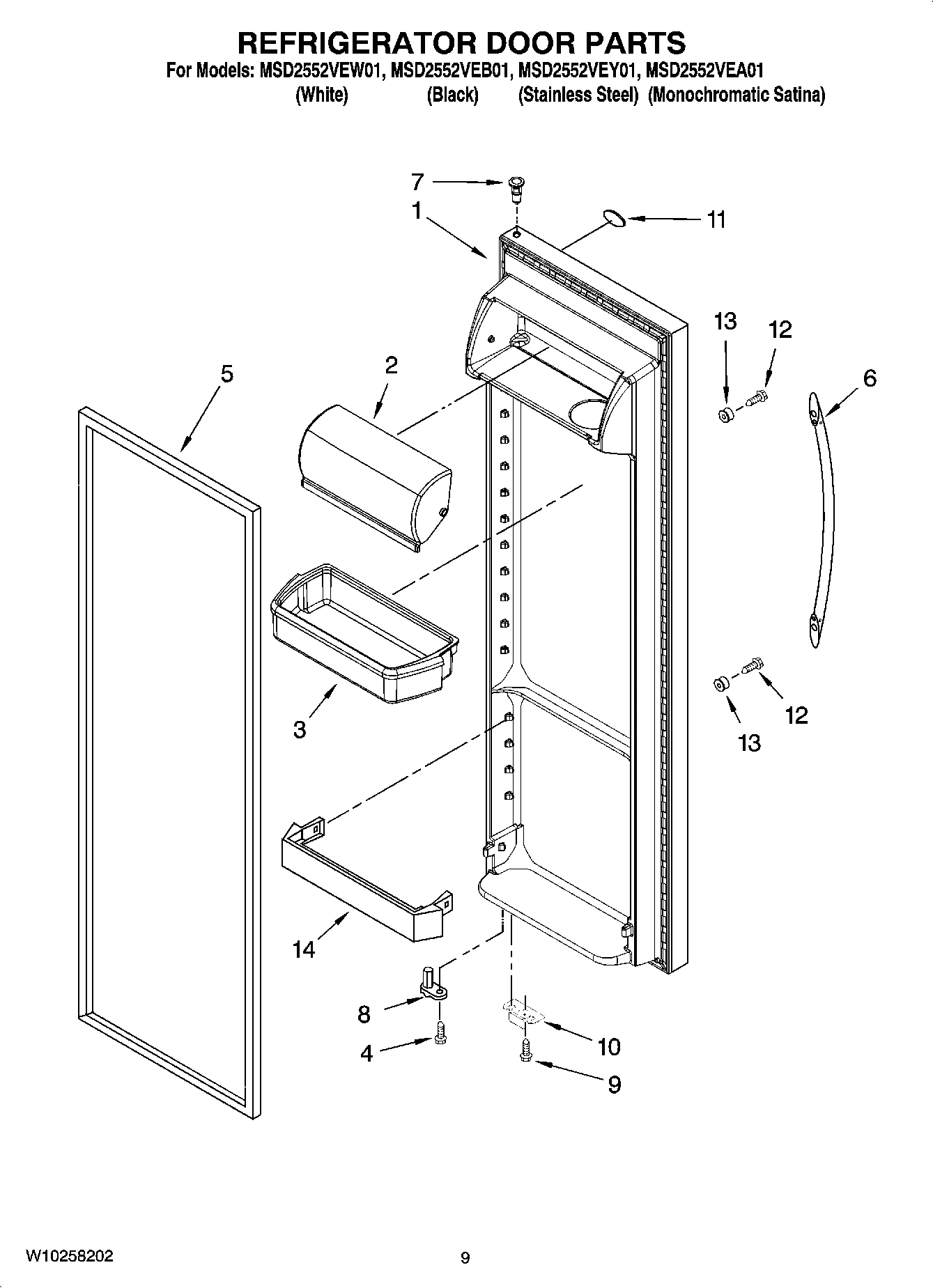

06 - REFRIGERATOR DOOR PARTS

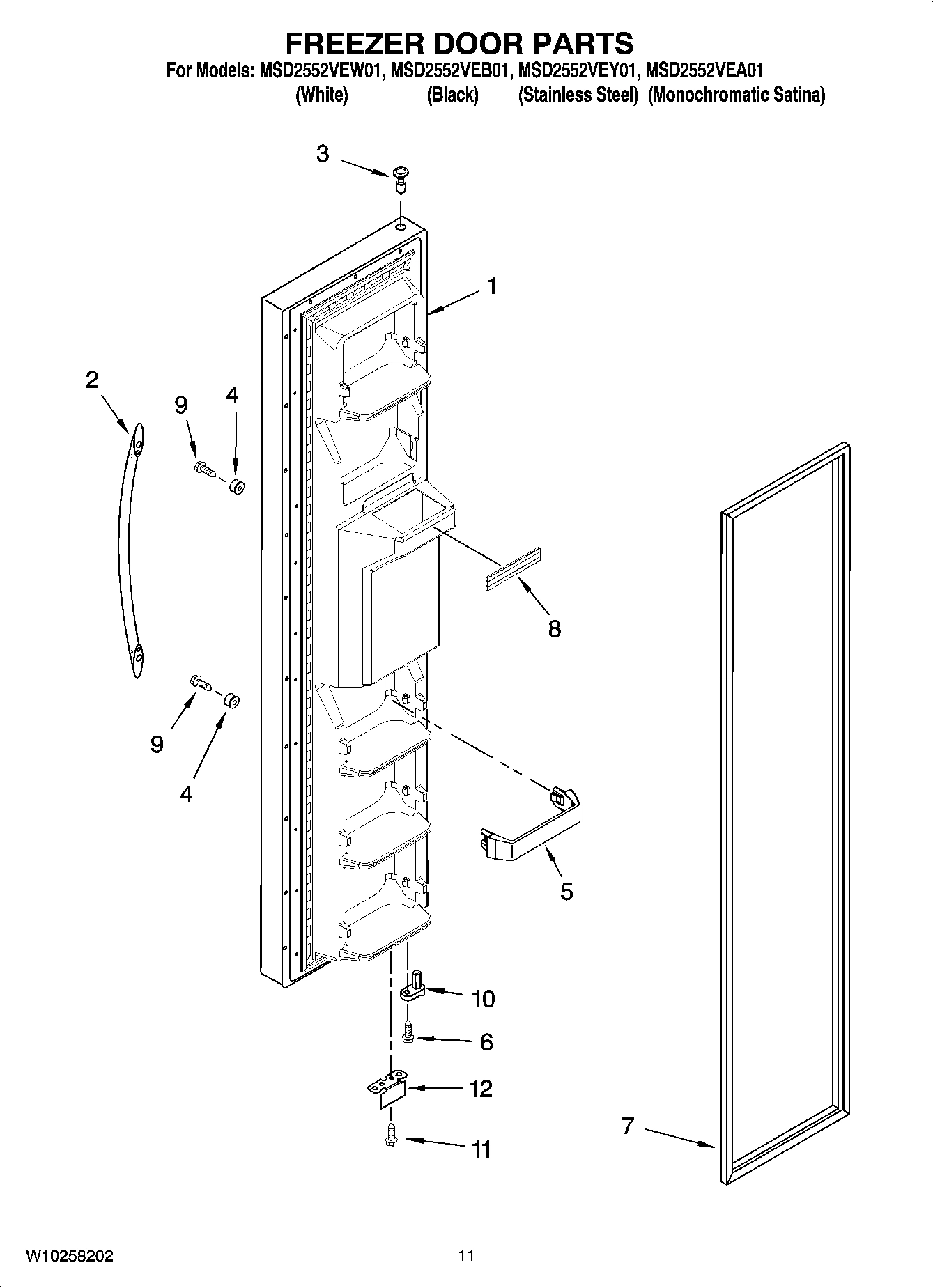

07 - FREEZER DOOR PARTS

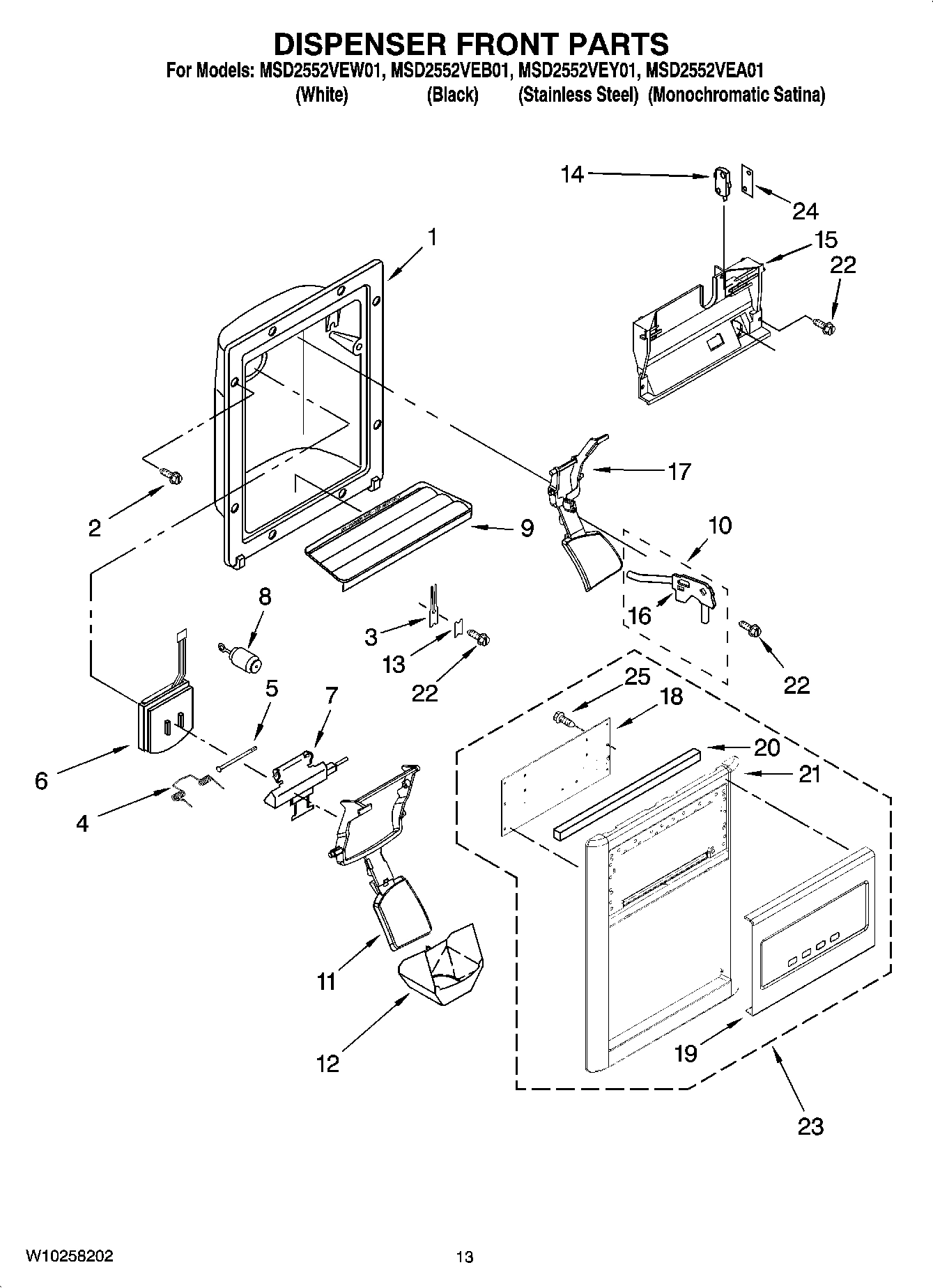

08 - DISPENSER FRONT PARTS

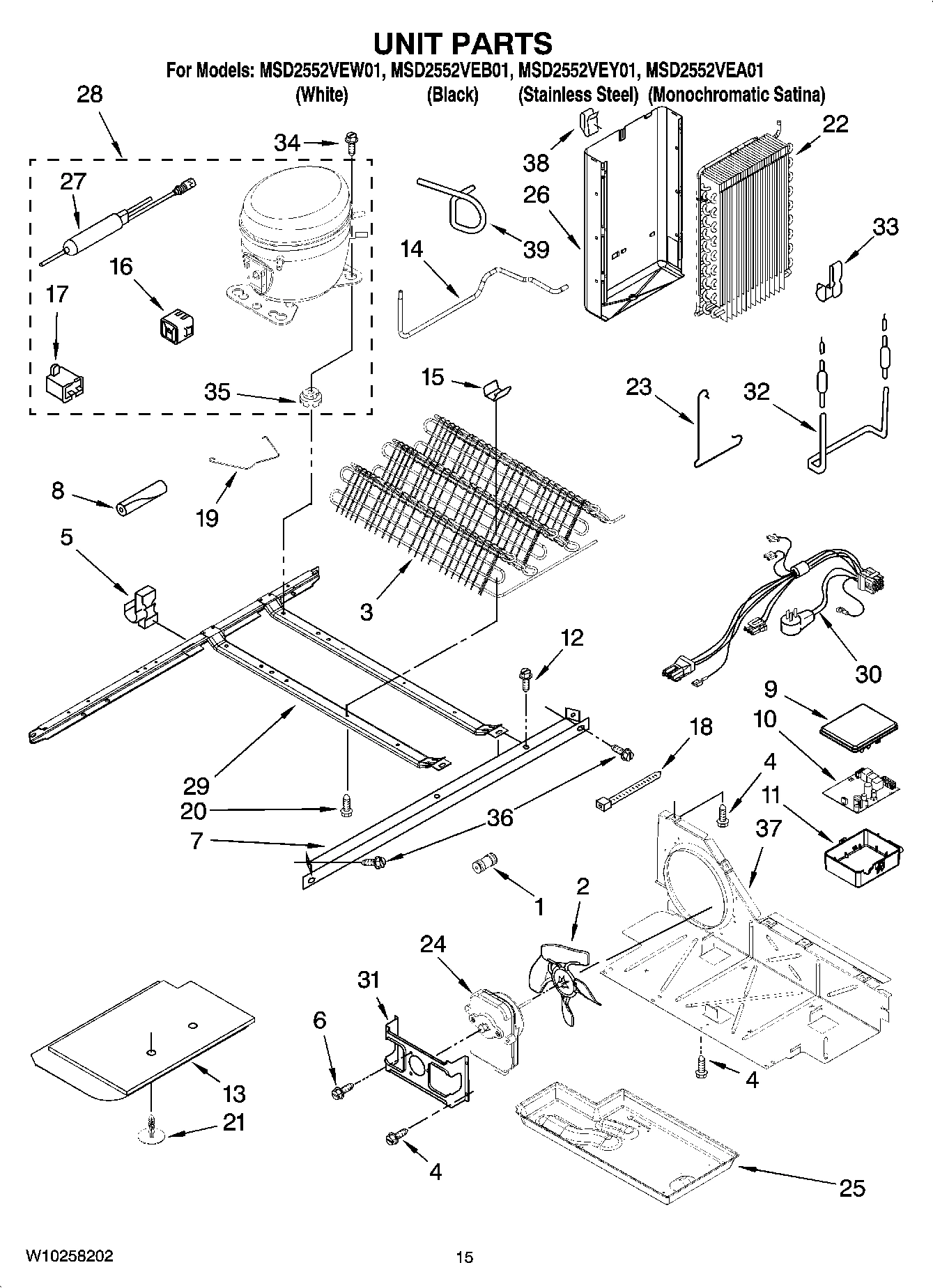

09 - UNIT PARTS

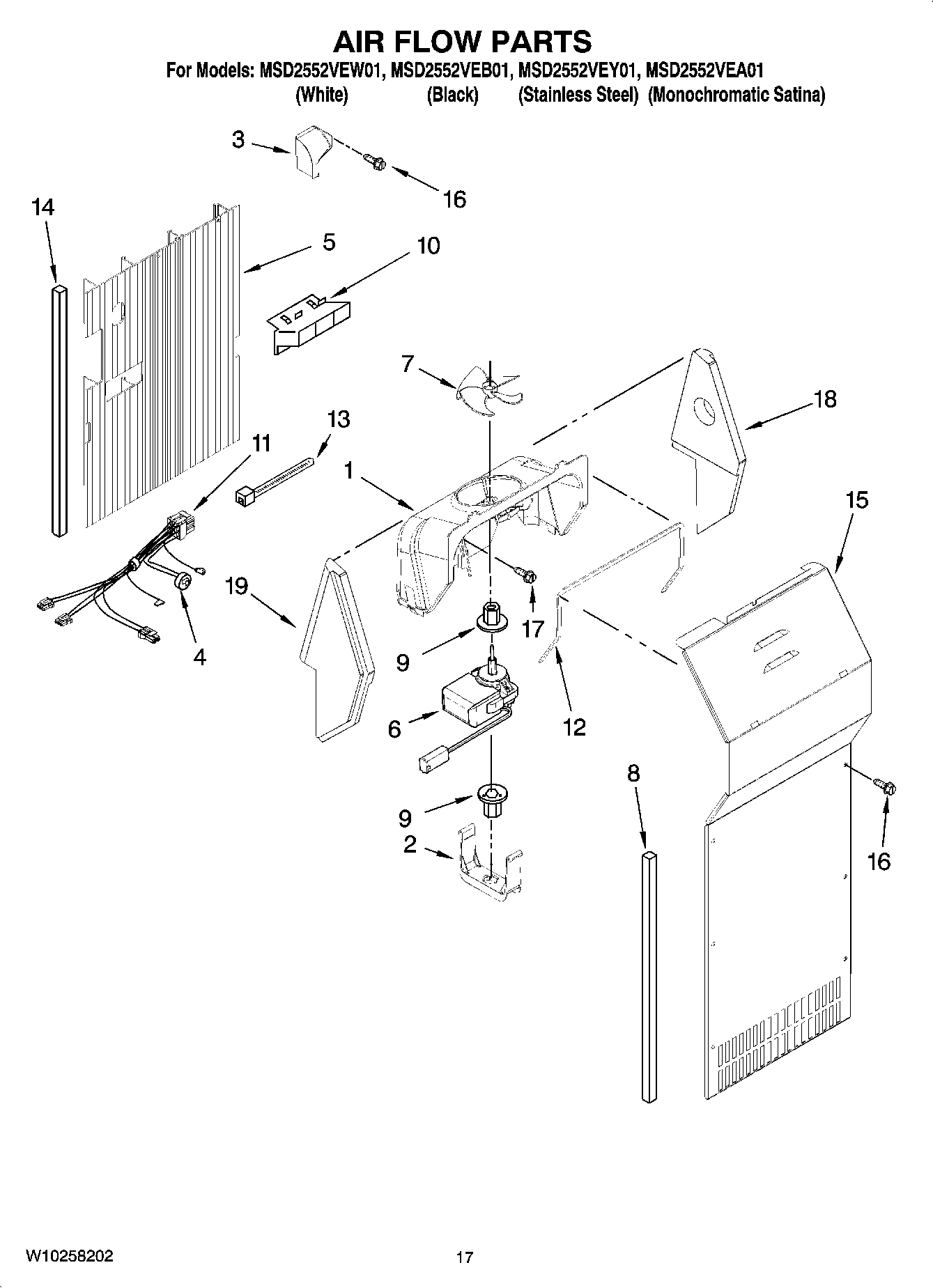

10 - AIR FLOW PARTS

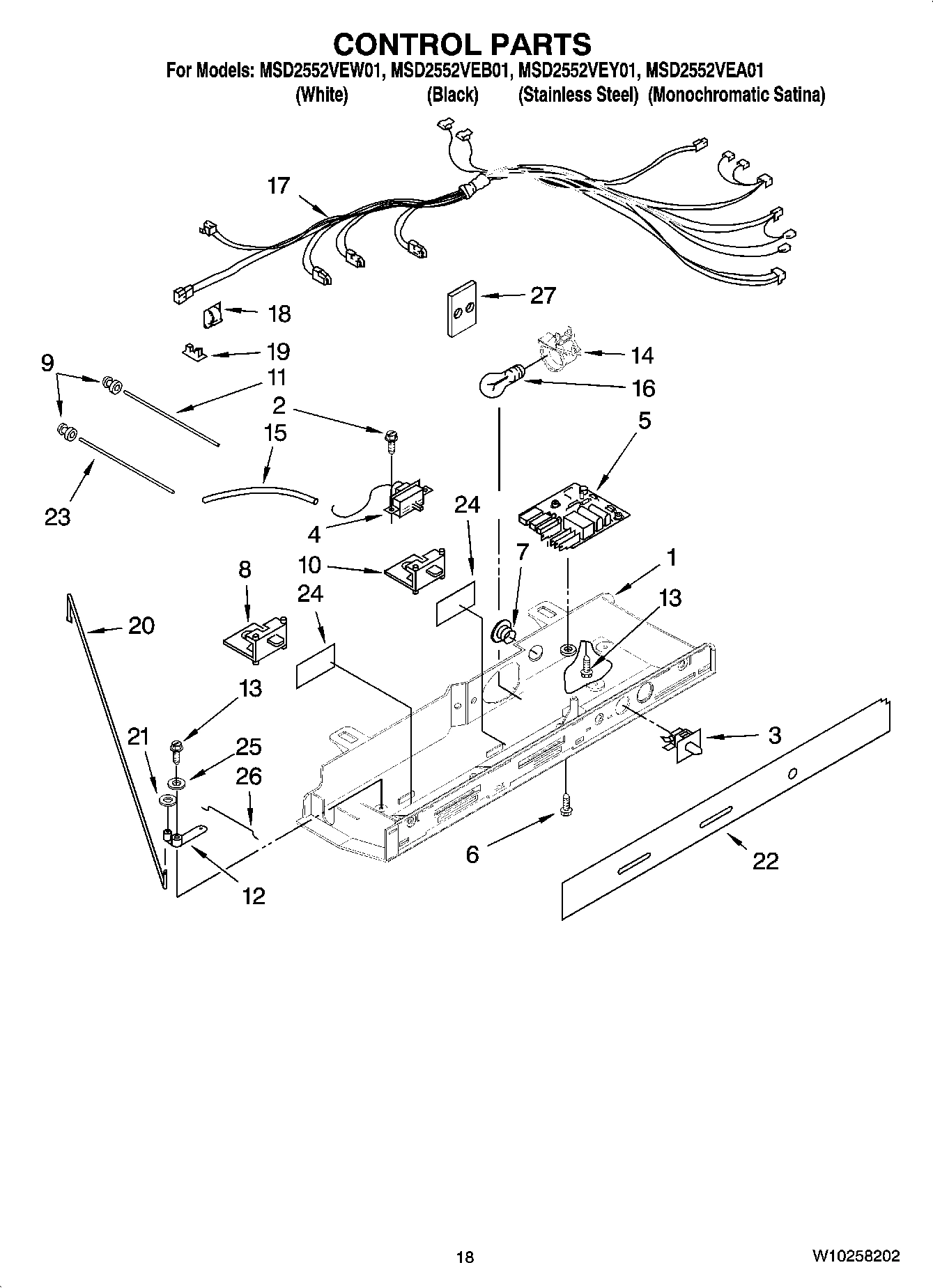

11 - CONTROL PARTS

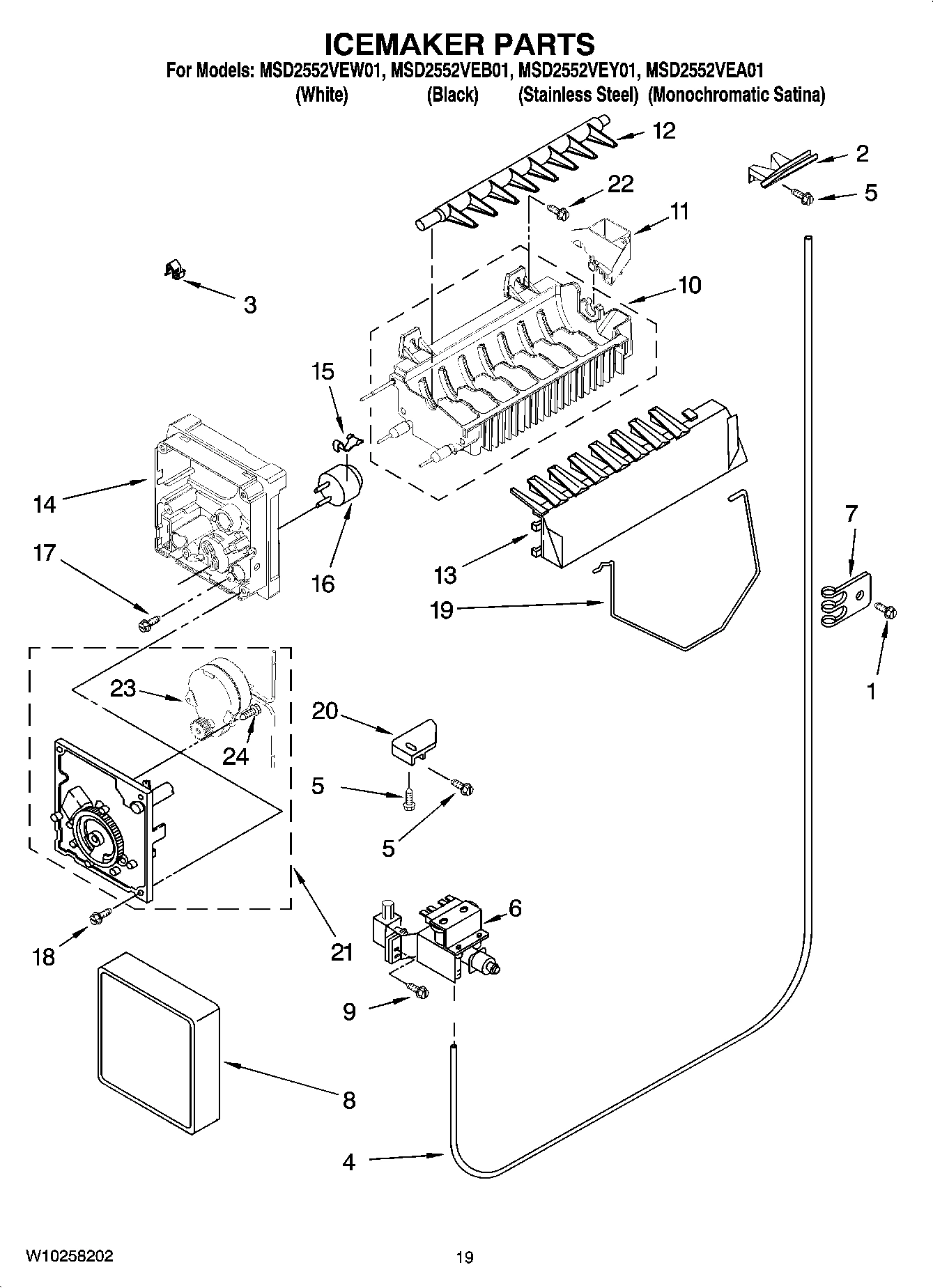

12 - ICEMAKER PARTS
13 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MSD2552VEY01 REFRIGERATOR
1
MAY W10172624 MAY W10172624 Contact Us For Availability
1
MAY W10180407 MAY W10180407 Contact Us For Availability
1
MAY W10216489 MAY W10216489 Contact Us For Availability
1
MAY 489084 MAY 489084 Contact Us For Availability
1
Shelf, Snack Pan MAY 2309560 Contact Us For Availability
1
MAY 2254587 MAY 2254587 Contact Us For Availability
1
MAY W10172362 MAY W10172362 Contact Us For Availability
1
MAY W10172363 MAY W10172363 Contact Us For Availability
1
MAY W10172369 MAY W10172369 Contact Us For Availability
1
MAY W10172476 MAY W10172476 Contact Us For Availability
1
MAY W10172535 MAY W10172535 Contact Us For Availability
1
MAY W10172536 MAY W10172536 Contact Us For Availability
1
MAY W10172537 MAY W10172537 Contact Us For Availability
1
MAY W10172539 MAY W10172539 Contact Us For Availability
1
Connector, Water MAY 2320322 Contact Us For Availability
1
Fan Scroll MAY 2182120 Contact Us For Availability
1
MAY 2181738 MAY 2181738 Contact Us For Availability
2
MAY 2174748 MAY 2174748 Contact Us For Availability
2
MAY W10175967 MAY W10175967 Contact Us For Availability
2
MAY 2171713 MAY 2171713 Contact Us For Availability
2
MAY W10181208 MAY W10181208 Contact Us For Availability
2
Door, Compartment MAY 2256101 Contact Us For Availability
2
MAY 67006115 MAY 67006115 Contact Us For Availability
2
Screw MAY 3196537 Contact Us For Availability
2
Screw (4) MAY 489214 Contact Us For Availability
2
Fan, Blade MAY 12825802 Contact Us For Availability
2
MAY 2155590 MAY 2155590 Contact Us For Availability
2
MAY 2209774 MAY 2209774 Contact Us For Availability
3
MAY 3400517 MAY 3400517 Contact Us For Availability
3
MAY 2182757 MAY 2182757 Contact Us For Availability
3
Cover, Crisper MAY 2209698 Contact Us For Availability
3
Clip, Air Duct (2) MAY 842534 Contact Us For Availability
3
Soleniod Assembly MAY 2152713 Contact Us For Availability
3
Door Bin (3) MAY 2304235 Contact Us For Availability
3
MAY 2308091 MAY 2308091 Contact Us For Availability
3
MAY 2194719 MAY 2194719 Contact Us For Availability
3
MAY W10211163 MAY W10211163 Contact Us For Availability
3
MAY 2161229 MAY 2161229 Contact Us For Availability
3
MAY 2149705 MAY 2149705 Contact Us For Availability
3
CLIP,FUSE MAY 628379 Contact Us For Availability
4
MAY 2196236 MAY 2196236 Contact Us For Availability
4
MAY 489464 MAY 489464 Contact Us For Availability
4
MAY 2257741 MAY 2257741 Contact Us For Availability
4
Trim, Pan MAY 2255593 Contact Us For Availability
4
Support, Stud (4) MAY 2196206 Contact Us For Availability
4
MAY 2149100 MAY 2149100 Contact Us For Availability
4
MAY 2326259 MAY 2326259 Contact Us For Availability
4
MAY 2304772 MAY 2304772 Contact Us For Availability
4
MAY 2321799 MAY 2321799 Contact Us For Availability
4
Thermostat MAY 2315562 Contact Us For Availability
4
MAY 2223137 MAY 2223137 Contact Us For Availability
5
MAY 489478 MAY 489478 Contact Us For Availability
5
MAY W10166019 MAY W10166019 Contact Us For Availability
5
GLASS COVER MAY 2179259 Contact Us For Availability
5
MAY 2309597 MAY 2309597 Contact Us For Availability
5
Door Gasket, Magnetic (Mist Beige) MAY 2309528 Contact Us For Availability
5
MAY 2309529 MAY 2309529 Contact Us For Availability
5
Door Gasket, Magnetic (Apollo Grey) MAY 2327163 Contact Us For Availability
5
Trivet (4) MAY 2171157 Contact Us For Availability
5
MAY 2196195 MAY 2196195 Contact Us For Availability
5
MAY 2326941 MAY 2326941 Contact Us For Availability
5
MAY 2203593 MAY 2203593 Contact Us For Availability
5
Circuit Board and Bracket MAY 2303824 Contact Us For Availability
6
MAY 2155013 MAY 2155013 Contact Us For Availability
6
MAY 489290 MAY 489290 Contact Us For Availability
6
MAY 2179350 MAY 2179350 Contact Us For Availability
6
Shelf, Wire MAY 2309596 Contact Us For Availability
6
MAY 2325303 MAY 2325303 Contact Us For Availability
6
MAY 3400012 MAY 3400012 Contact Us For Availability
6
MAY 2180353 MAY 2180353 Contact Us For Availability
6
MAY 8533993 MAY 8533993 Contact Us For Availability
6
MAY W10131845 MAY W10131845 Contact Us For Availability
6
MAY 489398 MAY 489398 Contact Us For Availability
6
MAY 2315534 MAY 2315534 Contact Us For Availability
7
Screw MAY 488280 Contact Us For Availability
7
MAY 2255592 MAY 2255592 Contact Us For Availability
7
Basket, Freezer MAY 2309757 Contact Us For Availability
7
MAY 489399 MAY 489399 Contact Us For Availability
7
Door Gasket, Magnetic (Mist Beige) MAY 2309532 Contact Us For Availability
7
MAY 2309533 MAY 2309533 Contact Us For Availability
7
Door Gasket, Magnetic (Apollo Grey) MAY 2327164 Contact Us For Availability
7
MAY 2304355 MAY 2304355 Contact Us For Availability
7
MAY W10196323 MAY W10196323 Contact Us For Availability
7
Fan Blade MAY 2169142 Contact Us For Availability
7
MAY 940014 MAY 940014 Contact Us For Availability
7
Tube Clip MAY 2208136 Contact Us For Availability
8
Housing, Water Filter MAY W10121138 Contact Us For Availability
8
MAY 2256085 MAY 2256085 Contact Us For Availability
8
MAY 2311726 MAY 2311726 Contact Us For Availability
8
Cup, Shelf Mount MAY W10130299 Contact Us For Availability
8
MAY W10169511 MAY W10169511 Contact Us For Availability
8
DOOR CLOSER UPPER CAM MAY 2182178 Contact Us For Availability
8
MAY 2209681 MAY 2209681 Contact Us For Availability
8
MAY 2205686 MAY 2205686 Contact Us For Availability
8
MAY 2161302 MAY 2161302 Contact Us For Availability
8
MAY 2304241 MAY 2304241 Contact Us For Availability
8
MAY 2181741 MAY 2181741 Contact Us For Availability
8
MAY 2174155 MAY 2174155 Contact Us For Availability
9
Shim MAY 2209697 Contact Us For Availability
9
MAY W10151375 MAY W10151375 Contact Us For Availability
9
MAY 2179342 MAY 2179342 Contact Us For Availability
9
SHELF WIRE MAY 2309522 Contact Us For Availability
9
Grille, Overflow (Black) MAY 2206670B Contact Us For Availability
9
Grille, Overflow (White) MAY 2206670W Contact Us For Availability
9
Grille, Overflow (Nickel One) MAY W10171993 Contact Us For Availability
9
Box Cover MAY 2255624 Contact Us For Availability
9
Fan Grommet (2) MAY 2176759 Contact Us For Availability
9
MAY 2172906 MAY 2172906 Contact Us For Availability
9
MAY 488649 MAY 488649 Contact Us For Availability
10
MAY 489500 MAY 489500 Contact Us For Availability
10
Air Diffuser Cover MAY 2152019 Contact Us For Availability
10
MAY 2188652 MAY 2188652 Contact Us For Availability
10
Switch, Rocker Arm MAY 1115373 Contact Us For Availability
10
Bracket, Door Stop (Chrome) MAY 2206629 Contact Us For Availability
10
MAY 2206629B MAY 2206629B Contact Us For Availability
10
MAY 2323535 MAY 2323535 Contact Us For Availability
10
MAY 2304317 MAY 2304317 Contact Us For Availability
10
MAY 2322547 MAY 2322547 Contact Us For Availability
10
MAY 2182146 MAY 2182146 Contact Us For Availability
10
MAY 2161466 MAY 2161466 Contact Us For Availability
10
Mold & Heater Assembly (Also Order 542638) MAY W10122527 Contact Us For Availability
11
MAY 4396841 MAY 4396841 Contact Us For Availability
11
Cover, Conduit MAY 2150331 Contact Us For Availability
11
MAY 2188654 MAY 2188654 Contact Us For Availability
11
MAY 8281158 MAY 8281158 Contact Us For Availability
11
MAY 2196091 MAY 2196091 Contact Us For Availability
11
MAY 489420 MAY 489420 Contact Us For Availability
11
Nameplate MAY W10170766 Contact Us For Availability
11
MAY 2203562AP MAY 2203562AP Contact Us For Availability
11
Lever, Ice Dispenser (Black) MAY 2203562B Contact Us For Availability
11
Lever, Ice Dispenser (White) MAY 2203562W Contact Us For Availability
11
MAY 2326982 MAY 2326982 Contact Us For Availability
11
Harness, Fan Evaporator (Includes 4) MAY W10129821 Contact Us For Availability
11
Light Bar (RC) Control MAY 2179920 Contact Us For Availability
11
MAY W10122561 MAY W10122561 Contact Us For Availability
12
MAY 489427 MAY 489427 Contact Us For Availability
12
HINGE TOP, FC MAY 2203770 Contact Us For Availability
12
MAY 486298 MAY 486298 Contact Us For Availability
12
MAY 2196485 MAY 2196485 Contact Us For Availability
12
MAY 2196483 MAY 2196483 Contact Us For Availability
12
MAY 1119005 MAY 1119005 Contact Us For Availability
12
Bracket, Door Stop (Chrome) MAY 2323534 Contact Us For Availability
12
Bracket, Door Stop (Black) MAY 2323534B Contact Us For Availability
12
MAY 2180224 MAY 2180224 Contact Us For Availability
12
Gasket, Fan Scroll MAY 2155789 Contact Us For Availability
12
Pivot Arm MAY 2161306 Contact Us For Availability
12
MAY 627843 MAY 627843 Contact Us For Availability
13
HINGE TOP RC MAY 2203771 Contact Us For Availability
13
MAY 2309519 MAY 2309519 Contact Us For Availability
13
MAY 2171714 MAY 2171714 Contact Us For Availability
13
MAY 1119007 MAY 1119007 Contact Us For Availability
13
MAY 2195051 MAY 2195051 Contact Us For Availability
13
Unit Cover, Bottom MAY 2304899 Contact Us For Availability
13
Wire Tie MAY 2172840 Contact Us For Availability
13
MAY 627068 MAY 627068 Contact Us For Availability
13
MAY W10122563 MAY W10122563 Contact Us For Availability
14
Light Socket MAY 2162085 Contact Us For Availability
14
MAY W10204356 MAY W10204356 Contact Us For Availability
14
HOUSING, HUMIDITY CONTROL MAY 2179343 Contact Us For Availability
14
MAY 2257022 MAY 2257022 Contact Us For Availability
14
MAY 2309941 MAY 2309941 Contact Us For Availability
14
MAY 2162361 MAY 2162361 Contact Us For Availability
14
MAY W10210786 MAY W10210786 Contact Us For Availability
14
MAY 2203876 MAY 2203876 Contact Us For Availability
14
Support MAY 2194712 Contact Us For Availability
15
Hinge Cover (FC) (White) MAY W10138581 Contact Us For Availability
15
MAY W10138582 MAY W10138582 Contact Us For Availability
15
Hinge Cover (FC) (Apollo Grey) MAY W10138584 Contact Us For Availability
15
MAY 3400894 MAY 3400894 Contact Us For Availability
15
MAY 2257023 MAY 2257023 Contact Us For Availability
15
MAY W10206322 MAY W10206322 Contact Us For Availability
15
MAY 2311725 MAY 2311725 Contact Us For Availability
15
Cover, Evaporator (Includes 8) MAY W10194476 Contact Us For Availability
15
Thermostat, Barrier MAY 2196001 Contact Us For Availability
15
MAY 2315522 MAY 2315522 Contact Us For Availability
16
Light Bulb MAY W10194422 Contact Us For Availability
16
Slide, Container (Left Side) MAY 1119237 Contact Us For Availability
16
Slide, Container (Right Side) MAY 1119293 Contact Us For Availability
16
MAY 2257024 MAY 2257024 Contact Us For Availability
16
MAY 2304673 MAY 2304673 Contact Us For Availability
16
Start-Device, Combination (Start Relay and Ov MAY W10189190 Contact Us For Availability
16
Start-Device, Combination (Start Relay and Ov MAY W10197427 Contact Us For Availability
16
Screw (6) MAY 8281159 Contact Us For Availability
16
Thermostat (Also Order 542369 Cement Alumilas MAY 628397 Contact Us For Availability
17
MAY 2260502B MAY 2260502B Contact Us For Availability
17
Cap, Water Filter (Apollo Grey) MAY 2260502MG Contact Us For Availability
17
MAY 2260502W MAY 2260502W Contact Us For Availability
17
Snack Bin MAY 2309518 Contact Us For Availability
17
MAY 489100 MAY 489100 Contact Us For Availability
17
MAY 489235 MAY 489235 Contact Us For Availability
17
MAY 2203561AP MAY 2203561AP Contact Us For Availability
17
Lever, Water Dispenser (Black) MAY 2203561B Contact Us For Availability
17
Lever, Water Dispenser (White) MAY 2203561W Contact Us For Availability
17
Capacitor (Production) MAY 2264017 Contact Us For Availability
17
MAY 2310533 MAY 2310533 Contact Us For Availability
17
MAY 8533917 MAY 8533917 Contact Us For Availability
18
MAY 3400113 MAY 3400113 Contact Us For Availability
18
MAY 3400893 MAY 3400893 Contact Us For Availability
18
MAY 1115374 MAY 1115374 Contact Us For Availability
18
MAY 1119009 MAY 1119009 Contact Us For Availability
18
MAY 2321748 MAY 2321748 Contact Us For Availability
18
MAY 2263990 MAY 2263990 Contact Us For Availability
18
MAY 2203595 MAY 2203595 Contact Us For Availability
18
MAY 489276 MAY 489276 Contact Us For Availability
19
MAY 2260503B MAY 2260503B Contact Us For Availability
19
Button, Water Filter (Midnight Grey) MAY 2260503MG Contact Us For Availability
19
Button, Water Filter (White) MAY 2260503W Contact Us For Availability
19
Shelf Assembly, Spillguard MAY 2309524 Contact Us For Availability
19
Block, Blade MAY 2157405 Contact Us For Availability
19
Clip, Retaining MAY W10174384 Contact Us For Availability
19
MAY 2203596 MAY 2203596 Contact Us For Availability
19
Clip-Wiring MAY 1115375 Contact Us For Availability
19
MAY 2304354 MAY 2304354 Contact Us For Availability
20
Screw (2) MAY 3400858 Contact Us For Availability
20
MAY 489229 MAY 489229 Contact Us For Availability
20
MAY 2305571 MAY 2305571 Contact Us For Availability
20
MAY 8281232 MAY 8281232 Contact Us For Availability
20
Connecting Rod MAY 2161308 Contact Us For Availability
20
MAY 628320 MAY 628320 Contact Us For Availability
21
Filler, Wrapper (White) MAY 2201014 Contact Us For Availability
21
Filler, Wrapper (Black) MAY 2201017 Contact Us For Availability
21
Filler, Wrapper (Apollo Grey) MAY 2254507 Contact Us For Availability
21
MAY 2196295 MAY 2196295 Contact Us For Availability
21
Bezel, Display (White) MAY W10136850 Contact Us For Availability
21
Bezel, Display (Black) MAY W10136851 Contact Us For Availability
21
Bezel, Display (Stainless) MAY W10139842 Contact Us For Availability
21
Bezel, Display (Stainless VCM) MAY W10171988 Contact Us For Availability
21
MAY 489396 MAY 489396 Contact Us For Availability
21
MAY 489391 MAY 489391 Contact Us For Availability
21
Module Assembly (Includes Items 23 & 24) MAY 626691 Contact Us For Availability
22
MAY 2323580B MAY 2323580B Contact Us For Availability
22
MAY 2323580MG MAY 2323580MG Contact Us For Availability
22
MAY 2323580W MAY 2323580W Contact Us For Availability
22
MAY 2305377 MAY 2305377 Contact Us For Availability
22
Screw MAY 488208 Contact Us For Availability
22
MAY 489000 MAY 489000 Contact Us For Availability
22
Evaporator MAY 2188823 Contact Us For Availability
22
MAY W10176424 MAY W10176424 Contact Us For Availability
23
MAY 489497 MAY 489497 Contact Us For Availability
23
MAY 2171682 MAY 2171682 Contact Us For Availability
23
MAY W10170168 MAY W10170168 Contact Us For Availability
23
MAY W10170169 MAY W10170169 Contact Us For Availability
23
MAY W10170172 MAY W10170172 Contact Us For Availability
23
MAY W10172008 MAY W10172008 Contact Us For Availability
23
Clamp MAY 2161324 Contact Us For Availability
23
LIGHT BAR FC MAY 2179921 Contact Us For Availability
23
MAY 626683 MAY 626683 Contact Us For Availability
24
MAY 489483 MAY 489483 Contact Us For Availability
24
MAY 1119018 MAY 1119018 Contact Us For Availability
24
MAY 625834 MAY 625834 Contact Us For Availability
24
Fan, Motor MAY 2188874 Contact Us For Availability
24
Window Light Lens MAY 2175513 Contact Us For Availability
24
Screw MAY 489136 Contact Us For Availability
25
Door Closer (RC) Lower Cam MAY 2155311 Contact Us For Availability
25
MAY 2155231 MAY 2155231 Contact Us For Availability
25
MAY 1105523 MAY 1105523 Contact Us For Availability
25
Spring Washer MAY 489203 Contact Us For Availability
26
MAY 1119020 MAY 1119020 Contact Us For Availability
26
Heat Shield MAY W10194475 Contact Us For Availability
26
CONNECTING ROD, SHORT MAY 2161307 Contact Us For Availability
27
CLAMP, SERVICE CORD MAY 549193 Contact Us For Availability
27
MAY 1119021 MAY 1119021 Contact Us For Availability
27
MAY W10143759 MAY W10143759 Contact Us For Availability
27
MAY W10177049 MAY W10177049 Contact Us For Availability
27
Heat Shield, Control Box MAY 2172931 Contact Us For Availability
28
SCREW MAY 488886 Contact Us For Availability
28
Compressor (Includes Items 16, 17, 27, & 35) MAY W10183575 Contact Us For Availability
29
MAY 8281227 MAY 8281227 Contact Us For Availability
29
MAY 2180348 MAY 2180348 Contact Us For Availability
29
Unit Mounting Frame MAY W10196321 Contact Us For Availability
30
Hinge Cover (White) MAY W10138576 Contact Us For Availability
30
Hinge Cover (Black) MAY W10138577 Contact Us For Availability
30
Hinge Cover (Apollo Grey) MAY W10138579 Contact Us For Availability
30
MAY 1119017 MAY 1119017 Contact Us For Availability
30
MAY 2310425 MAY 2310425 Contact Us For Availability
31
MAY 489234 MAY 489234 Contact Us For Availability
31
MAY 2181929 MAY 2181929 Contact Us For Availability
32
MAY 2188735 MAY 2188735 Contact Us For Availability
32
MAY 489236 MAY 489236 Contact Us For Availability
32
MAY 2188175 MAY 2188175 Contact Us For Availability
33
MAY 2304888 MAY 2304888 Contact Us For Availability
33
MAY 2204321 MAY 2204321 Contact Us For Availability
33
MAY 2304287 MAY 2304287 Contact Us For Availability
34
MAY W10153550 MAY W10153550 Contact Us For Availability
34
MAY 489373 MAY 489373 Contact Us For Availability
35
MAY 2171706 MAY 2171706 Contact Us For Availability
35
MAY 1100826 MAY 1100826 Contact Us For Availability
36
Tube, Filter Outlet MAY 2255012 Contact Us For Availability
36
MAY 489340 MAY 489340 Contact Us For Availability
37
MAY 2319867 MAY 2319867 Contact Us For Availability
37
MAY W10196306 MAY W10196306 Contact Us For Availability
38
Block, Housing Support MAY 2260519 Contact Us For Availability
38
MAY 2155547 MAY 2155547 Contact Us For Availability
39
Hinge Bottom (FC) MAY 2323833 Contact Us For Availability
39
Process Tube MAY W10171238 Contact Us For Availability
40
DOOR CLOSER, FC MAY 2223751 Contact Us For Availability
100
MAY W10192856 MAY W10192856 Contact Us For Availability
100
Complete Icemaker MAY W10190966 Contact Us For Availability
NI
MAY 876764 MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS (1/4``) MAY 978025 Contact Us For Availability
NI
Valve, Access (5/16``) MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS (3/8``) MAY 978027 Contact Us For Availability
NI
Valve, Access (1/2``) MAY 978028 Contact Us For Availability
NI
Valve, Access (5/8``) MAY 978029 Contact Us For Availability
NI
Valve, Access (3/4``) MAY 978030 Contact Us For Availability
NI
MAY 1117510 MAY 1117510 Contact Us For Availability
NI
SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (BLACK) MAY 350939 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, WH MAY 350942 Contact Us For Availability
NI
MAY 4392899 MAY 4392899 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (Biscuit) MAY 4392900 Contact Us For Availability
NI
MAY 4392901 MAY 4392901 Contact Us For Availability
NI
MAY 479502 MAY 479502 Contact Us For Availability
NI
MAY 503695 MAY 503695 Contact Us For Availability
NI
MAY 505587 MAY 505587 Contact Us For Availability
NI
TOUCH-UP, WHITE PORCELAIN (2 OZ.) MAY 511873 Contact Us For Availability
NI
MAY 542638 MAY 542638 Contact Us For Availability
NI
MAY 542639 MAY 542639 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (Black) MAY 799340 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (White) MAY 799344 Contact Us For Availability
NI
Kit, Evaporator Repair (Aluminum Epoxy) MAY 799833 Contact Us For Availability
NI
MAY 80051 MAY 80051 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. GRAPHITE) MAY 8171357 Contact Us For Availability
NI
PAINT, BULK (1 QT. GRAPHITE) MAY 8171358 Contact Us For Availability
NI
MAY 833938 MAY 833938 Contact Us For Availability
× ![]()
