Model Maytag MSD2274VEQ00 REFRIGERATOR – Common Parts & Diagrams

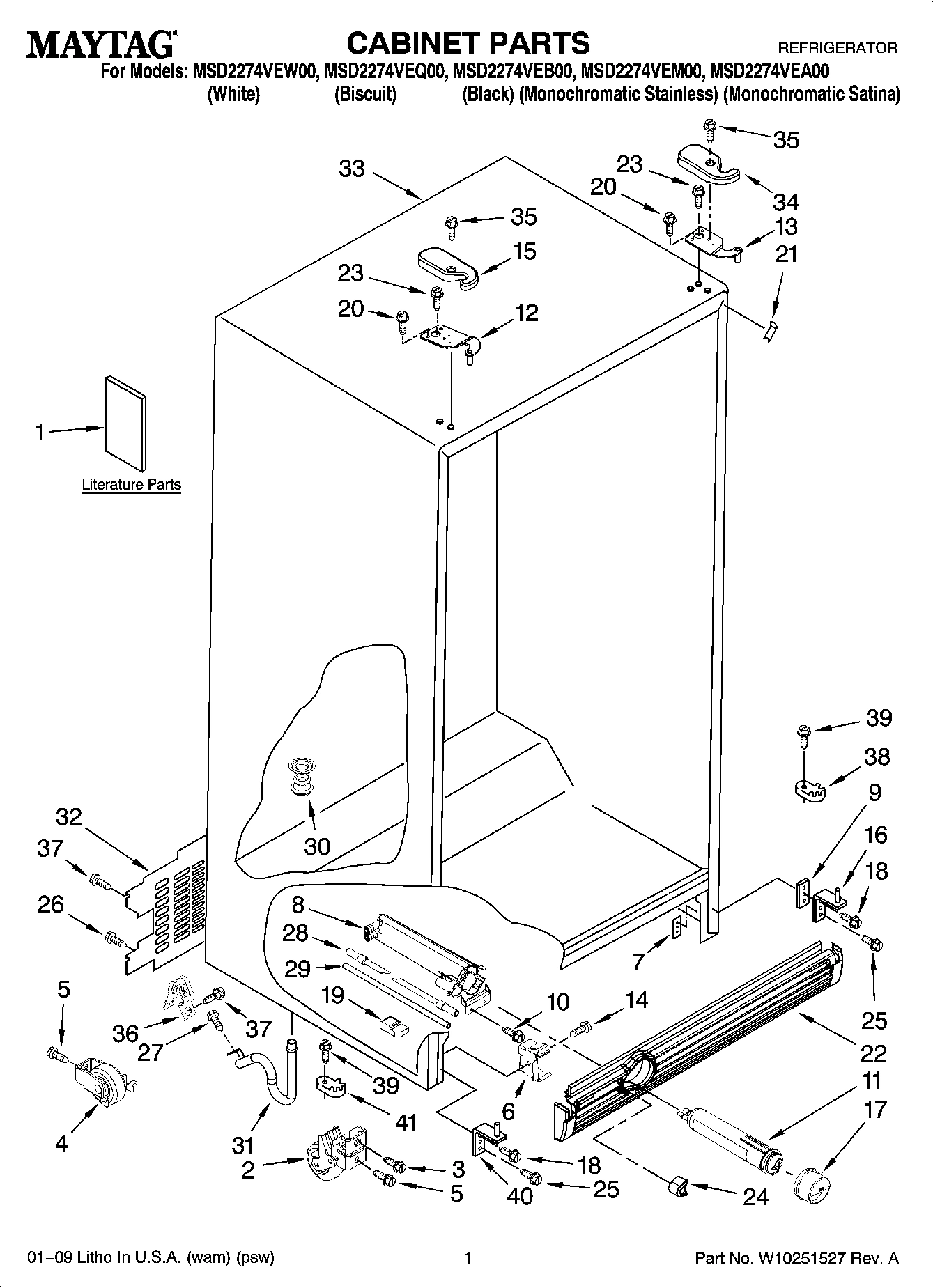

01 - CABINET PARTS

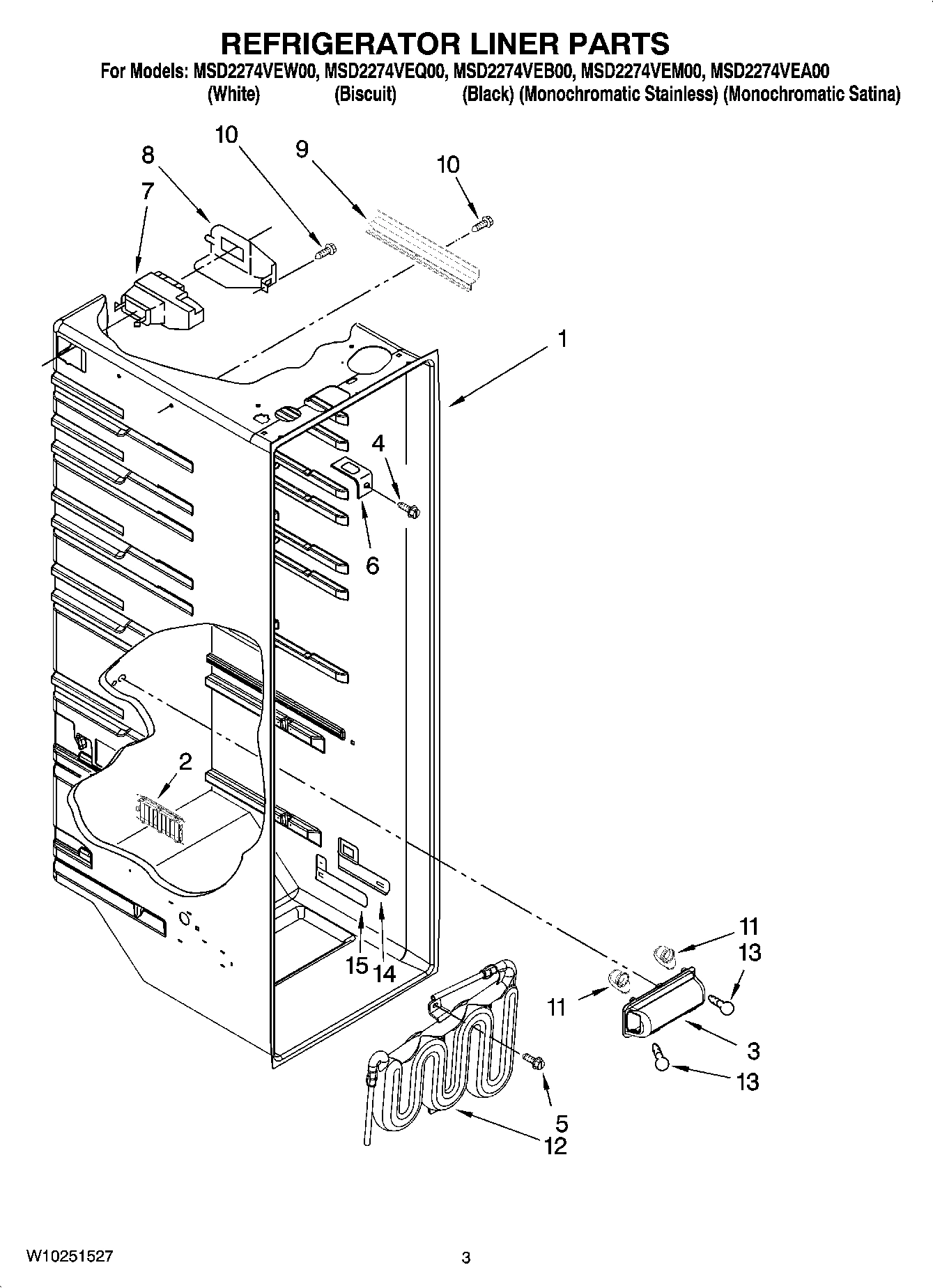

02 - REFRIGERATOR LINER PARTS
03 - REFRIGERATOR SHELF PARTS
04 - FREEZER LINER PARTS
05 - MOTOR AND ICE CONTAINER PARTS
06 - REFRIGERATOR DOOR PARTS
07 - FREEZER DOOR PARTS
08 - DISPENSER FRONT PARTS
09 - UNIT PARTS
10 - AIR FLOW PARTS
11 - CONTROL PARTS
12 - ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MSD2274VEQ00 REFRIGERATOR
1
MAY 628370 MAY 628370 Contact Us For Availability
1
MAY W10180071 MAY W10180071 Contact Us For Availability
1
MAY W10180407 MAY W10180407 Contact Us For Availability
1
MAY W10214488 MAY W10214488 Contact Us For Availability
1
MAY W10235230 MAY W10235230 Contact Us For Availability
1
MAY 489084 MAY 489084 Contact Us For Availability
1
Cover, Crisper MAY 2209698 Contact Us For Availability
1
MAY 2254588 MAY 2254588 Contact Us For Availability
1
MAY W10202773 MAY W10202773 Contact Us For Availability
1
MAY W10202774 MAY W10202774 Contact Us For Availability
1
MAY W10202775 MAY W10202775 Contact Us For Availability
1
MAY W10202776 MAY W10202776 Contact Us For Availability
1
MAY W10202777 MAY W10202777 Contact Us For Availability
1
MAY W10170769 MAY W10170769 Contact Us For Availability
1
MAY W10202756 MAY W10202756 Contact Us For Availability
1
MAY W10202757 MAY W10202757 Contact Us For Availability
1
MAY W10202758 MAY W10202758 Contact Us For Availability
1
MAY W10202759 MAY W10202759 Contact Us For Availability
1
Connector MAY 2320322 Contact Us For Availability
1
MAY 2182119 MAY 2182119 Contact Us For Availability
1
MAY 2181738 MAY 2181738 Contact Us For Availability
2
MAY 2174748 MAY 2174748 Contact Us For Availability
2
MAY 2257741 MAY 2257741 Contact Us For Availability
2
Trim, Pan MAY 2255593 Contact Us For Availability
2
Cup, Shelf Mounting (12) MAY W10130299 Contact Us For Availability
2
MAY W10181208 MAY W10181208 Contact Us For Availability
2
Door, Compartment MAY 2256101 Contact Us For Availability
2
Handle (Stainless & Satina) MAY W10170739 Contact Us For Availability
2
MAY W10170745 MAY W10170745 Contact Us For Availability
2
MAY W10170746 MAY W10170746 Contact Us For Availability
2
MAY W10170748 MAY W10170748 Contact Us For Availability
2
MAY 2305202 MAY 2305202 Contact Us For Availability
2
Fan, Blade MAY 12825802 Contact Us For Availability
2
MAY 2155590 MAY 2155590 Contact Us For Availability
2
TUBE-BARRIER, THERMOSTAT MAY 2196001 Contact Us For Availability
2
MAY 2209774 MAY 2209774 Contact Us For Availability
3
MAY 3400517 MAY 3400517 Contact Us For Availability
3
Bracket, Dual Crisper Light MAY W10166019 Contact Us For Availability
3
GLASS COVER MAY 2179259 Contact Us For Availability
3
Shelf, Wire MAY 2309633 Contact Us For Availability
3
Soleniod Assembly MAY 2152713 Contact Us For Availability
3
MAY 2308091 MAY 2308091 Contact Us For Availability
3
MAY 2305242 MAY 2305242 Contact Us For Availability
3
MAY W10211163 MAY W10211163 Contact Us For Availability
3
MAY 2161229 MAY 2161229 Contact Us For Availability
3
Screw MAY 489214 Contact Us For Availability
3
CLIP,FUSE MAY 628379 Contact Us For Availability
4
MAY 2196236 MAY 2196236 Contact Us For Availability
4
MAY 489464 MAY 489464 Contact Us For Availability
4
MAY 2255592 MAY 2255592 Contact Us For Availability
4
Clip, Air Duct (2) MAY 842534 Contact Us For Availability
4
MAY 2149100 MAY 2149100 Contact Us For Availability
4
MAY W10184500 MAY W10184500 Contact Us For Availability
4
Door Bin (3) MAY 2304235 Contact Us For Availability
4
MAY W10144517 MAY W10144517 Contact Us For Availability
4
MAY 2321799 MAY 2321799 Contact Us For Availability
4
MAY 2149705 MAY 2149705 Contact Us For Availability
4
MAY 2304859 MAY 2304859 Contact Us For Availability
5
Screw MAY 488280 Contact Us For Availability
5
MAY 2179342 MAY 2179342 Contact Us For Availability
5
Support, Stud (4) MAY 2196206 Contact Us For Availability
5
MAY 2325303 MAY 2325303 Contact Us For Availability
5
MAY 2255411 MAY 2255411 Contact Us For Availability
5
MAY 2328020 MAY 2328020 Contact Us For Availability
5
Clip, Wire MAY 2208280 Contact Us For Availability
5
MAY 2203591 MAY 2203591 Contact Us For Availability
5
Thermostat MAY 2315562 Contact Us For Availability
5
Screw MAY 488208 Contact Us For Availability
6
MAY 2155013 MAY 2155013 Contact Us For Availability
6
Clip, Control Box (2) MAY 2256085 Contact Us For Availability
6
MAY 2188652 MAY 2188652 Contact Us For Availability
6
MAY 2309758 MAY 2309758 Contact Us For Availability
6
Screw (6) MAY 489399 Contact Us For Availability
6
Door Gasket, Magnetic (Mist Beige) MAY 2309600 Contact Us For Availability
6
MAY 2309653 MAY 2309653 Contact Us For Availability
6
Door Gasket, Magnetic (Apollo Grey) MAY 2327161 Contact Us For Availability
6
Trivet MAY 2309717 Contact Us For Availability
6
MAY 2328018 MAY 2328018 Contact Us For Availability
6
MAY 8533993 MAY 8533993 Contact Us For Availability
6
MAY 2303824 MAY 2303824 Contact Us For Availability
6
Filter Valve Asm MAY W10179146 Contact Us For Availability
7
Screw Plate (2) MAY 2304249 Contact Us For Availability
7
MAY W10151374 MAY W10151374 Contact Us For Availability
7
MAY 2188654 MAY 2188654 Contact Us For Availability
7
Switch, Rocker Arm MAY 1115373 Contact Us For Availability
7
MAY W10169511 MAY W10169511 Contact Us For Availability
7
MAY 3400012 MAY 3400012 Contact Us For Availability
7
MAY 4449745 MAY 4449745 Contact Us For Availability
7
Clip, Retaining MAY W10174384 Contact Us For Availability
7
MAY 2315549 MAY 2315549 Contact Us For Availability
7
MAY 489398 MAY 489398 Contact Us For Availability
7
Tube Clip MAY 2208136 Contact Us For Availability
8
Housing, Water Filter MAY W10121138 Contact Us For Availability
8
Air Diffuser Cover MAY 2152019 Contact Us For Availability
8
MAY 2196485 MAY 2196485 Contact Us For Availability
8
MAY 8281158 MAY 8281158 Contact Us For Availability
8
Door Gasket, Magnetic (Mist Beige) MAY 2309604 Contact Us For Availability
8
MAY 2309654 MAY 2309654 Contact Us For Availability
8
Door Gasket, Magnetic (Apollo Grey) MAY 2327162 Contact Us For Availability
8
Tray Assembly (White) MAY W10192669 Contact Us For Availability
8
MAY W10192686 MAY W10192686 Contact Us For Availability
8
Tray Assembly (Black) MAY W10192687 Contact Us For Availability
8
MAY W10192688 MAY W10192688 Contact Us For Availability
8
MAY W10192689 MAY W10192689 Contact Us For Availability
8
MAY 2161302 MAY 2161302 Contact Us For Availability
8
Fan Blade MAY 2169142 Contact Us For Availability
8
MAY 940014 MAY 940014 Contact Us For Availability
8
MAY 2174155 MAY 2174155 Contact Us For Availability
9
Shim (2) MAY 2209697 Contact Us For Availability
9
Cover, Conduit MAY 2150331 Contact Us For Availability
9
MAY 3400894 MAY 3400894 Contact Us For Availability
9
MAY 2196483 MAY 2196483 Contact Us For Availability
9
MAY 2209680 MAY 2209680 Contact Us For Availability
9
MAY 2328033 MAY 2328033 Contact Us For Availability
9
MAY 2304241 MAY 2304241 Contact Us For Availability
9
MAY 627068 MAY 627068 Contact Us For Availability
9
MAY 488649 MAY 488649 Contact Us For Availability
10
Screw (2) MAY 489500 Contact Us For Availability
10
MAY 486298 MAY 486298 Contact Us For Availability
10
HOUSING, HUMIDITY CONTROL MAY 2179343 Contact Us For Availability
10
MAY 2309632 MAY 2309632 Contact Us For Availability
10
MAY W10138193 MAY W10138193 Contact Us For Availability
10
DOOR CLOSER UPPER CAM MAY 2182178 Contact Us For Availability
10
MAY 2328015 MAY 2328015 Contact Us For Availability
10
Box Cover MAY 2255624 Contact Us For Availability
10
Fan Grommet (2) MAY 2176759 Contact Us For Availability
10
MAY 2181741 MAY 2181741 Contact Us For Availability
10
Mold & Heater Assembly (Also Order 542638) MAY W10136595 Contact Us For Availability
11
MAY 4396841 MAY 4396841 Contact Us For Availability
11
Slide, Container (Left Side) MAY 1119237 Contact Us For Availability
11
Slide, Container (Right Side) MAY 1119293 Contact Us For Availability
11
Spacer, Step (3) MAY W10189661 Contact Us For Availability
11
MAY 489420 MAY 489420 Contact Us For Availability
11
Bracket, Door Stop (Chrome) MAY 2206629 Contact Us For Availability
11
MAY 2206629B MAY 2206629B Contact Us For Availability
11
MAY W10144584 MAY W10144584 Contact Us For Availability
11
MAY 2322547 MAY 2322547 Contact Us For Availability
11
MAY 2182146 MAY 2182146 Contact Us For Availability
11
MAY 2172906 MAY 2172906 Contact Us For Availability
11
MAY 2323524 MAY 2323524 Contact Us For Availability
12
HINGE TOP, FC MAY 2203770 Contact Us For Availability
12
MAY W10204356 MAY W10204356 Contact Us For Availability
12
Screw (4) MAY 489100 Contact Us For Availability
12
Spacer, Flat (2) MAY W10189658 Contact Us For Availability
12
Nameplate MAY W10170766 Contact Us For Availability
12
Bracket, Door Stop (Chrome) MAY 2323534 Contact Us For Availability
12
Bracket, Door Stop (Black) MAY 2323534B Contact Us For Availability
12
MAY W10144040 MAY W10144040 Contact Us For Availability
12
MAY 2326982 MAY 2326982 Contact Us For Availability
12
Harness, Fan Evaporator (Includes 4) MAY W10129815 Contact Us For Availability
12
MAY 2161466 MAY 2161466 Contact Us For Availability
12
Ice Striper MAY 2182124 Contact Us For Availability
13
MAY 489427 MAY 489427 Contact Us For Availability
13
HINGE TOP RC MAY 2203771 Contact Us For Availability
13
Shelf Assembly, Spillguard MAY 2309524 Contact Us For Availability
13
MAY 3400893 MAY 3400893 Contact Us For Availability
13
MAY 2257022 MAY 2257022 Contact Us For Availability
13
MAY 2309941 MAY 2309941 Contact Us For Availability
13
Screw MAY W10129563 Contact Us For Availability
13
MAY W10144511 MAY W10144511 Contact Us For Availability
13
MAY W10176454 MAY W10176454 Contact Us For Availability
13
MAY W10176455 MAY W10176455 Contact Us For Availability
13
MAY W10176456 MAY W10176456 Contact Us For Availability
13
MAY W10178766 MAY W10178766 Contact Us For Availability
13
MAY 2155788 MAY 2155788 Contact Us For Availability
13
MAY 2179920 MAY 2179920 Contact Us For Availability
13
Support MAY 2194712 Contact Us For Availability
14
MAY 488500 MAY 488500 Contact Us For Availability
14
MAY W10175967 MAY W10175967 Contact Us For Availability
14
Shelf, Snack Pan MAY 2309560 Contact Us For Availability
14
Shelf, Wire MAY 2309634 Contact Us For Availability
14
MAY 2257023 MAY 2257023 Contact Us For Availability
14
MAY W10182888 MAY W10182888 Contact Us For Availability
14
MAY W10210787 MAY W10210787 Contact Us For Availability
14
MAY 2203875 MAY 2203875 Contact Us For Availability
14
Pivot Arm MAY 2161306 Contact Us For Availability
14
MAY 2315522 MAY 2315522 Contact Us For Availability
15
Hinge Cover (White) MAY W10138581 Contact Us For Availability
15
Hinge Cover (Black) MAY W10138582 Contact Us For Availability
15
Hinge Cover (Biscuit) MAY W10138583 Contact Us For Availability
15
Hinge Cover (Apollo Grey) MAY W10138584 Contact Us For Availability
15
Light Socket MAY 2162085 Contact Us For Availability
15
MAY 2182757 MAY 2182757 Contact Us For Availability
15
MAY 2309518 MAY 2309518 Contact Us For Availability
15
MAY 2257024 MAY 2257024 Contact Us For Availability
15
Clip, Condenser(2) MAY 2311725 Contact Us For Availability
15
MAY 2203840 MAY 2203840 Contact Us For Availability
15
MAY 628532 MAY 628532 Contact Us For Availability
16
MAY 2217075 MAY 2217075 Contact Us For Availability
16
MAY 527949 MAY 527949 Contact Us For Availability
16
Trim, Handle MAY 2309519 Contact Us For Availability
16
MAY W10189660 MAY W10189660 Contact Us For Availability
16
MAY W10144041 MAY W10144041 Contact Us For Availability
16
MAY W10179004 MAY W10179004 Contact Us For Availability
16
MAY W10179005 MAY W10179005 Contact Us For Availability
16
MAY W10179006 MAY W10179006 Contact Us For Availability
16
Front Cover Assembly (Includes Items 12, 13, MAY W10179007 Contact Us For Availability
16
Start Device, Combination (Start Relay and ov MAY W10189190 Contact Us For Availability
16
Start Device, Combination (Start Relay and ov MAY W10197427 Contact Us For Availability
16
Screw (6) MAY 8281159 Contact Us For Availability
16
MAY 8533917 MAY 8533917 Contact Us For Availability
17
MAY 2260502B MAY 2260502B Contact Us For Availability
17
MAY 2260502MG MAY 2260502MG Contact Us For Availability
17
MAY 2260502T MAY 2260502T Contact Us For Availability
17
MAY 2260502W MAY 2260502W Contact Us For Availability
17
MAY 489478 MAY 489478 Contact Us For Availability
17
Blade, Fixed (2) MAY W10181990 Contact Us For Availability
17
Capacitor (Production) MAY 2264017 Contact Us For Availability
17
MAY 2187868 MAY 2187868 Contact Us For Availability
18
Screw (4) MAY 3400113 Contact Us For Availability
18
MAY W10189708 MAY W10189708 Contact Us For Availability
18
Process Tube MAY W10171238 Contact Us For Availability
18
MAY 2203595 MAY 2203595 Contact Us For Availability
18
MAY 2172931 MAY 2172931 Contact Us For Availability
18
MAY 2304354 MAY 2304354 Contact Us For Availability
19
Block, Housing Support MAY 2260519 Contact Us For Availability
19
MAY 489229 MAY 489229 Contact Us For Availability
19
MAY 2263990 MAY 2263990 Contact Us For Availability
19
MAY 2203596 MAY 2203596 Contact Us For Availability
19
CONNECTING ROD, SHORT MAY 2161307 Contact Us For Availability
19
Module Assembly (Includes 20) MAY 626691 Contact Us For Availability
20
MAY 3400858 MAY 3400858 Contact Us For Availability
20
MAY 2196295 MAY 2196295 Contact Us For Availability
20
MAY 1115374 MAY 1115374 Contact Us For Availability
20
MAY 8281232 MAY 8281232 Contact Us For Availability
21
Filler, Wrapper (Biscuit) MAY 2200926 Contact Us For Availability
21
Filler, Wrapper (White) MAY 2201014 Contact Us For Availability
21
Filler, Wrapper (Black) MAY 2201017 Contact Us For Availability
21
Filler, Wrapper (Apollo Grey) MAY 2254507 Contact Us For Availability
21
MAY 2305377 MAY 2305377 Contact Us For Availability
21
MAY 489396 MAY 489396 Contact Us For Availability
21
Clip-Wiring MAY 1115375 Contact Us For Availability
22
MAY W10197249 MAY W10197249 Contact Us For Availability
22
MAY W10197250 MAY W10197250 Contact Us For Availability
22
MAY W10197251 MAY W10197251 Contact Us For Availability
22
MAY W10202905 MAY W10202905 Contact Us For Availability
22
MAY 2171682 MAY 2171682 Contact Us For Availability
22
MAY 2188822 MAY 2188822 Contact Us For Availability
22
Connecting Rod MAY 2161308 Contact Us For Availability
23
MAY 489497 MAY 489497 Contact Us For Availability
23
MAY 1119018 MAY 1119018 Contact Us For Availability
23
Clamp MAY 2161324 Contact Us For Availability
23
MAY 489391 MAY 489391 Contact Us For Availability
24
MAY 2260503B MAY 2260503B Contact Us For Availability
24
Button, Water Filter (Midnight Grey) MAY 2260503MG Contact Us For Availability
24
MAY 2260503T MAY 2260503T Contact Us For Availability
24
Button, Water Filter (White) MAY 2260503W Contact Us For Availability
24
MAY 2155231 MAY 2155231 Contact Us For Availability
24
Fan, Motor MAY 2188874 Contact Us For Availability
24
Front Cover, Control Box MAY W10176424 Contact Us For Availability
25
Screw (2) MAY 3400103 Contact Us For Availability
25
MAY 1119020 MAY 1119020 Contact Us For Availability
25
MAY 1105523 MAY 1105523 Contact Us For Availability
25
LIGHT BAR FC MAY 2179921 Contact Us For Availability
26
Screw MAY 489290 Contact Us For Availability
26
MAY 1119021 MAY 1119021 Contact Us For Availability
26
Heat Shield MAY W10194474 Contact Us For Availability
26
MAY 2175513 MAY 2175513 Contact Us For Availability
27
SCREW MAY 488886 Contact Us For Availability
27
MAY W10143759 MAY W10143759 Contact Us For Availability
27
MAY W10177049 MAY W10177049 Contact Us For Availability
27
Spring Washer MAY 489203 Contact Us For Availability
28
MAY 2319867 MAY 2319867 Contact Us For Availability
28
MAY W10185018 MAY W10185018 Contact Us For Availability
28
Compressor (Includes Items 16, 17, 27, & 34) MAY W10189229 Contact Us For Availability
29
Tube, Filter Outlet MAY 2255012 Contact Us For Availability
29
MAY 1119017 MAY 1119017 Contact Us For Availability
29
MAY 2304903 MAY 2304903 Contact Us For Availability
30
MAY 2304888 MAY 2304888 Contact Us For Availability
30
MAY 489234 MAY 489234 Contact Us For Availability
30
MAY 2310425 MAY 2310425 Contact Us For Availability
31
MAY W10153550 MAY W10153550 Contact Us For Availability
31
MAY 489236 MAY 489236 Contact Us For Availability
31
MAY 2181929 MAY 2181929 Contact Us For Availability
32
MAY 2188734 MAY 2188734 Contact Us For Availability
32
MAY W10189274 MAY W10189274 Contact Us For Availability
32
MAY 2188174 MAY 2188174 Contact Us For Availability
33
MAY W10189277 MAY W10189277 Contact Us For Availability
33
MAY 489373 MAY 489373 Contact Us For Availability
34
Hinge Cover (White) MAY W10138576 Contact Us For Availability
34
Hinge Cover (Black) MAY W10138577 Contact Us For Availability
34
Hinge Cover (Biscuit) MAY W10138578 Contact Us For Availability
34
Hinge Cover (Apollo Grey) MAY W10138579 Contact Us For Availability
34
MAY 1100826 MAY 1100826 Contact Us For Availability
35
MAY 8281227 MAY 8281227 Contact Us For Availability
35
MAY 2171706 MAY 2171706 Contact Us For Availability
35
Screw (5) MAY 489340 Contact Us For Availability
36
CLAMP, SERVICE CORD MAY 549193 Contact Us For Availability
36
MAY W10138206 MAY W10138206 Contact Us For Availability
36
MAY W10163483 MAY W10163483 Contact Us For Availability
37
MAY 2155547 MAY 2155547 Contact Us For Availability
38
MAY 2155311 MAY 2155311 Contact Us For Availability
38
UNIT COVER BOTTOM MAY 2304898 Contact Us For Availability
39
Screw (2) MAY 489483 Contact Us For Availability
39
MAY W10196323 MAY W10196323 Contact Us For Availability
40
Hinge Bottom (FC) MAY 2323833 Contact Us For Availability
41
DOOR CLOSER LOWER CAM (FC) MAY 2223751 Contact Us For Availability
100
MAY W10138196 MAY W10138196 Contact Us For Availability
100
MAY W10122556 MAY W10122556 Contact Us For Availability
NI
MAY 876764 MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS (1/4``) MAY 978025 Contact Us For Availability
NI
Valve, Access (5/16``) MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS (3/8``) MAY 978027 Contact Us For Availability
NI
Valve, Access (1/2``) MAY 978028 Contact Us For Availability
NI
Valve, Access (5/8``) MAY 978029 Contact Us For Availability
NI
Valve, Access (3/4``) MAY 978030 Contact Us For Availability
NI
MAY 1117510 MAY 1117510 Contact Us For Availability
NI
SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (BLACK) MAY 350939 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, WH MAY 350942 Contact Us For Availability
NI
MAY 479502 MAY 479502 Contact Us For Availability
NI
MAY 503695 MAY 503695 Contact Us For Availability
NI
MAY 505587 MAY 505587 Contact Us For Availability
NI
MAY 542638 MAY 542638 Contact Us For Availability
NI
MAY 542639 MAY 542639 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (Black) MAY 799340 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (White) MAY 799344 Contact Us For Availability
NI
Kit, Evaporator Repair (Aluminum Epoxy) MAY 799833 Contact Us For Availability
NI
MAY 80051 MAY 80051 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. GRAPHITE) MAY 8171357 Contact Us For Availability
NI
PAINT, BULK (1 QT. GRAPHITE) MAY 8171358 Contact Us For Availability
NI
MAY 833938 MAY 833938 Contact Us For Availability
× ![]()
