Model Maytag MSD2269KEY01 REFRIGERATOR – Common Parts & Diagrams

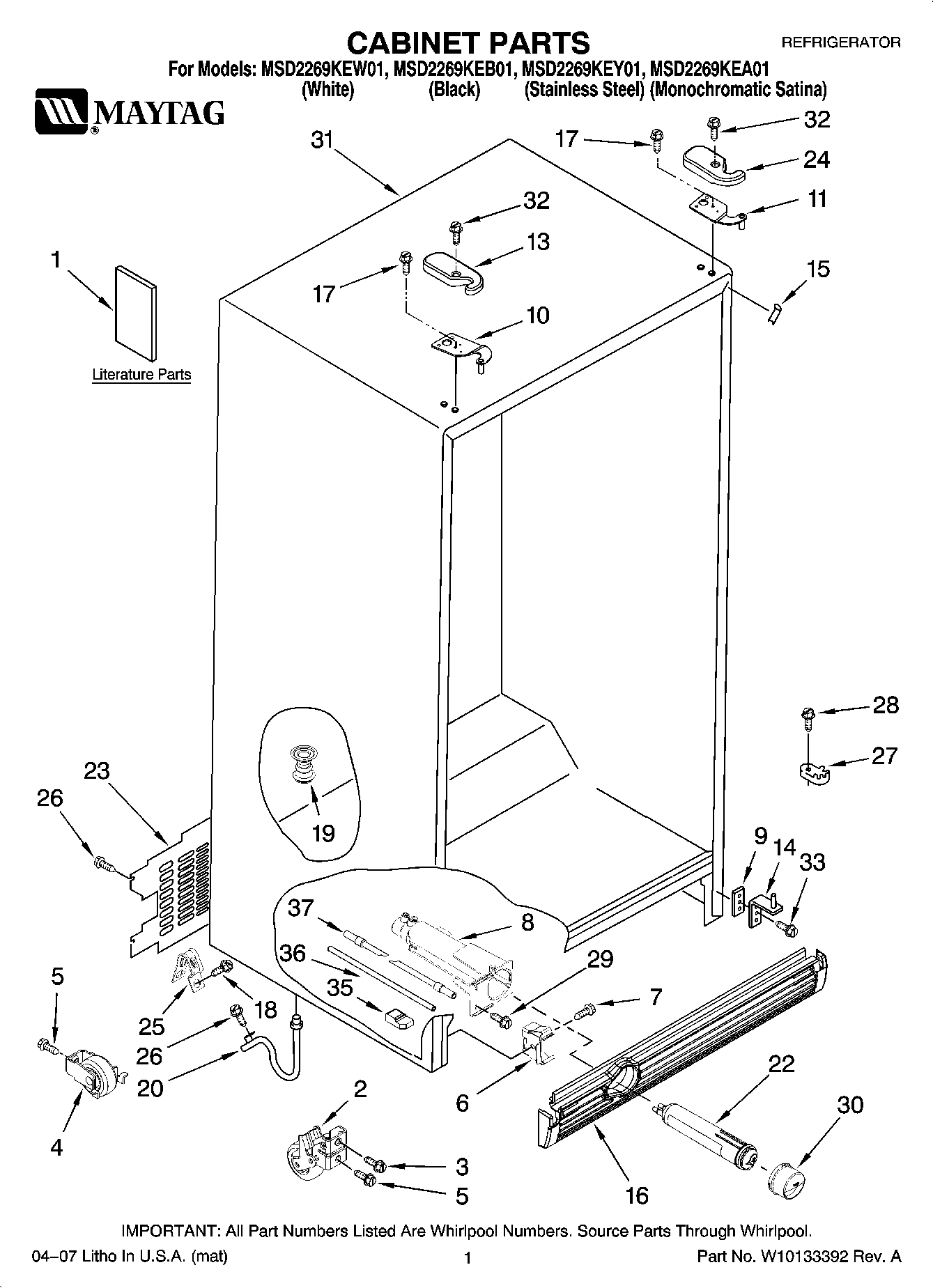

01 - CABINET PARTS

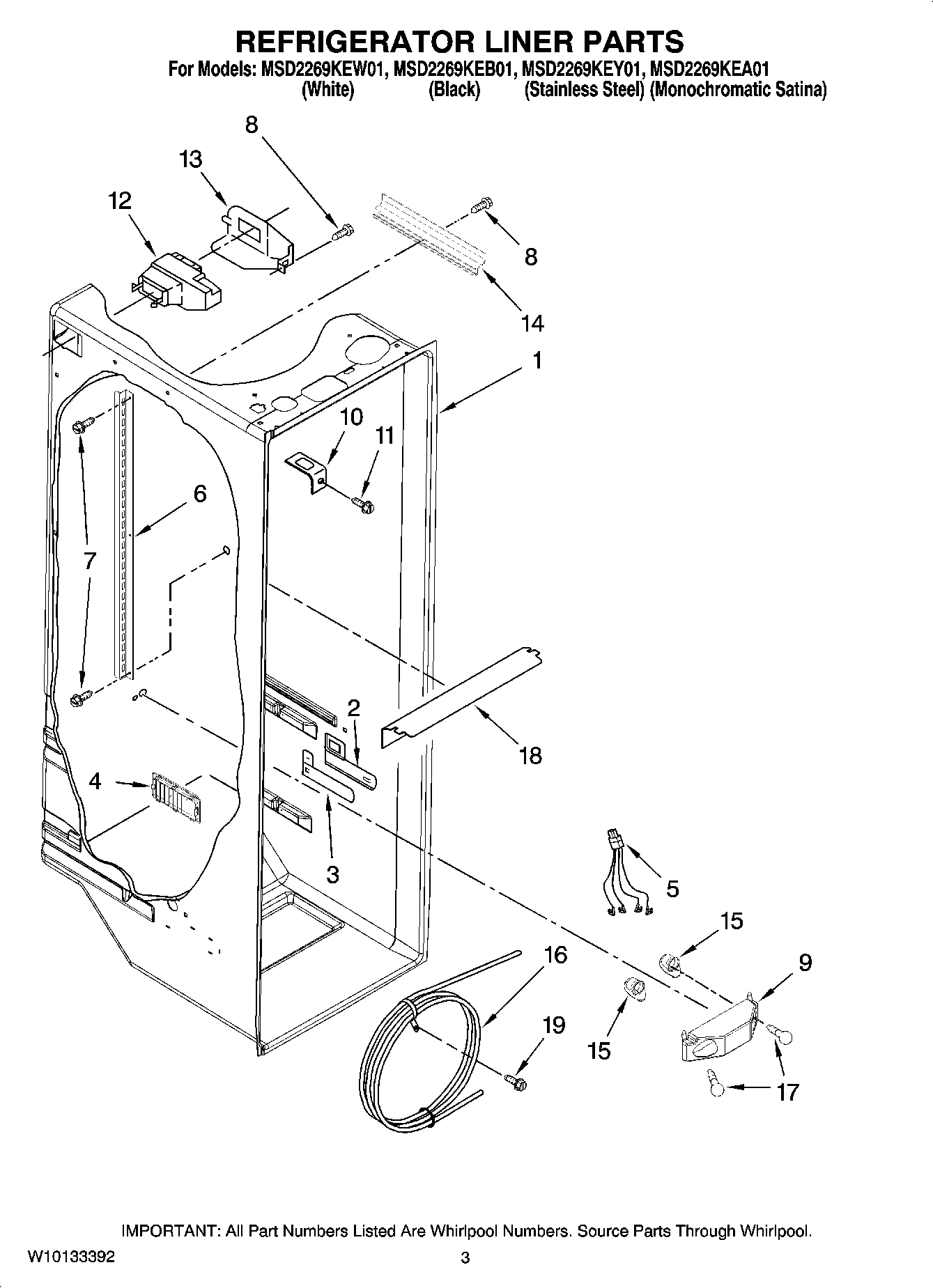

02 - REFRIGERATOR LINER PARTS
03 - REFRIGERATOR SHELF PARTS
04 - FREEZER LINER PARTS
05 - MOTOR AND ICE CONTAINER PARTS
06 - REFRIGERATOR DOOR PARTS
07 - FREEZER DOOR PARTS
08 - DISPENSER FRONT PARTS
09 - UNIT PARTS
10 - ICEMAKER PARTS
11 - CONTROL PARTS
12 - AIR FLOW PARTS, OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MSD2269KEY01 REFRIGERATOR
MAY 1117510 MAY 1117510 Contact Us For Availability
SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
PAINT, PRESSURIZED SPRAY (12 OZ.) (BLACK) MAY 350939 Contact Us For Availability
PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, WH MAY 350942 Contact Us For Availability
MAY 479502 MAY 479502 Contact Us For Availability
MAY 503695 MAY 503695 Contact Us For Availability
MAY 505587 MAY 505587 Contact Us For Availability
MAY 542638 MAY 542638 Contact Us For Availability
MAY 542639 MAY 542639 Contact Us For Availability
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
PAINT, BULK (1 qt.) (Black) MAY 799340 Contact Us For Availability
PAINT, BULK (1 qt.) (White) MAY 799344 Contact Us For Availability
Kit, Evaporator Repair (Aluminum Epoxy) MAY 799833 Contact Us For Availability
MAY 80051 MAY 80051 Contact Us For Availability
PAINT, PRESSURIZED SPRAY (12OZ. GRAPHITE) MAY 8171357 Contact Us For Availability
PAINT, BULK (1 QT. GRAPHITE) MAY 8171358 Contact Us For Availability
MAY 833938 MAY 833938 Contact Us For Availability
MAY W10134625 MAY W10134625 Contact Us For Availability
1
MAY 2305869 MAY 2305869 Contact Us For Availability
1
Use & Care Guide MAY 2318584 Contact Us For Availability
1
MAY W10130367 MAY W10130367 Contact Us For Availability
1
MAY 489084 MAY 489084 Contact Us For Availability
1
Shelf Assembly, Spillguard, Fixed MAY W10130773 Contact Us For Availability
1
Ice Bin MAY 2317246 Contact Us For Availability
1
MAY W10120328 MAY W10120328 Contact Us For Availability
1
MAY W10120329 MAY W10120329 Contact Us For Availability
1
MAY W10120330 MAY W10120330 Contact Us For Availability
1
MAY W10120331 MAY W10120331 Contact Us For Availability
1
MAY W10131232 MAY W10131232 Contact Us For Availability
1
MAY W10131233 MAY W10131233 Contact Us For Availability
1
MAY W10131234 MAY W10131234 Contact Us For Availability
1
MAY W10131235 MAY W10131235 Contact Us For Availability
1
INSULATION, SOUND MAY 2169104 Contact Us For Availability
1
MAY 2181738 MAY 2181738 Contact Us For Availability
1
MAY 2182119 MAY 2182119 Contact Us For Availability
2
MAY 2254628 MAY 2254628 Contact Us For Availability
2
MAY 2194744 MAY 2194744 Contact Us For Availability
2
MAY 2188655 MAY 2188655 Contact Us For Availability
2
MAY 2301291 MAY 2301291 Contact Us For Availability
2
MAY 2301292 MAY 2301292 Contact Us For Availability
2
Crusher Bin MAY W10128699 Contact Us For Availability
2
MAY 2200087 MAY 2200087 Contact Us For Availability
2
MAY 67006115 MAY 67006115 Contact Us For Availability
2
MAY 2225834 MAY 2225834 Contact Us For Availability
2
MAY 2256095 MAY 2256095 Contact Us For Availability
2
MAY 2172931 MAY 2172931 Contact Us For Availability
2
MAY 2155590 MAY 2155590 Contact Us For Availability
3
MAY W10079910 MAY W10079910 Contact Us For Availability
3
MAY 2182757 MAY 2182757 Contact Us For Availability
3
Cover, Crisper MAY 2209698 Contact Us For Availability
3
MAY 2211743K MAY 2211743K Contact Us For Availability
3
MAY 2317247 MAY 2317247 Contact Us For Availability
3
Door, Compartment MAY 2256101 Contact Us For Availability
3
MAY 488500 MAY 488500 Contact Us For Availability
3
MAY 3196537 MAY 3196537 Contact Us For Availability
3
MAY 2194719 MAY 2194719 Contact Us For Availability
3
MAY W10121484 MAY W10121484 Contact Us For Availability
3
CLIP,FUSE MAY 628379 Contact Us For Availability
3
MAY 2313359 MAY 2313359 Contact Us For Availability
4
MAY 2254625 MAY 2254625 Contact Us For Availability
4
MAY 489464 MAY 489464 Contact Us For Availability
4
MAY 2257741 MAY 2257741 Contact Us For Availability
4
MAY 2196485 MAY 2196485 Contact Us For Availability
4
MAY 2301289 MAY 2301289 Contact Us For Availability
4
MAY 2301290 MAY 2301290 Contact Us For Availability
4
MAY 2258220 MAY 2258220 Contact Us For Availability
4
MAY 2156022 MAY 2156022 Contact Us For Availability
4
MAY 2304772 MAY 2304772 Contact Us For Availability
4
MAY 2149705 MAY 2149705 Contact Us For Availability
4
MAY 2212313 MAY 2212313 Contact Us For Availability
5
Wire Harness, Dual Crisper MAY 2311637 Contact Us For Availability
5
MAY 2174150 MAY 2174150 Contact Us For Availability
5
MAY 2212343K MAY 2212343K Contact Us For Availability
5
Spacer, Flat (4) MAY 1119007 Contact Us For Availability
5
MAY 2326259 MAY 2326259 Contact Us For Availability
5
MAY 2196195 MAY 2196195 Contact Us For Availability
5
MAY 2216914 MAY 2216914 Contact Us For Availability
5
MAY 2188709 MAY 2188709 Contact Us For Availability
5
Tube Barrier MAY 2196001 Contact Us For Availability
5
MAY 2319914 MAY 2319914 Contact Us For Availability
6
MAY 2155013 MAY 2155013 Contact Us For Availability
6
Shelf Ladder MAY 2206270 Contact Us For Availability
6
GLASS COVER MAY 2179259 Contact Us For Availability
6
MAY 2216111 MAY 2216111 Contact Us For Availability
6
MAY 2317248 MAY 2317248 Contact Us For Availability
6
MAY 2304235K MAY 2304235K Contact Us For Availability
6
Trivet, FC MAY 2156021K Contact Us For Availability
6
MAY 2180353 MAY 2180353 Contact Us For Availability
6
MAY 8533993 MAY 8533993 Contact Us For Availability
6
Clip, Tube MAY 2208136 Contact Us For Availability
6
MAY 2303824 MAY 2303824 Contact Us For Availability
6
MAY 2315549 MAY 2315549 Contact Us For Availability
7
Screw (8) MAY W10004810 Contact Us For Availability
7
MAY 3400894 MAY 3400894 Contact Us For Availability
7
MAY 2257024 MAY 2257024 Contact Us For Availability
7
MAY 2304355 MAY 2304355 Contact Us For Availability
7
MAY 2217195 MAY 2217195 Contact Us For Availability
7
MAY 2174358 MAY 2174358 Contact Us For Availability
7
MAY 489398 MAY 489398 Contact Us For Availability
7
Fan Blade MAY 2169142 Contact Us For Availability
8
MAY 2186443 MAY 2186443 Contact Us For Availability
8
MAY 2311726 MAY 2311726 Contact Us For Availability
8
Clip, Air Duct (2) MAY 842534 Contact Us For Availability
8
Spacer, Step MAY 1119005 Contact Us For Availability
8
MAY 2221300 MAY 2221300 Contact Us For Availability
8
Door Gasket, Magnetic (Black) MAY 2221311 Contact Us For Availability
8
MAY 2326336 MAY 2326336 Contact Us For Availability
8
MAY 2221301 MAY 2221301 Contact Us For Availability
8
Door Gasket, Magnetic (Black) MAY 2221312 Contact Us For Availability
8
MAY 2326337 MAY 2326337 Contact Us For Availability
8
MAY 2205686 MAY 2205686 Contact Us For Availability
8
Tube Suction MAY 2205764 Contact Us For Availability
8
MAY 488649 MAY 488649 Contact Us For Availability
8
MAY 940014 MAY 940014 Contact Us For Availability
8
MAY 2304241 MAY 2304241 Contact Us For Availability
9
Shim (2) MAY 2209697 Contact Us For Availability
9
MAY 2256035 MAY 2256035 Contact Us For Availability
9
MAY 2188652 MAY 2188652 Contact Us For Availability
9
MAY 2198587 MAY 2198587 Contact Us For Availability
9
MAY 2257020 MAY 2257020 Contact Us For Availability
9
MAY 2212375 MAY 2212375 Contact Us For Availability
9
MAY 2207048AP MAY 2207048AP Contact Us For Availability
9
Grille, Overflow (Black) MAY 2207048B Contact Us For Availability
9
MAY 2207048W MAY 2207048W Contact Us For Availability
9
MAY 2212351 MAY 2212351 Contact Us For Availability
9
Thermostat MAY 2315562 Contact Us For Availability
9
Fan Grommet (2) MAY 2176759 Contact Us For Availability
10
HINGE TOP, FC MAY 2203770 Contact Us For Availability
10
MAY 2256085 MAY 2256085 Contact Us For Availability
10
MAY 2179343 MAY 2179343 Contact Us For Availability
10
MAY 2198635 MAY 2198635 Contact Us For Availability
10
MAY 2257023 MAY 2257023 Contact Us For Availability
10
MAY 3400012 MAY 3400012 Contact Us For Availability
10
MAY 2304317 MAY 2304317 Contact Us For Availability
10
Cup-Water Fill MAY 628356 Contact Us For Availability
10
MAY 2181741 MAY 2181741 Contact Us For Availability
10
Harness, Fan Evaporator (Includes 5) MAY 2310237 Contact Us For Availability
11
HINGE TOP RC MAY 2203771 Contact Us For Availability
11
Screw MAY 489290 Contact Us For Availability
11
MAY 2179342 MAY 2179342 Contact Us For Availability
11
MAY 2198634 MAY 2198634 Contact Us For Availability
11
MAY 2317239 MAY 2317239 Contact Us For Availability
11
MAY 2187725 MAY 2187725 Contact Us For Availability
11
MAY 2203562AP MAY 2203562AP Contact Us For Availability
11
Lever, Ice Dispenser (Black) MAY 2203562B Contact Us For Availability
11
Lever, Ice Dispenser (White) MAY 2203562W Contact Us For Availability
11
MAY 2212320 MAY 2212320 Contact Us For Availability
11
Grommet MAY 2172906 Contact Us For Availability
11
MAY 2155788 MAY 2155788 Contact Us For Availability
12
MAY 2209753 MAY 2209753 Contact Us For Availability
12
MAY 2326317 MAY 2326317 Contact Us For Availability
12
Switch, Rocker Arm MAY 1115373 Contact Us For Availability
12
MAY 489229 MAY 489229 Contact Us For Availability
12
MAY 13035001 MAY 13035001 Contact Us For Availability
12
MAY 2182179 MAY 2182179 Contact Us For Availability
12
MAY 2180224 MAY 2180224 Contact Us For Availability
12
COVER ((SERVICE ONLY)) MAY 4387731 Contact Us For Availability
12
MAY 2212318 MAY 2212318 Contact Us For Availability
12
MAY 2161466 MAY 2161466 Contact Us For Availability
12
Wire Tie MAY 2172840 Contact Us For Availability
13
Hinge Cover, FC (Apollo Gray) MAY 2203407AP Contact Us For Availability
13
HINGE COVER FC (BLACK) MAY 2203407B Contact Us For Availability
13
HINGE COVER FC (WHITE) MAY 2203407W Contact Us For Availability
13
Air Diffuser Cover MAY 2152019 Contact Us For Availability
13
MAY 2188654 MAY 2188654 Contact Us For Availability
13
MAY 2220398 MAY 2220398 Contact Us For Availability
13
MAY 2257022 MAY 2257022 Contact Us For Availability
13
DOOR CLOSER UPPER CAM MAY 2182178 Contact Us For Availability
13
MAY 489420 MAY 489420 Contact Us For Availability
13
MAY 2187145 MAY 2187145 Contact Us For Availability
13
Support MAY 2194712 Contact Us For Availability
13
MAY 2203875 MAY 2203875 Contact Us For Availability
14
MAY 2304322 MAY 2304322 Contact Us For Availability
14
Cover, Conduit MAY 2150331 Contact Us For Availability
14
MAY 2326318 MAY 2326318 Contact Us For Availability
14
Slide, Ice Maker MAY 2212321 Contact Us For Availability
14
MAY 489235 MAY 489235 Contact Us For Availability
14
Bracket, Door Stop (Zinc) MAY 2200082 Contact Us For Availability
14
Bracket, Door Stop (Black) MAY 2200082B Contact Us For Availability
14
MAY 2161324 MAY 2161324 Contact Us For Availability
14
MAY 2315522 MAY 2315522 Contact Us For Availability
14
MAY 2179920 MAY 2179920 Contact Us For Availability
14
Cover, Evaporator (Includes 8) MAY 2304908 Contact Us For Availability
15
MAY 2304846 MAY 2304846 Contact Us For Availability
15
MAY 2304848 MAY 2304848 Contact Us For Availability
15
MAY 2315169 MAY 2315169 Contact Us For Availability
15
Frame Assy MAY 2195975 Contact Us For Availability
15
MAY 2198661 MAY 2198661 Contact Us For Availability
15
MAY 2323001 MAY 2323001 Contact Us For Availability
15
Relay (Service Only) MAY 2183454 Contact Us For Availability
15
Thermostat (Also Order 542369 Cement Alumilas MAY 627985 Contact Us For Availability
15
Pivot Arm MAY 2161306 Contact Us For Availability
15
Screw (6) MAY 8281159 Contact Us For Availability
16
MAY 489478 MAY 489478 Contact Us For Availability
16
MAY 2198467AP MAY 2198467AP Contact Us For Availability
16
Grille (Black) MAY 2198467B Contact Us For Availability
16
MAY 2198467W MAY 2198467W Contact Us For Availability
16
MAY 2256126 MAY 2256126 Contact Us For Availability
16
MAY 2179350 MAY 2179350 Contact Us For Availability
16
Screw MAY 489214 Contact Us For Availability
16
MAY 2188918 MAY 2188918 Contact Us For Availability
16
Connector MAY 2154473 Contact Us For Availability
16
MAY 2304884 MAY 2304884 Contact Us For Availability
16
MAY 8533917 MAY 8533917 Contact Us For Availability
16
MAY 627068 MAY 627068 Contact Us For Availability
17
MAY 489497 MAY 489497 Contact Us For Availability
17
Light Socket MAY 2162085 Contact Us For Availability
17
MAY 2326285 MAY 2326285 Contact Us For Availability
17
MAY 8281164 MAY 8281164 Contact Us For Availability
17
THIMBLE, TOP MAY 2200086 Contact Us For Availability
17
MAY 2203561AP MAY 2203561AP Contact Us For Availability
17
Lever, Water Dispenser (Black) MAY 2203561B Contact Us For Availability
17
Lever, Water Dispenser (White) MAY 2203561W Contact Us For Availability
17
Capacitor (Service) MAY 2169373 Contact Us For Availability
17
MAY 489276 MAY 489276 Contact Us For Availability
17
MAY 2203595 MAY 2203595 Contact Us For Availability
18
MAY 2209769 MAY 2209769 Contact Us For Availability
18
Shelf Assembly, Spillguard, Pan MAY W10130774 Contact Us For Availability
18
MAY 3400065 MAY 3400065 Contact Us For Availability
18
Screw MAY 488208 Contact Us For Availability
18
MAY 2223314 MAY 2223314 Contact Us For Availability
18
MAY 2187484 MAY 2187484 Contact Us For Availability
18
CONNECTING ROD, SHORT MAY 2161307 Contact Us For Availability
18
MAY 2203596 MAY 2203596 Contact Us For Availability
19
MAY 2304888 MAY 2304888 Contact Us For Availability
19
MAY 2255743 MAY 2255743 Contact Us For Availability
19
Screw MAY 488280 Contact Us For Availability
19
MAY 2179243 MAY 2179243 Contact Us For Availability
19
MAY 8281185 MAY 8281185 Contact Us For Availability
19
MAY 2317243 MAY 2317243 Contact Us For Availability
19
MAY 4387765 MAY 4387765 Contact Us For Availability
19
MAY 2212317 MAY 2212317 Contact Us For Availability
20
MAY 2304937 MAY 2304937 Contact Us For Availability
20
MAY 2198633 MAY 2198633 Contact Us For Availability
20
MAY 2317274 MAY 2317274 Contact Us For Availability
20
UNIT COVER BOTTOM MAY 2304898 Contact Us For Availability
20
Module Assembly (Includes Items 21 & 22) MAY 626680 Contact Us For Availability
20
MAY 2187868 MAY 2187868 Contact Us For Availability
21
MAY 2326280 MAY 2326280 Contact Us For Availability
21
MAY 2198608 MAY 2198608 Contact Us For Availability
21
MAY 489396 MAY 489396 Contact Us For Availability
21
MAY 1115374 MAY 1115374 Contact Us For Availability
22
MAY 8212652 MAY 8212652 Contact Us For Availability
22
MAY 2315398 MAY 2315398 Contact Us For Availability
22
Divider Chamber MAY 2317250 Contact Us For Availability
22
MAY 489000 MAY 489000 Contact Us For Availability
22
MAY 2188822 MAY 2188822 Contact Us For Availability
22
Screw MAY 489136 Contact Us For Availability
22
Clip-Wiring MAY 1115375 Contact Us For Availability
23
MAY 2188734 MAY 2188734 Contact Us For Availability
23
MAY 2255114 MAY 2255114 Contact Us For Availability
23
Screw MAY 8281163 Contact Us For Availability
23
MAY W10120336 MAY W10120336 Contact Us For Availability
23
MAY W10130171 MAY W10130171 Contact Us For Availability
23
MAY W10130172 MAY W10130172 Contact Us For Availability
23
Connecting Rod MAY 2161308 Contact Us For Availability
24
MAY 2203408AP MAY 2203408AP Contact Us For Availability
24
HINGE COVER RC (BLACK) MAY 2203408B Contact Us For Availability
24
HINGE COVER RC (WHITE) MAY 2203408W Contact Us For Availability
24
MAY 2198643 MAY 2198643 Contact Us For Availability
24
MAY 2188919 MAY 2188919 Contact Us For Availability
24
Sleeve, Delay Mechanism MAY 2252127 Contact Us For Availability
24
Motor, Fan MAY 2188874 Contact Us For Availability
24
MAY 489391 MAY 489391 Contact Us For Availability
25
CLAMP, SERVICE CORD MAY 549193 Contact Us For Availability
25
MAY 2212376 MAY 2212376 Contact Us For Availability
25
MAY 2198628 MAY 2198628 Contact Us For Availability
25
MAY 2195051 MAY 2195051 Contact Us For Availability
25
MAY 1105523 MAY 1105523 Contact Us For Availability
25
MAY 2326277 MAY 2326277 Contact Us For Availability
26
Bracket, Ice Maker Cover MAY 2198641 Contact Us For Availability
26
MAY 2188916 MAY 2188916 Contact Us For Availability
26
MAY 2304673 MAY 2304673 Contact Us For Availability
26
Harness, Unit MAY 2187783 Contact Us For Availability
26
LIGHT BAR FC MAY 2179921 Contact Us For Availability
27
MAY 2155311 MAY 2155311 Contact Us For Availability
27
MAY 2320027 MAY 2320027 Contact Us For Availability
27
MAY 2320028 MAY 2320028 Contact Us For Availability
27
MAY 2256154 MAY 2256154 Contact Us For Availability
27
MAY 2317845 MAY 2317845 Contact Us For Availability
27
MAY 2319825 MAY 2319825 Contact Us For Availability
27
MAY 2175513 MAY 2175513 Contact Us For Availability
28
MAY 489483 MAY 489483 Contact Us For Availability
28
MAY 2219878 MAY 2219878 Contact Us For Availability
28
MAY 2315547 MAY 2315547 Contact Us For Availability
28
Compressor (Includes Items 12, 13, 15, 17, 19 MAY W10120459 Contact Us For Availability
29
MAY 489500 MAY 489500 Contact Us For Availability
29
MAY 2212305 MAY 2212305 Contact Us For Availability
29
Spring Washer MAY 489203 Contact Us For Availability
30
MAY 2186494AP MAY 2186494AP Contact Us For Availability
30
Cap, Water Filter (Black) MAY 2186494B Contact Us For Availability
30
Cap, Water Filter (White) MAY 2186494W Contact Us For Availability
30
SLEEVE, COUPLING MAY 2315559 Contact Us For Availability
30
Frame, Unit Mounting MAY 2304903 Contact Us For Availability
32
MAY 8281227 MAY 8281227 Contact Us For Availability
32
Bracket, Fan Motor MAY 2181929 Contact Us For Availability
33
Screw (4) MAY 3400113 Contact Us For Availability
33
MAY 2188174 MAY 2188174 Contact Us For Availability
34
MAY 2304287 MAY 2304287 Contact Us For Availability
35
MAY 2186489 MAY 2186489 Contact Us For Availability
36
MAY 2304708 MAY 2304708 Contact Us For Availability
37
MAY 2319867 MAY 2319867 Contact Us For Availability
37
MAY 489373 MAY 489373 Contact Us For Availability
39
MAY 1100826 MAY 1100826 Contact Us For Availability
39
MAY 4387558 MAY 4387558 Contact Us For Availability
40
MAY 489340 MAY 489340 Contact Us For Availability
41
MAY 2196202 MAY 2196202 Contact Us For Availability
42
Clip, Heat MAY 2155547 Contact Us For Availability
43
MAY 2149718 MAY 2149718 Contact Us For Availability
44
MAY 8281232 MAY 8281232 Contact Us For Availability
45
MAY 2186496 MAY 2186496 Contact Us For Availability
46
MAY 2161302 MAY 2161302 Contact Us For Availability
47
MAY 489427 MAY 489427 Contact Us For Availability
49
MAY 2208280 MAY 2208280 Contact Us For Availability
50
Connector, Water Tube MAY 2209709 Contact Us For Availability
50
MAY 876764 MAY 876764 Contact Us For Availability
50
VALVE, ACCESS (1/4``) MAY 978025 Contact Us For Availability
50
Valve, Access (5/16``) MAY 978026 Contact Us For Availability
50
VALVE, ACCESS (3/8``) MAY 978027 Contact Us For Availability
50
Valve, Access (1/2``) MAY 978028 Contact Us For Availability
50
Valve, Access (5/8``) MAY 978029 Contact Us For Availability
50
Valve, Access (3/4``) MAY 978030 Contact Us For Availability
100
MAY W10128701 MAY W10128701 Contact Us For Availability
100
MAY 2212352 MAY 2212352 Contact Us For Availability
× ![]()
