Model Maytag MSD2254VEQ01 REFRIGERATOR – Common Parts & Diagrams

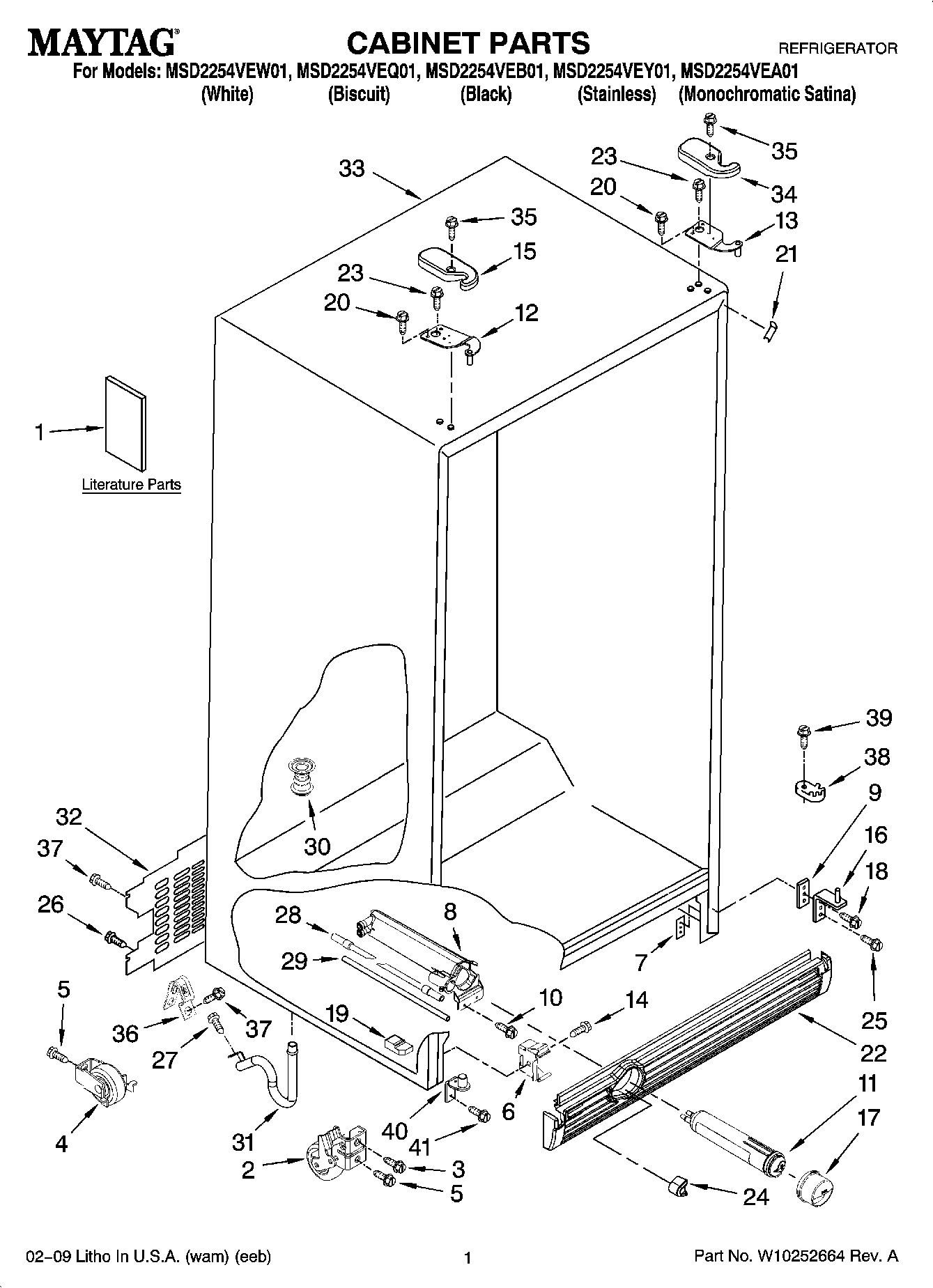

01 - CABINET PARTS

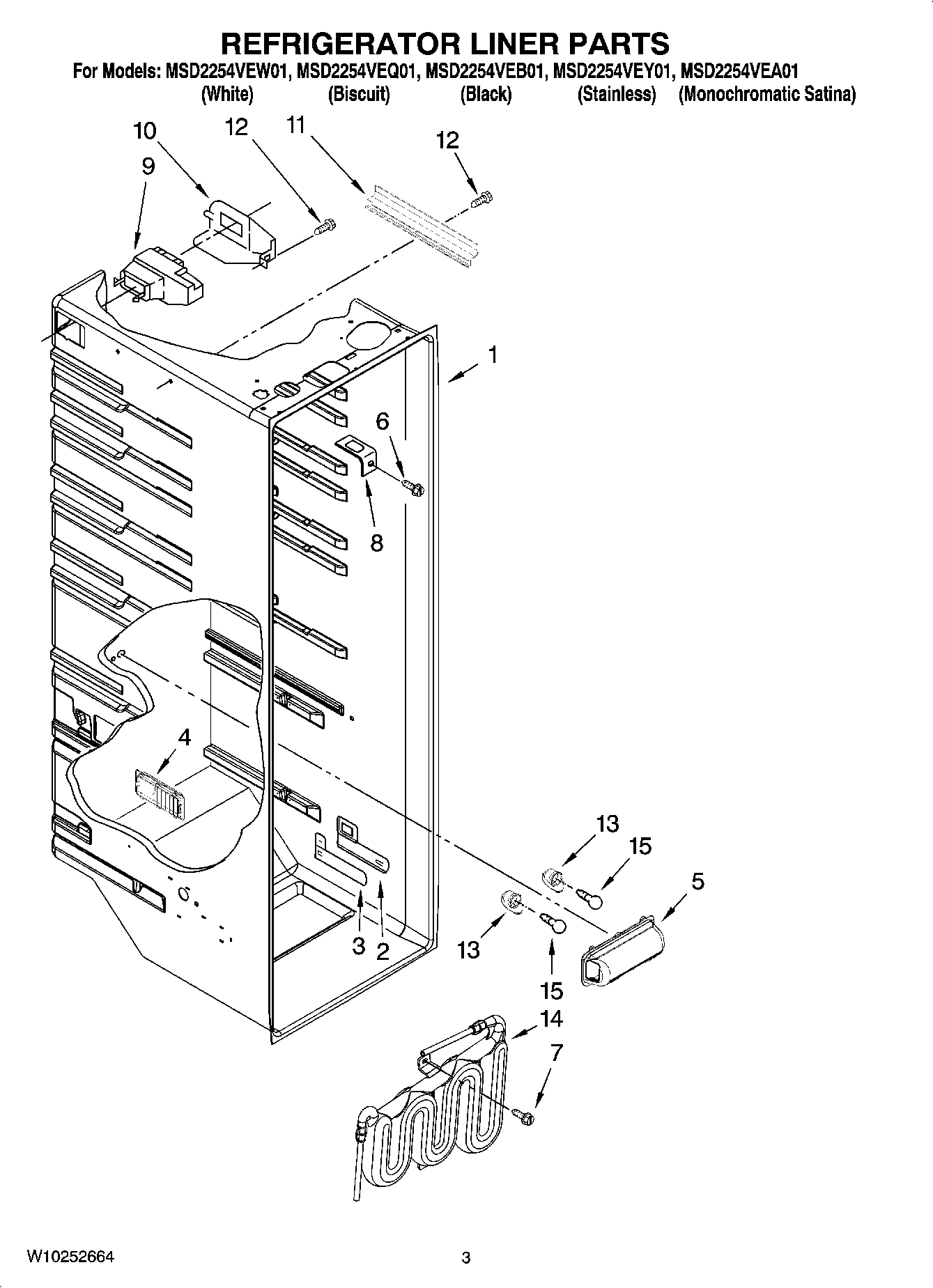

02 - REFRIGERATOR LINER PARTS

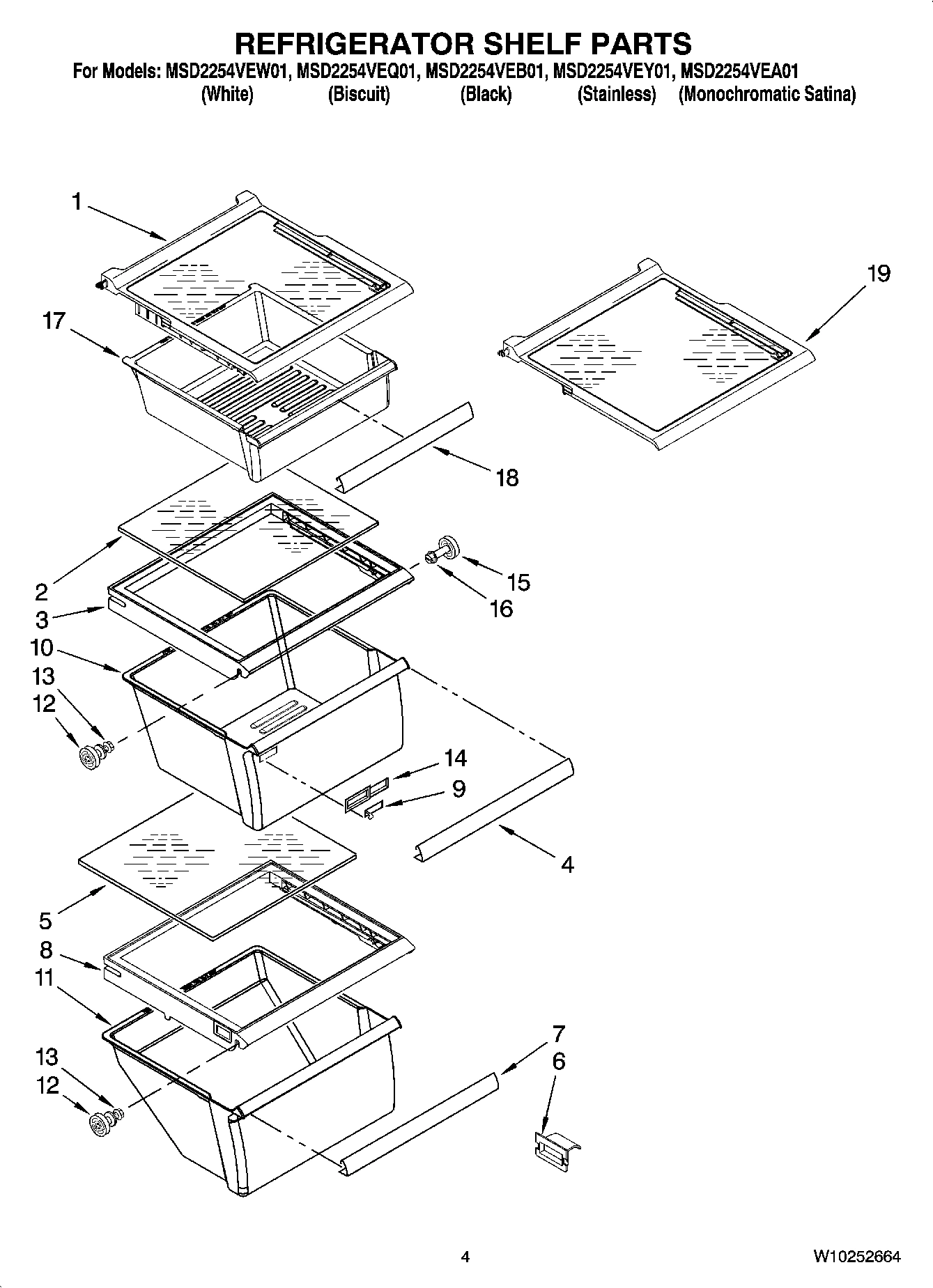

03 - REFRIGERATOR SHELF PARTS

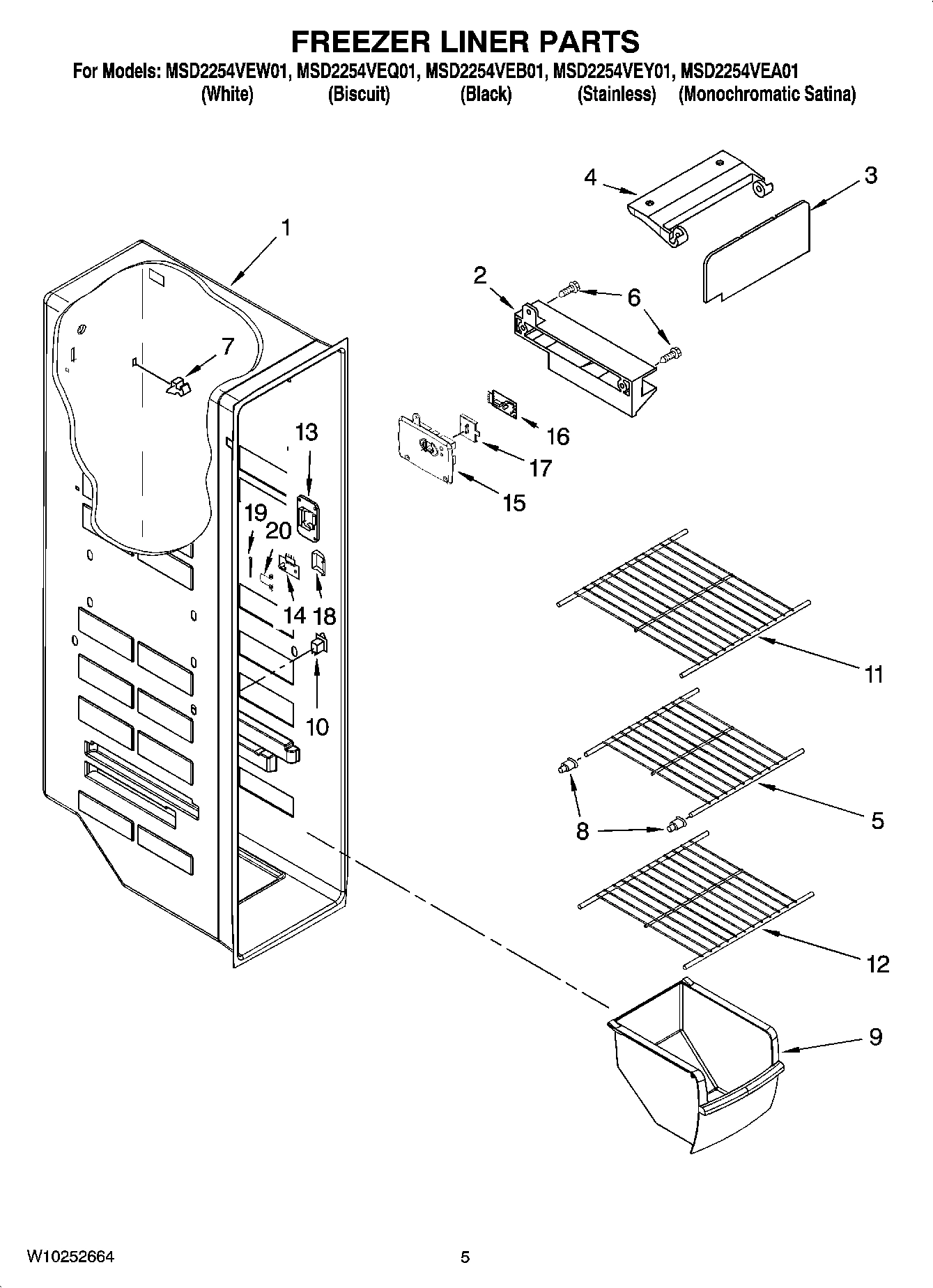

04 - FREEZER LINER PARTS

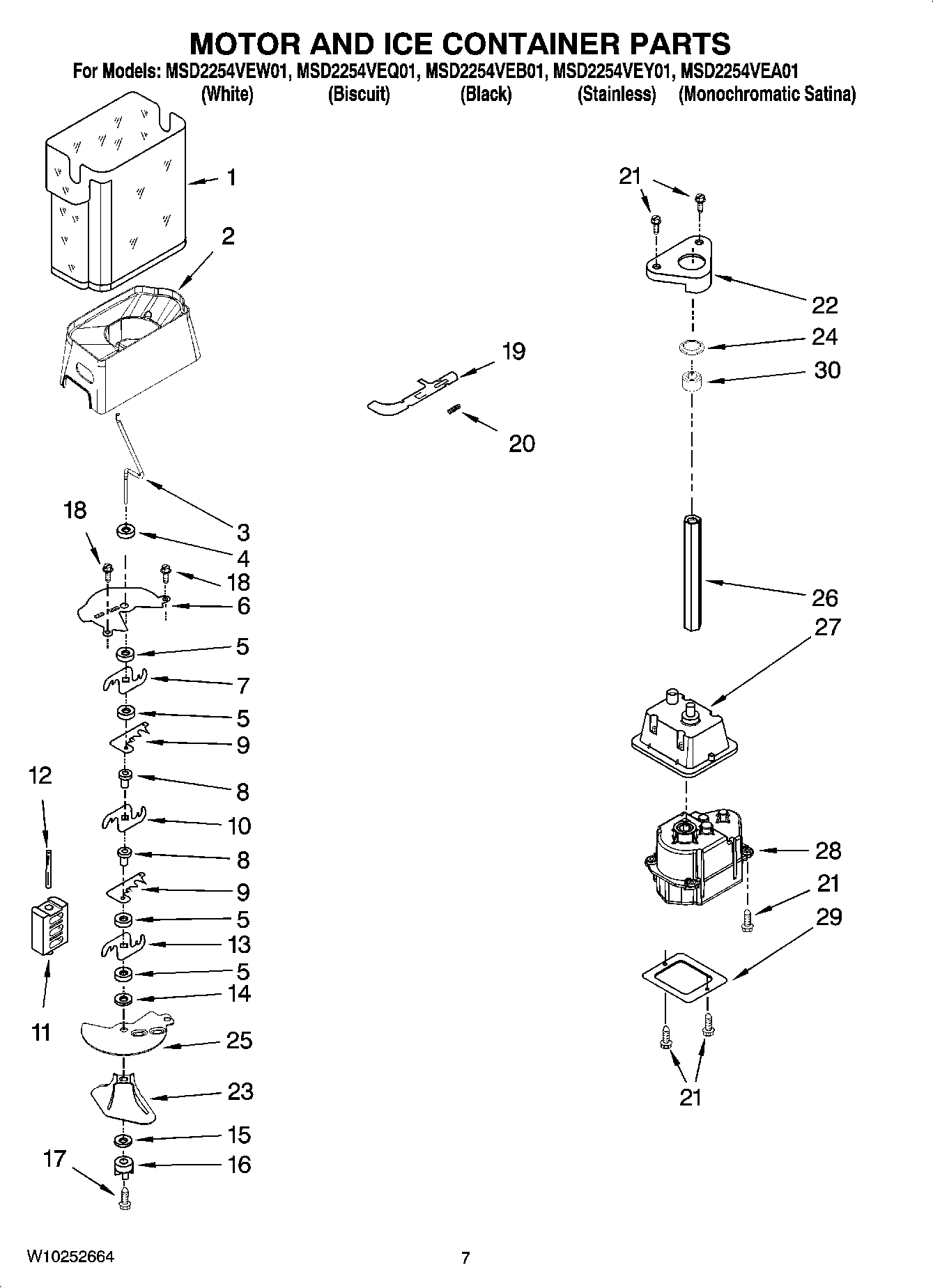

05 - MOTOR AND ICE CONTAINER PARTS

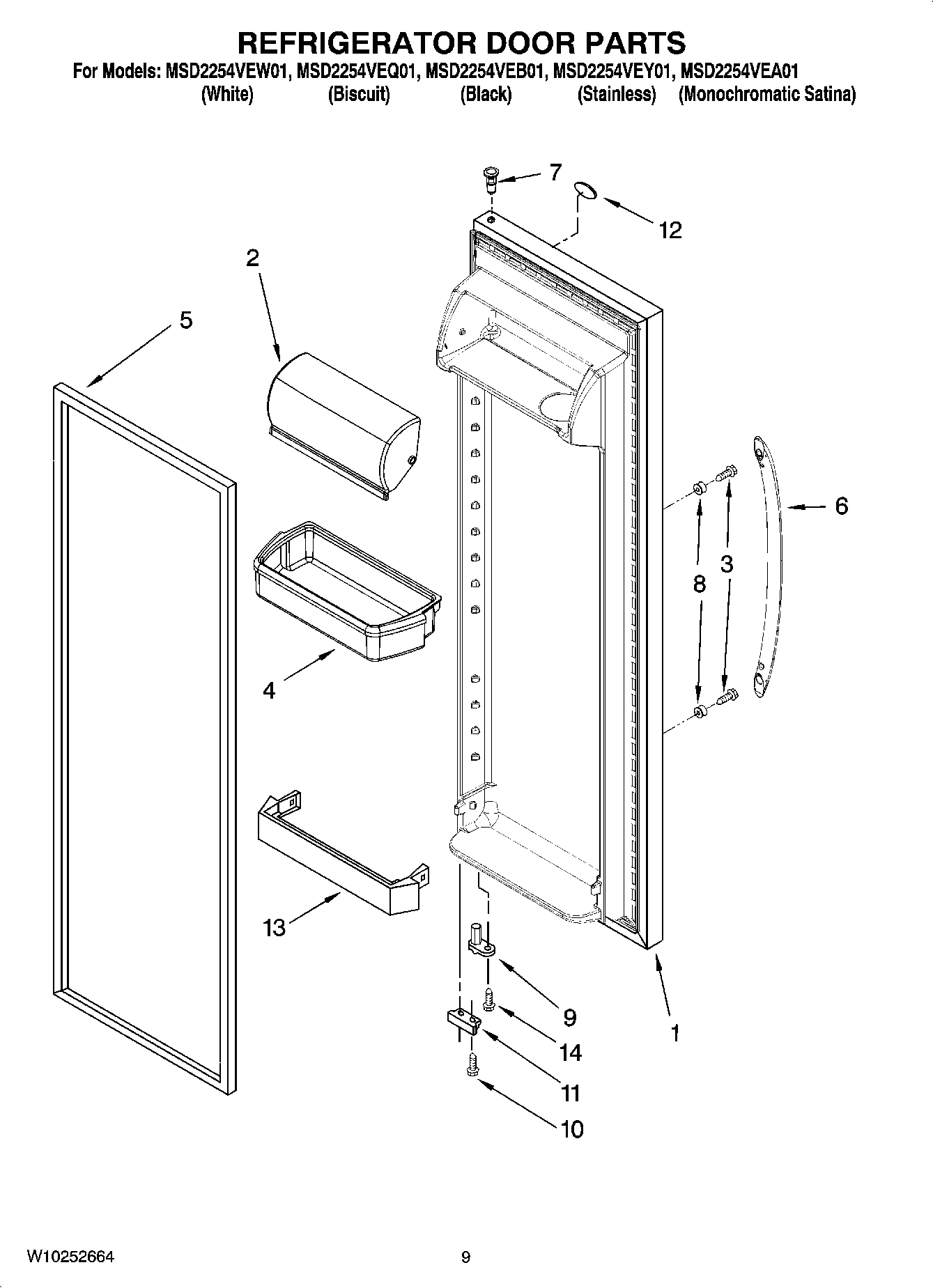

06 - REFRIGERATOR DOOR PARTS

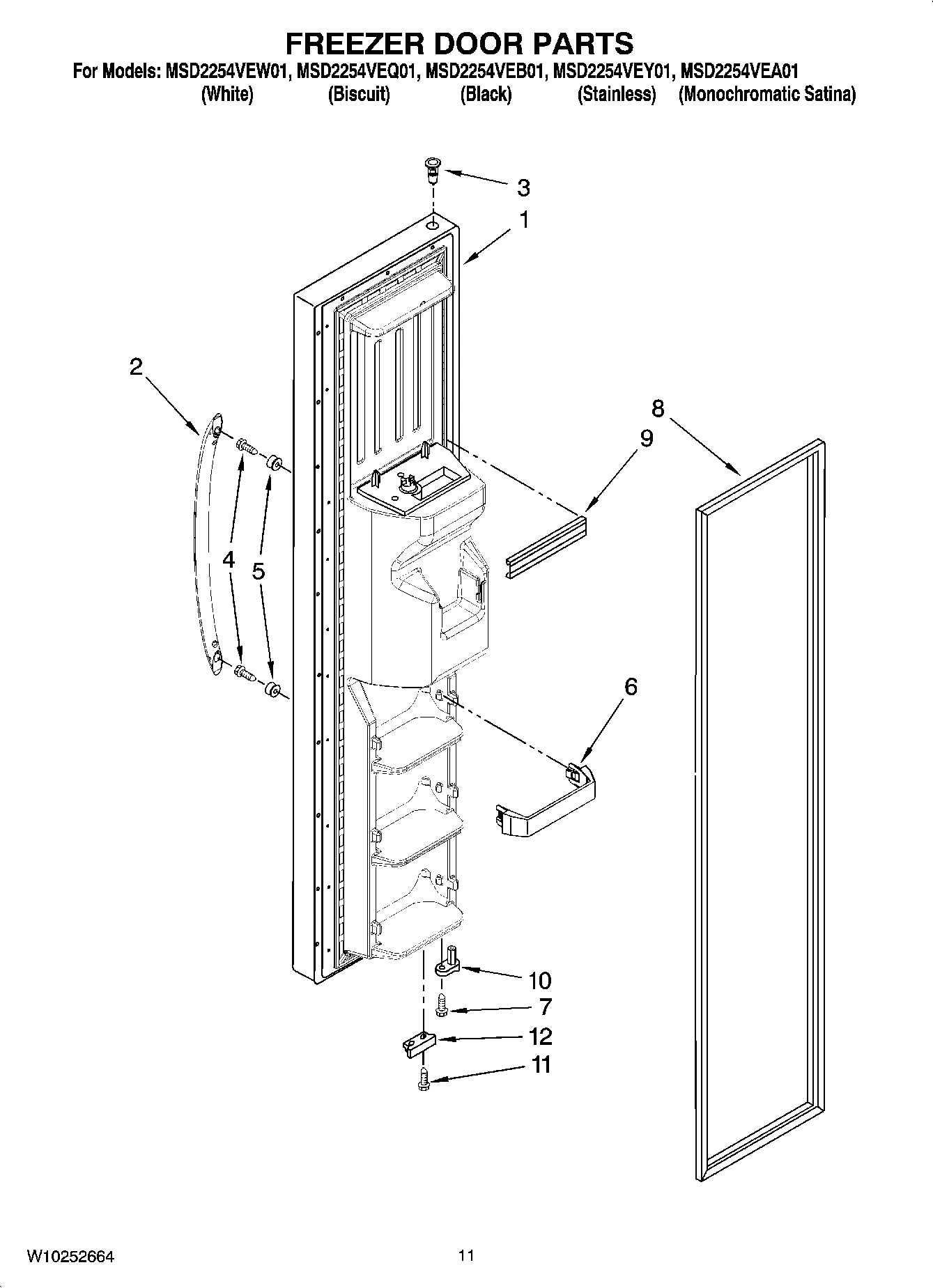

07 - FREEZER DOOR PARTS

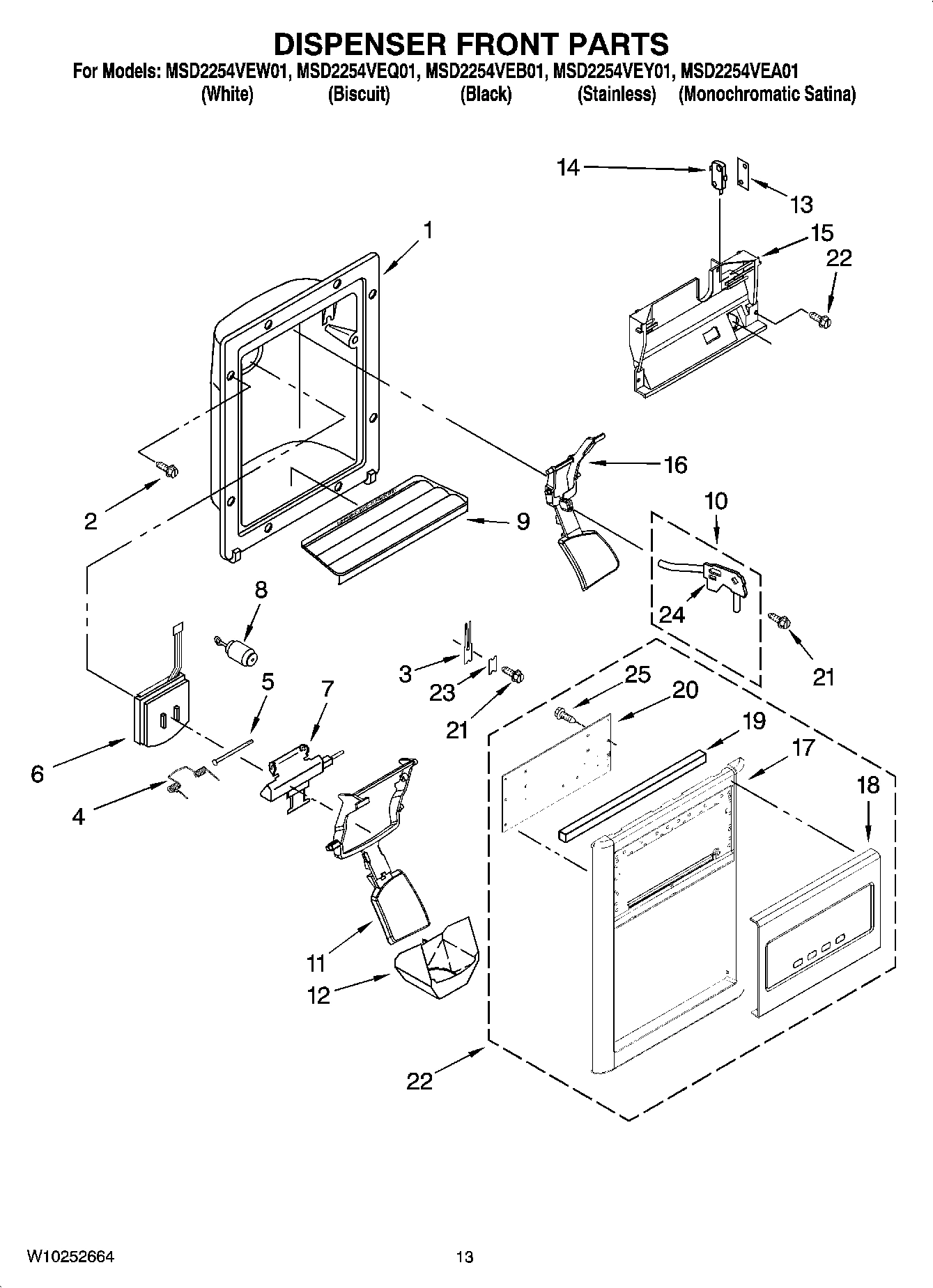

08 - DISPENSER FRONT PARTS

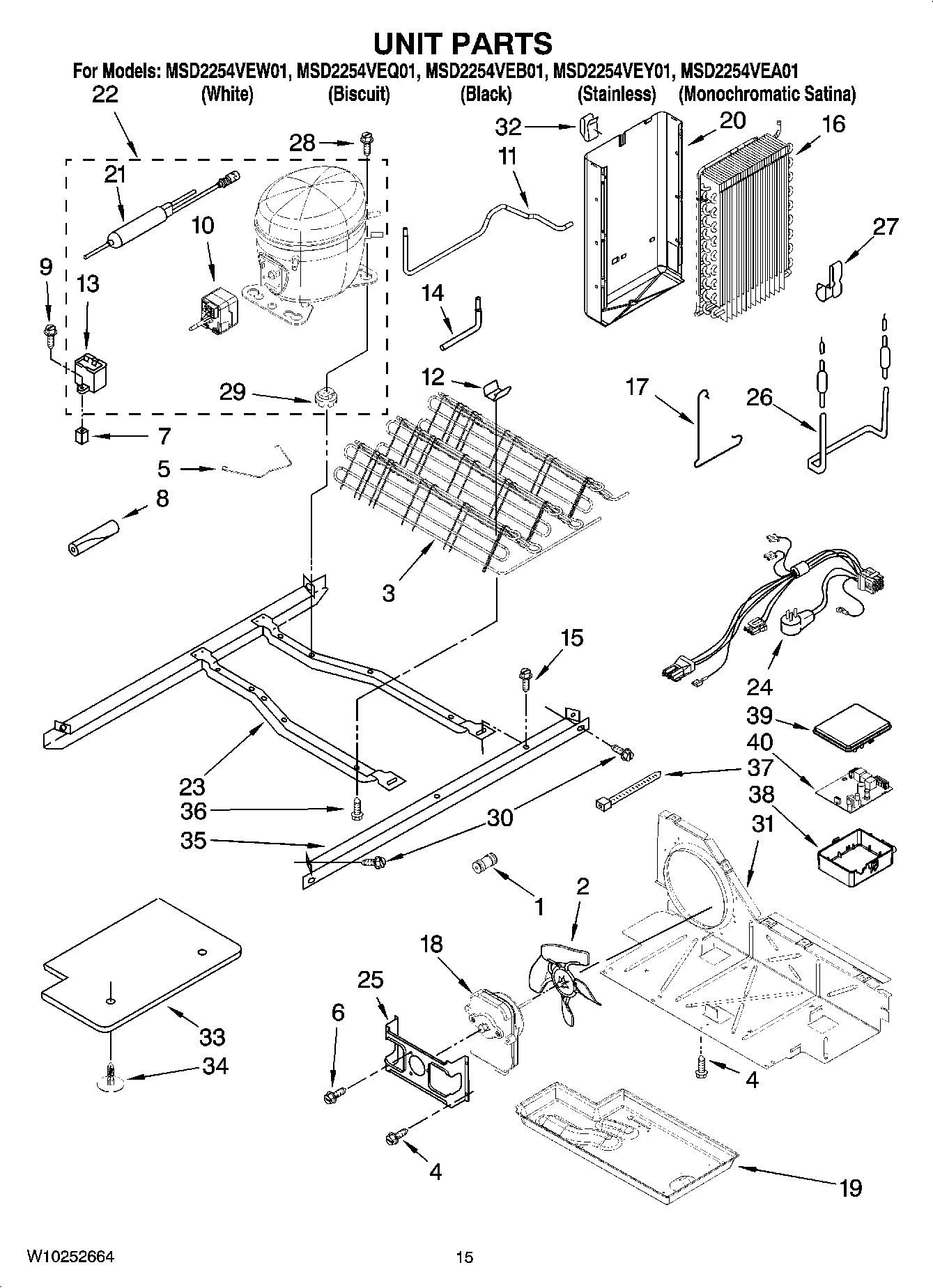

09 - UNIT PARTS

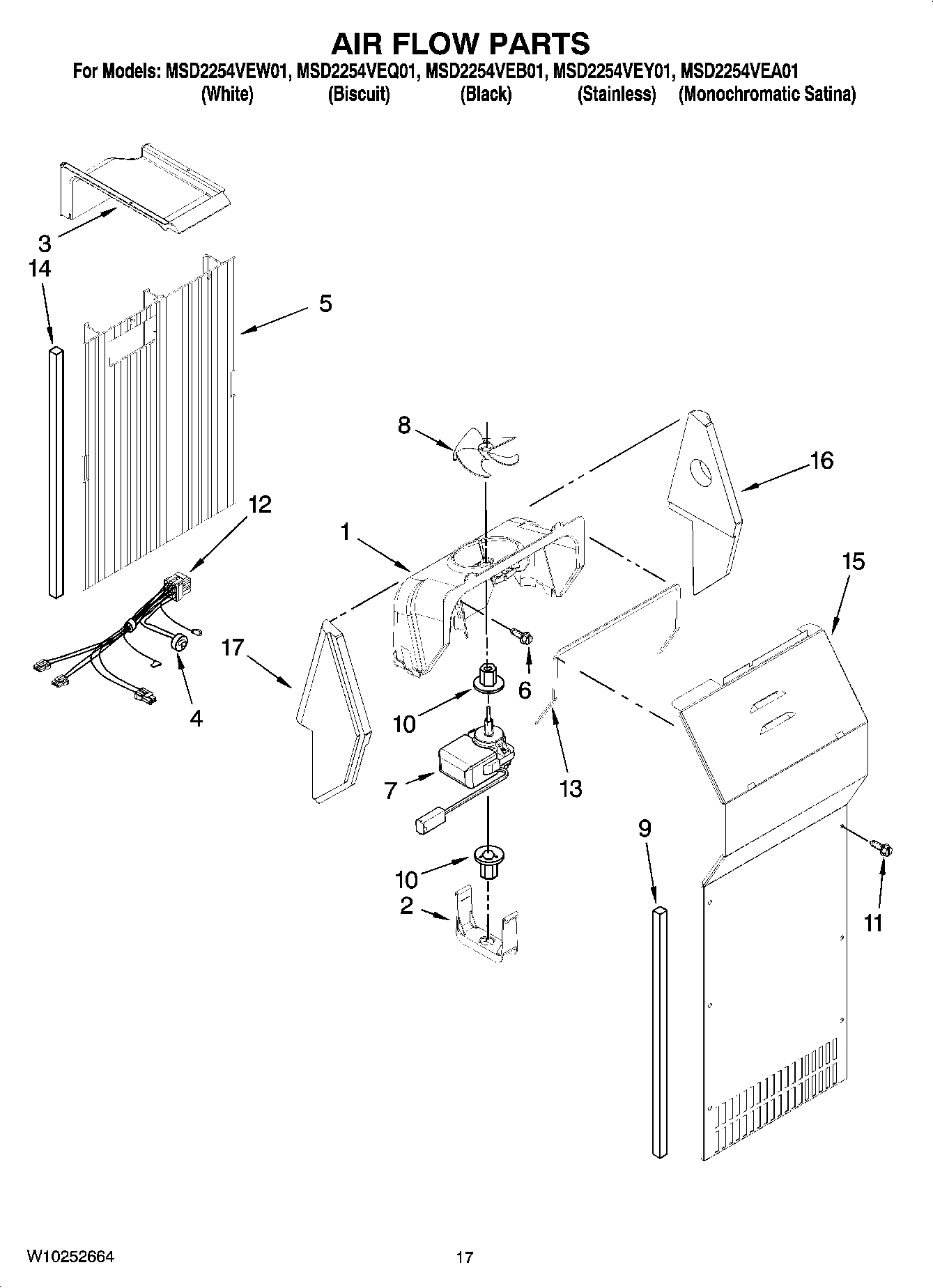

10 - AIR FLOW PARTS

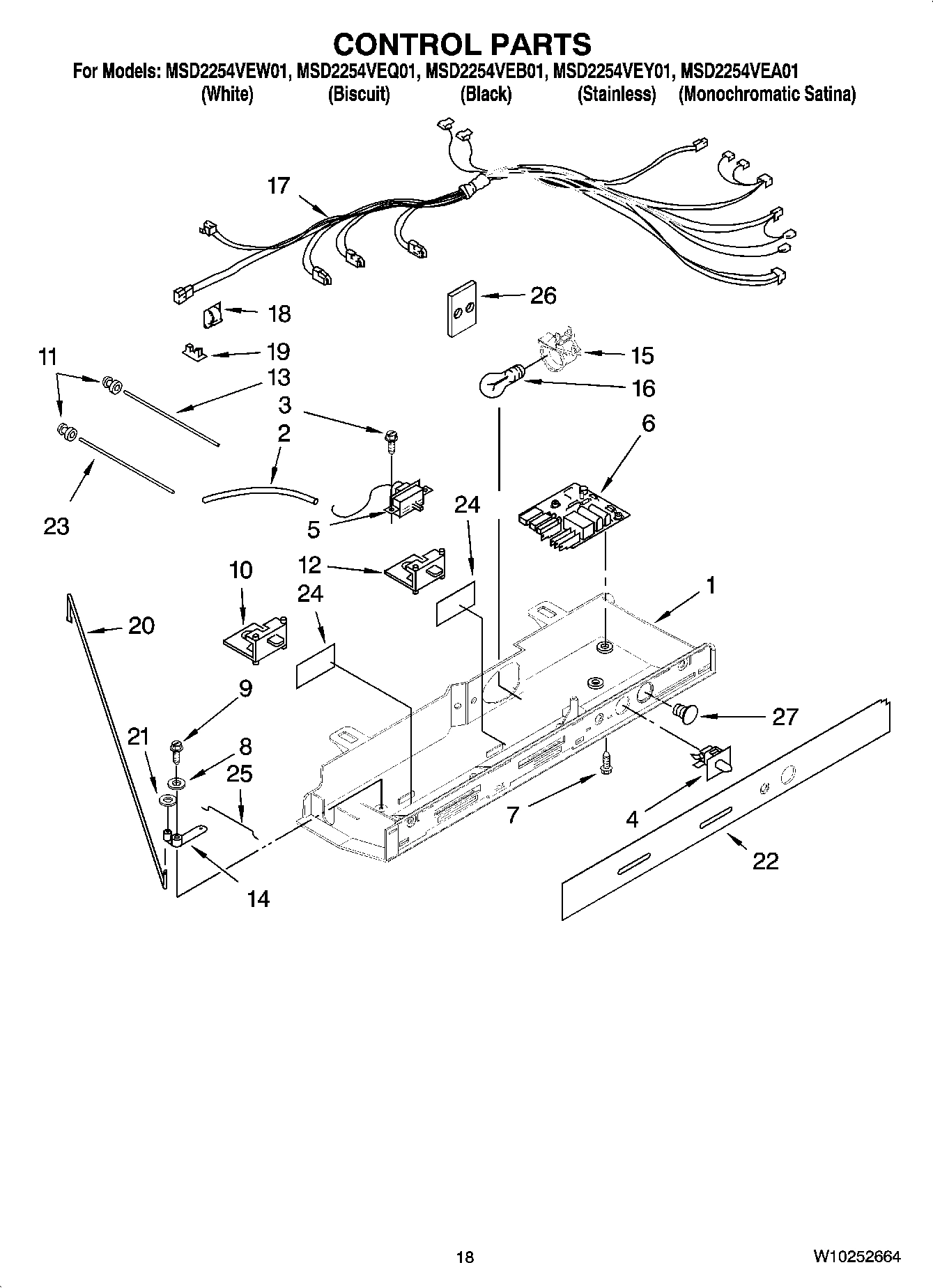

11 - CONTROL PARTS

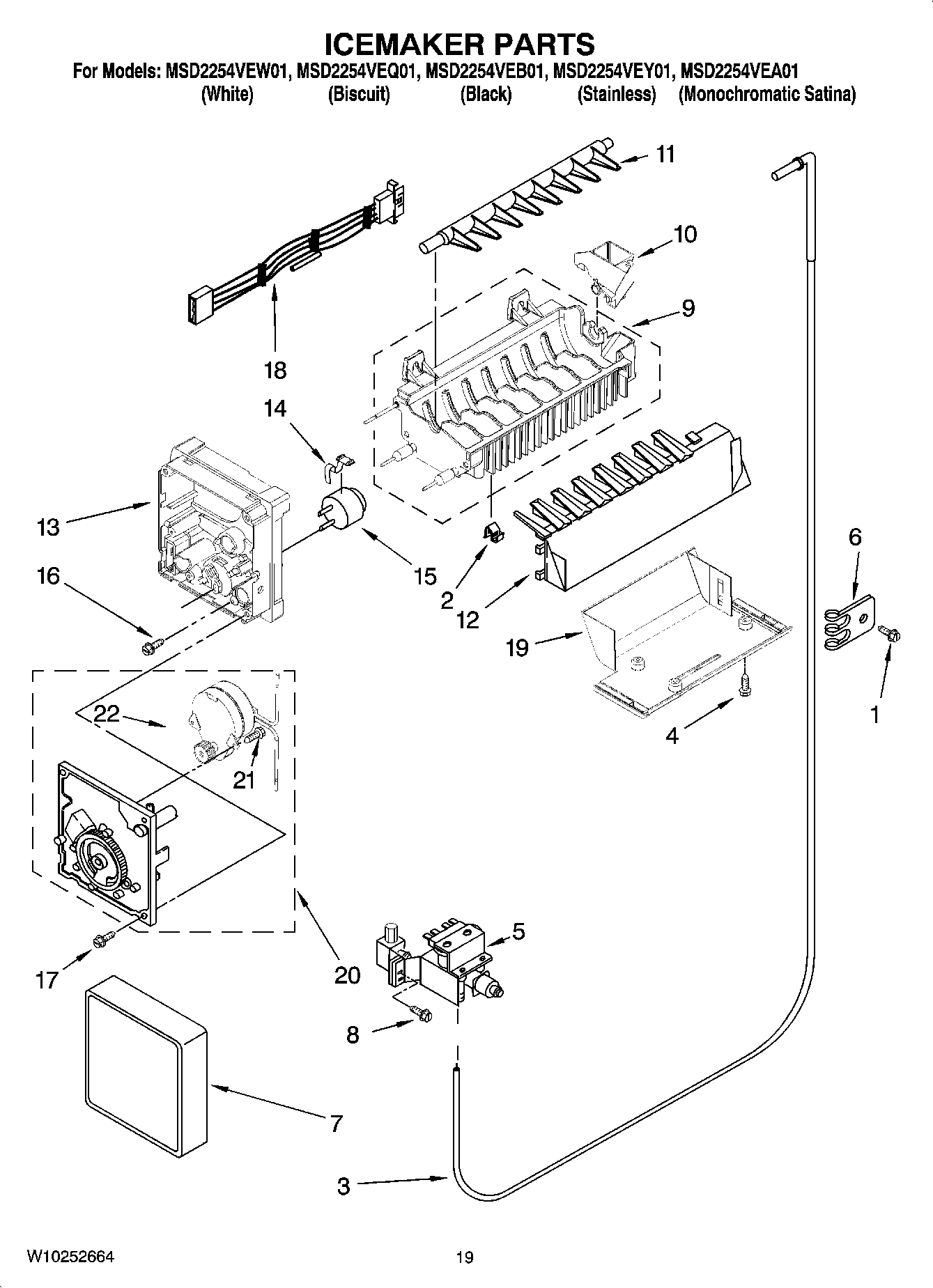

12 - ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MSD2254VEQ01 REFRIGERATOR
1
MAY W10180407 MAY W10180407 Contact Us For Availability
1
MAY W10205540 MAY W10205540 Contact Us For Availability
1
MAY 489084 MAY 489084 Contact Us For Availability
1
Shelf, Snack Pan MAY 2309560 Contact Us For Availability
1
Ice Bin MAY 2317246 Contact Us For Availability
1
MAY W10175178 MAY W10175178 Contact Us For Availability
1
MAY W10175179 MAY W10175179 Contact Us For Availability
1
MAY W10175180 MAY W10175180 Contact Us For Availability
1
MAY W10175181 MAY W10175181 Contact Us For Availability
1
Refrigerator Door (Includes Item 5) (Stainles MAY W10175182 Contact Us For Availability
1
MAY W10175196 MAY W10175196 Contact Us For Availability
1
MAY W10175197 MAY W10175197 Contact Us For Availability
1
MAY W10175198 MAY W10175198 Contact Us For Availability
1
MAY W10175199 MAY W10175199 Contact Us For Availability
1
MAY W10175200 MAY W10175200 Contact Us For Availability
1
Union MAY 2320322 Contact Us For Availability
1
MAY 2182119 MAY 2182119 Contact Us For Availability
1
MAY 2181738 MAY 2181738 Contact Us For Availability
2
MAY 2174748 MAY 2174748 Contact Us For Availability
2
MAY W10175967 MAY W10175967 Contact Us For Availability
2
Slide, Ice Maker MAY 2212321 Contact Us For Availability
2
MAY W10176384 MAY W10176384 Contact Us For Availability
2
Door, Compartment MAY 2256101 Contact Us For Availability
2
Handle (Includes 4) (Black) MAY 67006115 Contact Us For Availability
2
Handle (Includes 4) (Biscuit) MAY 67006982 Contact Us For Availability
2
Screw MAY 3196537 Contact Us For Availability
2
Fan, Blade MAY 12825802 Contact Us For Availability
2
MAY 2155590 MAY 2155590 Contact Us For Availability
2
TUBE-BARRIER, THERMOSTAT MAY 2196001 Contact Us For Availability
2
CLIP,FUSE MAY 628379 Contact Us For Availability
3
MAY 3400517 MAY 3400517 Contact Us For Availability
3
MAY 2182757 MAY 2182757 Contact Us For Availability
3
Cover, Crisper MAY 2209698 Contact Us For Availability
3
MAY W10180062 MAY W10180062 Contact Us For Availability
3
MAY 2317247 MAY 2317247 Contact Us For Availability
3
MAY 2308091 MAY 2308091 Contact Us For Availability
3
MAY 2194719 MAY 2194719 Contact Us For Availability
3
Screw (2) MAY 489214 Contact Us For Availability
3
MAY W10211163 MAY W10211163 Contact Us For Availability
3
Diffuser, Air Duct MAY 2313359 Contact Us For Availability
3
Fitting, Water Tube MAY W10140630 Contact Us For Availability
4
MAY 2196236 MAY 2196236 Contact Us For Availability
4
MAY 489464 MAY 489464 Contact Us For Availability
4
MAY 2257741 MAY 2257741 Contact Us For Availability
4
Trim, Pan MAY 2255593 Contact Us For Availability
4
Bracket, Cover MAY 2198641 Contact Us For Availability
4
MAY 489478 MAY 489478 Contact Us For Availability
4
MAY 2258220 MAY 2258220 Contact Us For Availability
4
Screw MAY 488208 Contact Us For Availability
4
Door Bin (3) MAY 2304235 Contact Us For Availability
4
MAY 2304772 MAY 2304772 Contact Us For Availability
4
MAY 2321799 MAY 2321799 Contact Us For Availability
4
MAY 2149705 MAY 2149705 Contact Us For Availability
5
MAY W10166019 MAY W10166019 Contact Us For Availability
5
GLASS COVER MAY 2179259 Contact Us For Availability
5
Shelf, Wire MAY 2309634 Contact Us For Availability
5
Spacer, Step (20 MAY 1119007 Contact Us For Availability
5
Door Gasket, Magnetic (Mist Beige) MAY 2309600 Contact Us For Availability
5
MAY 2309653 MAY 2309653 Contact Us For Availability
5
Door Gasket, Magnetic (Grey) MAY 2327161 Contact Us For Availability
5
MAY 2326259 MAY 2326259 Contact Us For Availability
5
MAY 2196195 MAY 2196195 Contact Us For Availability
5
Clip MAY W10174384 Contact Us For Availability
5
MAY 2312009 MAY 2312009 Contact Us For Availability
5
Thermostat MAY 2315562 Contact Us For Availability
5
MAY 2188709 MAY 2188709 Contact Us For Availability
6
MAY 2155013 MAY 2155013 Contact Us For Availability
6
Screw MAY 489290 Contact Us For Availability
6
MAY 2179350 MAY 2179350 Contact Us For Availability
6
MAY 2317248 MAY 2317248 Contact Us For Availability
6
Trivet (3) MAY 2309717 Contact Us For Availability
6
MAY 2180353 MAY 2180353 Contact Us For Availability
6
MAY 8533993 MAY 8533993 Contact Us For Availability
6
MAY 2303824 MAY 2303824 Contact Us For Availability
6
Tube Clip MAY 2208136 Contact Us For Availability
7
MAY 2304249 MAY 2304249 Contact Us For Availability
7
Screw MAY 488280 Contact Us For Availability
7
MAY 2255592 MAY 2255592 Contact Us For Availability
7
Clip, Air Duct (2) MAY 842534 Contact Us For Availability
7
MAY 2257024 MAY 2257024 Contact Us For Availability
7
MAY 3400012 MAY 3400012 Contact Us For Availability
7
MAY 2304355 MAY 2304355 Contact Us For Availability
7
MAY 509812 MAY 509812 Contact Us For Availability
7
MAY 2315549 MAY 2315549 Contact Us For Availability
7
MAY 489398 MAY 489398 Contact Us For Availability
7
MAY 2174358 MAY 2174358 Contact Us For Availability
8
Housing, Water Filter MAY W10121138 Contact Us For Availability
8
MAY 2256085 MAY 2256085 Contact Us For Availability
8
MAY 2311726 MAY 2311726 Contact Us For Availability
8
Cup, Shelf Mount MAY W10130299 Contact Us For Availability
8
Spacer, Step (2) MAY 1119005 Contact Us For Availability
8
Door Gasket, Magnetic (Mist Beige) MAY 2309604 Contact Us For Availability
8
MAY 2309654 MAY 2309654 Contact Us For Availability
8
Door Gasket, Magnetic (Grey) MAY 2327162 Contact Us For Availability
8
MAY 2205686 MAY 2205686 Contact Us For Availability
8
MAY 2161302 MAY 2161302 Contact Us For Availability
8
Fan Blade MAY 2169142 Contact Us For Availability
8
Spring Washer MAY 489203 Contact Us For Availability
8
Screw (2) MAY 488649 Contact Us For Availability
9
Shim MAY 2209697 Contact Us For Availability
9
MAY W10151375 MAY W10151375 Contact Us For Availability
9
MAY 2179342 MAY 2179342 Contact Us For Availability
9
MAY 2309758 MAY 2309758 Contact Us For Availability
9
MAY 2257020 MAY 2257020 Contact Us For Availability
9
MAY 2212375 MAY 2212375 Contact Us For Availability
9
MAY 2206671B MAY 2206671B Contact Us For Availability
9
MAY 2206671T MAY 2206671T Contact Us For Availability
9
MAY 2206671W MAY 2206671W Contact Us For Availability
9
Grille, Overflow (Nickel) MAY W10171992 Contact Us For Availability
9
MAY 488687 MAY 488687 Contact Us For Availability
9
MAY 2304241 MAY 2304241 Contact Us For Availability
9
MAY 627068 MAY 627068 Contact Us For Availability
9
Mold & Heater Assembly (Also Order 542638) MAY W10122550 Contact Us For Availability
10
Screw (2) MAY 489500 Contact Us For Availability
10
Air Diffuser Cover MAY 2152019 Contact Us For Availability
10
MAY 2188652 MAY 2188652 Contact Us For Availability
10
Switch, Rocker Arm MAY 1115373 Contact Us For Availability
10
MAY 2257023 MAY 2257023 Contact Us For Availability
10
DOOR CLOSER UPPER CAM MAY 2182178 Contact Us For Availability
10
MAY 2304317 MAY 2304317 Contact Us For Availability
10
MAY W10189190 MAY W10189190 Contact Us For Availability
10
Start Device Combination Relay & Overload (Se MAY W10197427 Contact Us For Availability
10
Fan Grommet (2) MAY 2176759 Contact Us For Availability
10
MAY 2181741 MAY 2181741 Contact Us For Availability
10
Cup-Water Fill MAY 2304969 Contact Us For Availability
11
MAY 4396841 MAY 4396841 Contact Us For Availability
11
Cover, Conduit MAY 2150331 Contact Us For Availability
11
MAY 2188654 MAY 2188654 Contact Us For Availability
11
Shelf, Wire MAY 2309633 Contact Us For Availability
11
MAY 2317239 MAY 2317239 Contact Us For Availability
11
MAY 489420 MAY 489420 Contact Us For Availability
11
Bracket, Door Stop (Chrome) MAY 2206629 Contact Us For Availability
11
MAY 2206629B MAY 2206629B Contact Us For Availability
11
MAY 2203562AP MAY 2203562AP Contact Us For Availability
11
Lever, Ice Dispenser (Black) MAY 2203562B Contact Us For Availability
11
MAY 2203562T MAY 2203562T Contact Us For Availability
11
Lever, Ice Dispenser (White) MAY 2203562W Contact Us For Availability
11
MAY W10210787 MAY W10210787 Contact Us For Availability
11
MAY 8281159 MAY 8281159 Contact Us For Availability
11
MAY 2172906 MAY 2172906 Contact Us For Availability
11
MAY 626753 MAY 626753 Contact Us For Availability
12
HINGE TOP, FC MAY 2203770 Contact Us For Availability
12
MAY 486298 MAY 486298 Contact Us For Availability
12
MAY 2196485 MAY 2196485 Contact Us For Availability
12
MAY 2312040 MAY 2312040 Contact Us For Availability
12
MAY 489229 MAY 489229 Contact Us For Availability
12
MAY 2324038 MAY 2324038 Contact Us For Availability
12
Bracket, Door Stop (Chrome) MAY 2323534 Contact Us For Availability
12
Bracket, Door Stop (Black) MAY 2323534B Contact Us For Availability
12
MAY 2180224 MAY 2180224 Contact Us For Availability
12
Clip, Condenser(2) MAY 2311725 Contact Us For Availability
12
Harness, Fan Evaporator (Includes 4) MAY W10129815 Contact Us For Availability
12
MAY 2161466 MAY 2161466 Contact Us For Availability
12
MAY 2212318 MAY 2212318 Contact Us For Availability
13
HINGE TOP RC MAY 2203771 Contact Us For Availability
13
MAY 3400894 MAY 3400894 Contact Us For Availability
13
MAY 2198587 MAY 2198587 Contact Us For Availability
13
MAY 2257022 MAY 2257022 Contact Us For Availability
13
Trivet MAY 2156022 Contact Us For Availability
13
MAY 625834 MAY 625834 Contact Us For Availability
13
Capacitor (Production) MAY 2264017 Contact Us For Availability
13
MAY 2155788 MAY 2155788 Contact Us For Availability
13
MAY 2179920 MAY 2179920 Contact Us For Availability
13
Support MAY 2194712 Contact Us For Availability
14
MAY 488500 MAY 488500 Contact Us For Availability
14
MAY W10204356 MAY W10204356 Contact Us For Availability
14
HOUSING, HUMIDITY CONTROL MAY 2179343 Contact Us For Availability
14
MAY 2220398 MAY 2220398 Contact Us For Availability
14
MAY 489235 MAY 489235 Contact Us For Availability
14
MAY 2162361 MAY 2162361 Contact Us For Availability
14
Process Tube MAY W10171238 Contact Us For Availability
14
MAY 2203875 MAY 2203875 Contact Us For Availability
14
Pivot Arm MAY 2161306 Contact Us For Availability
14
MAY 2315522 MAY 2315522 Contact Us For Availability
15
MAY 489427 MAY 489427 Contact Us For Availability
15
Hinge Cover (RC) (White) MAY W10138576 Contact Us For Availability
15
MAY W10138577 MAY W10138577 Contact Us For Availability
15
Hinge Cover (RC) (Biscuit) MAY W10138578 Contact Us For Availability
15
Hinge Cover (RC) (Apollo Grey) MAY W10138579 Contact Us For Availability
15
Light Socket MAY 2162085 Contact Us For Availability
15
MAY 2196483 MAY 2196483 Contact Us For Availability
15
MAY W10173569 MAY W10173569 Contact Us For Availability
15
MAY 2198661 MAY 2198661 Contact Us For Availability
15
MAY W10206221 MAY W10206221 Contact Us For Availability
15
Cover, Evaporator (Includes 9) MAY W10207507 Contact Us For Availability
15
Thermostat (Also Order 542369 Cement Alumilas MAY 628397 Contact Us For Availability
16
Bottom Hinge (RC) MAY 2217075 Contact Us For Availability
16
Light Bulb MAY W10194422 Contact Us For Availability
16
MAY 8281158 MAY 8281158 Contact Us For Availability
16
MAY W10193666 MAY W10193666 Contact Us For Availability
16
MAY 2188918 MAY 2188918 Contact Us For Availability
16
MAY 2203561AP MAY 2203561AP Contact Us For Availability
16
Lever, Water Dispenser (Black) MAY 2203561B Contact Us For Availability
16
MAY 2203561T MAY 2203561T Contact Us For Availability
16
Lever, Water Dispenser (White) MAY 2203561W Contact Us For Availability
16
MAY 2188822 MAY 2188822 Contact Us For Availability
16
MAY 2203595 MAY 2203595 Contact Us For Availability
16
MAY 8533917 MAY 8533917 Contact Us For Availability
17
MAY 2260502B MAY 2260502B Contact Us For Availability
17
MAY 2260502MG MAY 2260502MG Contact Us For Availability
17
MAY 2260502T MAY 2260502T Contact Us For Availability
17
MAY 2260502W MAY 2260502W Contact Us For Availability
17
MAY 2309518 MAY 2309518 Contact Us For Availability
17
Slide/Shutoff MAY 2315398 Contact Us For Availability
17
MAY 8281164 MAY 8281164 Contact Us For Availability
17
MAY 2203596 MAY 2203596 Contact Us For Availability
17
MAY 2310533 MAY 2310533 Contact Us For Availability
17
MAY 489276 MAY 489276 Contact Us For Availability
18
Screw (4) MAY 3400113 Contact Us For Availability
18
Trim, Handle MAY 2309519 Contact Us For Availability
18
MAY 2198633 MAY 2198633 Contact Us For Availability
18
MAY 3400065 MAY 3400065 Contact Us For Availability
18
MAY 1115374 MAY 1115374 Contact Us For Availability
18
MAY 2187484 MAY 2187484 Contact Us For Availability
19
Block, Housing Support MAY 2260519 Contact Us For Availability
19
Shelf Assembly, Spillguard MAY 2309524 Contact Us For Availability
19
MAY 2198634 MAY 2198634 Contact Us For Availability
19
MAY 2317274 MAY 2317274 Contact Us For Availability
19
MAY 2305571 MAY 2305571 Contact Us For Availability
19
MAY 1105523 MAY 1105523 Contact Us For Availability
19
Clip-Wiring MAY 1115375 Contact Us For Availability
19
Bracket, Mounting MAY W10131253 Contact Us For Availability
20
MAY 3400858 MAY 3400858 Contact Us For Availability
20
MAY 2198635 MAY 2198635 Contact Us For Availability
20
MAY 2198608 MAY 2198608 Contact Us For Availability
20
MAY 2321748 MAY 2321748 Contact Us For Availability
20
Heat Shield MAY W10194474 Contact Us For Availability
20
Connecting Rod MAY 2161308 Contact Us For Availability
20
Module Assembly MAY 626691 Contact Us For Availability
21
Filler, Wrapper (Biscuit) MAY 2200926 Contact Us For Availability
21
Filler, Wrapper (White) MAY 2201014 Contact Us For Availability
21
Filler, Wrapper (Black) MAY 2201017 Contact Us For Availability
21
Filler, Wrapper (Grey) MAY 2254507 Contact Us For Availability
21
Screw MAY 8281163 Contact Us For Availability
21
MAY 489000 MAY 489000 Contact Us For Availability
21
MAY W10143759 MAY W10143759 Contact Us For Availability
21
MAY W10177049 MAY W10177049 Contact Us For Availability
21
MAY 489391 MAY 489391 Contact Us For Availability
21
Screw MAY 489136 Contact Us For Availability
22
MAY W10184869 MAY W10184869 Contact Us For Availability
22
MAY W10184880 MAY W10184880 Contact Us For Availability
22
MAY W10184881 MAY W10184881 Contact Us For Availability
22
MAY W10184882 MAY W10184882 Contact Us For Availability
22
MAY 2188919 MAY 2188919 Contact Us For Availability
22
MAY W10170388 MAY W10170388 Contact Us For Availability
22
MAY W10170389 MAY W10170389 Contact Us For Availability
22
MAY W10170390 MAY W10170390 Contact Us For Availability
22
MAY W10170392 MAY W10170392 Contact Us For Availability
22
MAY W10172005 MAY W10172005 Contact Us For Availability
22
MAY 489373 MAY 489373 Contact Us For Availability
22
Front Cover, Control Box MAY W10176424 Contact Us For Availability
23
MAY 489497 MAY 489497 Contact Us For Availability
23
MAY 2317243 MAY 2317243 Contact Us For Availability
23
MAY 2195051 MAY 2195051 Contact Us For Availability
23
MAY 2304903 MAY 2304903 Contact Us For Availability
23
LIGHT BAR FC MAY 2179921 Contact Us For Availability
24
MAY 2260503B MAY 2260503B Contact Us For Availability
24
Button, Water Filter (Midnight Grey) MAY 2260503MG Contact Us For Availability
24
MAY 2260503T MAY 2260503T Contact Us For Availability
24
Button, Water Filter (White) MAY 2260503W Contact Us For Availability
24
MAY 2198628 MAY 2198628 Contact Us For Availability
24
MAY 2304673 MAY 2304673 Contact Us For Availability
24
MAY 2310425 MAY 2310425 Contact Us For Availability
24
MAY 2175513 MAY 2175513 Contact Us For Availability
25
Screw (2) MAY 3400103 Contact Us For Availability
25
Divider Chamber MAY 2317250 Contact Us For Availability
25
Fan, Motor Bracket MAY 2188874 Contact Us For Availability
25
CONNECTING ROD, SHORT MAY 2161307 Contact Us For Availability
26
MAY 2188916 MAY 2188916 Contact Us For Availability
26
MAY 2188174 MAY 2188174 Contact Us For Availability
26
MAY 2172931 MAY 2172931 Contact Us For Availability
27
MAY 2322488 MAY 2322488 Contact Us For Availability
27
Clip (2) MAY 2161324 Contact Us For Availability
27
MAY 940014 MAY 940014 Contact Us For Availability
28
MAY 2319867 MAY 2319867 Contact Us For Availability
28
MAY 2322580 MAY 2322580 Contact Us For Availability
28
MAY W10189229 MAY W10189229 Contact Us For Availability
29
Tube, Filter Outlet MAY 2255012 Contact Us For Availability
29
MAY 2212305 MAY 2212305 Contact Us For Availability
29
MAY 1100826 MAY 1100826 Contact Us For Availability
30
MAY 2304888 MAY 2304888 Contact Us For Availability
30
SLEEVE, COUPLING MAY 2315559 Contact Us For Availability
30
Screw (5) MAY 489340 Contact Us For Availability
31
MAY W10153550 MAY W10153550 Contact Us For Availability
31
MAY W10163483 MAY W10163483 Contact Us For Availability
32
MAY 2188734 MAY 2188734 Contact Us For Availability
32
MAY 2155547 MAY 2155547 Contact Us For Availability
33
UNIT COVER BOTTOM MAY 2304898 Contact Us For Availability
34
Hinge Cover (FC) (White) MAY W10138581 Contact Us For Availability
34
MAY W10138582 MAY W10138582 Contact Us For Availability
34
Hinge Cover (FC) (Biscuit) MAY W10138583 Contact Us For Availability
34
Hinge Cover (FC) (Apollo Grey) MAY W10138584 Contact Us For Availability
34
MAY 489396 MAY 489396 Contact Us For Availability
35
MAY 8281227 MAY 8281227 Contact Us For Availability
35
MAY W10196323 MAY W10196323 Contact Us For Availability
36
CLAMP, SERVICE CORD MAY 549193 Contact Us For Availability
36
MAY 8281232 MAY 8281232 Contact Us For Availability
37
MAY 2263990 MAY 2263990 Contact Us For Availability
38
Door Closer (RC) Lower Cam (2) MAY 2155311 Contact Us For Availability
38
MAY 2326982 MAY 2326982 Contact Us For Availability
39
Screw (2) MAY 489483 Contact Us For Availability
39
Box Cover MAY 2255624 Contact Us For Availability
40
MAY 2323833 MAY 2323833 Contact Us For Availability
40
MAY 2322572 MAY 2322572 Contact Us For Availability
41
DOOR CLOSER, FC MAY 2223751 Contact Us For Availability
100
MAY W10204457 MAY W10204457 Contact Us For Availability
100
MAY W10190961 MAY W10190961 Contact Us For Availability
NI
MAY 876764 MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS (1/4``) MAY 978025 Contact Us For Availability
NI
Valve, Access (5/16``) MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS (3/8``) MAY 978027 Contact Us For Availability
NI
Valve, Access (1/2``) MAY 978028 Contact Us For Availability
NI
Valve, Access (5/8``) MAY 978029 Contact Us For Availability
NI
Valve, Access (3/4``) MAY 978030 Contact Us For Availability
NI
MAY 1117510 MAY 1117510 Contact Us For Availability
NI
SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (BLACK) MAY 350939 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, WH MAY 350942 Contact Us For Availability
NI
MAY 4392899 MAY 4392899 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (Biscuit) MAY 4392900 Contact Us For Availability
NI
MAY 4392901 MAY 4392901 Contact Us For Availability
NI
MAY 479502 MAY 479502 Contact Us For Availability
NI
MAY 503695 MAY 503695 Contact Us For Availability
NI
MAY 505587 MAY 505587 Contact Us For Availability
NI
MAY 542638 MAY 542638 Contact Us For Availability
NI
MAY 542639 MAY 542639 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (Black) MAY 799340 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (White) MAY 799344 Contact Us For Availability
NI
Kit, Evaporator Repair (Aluminum Epoxy) MAY 799833 Contact Us For Availability
NI
MAY 80051 MAY 80051 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. GRAPHITE) MAY 8171357 Contact Us For Availability
NI
PAINT, BULK (1 QT. GRAPHITE) MAY 8171358 Contact Us For Availability
NI
MAY 833938 MAY 833938 Contact Us For Availability
× ![]()
