Model Universal Multiflex MSBH30V7LS4 REFRIGERATOR – Common Parts & Diagrams
01 - COVER
03 - FREEZER DRAWER, BASKETS

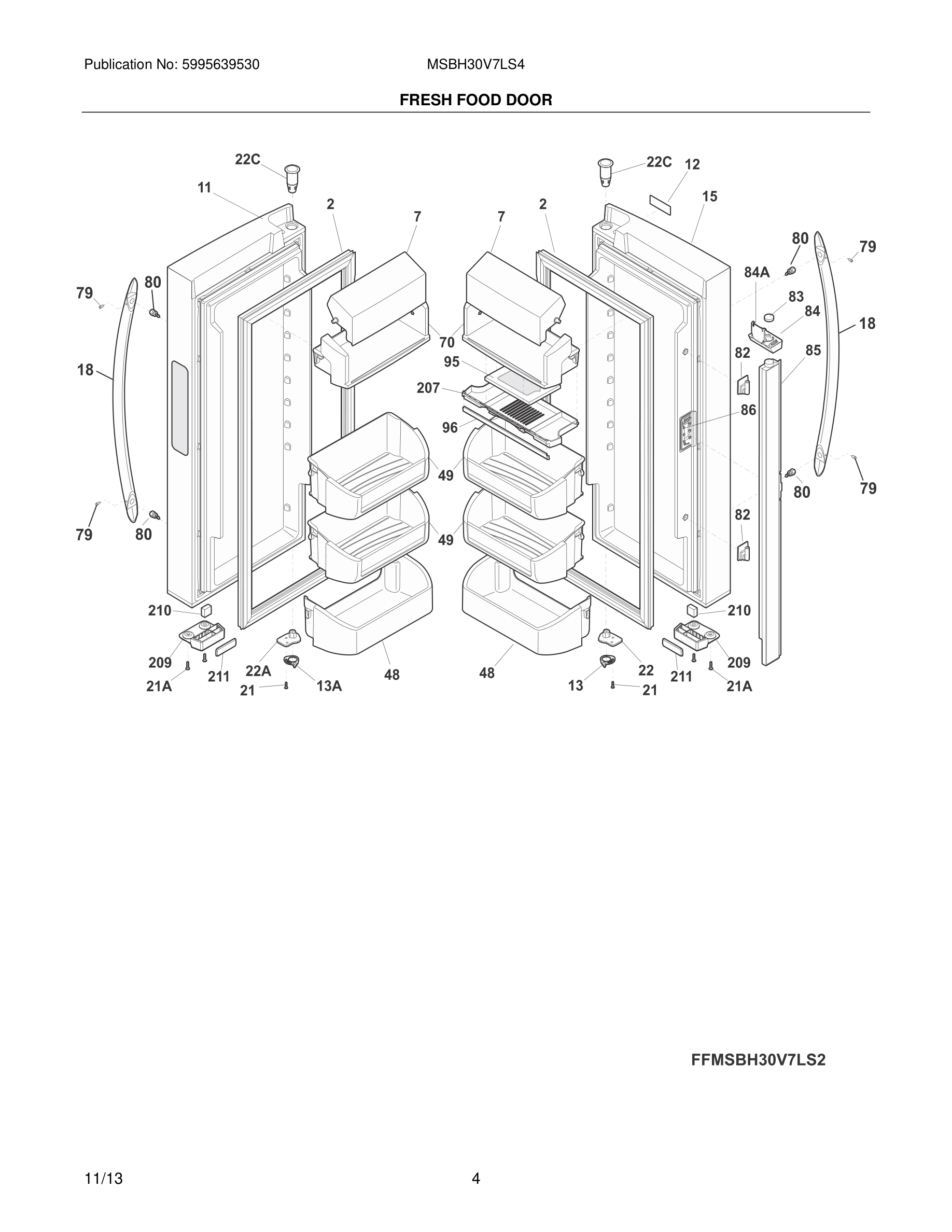

05 - FRESH FOOD DOOR

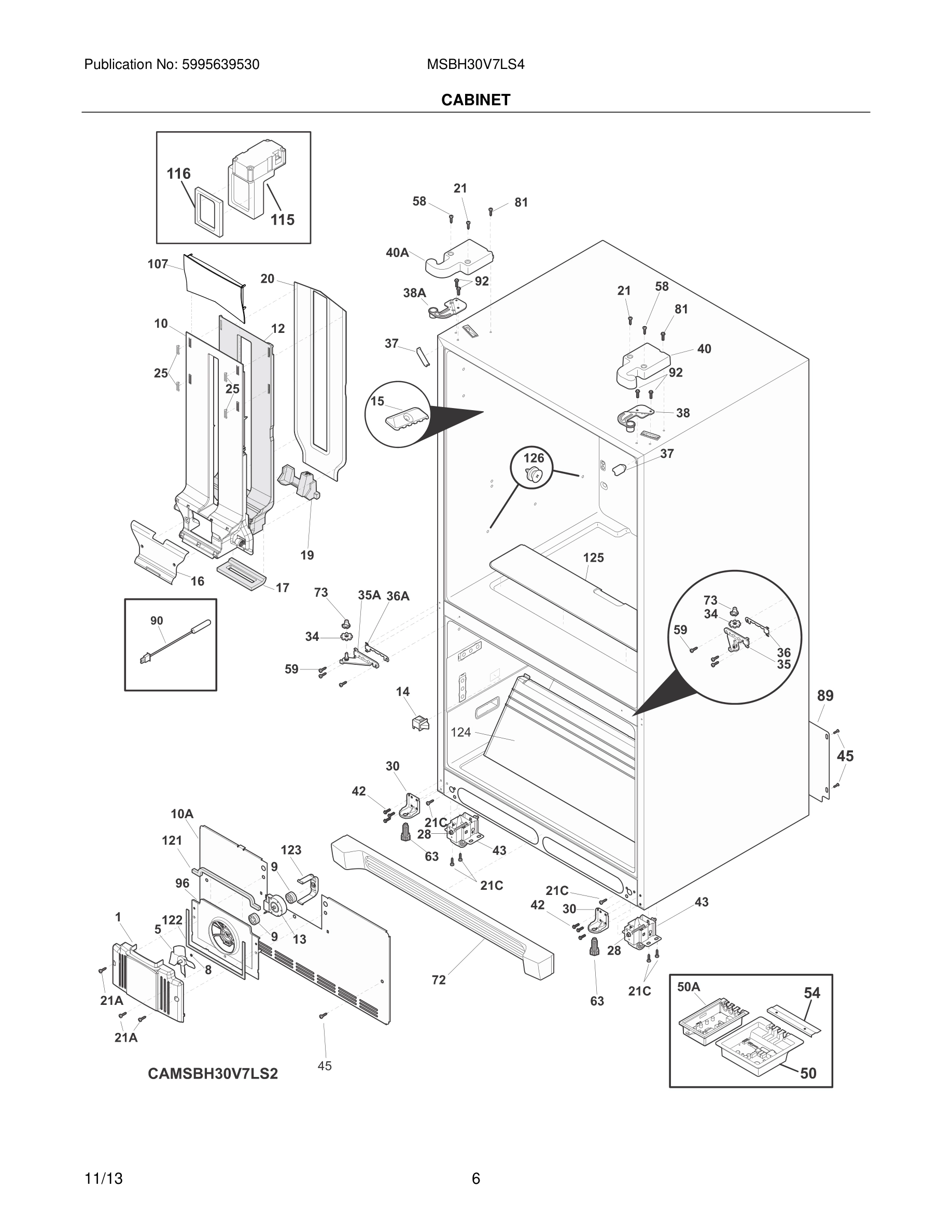

07 - CABINET
09 - CABINET

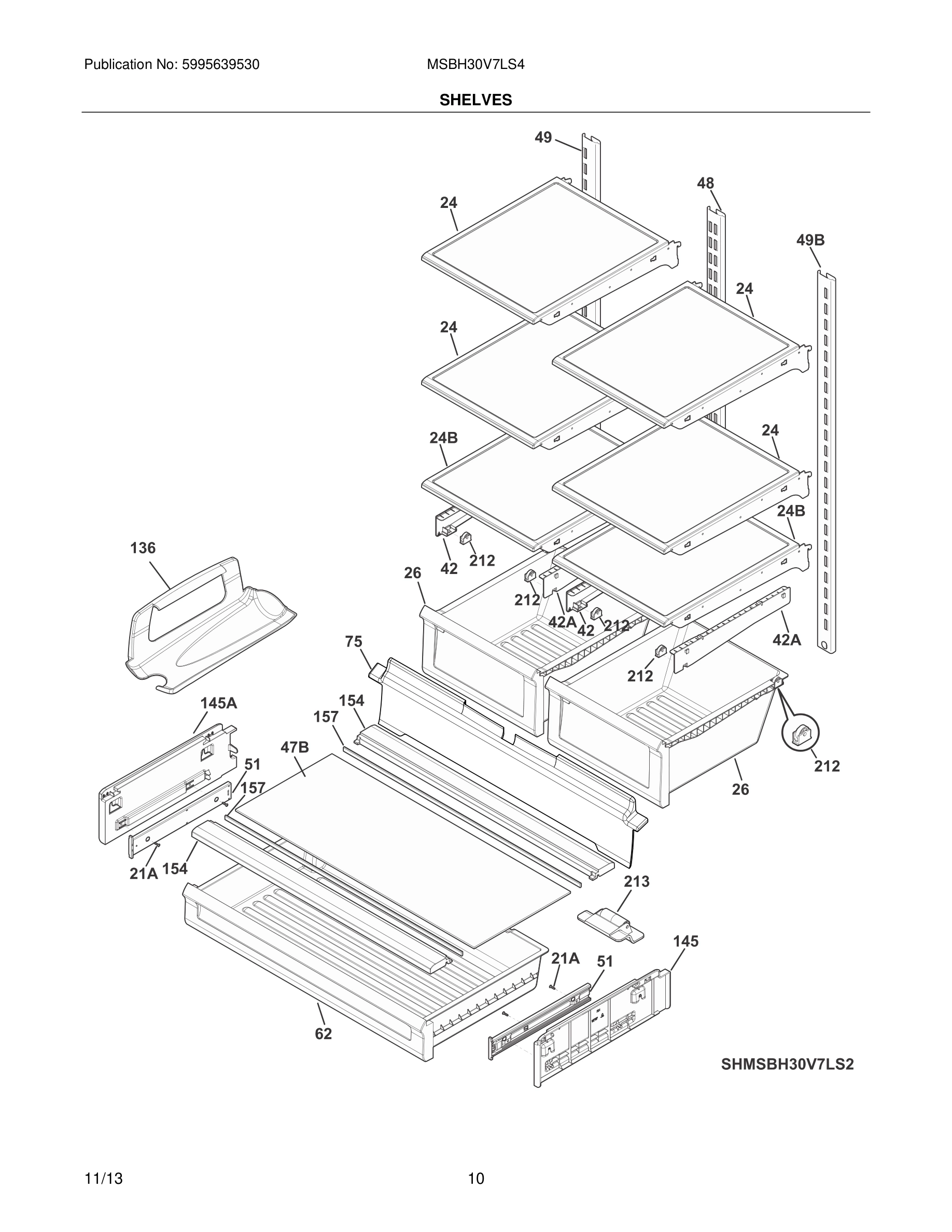

11 - SHELVES

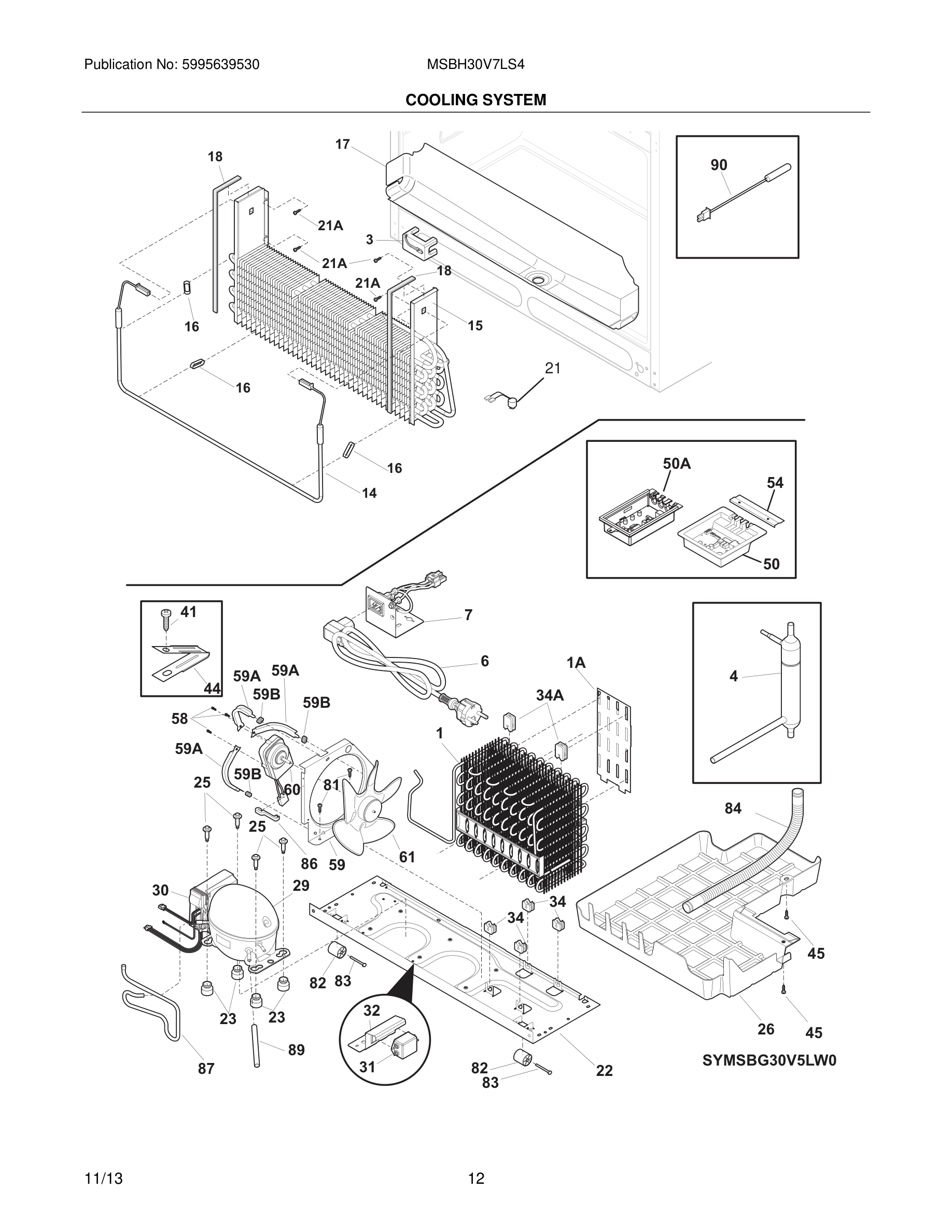

13 - COOLING SYSTEM

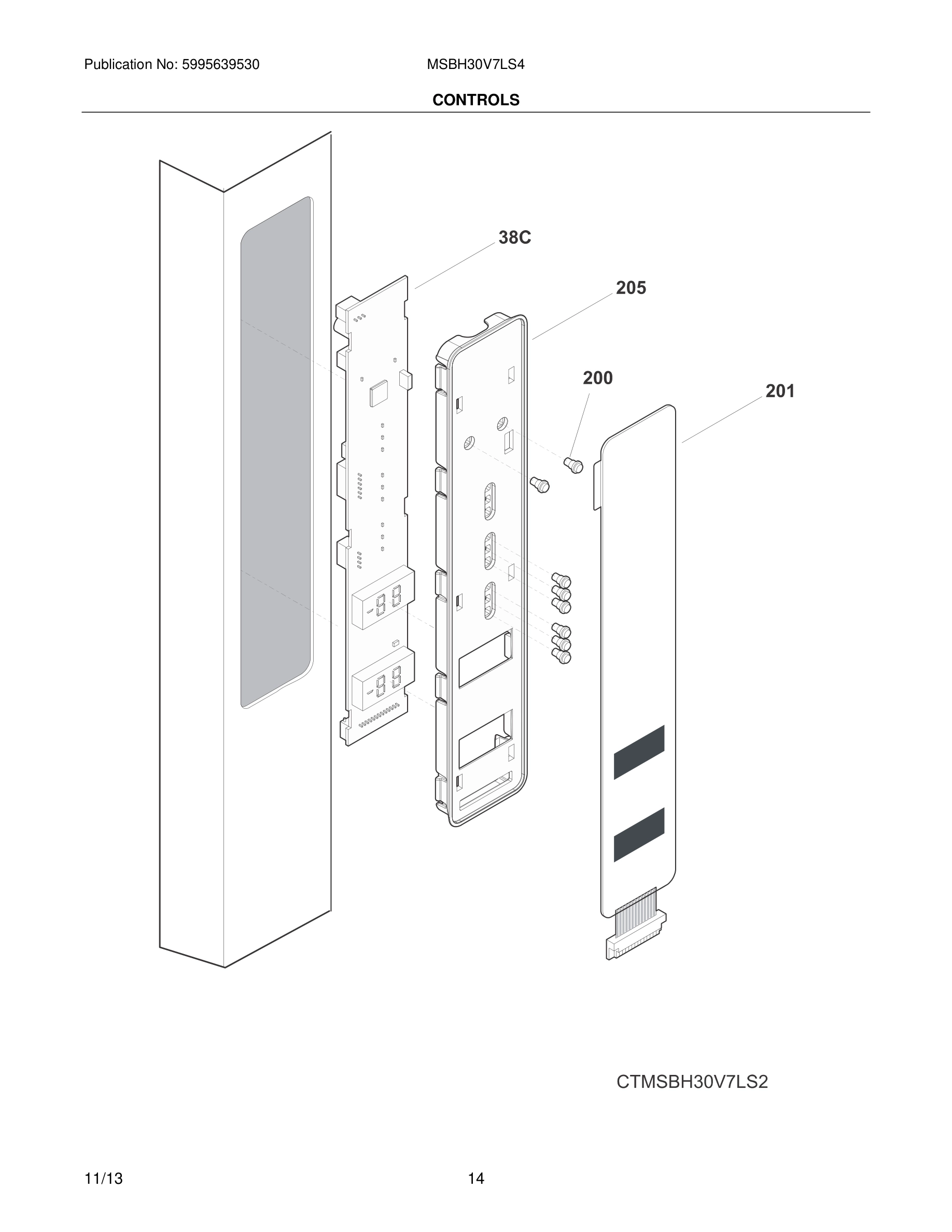

15 - CONTROLS
16 - WIRING DIAGRAM

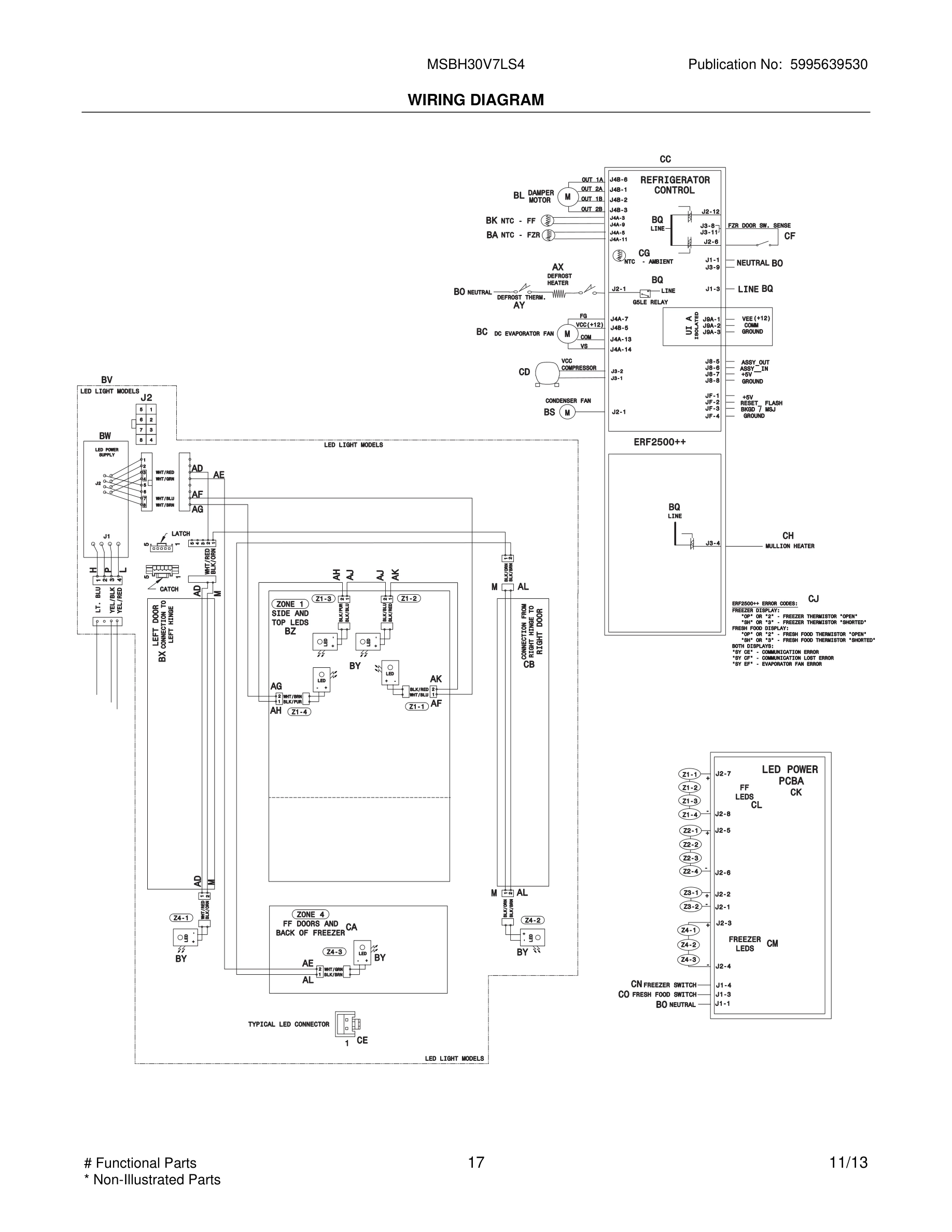

17 - WIRING DIAGRAM
Common parts from model Universal Multiflex MSBH30V7LS4 REFRIGERATOR
10
Cover-air duct WCI 242072002 No Longer Available
11
Door-frzr, stainless, complete assy WCI 241987921 Contact Us For Availability
15
Door-refr, stainless, RH WCI 241988081 Contact Us For Availability
22
Cam, upper hinge, RH WCI 242075601 Contact Us For Availability
25
Screw-compressor mtg, 1/4-28 x 1.16, (4) WCI 240491503 Contact Us For Availability
29#
S/A PUR-COMPRESSOR-EMBRACO WCI 241706206 Contact Us For Availability
37
Trim-cabinet corner, silver mist, (2) WCI 240337614 Contact Us For Availability
40
Cover-upper hinge, gray, RH WCI 242099809 Contact Us For Availability
49
Basket-frzr, lower WCI 242026801 Contact Us For Availability
49A
Basket-frzr, upper WCI 241780810 Contact Us For Availability
54
Channel WCI 241532401 No Longer Available
62
Pan-deli WCI 242096802 Contact Us For Availability
89
Tube-process WCI 215346900 Contact Us For Availability
90
Bar-timing WCI 242136901 Contact Us For Availability
136
Dispenser-can, white WCI 241657701 Contact Us For Availability
145
Support, rail WCI 242082201 Contact Us For Availability
145A
Support, rail WCI 242082202 Contact Us For Availability
154
Support WCI 242082401 Contact Us For Availability
157
Beam-crisper cover WCI 241872201 No Longer Available
205
Housing, disp/controls WCI 242066202 Contact Us For Availability
× ![]()
