Model Maytag MSB2554AEW01 REFRIGERATOR – Common Parts & Diagrams

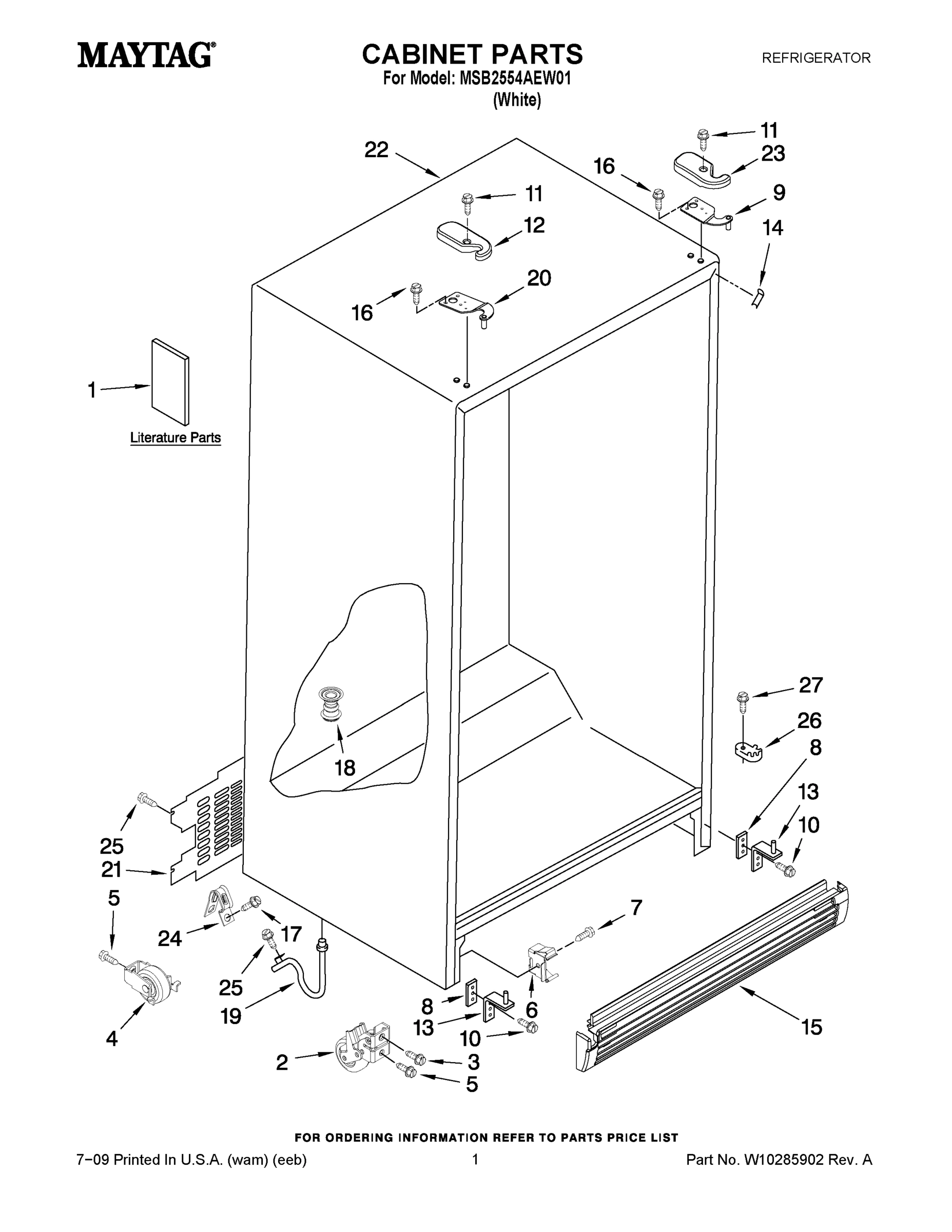

01 - CABINET PARTS

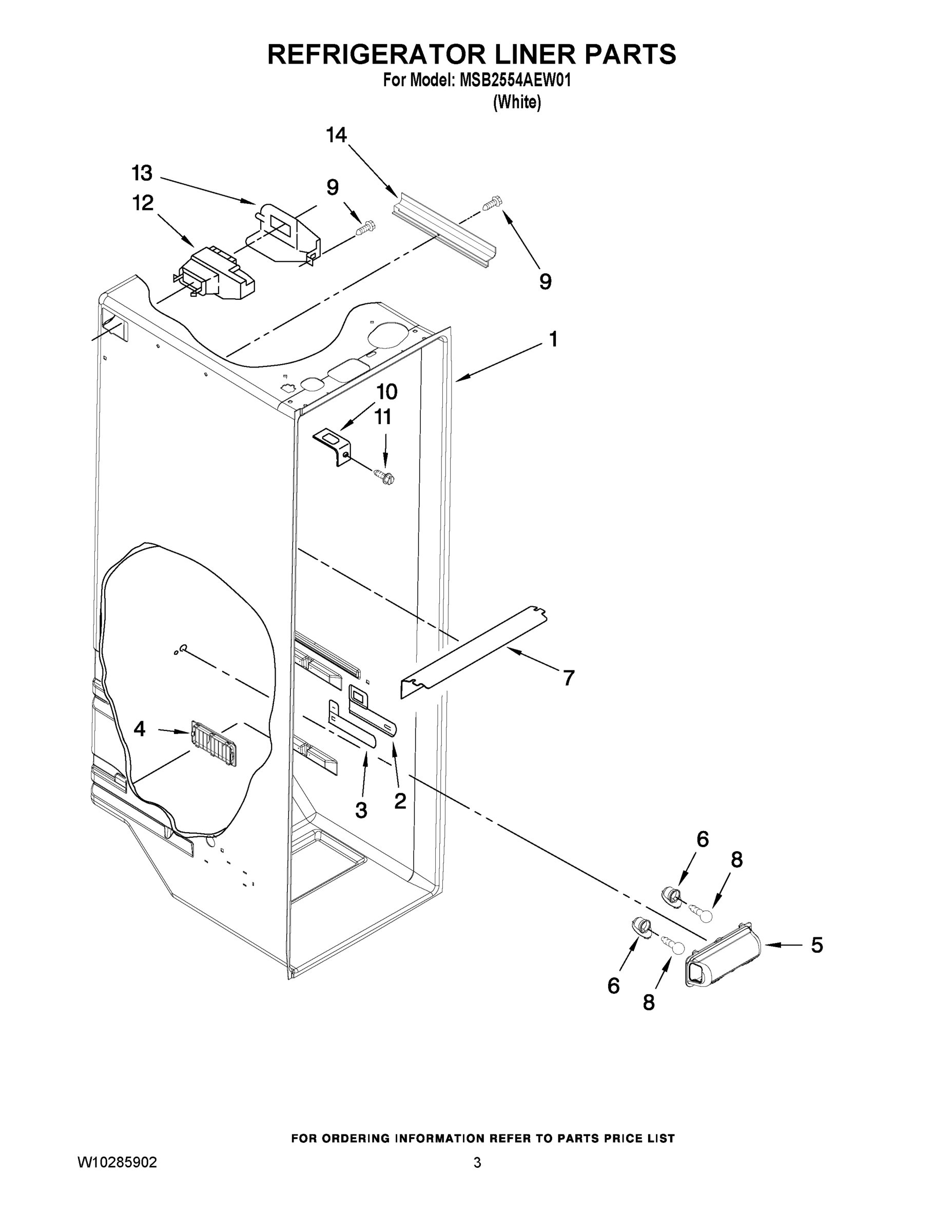

02 - REFRIGERATOR LINER PARTS

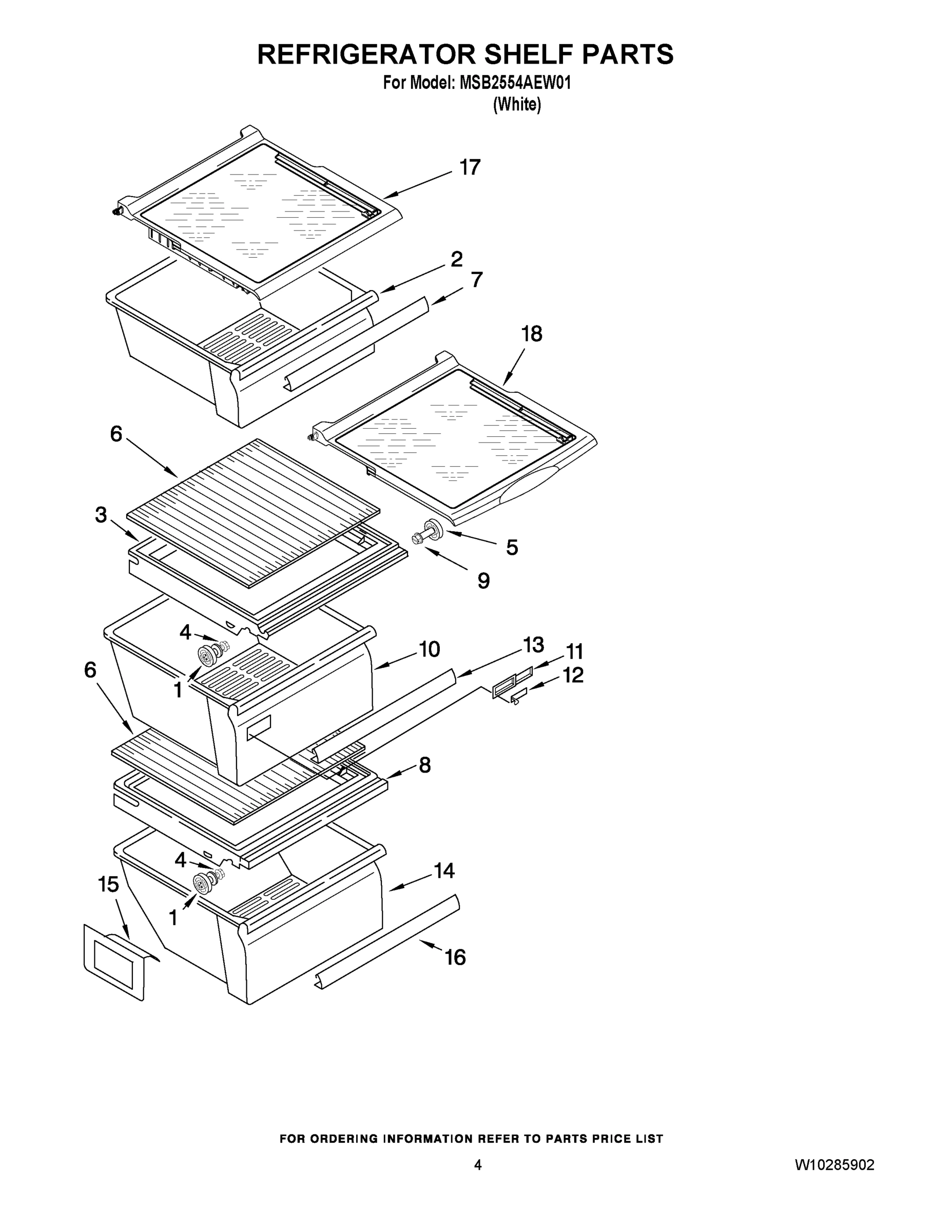

03 - REFRIGERATOR SHELF PARTS

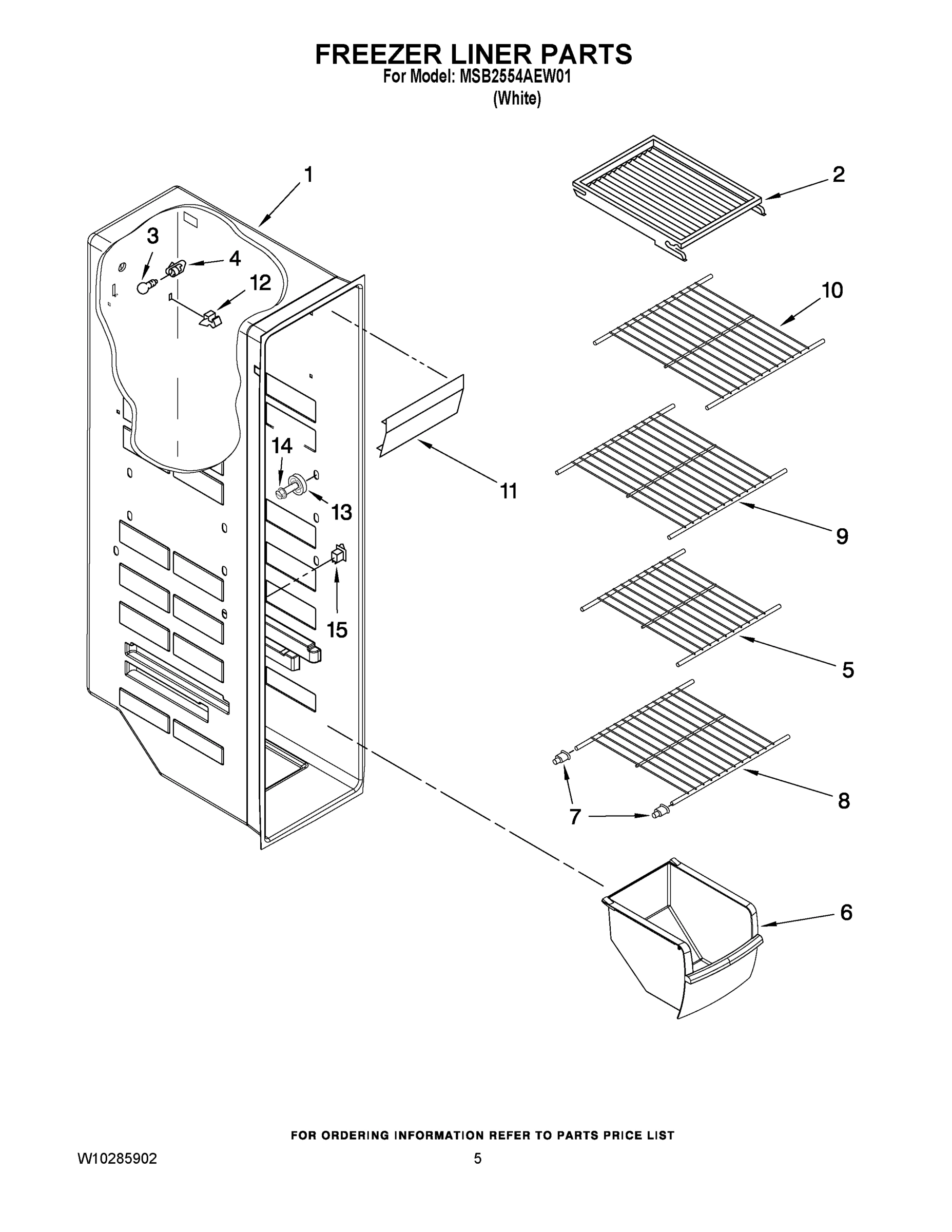

04 - FREEZER LINER PARTS

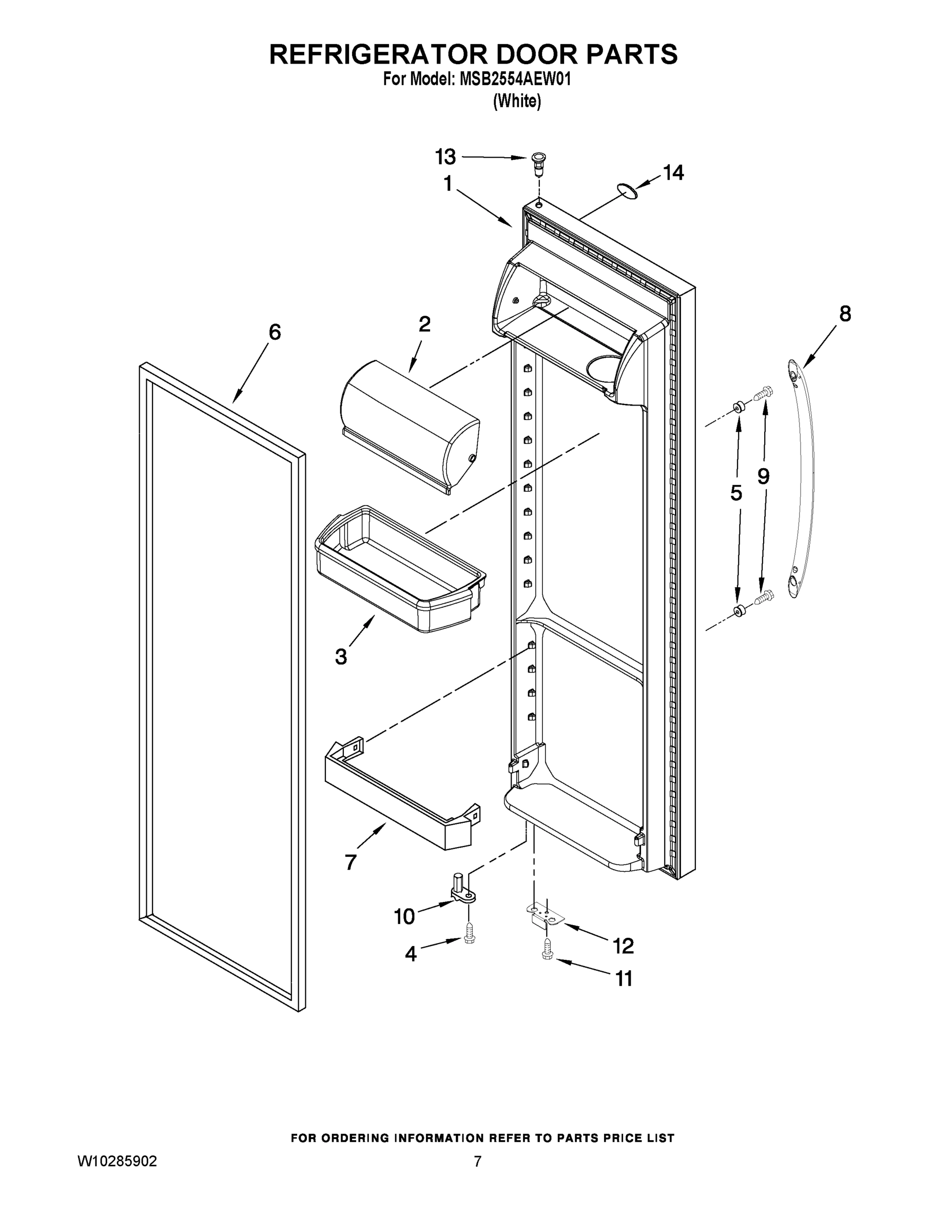

05 - REFRIGERATOR DOOR PARTS

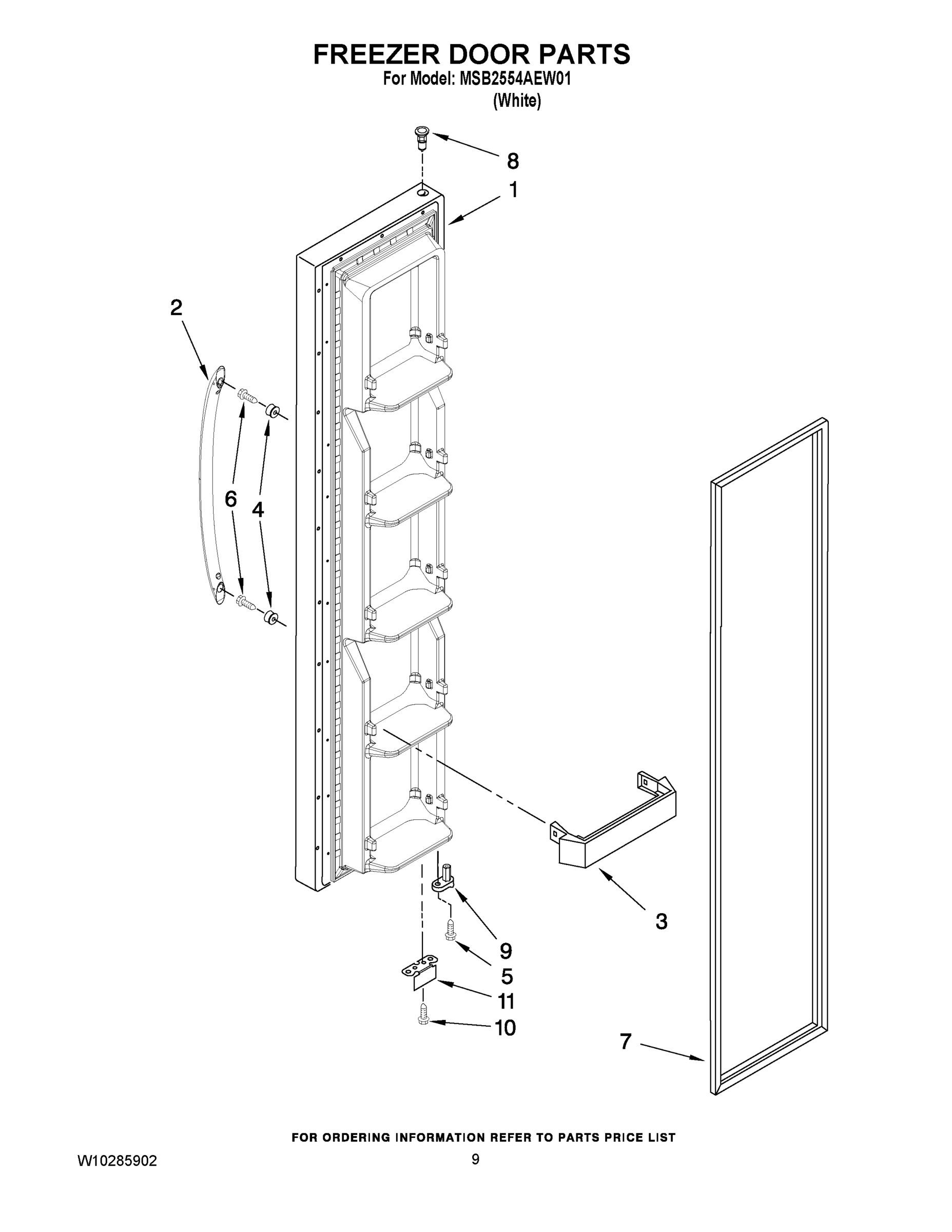

06 - FREEZER DOOR PARTS

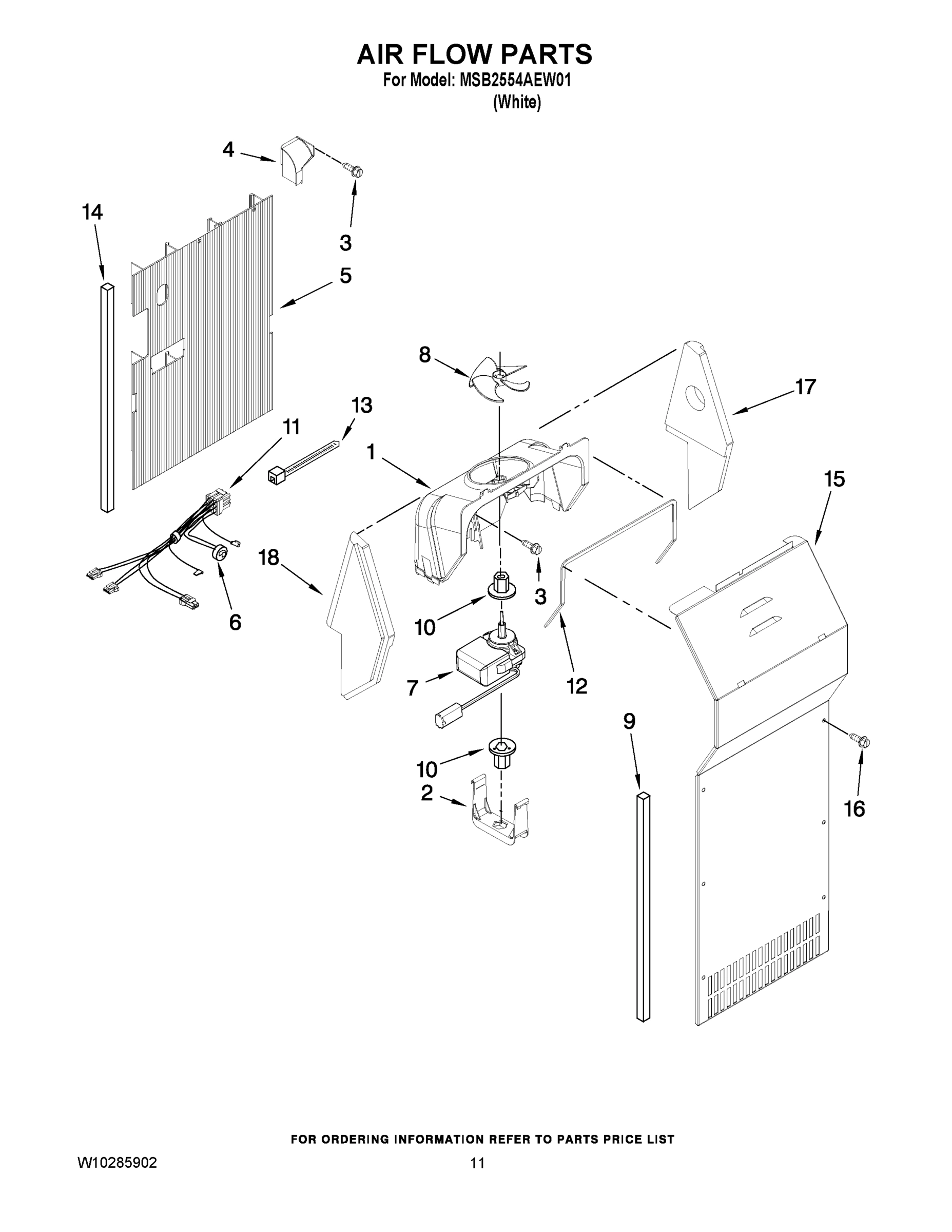

07 - AIR FLOW PARTS

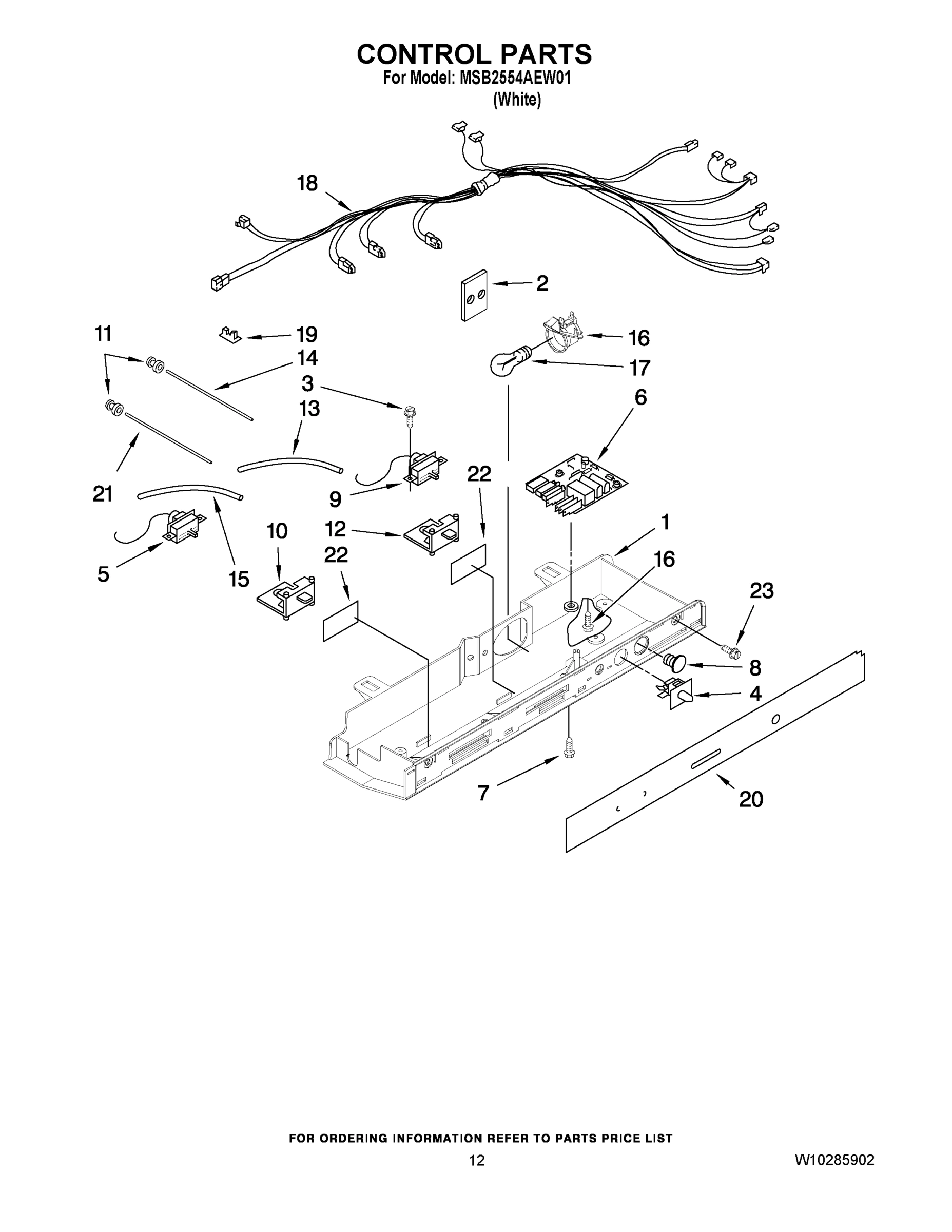

08 - CONTROL PARTS

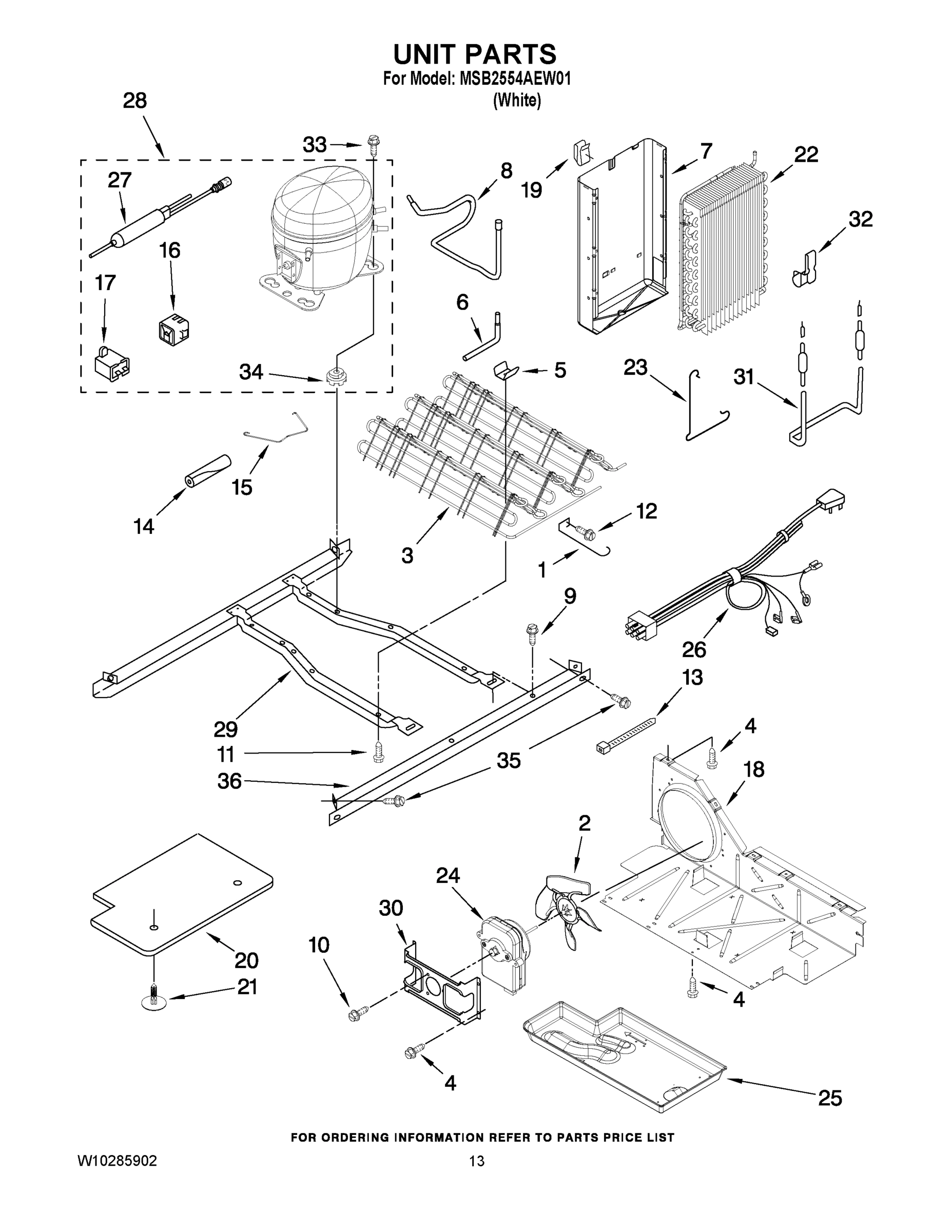

09 - UNIT PARTS
10 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MSB2554AEW01 REFRIGERATOR
1
Owner`s Manual MAY W10217561 Contact Us For Availability
1
MAY W10173126 MAY W10173126 Contact Us For Availability
1
REFRIGERATOR DOOR (INCLUDES ITEM No.6) (WHITE MAY 2258617W Contact Us For Availability
1
FREEZER DOOR (INCLUDES No.7 AND DISPENSER FRO MAY 2327058W Contact Us For Availability
1
Fan Scroll MAY 2182120 Contact Us For Availability
1
MAY 2200135 MAY 2200135 Contact Us For Availability
1
MAY 1110663 MAY 1110663 Contact Us For Availability
2
MAY 2174748 MAY 2174748 Contact Us For Availability
2
MAY W10175967 MAY W10175967 Contact Us For Availability
2
Snack Bin MAY 2309518 Contact Us For Availability
2
MAY 2171714 MAY 2171714 Contact Us For Availability
2
MAY 2256101 MAY 2256101 Contact Us For Availability
2
MAY 2155590 MAY 2155590 Contact Us For Availability
2
MAY W10173095 MAY W10173095 Contact Us For Availability
2
MAY 2225834 MAY 2225834 Contact Us For Availability
3
MAY 3400517 MAY 3400517 Contact Us For Availability
3
MAY 2182757 MAY 2182757 Contact Us For Availability
3
Cover, Crisper MAY 2209698 Contact Us For Availability
3
MAY W10158506 MAY W10158506 Contact Us For Availability
3
Door Trim (6) MAY 2309718 Contact Us For Availability
3
Screw (2) MAY 489214 Contact Us For Availability
3
MAY W10222348 MAY W10222348 Contact Us For Availability
4
REAR ROLLER (2) MAY 2150304 Contact Us For Availability
4
MAY 489464 MAY 489464 Contact Us For Availability
4
MAY 2257741 MAY 2257741 Contact Us For Availability
4
MAY W10191954 MAY W10191954 Contact Us For Availability
4
Stud MAY 2326259 Contact Us For Availability
4
MAY 2161229 MAY 2161229 Contact Us For Availability
4
Switch, Light MAY 2321287 Contact Us For Availability
5
MAY W10166019 MAY W10166019 Contact Us For Availability
5
MAY 2309597 MAY 2309597 Contact Us For Availability
5
MAY 3400012 MAY 3400012 Contact Us For Availability
5
MAY 2203594 MAY 2203594 Contact Us For Availability
5
MAY 2321289 MAY 2321289 Contact Us For Availability
5
MAY 2311725 MAY 2311725 Contact Us For Availability
6
MAY 2155013 MAY 2155013 Contact Us For Availability
6
Glass, Meat Cover MAY 2179259 Contact Us For Availability
6
Freezer Bin MAY 2309757 Contact Us For Availability
6
Door Gasket, Magnetic MAY 2309528 Contact Us For Availability
6
Screw (2) MAY 488208 Contact Us For Availability
6
MAY 2188824 MAY 2188824 Contact Us For Availability
6
Control Board Assembly MAY 2321261 Contact Us For Availability
6
MAY 2325479 MAY 2325479 Contact Us For Availability
7
Trim, Handle MAY 2309519 Contact Us For Availability
7
Cup, Shelf (16) MAY W10130299 Contact Us For Availability
7
MAY 2309941 MAY 2309941 Contact Us For Availability
7
Door Gasket, Magnetic MAY 2309532 Contact Us For Availability
7
MAY 2321275 MAY 2321275 Contact Us For Availability
7
MAY 489398 MAY 489398 Contact Us For Availability
7
Heat Shield And Drain Pan MAY W10194475 Contact Us For Availability
8
Shim MAY 2209697 Contact Us For Availability
8
MAY 2311726 MAY 2311726 Contact Us For Availability
8
MAY 2309521 MAY 2309521 Contact Us For Availability
8
MAY 2308091 MAY 2308091 Contact Us For Availability
8
Fan Blade MAY 2169142 Contact Us For Availability
8
MAY 940014 MAY 940014 Contact Us For Availability
8
MAY 2205765 MAY 2205765 Contact Us For Availability
9
MAY 489427 MAY 489427 Contact Us For Availability
9
HINGE TOP RC MAY 2203771 Contact Us For Availability
9
Screw (2) MAY W10004810 Contact Us For Availability
9
SHELF WIRE MAY 2309522 Contact Us For Availability
9
DOOR CLOSER UPPER CAM MAY 2182178 Contact Us For Availability
9
MAY 2304241 MAY 2304241 Contact Us For Availability
9
MAY 2321305 MAY 2321305 Contact Us For Availability
10
MAY 3400113 MAY 3400113 Contact Us For Availability
10
MAY 2256085 MAY 2256085 Contact Us For Availability
10
MAY 2188652 MAY 2188652 Contact Us For Availability
10
Shelf, Wire MAY 2309596 Contact Us For Availability
10
MAY 489420 MAY 489420 Contact Us For Availability
10
Fan Grommet (2) MAY 2176759 Contact Us For Availability
10
MAY 8533993 MAY 8533993 Contact Us For Availability
11
MAY 8281227 MAY 8281227 Contact Us For Availability
11
MAY 2198479 MAY 2198479 Contact Us For Availability
11
Screw MAY 489290 Contact Us For Availability
11
Body, Humidity Control MAY 2179343 Contact Us For Availability
11
BRACKET, DOOR STOP MAY W10185566 Contact Us For Availability
11
HARNESS, FAN EVAPORATOR (INCLUDES No.6) MAY W10129781 Contact Us For Availability
11
Grommet, Light Bar (4) MAY 2172906 Contact Us For Availability
11
MAY 8281232 MAY 8281232 Contact Us For Availability
12
MAY 489478 MAY 489478 Contact Us For Availability
12
Hinge Cover (FC) MAY W10138581 Contact Us For Availability
12
MAY W10151378 MAY W10151378 Contact Us For Availability
12
MAY 2179342 MAY 2179342 Contact Us For Availability
12
Clip, Air Duct (2) MAY 842534 Contact Us For Availability
12
BRACKET, DOOR STOP MAY 2321218W Contact Us For Availability
12
Gasket, Fan Scroll MAY 2155789 Contact Us For Availability
12
MAY 2161466 MAY 2161466 Contact Us For Availability
13
Bottom Hinge MAY 2217075 Contact Us For Availability
13
MAY 2212240 MAY 2212240 Contact Us For Availability
13
MAY W10173127 MAY W10173127 Contact Us For Availability
13
Trim, Handle MAY 2255593 Contact Us For Availability
13
Wire Tie MAY 2263990 Contact Us For Availability
13
Tube, Barrier MAY 2182150 Contact Us For Availability
14
Filler, Wrapper MAY 2201014 Contact Us For Availability
14
MAY 2150331 MAY 2150331 Contact Us For Availability
14
MAY W10191952 MAY W10191952 Contact Us For Availability
14
MAY 2188654 MAY 2188654 Contact Us For Availability
14
Nameplate MAY W10170766 Contact Us For Availability
14
MAY 2203876 MAY 2203876 Contact Us For Availability
14
MAY 2179920 MAY 2179920 Contact Us For Availability
14
MAY 2161302 MAY 2161302 Contact Us For Availability
15
GRILLE MAY 2198470W Contact Us For Availability
15
MAY 2179350 MAY 2179350 Contact Us For Availability
15
MAY 2321286 MAY 2321286 Contact Us For Availability
15
COVER, EVAPORATOR (INCLUDES No.9) MAY W10194476 Contact Us For Availability
15
Tube, Barrier MAY 2196003 Contact Us For Availability
15
Clip, Retaining MAY 2302129 Contact Us For Availability
16
MAY 489497 MAY 489497 Contact Us For Availability
16
Light Socket MAY W10134764 Contact Us For Availability
16
Trim, Handle MAY 2255592 Contact Us For Availability
16
Screw (6) MAY 8281159 Contact Us For Availability
16
Start-Device, Combination Relay and Overload MAY 2303345 Contact Us For Availability
16
Start-Device, Combination Relay and Overload MAY 2312003 Contact Us For Availability
17
Light Bulb MAY 851682 Contact Us For Availability
17
Shelf, Snack Bin MAY 2309560 Contact Us For Availability
17
MAY 2203595 MAY 2203595 Contact Us For Availability
17
MAY 2321245 MAY 2321245 Contact Us For Availability
18
MAY 2304888 MAY 2304888 Contact Us For Availability
18
Shelf Assembly, Spillguard (2) MAY 2309524 Contact Us For Availability
18
MAY 2203596 MAY 2203596 Contact Us For Availability
18
MAY 2310533 MAY 2310533 Contact Us For Availability
18
MAY W10163483 MAY W10163483 Contact Us For Availability
19
MAY 2304937 MAY 2304937 Contact Us For Availability
19
Clip-Wiring MAY 1115375 Contact Us For Availability
19
Clip, Heat MAY 2155547 Contact Us For Availability
20
HINGE TOP, FC MAY 2203770 Contact Us For Availability
20
Escutcheon, Control Box MAY W10203047 Contact Us For Availability
20
Unit Cover, Bottom MAY 2304899 Contact Us For Availability
21
MAY 2214574 MAY 2214574 Contact Us For Availability
21
LIGHT BAR FC MAY 2179921 Contact Us For Availability
21
MAY 489396 MAY 489396 Contact Us For Availability
22
MAY 2172940 MAY 2172940 Contact Us For Availability
22
Evaporator MAY 2188823 Contact Us For Availability
23
Hinge Cover (RC) MAY W10138576 Contact Us For Availability
23
Screw (2) MAY 489084 Contact Us For Availability
24
Clamp, Service Cord MAY 489348 Contact Us For Availability
24
MAY 2321271 MAY 2321271 Contact Us For Availability
25
MAY 1105523 MAY 1105523 Contact Us For Availability
26
Door Closer, Lower Cam MAY 2155311 Contact Us For Availability
26
MAY W10129772 MAY W10129772 Contact Us For Availability
27
MAY 489483 MAY 489483 Contact Us For Availability
27
MAY 4387019 MAY 4387019 Contact Us For Availability
27
MAY W10177049 MAY W10177049 Contact Us For Availability
28
Compressor (Includes Items 16, 17, 27, & 34) MAY W10120454 Contact Us For Availability
29
Unit Mounting Frame MAY W10196321 Contact Us For Availability
30
Bracket, Fan Motor MAY 2181929 Contact Us For Availability
31
MAY W10123653 MAY W10123653 Contact Us For Availability
32
Clip, Heater MAY 2161324 Contact Us For Availability
33
MAY 489373 MAY 489373 Contact Us For Availability
34
MAY 1100826 MAY 1100826 Contact Us For Availability
35
MAY 489340 MAY 489340 Contact Us For Availability
36
MAY W10196323 MAY W10196323 Contact Us For Availability
NI
REFRIGERANT CHARGE (5.0 OZ. (R-134A) MAY N/P Contact Us For Availability
NI
MAY 876764 MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS (1/4``) MAY 978025 Contact Us For Availability
NI
Valve, Access (5/16``) MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS (3/8``) MAY 978027 Contact Us For Availability
NI
Valve, Access (1/2``) MAY 978028 Contact Us For Availability
NI
Valve, Access (5/8``) MAY 978029 Contact Us For Availability
NI
Valve, Access (3/4``) MAY 978030 Contact Us For Availability
NI
MAY 1117510 MAY 1117510 Contact Us For Availability
NI
SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
MAY 4392899 MAY 4392899 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (BLACK) MAY 4392900 Contact Us For Availability
NI
MAY 479502 MAY 479502 Contact Us For Availability
NI
MAY 503695 MAY 503695 Contact Us For Availability
NI
MAY 505587 MAY 505587 Contact Us For Availability
NI
MAY 542638 MAY 542638 Contact Us For Availability
NI
MAY 542639 MAY 542639 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE) MAY 799340 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (BISCUIT) MAY 799344 Contact Us For Availability
NI
Kit, Evaporator Repair (Aluminum Epoxy) MAY 799833 Contact Us For Availability
NI
MAY 80051 MAY 80051 Contact Us For Availability
NI
MAY 8129 MAY 8129 Contact Us For Availability
NI
PAINT, BULK (1 QT. GRAPHITE) MAY 8171358 Contact Us For Availability
NI
MAY 833938 MAY 833938 Contact Us For Availability
× ![]()
