Model LG MS2535GIS.CBKELEC – Common Parts & Diagrams
DOOR PARTS

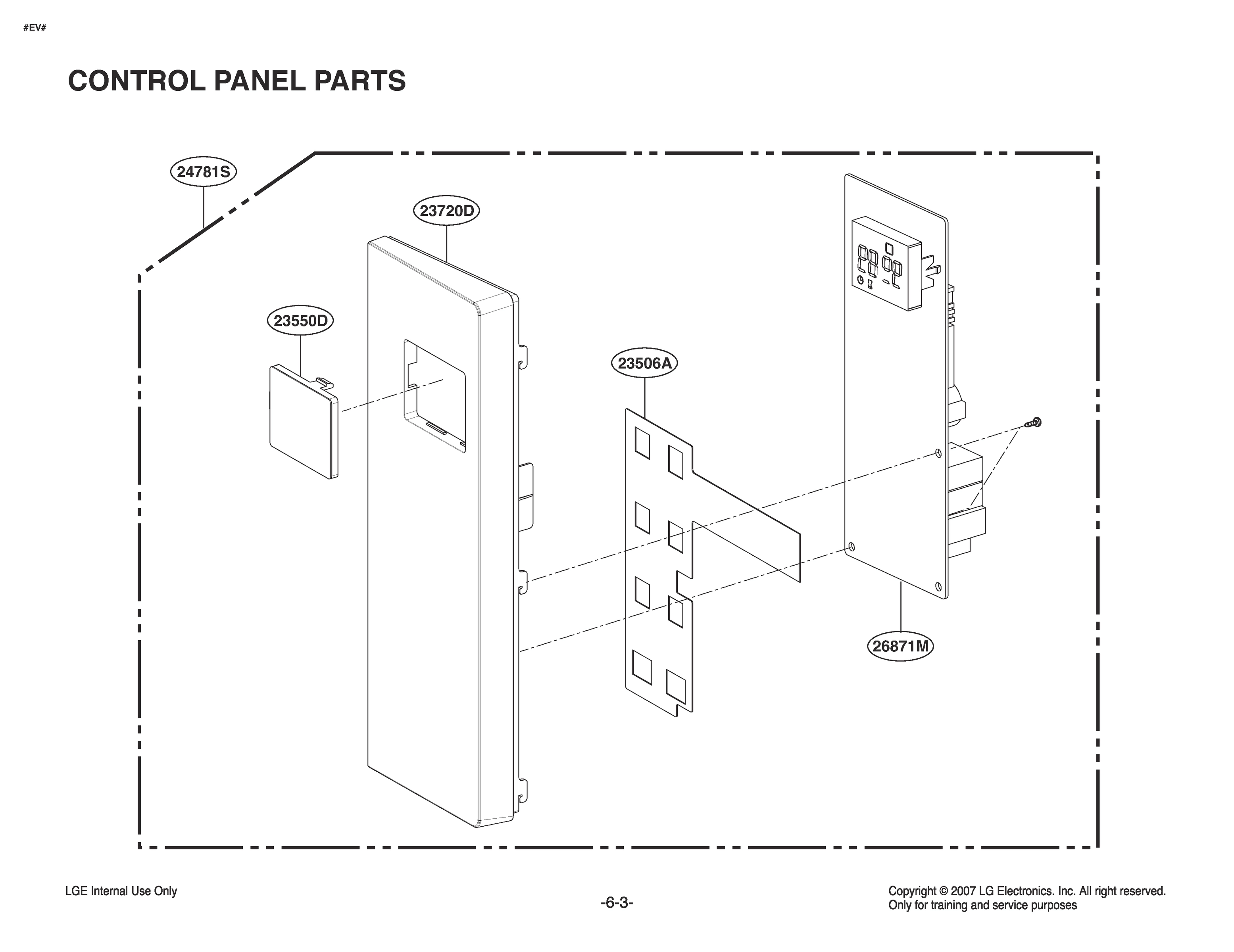

CONTROL PANEL PARTS
OVEN CAVITY PARTS
LARCH BOARD PARTS
INTERIOR PARTS
BASE PLATE PARTS
Common parts from model LG MS2535GIS.CBKELEC
50FZZA
Fuse,Time Delay LGE 3B74133Q Contact Us For Availability
507V
PCB Assembly,Inverter LGE EBR82899405 Contact Us For Availability
507V
PCB Assembly,Inverter LGE EBR82899409 Contact Us For Availability
3002
Tray,Glass LGE MJS63771901 Contact Us For Availability
3002
Tray,Glass LGE MJS63771903 Contact Us For Availability
3008
Turntable Assembly LGE AJS73129204 Contact Us For Availability
3009
Motor, AC Synchronous LGE 6549W1S011E Contact Us For Availability
3034
Cover,Insulator LGE MCK69074904 Contact Us For Availability
5016
Thermostat LGE 6930W1A003B Contact Us For Availability
5016
Thermostat LGE 6930W1A004N Contact Us For Availability
5016
Thermostat LGE 6930W1A004X Contact Us For Availability
5120
Thermostat LGE 6930W1A003A Contact Us For Availability
5120
Thermostat LGE 6930W1A004L Contact Us For Availability
5472
Guide,Air LGE MEA64431003 Contact Us For Availability
5473
Supporter LGE MJH64235103 Contact Us For Availability
5474
Harness,Single LGE EAD63789203 Contact Us For Availability
6011
Foot Assembly LGE ADU73009001 Contact Us For Availability
26871M
PCB Assembly,Main LGE EBR81132236 Contact Us For Availability
33112U
Case,U Bending LGE MBN64566201 Contact Us For Availability
34370T
Shaft,Turntable LGE 4370W1A006B Contact Us For Availability
34931V
Holder Assembly,Lamp LGE AEJ74859415 Contact Us For Availability
43501A
Holder Assembly,Locker LGE AEJ74780002 Contact Us For Availability
53741V
Supporter Assembly,PCB LGE AJJ75138546 Contact Us For Availability
53741V
Supporter Assembly,PCB LGE AJJ75138531 Contact Us For Availability
54974S
Guide,Suction LGE MEA64470604 Contact Us For Availability
55262A
Duct LGE MCZ64391901 Contact Us For Availability
55900A
Fan,Propeller LGE MDG63042801 Contact Us For Availability
56324A
Magnetron LGE EAS61382907 Contact Us For Availability
56411A
Power Cord Assembly LGE EAD62027810 Contact Us For Availability
56411A
Power Cord Assembly LGE EAD62027818 Contact Us For Availability
56549F
Motor,AC Fan LGE EAU42744404 Contact Us For Availability
56820A
Fuse Holder LGE 4930W3B025E Contact Us For Availability
63303A
Plate Assembly,Base LGE AGU75509702 Contact Us For Availability
568771
Harness,Single LGE EAD63945901 Contact Us For Availability
W101
Screw,Taptite LGE 1SBF0402418 Contact Us For Availability
W140
Screw,Customized LGE 4000W4A003A Contact Us For Availability
W509
Screw,Customized LGE FAB33219701 Contact Us For Availability
W520
Screw,Tapping LGE FAB33439001 Contact Us For Availability
W607
Screw,Customized LGE FAB33360001 Contact Us For Availability
W701
Screw,Customized LGE FAB33319201 Contact Us For Availability
× ![]()
