Model Whirlpool MS1650XW1 – Common Parts & Diagrams

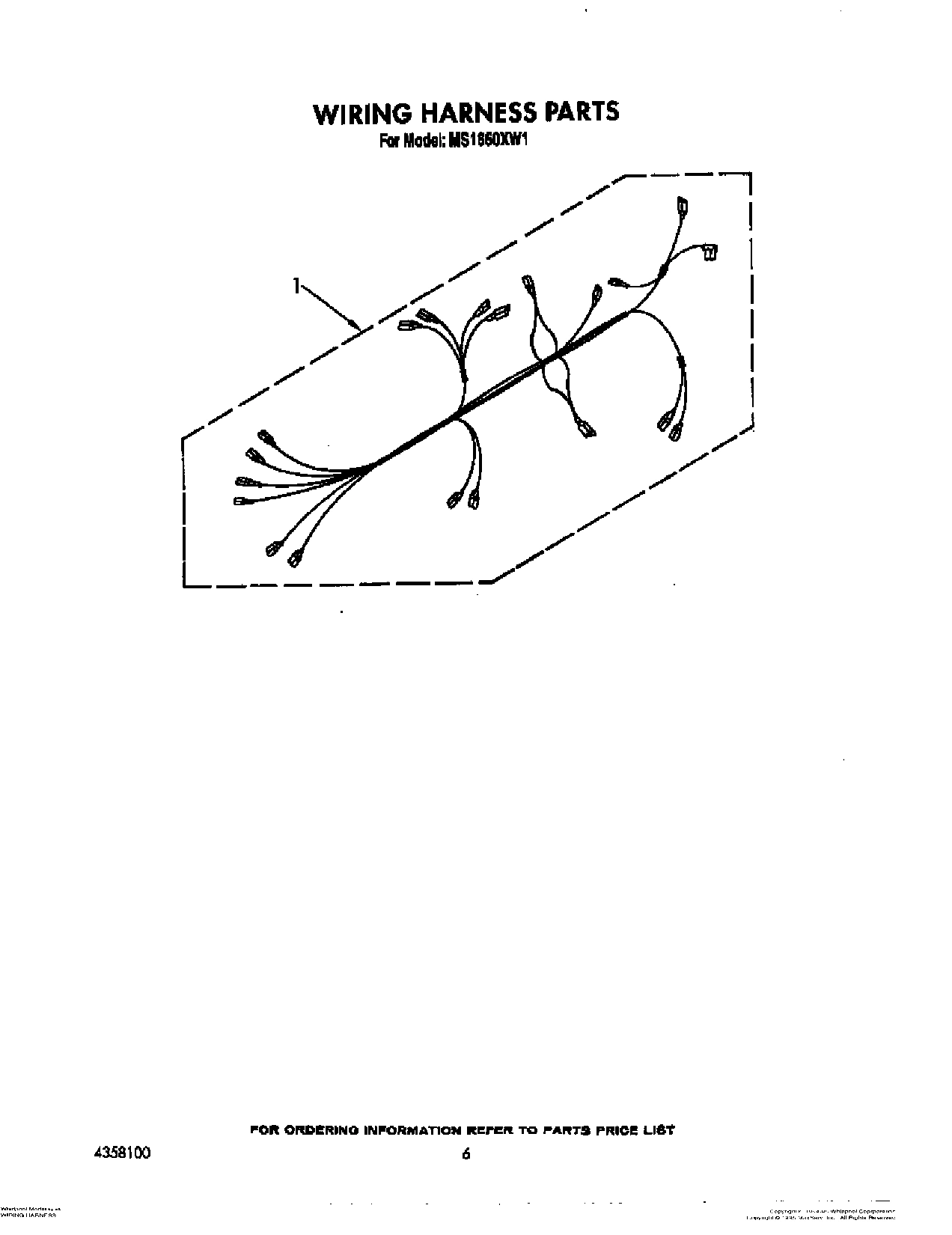

06 - WIRING HARNESS, OPTIONAL

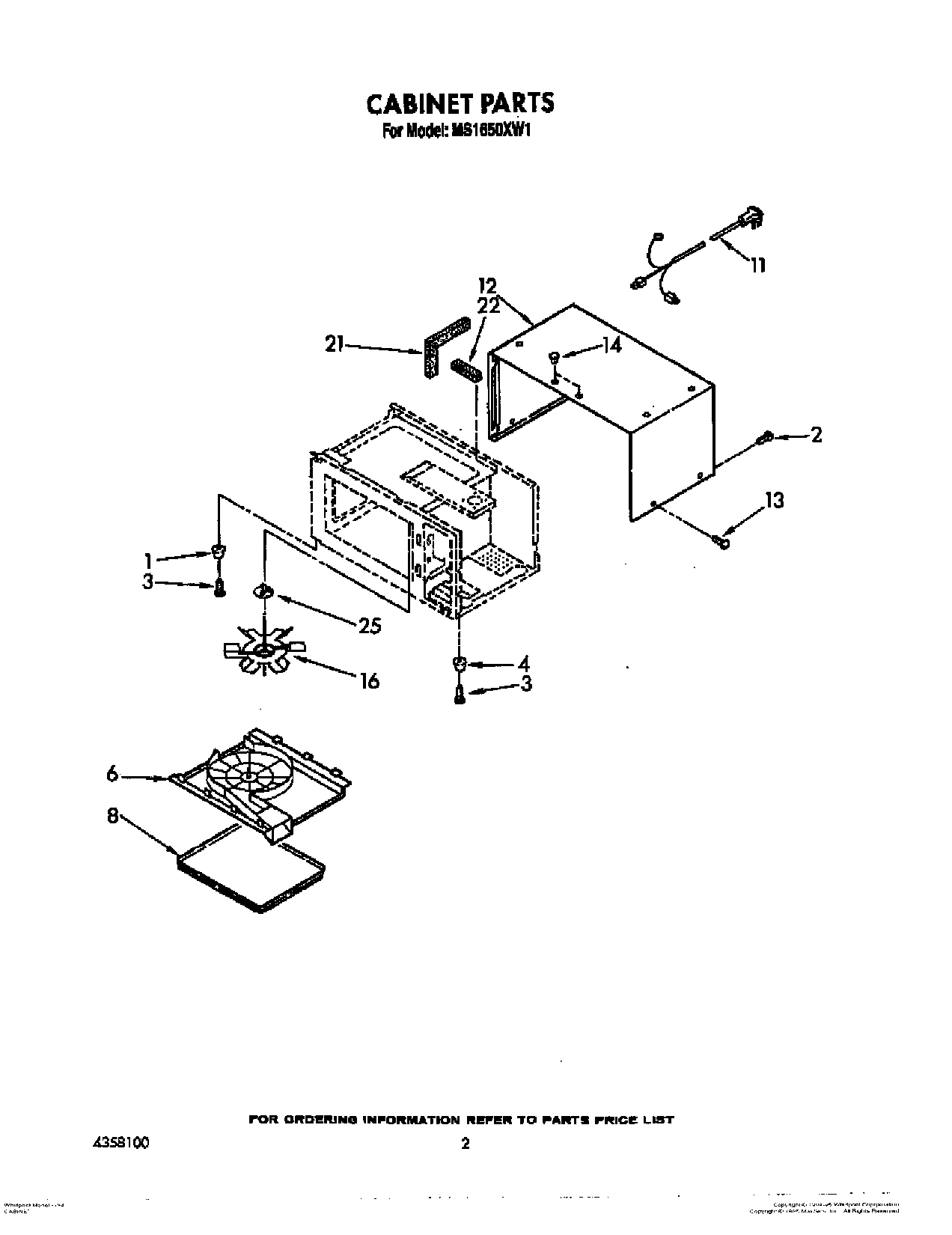

02 - CABINET

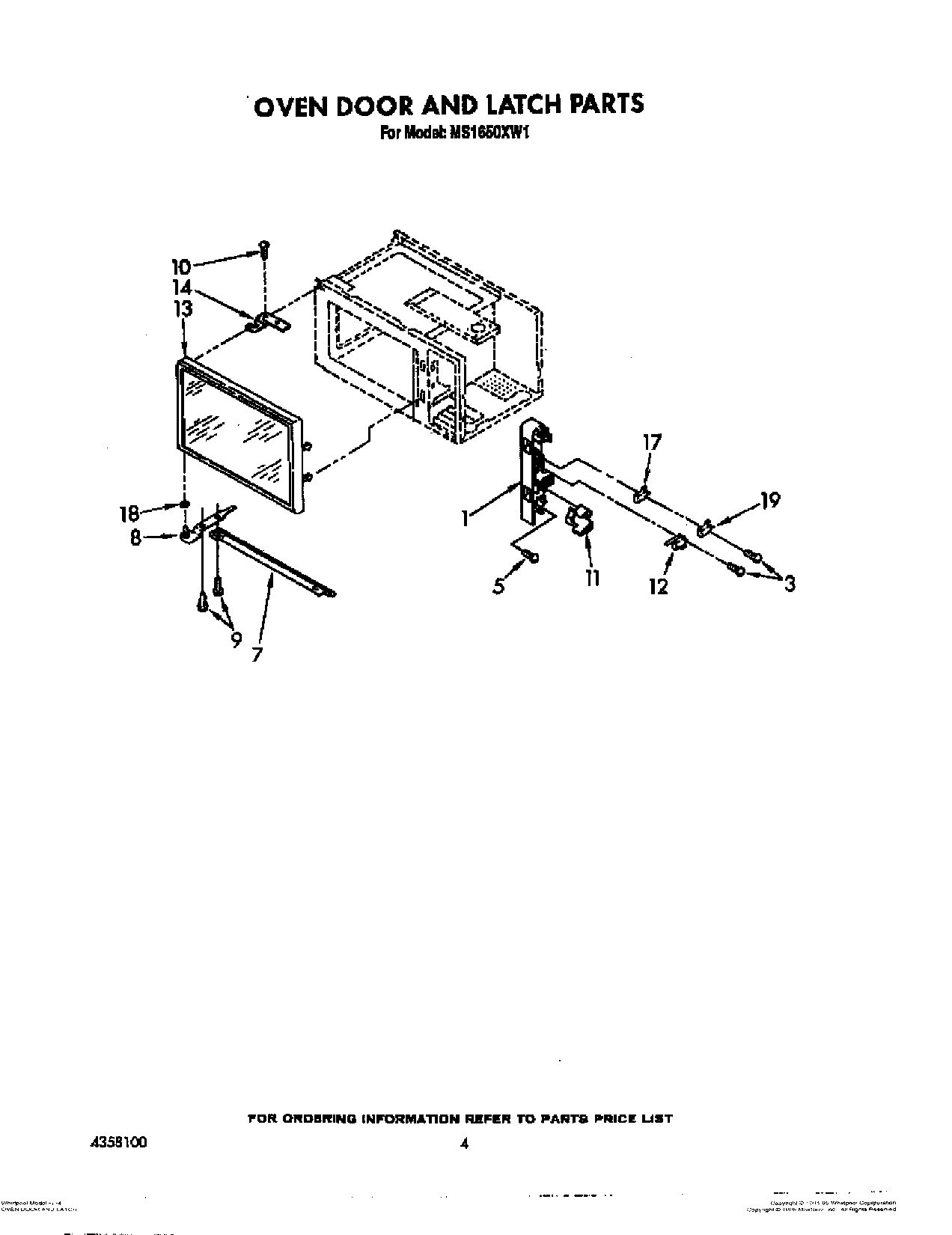

04 - OVEN DOOR AND LATCH

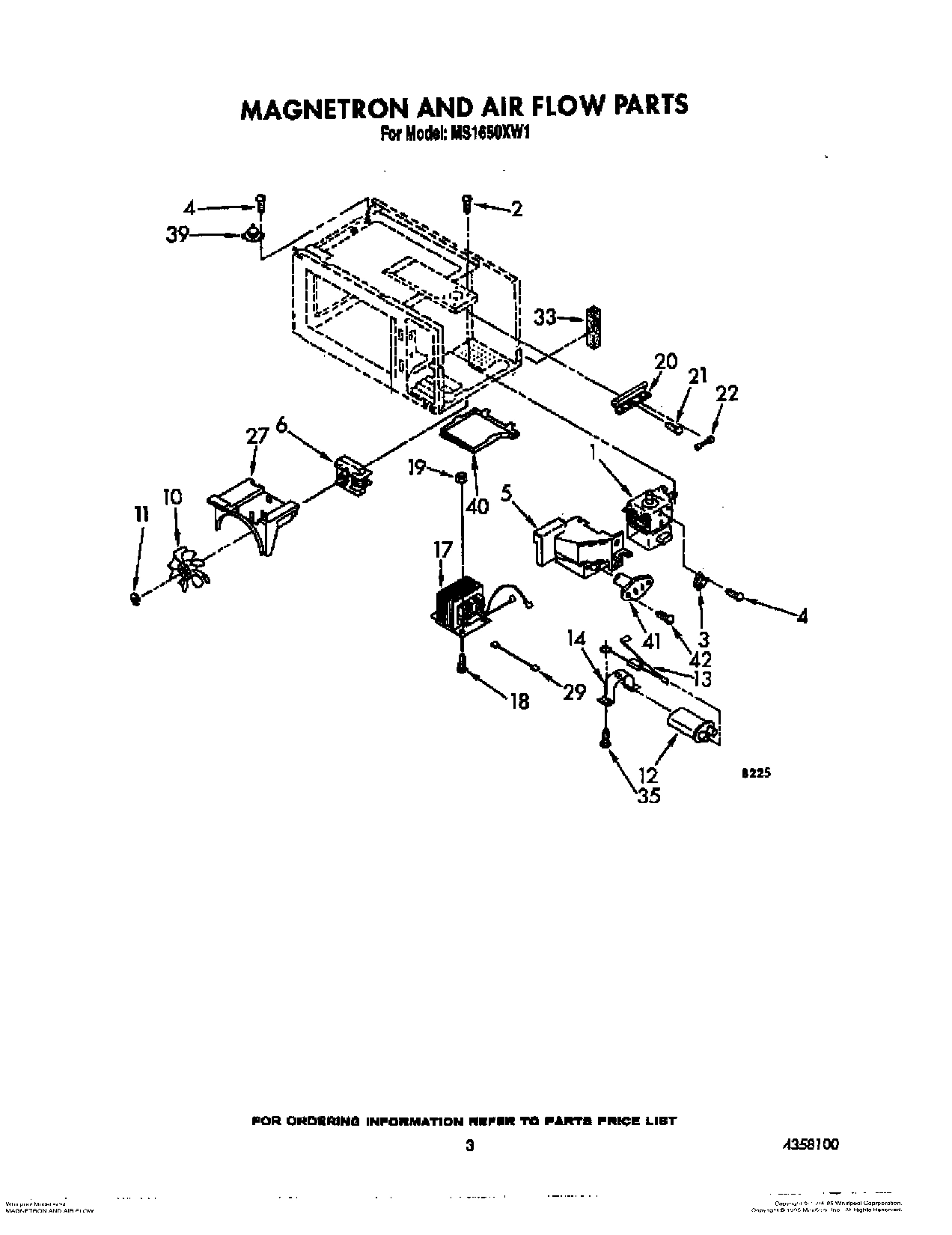

03 - MAGNETRON AND AIR FLOW

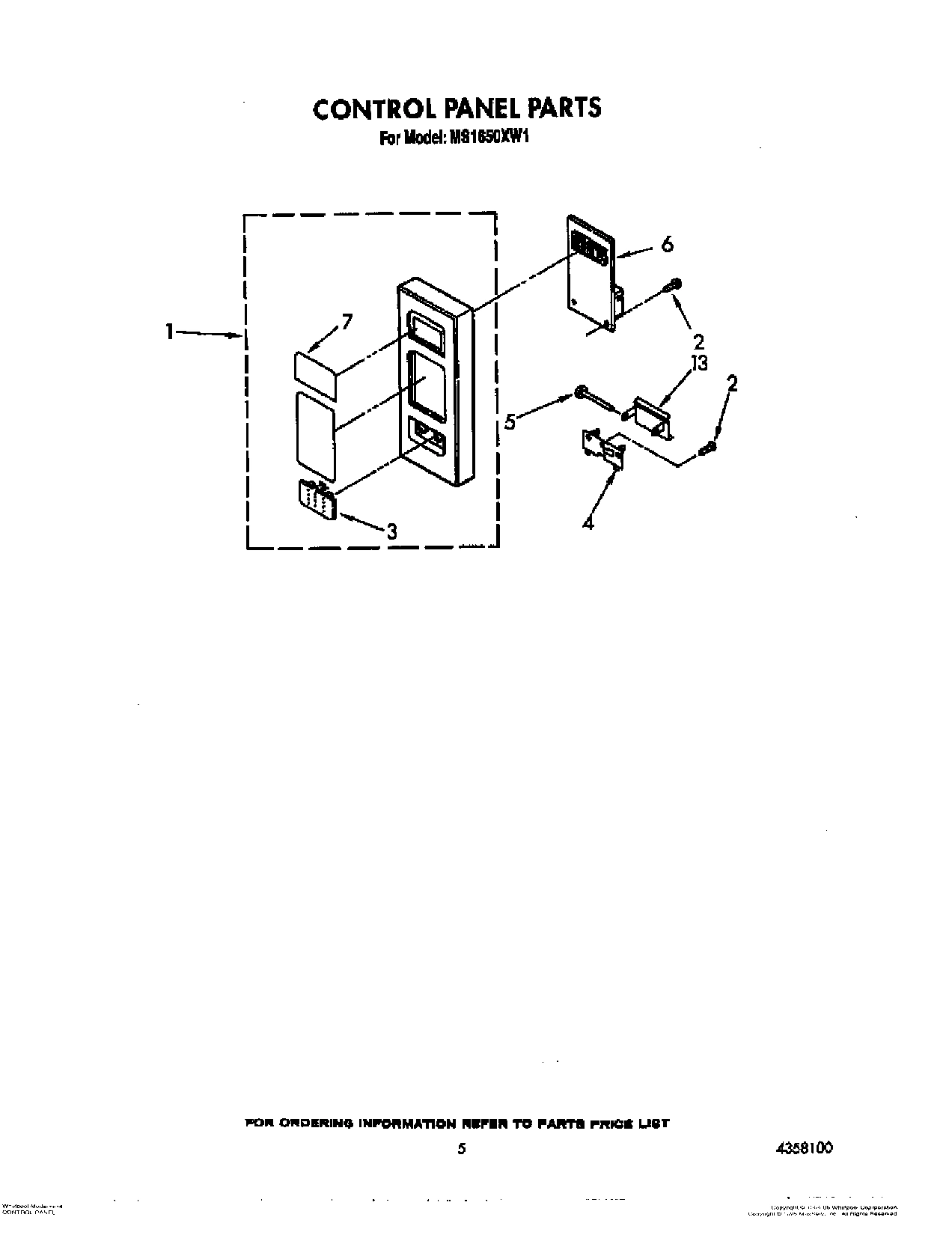

05 - CONTROL PANEL
Common parts from model Whirlpool MS1650XW1
Cord Brown (1/2 Oz.) WPL 832899 Contact Us For Availability
U.T.C. Card WPL LIT4158679 Contact Us For Availability
Guide, Use & Care WPL LIT4158689 Contact Us For Availability
Tech Sheet WPL LIT4158691 Contact Us For Availability
Defrost Guide WPL LIT4158718 Contact Us For Availability
List, Repair Parts WPL LIT4358100 Contact Us For Availability
1
Harness, Wiring (Main) WPL 4358103 Contact Us For Availability
1
Foot, Left (2) WPL 4158930 Contact Us For Availability
1
Latch Board WPL 4158767 Contact Us For Availability
1
Magnetron WPL 4158755 Contact Us For Availability
1
Control Panel, Complete WPL 4358104 Contact Us For Availability
2
Screw, 4 x 8 mm WPL 4158075 Contact Us For Availability
2
Screw, 4 x 10 mm WPL 4158076 Contact Us For Availability
3
Screw (4) WPL 4158472 Contact Us For Availability
3
Screw, 3 x 20mm WPL 4158078 Contact Us For Availability
3
Thermostat, Magnetron WPL 4158924 Contact Us For Availability
3
Button, Door Release WPL 4158810 Contact Us For Availability
4
Foot, Right (2) WPL 4158929 Contact Us For Availability
4
Screw, 3 x 8 mm WPL 4158082 Contact Us For Availability
4
Bracket, Door Release WPL 4158936 Contact Us For Availability
5
Screw WPL 4158187 Contact Us For Availability
5
Duct, Air WPL 4158927 Contact Us For Availability
5
Pin, Bracket WPL 4158938 Contact Us For Availability
6
Cover, Stirrer WPL 4158914 Contact Us For Availability
6
Motor, Fan WPL 4158925 Contact Us For Availability
6
Microcomputer WPL 4358105 Contact Us For Availability
7
Bracket, Hinge WPL 4158919 Contact Us For Availability
7
Digitron Window WPL 4158950 Contact Us For Availability
8
Tray, Glass WPL 4158915 Contact Us For Availability
8
Hinge Plate, Lower WPL 4158911 Contact Us For Availability
10
Fan WPL 4158758 Contact Us For Availability
10
Screw, 5 x 16mm WPL 4158080 Contact Us For Availability
11
Cord, Power WPL 4158760 Contact Us For Availability
11
Lever Switch WPL 4158934 Contact Us For Availability
11
E-Ring WPL 4158063 Contact Us For Availability
12
Wrapper, Cabinet WPL 4158917 Contact Us For Availability
12
Capacitor WPL 4158921 Contact Us For Availability
13
Screw, 4 x 8 mm WPL 4158307 Contact Us For Availability
13
Door, Complete WPL 4158935 Contact Us For Availability
13
Diode Cable WPL 4158298 Contact Us For Availability
13
Lever, Release WPL 4158937 Contact Us For Availability
14
Plug, Hole WPL 4158918 Contact Us For Availability
14
Hinge Plate, Upper WPL 4158910 Contact Us For Availability
14
Bracket, Capacitor WPL 4158922 Contact Us For Availability
16
Blade, Stirrer WPL 4358101 Contact Us For Availability
17
Transformer WPL 4158920 Contact Us For Availability
18
Washer WPL 4158912 Contact Us For Availability
18
Screw, 5 x 12mm WPL 4158103 Contact Us For Availability
19
Nut WPL 4158053 Contact Us For Availability
20
Holder, Fuse WPL 4158761 Contact Us For Availability
21
Seal, Foam WPL 4158932 Contact Us For Availability
21
Screw, 4 x 10 mm WPL 4158072 Contact Us For Availability
22
Seal, Foam WPL 4158904 Contact Us For Availability
22
Fuse WPL 4158378 Contact Us For Availability
25
Holder, Stirrer WPL 4158741 Contact Us For Availability
27
Cover, Fan WPL 4158926 Contact Us For Availability
29
Lead, High Voltage WPL 4158750 Contact Us For Availability
33
Seal, Foam WPL 4158119 Contact Us For Availability
35
Screw, 4 x 8 mm WPL 4158073 Contact Us For Availability
39
Thermostat, Oven WPL 4158795 Contact Us For Availability
40
Bracket, Base WPL 4358102 Contact Us For Availability
41
Light, Baseless WPL 4158586 Contact Us For Availability
42
Screw, (2) WPL 4158190 Contact Us For Availability
× ![]()
