Model Whirlpool MS1451XW1 – Common Parts & Diagrams

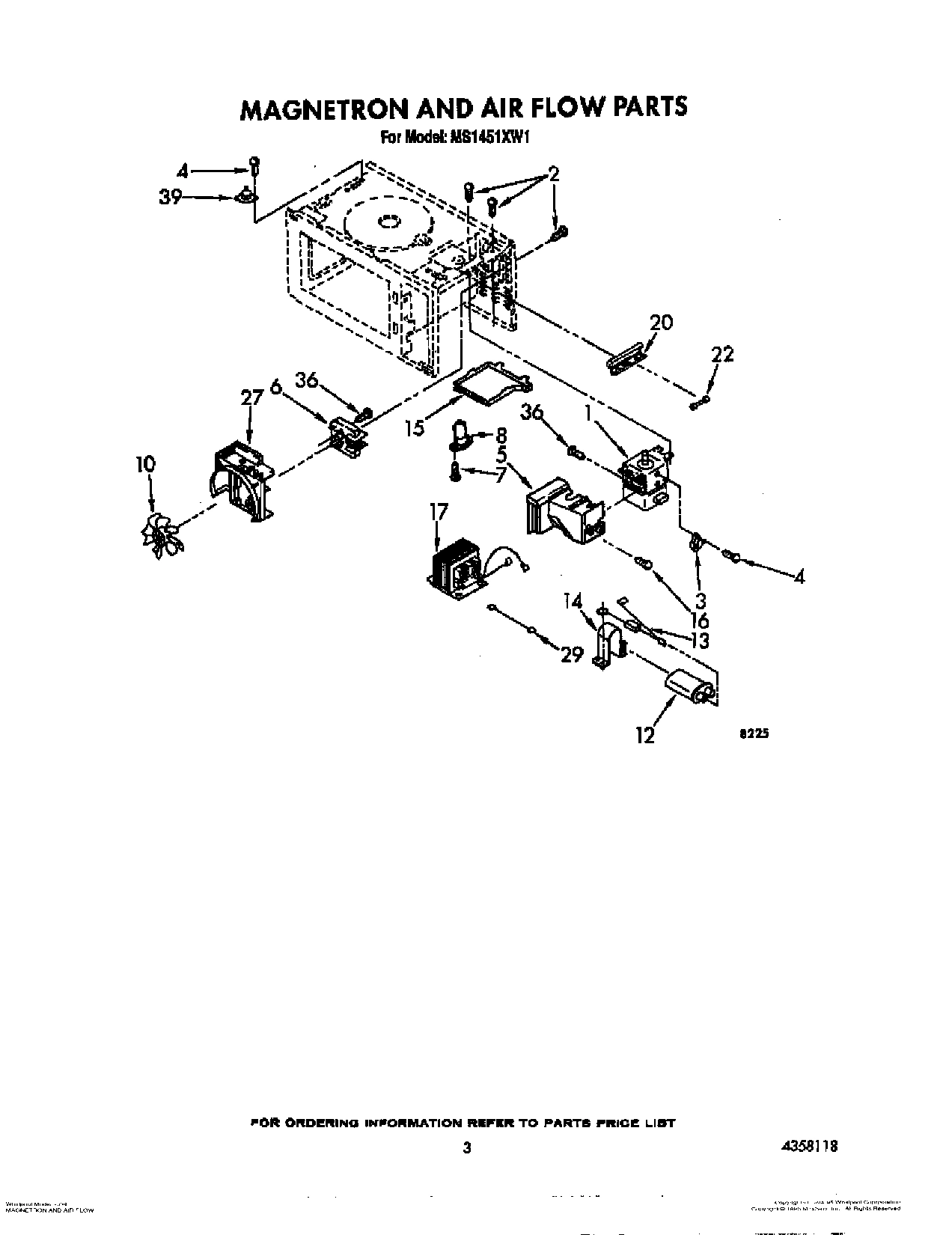

03 - MAGNETRON AND AIR FLOW

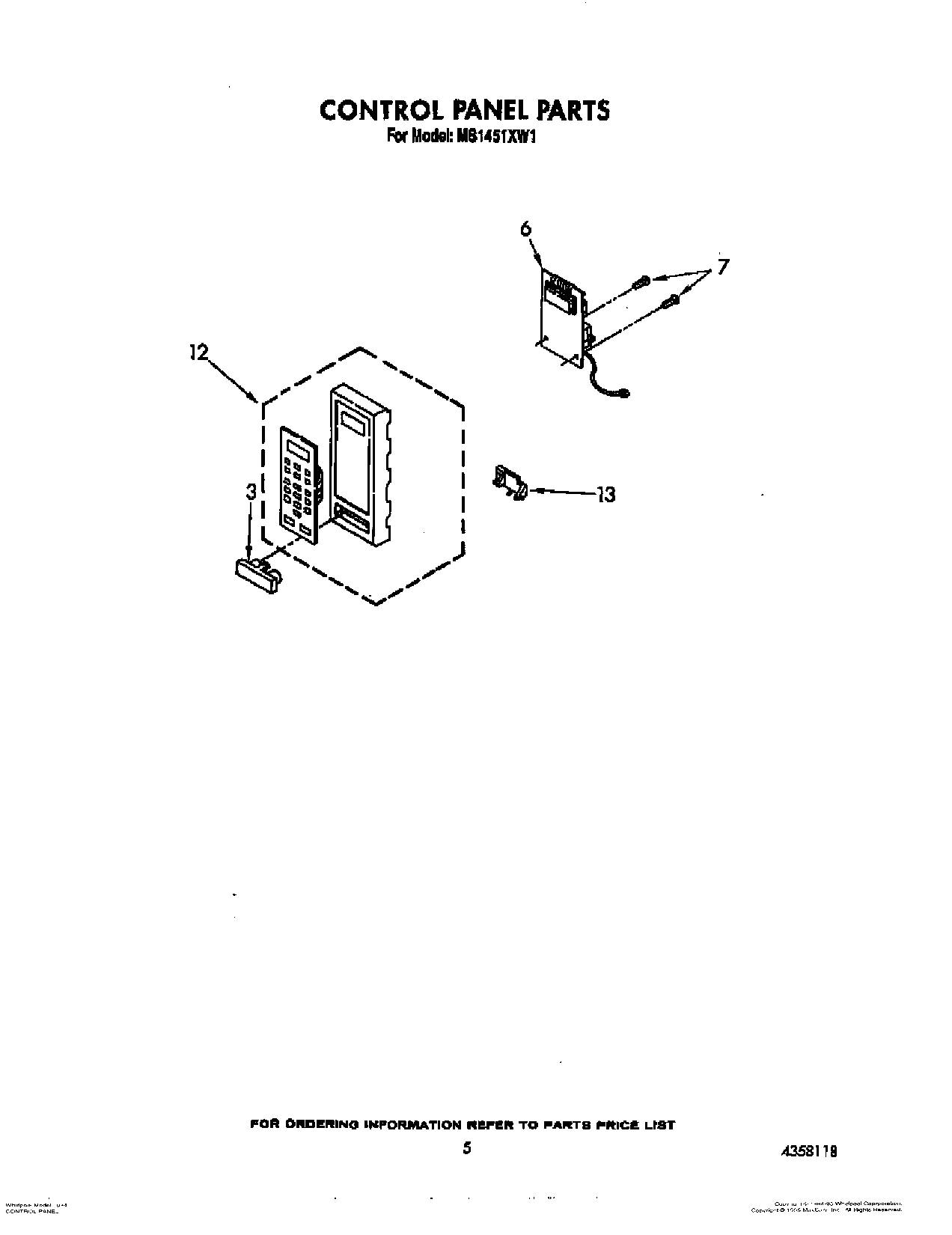

05 - CONTROL PANEL
02 - CABINET
06 - WIRING HARNESS, OPTIONAL
04 - OVEN DOOR AND LATCH
Common parts from model Whirlpool MS1451XW1
Under The cabinet Mounting Kit WPL 4158693 Contact Us For Availability
Installation Instructions for WPL 4158695 Contact Us For Availability
Wall Template WPL 4158698 Contact Us For Availability
ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability
Cord Brown (1/2 Oz.) WPL 832899 Contact Us For Availability
Guide, Use & Care WPL LIT4158687 Contact Us For Availability
Tech Sheet WPL LIT4158688 Contact Us For Availability
U.T.C. Card WPL LIT4158728 Contact Us For Availability
List, Repair Parts WPL LIT4358118 Contact Us For Availability
1
Foot, Left (2) WPL 4158764 Contact Us For Availability
1
Harness, Wiring (Main) WPL 4358116 Contact Us For Availability
1
Latch Board WPL 4158767 Contact Us For Availability
3
Button, Door Latch WPL 4158776 Contact Us For Availability
3
Screw WPL 4158190 Contact Us For Availability
3
Screw WPL 4158307 Contact Us For Availability
5
Duct, Air WPL 4158759 Contact Us For Availability
6
Motor, Fan WPL 4158756 Contact Us For Availability
6
Microcomputer WPL 4358105 Contact Us For Availability
6
Cover, Stirrer WPL 4358112 Contact Us For Availability
7
Screw, 4 x 8 mm WPL 4158079 Contact Us For Availability
7
Pin, Protector WPL 4358114 Contact Us For Availability
8
Baseless Lamp WPL 4158586 Contact Us For Availability
8
Tray, Glass WPL 4158744 Contact Us For Availability
8
Hinge Plate, Lower WPL 4158740 Contact Us For Availability
10
Foot, Right (2) WPL 4158763 Contact Us For Availability
11
Cord, Power WPL 4158760 Contact Us For Availability
11
Lever Switch WPL 4158738 Contact Us For Availability
12
Capacitor WPL 4158752 Contact Us For Availability
12
Control Panel Complete WPL 4358119 Contact Us For Availability
12
Wrapper, Cabinet WPL 4358115 Contact Us For Availability
13
Diode Cable WPL 4158298 Contact Us For Availability
13
Lever, Release WPL 4158777 Contact Us For Availability
13
Door, Complete WPL 4158851 Contact Us For Availability
14
Bracket, Capacitor WPL 4158753 Contact Us For Availability
14
Plug, Hole WPL 4158748 Contact Us For Availability
14
Hinge Plate, Upper WPL 4158739 Contact Us For Availability
15
Plate, Base WPL 4158766 Contact Us For Availability
16
Blade, Stirrer WPL 4158742 Contact Us For Availability
17
Transformer WPL 4158749 Contact Us For Availability
18
Washer WPL 4158117 Contact Us For Availability
20
Holder, Fuse WPL 4158761 Contact Us For Availability
22
Fuse WPL 4158378 Contact Us For Availability
25
Holder, Stirrer WPL 4158741 Contact Us For Availability
27
Cover, Fan WPL 4158757 Contact Us For Availability
29
Lead, High Voltage WPL 4158750 Contact Us For Availability
36
Screw, 4 x 6 mm WPL 4158189 Contact Us For Availability
39
Thermostat, Oven WPL 4158765 Contact Us For Availability
× ![]()
