Model Whirlpool MS1065XYR0 – Common Parts & Diagrams

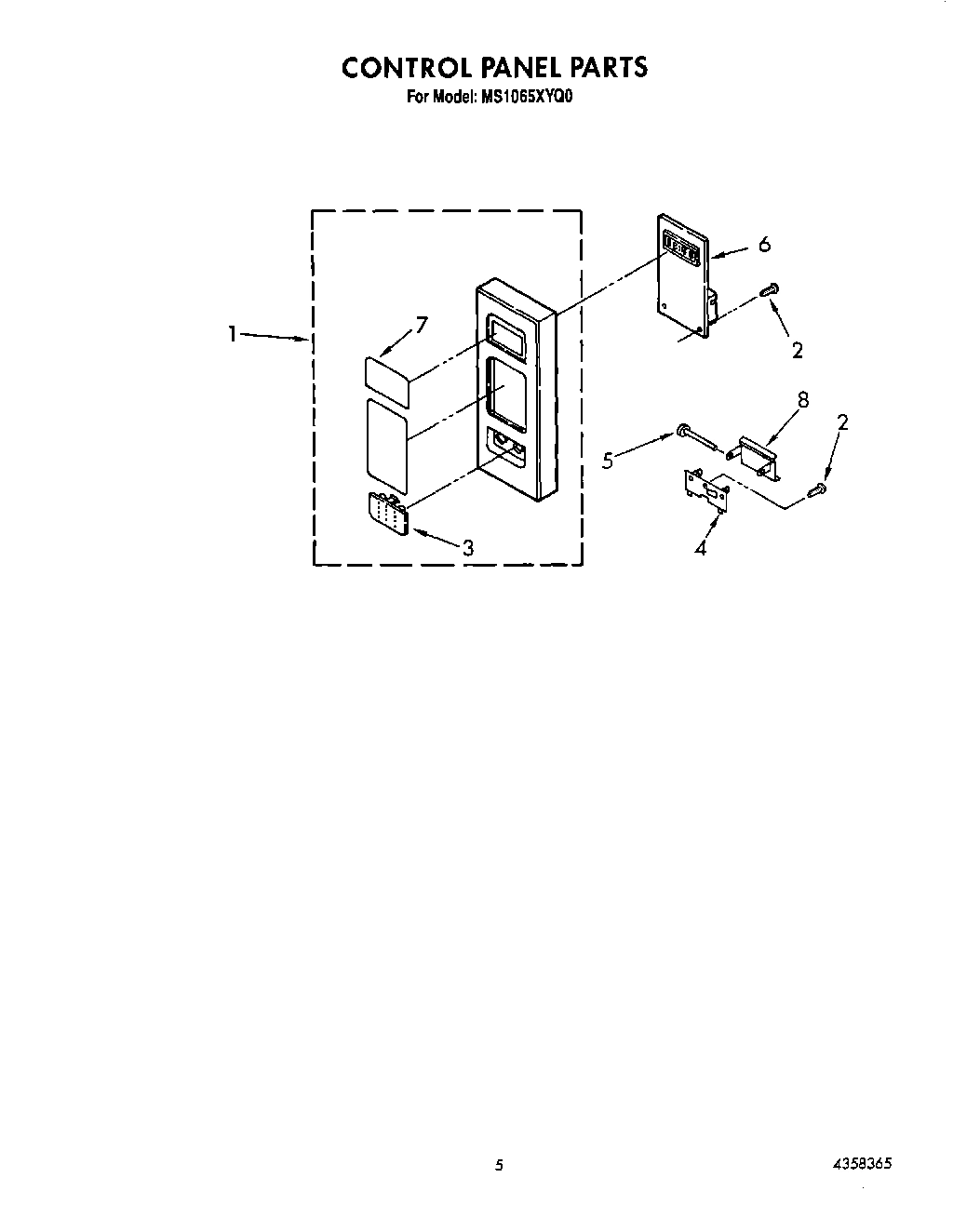

05 - CONTROL PANEL

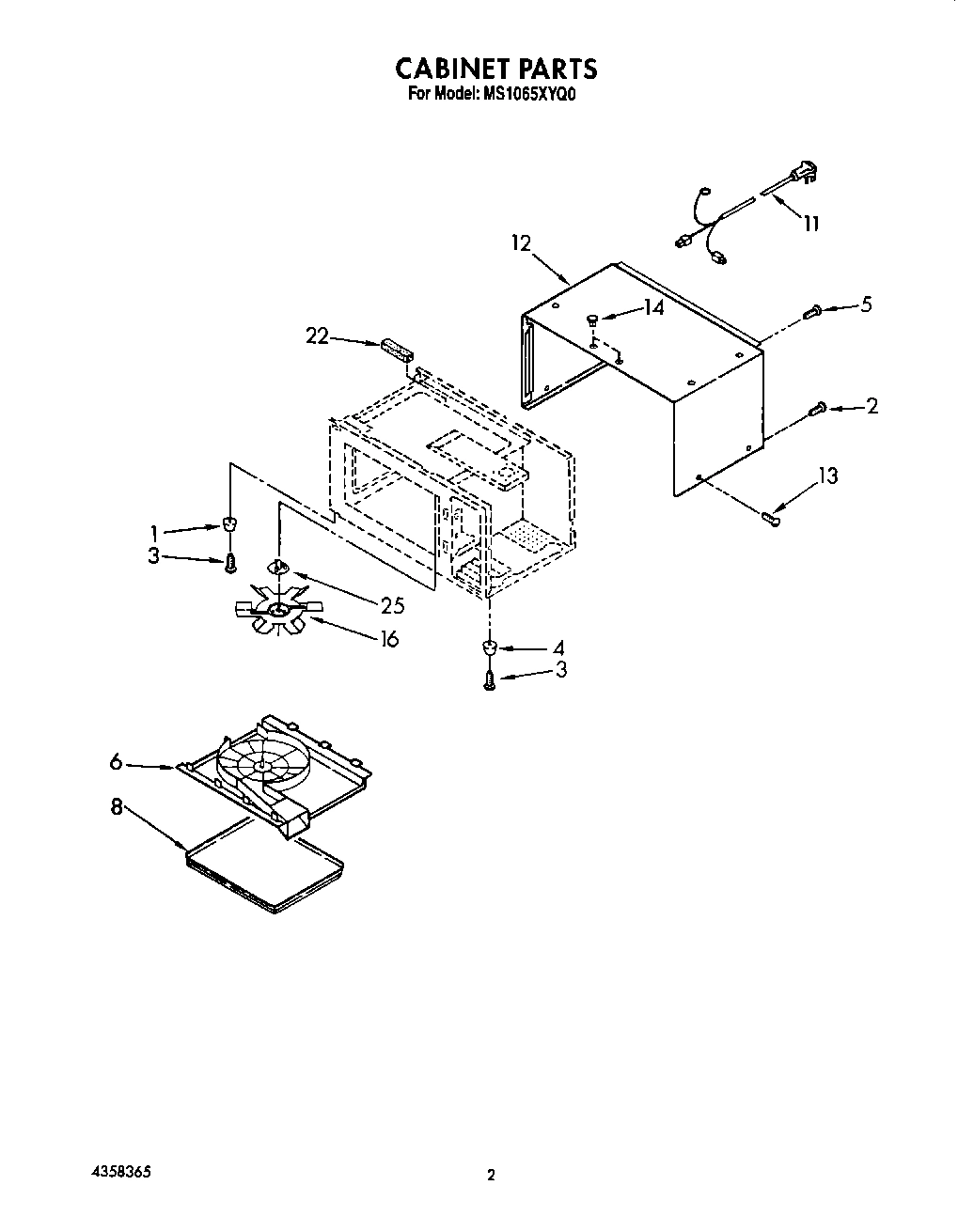

02 - CABINET

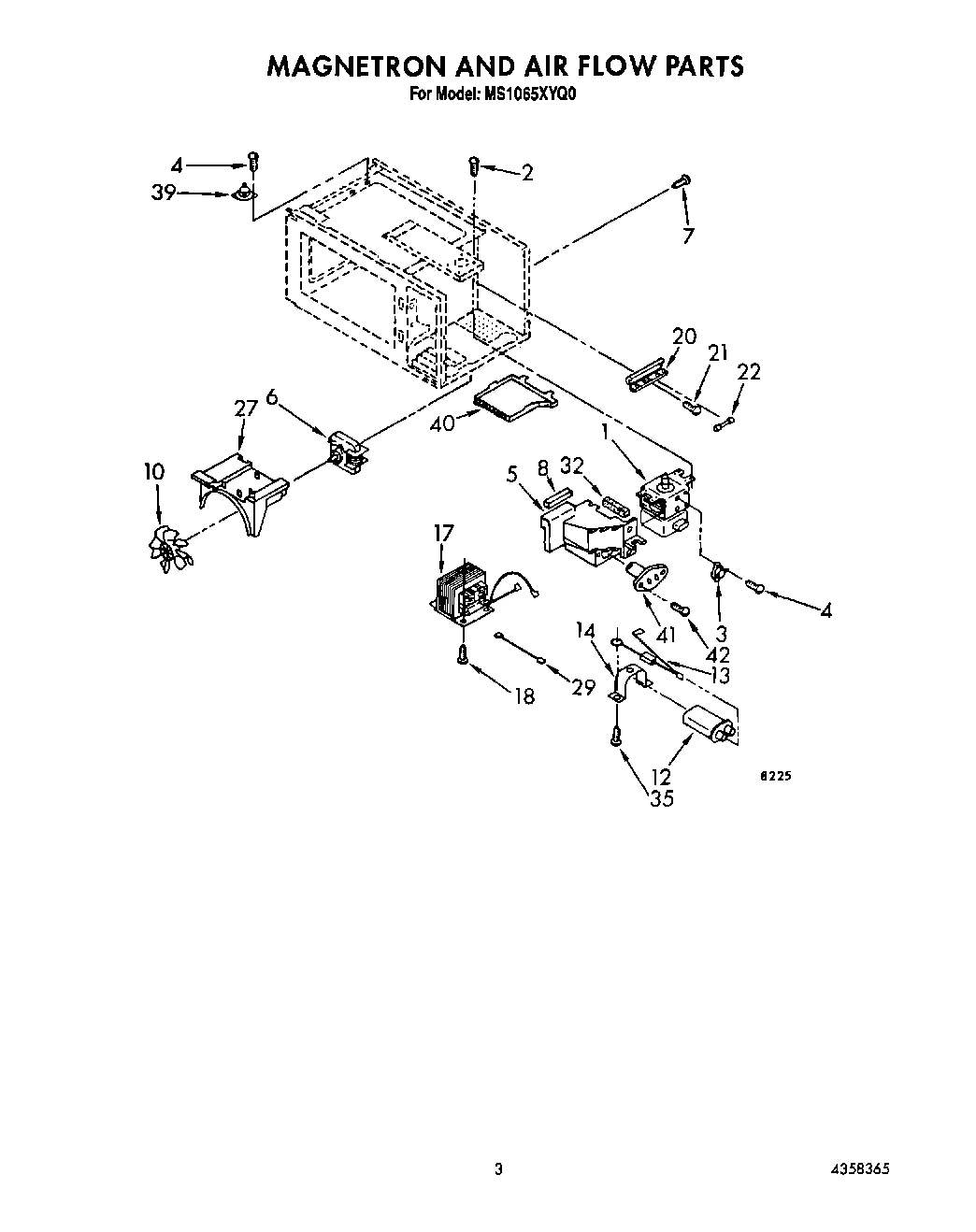

03 - MAGNETRON AND AIR FLOW

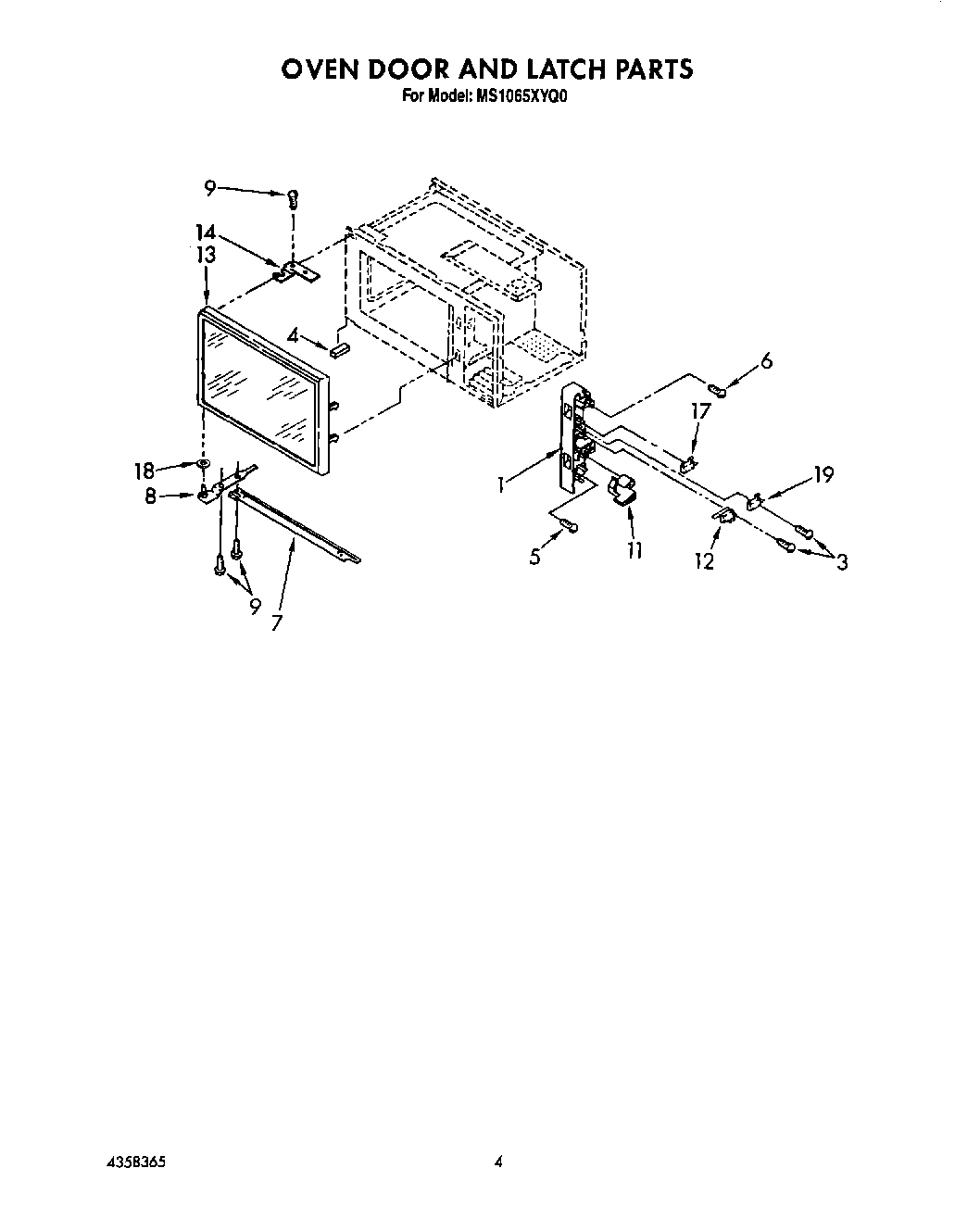

04 - OVEN DOOR AND LATCH

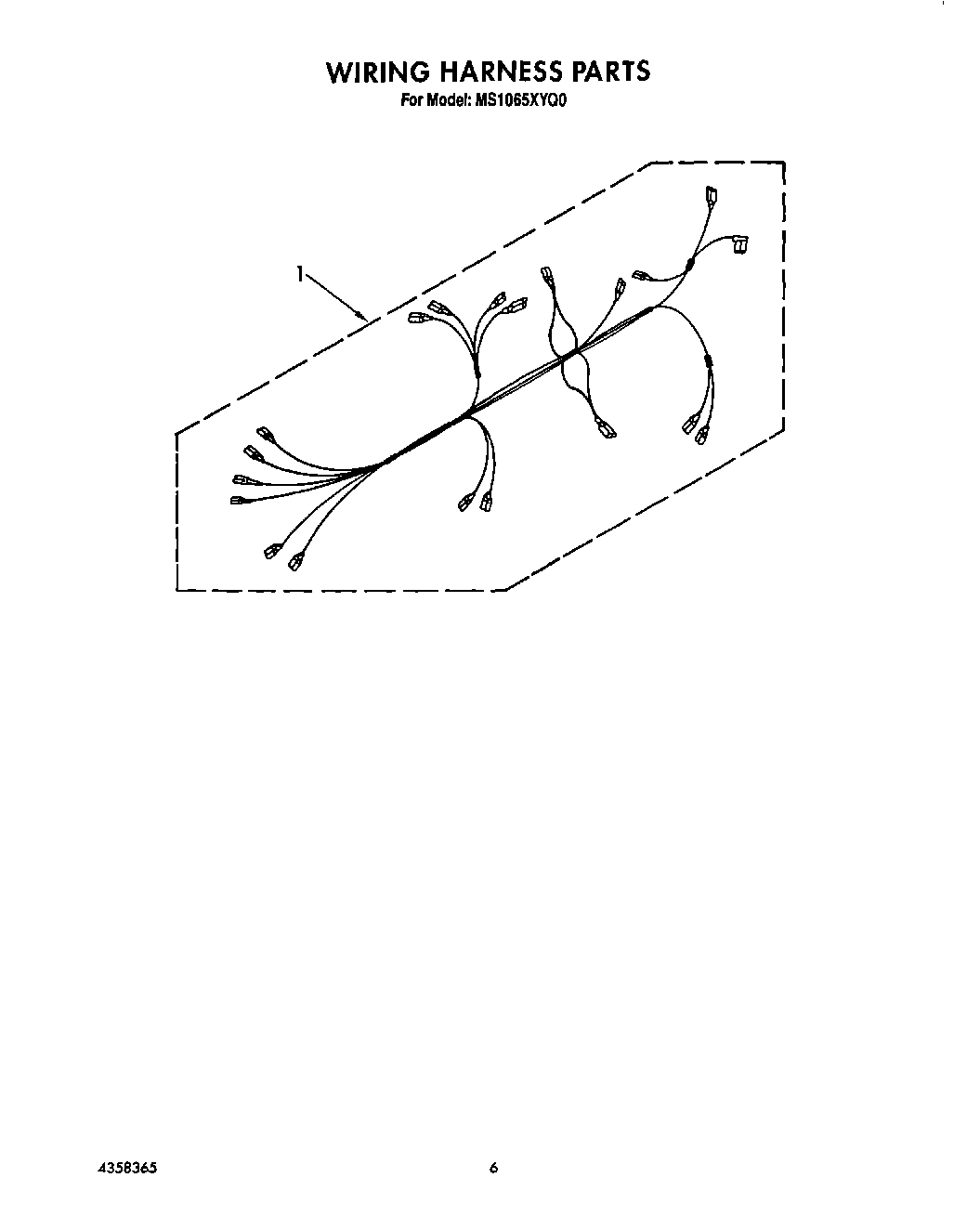

06 - WIRING HARNESS, LIT/OPTIONAL
Common parts from model Whirlpool MS1065XYR0
Installation Instructions for 4158694 Kit WPL 4158696 Contact Us For Availability
Wall Template WPL 4158699 Contact Us For Availability
Under The cabinet Mounting Kit WPL 4358005 Contact Us For Availability
ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability
Cord Brown (1/2 Oz.) WPL 832899 Contact Us For Availability
U.T.C. Card WPL LIT4158679 Contact Us For Availability
Tech Sheet WPL LIT4158692 Contact Us For Availability
Guide, Use & Care WPL LIT4358195 Contact Us For Availability
List, Repair Parts WPL LIT4358365 Contact Us For Availability
1
Foot, Left (2) WPL 4358341 Contact Us For Availability
1
Magnetron WPL 4158755 Contact Us For Availability
1
Latch Board WPL 4158767 Contact Us For Availability
1
Harness, Wiring (Main) WPL 4358337 Contact Us For Availability
2
Screw, 4 x 8 mm WPL 4158075 Contact Us For Availability
3
Button, Door Release (White) WPL 4158960 Contact Us For Availability
3
Screw (4) WPL 4158186 Contact Us For Availability
3
Thermostat, Magnetron WPL 4158924 Contact Us For Availability
3
Screw, 3 x 20mm WPL 4158078 Contact Us For Availability
4
Bracket, Door Release WPL 4158936 Contact Us For Availability
4
Foot, Right (2) WPL 4358255 Contact Us For Availability
4
Screw, 3 x 8 mm WPL 4158082 Contact Us For Availability
4
Pad, Foam (2) WPL 4158931 Contact Us For Availability
5
Pin, Bracket WPL 4158938 Contact Us For Availability
5
Duct, Air WPL 4358107 Contact Us For Availability
5
Screw WPL 4158187 Contact Us For Availability
6
Microcomputer WPL 4358301 Contact Us For Availability
6
Screw (2) WPL 4158307 Contact Us For Availability
6
Cover, Stirrer WPL 4158914 Contact Us For Availability
6
Motor, Fan WPL 4158861 Contact Us For Availability
7
Digitron Window (White) WPL 4358088 Contact Us For Availability
7
Digitron Window (Wood Grain Application) WPL 4358335 Contact Us For Availability
7
Screw, 4 x 10 mm WPL 4158077 Contact Us For Availability
7
Bracket, Hinge WPL 4358106 Contact Us For Availability
8
Lever, Door Release WPL 4158937 Contact Us For Availability
8
Tray, Glass WPL 4158915 Contact Us For Availability
8
Seal, Duct WPL 4158904 Contact Us For Availability
8
Hinge Plate, Lower WPL 4158911 Contact Us For Availability
10
Fan WPL 4158758 Contact Us For Availability
11
Cord, Power WPL 4158760 Contact Us For Availability
11
Lever Switch WPL 4158934 Contact Us For Availability
12
Wrapper, Cabinet (Wood Grain Application) WPL 4158917 Contact Us For Availability
12
Wrapper, Cabinet (White) WPL 4358086 Contact Us For Availability
12
Capacitor WPL 4158921 Contact Us For Availability
13
Screw, 4 x 12 mm WPL 4158084 Contact Us For Availability
13
Diode Cable WPL 4158828 Contact Us For Availability
13
Door, Complete (White) WPL 4358333 Contact Us For Availability
13
Door, Complete (Wood Grain Application) WPL 4358334 Contact Us For Availability
14
Plug, Hole (White) WPL 4158748 Contact Us For Availability
14
Plug, Hole (Woodgrain Application) WPL 4158918 Contact Us For Availability
14
Bracket, Capacitor WPL 4158922 Contact Us For Availability
14
Hinge Plate, Upper WPL 4158910 Contact Us For Availability
16
Blade, Stirrer WPL 4358101 Contact Us For Availability
17
Transformer WPL 4158974 Contact Us For Availability
18
Washer WPL 4158912 Contact Us For Availability
20
Holder, Fuse WPL 4158761 Contact Us For Availability
21
Screw, 4 x 10 mm WPL 4158072 Contact Us For Availability
22
Fuse WPL 4158378 Contact Us For Availability
25
Holder, Stirrer WPL 4158741 Contact Us For Availability
27
Cover, Fan WPL 4158926 Contact Us For Availability
29
Cable, High Voltage WPL 4158827 Contact Us For Availability
32
Seal, Foam WPL 4158933 Contact Us For Availability
35
Screw, 4 x 8 mm WPL 4158073 Contact Us For Availability
39
Thermostat, Oven WPL 4158795 Contact Us For Availability
40
Bracket, Base WPL 4358102 Contact Us For Availability
41
Light, Baseless WPL 4158586 Contact Us For Availability
42
Screw, (2) WPL 4158190 Contact Us For Availability
× ![]()
