Model Whirlpool MS1060XYR0 – Common Parts & Diagrams

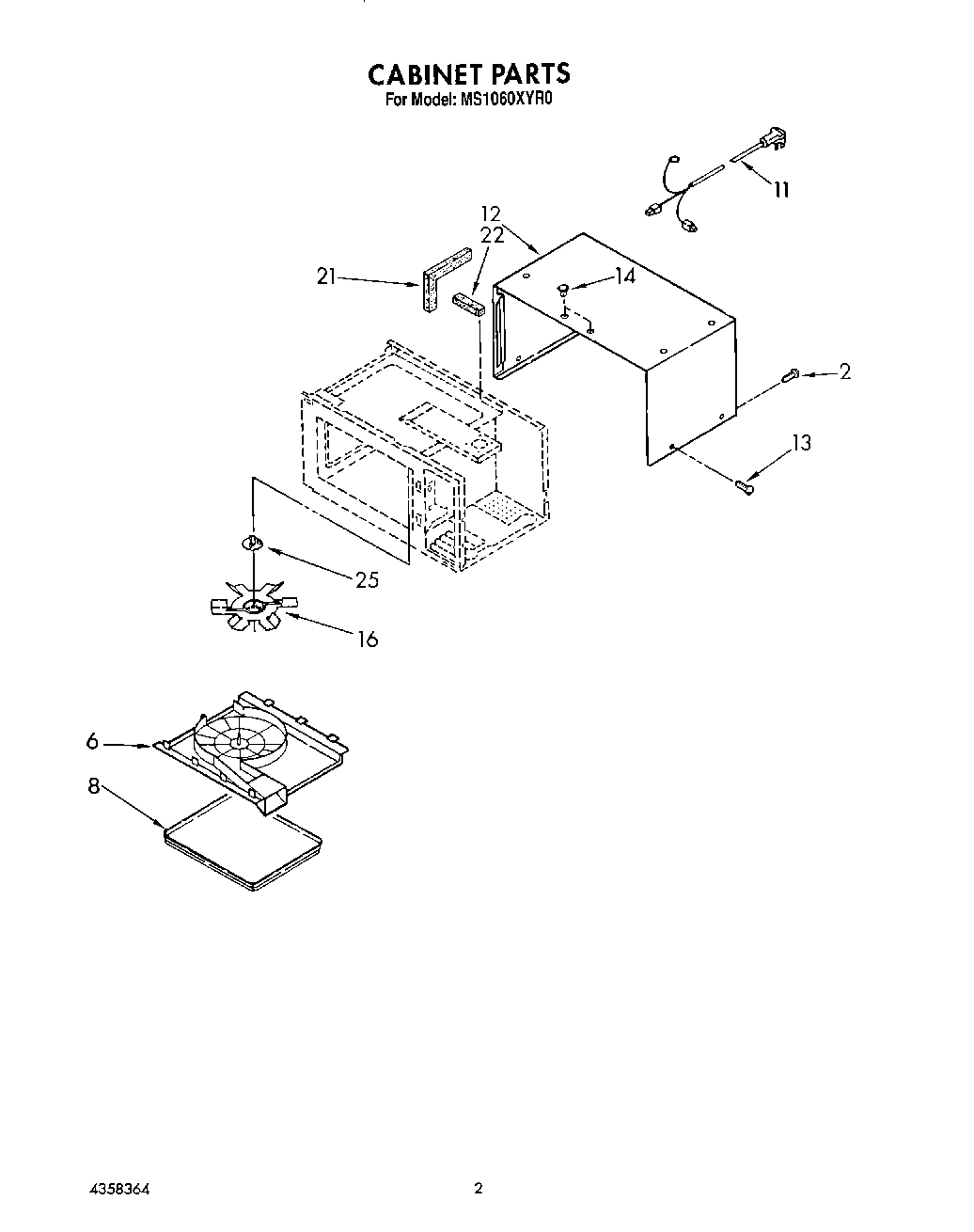

02 - CABINET

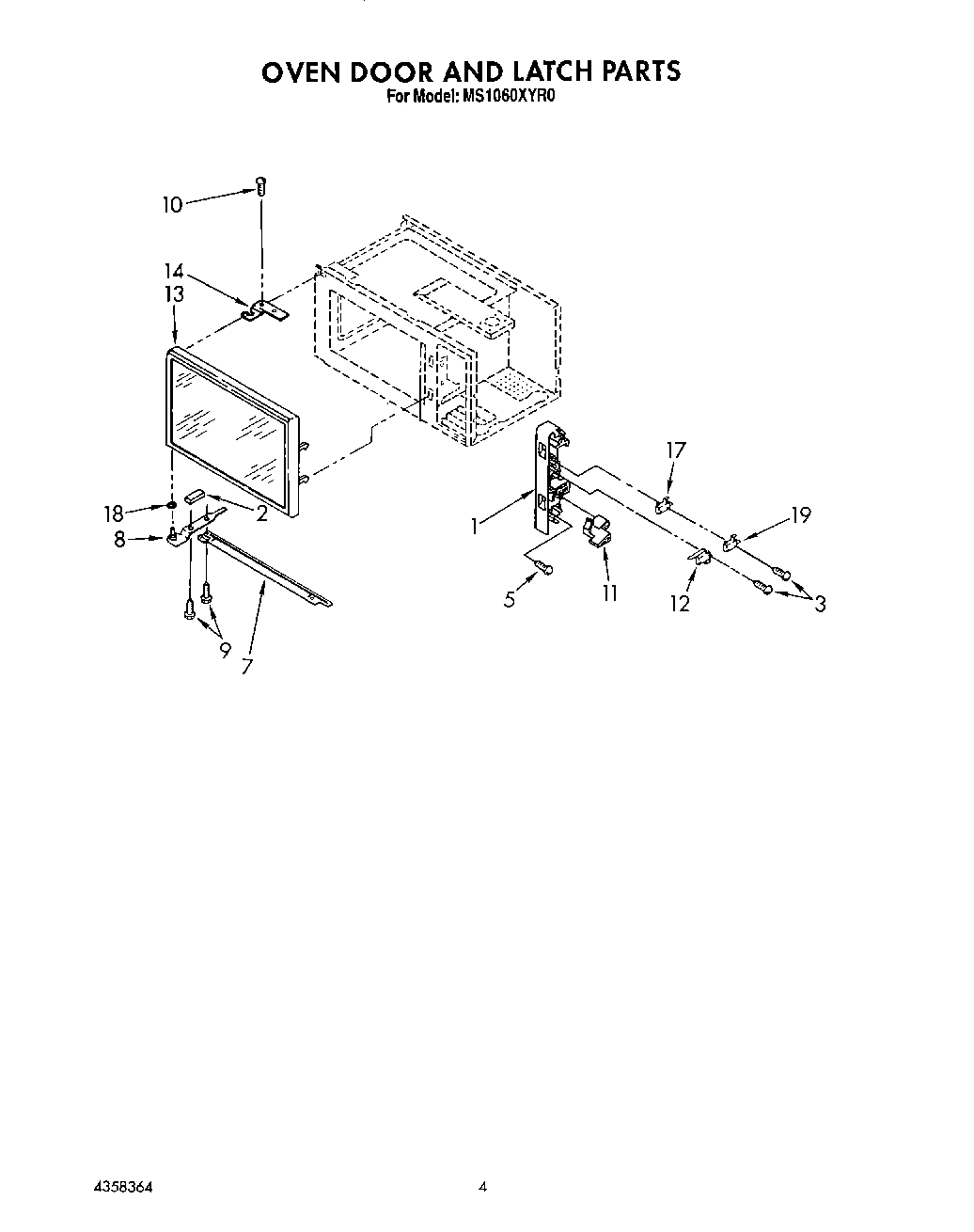

04 - OVEN DOOR AND LATCH

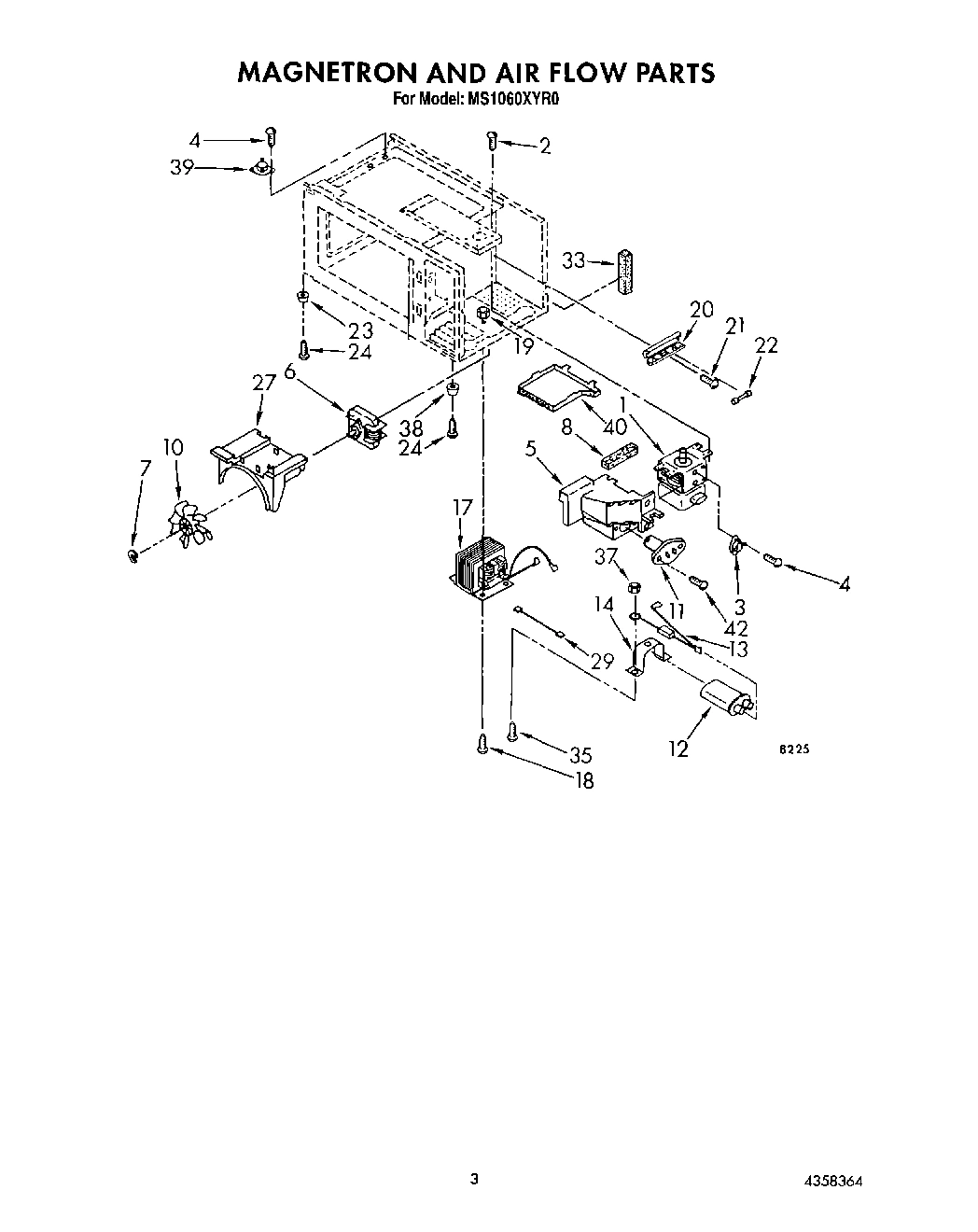

03 - MAGNETRON AND AIR FLOW

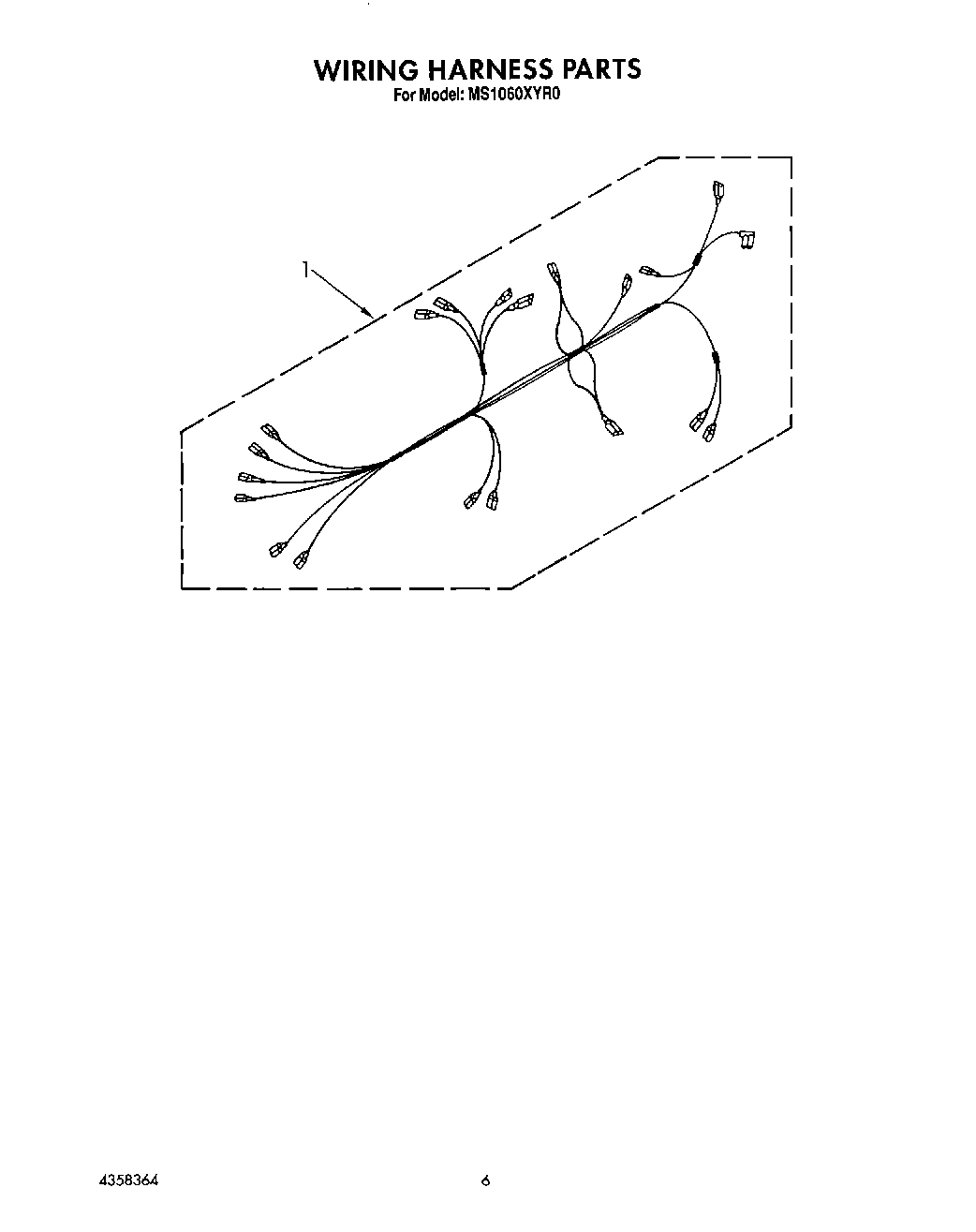

06 - WIRING HARNESS, LIT/OPTIONAL

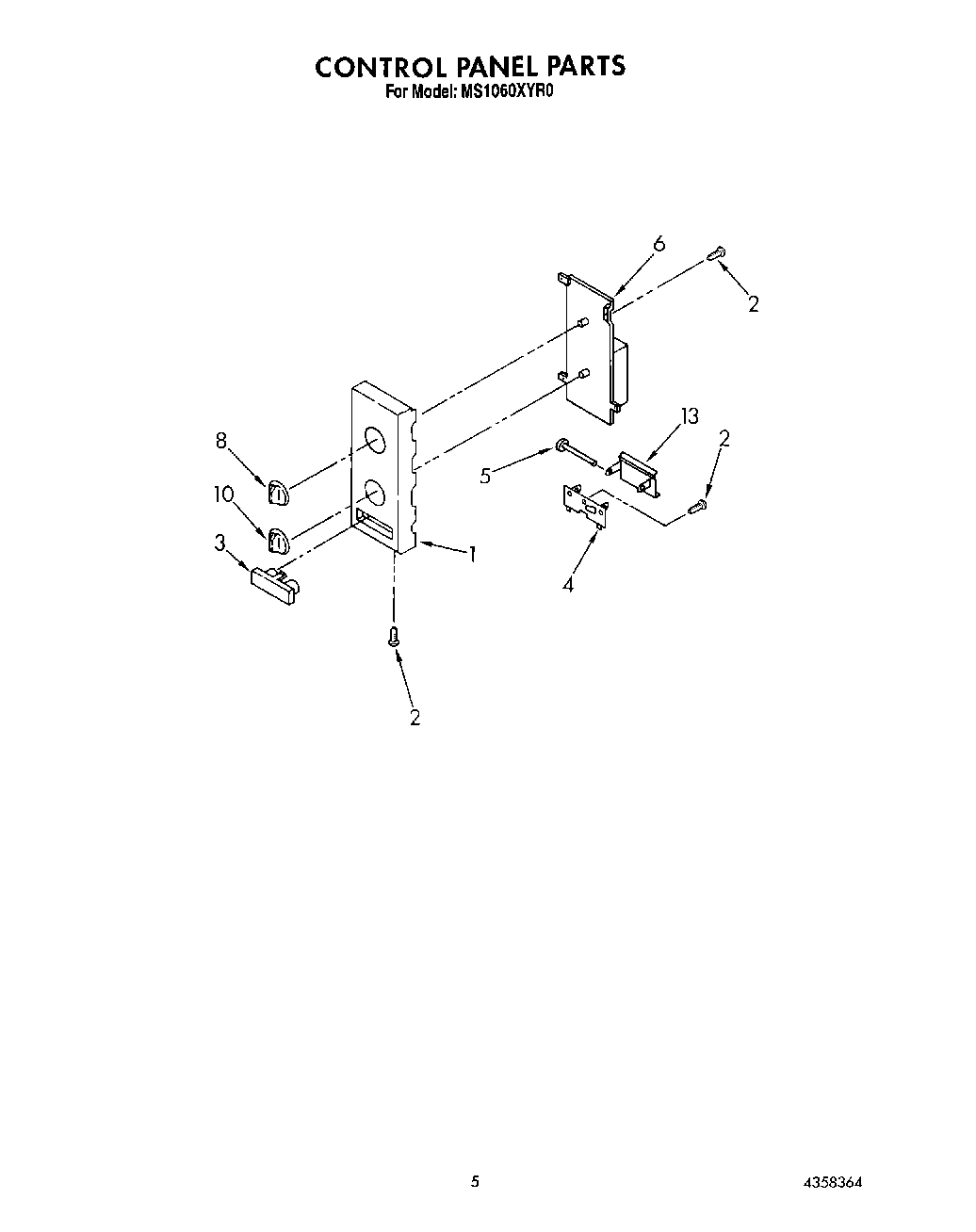

05 - CONTROL PANEL
Common parts from model Whirlpool MS1060XYR0
U.T.C. Card WPL LIT4158679 Contact Us For Availability
Guide, Use & Care WPL LIT4358242 Contact Us For Availability
List, Repair Parts WPL LIT4358364 Contact Us For Availability
1
Latch Board WPL 4158767 Contact Us For Availability
1
Magnetron WPL 4158755 Contact Us For Availability
1
Under The cabinet Mounting Kit WPL 4158694 Contact Us For Availability
1
Installation Instructions for 4158694 Kit WPL 4158696 Contact Us For Availability
1
Wall Template WPL 4158699 Contact Us For Availability
1
Harness, Wiring (Main) WPL 4158928 Contact Us For Availability
1
ADHESIVE LOCTITE (1/3 OZ.) WPL 591014 Contact Us For Availability
1
Cord Brown (1/2 Oz.) WPL 832899 Contact Us For Availability
1
Frame, Control Panel WPL 4158906 Contact Us For Availability
2
Screw WPL 4358271 Contact Us For Availability
2
Pad, Hinge WPL 4158930 Contact Us For Availability
2
Screw, 4 x 8 mm WPL 4158075 Contact Us For Availability
2
Screw WPL 4158072 Contact Us For Availability
3
Screw, 3 x 20mm WPL 4158078 Contact Us For Availability
3
Thermostat, Magnetron WPL 4158924 Contact Us For Availability
3
Button, Door Release WPL 4358109 Contact Us For Availability
4
Screw, 3 x 8 mm WPL 4158082 Contact Us For Availability
4
Bracket, Door Release WPL 4158936 Contact Us For Availability
5
Screw WPL 4158187 Contact Us For Availability
5
Duct, Air WPL 4358107 Contact Us For Availability
5
Pin, Bracket WPL 4158938 Contact Us For Availability
6
Motor, Fan WPL 4158861 Contact Us For Availability
6
Timer WPL 4158939 Contact Us For Availability
7
Bracket, Hinge WPL 4358106 Contact Us For Availability
7
Nut Push-In WPL 4158063 Contact Us For Availability
8
Hinge Plate, Lower WPL 4158911 Contact Us For Availability
8
Seal WPL 4158933 Contact Us For Availability
8
Knob, Control WPL 4358110 Contact Us For Availability
10
Fan WPL 4158758 Contact Us For Availability
10
Screw, 5 x 16mm WPL 4158080 Contact Us For Availability
10
Knob, Timer WPL 4358111 Contact Us For Availability
11
Lever Switch WPL 4158934 Contact Us For Availability
11
Light, Baseless WPL 4158586 Contact Us For Availability
12
Capacitor WPL 4158921 Contact Us For Availability
13
Door, Complete WPL 4358334 Contact Us For Availability
13
Diode Cable WPL 4158828 Contact Us For Availability
13
Lever, Release WPL 4158937 Contact Us For Availability
14
Plug, Hole WPL 4158918 Contact Us For Availability
14
Hinge Plate, Upper WPL 4158910 Contact Us For Availability
14
Bracket, Capacitor WPL 4158922 Contact Us For Availability
16
Blade, Stirrer WPL 4358101 Contact Us For Availability
17
Transformer WPL 4158974 Contact Us For Availability
18
Washer WPL 4158912 Contact Us For Availability
18
Screw, 5 x 12mm WPL 4158103 Contact Us For Availability
19
Nut WPL 4158053 Contact Us For Availability
20
Holder, Fuse WPL 4158761 Contact Us For Availability
21
Seal, Foam WPL 4158932 Contact Us For Availability
22
Seal, Foam WPL 4158904 Contact Us For Availability
22
Fuse WPL 4158378 Contact Us For Availability
23
Foot, Left (2) WPL 4358341 Contact Us For Availability
24
Screw WPL 4158472 Contact Us For Availability
25
Holder, Stirrer WPL 4158741 Contact Us For Availability
27
Cover, Fan WPL 4158926 Contact Us For Availability
29
Wire, High Voltage WPL 4158827 Contact Us For Availability
33
Seal, Foam WPL 4158119 Contact Us For Availability
35
Screw, 4 x 8 mm WPL 4158073 Contact Us For Availability
37
Nut WPL 4158233 Contact Us For Availability
38
Foot, Right (2) WPL 4358255 Contact Us For Availability
39
Thermostat, Oven WPL 4158795 Contact Us For Availability
40
Bracket, Base WPL 4358102 Contact Us For Availability
42
Screw, (2) WPL 4158190 Contact Us For Availability
× ![]()
