Model Accelerated Cooking Products MRX51BL-P2005714M Amana Menumaster MRX51BL – Common Parts & Diagrams

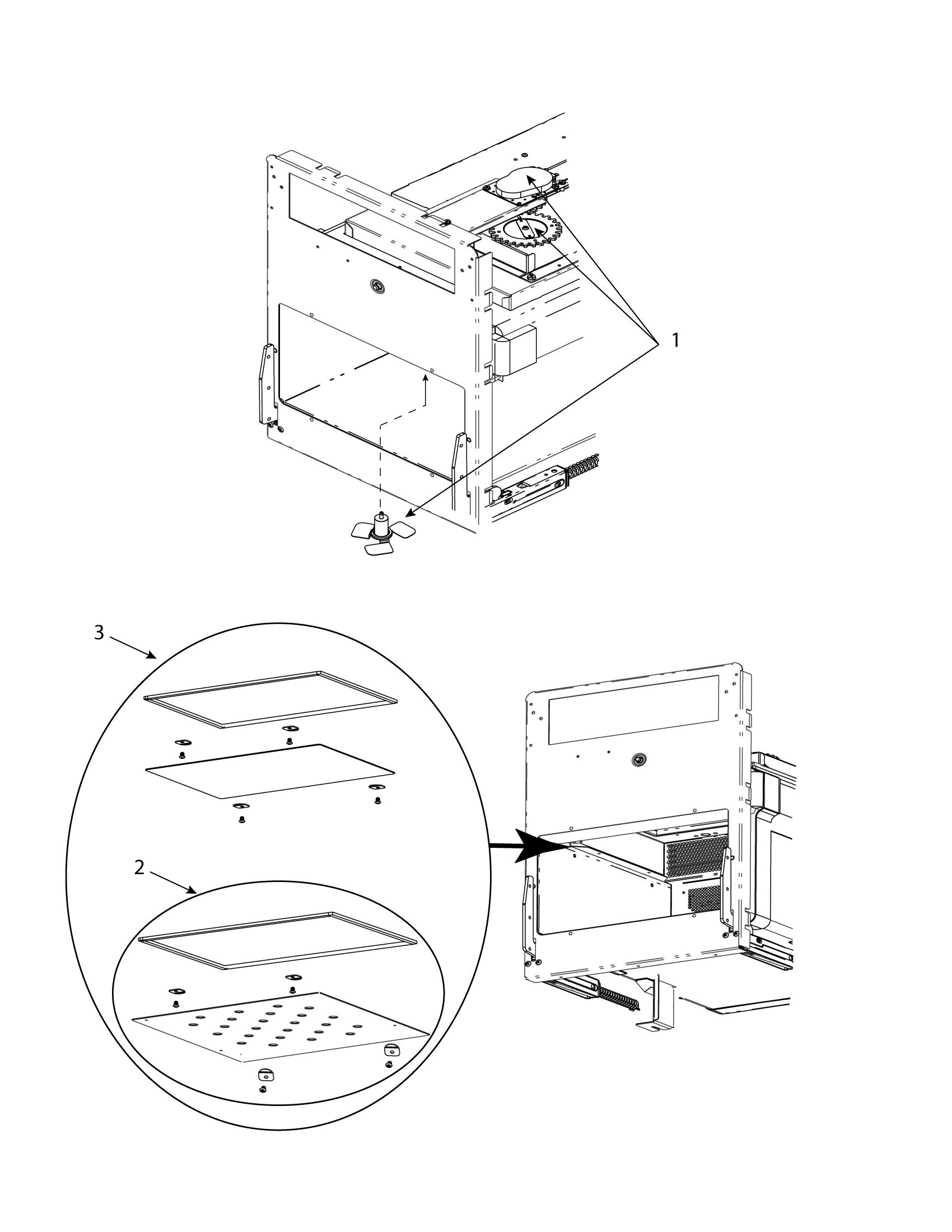

ANTENNAS / COVERS / MOTOR / GEARS

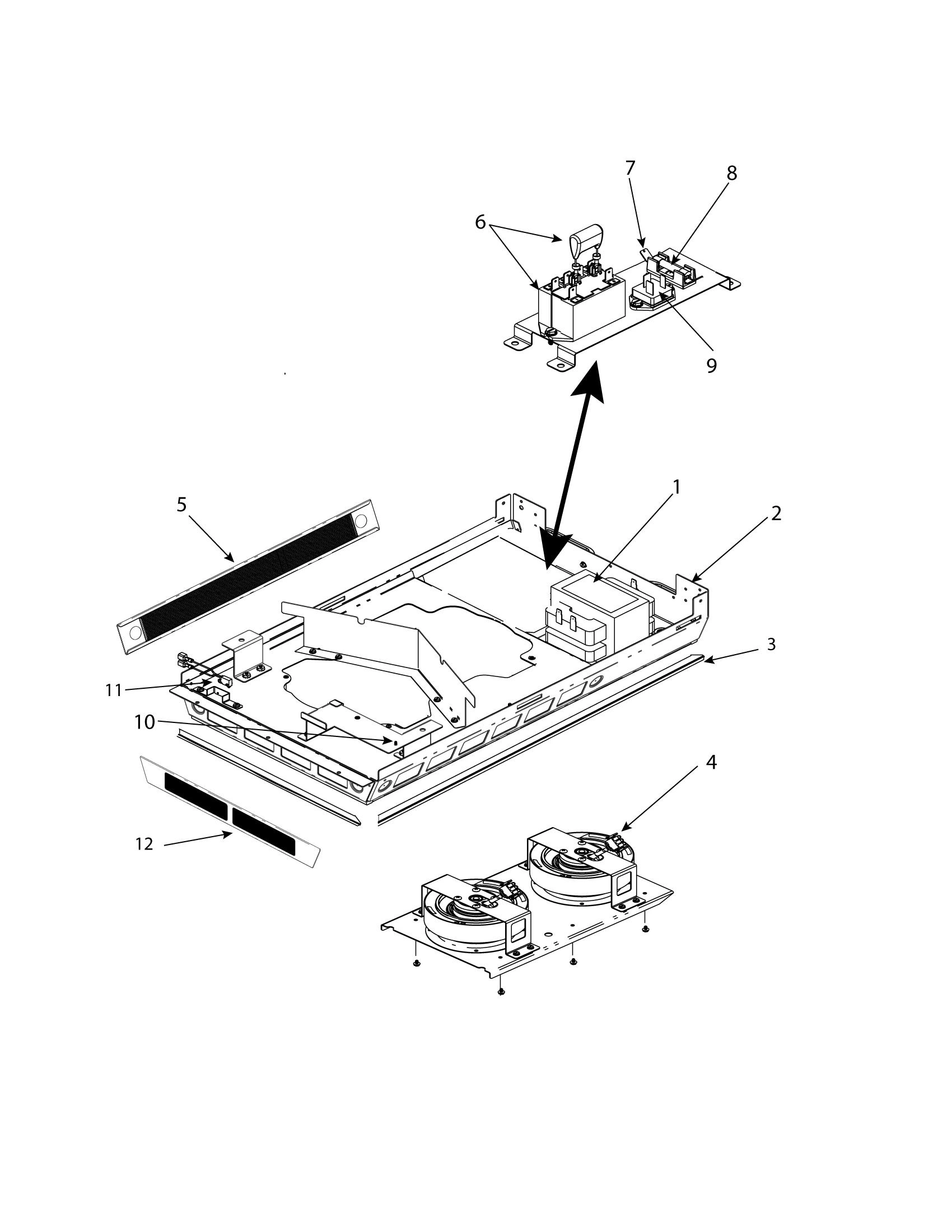

BASEPAN ELECTRICAL / FILTERS

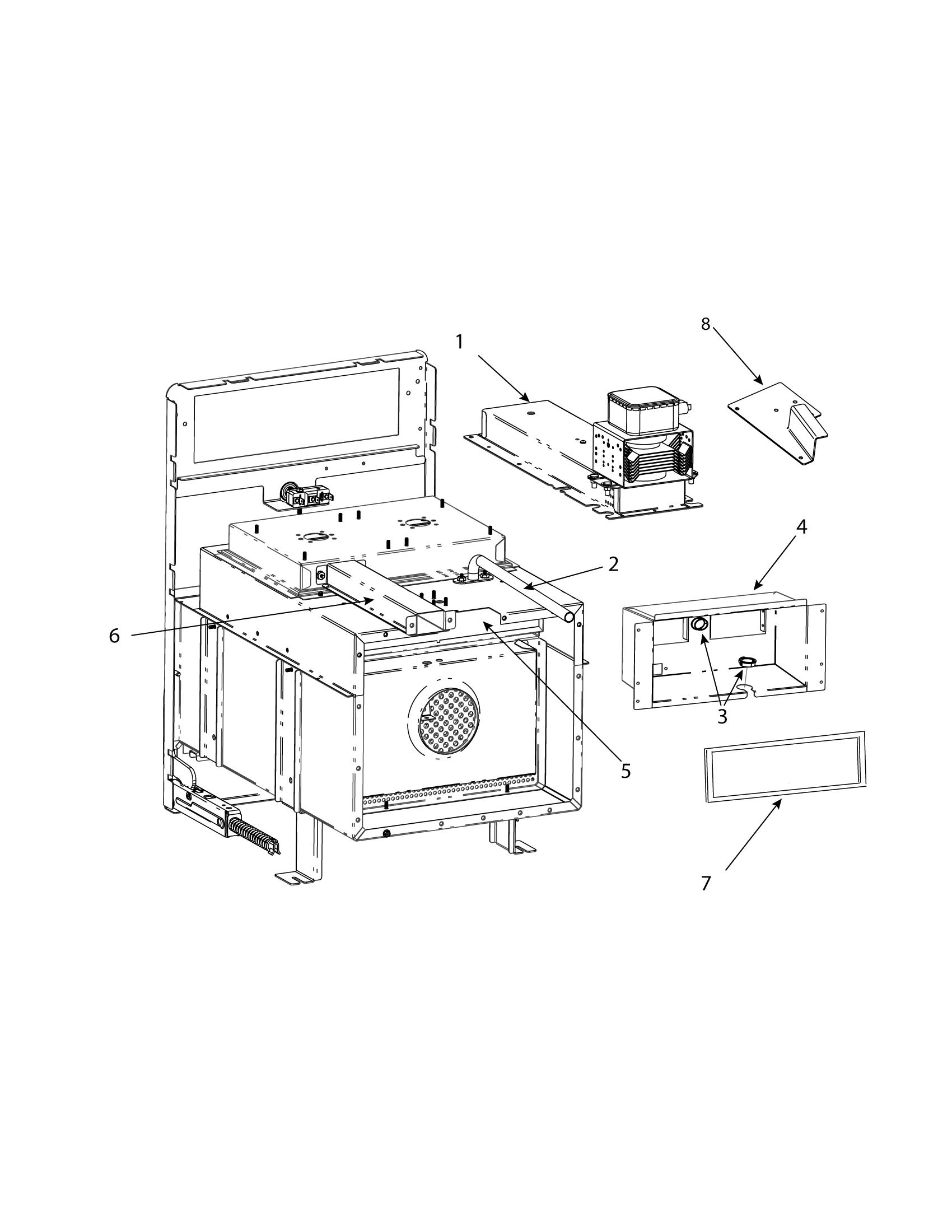

CATALYST / VENT / WAVEGUIDE

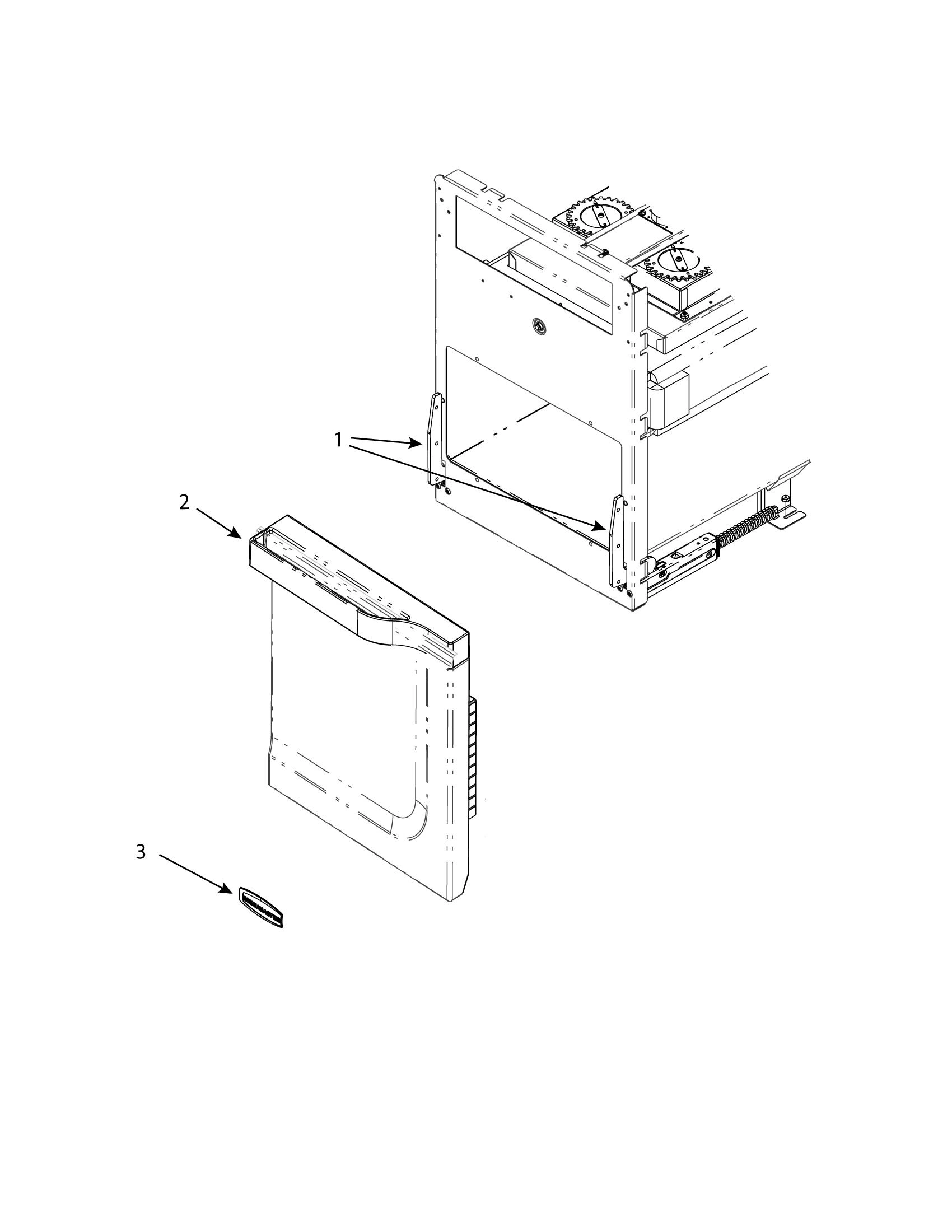

DOOR / HINGES

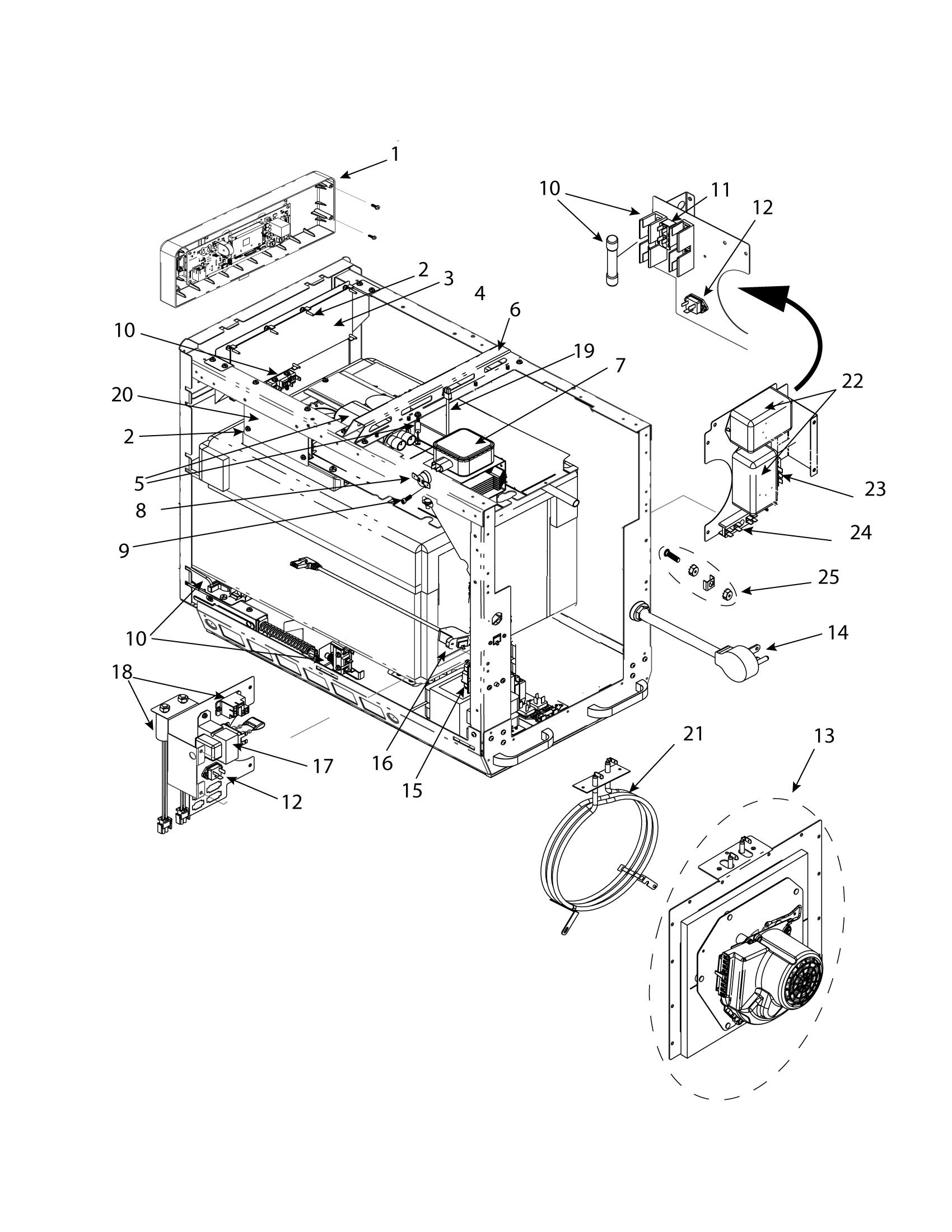

ELECTRICAL- MAIN

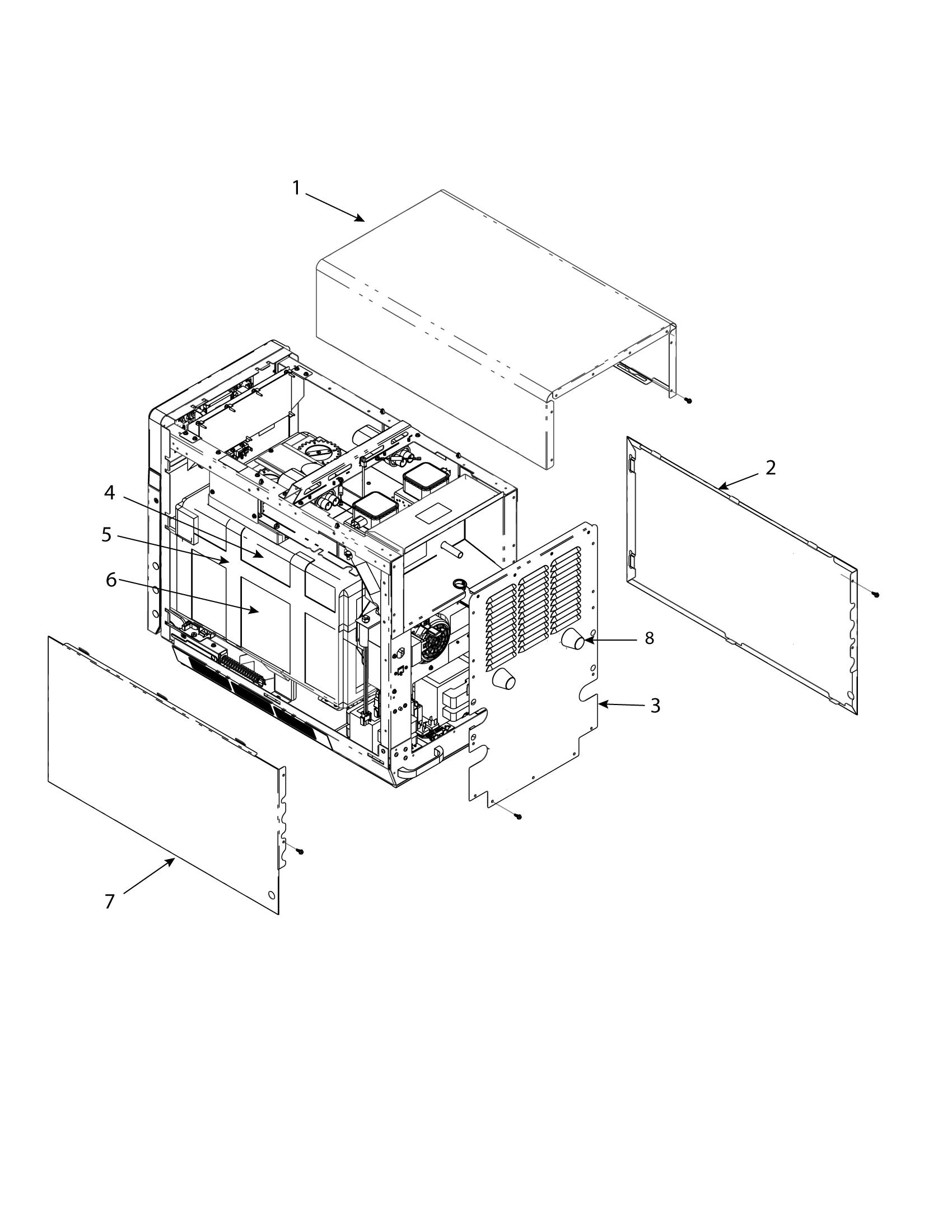

OUTERCASE / INSULATION
SUPPLEMENTAL
Common parts from model Accelerated Cooking Products MRX51BL-P2005714M Amana Menumaster MRX51BL
1
KIT- DOOR HINGES ACP 59174577 Contact Us For Availability
1
BOARD- DISPLAY ASSY ACP 59184603 Contact Us For Availability
1
OUTER PANEL TOP- BL ACP 59184607 Contact Us For Availability
1
HARNESS-HV ACP 20218701 Contact Us For Availability
2
VENT- CAVITY STEAM ACP 59174591 Contact Us For Availability
2
DOOR ASSY- BL ACP 59184611 Contact Us For Availability
2
PCB SUPPORTS (10) & SCREWS (10) ACP 59174558 Contact Us For Availability
2
OUTER PANEL LEFT- BL ACP 59184612 Contact Us For Availability
2
HARNESS-LV ACP 20230301 Contact Us For Availability
3
NAMEPLATE - MENUMASTER ACP 13079802 Contact Us For Availability
3
BOARD- MAIN CONTROL ACP 59184623 Contact Us For Availability
3
OUTERCASE- BACK ACP 59174574 Contact Us For Availability
3
HARNESS-OVEN ACP 20245601 Contact Us For Availability
4
MAG DUCT WELD ACP 21057203 Contact Us For Availability
4
INSULATION-UPPER ACP 20303301 Contact Us For Availability
5
KIT- CATALYST, GASKETS, & TAPE ACP 59174592 Contact Us For Availability
5
TAPE, CLOTH- 15 ft (4.5 m) ACP 20070008 Contact Us For Availability
6
ANTENNA BOX VENT WELD ACP 20212801 Contact Us For Availability
6
INSULATION-LWR/SIDES ACP 20303401 Contact Us For Availability
7
OUTER PANEL RIGHT- BL ACP 59184613 Contact Us For Availability
8
WAVEGUIDE COVER ASSY ACP 20220201 Contact Us For Availability
8
FOOT-SUPPORT ACP 20162001 Contact Us For Availability
8
ARX/MRX PANINI GRILL ACP RGR10 Contact Us For Availability
9
SCREW-TC/SOCKET TORX ACP 20095801 Contact Us For Availability
10
KIT- F1 FUSE, SWITCHES, RELAY, BLOCK ACP 59174580 Contact Us For Availability
10
STACKING KIT ACP SKR10 Contact Us For Availability
12
ARX/MRX PTFE NON-STICK LINERS ACP TL10R Contact Us For Availability
13
CONVECTION MTR & HTR ASSY ACP 59184632 Contact Us For Availability
13
XPRESS OVEN SAMPLE CLEANER KIT ACP CK10 Contact Us For Availability
15
KIT- THERMAL LIMITER, GASKETS, & TAPE ACP 59174594 Contact Us For Availability
16
CABLE, ETHERNET ACP 59164514 Contact Us For Availability
18
KIT- COOLING FANS, RELAY, & CAPS ACP 59224814 Contact Us For Availability
21
KIT- ELEMENT, GASKETS, & TAPE ACP 59174593 Contact Us For Availability
× ![]()
