Model Accelerated Cooking Products MRX51-P2006606M Amana Menumaster MRX51 – Common Parts & Diagrams
ANTENNAS / COVERS / MOTOR / GEARS
BASEPAN ELECTRICAL / FILTERS

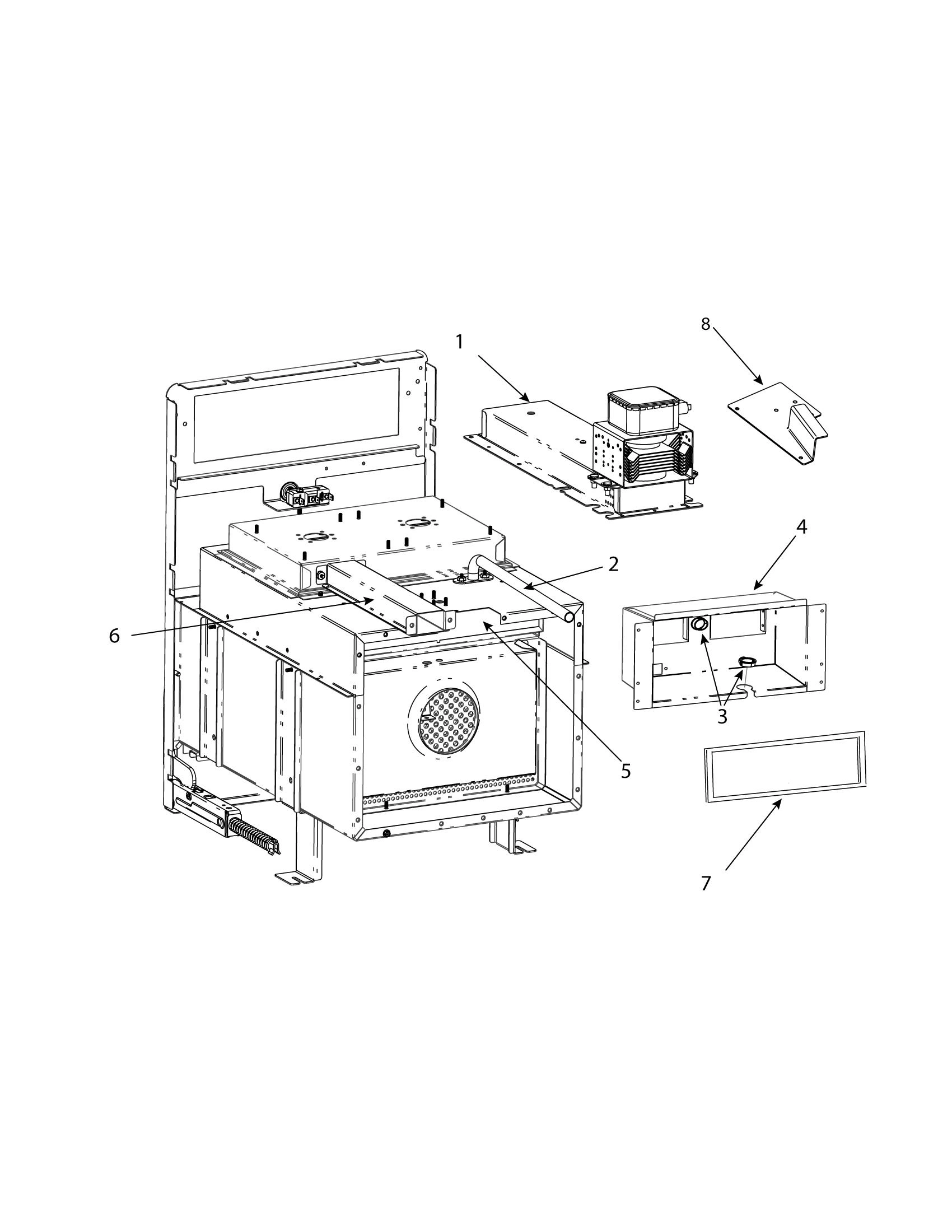

CATALYST / VENT / WAVEGUIDE

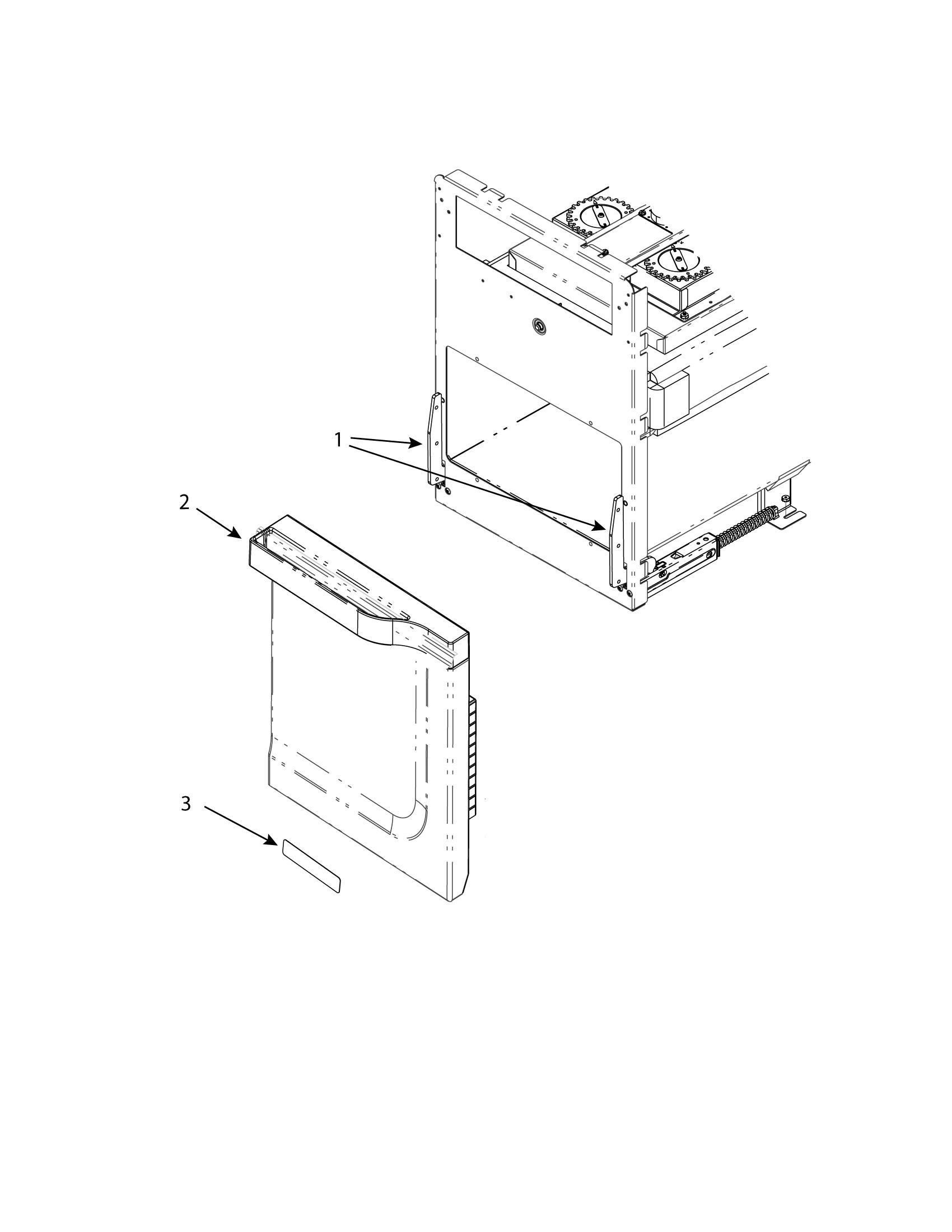

DOOR / HINGES

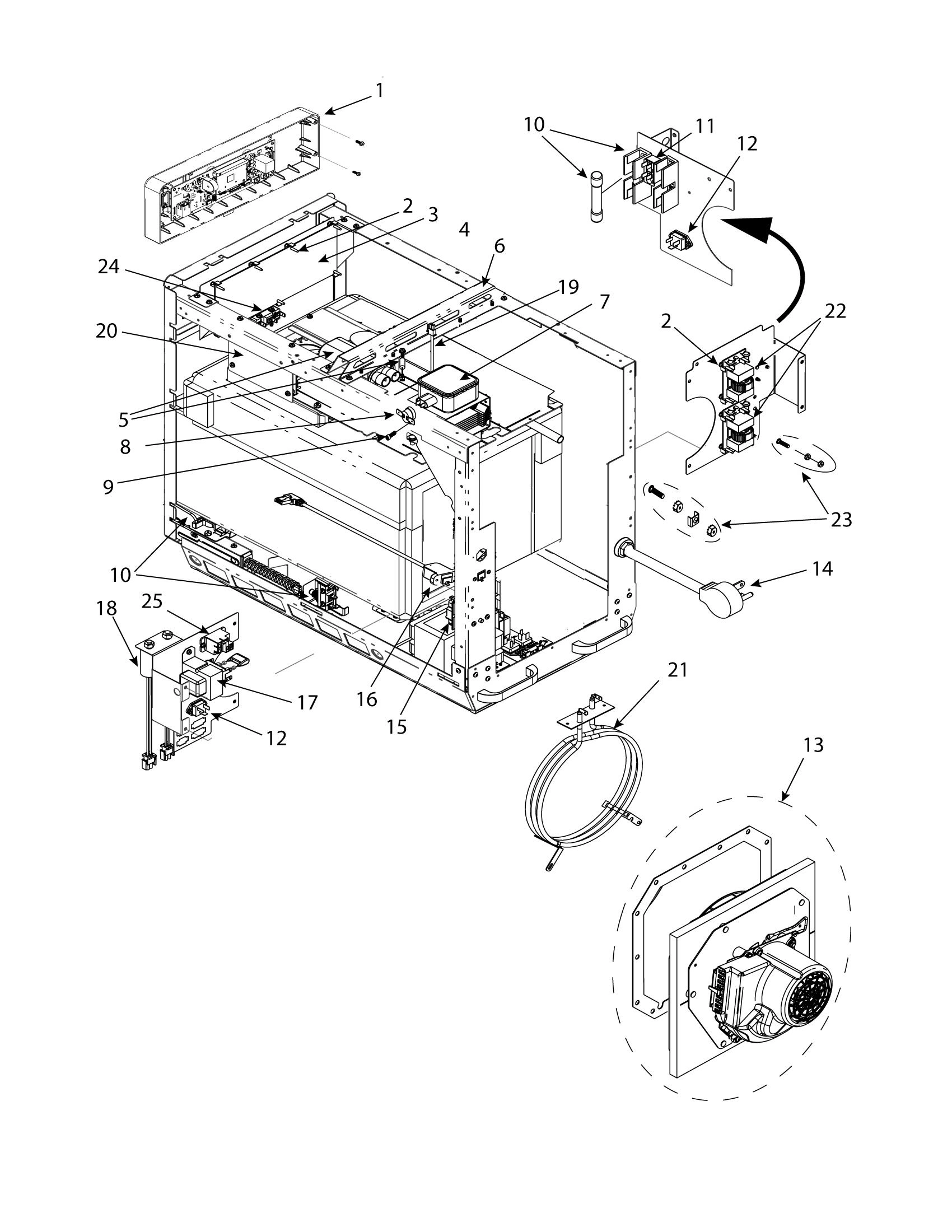

ELECTRICAL- MAIN

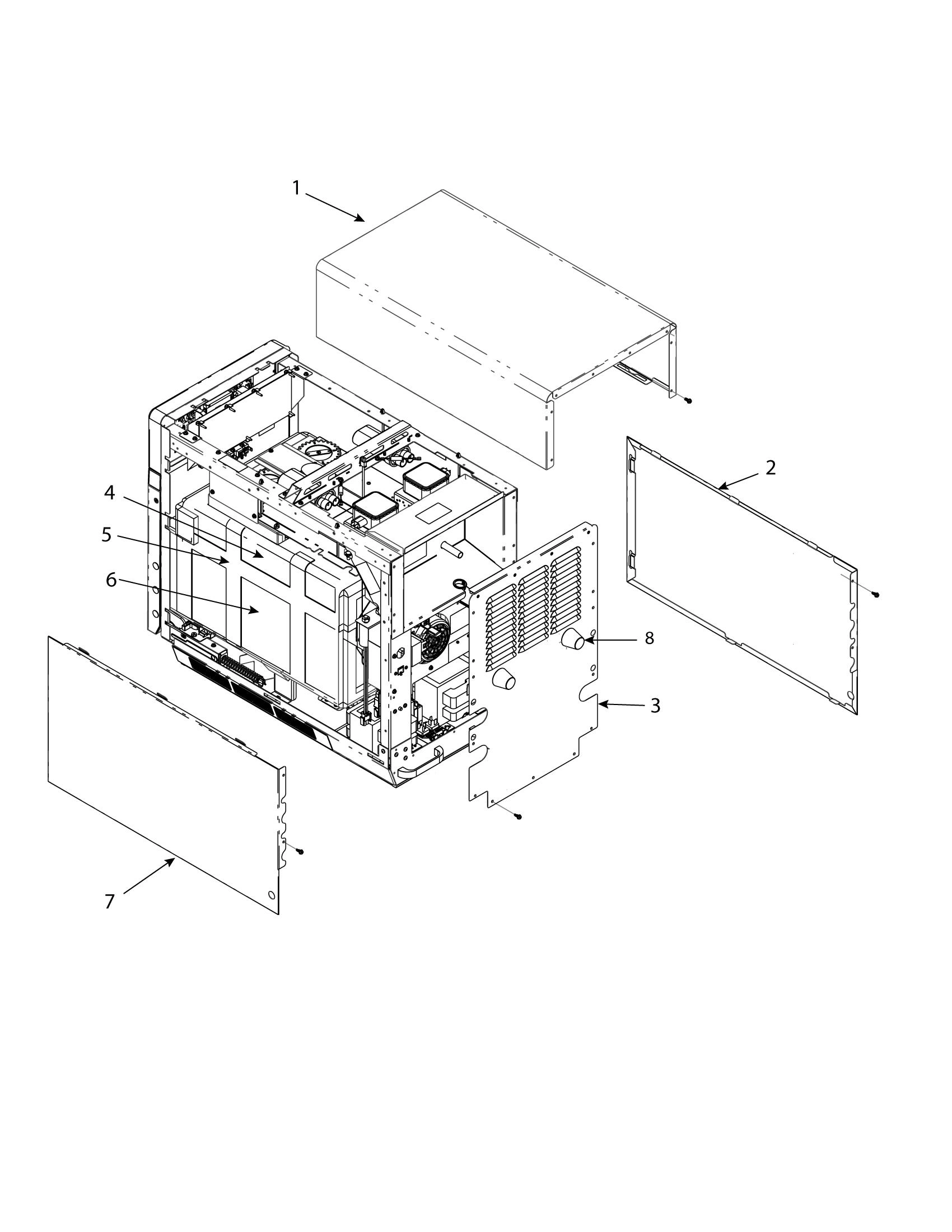

OUTERCASE / INSULATION
SUPPLEMENTAL
Common parts from model Accelerated Cooking Products MRX51-P2006606M Amana Menumaster MRX51
1
KIT- DOOR HINGES ACP 59174577 Contact Us For Availability
1
BOARD- DISPLAY ASSY ACP 59184603 Contact Us For Availability
1
OUTER PANEL TOP- BL ACP 59184607 Contact Us For Availability
1
HARNESS-HV ACP 20218701 Contact Us For Availability
2
VENT- CAVITY STEAM ACP 59174591 Contact Us For Availability
2
DOOR ASSY- SS ACP 59184605 Contact Us For Availability
2
PCB SUPPORTS (10) & SCREWS (10) ACP 59174558 Contact Us For Availability
2
OUTER PANEL LEFT- SS ACP 59184608 Contact Us For Availability
2
HARNESS-LV ACP 20292501 Contact Us For Availability
3
NAMEPLATE,XPRESSCHEF ACP 20272703 Contact Us For Availability
3
BOARD- MAIN CONTROL ACP 59184623 Contact Us For Availability
3
OUTERCASE- BACK ACP 59174574 Contact Us For Availability
3
HARNESS-OVEN ACP 20299701 Contact Us For Availability
4
MAG DUCT WELD ACP 21057203 Contact Us For Availability
4
INSULATION-UPPER ACP 20303301 Contact Us For Availability
5
KIT- CATALYST, GASKETS, & TAPE ACP 59174592 Contact Us For Availability
5
TAPE, CLOTH- 15 ft (4.5 m) ACP 20070008 Contact Us For Availability
6
ANTENNA BOX VENT WELD ACP 20212801 Contact Us For Availability
6
INSULATION-LWR/SIDES ACP 20303401 Contact Us For Availability
6
KIT, USB DOOR ACP 59204737 Contact Us For Availability
7
OUTER PANEL RIGHT- SS ACP 59184609 Contact Us For Availability
8
WAVEGUIDE COVER ASSY ACP 20220201 Contact Us For Availability
8
FOOT-SUPPORT ACP 20162001 Contact Us For Availability
9
SCREW-TC/SOCKET TORX ACP 20095801 Contact Us For Availability
10
KIT- F1 FUSE, SWITCHES, RELAY, BLOCK ACP 59174580 Contact Us For Availability
11
5.5" (139 mm) x 5.5" (139 mm) Non-Stick Baske ACP MB10S Contact Us For Availability
12
ARX/MRX Oven Paddle ACP PA10R Contact Us For Availability
13
CONVECTION MTR & GASKET ACP 59184632 Contact Us For Availability
13
5.5" (139 mm) x 11.18" (284 mm) Non-Stick Bas ACP SB10S Contact Us For Availability
14
Pizza Stone for A/MRX Xpress Ovens ACP ST10R Contact Us For Availability
15
KIT- THERMAL LIMITER, GASKETS, & TAPE ACP 59174594 Contact Us For Availability
15
11.25" (285 mm) x 11.25" (285 mm) Non-Stick B ACP TB10S Contact Us For Availability
16
CABLE, ETHERNET ACP 59164514 Contact Us For Availability
16
ARX/MRX PTFE NON-STICK LINERS ACP TL10R Contact Us For Availability
17
ARX/MRX TOP SHELF ACP TS10R Contact Us For Availability
18
KIT- COOLING FANS, RELAY, & CAPS ACP 59224814 Contact Us For Availability
18
XPRESS OVEN SAMPLE CLEANER KIT ACP CK10 Contact Us For Availability
21
KIT- ELEMENT, GASKETS, & TAPE ACP 59174593 Contact Us For Availability
22
FILTER- EMI ACP 59184620 Contact Us For Availability
25
RELAY ACP 20211101 Contact Us For Availability
× ![]()
