Model Electrolux MRT24NRCD0 REFRIGERATOR – Common Parts & Diagrams
01 - COVER
02 - DOOR

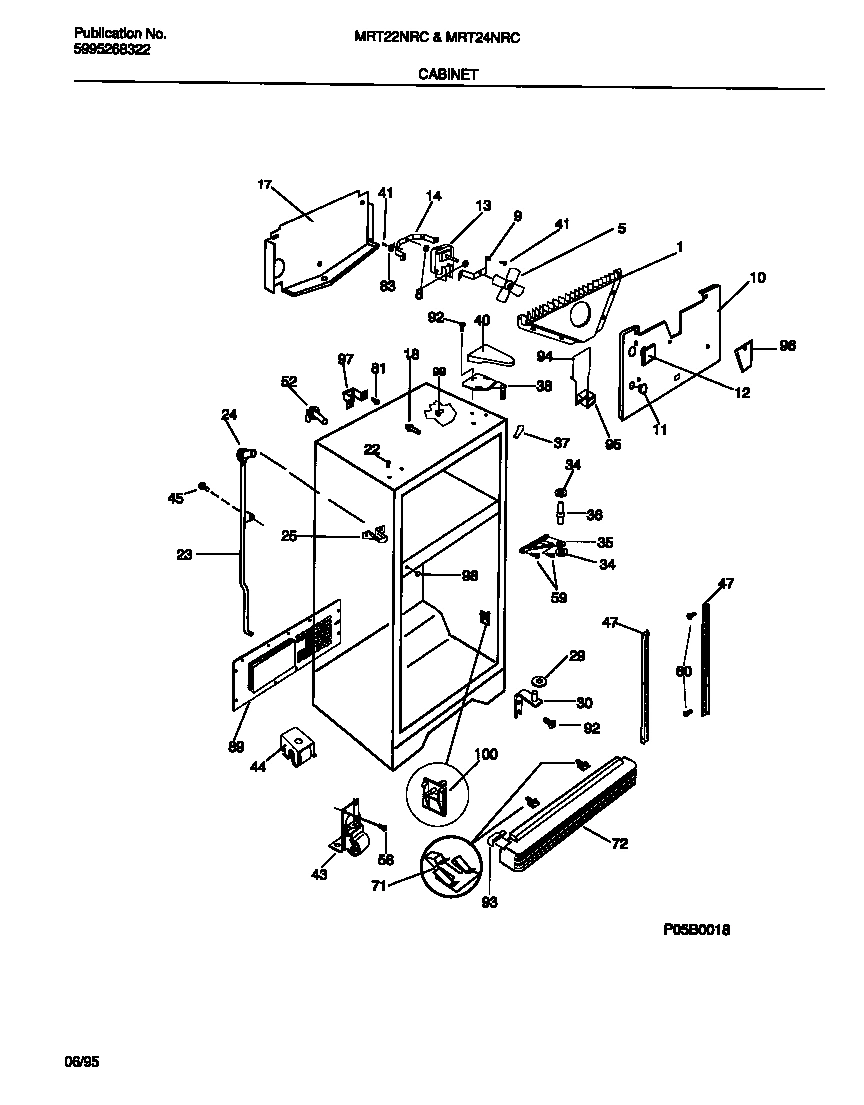

03 - CABINET

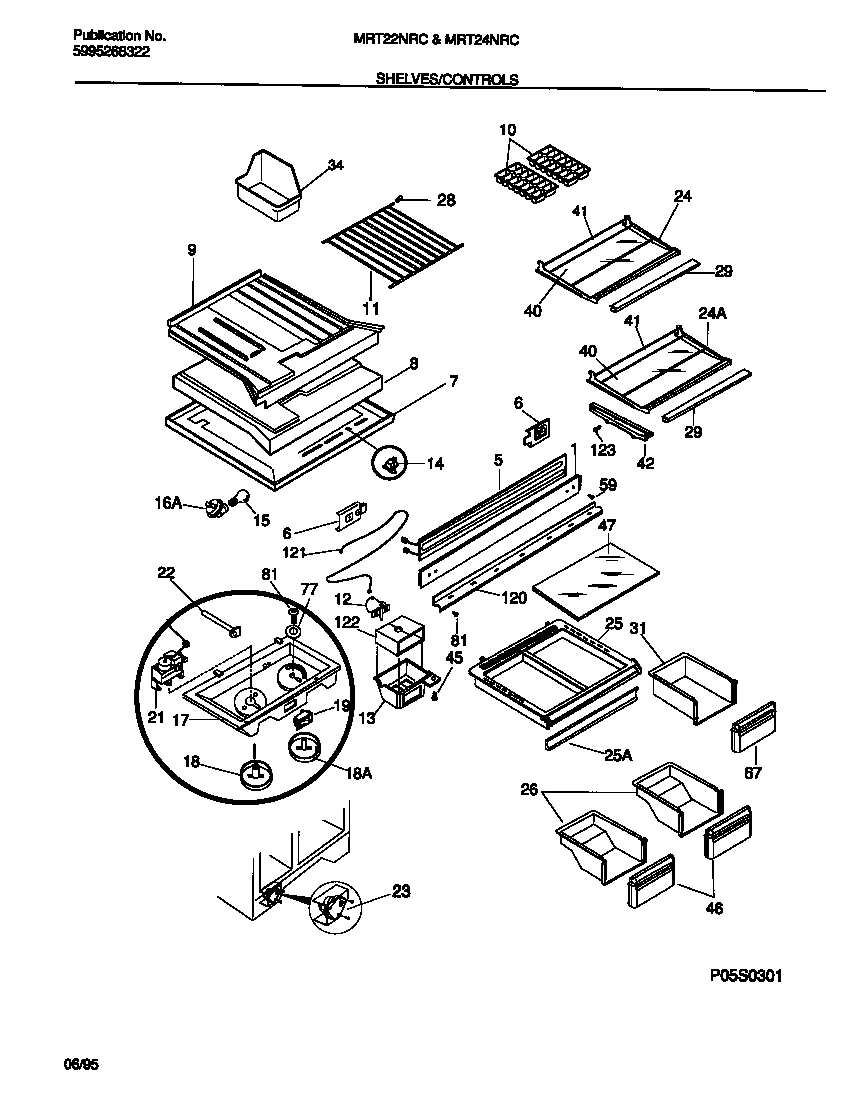

04 - SHELVES/CONTROLS

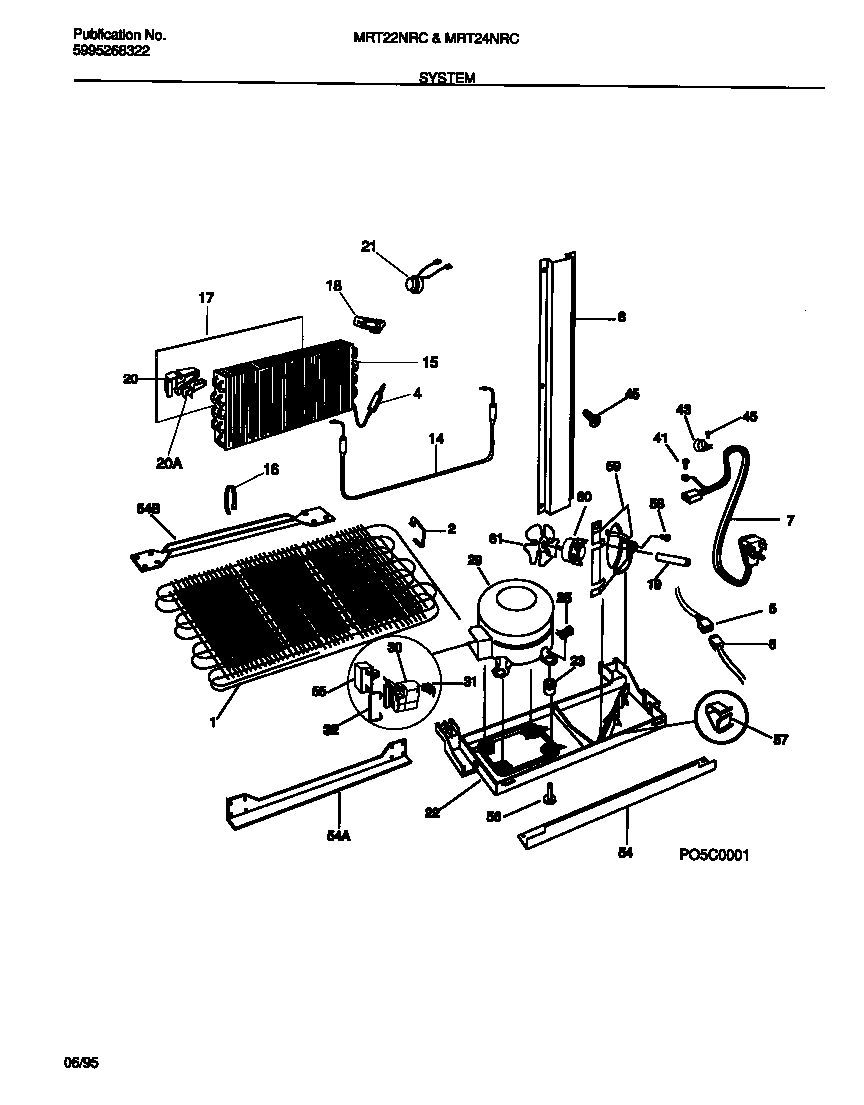

05 - SYSTEM
Common parts from model Electrolux MRT24NRCD0 REFRIGERATOR
*92681
PLUG-BUTTON, CABINET LINER WCI 5308016571 Contact Us For Availability
*92684
WCI 215848000 WCI 215848000 Contact Us For Availability
*92685
HOT TUBE REPAIR KIT, SERVICE WCI 5303917214 Contact Us For Availability
*92686
WCI 5303917276 WCI 5303917276 Contact Us For Availability
1
WCI 215002202 WCI 215002202 Contact Us For Availability
1
SPACER, TUBE (NOT ILLUSTRATED) WCI 5303289026 Contact Us For Availability
1
WCI 5303289487 WCI 5303289487 Contact Us For Availability
2
WCI 5303289029 WCI 5303289029 Contact Us For Availability
5
WCI 5303292398 WCI 5303292398 Contact Us For Availability
5
WCI 215099600 WCI 215099600 Contact Us For Availability
5
WCI 215458301 WCI 215458301 Contact Us For Availability
6
WCI 218279800 WCI 218279800 Contact Us For Availability
6
WCI 215501601 WCI 215501601 Contact Us For Availability
7
WCI 215459201 WCI 215459201 Contact Us For Availability
7
WCI 215028104 WCI 215028104 Contact Us For Availability
7
WCI 5303001380 WCI 5303001380 Contact Us For Availability
8
WCI 215038601 WCI 215038601 Contact Us For Availability
8
WCI 5303289033 WCI 5303289033 Contact Us For Availability
9
WCI 5303292396 WCI 5303292396 Contact Us For Availability
9
WCI 215033800 WCI 215033800 Contact Us For Availability
11
WCI 5303294245 WCI 5303294245 Contact Us For Availability
11A
SPACER, FRZR SHELF (NOT ILLUSTRATED) WCI 215934600 Contact Us For Availability
11B
SPACER, FRZR SHELF (NOT ILLUSTRATED) WCI 218159700 Contact Us For Availability
12A
WCI 215132300 WCI 215132300 Contact Us For Availability
12B
SPACER, AIR DEFLECTR (NOT ILLUSTRATED) WCI 215363800 Contact Us For Availability
12C
WASHER, AIR DEFLECTR (NOT ILLUSTRATED) WCI 215363900 Contact Us For Availability
13
WCI 5303289522 WCI 5303289522 Contact Us For Availability
13A
WCI 215420300 WCI 215420300 Contact Us For Availability
13B
NUT, ANCHOR (NOT ILLUSTRATED) WCI 5308016567 Contact Us For Availability
14
WCI 5303292671 WCI 5303292671 Contact Us For Availability
15
WCI 215379602 WCI 215379602 Contact Us For Availability
17
WCI 215932904 WCI 215932904 Contact Us For Availability
17
NUT, ANCHOR, CONTROL BOX MTG (NOT ILLUSTRATE WCI 215935700 Contact Us For Availability
17
WCI 5303292457 WCI 5303292457 Contact Us For Availability
18
WCI 5303308309 WCI 5303308309 Contact Us For Availability
18
WCI 5303308310 WCI 5303308310 Contact Us For Availability
18
WCI 5303292407 WCI 5303292407 Contact Us For Availability
19
SWITCH-ENERGY SAVER, ROCKER TYPE WCI 5303286905 Contact Us For Availability
19
TUBE-RUBBER WCI 5303001198 Contact Us For Availability
20
WCI 5303292405 WCI 5303292405 Contact Us For Availability
20
WCI 5303292406 WCI 5303292406 Contact Us For Availability
21
WCI 5303292452 WCI 5303292452 Contact Us For Availability
22
WCI 5303289320 No Longer Available
22
WCI 215774911 WCI 215774911 Contact Us For Availability
22
WCI 215932100 WCI 215932100 Contact Us For Availability
22
WCI 5303289030 WCI 5303289030 Contact Us For Availability
23
WCI 215266301 WCI 215266301 Contact Us For Availability
23B
COVER, DEFROST TIMER, TOP (NOT ILLUSTRATED) WCI 215277000 Contact Us For Availability
23D
SHIELD, DEFROST TIMR, BTM (NOT ILLUSTRATED) WCI 5303289058 Contact Us For Availability
24
WCI 5303207353 WCI 5303207353 Contact Us For Availability
24
WCI 215919146 WCI 215919146 Contact Us For Availability
24
WCI 215919148 WCI 215919148 Contact Us For Availability
25
WCI 215216604 WCI 215216604 Contact Us For Availability
25
TRIM-CRISPER COVER WCI 5303296649 Contact Us For Availability
25
WCI 215014200 WCI 215014200 Contact Us For Availability
26
WCI 5303292432 WCI 5303292432 Contact Us For Availability
28
END CAP-SHELF, PROTECTOR WCI 215341200 Contact Us For Availability
29
WCI 215003200 WCI 215003200 Contact Us For Availability
29
WCI 215919507 WCI 215919507 Contact Us For Availability
29
WCI 5303917192 WCI 5303917192 Contact Us For Availability
30
WCI 216008900 WCI 216008900 Contact Us For Availability
30C
TAPPING PLATE, RH (NOT ILLUSTRATED) WCI 5303289291 Contact Us For Availability
31
WCI 5303292434 WCI 5303292434 Contact Us For Availability
31
WCI 5303272819 WCI 5303272819 Contact Us For Availability
32
WCI 215012000 WCI 215012000 Contact Us For Availability
34
WASHER, CTR HNGE PIN WCI 215095400 Contact Us For Availability
35
WCI 215002611 WCI 215002611 Contact Us For Availability
36
WCI 215095900 WCI 215095900 Contact Us For Availability
37
TRIM-CABINET CORNER, ALMOND WCI 5303202340 Contact Us For Availability
38
WCI 218158000 WCI 218158000 Contact Us For Availability
40
WCI 5303288946 WCI 5303288946 Contact Us For Availability
40
WCI 215723559 WCI 215723559 Contact Us For Availability
41
WCI 215919807 WCI 215919807 Contact Us For Availability
42A
HANGER-PAN/BASKET, LH WCI 5303209272 Contact Us For Availability
42B
HANGER-PAN/BASKET, RH (NOT ILLUSTRATED) WCI 5303209273 Contact Us For Availability
43A
WCI 218615300 WCI 218615300 Contact Us For Availability
43B
SCREW-ROLLER MTG, SPCL IND HEX HD, 5/16-18(23 WCI 5308017044 Contact Us For Availability
44
WCI 215163900 WCI 215163900 Contact Us For Availability
46
WCI 5303304811 WCI 5303304811 Contact Us For Availability
47
CHANNEL-SHELF MTG, SIDE WCI 218233300 Contact Us For Availability
47
WCI 5303294005 WCI 5303294005 Contact Us For Availability
52A
WCI 215454600 WCI 215454600 Contact Us For Availability
52B
PLUG-WTR INLET TUBE (NOT ILLUSTRATED) WCI 215058000 Contact Us For Availability
54
WCI 5303289027 WCI 5303289027 Contact Us For Availability
54
WCI 5303289292 WCI 5303289292 Contact Us For Availability
54
WCI 5303289311 WCI 5303289311 Contact Us For Availability
56
WCI 215014100 WCI 215014100 Contact Us For Availability
57
WCI 218247300 WCI 218247300 Contact Us For Availability
59A
WCI 5303289031 WCI 5303289031 Contact Us For Availability
59B
SEAL, FOAM, COND FAN SHROUD (NOT ILLUSTRATED WCI 215226700 Contact Us For Availability
60
WCI 215501800 WCI 215501800 Contact Us For Availability
61A
WCI 5303289032 WCI 5303289032 Contact Us For Availability
61B
NUT, SPEED (NOT ILLUSTRATED) WCI 215004700 Contact Us For Availability
61C
GROMMET, SILENCER (NOT ILLUSTRATED) WCI 215223700 Contact Us For Availability
67
WCI 5303304812 WCI 5303304812 Contact Us For Availability
71A
WCI 215003300 WCI 215003300 Contact Us For Availability
71B
SCREW-CLIP/GRILLE, PAN HEAD, 6-20AB X 1/4 (NO WCI 215608400 Contact Us For Availability
72
WCI 5303289508 WCI 5303289508 Contact Us For Availability
77
WASHER-NYLON,3/16 X 5/8 OD WCI 5303001216 Contact Us For Availability
83
WCI 5308000107 WCI 5308000107 Contact Us For Availability
89
WCI 215176300 WCI 215176300 Contact Us For Availability
93
WCI 215327111 WCI 215327111 Contact Us For Availability
94A
WCI 5303292669 WCI 5303292669 Contact Us For Availability
94B
SEAL, AIR DUCT COVER (NOT ILLUSTRATED) WCI 218044800 Contact Us For Availability
95
WCI 215931300 WCI 215931300 Contact Us For Availability
96
WCI 215775900 WCI 215775900 Contact Us For Availability
97
WCI 5303289299 WCI 5303289299 Contact Us For Availability
98
PLUG-BUTTON, ALMOND, CTR HINGE HOLE WCI 215099711 Contact Us For Availability
99A
WCI 5303294246 WCI 5303294246 Contact Us For Availability
99B
GROMMET, SHELF MTG (NOT ILLUSTRATED) WCI 5303294247 Contact Us For Availability
100
SUPPORT-PAN COVER WCI 5303288973 No Longer Available
120
WCI 218019202 WCI 218019202 Contact Us For Availability
121A
WCI 215364001 WCI 215364001 Contact Us For Availability
121B
NUT, PUSH, ON, DAMPER CABLE (NOT ILLUSTRATED WCI 215209400 Contact Us For Availability
122A
WCI 218561201 WCI 218561201 Contact Us For Availability
122B
WCI 218561203 WCI 218561203 Contact Us For Availability
× ![]()
