Model Electrolux MRT21GNCZ0 REFRIGERATOR – Common Parts & Diagrams
01 - COVER
02 - DOOR

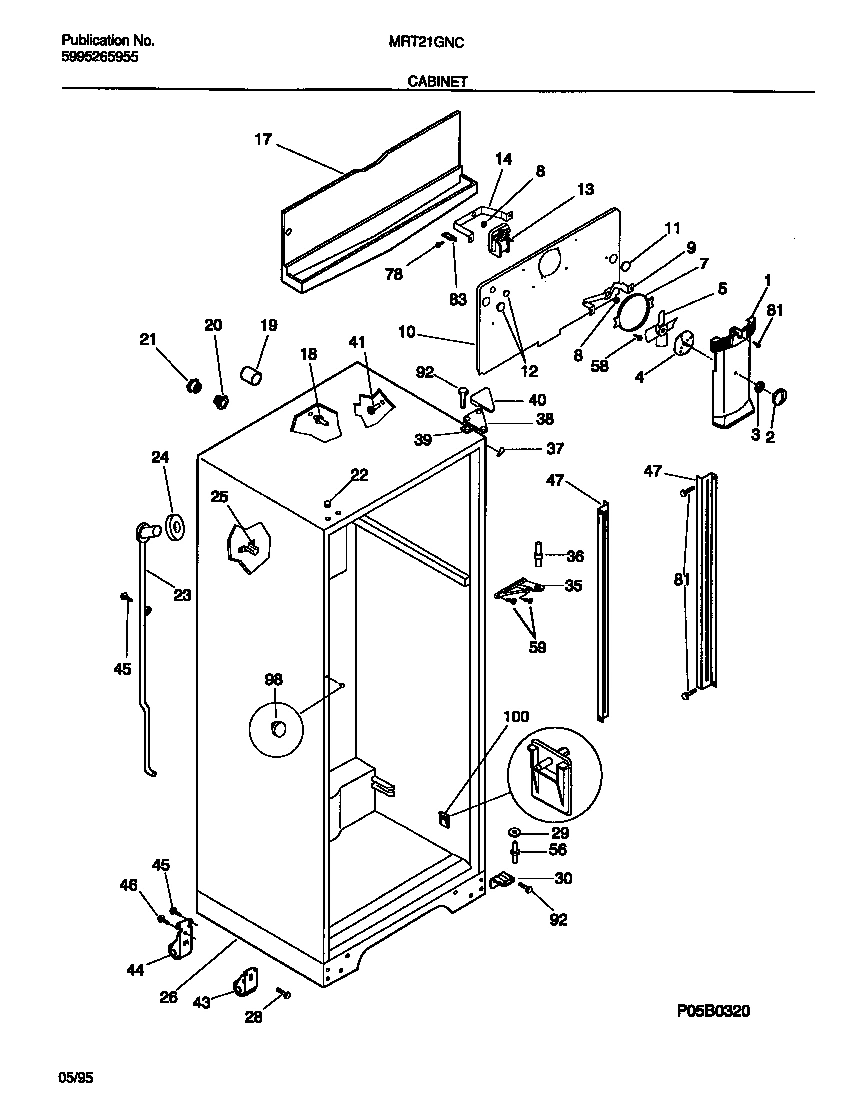

03 - CABINET

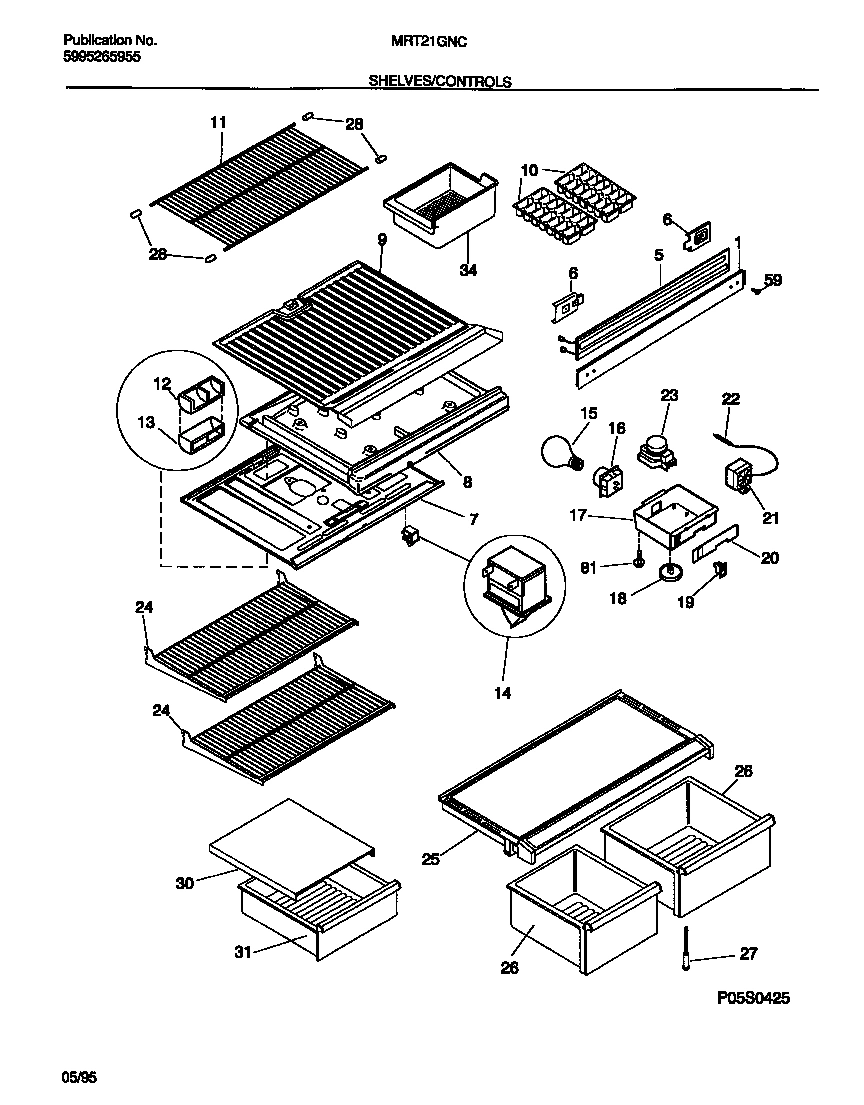

04 - SHELVES/CONTROLS

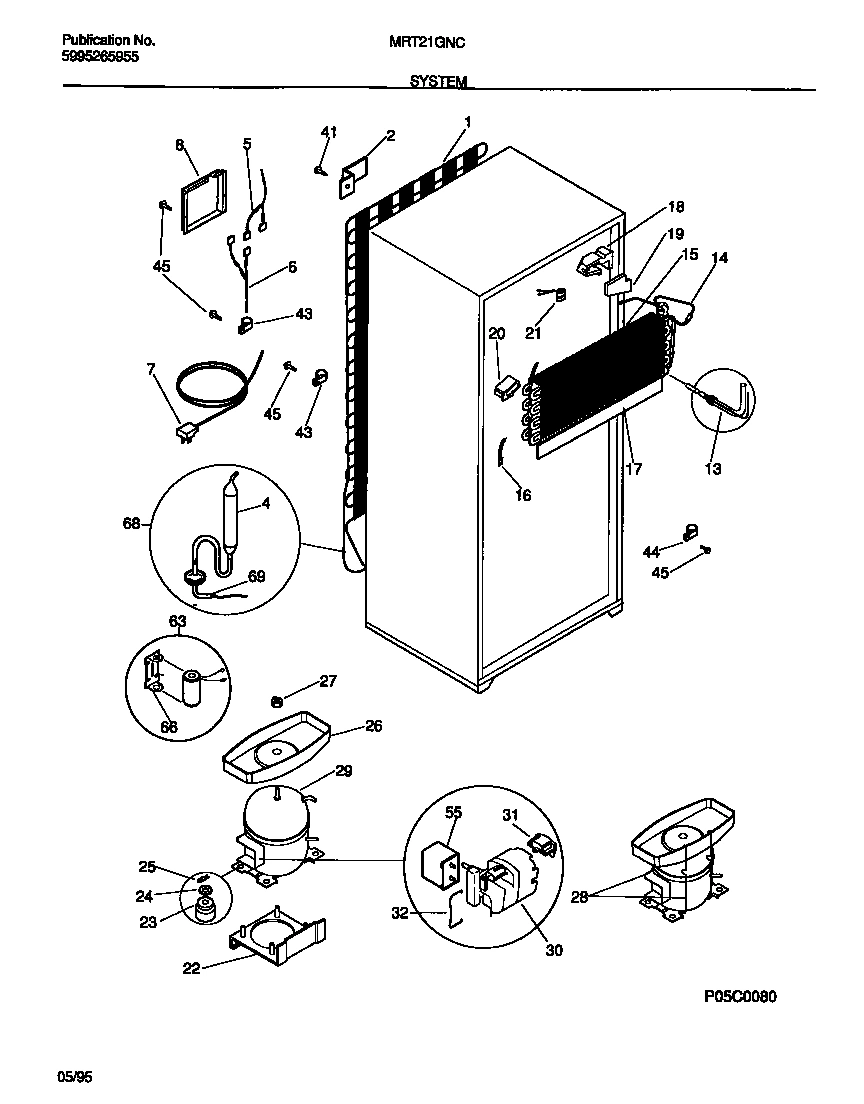

05 - SYSTEM

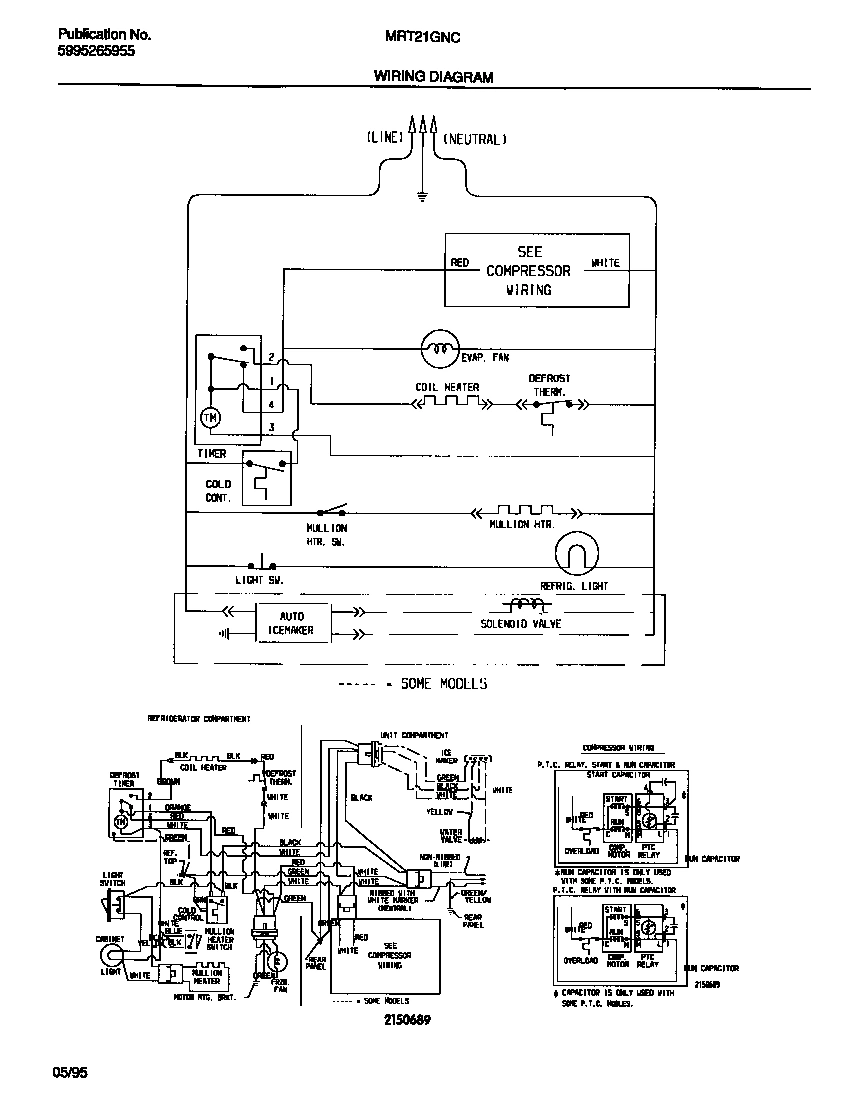

06 - WIRING DIAGRAM
Common parts from model Electrolux MRT21GNCZ0 REFRIGERATOR
*33120
WCI 5303917276 WCI 5303917276 Contact Us For Availability
*33121
PLUG-BUTTON, CABINET LINER WCI 5308016571 Contact Us For Availability
*33124
HOT TUBE REPAIR KIT-SERVICE WCI 5300189383 Contact Us For Availability
1
WCI 218252503 WCI 218252503 Contact Us For Availability
1A
WCI 5300163133 WCI 5300163133 Contact Us For Availability
2A
Bracket,condenser mtg ,(4) WCI 5308000296 Contact Us For Availability
2B
WASHER, EXT TOOTH LOCK, NO. 10 (NOT ILLUSTRAT WCI 5308009617 Contact Us For Availability
5
WCI 218271402 WCI 218271402 Contact Us For Availability
5
HARNESS-WIRING, CONTROL/DIVIDER WCI 3001475 Contact Us For Availability
6
WCI 5303007297 WCI 5303007297 Contact Us For Availability
6
WCI 218279800 WCI 218279800 Contact Us For Availability
6
WCI 215257001 WCI 215257001 Contact Us For Availability
7
RING-FAN ORIFICE WCI 5308000124 Contact Us For Availability
7
CORD-ELECTRIC POWER WCI 5316254901 Contact Us For Availability
7A
WCI 5303001651 WCI 5303001651 Contact Us For Availability
7B
BUSHING, SNAP-IN, PLASTIC (NOT ILLUSTRATED) WCI 5303212518 Contact Us For Availability
7C
WCI 5303001380 WCI 5303001380 Contact Us For Availability
8
WCI 5303001197 WCI 5303001197 Contact Us For Availability
8A
WCI 5308013674 WCI 5308013674 Contact Us For Availability
9
WCI 5303210641 WCI 5303210641 Contact Us For Availability
10
PLUG-BUTTON, WHITE, HINGE BRG HOLE WCI 5308000134 Contact Us For Availability
11A
WCI 5303288243 WCI 5303288243 Contact Us For Availability
11B
SPACER, FRZR SHELF (NOT ILLUSTRATED) WCI 218159700 Contact Us For Availability
12
DEFLECTOR-AIR WCI 5308000071 Contact Us For Availability
12A
WCI 215079000 WCI 215079000 Contact Us For Availability
12B
WCI 215079100 WCI 215079100 Contact Us For Availability
13
DOOR STOP, WHITE, FRZR WCI 218249001 Contact Us For Availability
13
COVER - AIR DEFLECTOR WCI 5303001546 Contact Us For Availability
13
WCI 215076400 WCI 215076400 Contact Us For Availability
15
EVAPORATOR WCI 5303271578 Contact Us For Availability
16
SOCKET-LIGHT/LAMP WCI 5308000129 Contact Us For Availability
17
INSULATOR-EVAP, PLASTIC WCI 5316651102 Contact Us For Availability
17
HANDLE END WCI 5303001015 Contact Us For Availability
17A
WCI 5303015152 WCI 5303015152 Contact Us For Availability
17B
NUT, ANCHOR (NOT ILLUSTRATED) WCI 5308016567 Contact Us For Availability
18
WCI 5303302990 WCI 5303302990 Contact Us For Availability
18
WCI 5303300067 WCI 5303300067 Contact Us For Availability
18
INSULATION BLOCK, RH WCI 5308013648 Contact Us For Availability
19
SWITCH-ENERGY SAVER, ROCKER TYPE WCI 5303286905 Contact Us For Availability
19
INSULATION PLUG, RH WCI 5303007287 Contact Us For Availability
20
WCI 215611400 WCI 215611400 Contact Us For Availability
20
INSULATION BLOCK, LH WCI 5308017227 Contact Us For Availability
21
SCREW, NO. 8 OVAL HEAD, 10-32 (CA) X 5/8, CRO WCI 218251900 Contact Us For Availability
21A
WCI 5303200810 WCI 5303200810 Contact Us For Availability
21B
WCI 5303001260 WCI 5303001260 Contact Us For Availability
22
WCI 5308013663 WCI 5308013663 Contact Us For Availability
23
WCI 5303210377 WCI 5303210377 Contact Us For Availability
24
WCI 5303207353 WCI 5303207353 Contact Us For Availability
24
SHELF,CANTILEVER,FULL WIDTH,WIRE,WHITE WCI 5303209082 Contact Us For Availability
24
WASHER-COMPR MTG WCI 5308003633 Contact Us For Availability
25
COVER-CRISPER PAN WCI 5303007603 Contact Us For Availability
25
CLIP - COMPRESSOR MTG WCI 5308003596 Contact Us For Availability
25A
WCI 5308000056 WCI 5308000056 Contact Us For Availability
26A
PAN-CRISPER, 11.35`` WIDE WCI 215791924 Contact Us For Availability
26A
WCI 215372500 WCI 215372500 Contact Us For Availability
26B
PAN CRISPER, 14.35`` WIDE WCI 5303304670 Contact Us For Availability
27
SUPPORT-CRSPR COVER, ADJUSTABLE WCI 5303205987 Contact Us For Availability
27
Nut,lock `1/4-20 ,drain pan mtg WCI 5303001348 Contact Us For Availability
28
WCI 3201150 No Longer Available
28
PAN RETAINER KIT, SERVICE WCI 5303916001 Contact Us For Availability
29
WASHER, .34 X .62 X .02, NYLON WCI 5308011326 Contact Us For Availability
29
WCI 5303917192 WCI 5303917192 Contact Us For Availability
30
WCI 216008901 WCI 216008901 Contact Us For Availability
30
WCI 08009763 WCI 08009763 Contact Us For Availability
31
WCI 5303305616 WCI 5303305616 Contact Us For Availability
31
WCI 5303272819 WCI 5303272819 Contact Us For Availability
32
WCI 215012000 WCI 215012000 Contact Us For Availability
38A
BRACKET-UPPER HINGE WCI 5308012843 Contact Us For Availability
39
SHIM - UPPER HINGE WCI 5303001037 Contact Us For Availability
40
COVER-UPPER HINGE, WHITE WCI 5308012820 Contact Us For Availability
43
WCI 5303212490 WCI 5303212490 Contact Us For Availability
44
WCI 5308009773 WCI 5308009773 Contact Us For Availability
46
BOLT-ROLLER MTG, HEX WASHER HEAD, 1/4-28 X 1/ WCI 5308009762 Contact Us For Availability
47
CHANNEL-SHELF MTG, SIDE WCI 218233300 Contact Us For Availability
63
CAPACITOR ASSY, START, W/BRACKET 66 WCI 215769201 Contact Us For Availability
66
WCI 215886600 WCI 215886600 Contact Us For Availability
69
WCI 215116300 WCI 215116300 Contact Us For Availability
83
WCI 5308000107 WCI 5308000107 Contact Us For Availability
100
SUPPORT-PAN COVER WCI 5303288973 No Longer Available
× ![]()
