Model Electrolux MRT19TNBZ2 REFRIGERATOR – Common Parts & Diagrams
01 - COVER
02 - DOOR SECTION

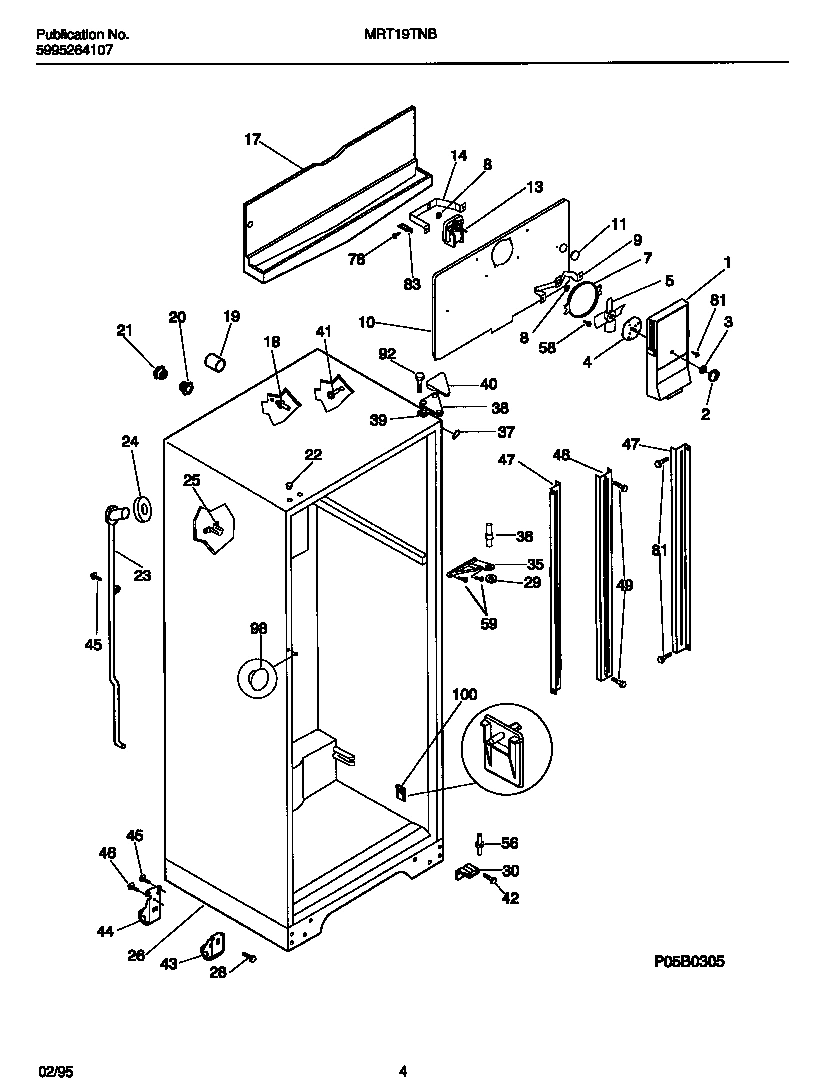

03 - CABINET W/FAN ASSEMBLY

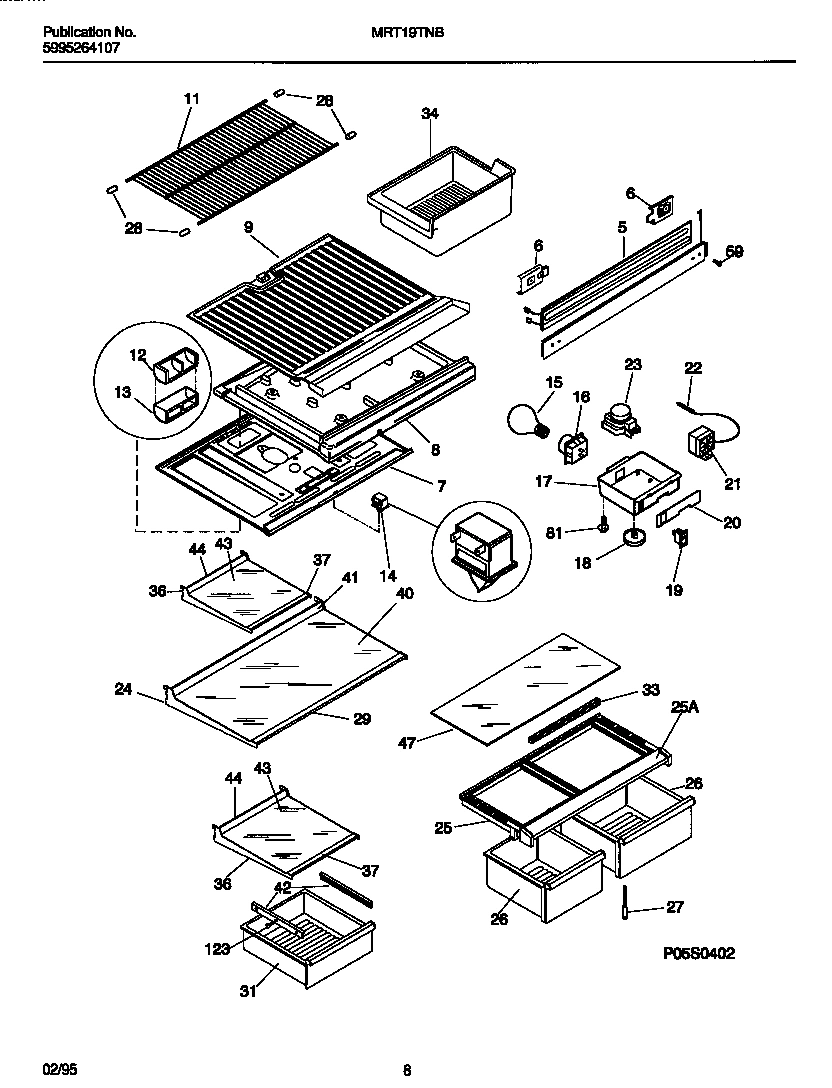

04 - SHELVES, CONTROLS, DIVIDER, MULLION

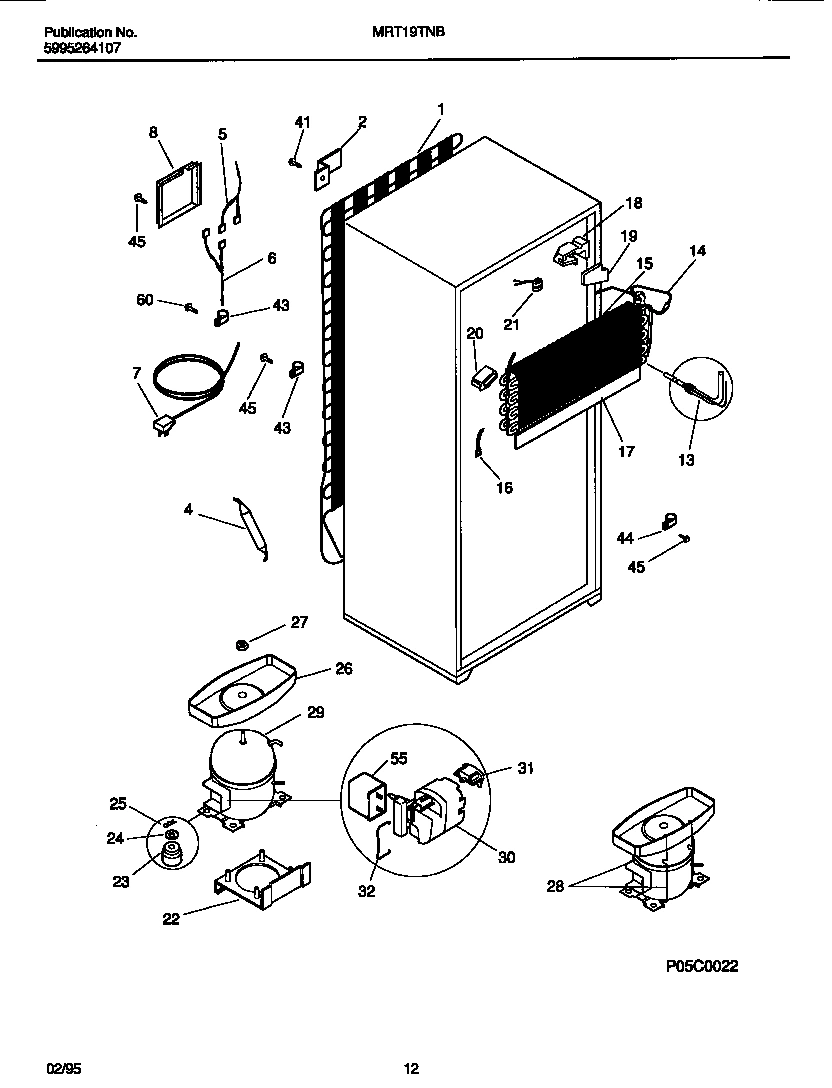

05 - COOLING SYSTEM

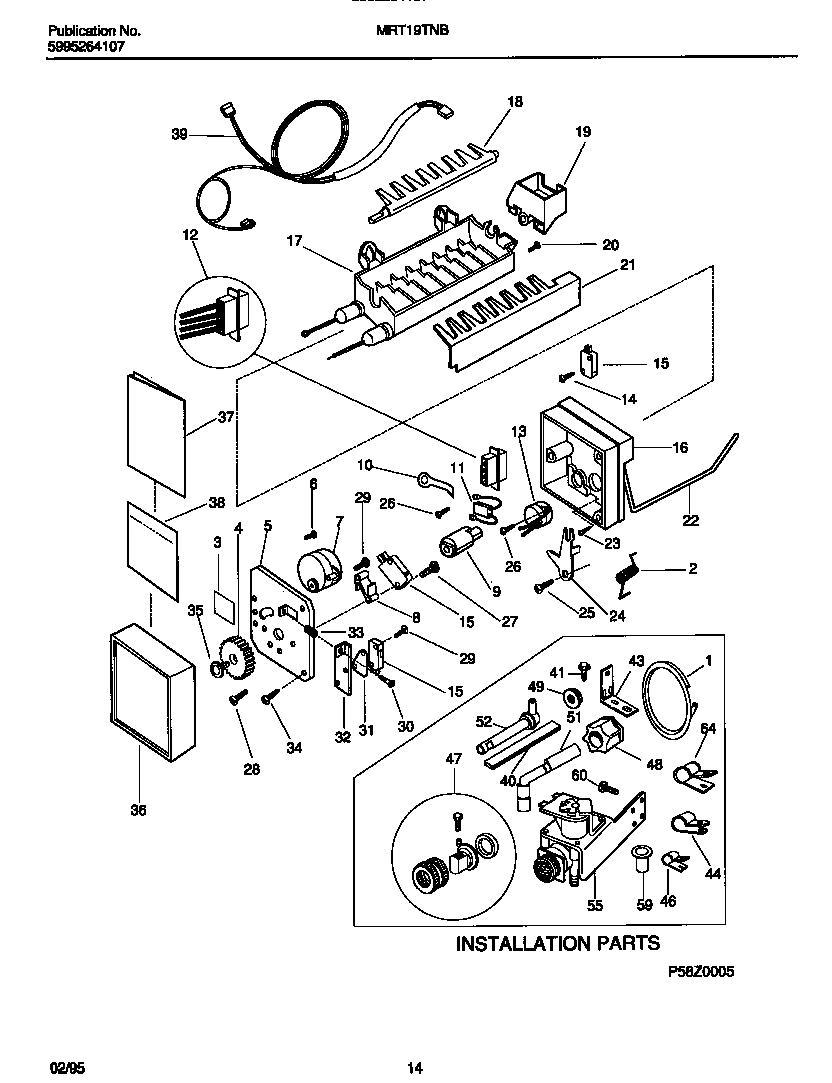

06 - ICE MAKER COMPONENTS & INSTALLATION
Common parts from model Electrolux MRT19TNBZ2 REFRIGERATOR
*16520
WCI 5303917276 WCI 5303917276 Contact Us For Availability
*16521
PLUG-BUTTON, CABINET LINER WCI 5308016571 Contact Us For Availability
*16524
HOT TUBE REPAIR KIT-SERVICE WCI 5300189383 Contact Us For Availability
1
WCI 218252503 WCI 218252503 Contact Us For Availability
1A
WCI 5300163133 WCI 5300163133 Contact Us For Availability
2
WCI 3206348 WCI 3206348 Contact Us For Availability
2A
BRACKET-MOUNTING, CONDENSER, (4) WCI 5308000296 Contact Us For Availability
2B
WASHER, EXT TOOTH LOCK, NO. 10 (NOT ILLUSTRAT WCI 5308009617 Contact Us For Availability
3
PLATE-I.D. WCI 3206299 Contact Us For Availability
5
WCI 218271402 WCI 218271402 Contact Us For Availability
5
HARNESS-WIRING, CONTROL/DIVIDER WCI 3001383 Contact Us For Availability
5
WCI 3206303 WCI 3206303 Contact Us For Availability
6
WCI 5303007297 WCI 5303007297 Contact Us For Availability
6
WCI 218279800 WCI 218279800 Contact Us For Availability
6
WCI 215257001 WCI 215257001 Contact Us For Availability
7
RING-FAN ORIFICE WCI 5308000124 Contact Us For Availability
7
CORD-ELECTRIC POWER WCI 5316254901 Contact Us For Availability
7A
TOP PANEL-REFR, W/SNAP BUSHING WCI 5303016367 Contact Us For Availability
7B
BUSHING, SNAP-IN, PLASTIC (NOT ILLUSTRATED) WCI 5303212518 Contact Us For Availability
7C
WCI 5303001380 WCI 5303001380 Contact Us For Availability
8
WCI 5303001197 WCI 5303001197 Contact Us For Availability
8
SPACER-HOLDING SW WCI 3206312 Contact Us For Availability
8A
DIVIDER, STYROFOAM WCI 5303001504 Contact Us For Availability
9
WCI 5303211427 WCI 5303211427 Contact Us For Availability
9
WCI 3206313 WCI 3206313 Contact Us For Availability
10
PLUG-BUTTON, WHITE, HINGE BRG HOLE WCI 5308000134 Contact Us For Availability
10
WCI 3206315 WCI 3206315 Contact Us For Availability
11A
WCI 5303283031 WCI 5303283031 Contact Us For Availability
11B
SPACER, FRZR SHELF (NOT ILLUSTRATED) WCI 218159700 Contact Us For Availability
12
DEFLECTOR-AIR WCI 5308000071 Contact Us For Availability
12A
HARNESS-WIRING, INTERNAL IM, WITH PLUG WCI 3206349 Contact Us For Availability
12B
PLUG, ``ONLY`` WCI 3206321 Contact Us For Availability
13
DOOR STOP, WHITE, FRZR WCI 218249001 Contact Us For Availability
13
Thermostat Assy,ice maker WCI 3206322 Contact Us For Availability
13
COVER - AIR DEFLECTOR WCI 5303001546 Contact Us For Availability
13
WCI 5308000728 WCI 5308000728 Contact Us For Availability
14
SCREW - SWITCH MTG, 4-24 X 3/4, SW TO SUPPORT WCI 3206323 Contact Us For Availability
15
EVAPORATOR WCI 5303271578 Contact Us For Availability
16
SOCKET-LIGHT/LAMP WCI 5308000129 Contact Us For Availability
16
WCI 3206326 WCI 3206326 Contact Us For Availability
17
INSULATOR-EVAP, PLASTIC WCI 5316651102 Contact Us For Availability
17
HANDLE END WCI 5303001015 Contact Us For Availability
17A
WCI 5303015152 WCI 5303015152 Contact Us For Availability
17B
NUT, ANCHOR (NOT ILLUSTRATED) WCI 5308016567 Contact Us For Availability
18
WCI 5303302990 WCI 5303302990 Contact Us For Availability
18
WCI 5303300067 WCI 5303300067 Contact Us For Availability
18
INSULATION BLOCK, RH WCI 5308013648 Contact Us For Availability
18
WCI 3206328 WCI 3206328 Contact Us For Availability
19
WCI 5303001296 WCI 5303001296 Contact Us For Availability
19
SWITCH-ENERGY SAVER, SLIDE TYPE WCI 5303001670 Contact Us For Availability
19
INSULATION PLUG, RH WCI 5303007287 Contact Us For Availability
19
WCI 3206330 WCI 3206330 Contact Us For Availability
20
WCI 215611400 WCI 215611400 Contact Us For Availability
20
INSULATION BLOCK, LH WCI 5308017227 Contact Us For Availability
20
WCI 3206331 WCI 3206331 Contact Us For Availability
21
ICE STRIPPER WCI 3206332 Contact Us For Availability
21A
WCI 5303200810 WCI 5303200810 Contact Us For Availability
21B
WCI 5303001260 WCI 5303001260 Contact Us For Availability
22
WCI 5308013663 WCI 5308013663 Contact Us For Availability
22
WCI 3206333 WCI 3206333 Contact Us For Availability
23
WCI 5303210377 WCI 5303210377 Contact Us For Availability
23
SCREW - SUP / MOLD BODY, 8-18 X 1, (4) WCI 3206334 Contact Us For Availability
24
WCI 5303207353 WCI 5303207353 Contact Us For Availability
24
WCI 215919107 WCI 215919107 Contact Us For Availability
24
WASHER-COMPR MTG WCI 5308003633 Contact Us For Availability
25
WCI 5303206606 WCI 5303206606 Contact Us For Availability
25
WCI 5303280075 WCI 5303280075 Contact Us For Availability
25
CLIP - COMPRESSOR MTG WCI 5308003596 Contact Us For Availability
25
SCREW-ARM LEVR/SPRT, 8-18 X 9/16 WCI 3206336 Contact Us For Availability
25A
WCI 5308000056 WCI 5308000056 Contact Us For Availability
26
SCREW-THERMO/SPRT, 4-24 X 3/8, (4) WCI 3206337 Contact Us For Availability
26A
PAN-CRISPER, 11.35`` WIDE WCI 215791924 Contact Us For Availability
26A
WCI 215372500 WCI 215372500 Contact Us For Availability
26B
PAN CRISPER, 14.35`` WIDE WCI 5303304670 Contact Us For Availability
27
SUPPORT-CRSPR COVER, ADJUSTABLE WCI 5303205987 Contact Us For Availability
27
Nut,lock `1/4-20 ,drain pan mtg WCI 5303001348 Contact Us For Availability
27
SCREW-SW & SPCR/PLATE, 4-40 X 1, (2) WCI 3206338 Contact Us For Availability
28
WCI 3201150 No Longer Available
28
PAN RETAINER KIT, SERVICE WCI 5303916001 Contact Us For Availability
28
SCREW-TIMING STOP, 4-40 X 3/8 WCI 3206339 Contact Us For Availability
29
WCI 215919504 WCI 215919504 Contact Us For Availability
29
WCI 5303917328 WCI 5303917328 Contact Us For Availability
29
SCREW-MTR & SW/PLATE, 4-40 X 3/4, (4) WCI 3206340 Contact Us For Availability
30
WCI 216008900 WCI 216008900 Contact Us For Availability
30
SCREW-TIMING, 8-32 X 1 WCI 3206341 Contact Us For Availability
31
WCI 5303276514 WCI 5303276514 Contact Us For Availability
31
WCI 5303304512 WCI 5303304512 Contact Us For Availability
31
WCI 3206342 WCI 3206342 Contact Us For Availability
32
WCI 215012000 WCI 215012000 Contact Us For Availability
32
WCI 3206343 WCI 3206343 Contact Us For Availability
33
GASKET-PAN COVER, 13.25``, RH WCI 5303200329 Contact Us For Availability
33
WCI 3206344 WCI 3206344 Contact Us For Availability
34
SCREW - MTG PLATE / SPRT, 8-18 X 7/16, (3) WCI 3206345 Contact Us For Availability
35
SCREW - GEAR / CAM, 6-20 X 0.437 WCI 3206346 Contact Us For Availability
36
WCI 215919106 WCI 215919106 Contact Us For Availability
36
WCI 3206347 WCI 3206347 Contact Us For Availability
37
WCI 215919510 WCI 215919510 Contact Us For Availability
37
WCI 5303207442 WCI 5303207442 Contact Us For Availability
38
WCI 5303207445 WCI 5303207445 Contact Us For Availability
38A
BRACKET-UPPER HINGE WCI 5308012843 Contact Us For Availability
39
HARNESS-WIRING, ICE MAKER WCI 3206358 Contact Us For Availability
40
WCI 215723545 WCI 215723545 Contact Us For Availability
41
WCI 215919804 WCI 215919804 Contact Us For Availability
42A
HANGER-PAN/BASKET, LH WCI 5303209272 Contact Us For Availability
42B
HANGER-PAN/BASKET, RH WCI 5303209273 Contact Us For Availability
43
WCI 215723544 WCI 215723544 Contact Us For Availability
44
WCI 215919810 WCI 215919810 Contact Us For Availability
46
BOLT-ROLLER MTG, HEX WASHER HEAD, 1/4-28 X 1/ WCI 5308009762 Contact Us For Availability
47
ADAPTER-WATER SPLY WCI 3206360 Contact Us For Availability
47
CHANNEL-SHELF MTG, SIDE WCI 218233300 Contact Us For Availability
47
WCI 5303209283 WCI 5303209283 Contact Us For Availability
48
CHANNEL-SHELF MTG, CENTER, REFR WCI 5303292395 Contact Us For Availability
48
NUT, 7/16 X 20, NYLON WCI 5308000200 Contact Us For Availability
49
WCI 215507300 WCI 215507300 Contact Us For Availability
51
EXTENSION-INLET TUBE, S X S & SD ONLY WCI 5308000239 Contact Us For Availability
55A
VALVE-WATER WCI 3206356 Contact Us For Availability
55B
CAP-WATER VALVE (NOT ILLUSTRATED) WCI 5303015102 Contact Us For Availability
59
WCI 5303001191 WCI 5303001191 Contact Us For Availability
83
WCI 5308000107 WCI 5308000107 Contact Us For Availability
100
SUPPORT-CRSPR COVER WCI 5303288973 No Longer Available
× ![]()
