Model Electrolux MRT15DNCZ0 REFRIGERATOR – Common Parts & Diagrams
01 - COVER
02 - DOOR

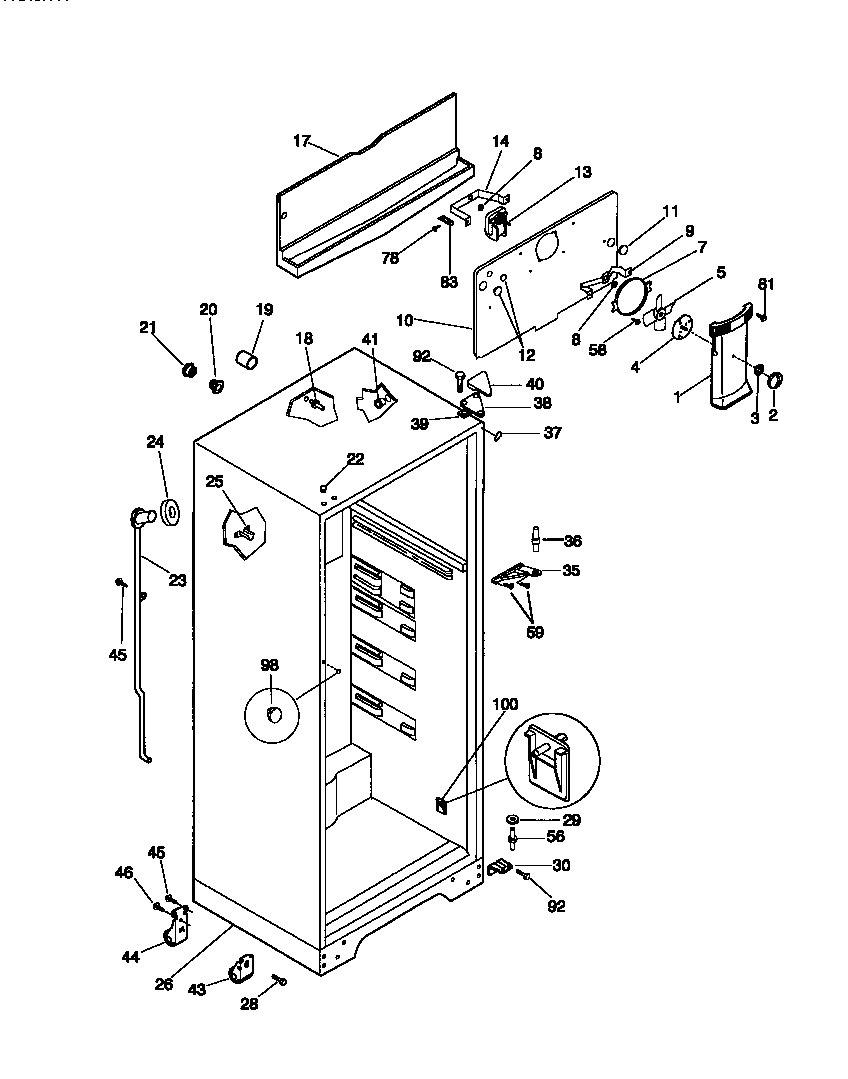

03 - CABINET

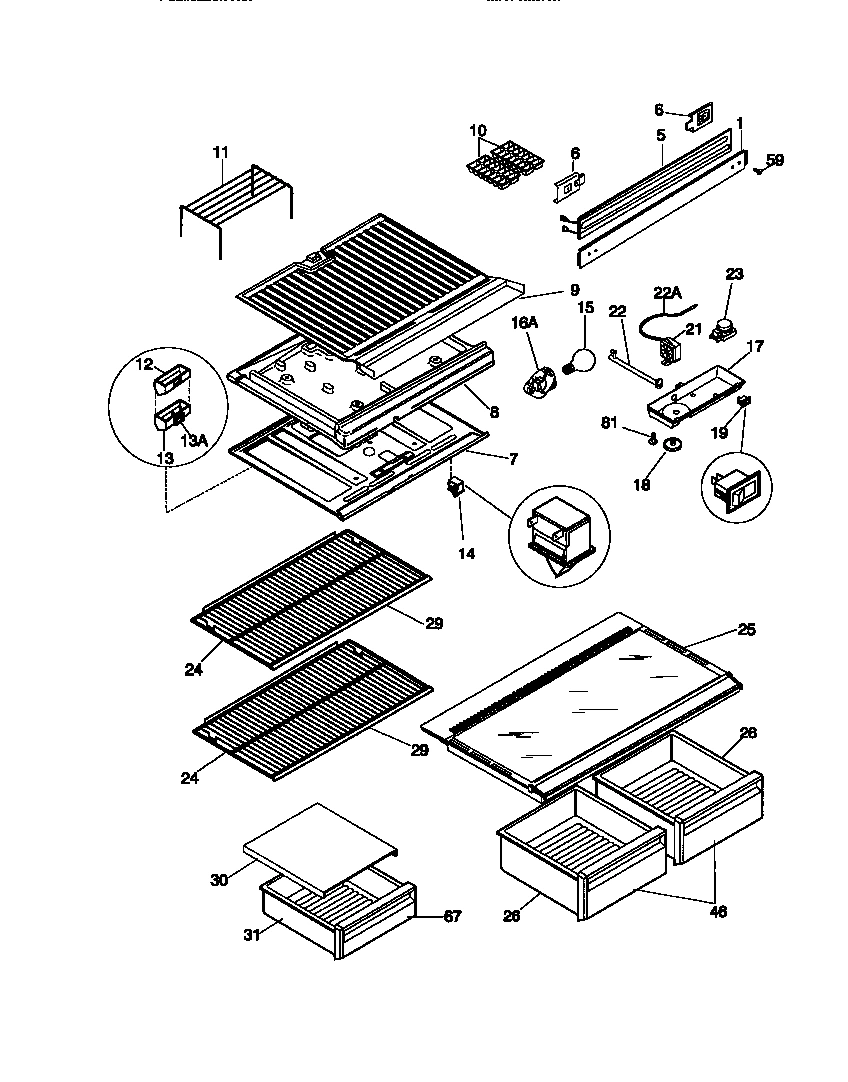

04 - SHELVES/CONTROLS

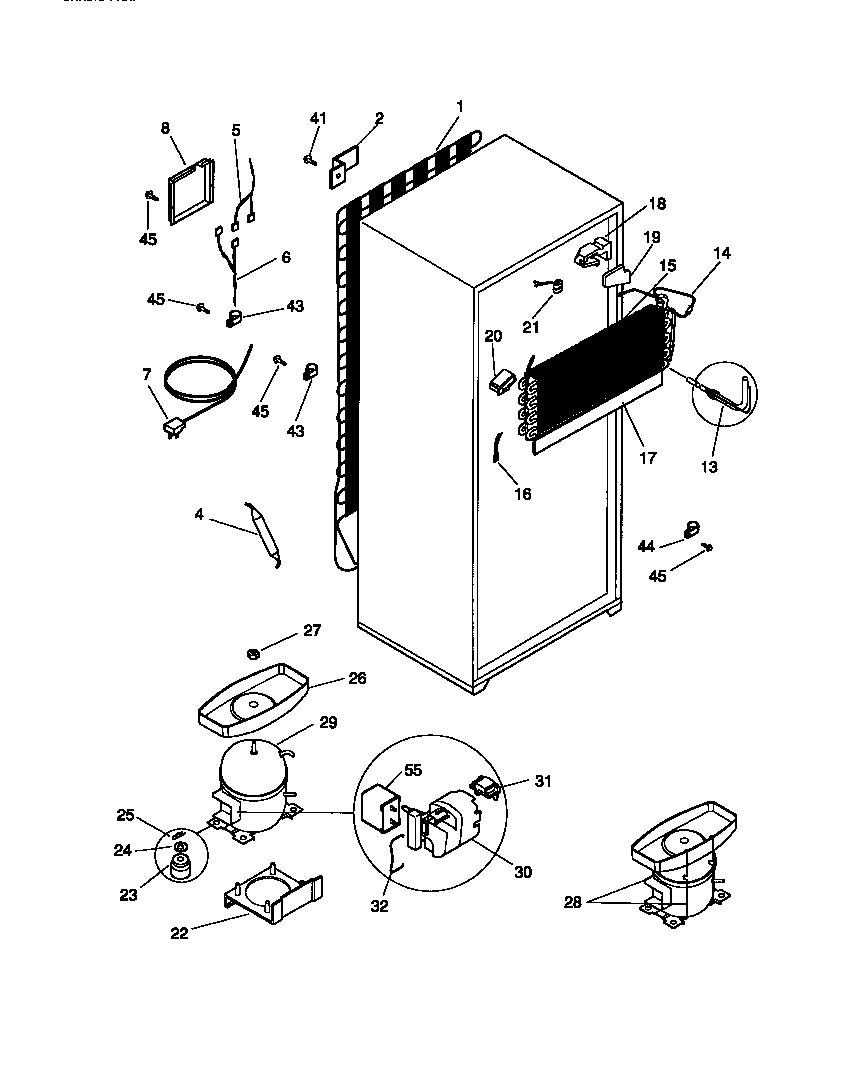

05 - SYSTEM
Common parts from model Electrolux MRT15DNCZ0 REFRIGERATOR
*56880
WCI 5303917276 WCI 5303917276 Contact Us For Availability
*56881
PLUG-BUTTON, CABINET LINER WCI 5308016571 Contact Us For Availability
*56884
HOT TUBE REPAIR KIT-SERVICE WCI 5300189383 Contact Us For Availability
1
GASKET-FRZR DOOR, WHITE, MAGNETIC WCI 5308007123 Contact Us For Availability
1
WCI 218252501 WCI 218252501 Contact Us For Availability
1A
WCI 218491000 WCI 218491000 Contact Us For Availability
2A
Bracket,condenser mtg ,(4) WCI 5308000296 Contact Us For Availability
2B
WASHER, EXT TOOTH LOCK, NO. 10 (NOT ILLUSTRAT WCI 5308009617 Contact Us For Availability
5
WCI 218271401 WCI 218271401 Contact Us For Availability
5
WCI 3018900 WCI 3018900 Contact Us For Availability
6
WCI 218279800 WCI 218279800 Contact Us For Availability
6
WCI 215257001 WCI 215257001 Contact Us For Availability
7
RING-FAN ORIFICE WCI 5308000124 Contact Us For Availability
7
DOOR-DAIRY WCI 218287801 Contact Us For Availability
7
CORD-ELECTRIC POWER WCI 5316254901 Contact Us For Availability
7A
WCI 3206185 WCI 3206185 Contact Us For Availability
7B
WCI 5303001380 WCI 5303001380 Contact Us For Availability
8
WCI 5303001197 WCI 5303001197 Contact Us For Availability
8A
WCI 3206186 WCI 3206186 Contact Us For Availability
9
WCI 3206187 WCI 3206187 Contact Us For Availability
10
PLUG-BUTTON, WHITE, HINGE BRG HOLE WCI 5308000134 Contact Us For Availability
11
SHELF-FREEZER, ``TABLE TYPE`` WCI 5303283280 Contact Us For Availability
12A
WCI 215079000 WCI 215079000 Contact Us For Availability
12A
DEFLECTOR-AIR, W/SEAL WCI 5308014667 Contact Us For Availability
12B
WCI 215079100 WCI 215079100 Contact Us For Availability
13
DOOR STOP, WHITE, FRZR WCI 218249001 Contact Us For Availability
13
WCI 5303001448 WCI 5303001448 Contact Us For Availability
13
EXTENSION, AIR DEFLECTOR, WITH INSULATION WCI 5303200590 Contact Us For Availability
13
WCI 5308000728 WCI 5308000728 Contact Us For Availability
14
WCI 5308009754 WCI 5308009754 Contact Us For Availability
15
EVAPORATOR WCI 5308009756 Contact Us For Availability
17
INSULATOR-EVAP, PLASTIC WCI 5316651102 Contact Us For Availability
17
HANDLE END WCI 5303001015 Contact Us For Availability
17A
WCI 5303307349 WCI 5303307349 Contact Us For Availability
17B
NUT, ANCHOR (NOT ILLUSTRATED) WCI 5308016567 Contact Us For Availability
18
WCI 5303302990 WCI 5303302990 Contact Us For Availability
18
WCI 5303307352 WCI 5303307352 Contact Us For Availability
18
INSULATION BLOCK, RH WCI 5308013648 Contact Us For Availability
19
SWITCH-ENERGY SAVER, ROCKER TYPE WCI 5303286905 Contact Us For Availability
19
INSULATION PLUG, RH WCI 5303007287 Contact Us For Availability
20
INSULATION BLOCK, LH WCI 5308017227 Contact Us For Availability
21
SCREW, NO. 8 OVAL HEAD, 10-32 (CA) X 5/8, CRO WCI 218251900 Contact Us For Availability
21A
WCI 5303305486 WCI 5303305486 Contact Us For Availability
21B
WCI 5303001260 WCI 5303001260 Contact Us For Availability
22
HOUSING-TEMP SENSOR, PLASTIC WCI 3018891 Contact Us For Availability
22
WCI 5308013663 WCI 5308013663 Contact Us For Availability
23
WCI 5303210377 WCI 5303210377 Contact Us For Availability
24
WCI 5303207353 WCI 5303207353 Contact Us For Availability
24
WCI 218272501 WCI 218272501 Contact Us For Availability
24
WASHER-COMPR MTG WCI 5308003633 Contact Us For Availability
25
COVER, CRISPER PAN, WITH BEAM WCI 218314101 Contact Us For Availability
25
CLIP - COMPRESSOR MTG WCI 5308003596 Contact Us For Availability
25A
WCI 5308000056 WCI 5308000056 Contact Us For Availability
26
PAN - CRISPER WCI 3206180 No Longer Available
26A
WCI 215372500 WCI 215372500 Contact Us For Availability
27
Nut,lock `1/4-20 ,drain pan mtg WCI 5303001348 Contact Us For Availability
28
PAN RETAINER KIT, SERVICE WCI 5303916001 Contact Us For Availability
29
WASHER, .34 X .62 X .02, NYLON WCI 5308011326 Contact Us For Availability
29
WCI 218366101 WCI 218366101 Contact Us For Availability
29
WCI 5303917328 WCI 5303917328 Contact Us For Availability
30
WCI 5303285319 WCI 5303285319 Contact Us For Availability
30
WCI 216008900 WCI 216008900 Contact Us For Availability
31
WCI 5303276514 WCI 5303276514 Contact Us For Availability
31
WCI 3206209 WCI 3206209 Contact Us For Availability
32
WCI 215012000 WCI 215012000 Contact Us For Availability
38A
BRACKET-UPPER HINGE WCI 5308012843 Contact Us For Availability
46
FRONT, CRISPER PAN WCI 5303303588 Contact Us For Availability
67
WCI 5303309966 WCI 5303309966 Contact Us For Availability
83
WCI 5308000107 WCI 5308000107 Contact Us For Availability
98
PLUG-BUTTON, WHITE, CTR HINGE HOLE WCI 215099701 Contact Us For Availability
100
SUPPORT-PAN COVER WCI 5303288973 No Longer Available
× ![]()
