Model Electrolux MRT15CPEW6 REFRIGERATOR – Common Parts & Diagrams

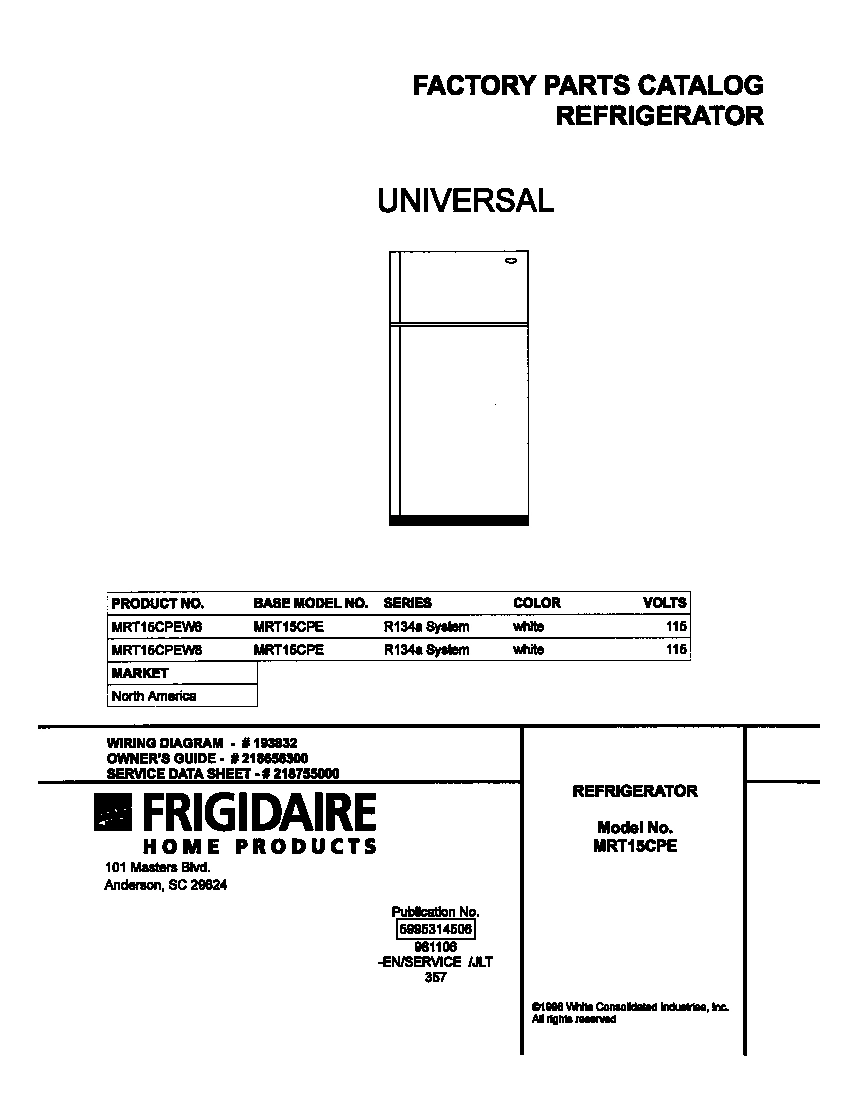

01 - COVER

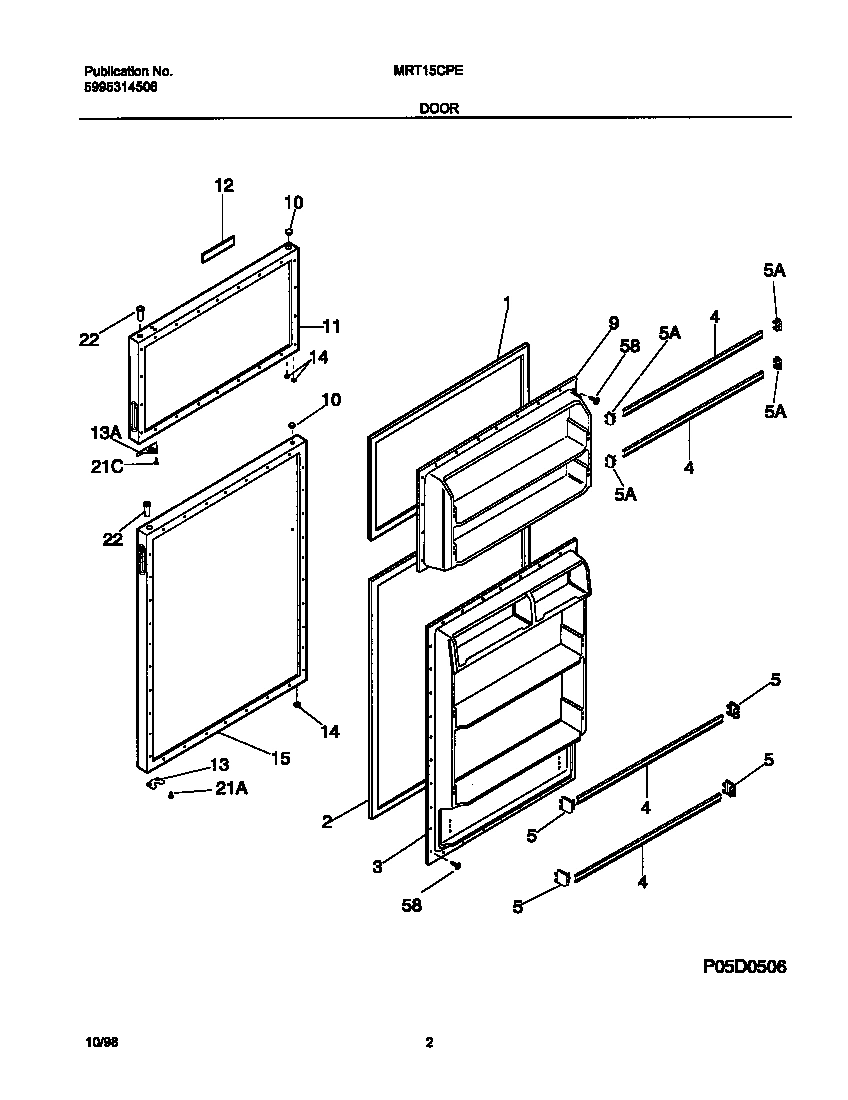

02 - DOOR

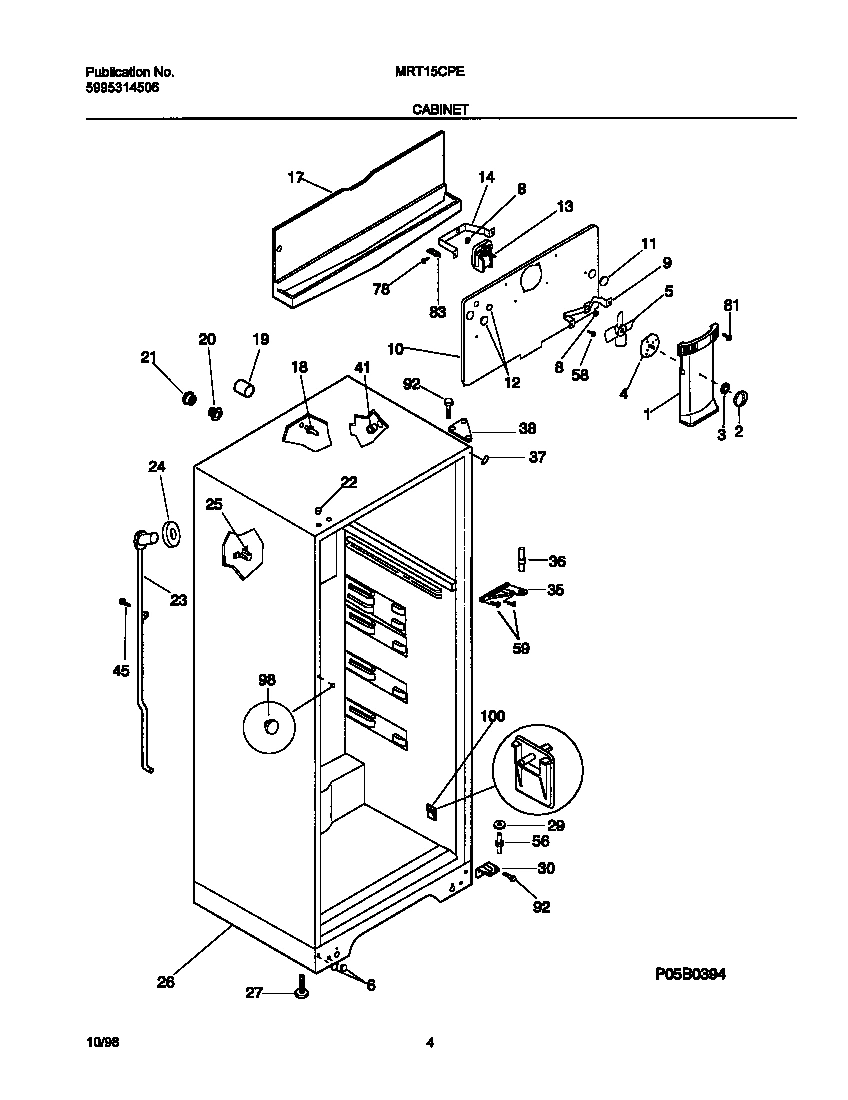

03 - CABINET

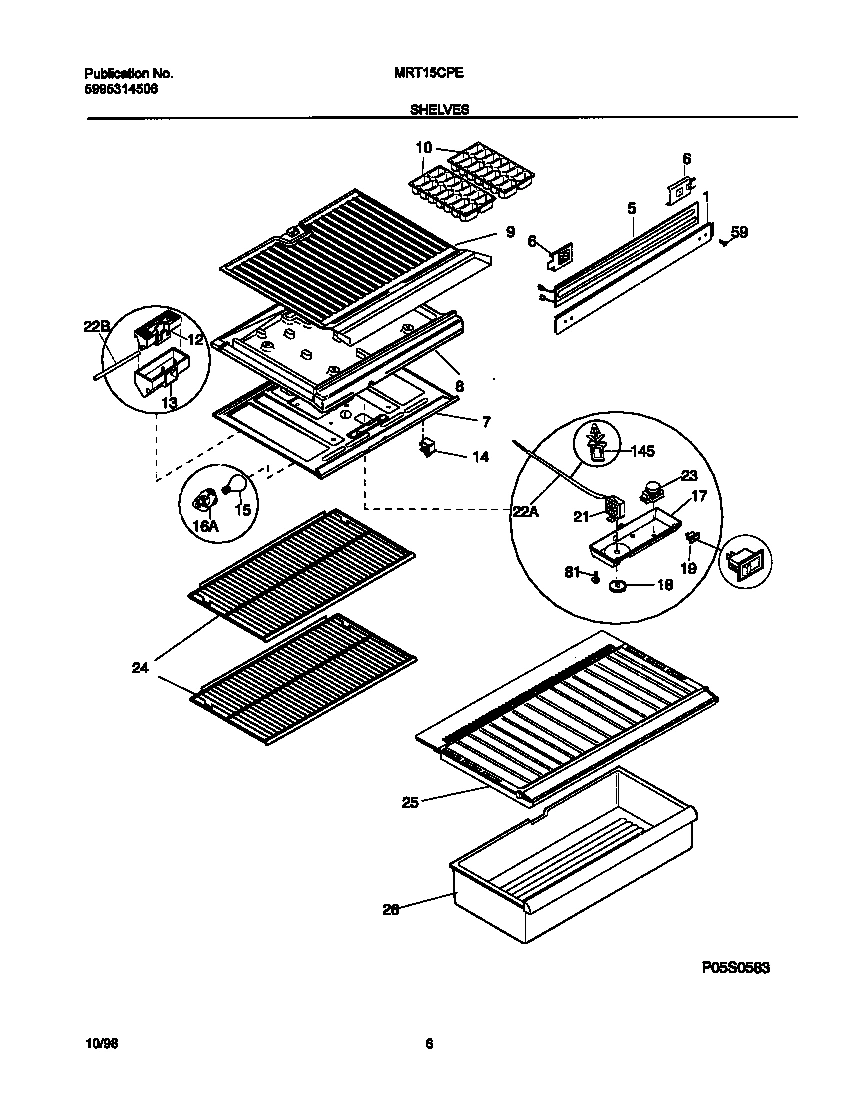

04 - SHELVES

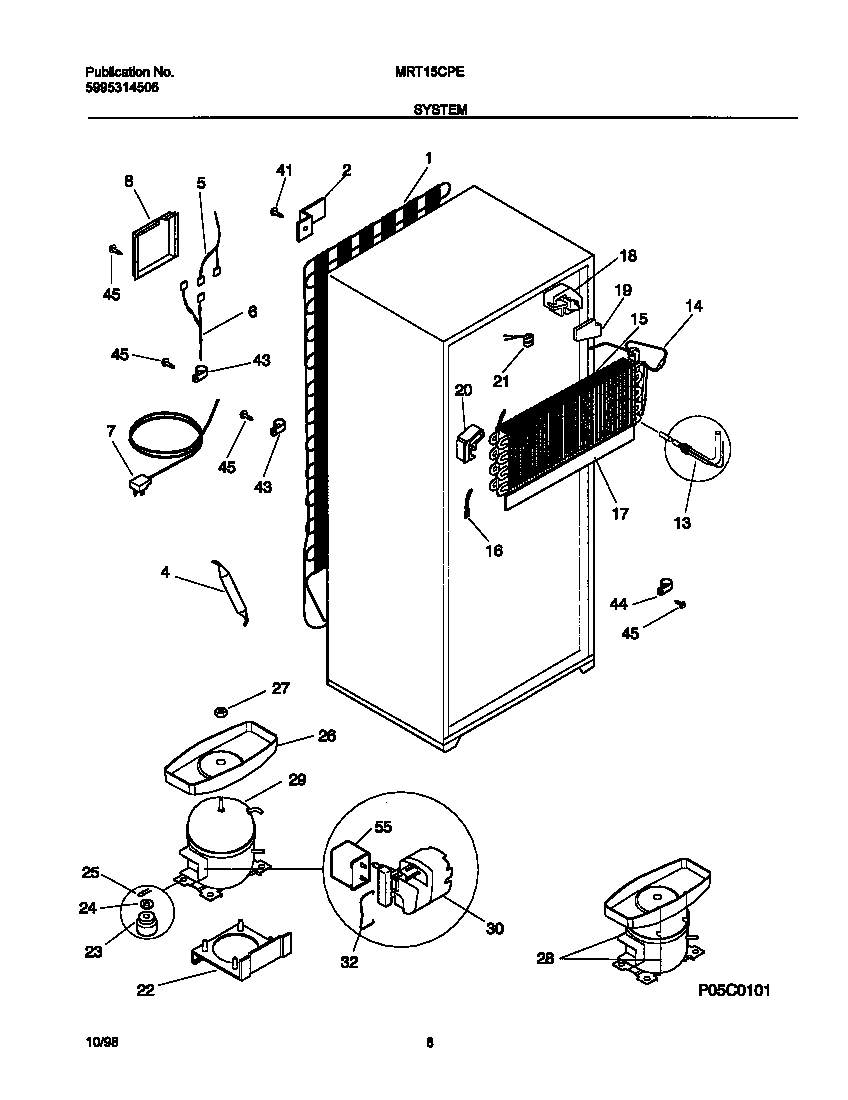

05 - SYSTEM

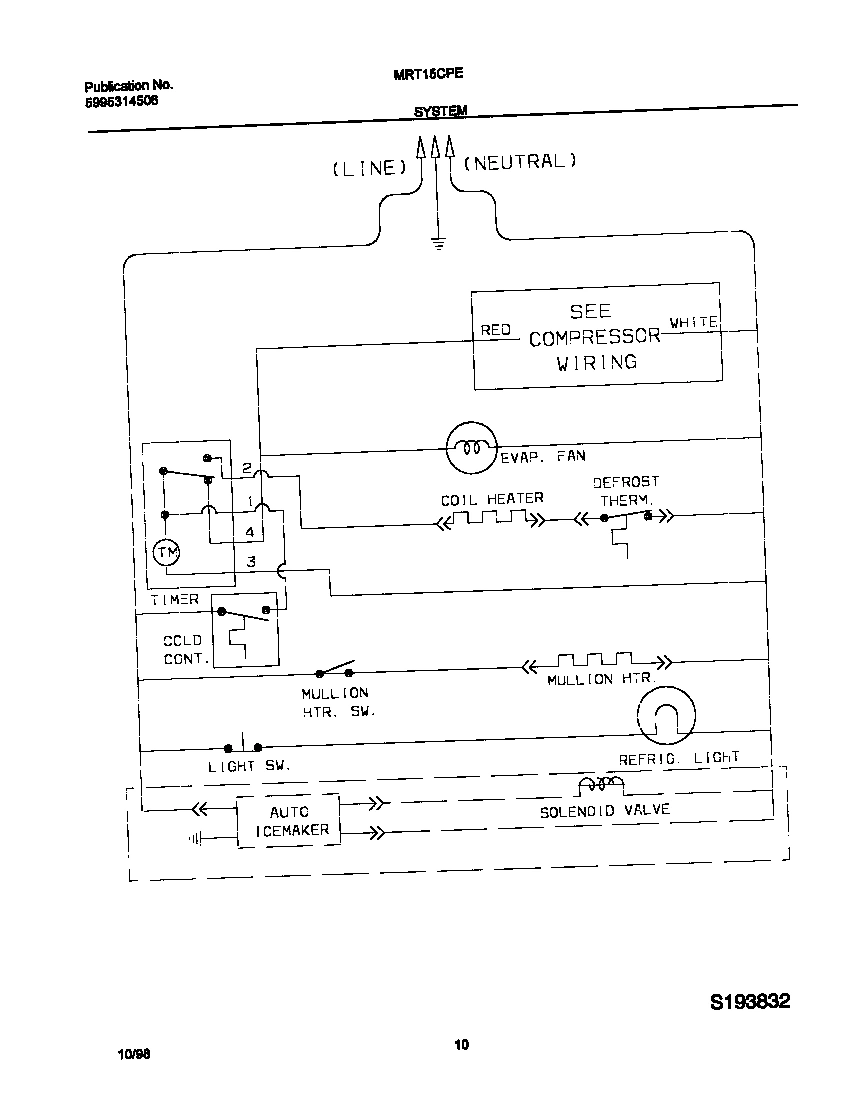

06 - WIRING DIAGRAM

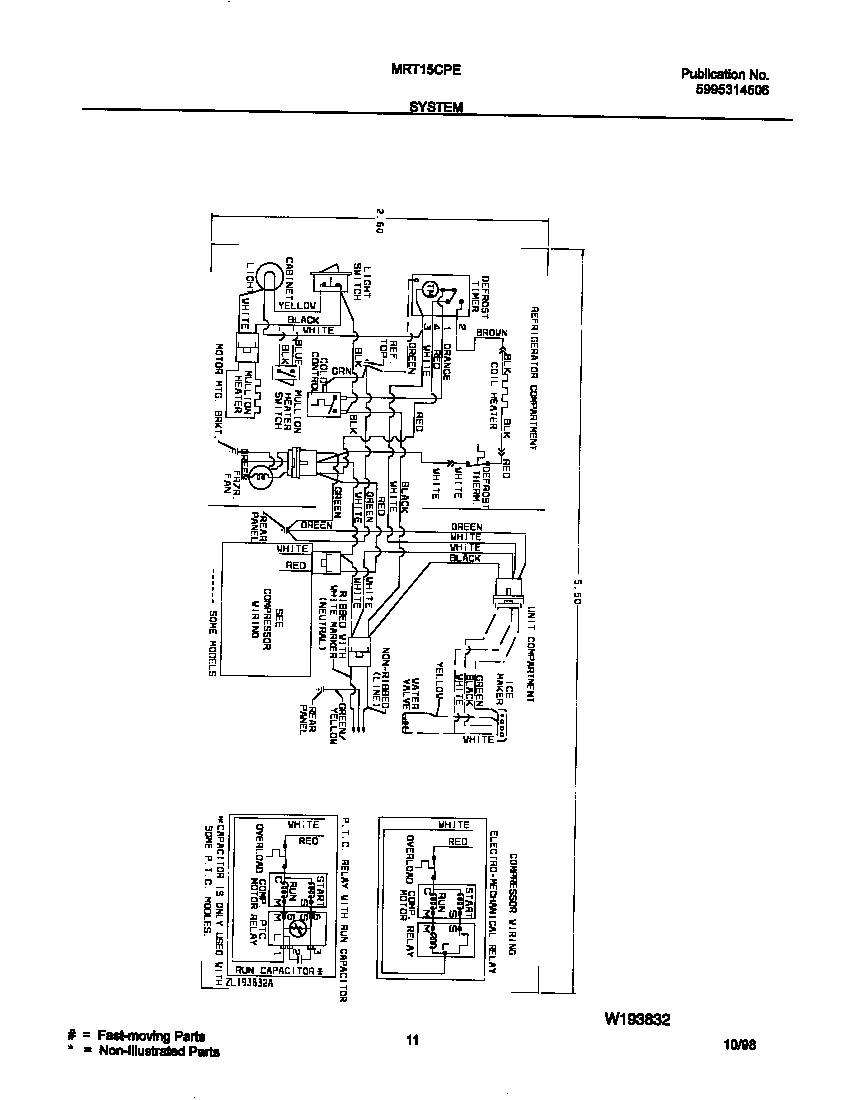

07 - WIRING DIAGRAM
Common parts from model Electrolux MRT15CPEW6 REFRIGERATOR
*08083
WCI 5303917276 WCI 5303917276 Contact Us For Availability
*08094
PLUG-BUTTON, CABINET LINER WCI 5308016571 Contact Us For Availability
*08095
WCI 5303001380 WCI 5303001380 Contact Us For Availability
*08097
HARNESS-WIRING,CONTROL/DIVIDER WCI 218878500 Contact Us For Availability
*08099
NUT-ANCHOR WCI 5308016567 Contact Us For Availability
*08100
WCI 5303001260 WCI 5303001260 Contact Us For Availability
*08103
WCI 218755000 WCI 218755000 Contact Us For Availability
*08105
SPACER-TUBE,5/8 OD X .81``LG WCI 5304406721 Contact Us For Availability
*08106
WASHER, NO. 10 STEEL, 7/32 X 7/16 OD WCI 5308003607 Contact Us For Availability
*08109
COVER-SOUND INSUL,PRESSBOARD/FOAM ,MACHINE CO WCI 218750100 Contact Us For Availability
*08110
WASHER, EXT TOOTH LOCK, NO. 10 WCI 5308009617 Contact Us For Availability
*08111
HOT TUBE REPAIR KIT-SERVICE WCI 5300189383 Contact Us For Availability
1
GASKET-FRZR DOOR, WHITE, MAGNETIC WCI 5308007123 Contact Us For Availability
1
WCI 218651800 WCI 218651800 Contact Us For Availability
1
WCI 218491000 WCI 218491000 Contact Us For Availability
2
Bracket,condenser mtg ,(4) WCI 5308000296 Contact Us For Availability
5
WCI 218781001 WCI 218781001 Contact Us For Availability
5
WCI 3018900 WCI 3018900 Contact Us For Availability
6
WCI 218845600 WCI 218845600 Contact Us For Availability
6
WCI 215257001 WCI 215257001 Contact Us For Availability
7
TOP PANEL-REFR WCI 218865801 Contact Us For Availability
7
CORD-ELECTRIC POWER WCI 5316254901 Contact Us For Availability
8
WCI 218865700 WCI 218865700 Contact Us For Availability
8
WCI 5303001197 WCI 5303001197 Contact Us For Availability
9
BOTTOM PANEL-FRZR WCI 218865600 Contact Us For Availability
10
PLUG-BUTTON, WHITE, HINGE BRG HOLE WCI 5308000134 Contact Us For Availability
12
WCI 218730000 WCI 218730000 Contact Us For Availability
12A
PLUG-HARNESS HOLE,ROUN (OPTIONAL) WCI 215079000 Contact Us For Availability
12B
PLUG-WTR INLET TUBE,ROUND(OPTIONAL) WCI 215079100 Contact Us For Availability
13
WCI 218631001 WCI 218631001 Contact Us For Availability
13
WCI 218249001 WCI 218249001 Contact Us For Availability
13
WCI 215076403 WCI 215076403 Contact Us For Availability
14
WCI 5308009754 WCI 5308009754 Contact Us For Availability
15
WCI 218818701 WCI 218818701 Contact Us For Availability
17
INSULATOR-EVAP, PLASTIC WCI 5316651102 Contact Us For Availability
17
WCI 5303321455 WCI 5303321455 Contact Us For Availability
18
WCI 5303311079 WCI 5303311079 Contact Us For Availability
18
WCI 218821301 WCI 218821301 Contact Us For Availability
19
SWITCH-ENERGY SAVER, ROCKER TYPE WCI 5303286905 Contact Us For Availability
19
INSULATION PLUG, RH WCI 5303007287 Contact Us For Availability
20
WCI 218821201 WCI 218821201 Contact Us For Availability
21
SCREW,8 OVAL HEAD ,10-32CA X .625 ,CROSS RECE WCI 218251900 Contact Us For Availability
22
WCI 218519300 WCI 218519300 Contact Us For Availability
22
WCI 218731104 WCI 218731104 Contact Us For Availability
22
WCI 5308013663 WCI 5308013663 Contact Us For Availability
23
WCI 5303210377 WCI 5303210377 Contact Us For Availability
24
WCI 218272502 WCI 218272502 Contact Us For Availability
24
WCI 5303207353 WCI 5303207353 Contact Us For Availability
24
WASHER-COMPR MTG WCI 5308003633 Contact Us For Availability
25
WCI 218227301 WCI 218227301 Contact Us For Availability
25
CLIP - COMPRESSOR MTG WCI 5308003596 Contact Us For Availability
26
WCI 215372500 WCI 215372500 Contact Us For Availability
27
SCREW-LEVELING WCI 5303212922 Contact Us For Availability
27
Nut,lock `1/4-20 ,drain pan mtg WCI 5303001348 Contact Us For Availability
28
PAN RETAINER KIT, SERVICE WCI 5303916001 Contact Us For Availability
29B
WCI 218875801 WCI 218875801 Contact Us For Availability
29C
WASHER, .34 X .62 X .02, NYLON WCI 5308011326 Contact Us For Availability
30
WCI 218721101 WCI 218721101 Contact Us For Availability
30
WCI 218220200 WCI 218220200 Contact Us For Availability
35
BRACKET-CTR HINGE, LIGHT GREY WCI 218220101 Contact Us For Availability
37A
TRIM-CABINET CORNER, WHITE WCI 5303202336 Contact Us For Availability
37B
WCI 5303321081 WCI 5303321081 Contact Us For Availability
38
WCI 3206100 WCI 3206100 Contact Us For Availability
45A
SCREW,HEX HD SER WSHR ,8-18 X 3/8 WCI 218754500 Contact Us For Availability
56
WCI 218220300 WCI 218220300 Contact Us For Availability
83
WCI 5308000107 WCI 5308000107 Contact Us For Availability
98
PLUG-BUTTON, WHITE, CTR HINGE HOLE WCI 215099701 Contact Us For Availability
100
SUPPORT-PAN COVER WCI 5303288973 No Longer Available
145
WCI 218660800 WCI 218660800 Contact Us For Availability
× ![]()
