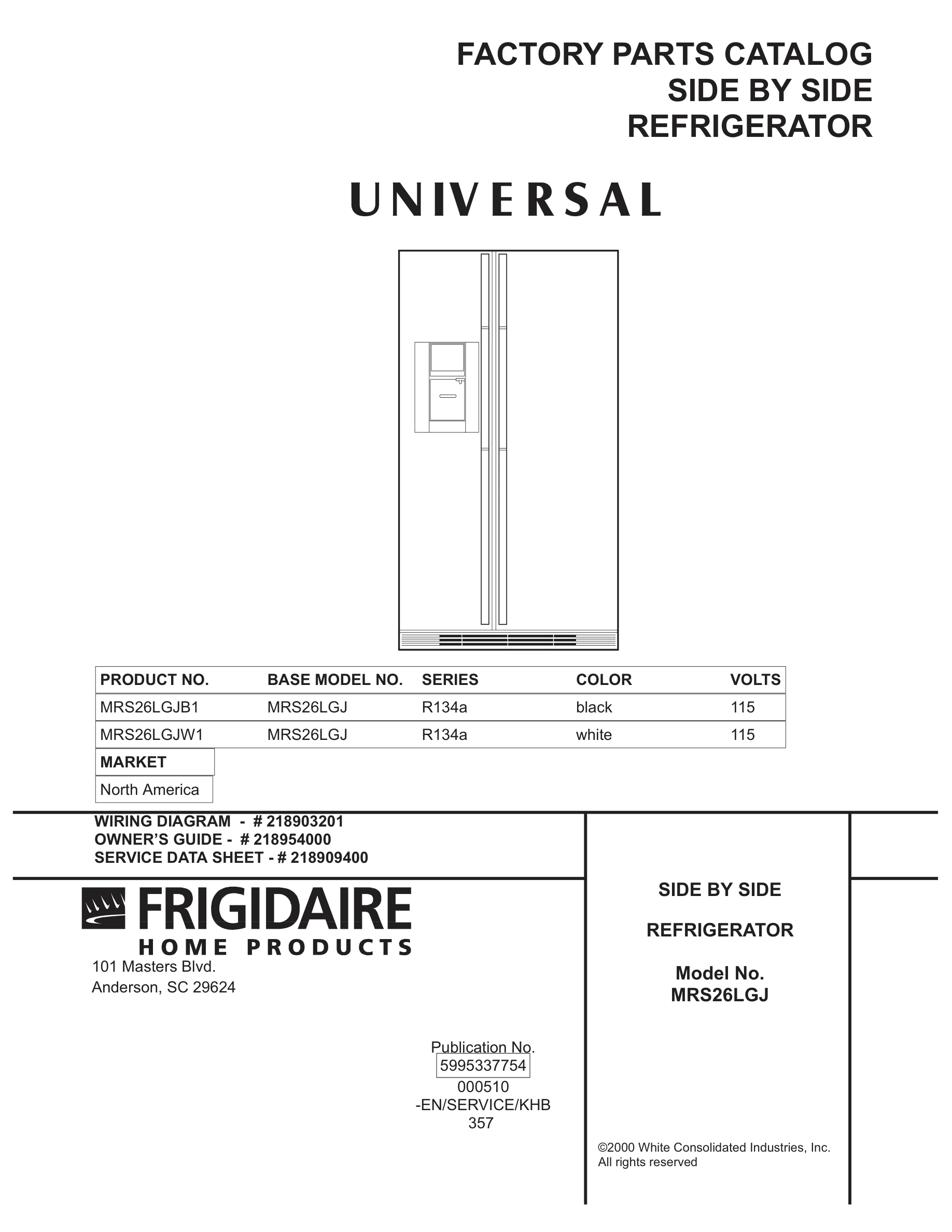

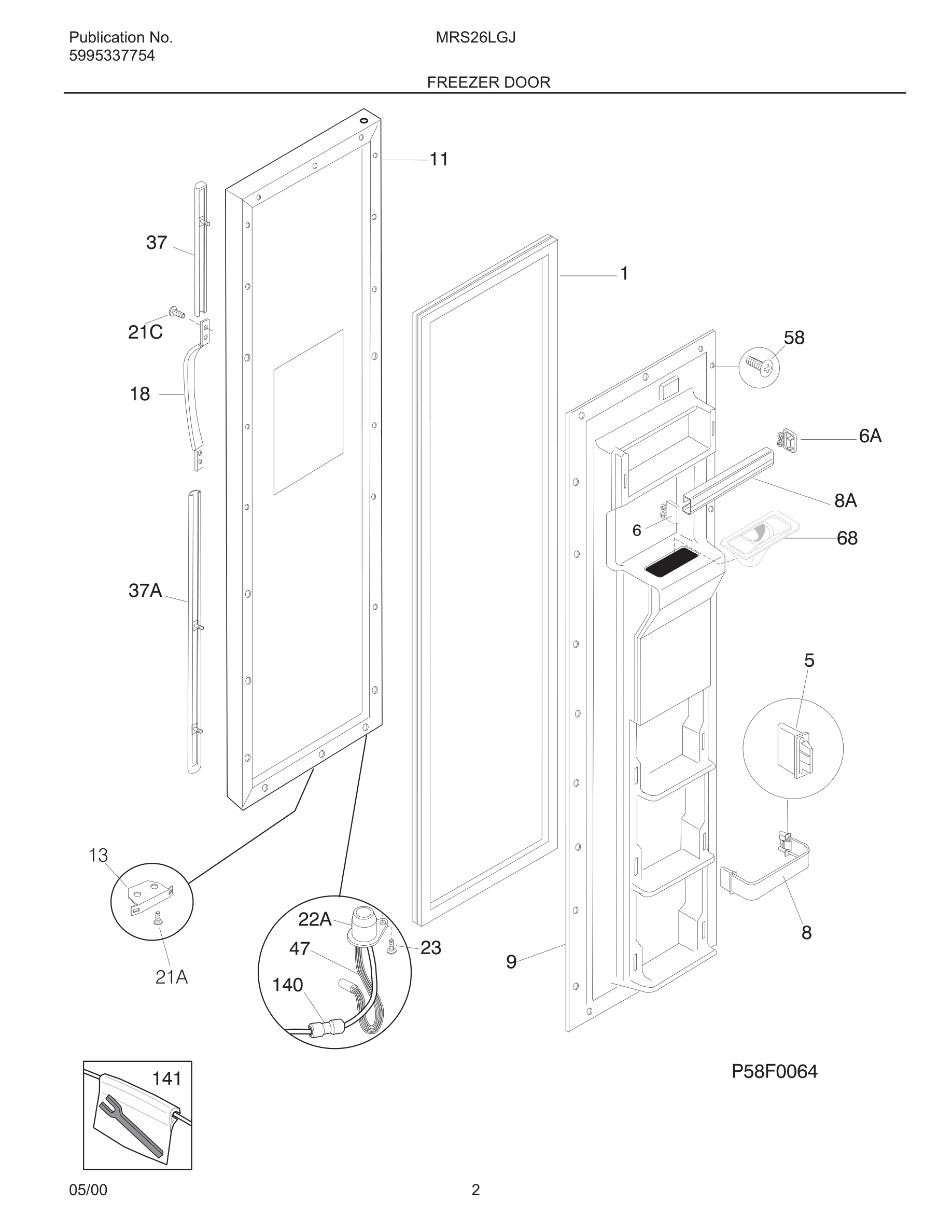

Model Frigidaire MRS26LGJW1 REFRIGERATOR – Common Parts &amp; Diagrams

*

241860803 Frigidaire Refrigerator Ice Contain In Stock WCI 241860803 $66.80

*

5303918277 Frigidaire Refrigerator Ice Maker In Stock WCI 5303918277 $55.75

*

Insulation-door,fiberglass ,(bulk) WCI 5303917276 Contact Us For Availability

*

Wiring Harness,filter heater WCI 218646000 Contact Us For Availability

*

Hot Tube Repair Kit,Service WCI 5303917166 Contact Us For Availability

*

Clip-tube WCI 215781700 Contact Us For Availability

1

5308010366 Frigidaire Refrigerator Water Inle In Stock WCI 5308010366 $10.39

1#

215734313 Frigidaire Refrigerator Door Gasket Backorder WCI 215734313 $139.30

1#

Condenser WCI 218787900 Contact Us For Availability

Spacer-cond tube,black WCI 5303208866 Contact Us For Availability

Spacer-tube WCI 5303289026 Contact Us For Availability

Spacer-cond tube,round ,5/8 OD x .81"lg WCI 5304406721 Contact Us For Availability

Tube-water inlet, inlet valve ,to filter WCI 218832301 Contact Us For Availability

Tube-water inlet, inlet valve ,to filter WCI 218859901 Contact Us For Availability

Tube-water inlet, formed, plastic, dispenser WCI 218949201 Contact Us For Availability

2

241716101 Frigidaire Refrigerator Ice Auger Backorder WCI 241716101 $74.17

2

Knob-damper control WCI 215028605 Contact Us For Availability

2

Clip-cond mtg,(4) WCI 5303289029 Contact Us For Availability

2

Deflector-ice disp,white WCI 218505301 Contact Us For Availability

2

Spring,shut-off arm WCI 3206348 Contact Us For Availability

2#

Gasket-refr door,white ,magnetic WCI 215734314 Contact Us For Availability

3

241685201 Frigidaire Refrigerator Drive Cam Backorder WCI 241685201 $26.72

3

Block-evap coil,styrofoam ,(2) WCI 218679603 Contact Us For Availability

3

Label,ID plate WCI 3206299 Contact Us For Availability

3#

Heater-door housing WCI 215484300 Contact Us For Availability

4

241734001 Frigidaire Refrigerator Ice Bucket In Stock WCI 241734001 $76.32

4

5304469403 Frigidaire Gear Backorder WCI 5304469403 $12.74

4

Housing-dispenser,white WCI 218852401 Contact Us For Availability

4#

5303305677 Frigidaire Replacement Filters Fil In Stock WCI 5303305677 $18.59

5

Support-door rack,RH/LH WCI 5303288950 Contact Us For Availability

5

Plate-mounting WCI 3206303 Contact Us For Availability

5#

5308000010 Frigidaire Refrigerator Evaporator In Stock WCI 5308000010 $31.93

5#

Wiring Harness,main WCI 218959901 Contact Us For Availability

5*#

Wiring Harness,refr controls WCI 215005200 Contact Us For Availability

5*#

Wiring Harness,frzr controls WCI 218815101 Contact Us For Availability

6

218359202 Frigidaire Refrigerator Screw Backorder WCI 218359202 $6.79

6

241685101 Frigidaire Refrigerator Ice Dispens In Stock WCI 241685101 $33.06

6

Wiring Harness,machine compt WCI 218960301 Contact Us For Availability

7

241734201 Frigidaire Refrigerator Front Ice C In Stock WCI 241734201 $55.03

7

Ring-fan orifice WCI 5308000124 Contact Us For Availability

7

Switch-actuator,micro WCI 218284800 Contact Us For Availability

7#

Cord-electric power WCI 215459201 Contact Us For Availability

8

Bushing-motor mtg,(2) WCI 5300157666 Contact Us For Availability

8

Cover-wiring WCI 218803400 Contact Us For Availability

8

Module-dispenser WCI 218874901 Contact Us For Availability

8

Spacer-hold switch WCI 3206312 Contact Us For Availability

9

Bracket-motor mtg,front WCI 5303205118 Contact Us For Availability

9

Cam WCI 3206313 Contact Us For Availability

10

Spring,dispenser door WCI 218209800 Contact Us For Availability

10

Clamp WCI 3206315 Contact Us For Availability

11

5303208309 Frigidaire Refrigerator Plug Hole Backorder WCI 5303208309 $27.18

11#

3206319 Frigidaire Refrigerator Thermal Cut-O Backorder WCI 3206319 $31.29

11C

240324101 Frigidaire Refrigerator Pizza Shelf Backorder WCI 240324101 $35.78

12

Diffuser-air WCI 215809600 Contact Us For Availability

12#

Wiring Harness, ice maker, internal,with plug WCI 3206349 Contact Us For Availability

12*

Connector Plug,wiring harness WCI 3206321 Contact Us For Availability

13

Door Stop WCI 5303289522 Contact Us For Availability

13#

Thermostat Assy,ice maker WCI 3206322 Contact Us For Availability

13#

Motor-evap fan WCI 215426200 Contact Us For Availability

13#

Heat Exchanger,suction line WCI 215006701 Contact Us For Availability

13*

215474201 Frigidaire Refrigerator Washer Backorder WCI 215474201 $11.78

14

218903704 Frigidaire Refrigerator Module Cove Backorder WCI 218903704 $11.70

14

Bracket-motor mtg,rear WCI 5303205119 Contact Us For Availability

14#

218169802 Frigidaire Refrigerator Defrost Hea In Stock WCI 218169802 $53.50

15

316538904 Frigidaire Oven Light Lamp In Stock WCI 316538904 $10.61

15

Light Bulb/Lamp,4 W ,115 V WCI 218284900 Contact Us For Availability

15#

5304456667 Frigidaire Refrigerator Micro Swit Backorder WCI 5304456667 $54.68

15#

Evaporator,R134a System WCI 218691301 Contact Us For Availability

15*

Tube-inlet WCI 3206414 Contact Us For Availability

240548901 Frigidaire Refrigerator P-1 Socket In Stock WCI 240548901 $37.63

241559801 Frigidaire Light Socket Refrigerato Backorder WCI 241559801 $45.94

5308000110 Frigidaire Refrigerator Evaporator In Stock WCI 5308000110 $39.44

Support,phenolic WCI 3206326 Contact Us For Availability

241684503 Frigidaire Ice Crusher Blade In Stock WCI 241684503 $10.39

Control Box,refr WCI 5303296805 Contact Us For Availability

Insulator-evap WCI 5304415956 Contact Us For Availability

Screw,#6 x 1/4 WCI 215794400 Contact Us For Availability

17#

241798231 Frigidaire Refrigerator Ice Maker A In Stock WCI 241798231 $49.65

17A

Control Box,frzr WCI 5303296581 Contact Us For Availability

17A

Screw,truss head ,6-20 x 3/8 WCI 215840700 Contact Us For Availability

17A*

Screw-control box mtg, hex hd, 8-15A x 1.000, WCI 215188300 Contact Us For Availability

17A*

Washer-flat WCI 215923400 Contact Us For Availability

18

Knob-temp control,frzr WCI 5303308568 Contact Us For Availability

18

Ejector-ice WCI 3206328 Contact Us For Availability

18#

5304462594 Frigidaire Refrigerator Auger Moto Backorder WCI 5304462594 $182.46

18*

Wiring Harness,auger motor WCI 5304404335 Contact Us For Availability

19

Tube,rubber WCI 218631200 Contact Us For Availability

19

Bearing & Inlet WCI 3206330 Contact Us For Availability

20

Label-control box,refr WCI 5304411663 Contact Us For Availability

20

Cover-motor WCI 5304404332 Contact Us For Availability

20

Screw,8-32 x 0.375 WCI 5304408581 Contact Us For Availability

20A

Label-control box,frzr WCI 5303308611 Contact Us For Availability

21

241726501 Frigidaire Refrigerator Drive Bar In Stock WCI 241726501 $37.18

21

Ice Stripper WCI 3206332 Contact Us For Availability

21#

297216600 Frigidaire Refrigerator Defrost The In Stock WCI 297216600 $13.53

21#

Control-temperature WCI 5303300027 Contact Us For Availability

Bearing-hinge WCI 5303289320 No Longer Available

Housing-temp sensor,plastic WCI 5303319683 Contact Us For Availability

Base-compressor mtg,(drain pan) WCI 218811100 Contact Us For Availability

Shut-off Arm WCI 3206333 Contact Us For Availability

22*

Tube, insulator, PVC, white, on temp sensor WCI 218731102 Contact Us For Availability

218513300 Frigidaire Refrigerator Compressor In Stock WCI 218513300 $27.16

241684001 Frigidaire Refrigerator Front Plate Backorder WCI 241684001 $92.01

Drip Tray,white WCI 5303297844 Contact Us For Availability

Screw, 8-32 x 0.875, mold-to-support, (3) WCI 5304408582 Contact Us For Availability

23#

215846602 Frigidaire Refrigerator 8-Hour Defr In Stock WCI 215846602 $15.34

23*

5304455649 Frigidaire Refrigerator Screw Backorder WCI 5304455649 $10.85

23*

Cover-defrost timer,top WCI 215277000 Contact Us For Availability

23*

Shield-defrost timr,btm WCI 5303289058 Contact Us For Availability

24

5304456675 Frigidaire Refrigerator Lever Arm Backorder WCI 5304456675 $42.12

24

Actuator,white WCI 218921301 Contact Us For Availability

25

Cover-storage pan WCI 218147701 Contact Us For Availability

25

Screw-compressor mtg, hex wshr hd, 10 B x 1 1 WCI 218773500 Contact Us For Availability

25

Screw,8-18 x 0.562 ,lever arm/sprt WCI 3206336 Contact Us For Availability

26

215503203 Frigidaire Refrigerator Door Handle In Stock WCI 215503203 $4.51

26

Screw-thermo/sprt,4-24 x 0.375 ,(4) WCI 3206337 Contact Us For Availability

26A

5303289501 Frigidaire Refrigerator Lower Stor In Stock WCI 5303289501 $96.53

27

Screw, 4-40 x 1.000, hold switch mtg, (2) WCI 3206338 Contact Us For Availability

28

Cover-selector,white WCI 218891401 Contact Us For Availability

28

Screw-timing stop,4-40 x 0.375 WCI 3206339 Contact Us For Availability

29

Washer,.40 x .63 x .16 ,nylon WCI 215003200 Contact Us For Availability

29

Screw,4-24 x 0.750 ,(6) WCI 3206323 Contact Us For Availability

29#

5304475102 Frigidaire Refrigerator Compressor In Stock WCI 5304475102 $339.93

29*

Washer,.40 x .75 x .06 ,nylon WCI 215314301 Contact Us For Availability

30

Door Assy-ice chute,w/gasket,insul WCI 215753600 Contact Us For Availability

30

Screw-timing adj,8-32 x 1.000 WCI 3206341 Contact Us For Availability

30#

Starter-PTC WCI 218721110 Contact Us For Availability

31

Insulator WCI 3206342 Contact Us For Availability

32

Clamp,elec cont mtg ,compressor WCI 216649100 Contact Us For Availability

32

Plate-valve switch WCI 3206343 Contact Us For Availability

33

241684802 Frigidaire Refrigerator Spacer Backorder WCI 241684802 $5.40

33

Heater-disp throat WCI 218870201 Contact Us For Availability

33

Spring-timing adj WCI 5304408583 Contact Us For Availability

34

241679901 Frigidaire Refrigerator Screw Backorder WCI 241679901 $9.06

34

241689802 Frigidaire Refrigerator Spacer Backorder WCI 241689802 $4.97

35

Heat Motor,115 V WCI 218740004 Contact Us For Availability

35

Screw WCI 5304408585 Contact Us For Availability

35A

241684303 Frigidaire Refrigerator Fixed Blade Backorder WCI 241684303 $10.39

35B

241684203 Frigidaire Refrigerator Fixed Blade Backorder WCI 241684203 $10.85

36

Cover-module WCI 218891301 Contact Us For Availability

36

Cover-ice maker WCI 3206347 Contact Us For Availability

37

Trim-handle,white ,upper WCI 218811618 Contact Us For Availability

37

Trim-cabinet corner,white WCI 5303321081 Contact Us For Availability

37A

241684107 Frigidaire Refrigerator Ice Crusher Backorder WCI 241684107 $13.13

37A

Trim-handle,white ,lower WCI 218811615 Contact Us For Availability

37A*

Lock-handle trim,snap-in WCI 215782300 No Longer Available

37A*

Band-decorative, satin aluminum, handle trim WCI 218676004 Contact Us For Availability

37B

241684108 Frigidaire Refrigerator Ice Crusher In Stock WCI 241684108 $13.13

37C

241684109 Frigidaire Ice Crusher Blade In Stock WCI 241684109 $13.13

38

Bracket-upper hinge, with closer, white, LH WCI 218215245 Contact Us For Availability

38

Bracket-upper hinge, with closer, white, RH WCI 218215247 Contact Us For Availability

38#

PC Board,power WCI 218906601 Contact Us For Availability

38C

PC Board,control WCI 218881801 Contact Us For Availability

39

241690501 Frigidaire Refrigerator Screw Backorder WCI 241690501 $10.41

39

Wire-ice door WCI 218284600 Contact Us For Availability

40

Yoke-heat motor WCI 218284500 Contact Us For Availability

41

241885001 Frigidaire Refrigerator Ice Crusher In Stock WCI 241885001 $47.97

41

5308000039 Frigidaire Refrigerator Screw Backorder WCI 5308000039 $7.67

41

Spring-actuator WCI 215917800 Contact Us For Availability

41*

5304500407 Frigidaire Refrigerator Shelf Moun Backorder WCI 5304500407 $4.07

41*

Nut,"U" type ,8-15A ,fan mtr mtg WCI 5303209814 Contact Us For Availability

42

Hanger-pan/tray,LH WCI 215002301 Contact Us For Availability

42*

Hanger-pan/tray,RH WCI 215002401 Contact Us For Availability

43

5303001199 Frigidaire Refrigerator Wiring Har Backorder WCI 5303001199 $41.66

43

Screw,#4 x 3/8 WCI 215760300 Contact Us For Availability

44

5308000133 Frigidaire Refrigerator Clamp Backorder WCI 5308000133 $7.25

44

Screw,pan head ,8-32 x 0.250 WCI 218359200 Contact Us For Availability

45

5304455651 Frigidaire Refrigerator Screw In Stock WCI 5304455651 $8.58

45#

241675704 Frigidaire Refrigerator Solenoid As In Stock WCI 241675704 $27.19

45*

5304455852 Frigidaire Refrigerator Screw Backorder WCI 5304455852 $8.14

45*

Screw,hex hd ser wshr ,8-18 x 0.375 WCI 218754500 Contact Us For Availability

45*

Screw,hx wshr hd spec ,#6-32 x .5 WCI 218769200 Contact Us For Availability

45A

241675902 Frigidaire Refrigerator Solenoid Sp Backorder WCI 241675902 $4.07

45B

241676001 Frigidaire Refrigerator E-Ring Sole Backorder WCI 241676001 $44.35

45C

241676101 Frigidaire Refrigerator Solenoid-Ac In Stock WCI 241676101 $40.78

46

5303001193 Frigidaire Refrigerator Clamp Backorder WCI 5303001193 $10.41

46

5304411659 Frigidaire Refrigerator Front Stor Backorder WCI 5304411659 $123.75

46

Control Rod WCI 5304404341 Contact Us For Availability

47

Spring-control rod WCI 5304404342 Contact Us For Availability

48

241684602 Frigidaire Refrigerator Control Rod Backorder WCI 241684602 $67.69

48*

Screw-bracket WCI 5304404364 Contact Us For Availability

Bin-door,2-liter WCI 218592325 Contact Us For Availability

Bracket-evap mtg WCI 215506900 Contact Us For Availability

Bracket-heat motor WCI 215794000 Contact Us For Availability

Rail Assy WCI 5304404329 Contact Us For Availability

50

241675601 Frigidaire Refrigerator Solenoid Gu Backorder WCI 241675601 $50.64

51

Hanger-basket,RH WCI 5303296575 Contact Us For Availability

51

Tube-water fill,extension ,with notch WCI 218947201 Contact Us For Availability

51

Rotation Stop WCI 5304404336 Contact Us For Availability

52

215162502 Frigidaire Refrigerator Basket Hang Backorder WCI 215162502 $64.09

52

241684901 Frigidaire Refrigerator Fixed Blade Backorder WCI 241684901 $18.12

52

Tube-water,ice mold fill ,elbow WCI 215454600 Contact Us For Availability

53

241690402 Frigidaire Refrigerator Spiral Pin Backorder WCI 241690402 $12.20

53

Box-damper control WCI 215809512 Contact Us For Availability

54

241685001 Frigidaire Auger Nut Backorder WCI 241685001 $12.67

54

Rail-cabinet base,rear WCI 5303289027 Contact Us For Availability

54A

Rail-compr support WCI 5303289311 Contact Us For Availability

54A*

Screw,pan head ,10-12A x 0.50 WCI 215732700 Contact Us For Availability

54B

Rail-cabinet base,front WCI 5303289292 Contact Us For Availability

55

241690306 Frigidaire Refrigerator Washer Backorder WCI 241690306 $31.71

55

5304464438 Frigidaire Compressor Run Capacito In Stock WCI 5304464438 $14.74

55#

218859701 Frigidaire Water Valve Single Solen In Stock WCI 218859701 $51.57

55*

240542901 Frigidaire Water Valve Cap Backorder WCI 240542901 $11.33

56

241690201 Frigidaire Refrigerator E-Ring Backorder WCI 241690201 $12.22

56

Insert-compressor mtg WCI 218769300 Contact Us For Availability

56

Screw-micro switch, pan hd, 4-24 x 9/16 WCI 218434300 Contact Us For Availability

57

241734101 Frigidaire Refrigerator Front Acces Backorder WCI 241734101 $32.34

57

Clip-wiring harness WCI 218247300 Contact Us For Availability

58

240555002 Frigidaire Refrigerator Screw #8-32 In Stock WCI 240555002 $8.58

58

Screw-solenoid WCI 5304404331 Contact Us For Availability

59

Shroud-cond fan mtr WCI 5303289031 Contact Us For Availability

59

Sleeve-tube insert WCI 5303001191 Contact Us For Availability

60#

Motor-condenser fan WCI 215501901 Contact Us For Availability

61

218721500 Frigidaire Refrigerator Leveling Br Backorder WCI 218721500 $46.16

61

Blade-cond fan WCI 5303289032 Contact Us For Availability

61*

Nut,speed WCI 215004700 Contact Us For Availability

61*

Grommet-silencer WCI 215004800 Contact Us For Availability

62

Trough-drain,w/shield assy & #17 insulator WCI 215048703 Contact Us For Availability

64

241957901 Frigidaire Refrigerator Drain Tube Backorder WCI 241957901 $38.55

64

5304455846 Frigidaire Refrigerator Clamp In Stock WCI 5304455846 $6.79

65

Pin-mounting,push-in ,plastic WCI 5303001361 Contact Us For Availability

65

Spacer-tube WCI 5303289301 Contact Us For Availability

70

Bracket-evap/cvr mtg WCI 5303289041 Contact Us For Availability

72

Grille/Kickplate,white WCI 218359601 Contact Us For Availability

75

Shield-light,refr WCI 218465101 Contact Us For Availability

76

Cover-light socket WCI 218225800 Contact Us For Availability

81

5304455650 Frigidaire Refrigerator Screw Backorder WCI 5304455650 $9.06

82

Screw,plask h/l ,#6 x 3/8 WCI 215296300 Contact Us For Availability

83

Bracket-connector WCI 5308000107 Contact Us For Availability

83

Fuse,PC board ,7 A ,125 V WCI 5304412136 Contact Us For Availability

96

Support-water tank WCI 215192600 Contact Us For Availability

100

Support-pan cover WCI 5303288973 No Longer Available

110

Shelf-"Spill-Safe",flip-up WCI 218641902 Contact Us For Availability

111

Wireway,frzr WCI 5303297842 Contact Us For Availability

114#

5303289051 Frigidaire Refrigerator Light Swit Backorder WCI 5303289051 $16.77

115

Damper Assy,w/seal WCI 215011505 Contact Us For Availability

116

Seal-damper,foam WCI 215011400 Contact Us For Availability

123

215005101 Frigidaire Refrigerator Screw Backorder WCI 215005101 $9.50

125

Switch-auger kill,white WCI 215334201 Contact Us For Availability

126

241674401 Frigidaire Refrigerator Channel Backorder WCI 241674401 $30.36

126

241674402 Frigidaire Refrigerator Channel Backorder WCI 241674402 $27.62

137

Filter-water,carbon ,with o(cid:146) ring WCI 218904602 Contact Us For Availability

138

240434401 Frigidaire Refrigerator Primary Wat In Stock WCI 240434401 $47.95

139

Housing-wtr filter WCI 218893201 Contact Us For Availability

140

Elbow-water tube WCI 218518700 Contact Us For Availability

140

Elbow-water tube WCI 218922801 Contact Us For Availability

141#

218832401 Frigidaire Water Inlet Valve In Stock WCI 218832401 $66.89

141*

Screw-solenoid valve, hx hd-slot wshr, 12-24 WCI 215290100 Contact Us For Availability

143

Heater-water filter WCI 218696700 Contact Us For Availability
