Model Electrolux MRS22WNGW2 REFRIGERATOR – Common Parts & Diagrams
01 - COVER
02 - FREEZER DOOR
03 - REFRIGERATOR DOOR

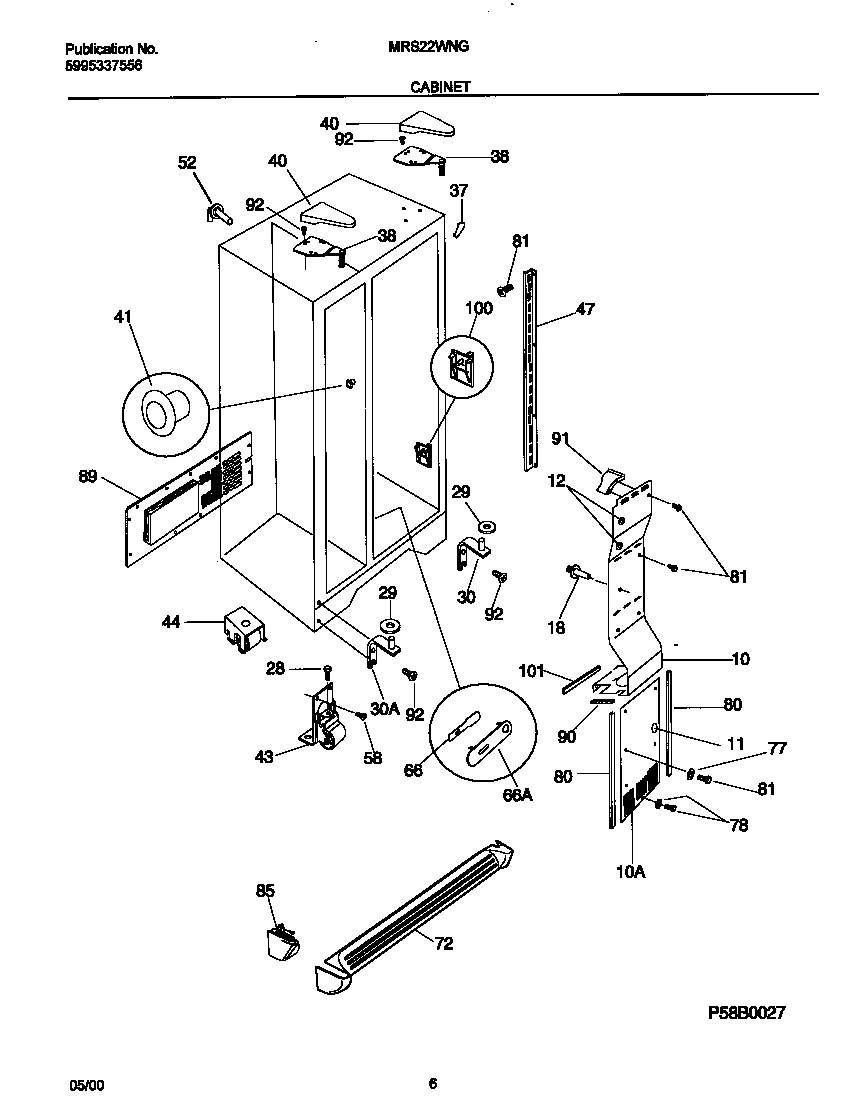

04 - CABINET

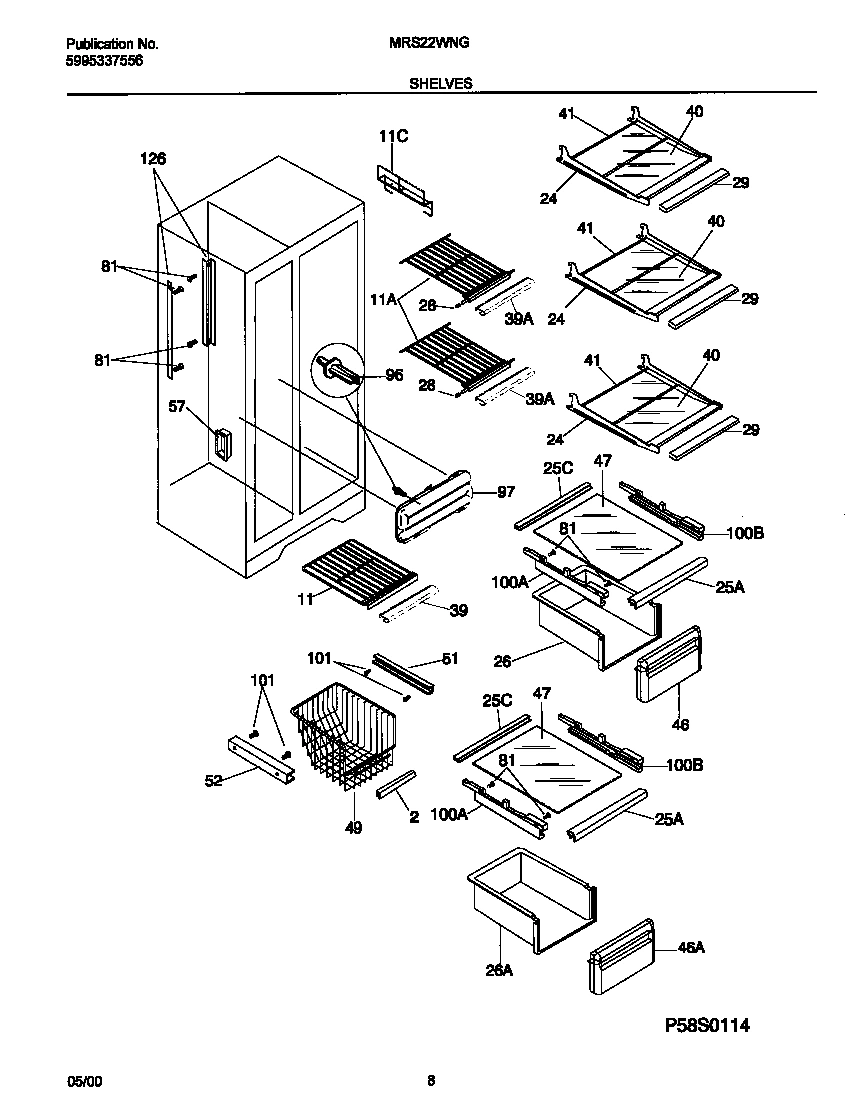

05 - SHELVES

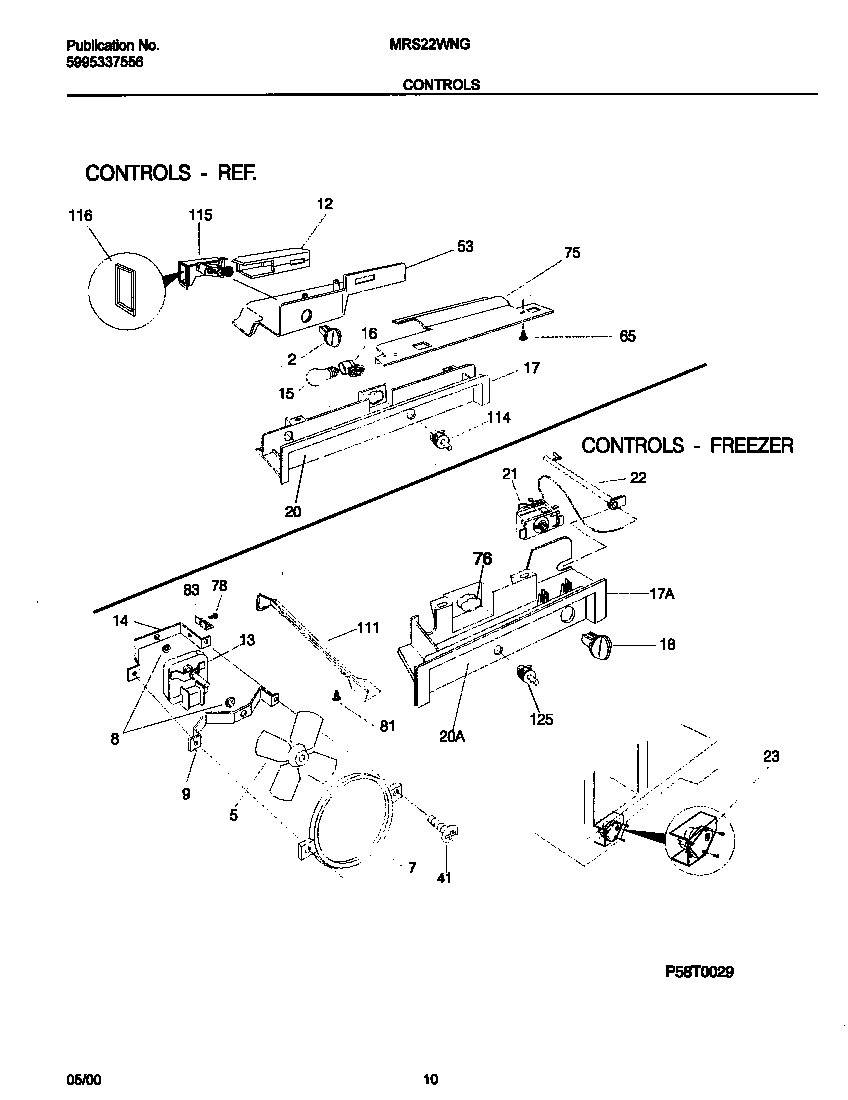

06 - CONTROLS

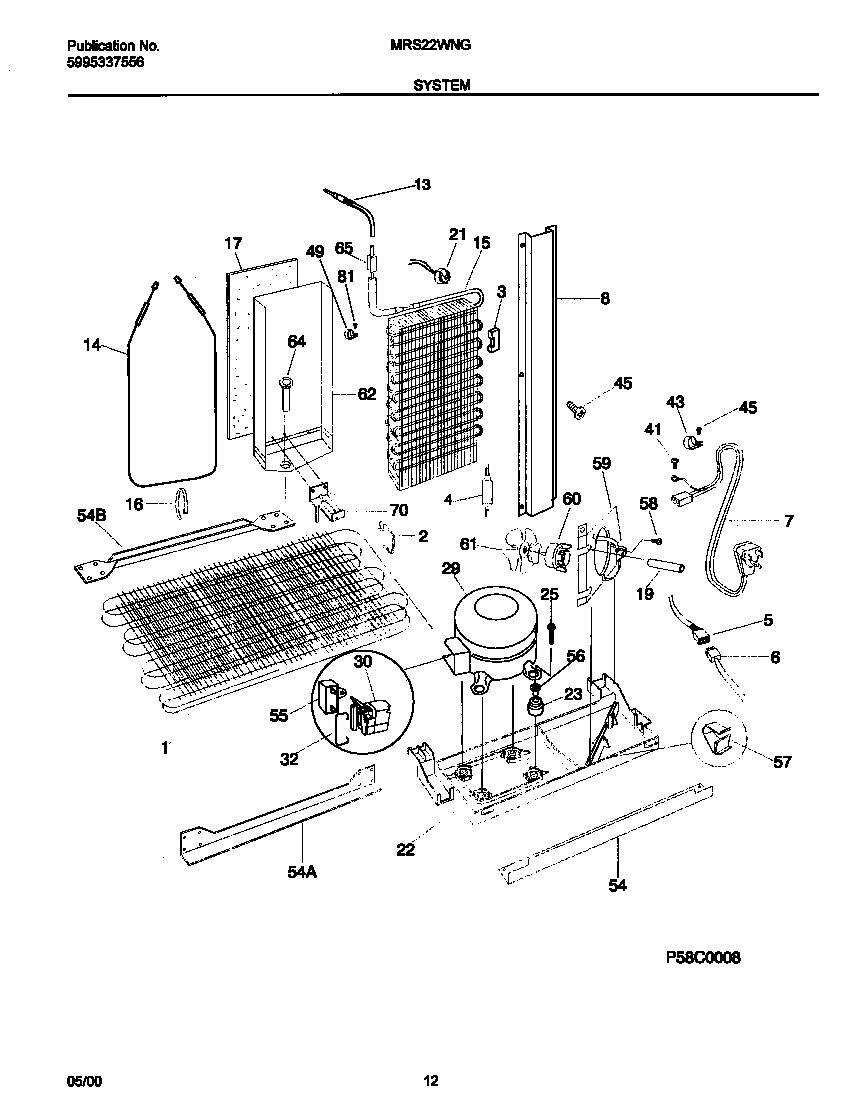

07 - SYSTEM

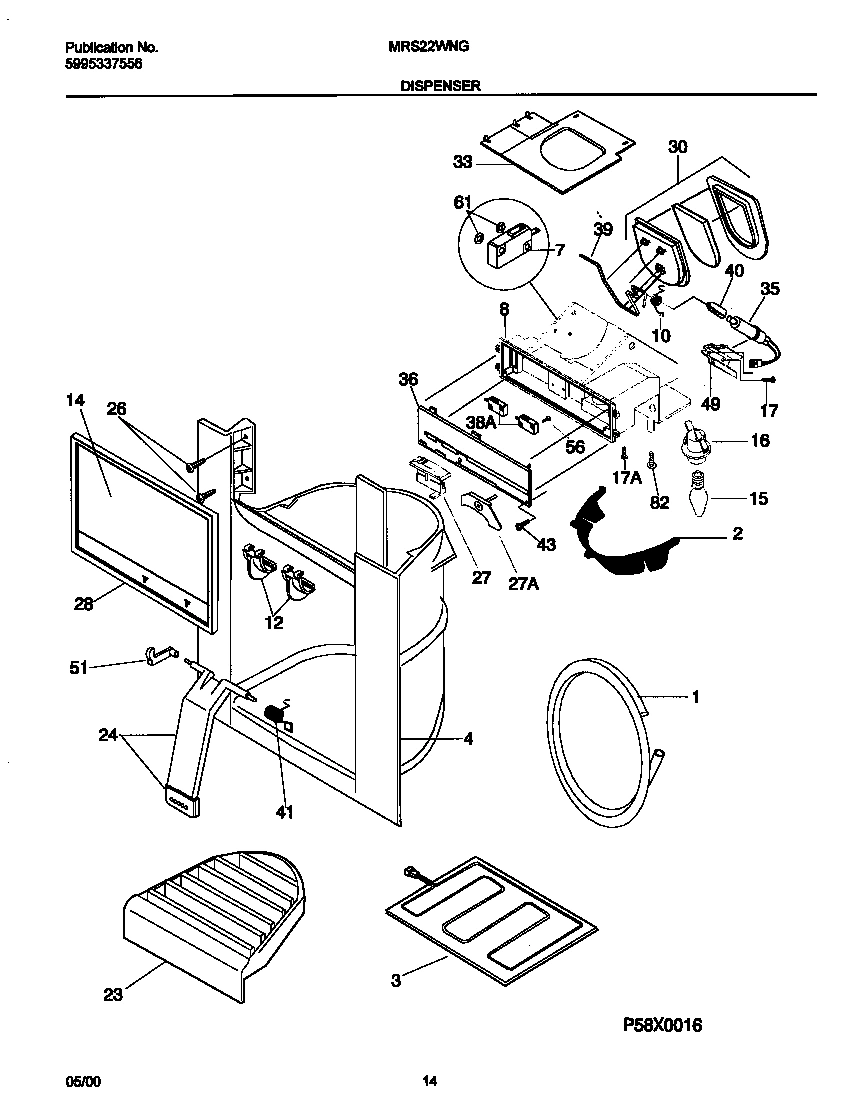

08 - ICE AND WATER DISP

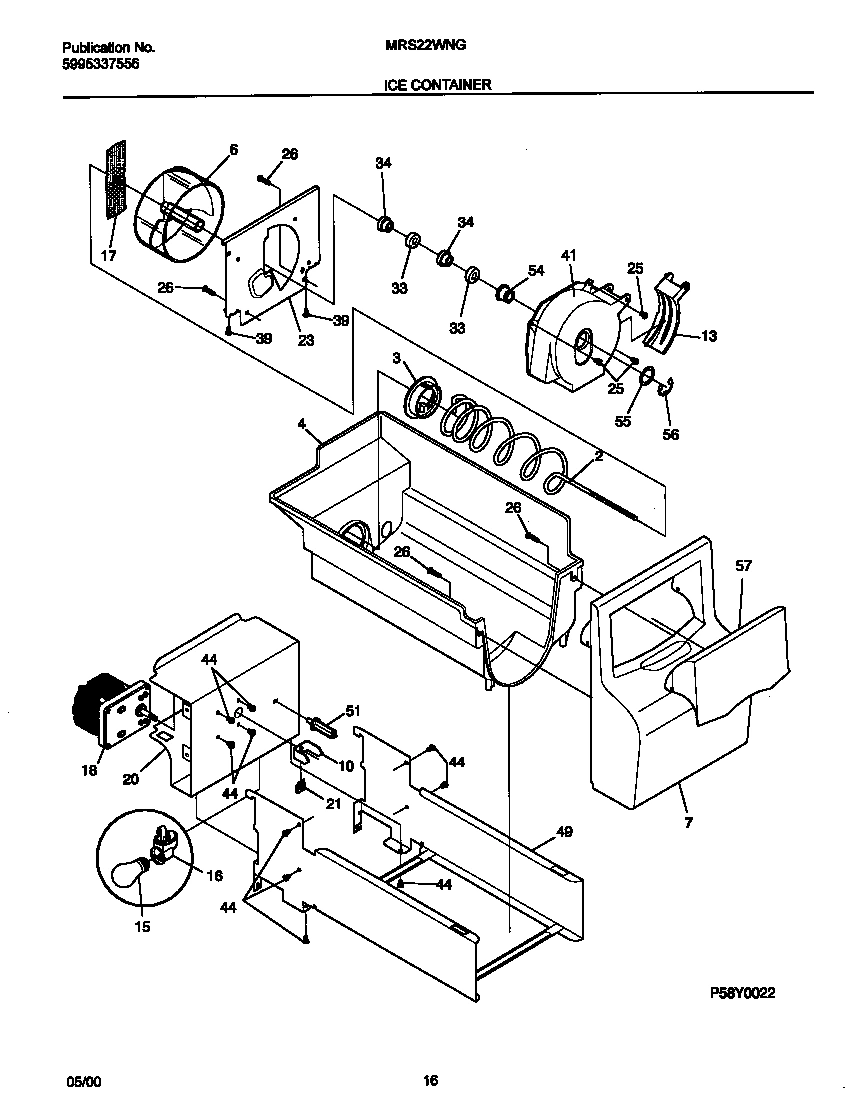

09 - ICE CONTAINER

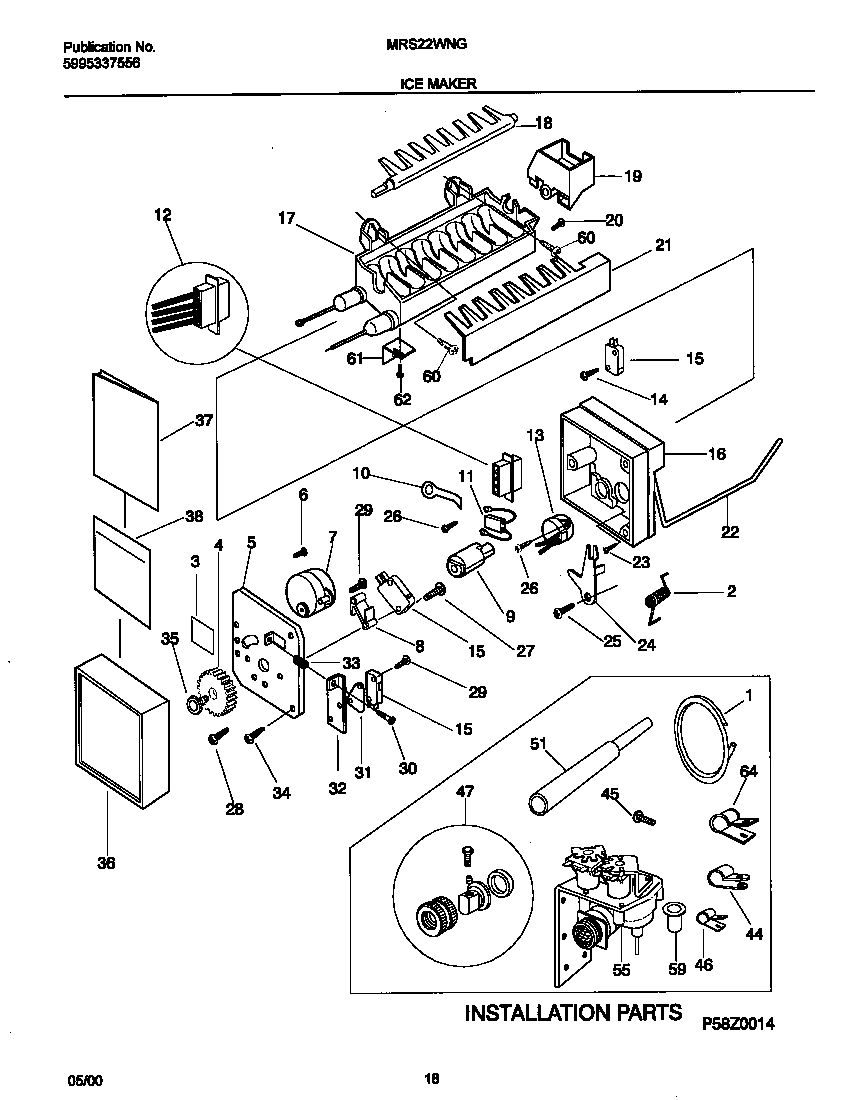

10 - ICE MAKER

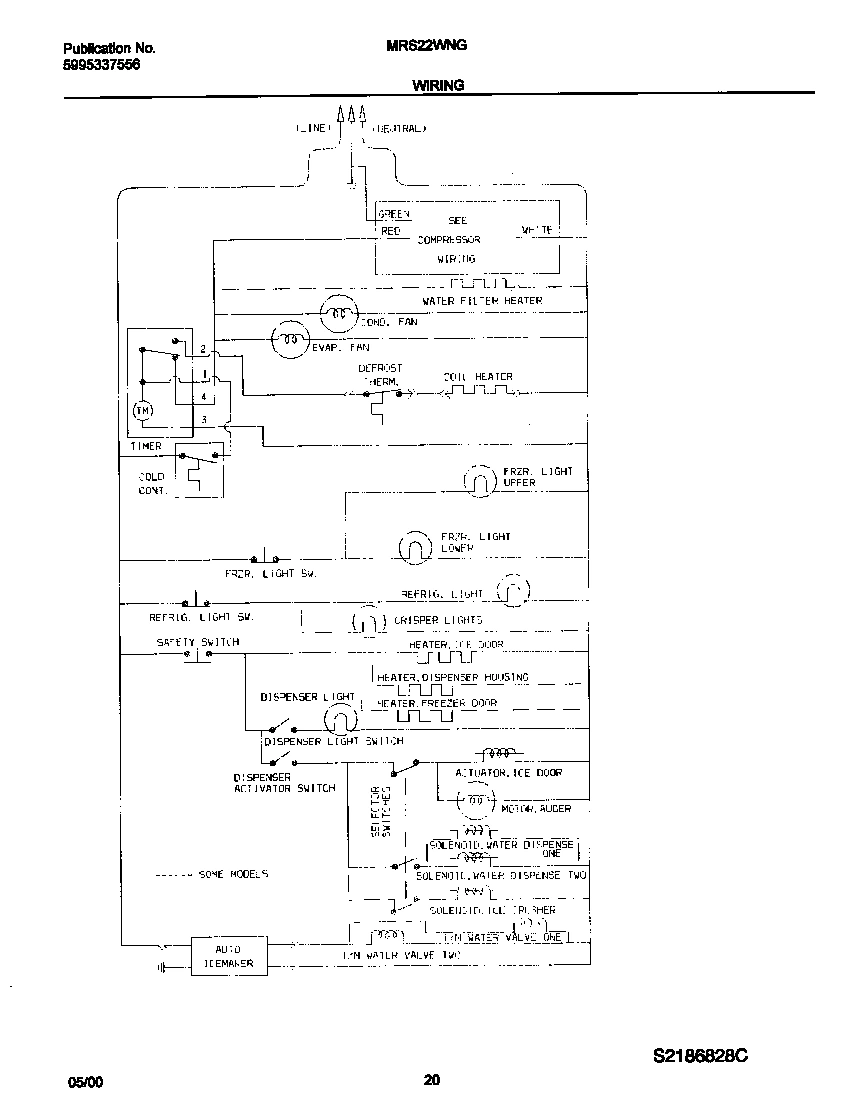

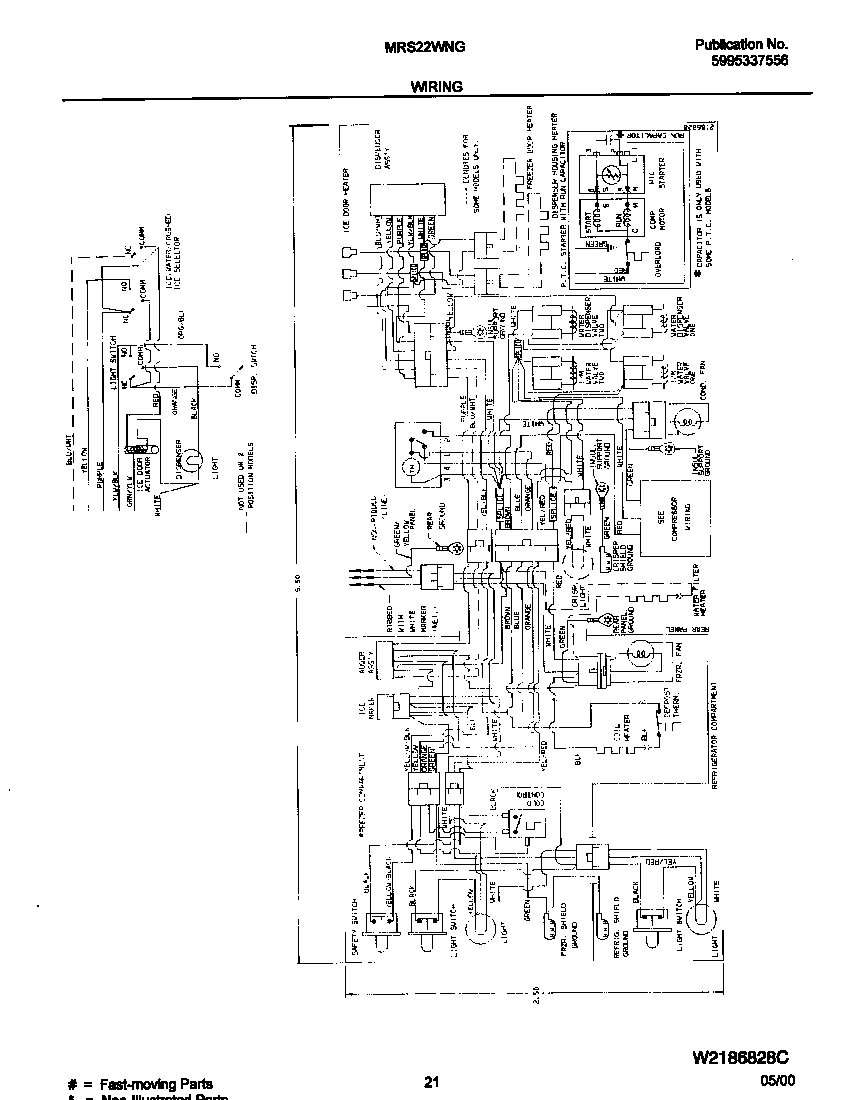

11 - WIRING DIAGRAM
12 - WIRING DIAGRAM
Common parts from model Electrolux MRS22WNGW2 REFRIGERATOR
*79241
WCI 5303917276 WCI 5303917276 Contact Us For Availability
*79260
PLUG-BUTTON,CAB LINER HOLES WCI 5308016571 Contact Us For Availability
*79261
SPACER-SHELF WCI 218159700 Contact Us For Availability
*79262
CLIP-SHELF WCI 215328300 Contact Us For Availability
*79263
WASHER, .28 X .62 X .19, NYLON WCI 5303001038 Contact Us For Availability
*79264
NUT,``U`` TYPE ,8-15(A) ,FAN MTR MTG WCI 5303209814 Contact Us For Availability
*79266
TUBE,INSULATOR ,PVC ,WHITE , WCI 218731102 Contact Us For Availability
*79267
COVER-DEFROST TIMER, TOP WCI 215277000 Contact Us For Availability
*79269
SHIELD-DEFROST TIMR,BTM WCI 5303289058 Contact Us For Availability
*79270
SPACER-COND TUBE,BLACK WCI 5303208866 Contact Us For Availability
*79271
SPACER TUBE WCI 5303289026 Contact Us For Availability
*79272
WIRING HARNESS,REFR CONTROLS WCI 215005200 Contact Us For Availability
*79273
WIRING HARNESS,FRZR CONTROLS WCI 218815101 Contact Us For Availability
*79274
TUBE-INLET WCI 3206414 Contact Us For Availability
*79279
WCI 215004700 WCI 215004700 Contact Us For Availability
*79280
WCI 215004800 WCI 215004800 Contact Us For Availability
*79281
HOT TUBE REPAIR KIT, SERVICE WCI 5303917214 Contact Us For Availability
*79282
TUBE-WATER INLET,FORMED ,PLASTIC , WCI 215294101 Contact Us For Availability
*79284
WIRING HARNESS,DISP WCI 218863107 Contact Us For Availability
*79285
WIRING HARNESS,AUGER MOTOR WCI 5304407107 Contact Us For Availability
*79286
WCI 215781700 WCI 215781700 Contact Us For Availability
*79287
WCI 218842801 WCI 218842801 Contact Us For Availability
*79288
CONNECTOR PLUG, WIRING HARNESS WCI 3206321 Contact Us For Availability
*79289
WCI 218835800 WCI 218835800 Contact Us For Availability
*79290
SCREW-SOLENOID VALVE,HX HD-SLOT WSHR , WCI 215290100 Contact Us For Availability
*79292
WCI 218836401 WCI 218836401 Contact Us For Availability
1
WCI 218787800 WCI 218787800 Contact Us For Availability
2
WCI 215734314 WCI 215734314 Contact Us For Availability
2
WCI 5303298147 WCI 5303298147 Contact Us For Availability
2
WCI 215028605 WCI 215028605 Contact Us For Availability
2
WCI 5303289029 WCI 5303289029 Contact Us For Availability
2
WCI 218505301 WCI 218505301 Contact Us For Availability
2
WCI 3206348 WCI 3206348 Contact Us For Availability
3
WCI 218679603 WCI 218679603 Contact Us For Availability
3
WCI 215484300 WCI 215484300 Contact Us For Availability
3
Label,ID plate WCI 3206299 Contact Us For Availability
4
WCI 215922301 WCI 215922301 Contact Us For Availability
5
WIRING HARNESS,MAIN WCI 218646100 Contact Us For Availability
5
WCI 3206303 WCI 3206303 Contact Us For Availability
6
WIRING HARNESS,MACHINE COMPT WCI 218897101 Contact Us For Availability
7
RING-FAN ORIFICE WCI 5308000124 Contact Us For Availability
7
WCI 215459201 WCI 215459201 Contact Us For Availability
7
WCI 218284800 WCI 218284800 Contact Us For Availability
8
WCI 218835701 WCI 218835701 Contact Us For Availability
8
WCI 218803400 WCI 218803400 Contact Us For Availability
8
SPACER-HOLD SWITCH WCI 3206312 Contact Us For Availability
9
WCI 5303205118 WCI 5303205118 Contact Us For Availability
9
WCI 3206313 WCI 3206313 Contact Us For Availability
10
WCI 218209800 WCI 218209800 Contact Us For Availability
10
WCI 3206315 WCI 3206315 Contact Us For Availability
11
WCI 218298001 WCI 218298001 Contact Us For Availability
11
WCI 218815501 WCI 218815501 Contact Us For Availability
11
SHELF-FREEZER,FIXED WIRE WCI 5304408038 Contact Us For Availability
12
WIRING HARNESS,ICE MAKER ,INTERNAL , WCI 3206349 Contact Us For Availability
12
WCI 215809600 WCI 215809600 Contact Us For Availability
12
WCI 218845901 WCI 218845901 Contact Us For Availability
13
WCI 5303289522 WCI 5303289522 Contact Us For Availability
13
Thermostat Assy,ice maker WCI 3206322 Contact Us For Availability
13
WCI 215426200 WCI 215426200 Contact Us For Availability
13
WCI 215006701 WCI 215006701 Contact Us For Availability
13
WCI 215748101 WCI 215748101 Contact Us For Availability
14
BRACKET-MOTOR MTG, REAR WCI 5303205119 Contact Us For Availability
14
WCI 218416148 WCI 218416148 Contact Us For Availability
14
SCREW,4-24 X 0.750 ,(6) WCI 3206323 Contact Us For Availability
15
WCI 218691301 WCI 218691301 Contact Us For Availability
15
WCI 218284900 WCI 218284900 Contact Us For Availability
16
SUPPORT,PHENOLIC WCI 3206326 Contact Us For Availability
17
WCI 5303296805 WCI 5303296805 Contact Us For Availability
17
WCI 5303289496 WCI 5303289496 Contact Us For Availability
17
WCI 215794400 WCI 215794400 Contact Us For Availability
17A
CONTROL BOX, FRZR WCI 5303296581 Contact Us For Availability
17A
WCI 215840700 WCI 215840700 Contact Us For Availability
17B
SCREW-CONTROL BOX MTG,HEX HEAD , WCI 215188300 Contact Us For Availability
17B
WASHER-FLAT WCI 215923400 Contact Us For Availability
18
WCI 218668401 WCI 218668401 Contact Us For Availability
18
WCI 215051008 WCI 215051008 Contact Us For Availability
18
WCI 218815802 WCI 218815802 Contact Us For Availability
18
EJECTOR-ICE WCI 3206328 Contact Us For Availability
19
WCI 218631200 WCI 218631200 Contact Us For Availability
19
WCI 3206330 WCI 3206330 Contact Us For Availability
20
WCI 5303310528 WCI 5303310528 Contact Us For Availability
20
WCI 5303310529 WCI 5303310529 Contact Us For Availability
20
WCI 5304407106 WCI 5304407106 Contact Us For Availability
20
SCREW,8-18 X 0.375 ,(2) WCI 3206331 Contact Us For Availability
21
WCI 5303300027 WCI 5303300027 Contact Us For Availability
21
ICE STRIPPER WCI 3206332 Contact Us For Availability
22
WCI 5303289320 WCI 5303289320 Contact Us For Availability
22
WCI 5303319683 WCI 5303319683 Contact Us For Availability
22
WCI 218811100 WCI 218811100 Contact Us For Availability
22
SHUT-OFF ARM WCI 3206333 Contact Us For Availability
23
WCI 215447001 WCI 215447001 Contact Us For Availability
23
SCREW - SUP / MOLD BODY, 8-18 X 1, (4) WCI 3206334 Contact Us For Availability
24
FRAME-REFR SHELF, CANTILEVER WCI 215919139 Contact Us For Availability
24
WCI 215918001 WCI 215918001 Contact Us For Availability
25
WCI 218015302 WCI 218015302 Contact Us For Availability
25
WCI 218015402 WCI 218015402 Contact Us For Availability
25
SCREW-COMPRESSOR MTG,HEX WASHER HEAD , WCI 218773500 Contact Us For Availability
25
SCREW,8-18 X 0.562 ,LEVER ARM/SPRT WCI 3206336 Contact Us For Availability
26
SCREW-THERMO/SPRT,4-24 X 0.375 ,(4) WCI 3206337 Contact Us For Availability
27
WCI 218432600 WCI 218432600 Contact Us For Availability
27
WCI 218814901 WCI 218814901 Contact Us For Availability
27
SCREW,4-40 X 1.000 ,HOLD SWITCH MTG , WCI 3206338 Contact Us For Availability
28
END CAP-SHELF, PROTECTOR WCI 08013638 Contact Us For Availability
28
WCI 218713101 WCI 218713101 Contact Us For Availability
28
Screw-timing stop`4-40 x 0.375 WCI 3206339 Contact Us For Availability
29
WCI 215314301 WCI 215314301 Contact Us For Availability
29
WCI 215919456 WCI 215919456 Contact Us For Availability
29
SCREW-MTR&SW/PLATE,4-40 X 3/4 WCI 3206340 Contact Us For Availability
30
WCI 218721101 WCI 218721101 Contact Us For Availability
30
DOOR ASSY-ICE CHUTE, W/GASKET, INSUL WCI 215753600 Contact Us For Availability
30
SCREW-TIMING ADJ,8-32 X 1.000 WCI 3206341 Contact Us For Availability
31
WCI 3206342 WCI 3206342 Contact Us For Availability
32
WCI 3206343 WCI 3206343 Contact Us For Availability
33
WCI 218870201 WCI 218870201 Contact Us For Availability
33
WCI 3206344 WCI 3206344 Contact Us For Availability
34
SCREW-MTG PLATE/SPRT,8-18 X 7/16 WCI 3206345 Contact Us For Availability
35
WCI 218740002 WCI 218740002 Contact Us For Availability
35
SCREW - GEAR / CAM, 6-20 X 0.437 WCI 3206346 Contact Us For Availability
36
WCI 218835601 WCI 218835601 Contact Us For Availability
36
COVER-ICE MAKER WCI 3206347 Contact Us For Availability
37
WCI 5303321081 WCI 5303321081 Contact Us For Availability
37
WCI 5303320544 WCI 5303320544 Contact Us For Availability
37A
WCI 215782300 WCI 215782300 Contact Us For Availability
38
WCI 218479900 WCI 218479900 Contact Us For Availability
38
WCI 5303207445 WCI 5303207445 Contact Us For Availability
39
WCI 215217583 WCI 215217583 Contact Us For Availability
39
WCI 215217584 WCI 215217584 Contact Us For Availability
40
WCI 218390542 WCI 218390542 Contact Us For Availability
40
WCI 218284500 WCI 218284500 Contact Us For Availability
41
WCI 215917800 WCI 215917800 Contact Us For Availability
41
TRIM-REFR SHELF, REAR WCI 215919815 Contact Us For Availability
43
WCI 215760300 WCI 215760300 Contact Us For Availability
44
WCI 218359200 WCI 218359200 Contact Us For Availability
45A
SCREW,HEX HD SER WSHR ,8-18 X 0.375 WCI 218754500 Contact Us For Availability
45B
WCI 218769200 WCI 218769200 Contact Us For Availability
46
WCI 215042034 WCI 215042034 Contact Us For Availability
46
WCI 215042035 WCI 215042035 Contact Us For Availability
47
INSERT-PAN COVER,16.31`` X 17.32`` ,GLASS WCI 215723552 Contact Us For Availability
47
ADAPTER-WATER SPLY,STRAIGHT WCI 5308000205 Contact Us For Availability
49
WCI 5303289521 WCI 5303289521 Contact Us For Availability
49
WCI 215506900 WCI 215506900 Contact Us For Availability
49
WCI 215794000 WCI 215794000 Contact Us For Availability
49
WCI 5304404329 WCI 5304404329 Contact Us For Availability
51
WCI 215922200 WCI 215922200 Contact Us For Availability
51
WCI 5303288960 WCI 5303288960 Contact Us For Availability
51
WCI 5304404336 WCI 5304404336 Contact Us For Availability
51
TUBE-WATER,ICE MOLD FILL ,EXTENSION WCI 215811600 Contact Us For Availability
52
TUBE-WATER,ICE MOLD FILL ,ELBOW WCI 215454600 Contact Us For Availability
52
WCI 215162501 WCI 215162501 Contact Us For Availability
53
WCI 215809505 WCI 215809505 Contact Us For Availability
54
WCI 5303289027 WCI 5303289027 Contact Us For Availability
54
WCI 5303289292 WCI 5303289292 Contact Us For Availability
54
WCI 5303289311 WCI 5303289311 Contact Us For Availability
55
WCI 218720500 WCI 218720500 Contact Us For Availability
56
WCI 218769300 WCI 218769300 Contact Us For Availability
56
SCREW-MICRO SWITCH,PAN HEAD , WCI 218434300 Contact Us For Availability
57
WCI 5303271653 WCI 5303271653 Contact Us For Availability
57
WCI 218247300 WCI 218247300 Contact Us For Availability
59
WCI 5303289031 WCI 5303289031 Contact Us For Availability
59
WCI 5303001191 WCI 5303001191 Contact Us For Availability
60
WCI 215501901 WCI 215501901 Contact Us For Availability
61
WCI 5303289032 WCI 5303289032 Contact Us For Availability
61
WCI 215766000 WCI 215766000 Contact Us For Availability
62
TROUGH-DRAIN,W/SHIELD ASSY , WCI 215048701 Contact Us For Availability
65
WCI 5303289301 WCI 5303289301 Contact Us For Availability
70
WCI 5303289041 WCI 5303289041 Contact Us For Availability
72
WCI 218359601 WCI 218359601 Contact Us For Availability
75
WCI 218465101 WCI 218465101 Contact Us For Availability
76
WCI 218225800 WCI 218225800 Contact Us For Availability
82
SCREW,PLASK H/L,6 X 3/8 WCI 215296300 Contact Us For Availability
83
WCI 5308000107 WCI 5308000107 Contact Us For Availability
85
WCI 218359801 WCI 218359801 Contact Us For Availability
89
WCI 215176300 WCI 215176300 Contact Us For Availability
90
WCI 215022602 WCI 215022602 Contact Us For Availability
91
WCI 218770000 WCI 218770000 Contact Us For Availability
96
WCI 215192600 WCI 215192600 Contact Us For Availability
100A
WCI 218015501 WCI 218015501 Contact Us For Availability
100B
WCI 218015601 WCI 218015601 Contact Us For Availability
101A
WCI 215305702 WCI 215305702 Contact Us For Availability
101B
WCI 218663102 WCI 218663102 Contact Us For Availability
111
WCI 5303289024 WCI 5303289024 Contact Us For Availability
115
WCI 215011503 WCI 215011503 Contact Us For Availability
116
WCI 215011400 WCI 215011400 Contact Us For Availability
125
WCI 215334201 WCI 215334201 Contact Us For Availability
140
WCI 218518700 WCI 218518700 Contact Us For Availability
× ![]()
