Model Electrolux MRS22WNEW1 REFRIGERATOR – Common Parts & Diagrams
01 - COVER
02 - FREEZER DOOR

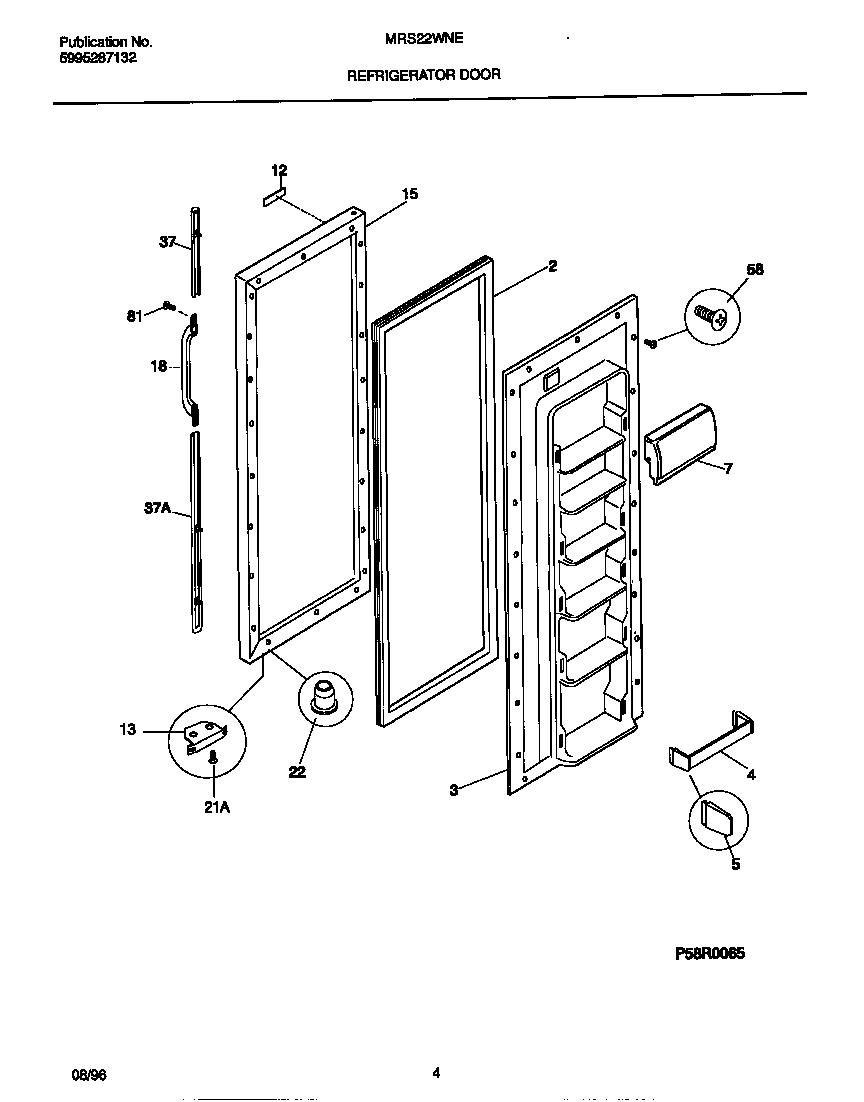

03 - REFRIGERATOR DOOR
04 - CABINET

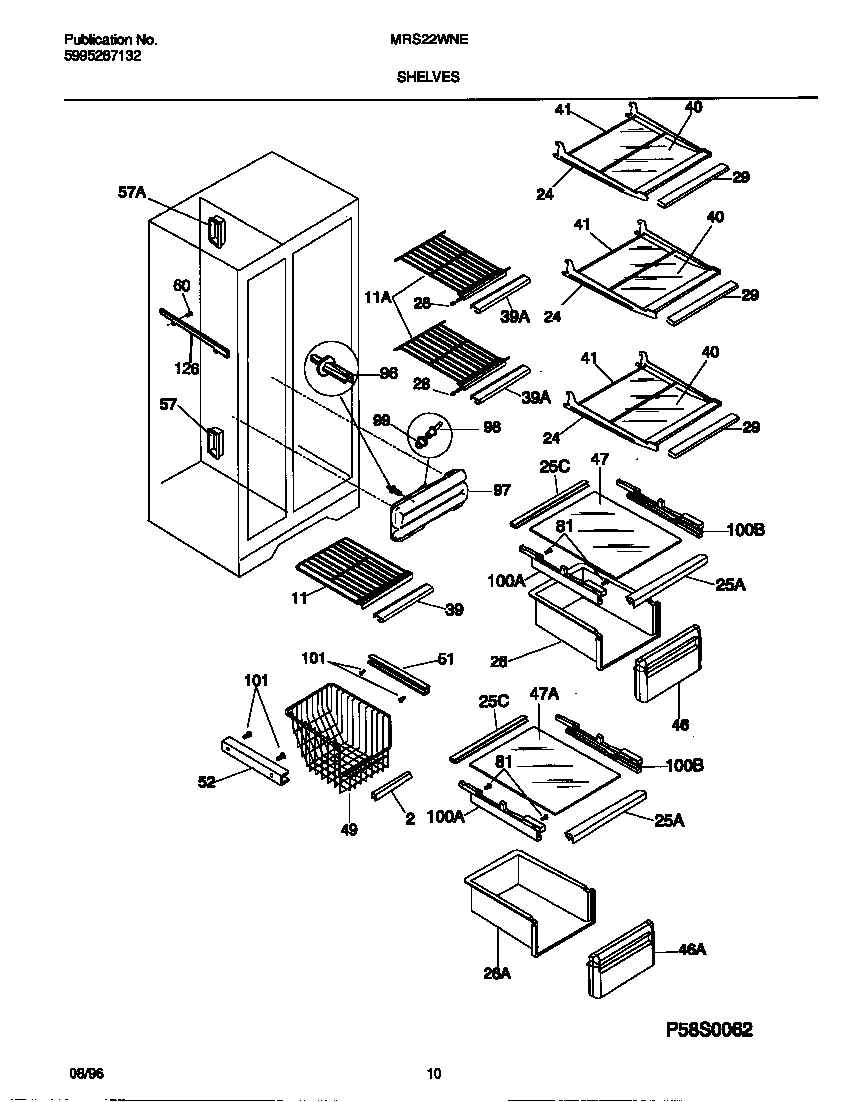

05 - SHELVES

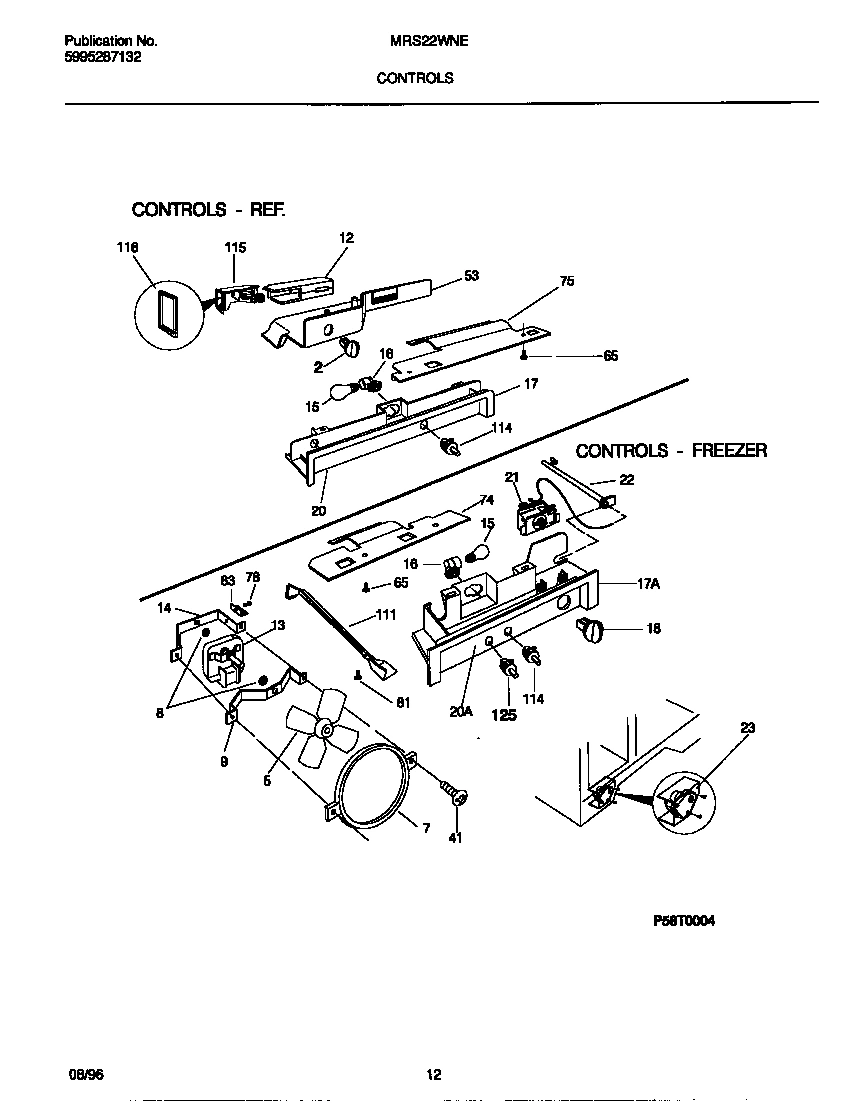

06 - CONTROLS

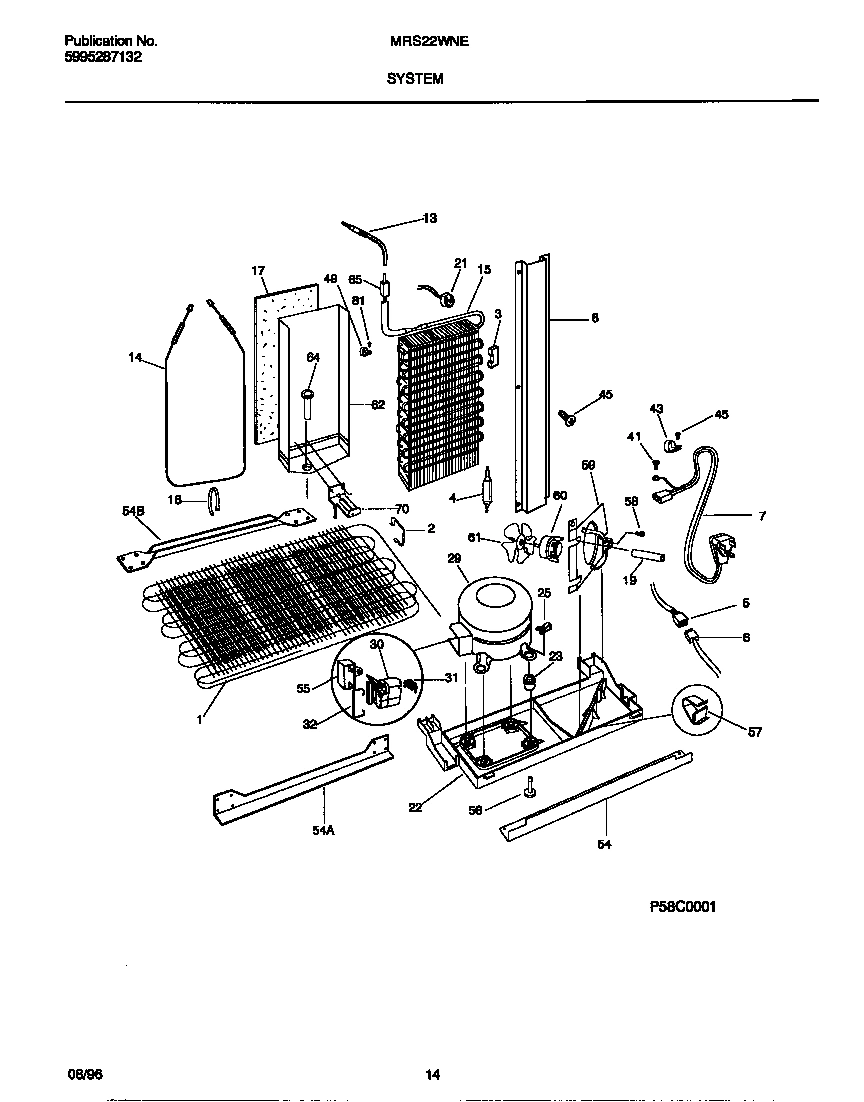

07 - SYSTEM

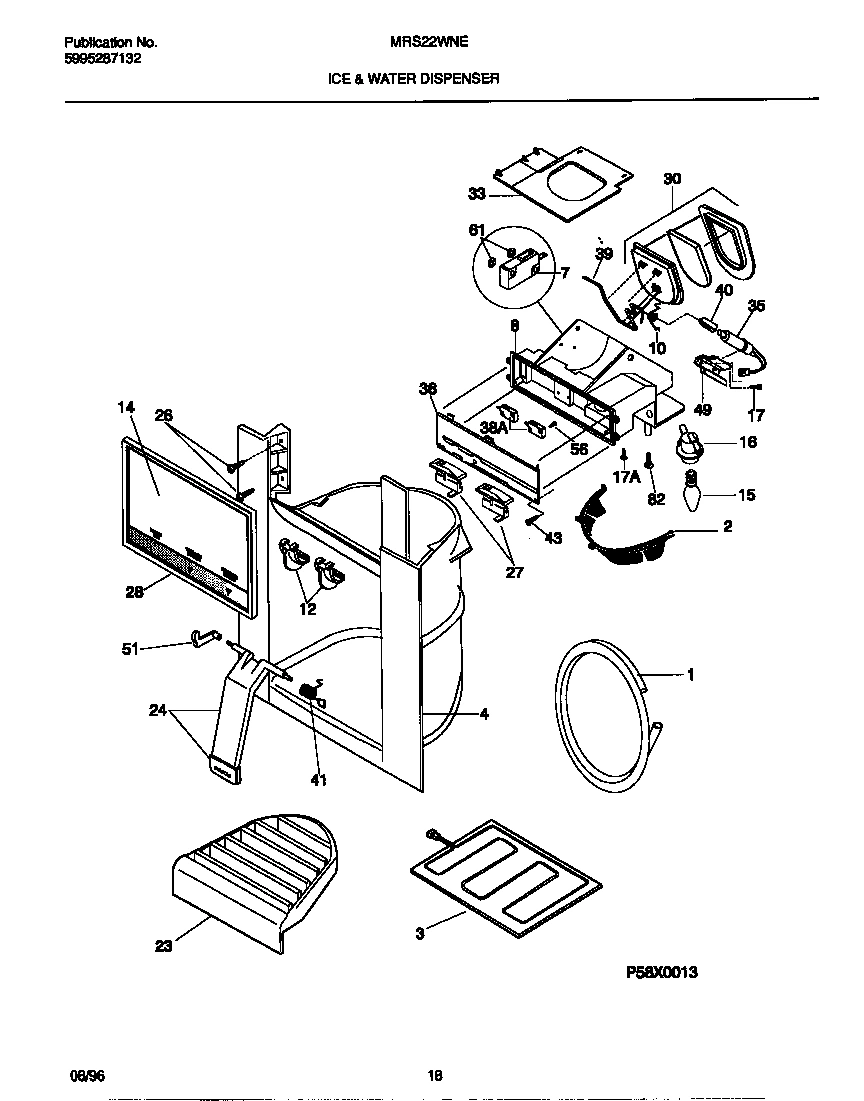

08 - ICE & WATER DISPENSER

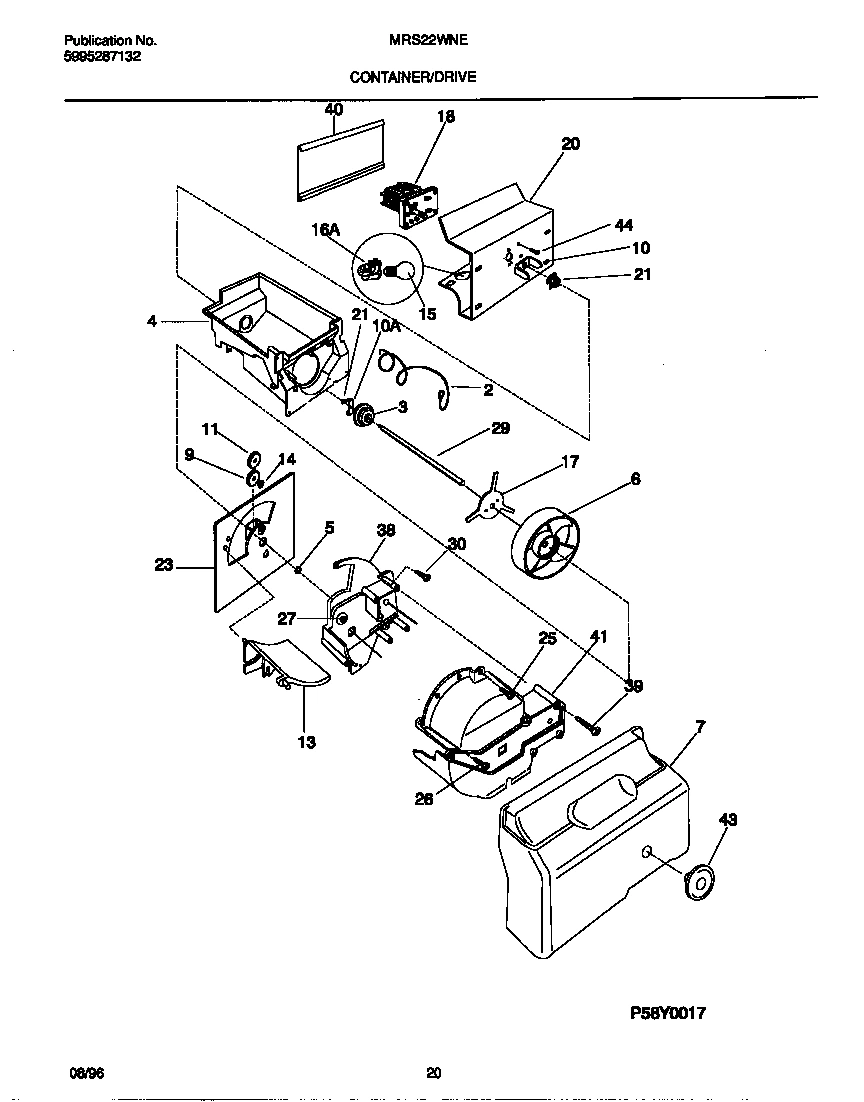

09 - CONTAINER/DRIVE

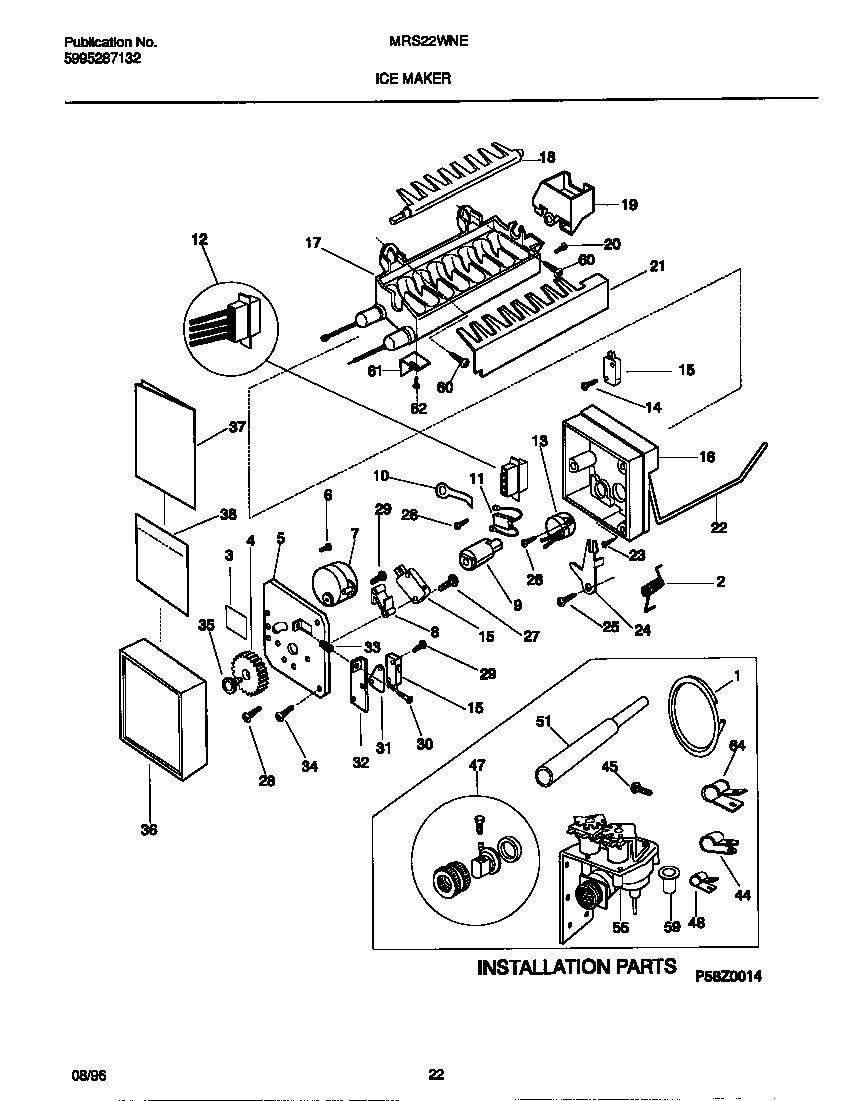

10 - ICE MAKER
Common parts from model Electrolux MRS22WNEW1 REFRIGERATOR
*94482
WCI 5303917276 WCI 5303917276 Contact Us For Availability
*94486
WCI 215339900 WCI 215339900 Contact Us For Availability
*94487
SCREW-CONTROL BOX MTG, HEX HEAD, 8-15A X 1.00 WCI 215188300 Contact Us For Availability
*94488
WCI 5303917166 WCI 5303917166 Contact Us For Availability
*94490
WCI 218432510 WCI 218432510 Contact Us For Availability
*94491
WCI 215781700 WCI 215781700 Contact Us For Availability
1A
WCI 5303289487 WCI 5303289487 Contact Us For Availability
1B
TUBE-WATER INLET, FORMED, PLASTIC, DISPENSER WCI 215294101 Contact Us For Availability
1B
SPACER-TUBE (NOT ILLUSTRATED) WCI 5303208866 Contact Us For Availability
1C
SPACER, TUBE (NOT ILLUSTRATED) WCI 5303289026 Contact Us For Availability
2
WCI 215734314 WCI 215734314 Contact Us For Availability
2
WCI 5303298147 WCI 5303298147 Contact Us For Availability
2
WCI 215028605 WCI 215028605 Contact Us For Availability
2
WCI 5303289029 WCI 5303289029 Contact Us For Availability
2
WCI 218505301 WCI 218505301 Contact Us For Availability
2
WCI 218232500 WCI 218232500 Contact Us For Availability
2
WCI 3206348 WCI 3206348 Contact Us For Availability
3
WCI 218679601 WCI 218679601 Contact Us For Availability
3
WCI 215484300 WCI 215484300 Contact Us For Availability
3
WCI 218232300 WCI 218232300 Contact Us For Availability
3
PLATE-I.D. WCI 3206299 Contact Us For Availability
4
WCI 215922301 WCI 215922301 Contact Us For Availability
4A
WCI 218216800 WCI 218216800 Contact Us For Availability
4B
LABEL-ICE CONTAINER (NOT ILLUSTRATED) WCI 218363200 Contact Us For Availability
5
WCI 215748105 WCI 215748105 Contact Us For Availability
5
WCI 3206303 WCI 3206303 Contact Us For Availability
5A
WCI 218646100 WCI 218646100 Contact Us For Availability
5B
WCI 215004900 WCI 215004900 Contact Us For Availability
5C
HARNESS-WIRING, REFR CONTROLS (NOT ILLUSTRATE WCI 215005200 Contact Us For Availability
5D
WCI 218646000 WCI 218646000 Contact Us For Availability
6
WCI 218646200 WCI 218646200 Contact Us For Availability
6
WCI 215752800 WCI 215752800 Contact Us For Availability
7
RING-FAN ORIFICE WCI 5308000124 Contact Us For Availability
7
WCI 215459201 WCI 215459201 Contact Us For Availability
7
WCI 218284800 WCI 218284800 Contact Us For Availability
7
WCI 215421603 WCI 215421603 Contact Us For Availability
8
WCI 5300157666 WCI 5300157666 Contact Us For Availability
8
WCI 5303289033 WCI 5303289033 Contact Us For Availability
8
WCI 218505201 WCI 218505201 Contact Us For Availability
8
SPACER-HOLDING SW WCI 3206312 Contact Us For Availability
9
WCI 5303205118 WCI 5303205118 Contact Us For Availability
9
WCI 215419700 WCI 215419700 Contact Us For Availability
9
WCI 3206313 WCI 3206313 Contact Us For Availability
10
WCI 218232800 WCI 218232800 Contact Us For Availability
10
WCI 218209800 WCI 218209800 Contact Us For Availability
10
WCI 3206315 WCI 3206315 Contact Us For Availability
11
WCI 218298001 WCI 218298001 Contact Us For Availability
11
WCI 215755200 WCI 215755200 Contact Us For Availability
11A
SHELF-FREEZER, FIXED WIRE WCI 5303289504 Contact Us For Availability
11B
SPACER-SHELF (NOT ILLUSTRATED) WCI 218159700 Contact Us For Availability
12
WCI 215809600 WCI 215809600 Contact Us For Availability
12
WCI 215627201 WCI 215627201 Contact Us For Availability
12A
CONNECTOR PLUG, WIRING HARNESS WCI 3206321 Contact Us For Availability
12B
HARNESS-WIRING, IM INTERNAL, WITH PLUG WCI 3206349 Contact Us For Availability
13
WCI 5303289522 WCI 5303289522 Contact Us For Availability
13
Thermostat Assy,ice maker WCI 3206322 Contact Us For Availability
13
WCI 215006701 WCI 215006701 Contact Us For Availability
13
WCI 218285200 WCI 218285200 Contact Us For Availability
13A
WCI 218394100 WCI 218394100 Contact Us For Availability
14
BRACKET-MOTOR MTG, REAR WCI 5303205119 Contact Us For Availability
14
WCI 218416110 WCI 218416110 Contact Us For Availability
14
WCI 215419900 WCI 215419900 Contact Us For Availability
14
SCREW - SWITCH MTG, 4-24 X 3/4, SW TO SUPPORT WCI 3206323 Contact Us For Availability
15
WCI 218284900 WCI 218284900 Contact Us For Availability
15A
WCI 218691301 WCI 218691301 Contact Us For Availability
15B
TUBE-INLET (NOT ILLUSTRATED) WCI 3206414 Contact Us For Availability
16
WCI 3206326 WCI 3206326 Contact Us For Availability
17
CONTROL BOX, FRZR WCI 5303296581 Contact Us For Availability
17
WCI 5303296805 WCI 5303296805 Contact Us For Availability
17
WCI 5303289496 WCI 5303289496 Contact Us For Availability
17
WCI 215794400 WCI 215794400 Contact Us For Availability
17
WCI 215754800 WCI 215754800 Contact Us For Availability
17A
WCI 215840700 WCI 215840700 Contact Us For Availability
17B
WASHER-FLAT (NOT ILLUSTRATED) WCI 215923400 Contact Us For Availability
18
WCI 218668401 WCI 218668401 Contact Us For Availability
18
WCI 215051008 WCI 215051008 Contact Us For Availability
18
WCI 3206328 WCI 3206328 Contact Us For Availability
18B
HARNESS-WIRING, AUGER MOTOR (NOT ILLUSTRATED) WCI 218329200 Contact Us For Availability
19
WCI 218631200 WCI 218631200 Contact Us For Availability
19
WCI 3206330 WCI 3206330 Contact Us For Availability
20
WCI 5303310528 WCI 5303310528 Contact Us For Availability
20
WCI 5303310529 WCI 5303310529 Contact Us For Availability
20
WCI 215285301 WCI 215285301 Contact Us For Availability
20
WCI 3206331 WCI 3206331 Contact Us For Availability
21
WCI 5303294323 WCI 5303294323 Contact Us For Availability
21
ICE STRIPPER WCI 3206332 Contact Us For Availability
22
WCI 5303289320 No Longer Available
22
WCI 5303319683 WCI 5303319683 Contact Us For Availability
22
WCI 5303289030 WCI 5303289030 Contact Us For Availability
22
WCI 3206333 WCI 3206333 Contact Us For Availability
23
WCI 215447001 WCI 215447001 Contact Us For Availability
23
SCREW-SUP/MOLD BODY, 8-18 X 1.000, (4) WCI 3206334 Contact Us For Availability
23A
WCI 215755300 WCI 215755300 Contact Us For Availability
23B
COVER, DEFROST TIMER, TOP (NOT ILLUSTRATED) WCI 215277000 Contact Us For Availability
23B
RING-RETAINER (NOT ILLUSTRATED) WCI 215755700 Contact Us For Availability
23C
STUD (NOT ILLUSTRATED) WCI 215755800 Contact Us For Availability
23D
SHIELD, DEFROST TIMR, BTM (NOT ILLUSTRATED) WCI 5303289058 Contact Us For Availability
24
FRAME-REFR SHELF, CANTILEVER WCI 215919139 Contact Us For Availability
24
ACTUATOR, WHITE (NOT ILLUSTRATED) WCI 215918001 Contact Us For Availability
24
PAD-ACTUATOR, WHITE (NOT ILLUSTRATED) WCI 215918101 Contact Us For Availability
24
WCI 5303319469 WCI 5303319469 Contact Us For Availability
25
WCI 218015302 WCI 218015302 Contact Us For Availability
25
WCI 218015402 WCI 218015402 Contact Us For Availability
25
WCI 215014200 WCI 215014200 Contact Us For Availability
25
WCI 215421400 WCI 215421400 Contact Us For Availability
25
SCREW-ARM LEVR/SPRT, 8-18 X 9/16 WCI 3206336 Contact Us For Availability
26
SCREW-THERMO/SPRT, 4-24 X 3/8, (4) WCI 3206337 Contact Us For Availability
27
WCI 218432600 WCI 218432600 Contact Us For Availability
27
WCI 215748400 WCI 215748400 Contact Us For Availability
27
SCREW-SW & SPCR/PLATE, 4-40 X 1.00, (2) WCI 3206338 Contact Us For Availability
28
END CAP-SHELF, PROTECTOR WCI 08013638 Contact Us For Availability
28
WCI 215447101 WCI 215447101 Contact Us For Availability
28
SCREW-TIMING STOP, 4-40 X 3/8 WCI 3206339 Contact Us For Availability
29
WCI 215919456 WCI 215919456 Contact Us For Availability
29
WCI 215757501 WCI 215757501 Contact Us For Availability
29
SCREW-MTR & SW/PLATE, 4-40 X 3/4, (4) WCI 3206340 Contact Us For Availability
29A
WCI 215003200 WCI 215003200 Contact Us For Availability
30
WCI 216008900 WCI 216008900 Contact Us For Availability
30
DOOR ASSY-ICE CHUTE, W/GASKET, INSUL WCI 215753600 Contact Us For Availability
30
WCI 215757300 WCI 215757300 Contact Us For Availability
30
SCREW-TIMING, 8-32 X 1.00 WCI 3206341 Contact Us For Availability
31
WCI 5303299560 WCI 5303299560 Contact Us For Availability
31
WCI 3206342 WCI 3206342 Contact Us For Availability
32
WCI 215012000 WCI 215012000 Contact Us For Availability
32
WCI 3206343 WCI 3206343 Contact Us For Availability
33
WCI 218510201 WCI 218510201 Contact Us For Availability
33
WCI 3206344 WCI 3206344 Contact Us For Availability
34
SCREW - MTG PLATE / SPRT, 8-18 X 7/16, (3) WCI 3206345 Contact Us For Availability
35
WCI 218284700 WCI 218284700 Contact Us For Availability
35
SCREW - GEAR / CAM, 6-20 X 0.437 WCI 3206346 Contact Us For Availability
36
WCI 218432400 WCI 218432400 Contact Us For Availability
36
WCI 3206347 WCI 3206347 Contact Us For Availability
37
WCI 5303320544 WCI 5303320544 Contact Us For Availability
38
SWITCH-MICRO WCI 218479900 Contact Us For Availability
38
WCI 218270100 WCI 218270100 Contact Us For Availability
38
WCI 5303207445 WCI 5303207445 Contact Us For Availability
39
WCI 215217583 WCI 215217583 Contact Us For Availability
39
WCI 215217584 WCI 215217584 Contact Us For Availability
39
WCI 218284600 WCI 218284600 Contact Us For Availability
39
SCREW, 10 X 2.00 WCI 215757000 Contact Us For Availability
40
INSERT-PAN COVER, GLASS, W/GRAPHICS WCI 218390542 Contact Us For Availability
40
WCI 218284500 WCI 218284500 Contact Us For Availability
41
WCI 215917800 WCI 215917800 Contact Us For Availability
41
TRIM-REFR SHELF, REAR WCI 215919815 Contact Us For Availability
41
WCI 218270200 WCI 218270200 Contact Us For Availability
41B
NUT, ``U`` TYPE, 8-15(A), FAN MOTOR MOUNT (NO WCI 5303209814 Contact Us For Availability
43
WCI 215760300 WCI 215760300 Contact Us For Availability
43
WCI 215635000 WCI 215635000 Contact Us For Availability
44
SCREW, PAN HEAD, 8-32 X 0.25 WCI 218359200 Contact Us For Availability
46
WCI 215042034 WCI 215042034 Contact Us For Availability
46
WCI 215042035 WCI 215042035 Contact Us For Availability
47
WCI 215723552 WCI 215723552 Contact Us For Availability
47
WCI 5308000205 WCI 5308000205 Contact Us For Availability
49
WCI 5303289521 WCI 5303289521 Contact Us For Availability
49
WCI 215506900 WCI 215506900 Contact Us For Availability
49
WCI 215794000 WCI 215794000 Contact Us For Availability
51
WCI 5303288960 WCI 5303288960 Contact Us For Availability
51
WCI 215922200 WCI 215922200 Contact Us For Availability
51
WCI 215811600 WCI 215811600 Contact Us For Availability
52
WCI 215454600 WCI 215454600 Contact Us For Availability
52
WCI 215162501 WCI 215162501 Contact Us For Availability
53
WCI 215809505 WCI 215809505 Contact Us For Availability
54
WCI 5303289027 WCI 5303289027 Contact Us For Availability
54
WCI 5303289292 WCI 5303289292 Contact Us For Availability
54
WCI 5303289311 WCI 5303289311 Contact Us For Availability
55A
WCI 218720500 WCI 218720500 Contact Us For Availability
55B
SCREW-SOLENOID VALVE, HX HD-SLOT WSHR, 12-24 WCI 215290100 Contact Us For Availability
56
WCI 215014100 WCI 215014100 Contact Us For Availability
56
WCI 218434300 WCI 218434300 Contact Us For Availability
57
WCI 5303271653 WCI 5303271653 Contact Us For Availability
57
WCI 5303289064 WCI 5303289064 Contact Us For Availability
57
WCI 218247300 WCI 218247300 Contact Us For Availability
59
WCI 5303289031 WCI 5303289031 Contact Us For Availability
59
WCI 5303001191 WCI 5303001191 Contact Us For Availability
60
WCI 215501901 WCI 215501901 Contact Us For Availability
61
WCI 215766000 WCI 215766000 Contact Us For Availability
61A
WCI 5303289032 WCI 5303289032 Contact Us For Availability
61B
NUT, SPEED (NOT ILLUSTRATED) WCI 215004700 Contact Us For Availability
61C
GROMMET-SILENCER (NOT ILLUSTRATED) WCI 215004800 Contact Us For Availability
62
WCI 215048701 WCI 215048701 Contact Us For Availability
65
PIN-MOUNTING, PUSH-IN, PLASTIC WCI 5303001361 Contact Us For Availability
65
WCI 5303289301 WCI 5303289301 Contact Us For Availability
70
WCI 5303289041 WCI 5303289041 Contact Us For Availability
71A
WCI 215003300 WCI 215003300 Contact Us For Availability
72
WCI 5303295757 WCI 5303295757 Contact Us For Availability
74
WCI 218465000 WCI 218465000 Contact Us For Availability
75
WCI 218465100 WCI 218465100 Contact Us For Availability
82
SCREW,PLASK H/L,6 X 3/8 WCI 215296300 Contact Us For Availability
83
WCI 5308000107 WCI 5308000107 Contact Us For Availability
84
WCI 5308010289 WCI 5308010289 Contact Us For Availability
96
WCI 215192600 WCI 215192600 Contact Us For Availability
98
CONNECTOR - TUBE WCI 5308015614 Contact Us For Availability
99
GROMMET-TANK WCI 5300186057 Contact Us For Availability
100
WCI 218015501 WCI 218015501 Contact Us For Availability
100
WCI 218015601 WCI 218015601 Contact Us For Availability
101
WCI 215305702 WCI 215305702 Contact Us For Availability
102
SUPPORT, MOTOR BRKT, & SHELF WCI 215134700 Contact Us For Availability
103
WCI 215413100 WCI 215413100 Contact Us For Availability
104A
SUPPORT-ICE ACCESS DR WCI 5303001211 Contact Us For Availability
104B
SCREW-ICE DR SUPT, CR SPCL PAN HD, 8-15A X 1. WCI 3001212 Contact Us For Availability
111
WCI 5303289024 WCI 5303289024 Contact Us For Availability
115
WCI 215011503 WCI 215011503 Contact Us For Availability
116
WCI 215011400 WCI 215011400 Contact Us For Availability
125
WCI 215334201 WCI 215334201 Contact Us For Availability
126A
WCI 215205400 WCI 215205400 Contact Us For Availability
126B
RAIL-AUGER BUCKET, RH (NOT ILLUSTRATED) WCI 218232700 Contact Us For Availability
× ![]()
