Model Electrolux MRS22HRAD1 REFRIGERATOR – Common Parts & Diagrams
02 - FREEZER DOOR PARTS
03 - REFRIGERATOR DOOR PARTS

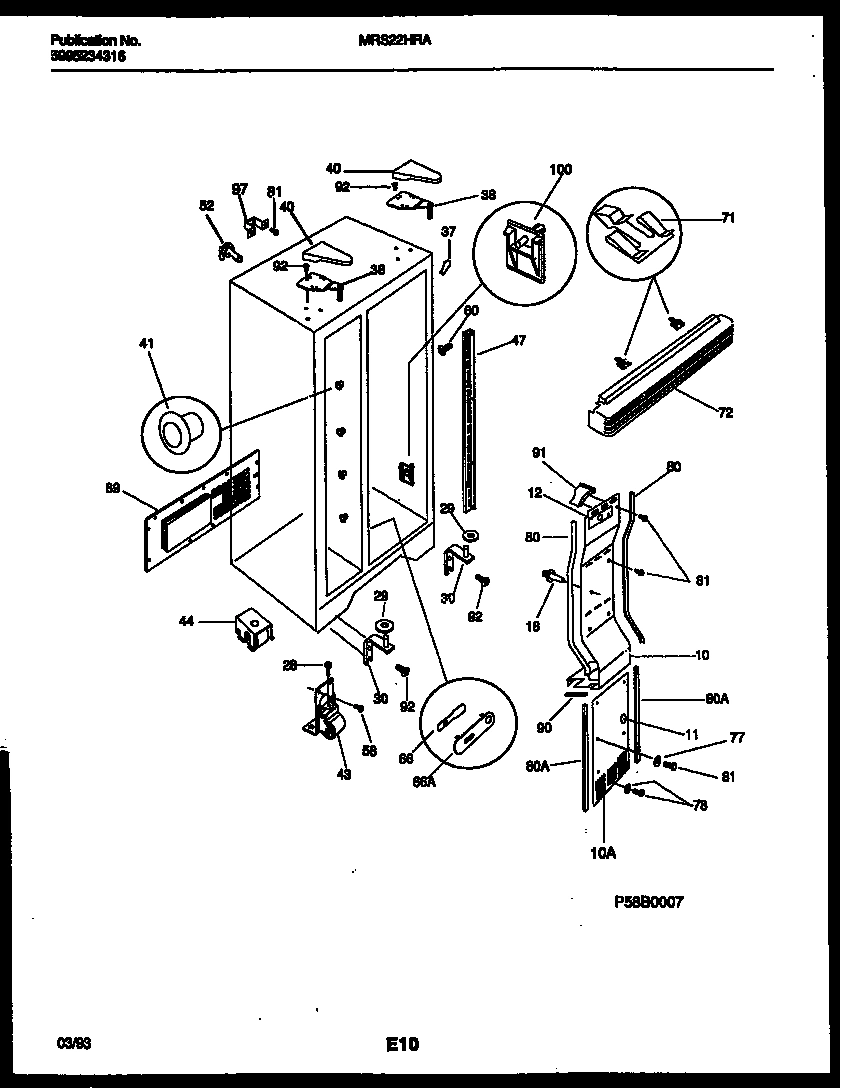

04 - CABINET PARTS

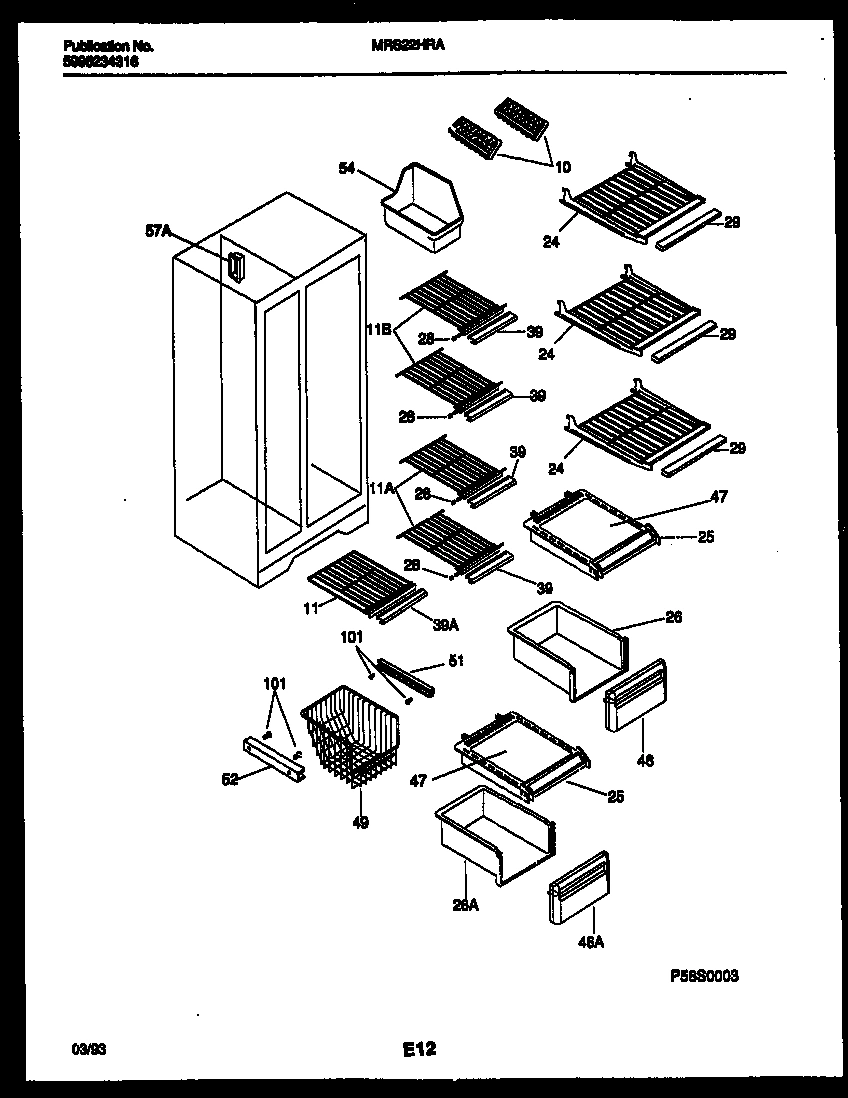

05 - SHELVES AND SUPPORTS

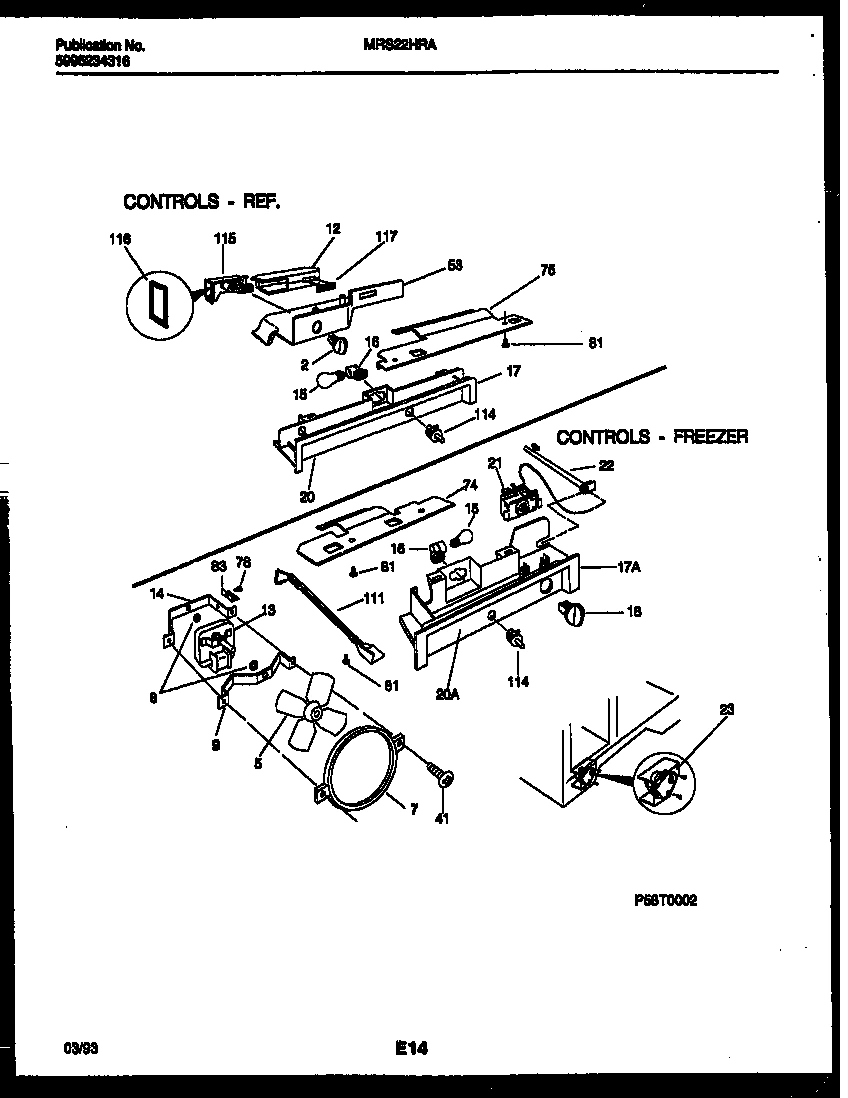

06 - REFRIGERATOR CONTROL ASSEMBLY, DAMP

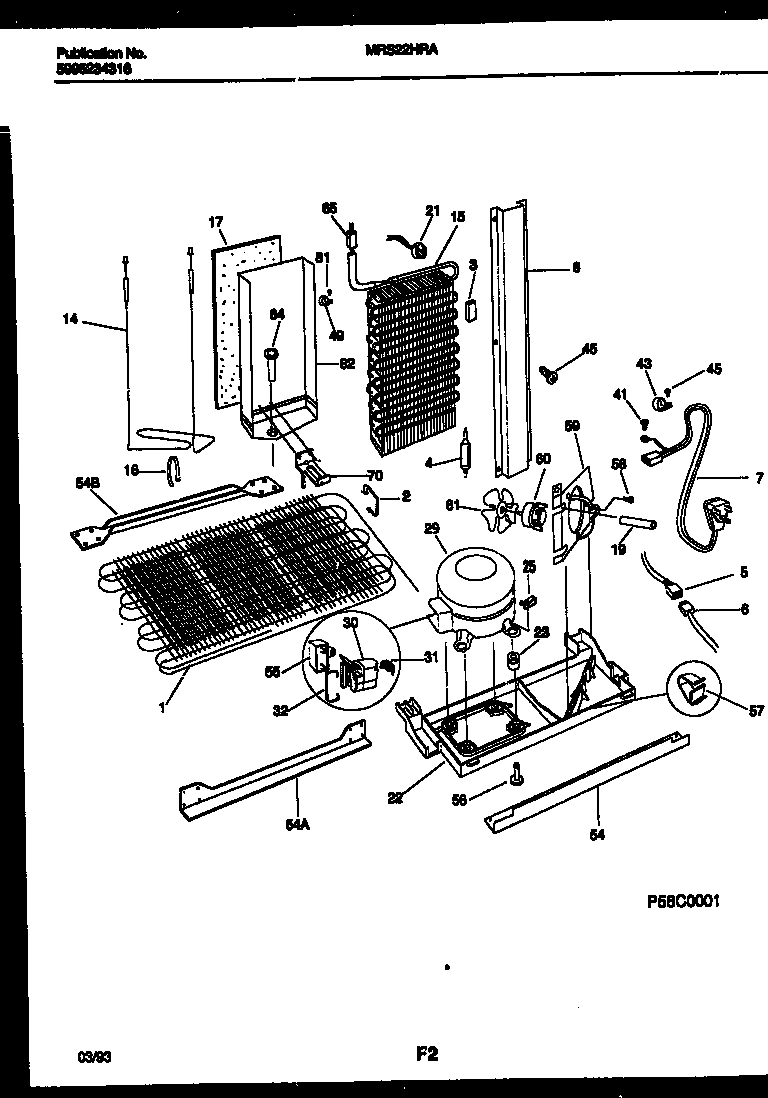

07 - SYSTEM AND AUTOMATIC DEFROST PARTS

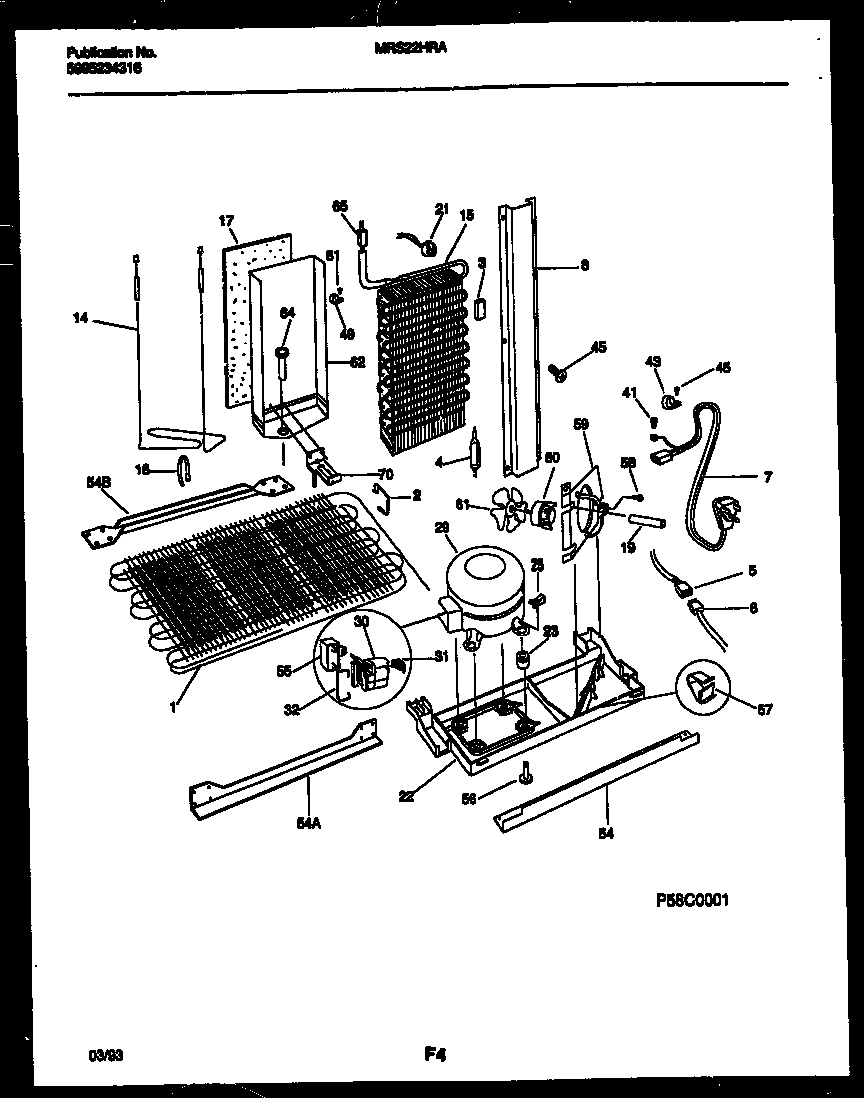

08 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux MRS22HRAD1 REFRIGERATOR
*72743
INSULATION-DOOR, FIBERGLASS, (BULK) (IF POSSI WCI 5303917276 Contact Us For Availability
*72748
PLUG-BUTTON, LINER WCI 5308016571 Contact Us For Availability
*72751
CLIP-CANTILEVER SHLF WCI 215339900 Contact Us For Availability
*72759
WCI 5303917166 WCI 5303917166 Contact Us For Availability
1
WCI 5303289487 WCI 5303289487 Contact Us For Availability
1A
SPACER-TUBE (NON-ILLUSTRATED) WCI 5303208866 Contact Us For Availability
1B
WCI 5303289026 WCI 5303289026 Contact Us For Availability
2
WCI 215028602 WCI 215028602 Contact Us For Availability
2
WCI 5303289029 WCI 5303289029 Contact Us For Availability
3
WCI 215226501 WCI 215226501 Contact Us For Availability
3A
WCI 215305900 WCI 215305900 Contact Us For Availability
4
WCI 530800027 WCI 530800027 Contact Us For Availability
5
WCI 215458800 WCI 215458800 Contact Us For Availability
5A
WCI 215013800 WCI 215013800 Contact Us For Availability
5B
WCI 215226000 WCI 215226000 Contact Us For Availability
6
WCI 215501600 WCI 215501600 Contact Us For Availability
7
WCI 215459201 WCI 215459201 Contact Us For Availability
7
RING-FAN ORIFICE WCI 5308000124 Contact Us For Availability
8
WCI 5303289033 WCI 5303289033 Contact Us For Availability
9
WCI 5303205118 WCI 5303205118 Contact Us For Availability
11
WCI 5303289518 WCI 5303289518 Contact Us For Availability
11A
WCI 5303289504 WCI 5303289504 Contact Us For Availability
11B
WCI 215111701 WCI 215111701 Contact Us For Availability
12
WCI 215011600 WCI 215011600 Contact Us For Availability
13
WCI 5303289522 WCI 5303289522 Contact Us For Availability
13
WCI 215348100 WCI 215348100 Contact Us For Availability
14
BRACKET-MOTOR MTG, REAR WCI 5303205119 Contact Us For Availability
14
WCI 5303289520 WCI 5303289520 Contact Us For Availability
15
EVAPORATOR, W/HEAT EXCHANGR WCI 215289604 Contact Us For Availability
15A
WCI 3206414 WCI 3206414 Contact Us For Availability
17
BOX-CONTROL,REFR WCI 5303296805 Contact Us For Availability
17
WCI 5303289496 WCI 5303289496 Contact Us For Availability
17A
WCI 5303289515 WCI 5303289515 Contact Us For Availability
18
WCI 215051002 WCI 215051002 Contact Us For Availability
19
TUBE-RUBBER WCI 5303001198 Contact Us For Availability
20
WCI 5303296804 WCI 5303296804 Contact Us For Availability
20A
WCI 5303296803 WCI 5303296803 Contact Us For Availability
21
WCI 5303294323 WCI 5303294323 Contact Us For Availability
21
WCI 215095200 WCI 215095200 Contact Us For Availability
21A
WCI 5303001260 WCI 5303001260 Contact Us For Availability
22
WCI 5303289320 WCI 5303289320 Contact Us For Availability
22
WCI 3018891 WCI 3018891 Contact Us For Availability
22
BASE-COMPRESSOR MTG WCI 5303289030 Contact Us For Availability
23A
WCI 215277000 WCI 215277000 Contact Us For Availability
23C
SHIELD-DEFROST TIMR, BOT (NON-ILLUSTRATED) WCI 5303289058 Contact Us For Availability
24
WCI 5303296674 WCI 5303296674 Contact Us For Availability
25
COVER-STORAGE PAN, UPPER & LOWER, (2) WCI 5303289587 Contact Us For Availability
25
WCI 215014200 WCI 215014200 Contact Us For Availability
25A
WCI 5303289586 WCI 5303289586 Contact Us For Availability
28
WCI 3201150 No Longer Available
29
WASHER, .160, NYLON WCI 215003200 Contact Us For Availability
29
WCI 5303296680 WCI 5303296680 Contact Us For Availability
29
WCI 5303917193 WCI 5303917193 Contact Us For Availability
30
WCI 216008900 WCI 216008900 Contact Us For Availability
30B
TAPPING PLATE,RH(NON-ILLUSTRATED) WCI 5303289291 Contact Us For Availability
32
WCI 215012000 WCI 215012000 Contact Us For Availability
37
TRIM-CABINET CORNER, ALMOND WCI 5303202340 Contact Us For Availability
38
WCI 215595600 WCI 215595600 Contact Us For Availability
39
WCI 5303296679 WCI 5303296679 Contact Us For Availability
39A
WCI 5303296678 WCI 5303296678 Contact Us For Availability
40
WCI 5303288946 WCI 5303288946 Contact Us For Availability
41A
NUT, ``U`` TYPE, NO. 8(A) (NON-ILLUSTRATED) WCI 5303209814 Contact Us For Availability
43
WCI 5303289059 WCI 5303289059 Contact Us For Availability
43A
SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) WCI 5308017044 Contact Us For Availability
44
WCI 215163900 WCI 215163900 Contact Us For Availability
46
WCI 215042011 WCI 215042011 Contact Us For Availability
46A
WCI 215042010 WCI 215042010 Contact Us For Availability
47
WCI 5303288974 WCI 5303288974 Contact Us For Availability
47
INSERT-CRISPER CVR, GLASS WCI 5303289387 Contact Us For Availability
49
WCI 5303289521 WCI 5303289521 Contact Us For Availability
49
WCI 215324700 WCI 215324700 Contact Us For Availability
51
WCI 5303288960 WCI 5303288960 Contact Us For Availability
52
WCI 5303289294 WCI 5303289294 Contact Us For Availability
52
WCI 5303296810 WCI 5303296810 Contact Us For Availability
52A
WCI 215058000 WCI 215058000 Contact Us For Availability
53
WCI 215554200 WCI 215554200 Contact Us For Availability
54
WCI 5303289027 WCI 5303289027 Contact Us For Availability
54A
WCI 5303289311 WCI 5303289311 Contact Us For Availability
54B
WCI 5303289292 WCI 5303289292 Contact Us For Availability
56
WCI 215014100 WCI 215014100 Contact Us For Availability
57
WCI 215073800 WCI 215073800 Contact Us For Availability
57A
WCI 5303289064 WCI 5303289064 Contact Us For Availability
59
WCI 5303289031 WCI 5303289031 Contact Us For Availability
60
WCI 215501800 WCI 215501800 Contact Us For Availability
61
WCI 5303289032 WCI 5303289032 Contact Us For Availability
61A
NUT, SPEED (NON-ILLUSTRATED) WCI 215004700 Contact Us For Availability
61B
WCI 215223700 WCI 215223700 Contact Us For Availability
62
WCI 215048700 WCI 215048700 Contact Us For Availability
65
WCI 5303289301 WCI 5303289301 Contact Us For Availability
66
WCI 215050201 WCI 215050201 Contact Us For Availability
66A
WCI 215050101 WCI 215050101 Contact Us For Availability
70
WCI 5303289041 WCI 5303289041 Contact Us For Availability
71
WCI 215003300 WCI 215003300 Contact Us For Availability
72
WCI 5303289508 WCI 5303289508 Contact Us For Availability
72A
SCREW-GRILLE, PAN HEAD, 6-AB X 1/4 C R (NON-I WCI 215608400 Contact Us For Availability
74
WCI 5303289516 WCI 5303289516 Contact Us For Availability
75
WCI 5303289052 WCI 5303289052 Contact Us For Availability
77
WASHER-NYLON,3/16 X 5/8 OD WCI 5303001216 Contact Us For Availability
78A
WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRAT WCI 5308009617 Contact Us For Availability
80
WCI 5303289037 WCI 5303289037 Contact Us For Availability
80A
WCI 5303289036 WCI 5303289036 Contact Us For Availability
83
WCI 5308000107 WCI 5308000107 Contact Us For Availability
89
WCI 215176300 WCI 215176300 Contact Us For Availability
90
WCI 215022602 WCI 215022602 Contact Us For Availability
91
WCI 215177600 WCI 215177600 Contact Us For Availability
97
WCI 5303289299 WCI 5303289299 Contact Us For Availability
100
WCI 5303288973 No Longer Available
111
WCI 5303289024 WCI 5303289024 Contact Us For Availability
115
WCI 215011501 WCI 215011501 Contact Us For Availability
116
WCI 215011400 WCI 215011400 Contact Us For Availability
117
WCI 215011700 WCI 215011700 Contact Us For Availability
× ![]()
