Model Accelerated Cooking Products MRC17S2SA-P2003705M Amana Menumaster MRC17S2SA – Common Parts & Diagrams
ANTENNA SHIELD / TRAY

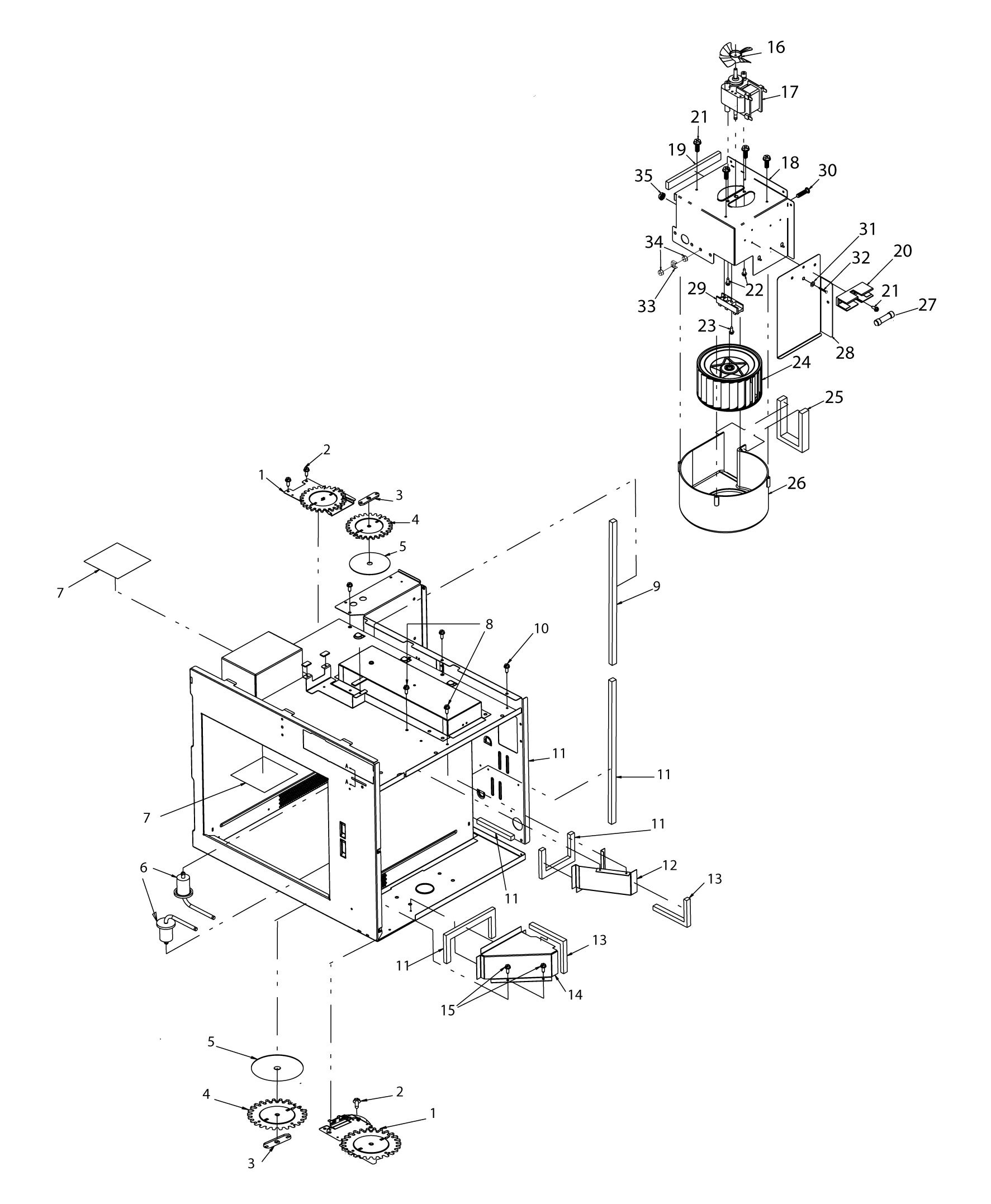

ANTENNAS / BLOWER / FUSE BLOCK / DUCTS

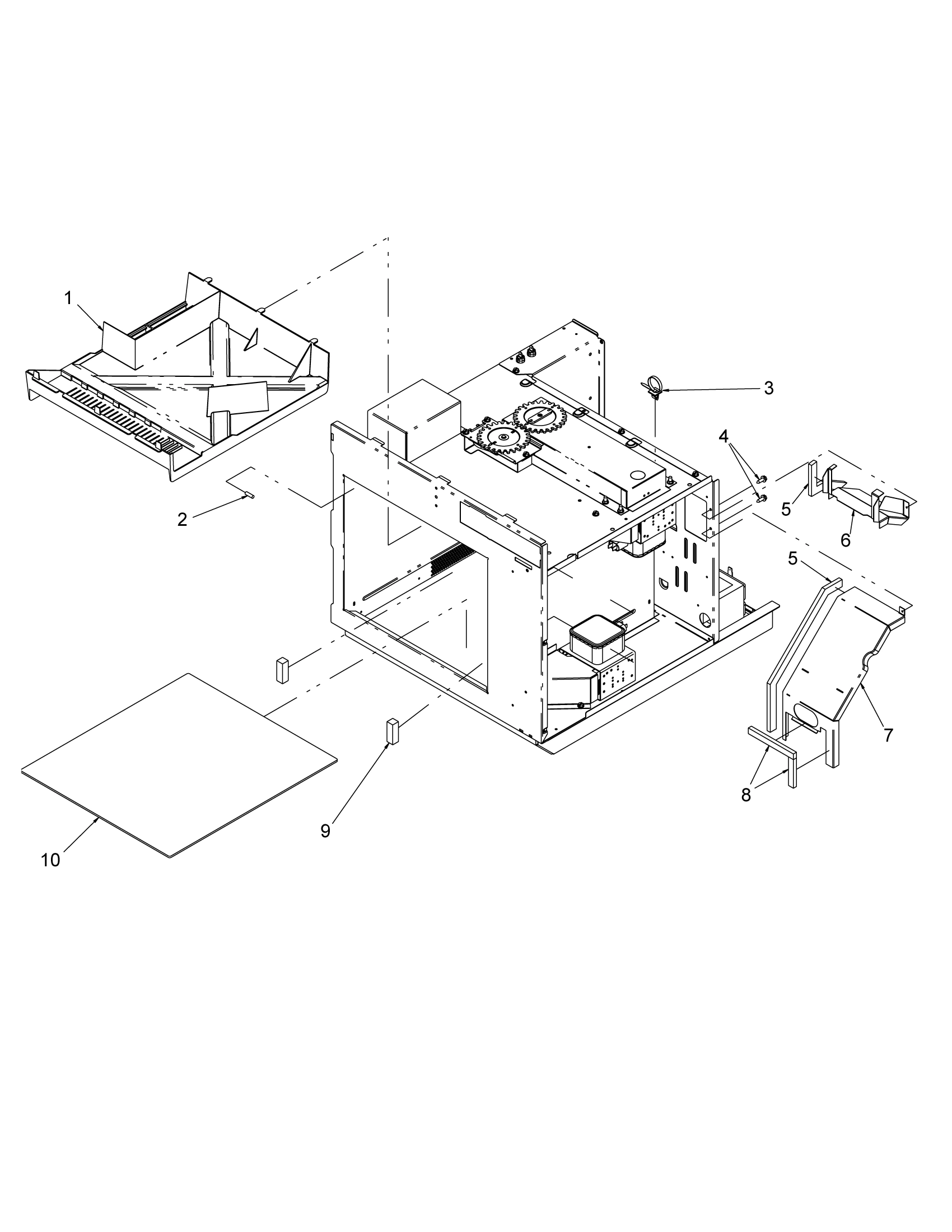

BASEPAN / AIR FILTER
DOOR / HANDLE
ELECTRICAL COMPONENTS
SUPPLEMENTAL INFORMATION
WRAPPER / REAR PANEL
Common parts from model Accelerated Cooking Products MRC17S2SA-P2003705M Amana Menumaster MRC17S2SA
1
ANTENNA SHIELD ACP 59004008 Contact Us For Availability
1
MOTOR, ANTENNA (230V) ACP R0130263 Contact Us For Availability
1
NON-MAGNETIC Y-DRIVE BIT ACP 20001136 Contact Us For Availability
1
TOUCH PANEL ASSY- TOP ACP 59104130 Contact Us For Availability
1
BASEPAN & GASKET ASSY ACP 10790306Q Contact Us For Availability
1
WRAPPER- STAINLESS ACP 10908909Q Contact Us For Availability
2
BOARD, DISPLAY ACP 59104126 Contact Us For Availability
2
WELD, DOOR RING ACP 59002013 Contact Us For Availability
2
HARNESS-OVEN ACP 20073201 Contact Us For Availability
2
SCREW-SM/HEX RoHS ACP 12990525 Contact Us For Availability
3
INNER DOOR ASSY (NO SCREWS) ACP 59002015 Contact Us For Availability
3
TOUCH PANEL ASSY- SIDE ACP 59104129 Contact Us For Availability
3
HARNESS - INTERLOCK ACP 13095501 Contact Us For Availability
3
ACCESS PAN WLD-E CT ACP 10781607 Contact Us For Availability
4
SWITCH, INTERLOCK ASSY ACP 59114157 Contact Us For Availability
4
SCREW - HI LO Y DRIVE ACP M1260218 Contact Us For Availability
4
HARNESS, HVB/DISPLAY ACP 13018302 Contact Us For Availability
4
SCREW-SM/HEX RoHS ACP 12990527 Contact Us For Availability
5
WASHER-SPUR GEAR ACP 10903002 Contact Us For Availability
5
GASKET, BASEPAN - 90 in (228 cm) ACP R0000413 Contact Us For Availability
5
HARNESS-HV ACP 20073301 Contact Us For Availability
5
TRIM-OC ACP 59174560 Contact Us For Availability
6
BOARD, RELAY MONITOR ACP 14179142 Contact Us For Availability
6
LATCH ASSY ACP 59154452 Contact Us For Availability
6
KIT, ANTENNA ACP 14179133 Contact Us For Availability
6
SCREW ACP 13095201 Contact Us For Availability
6
WIRE-JUMPER ACP 10901303 Contact Us For Availability
7
MAGNETRON ACP 59004010 Contact Us For Availability
7
SCREW-THUMB RoHS ACP 59174548 Contact Us For Availability
7
SCREW-TF/HEX RoHS ACP 12992302 Contact Us For Availability
7
HARNESS-OVEN LT ACP 12543401 Contact Us For Availability
7
GASKET, PER FT ACP 59002162 Contact Us For Availability
8
KIT, CAVITY- 2 TUBE "S" CHASSIS ACP 59214762 Contact Us For Availability
9
LABEL-MENU ACP 12155702 Contact Us For Availability
9
NUT-SPEED ACP 59174559 Contact Us For Availability
10
KIT, CERAMIC TRAY W/SEALER ACP R0156942 Contact Us For Availability
10
DIODE ACP 20057401 Contact Us For Availability
10
HARNESS-LW ANT MTR ACP 13018801 Contact Us For Availability
11
SCREW, HANDLE SIDE ACP 12002453 Contact Us For Availability
12
OUTER DOOR ASSY- WINDOW ACP R0156918 Contact Us For Availability
13
HINGE, DOOR ACP 14179140 Contact Us For Availability
13
SCREW-SM/HEX ACP 12990529 Contact Us For Availability
14
TRANSFORMER, HV ACP 59124177 Contact Us For Availability
15
CAPACITOR- .69 ACP 59174534 Contact Us For Availability
16
BLADE, FAN ACP B5706704 Contact Us For Availability
18
TRIAC ACP 59174520 Contact Us For Availability
18
BLOWER BRKT WELD ACP 59174555 Contact Us For Availability
19
SNUBBER ASSY ACP 59002017 Contact Us For Availability
22
RELAY ACP 59001981 Contact Us For Availability
24
CUTOUT - THERMAL ACP B5795315 Contact Us For Availability
24
WHEEL-BLOWER ACP C3670809 Contact Us For Availability
25
DUCT-EXHAUST ACP 10781901 Contact Us For Availability
27
FUSE-30A ACP M0805205 Contact Us For Availability
27
SUPPORT ACP 59174558 Contact Us For Availability
28
SUPPORT-PCB ACP M0800603 Contact Us For Availability
29
SCREW-TC/HEX ACP 12991610 Contact Us For Availability
30
SCREW ACP 12876603 Contact Us For Availability
31
LAMP (40W-250V) ACP 59002101 Contact Us For Availability
32
RECEPTACLE-LAMP ACP B8371401 Contact Us For Availability
× ![]()
