Model LG MR48DEY3JM.AWGBFRD Air Conditioners – Common Parts & Diagrams

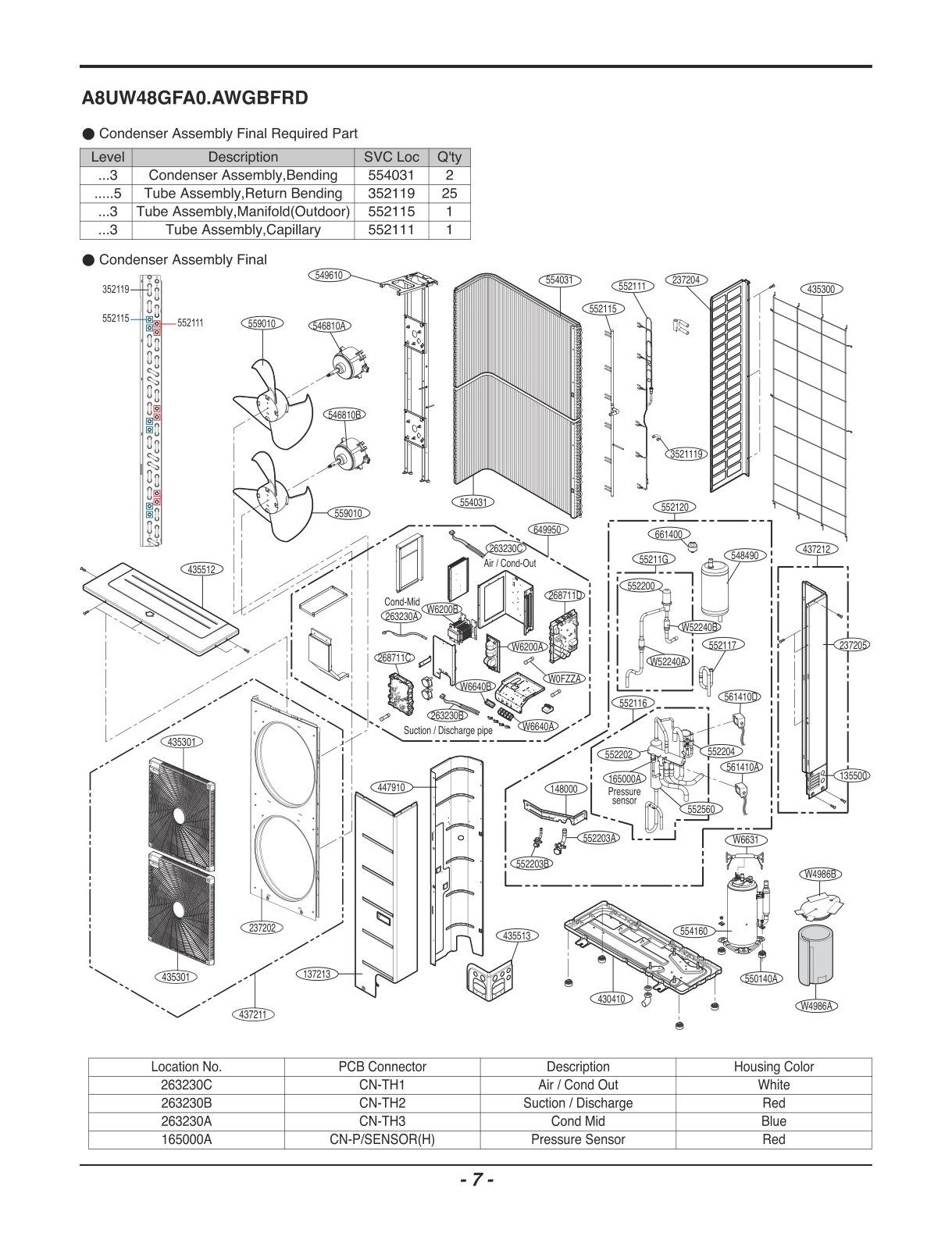

CONDENSER ASSEMBLY
Common parts from model LG MR48DEY3JM.AWGBFRD Air Conditioners
137213
Panel Assembly,Side LGE AGL76513024 Contact Us For Availability
165000A
Sensor,Pressure LGE EBD60663821 Contact Us For Availability
237202
Panel,Front LGE MGC39426114 Contact Us For Availability
237204
Panel,Side LGE MGC39426015 Contact Us For Availability
237205
Panel,Rear LGE MGC39613728 Contact Us For Availability
430410
Base Assembly,Outdoor LGE AAN34062004 Contact Us For Availability
435300
Grille,Rear LGE MDX40922509 Contact Us For Availability
435512
Cover Assembly,Top(Outdoor) LGE ACQ35131820 Contact Us For Availability
435513
Cover Assembly,Tubing LGE ACQ34583416 Contact Us For Availability
437211
Panel Assembly,Front(Outdoor) LGE AGL34578711 Contact Us For Availability
447910
Barrier Assembly,Outdoor LGE AAM35646423 Contact Us For Availability
548490
Accumulator Assembly LGE AAB73250401 Contact Us For Availability
549610
Bracket Assembly,Motor(Outdoor) LGE ABA34168813 Contact Us For Availability
552115
Tube Assembly,Manifold(Outdoor) LGE AJR76562809 Contact Us For Availability
552116
Tube Assembly,Reverse LGE AJR73944513 Contact Us For Availability
552117
Tube Assembly,Suction(Outdoor) LGE AJR36388510 Contact Us For Availability
552120
Tube Assembly LGE AJR73822516 Contact Us For Availability
552202
Valve,Reverse LGE 3A02080B Contact Us For Availability
552560
Muffler LGE 5256A30003R Contact Us For Availability
554160
Compressor Set,Korea LGE TBZ37955101 Contact Us For Availability
649950
Case Assembly,Control Box LGE ABQ77442312 Contact Us For Availability
W4986B
Sound proof LGE MMC00280407 Contact Us For Availability
W6200B
Transformer,Reactor LGE EBJ61770406 Contact Us For Availability
W6631
Harness,Multi LGE EAD63768930 Contact Us For Availability
W6640A
Connector,Terminal Block LGE 3A00493L Contact Us For Availability
W6640B
Connector,Terminal Block LGE 3A00093A Contact Us For Availability
× ![]()
