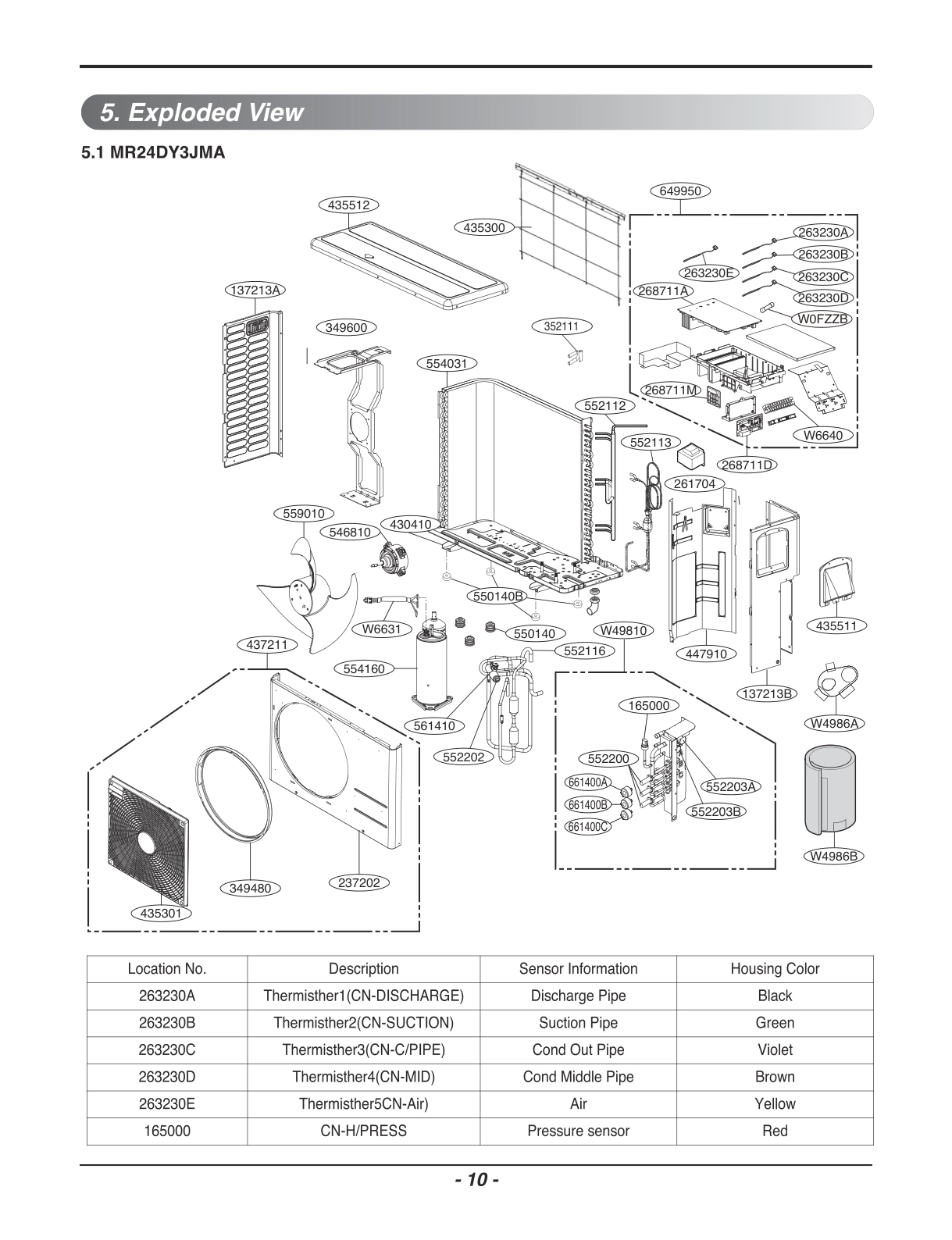

Model LG MR24DY3JMA.AWGBFRD Air Conditioners – Common Parts & Diagrams

237202
Panel,Front
Panel,Front LGE MGC63799201 Contact Us For Availability
View on Model
261704
Transformer,Reactor
Transformer,Reactor LGE EBJ61472302 Contact Us For Availability
View on Model
263230A
Thermistor Assembly,NTC
Thermistor Assembly,NTC LGE EBG61406002 Contact Us For Availability
View on Model
349480
Orifice
Orifice LGE 4948A20005A Contact Us For Availability
View on Model
349600
Bracket,Motor
Bracket,Motor LGE MAZ62861501 Contact Us For Availability
View on Model
352111
Tube Assembly,Connector
Tube Assembly,Connector LGE 5211A20349Z Contact Us For Availability
View on Model
430410
Base Assembly,Outdoor
Base Assembly,Outdoor LGE AAN74315325 Contact Us For Availability
View on Model
435300
Grille,Rear
Grille,Rear LGE 1A00207B Contact Us For Availability
View on Model
435301
Grille,Discharge
Grille,Discharge LGE MDX62671901 Contact Us For Availability
View on Model
435511
Cover Assembly,Control(Outdoor)
Cover Assembly,Control(Outdoor) LGE ACQ36712504 Contact Us For Availability
View on Model
435512
Cover Assembly,Top(Outdoor)
Cover Assembly,Top(Outdoor) LGE 3551A30113K Contact Us For Availability
View on Model
437211
Panel Assembly,Front(Outdoor)
Panel Assembly,Front(Outdoor) LGE AGL74852707 Contact Us For Availability
View on Model
447910
Barrier Assembly,Outdoor
Barrier Assembly,Outdoor LGE AAM73491203 Contact Us For Availability
View on Model
552112
Tube Assembly,Condenser(In)
Tube Assembly,Condenser(In) LGE AJR73786401 Contact Us For Availability
View on Model
552113
Tube Assembly,Condenser(Out)
Tube Assembly,Condenser(Out) LGE AJR73768803 Contact Us For Availability
View on Model
552200
Valve,Expansion Body
Valve,Expansion Body LGE 5220A90013E Contact Us For Availability
View on Model
552203A
Valve,Service
Valve,Service LGE 5220A20018F Contact Us For Availability
View on Model
552203B
Valve,Service
Valve,Service LGE 5220A20029P Contact Us For Availability
View on Model
554031
Condenser Assembly,Bending
Condenser Assembly,Bending LGE 5403A10013N Contact Us For Availability
View on Model
554160
Compressor Set,Korea
Compressor Set,Korea LGE TBZ35819901 Contact Us For Availability
View on Model
554160
Compressor Set,Korea
Compressor Set,Korea LGE TBZ37955601 Contact Us For Availability
View on Model
561410
Coil Assembly,Reverse
Coil Assembly,Reverse LGE EAP64467709 Contact Us For Availability
View on Model
649950
Case Assembly,Control(Outdoor)
Case Assembly,Control(Outdoor) LGE ABQ73965447 Contact Us For Availability
View on Model
661400A
Coil,Expansion
Coil,Expansion LGE EAP62228701 Contact Us For Availability
View on Model
661400C
Coil,Expansion
Coil,Expansion LGE EAP62228713 Contact Us For Availability
View on Model
W0FZZB
Fuse,Time Delay
Fuse,Time Delay LGE 0FT5001B511 Contact Us For Availability
View on Model
W4986A
Sound proof
Sound proof LGE MMC00280402 Contact Us For Availability
View on Model
W4986B
Sound proof
Sound proof LGE MMC00280302 Contact Us For Availability
View on Model
W6631
Harness,Multi
Harness,Multi LGE EAD63768904 Contact Us For Availability
View on Model
W6640
Connector,Terminal Block
Connector,Terminal Block LGE 3A00093A Contact Us For Availability
View on Model
W49810
Supporter Assembly
Supporter Assembly LGE AJJ73640008 Contact Us For Availability
View on Model
