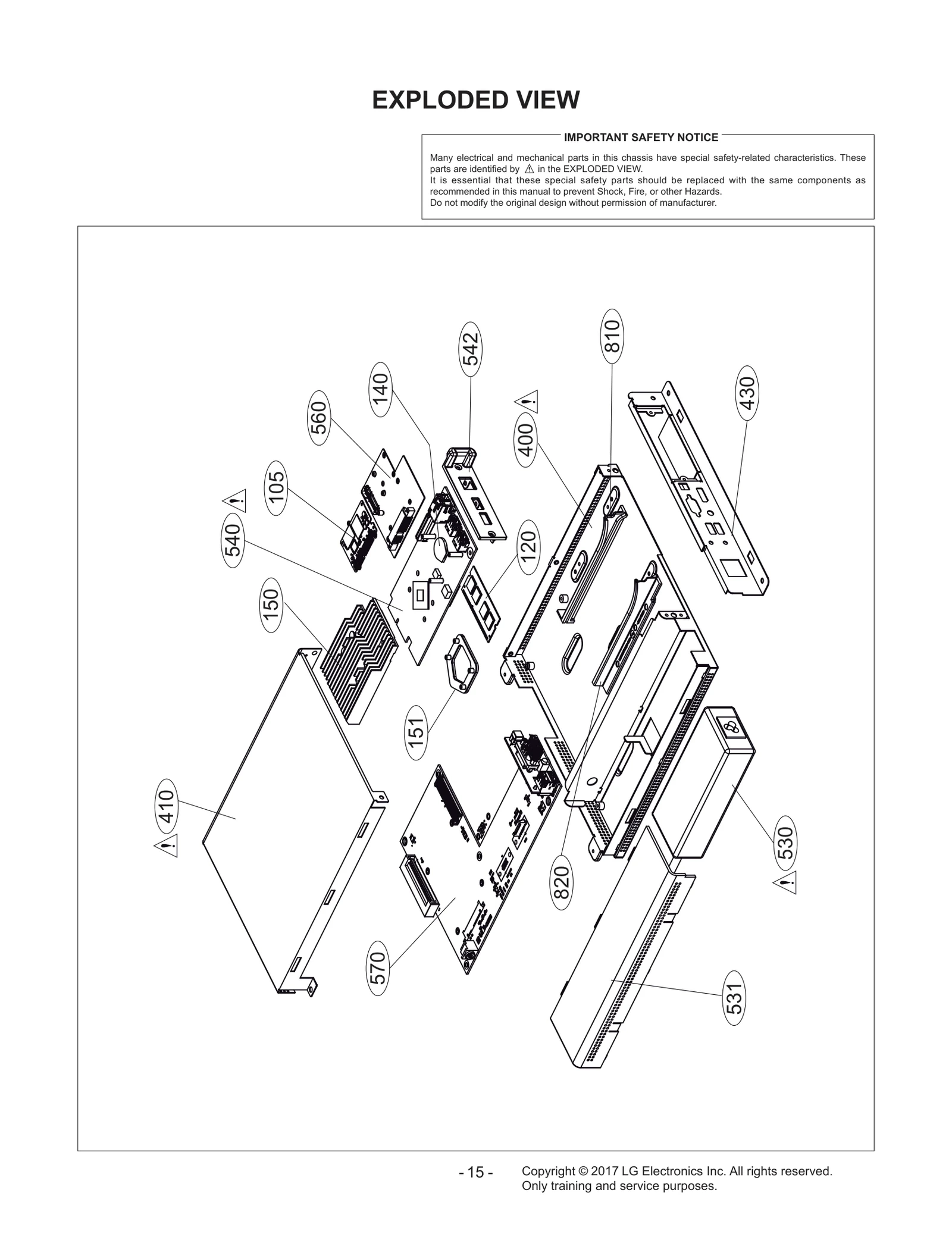

Model LG MP500-FJBFP – Common Parts & Diagrams

105
SSD
SSD LGE EAZ62441202 Contact Us For Availability
View on Model
120
IC,DDR3 SDRAM Module
IC,DDR3 SDRAM Module LGE EAN62661501 Contact Us For Availability
View on Model
140
Primary Cell Battery,Lithium
Primary Cell Battery,Lithium LGE EAC61899201 Contact Us For Availability
View on Model
150
Heat Sink
Heat Sink LGE MED63011301 Contact Us For Availability
View on Model
151
Frame Assembly
Frame Assembly LGE ADV74748701 Contact Us For Availability
View on Model
400
Cover Assembly
Cover Assembly LGE ACQ86044001 Contact Us For Availability
View on Model
410
Cover
Cover LGE MCK67199204 Contact Us For Availability
View on Model
430
Cover
Cover LGE MCK67199301 Contact Us For Availability
View on Model
530
Adapters,Desktop
Adapters,Desktop LGE EAY63032205 Contact Us For Availability
View on Model
540
Main Total Assembly
Main Total Assembly LGE EBU63428103 Contact Us For Availability
View on Model
540
Main Total Assembly
Main Total Assembly LGE EBU63428131 Contact Us For Availability
View on Model
542
Cover
Cover LGE MCK68028001 Contact Us For Availability
View on Model
560
PCB Assembly,Sub
PCB Assembly,Sub LGE EBR81380401 Contact Us For Availability
View on Model
570
PCB Assembly,Sub
PCB Assembly,Sub LGE EBR81957211 Contact Us For Availability
View on Model
700
Power Cord,Detach
Power Cord,Detach LGE 6410VUH007B Contact Us For Availability
View on Model
810
Supporter
Supporter LGE MJH59708305 Contact Us For Availability
View on Model
820
Supporter
Supporter LGE MJH59708306 Contact Us For Availability
View on Model
A1
Title
Title LGE SAC36833701 Contact Us For Availability
View on Model
S1
PCB Assembly,Sub
PCB Assembly,Sub LGE EBR82078301 Contact Us For Availability
View on Model
S2
Harness,Single
Harness,Single LGE EAD61987102 Contact Us For Availability
View on Model
