Model LG MP500-ADBB – Common Parts & Diagrams

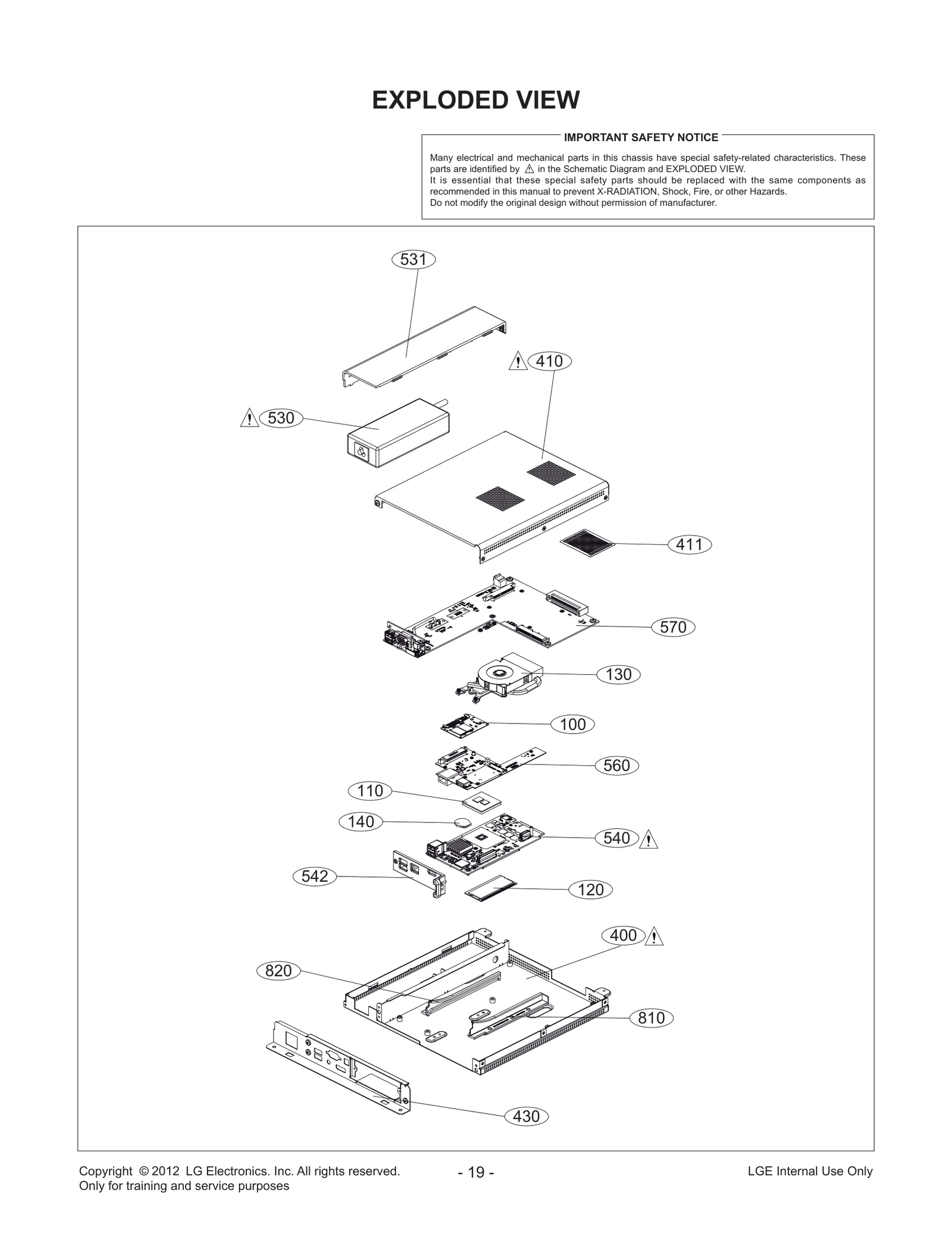

Diagram 0
Diagram 1
Common parts from model LG MP500-ADBB
100
SSD LGE EAZ60680903 Contact Us For Availability
110
IC,Microprocessors LGE EAN62088301 Contact Us For Availability
120
IC,DDR3 SDRAM Module LGE EAN61831703 Contact Us For Availability
120
IC,DDR3 SDRAM Module LGE EAN61831701 Contact Us For Availability
130
Mechanism Assembly LGE AFP73789703 Contact Us For Availability
140
Primary Cell Battery,Lithium LGE EAC61899201 Contact Us For Availability
400
Cover Assembly LGE ACQ86044001 Contact Us For Availability
410
Cover Assembly LGE ACQ86043901 Contact Us For Availability
411
Filter LGE MDJ63604301 Contact Us For Availability
430
Cover LGE MCK67199301 Contact Us For Availability
530
Adapters LGE EAY62533305 Contact Us For Availability
530
Adapters LGE EAY62533303 Contact Us For Availability
540
PCB Assembly,Main LGE EBR75864401 Contact Us For Availability
542
Cover LGE MCK67199601 Contact Us For Availability
560
PCB Assembly,Sub LGE EBR75770401 Contact Us For Availability
570
PCB Assembly,Module LGE EBR75769601 Contact Us For Availability
810
Supporter LGE MJH59708305 Contact Us For Availability
820
Supporter LGE MJH59708306 Contact Us For Availability
S1
Fan Module LGE EAL61160801 Contact Us For Availability
S2
Plate,Metal LGE MGJ63335801 Contact Us For Availability
S3
Hand Insert PCB Assembly,Main LGE EBR75770101 Contact Us For Availability
S4
Harness,Single LGE EAD61987102 Contact Us For Availability
S5
Cover Assembly LGE ACQ86295501 Contact Us For Availability
S29
Frame Assembly LGE ADV74330401 Contact Us For Availability
U509
S/W,Firmware LGE SAA36280901 Contact Us For Availability
× ![]()
