Model Accelerated Cooking Products MOC5241I-P2004820M Amana Menumaster MOC5241I – Common Parts & Diagrams
ANTENNA MOTORS / SWITCHES / LH & RH SOLENOIDS / BASEPAN
DOOR ASSEMBLY / OUTER PANELS / TOUCH PANEL ASSY

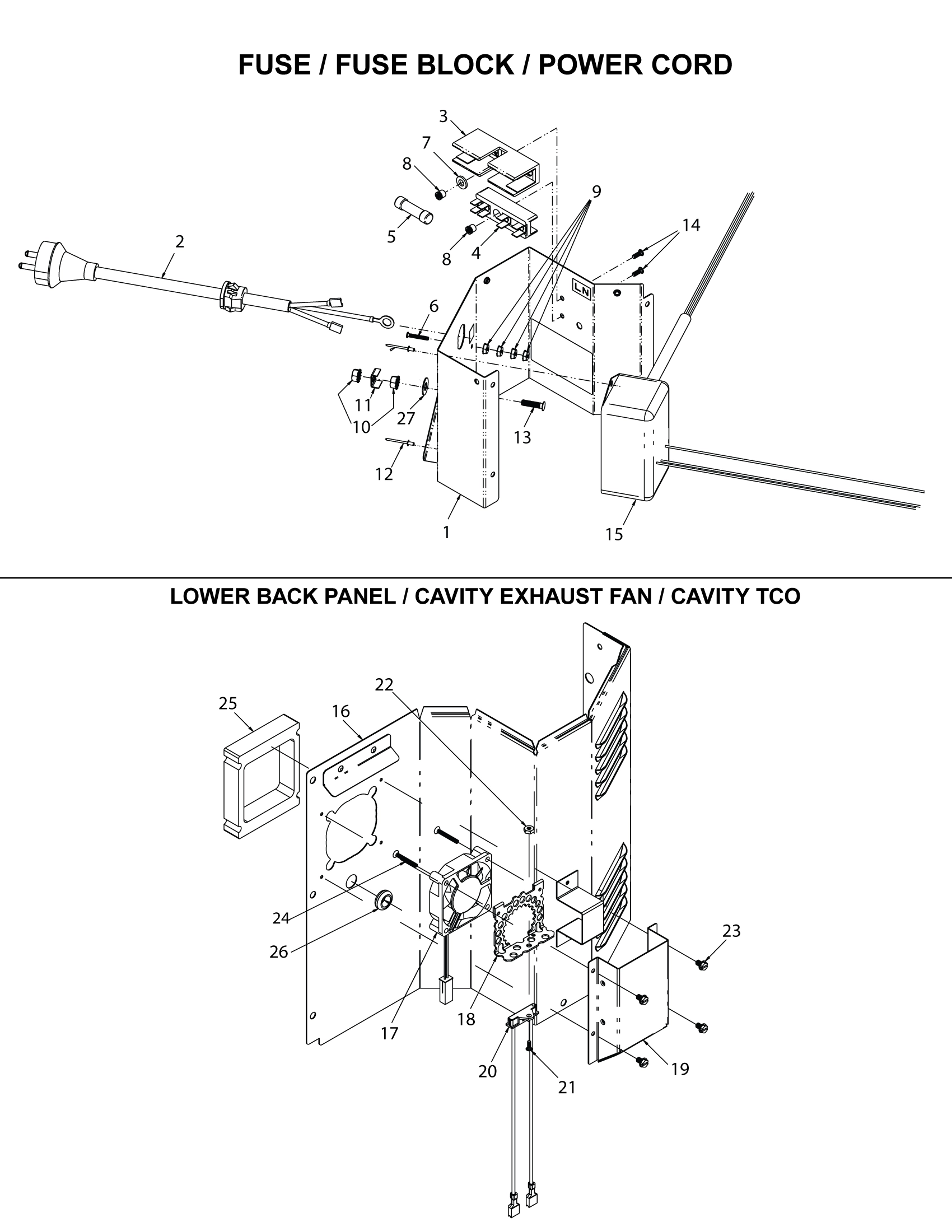

FUSE BLOCK / POWER CORD / LOWER BACK PANEL / EXHAUST / CAVITY TCO

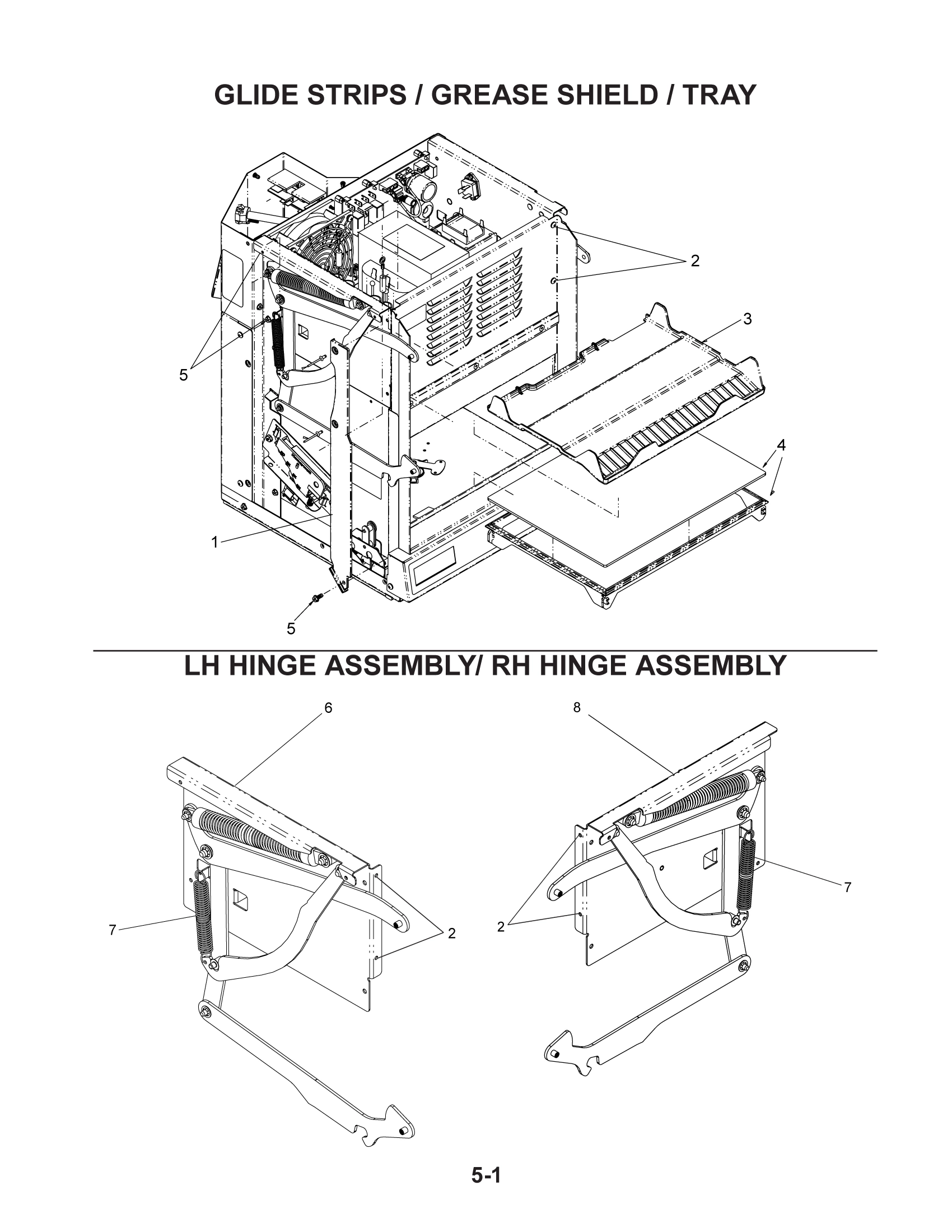

GLIDE STRIPS / ANTENNA SHIELD / TRAY / LH & RH HINGE ASSEMBLY

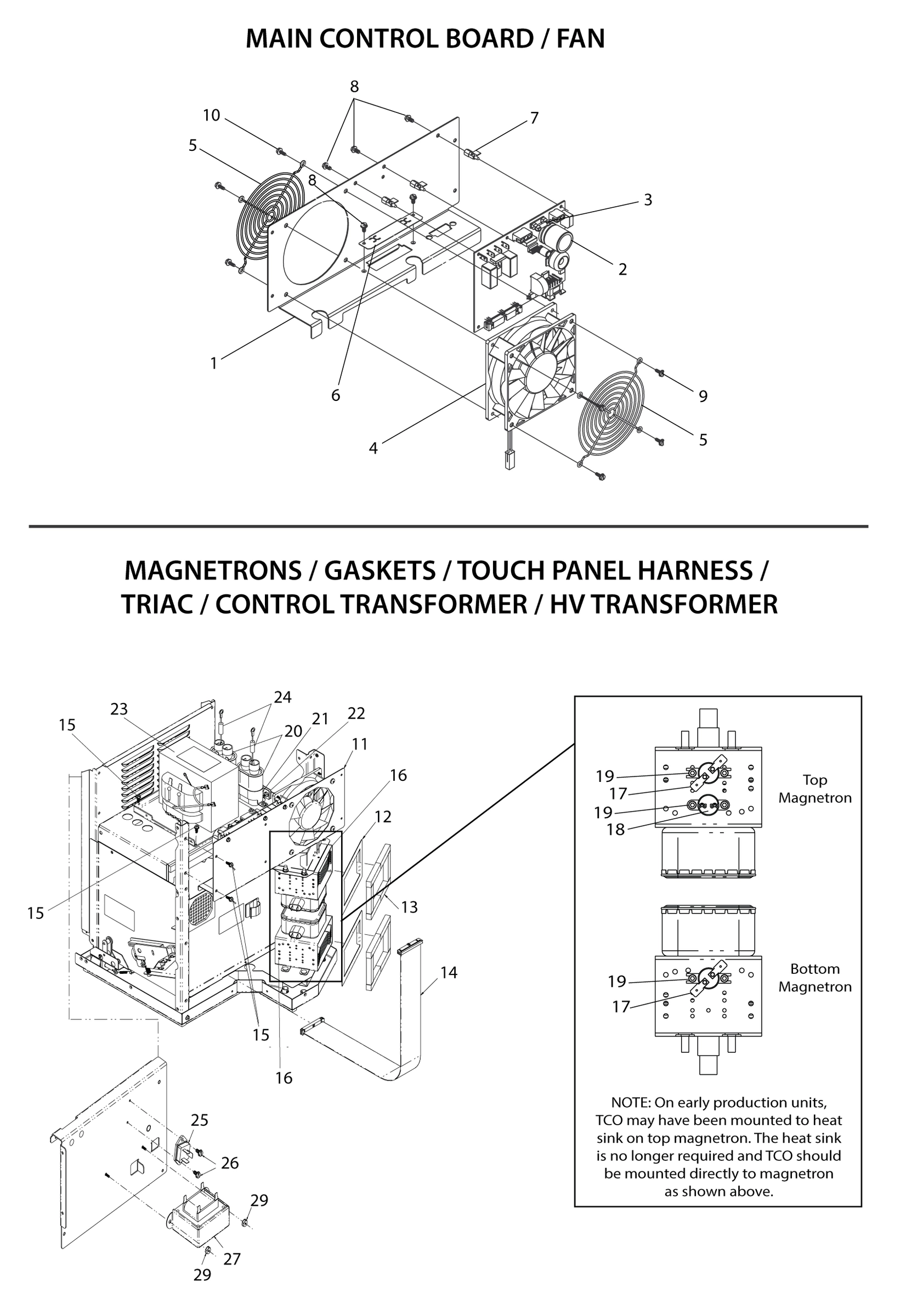

MAIN CONTROL BOARD / FAN / MAGNETRON / GASKETS / TOUCH PANEL
SUPPLEMENTAL INFORMATION
Common parts from model Accelerated Cooking Products MOC5241I-P2004820M Amana Menumaster MOC5241I
1
UP MAG SHROUD ACP 20018002Q Contact Us For Availability
1
WIRE, JUMPER ACP 13017716 Contact Us For Availability
2
CORD-POWER ACP 20139301 Contact Us For Availability
2
SCREW-TC/PAN ACP 13041802 Contact Us For Availability
2
HARNESS, HV ACP 20019401 Contact Us For Availability
3
HARNESS, MAIN ACP 20216701 Contact Us For Availability
4
STRAP-OVEN ACP 21009501 Contact Us For Availability
5
SEALER, RTV- ALUMINUM ACP 20021804 Contact Us For Availability
6
BRKT-40 PIN HEADER ACP 20023501 Contact Us For Availability
7
SUPPORT-PCB ACP M0590609 Contact Us For Availability
10
SCREW ACP 12991611 Contact Us For Availability
11
REAR MC BRKT-E CT ACP 21001503 Contact Us For Availability
12
RIVET-POP RoHS ACP A4539638 Contact Us For Availability
15
CLIP, RETAINER ACP 20023301 Contact Us For Availability
16
LWR OC BACK WELD-E CT ACP 20023608 Contact Us For Availability
18
GRILLE-EXH FAN ACP 20009701 Contact Us For Availability
18
THERMAL CUTOUT - LATCH TCO ACP B5684135 Contact Us For Availability
19
HOOD-CAVITY FAN ACP 21020302 Contact Us For Availability
19
SCREW-TC/SOCKET TORX ACP 20095801 Contact Us For Availability
21
STUD-#6 SC X .31 ACP 20021601 Contact Us For Availability
21
BRKT- CAPACITOR ACP 13069001 Contact Us For Availability
22
NUT-#8 HEX ACP 20018901 Contact Us For Availability
24
SCREW-SM/FLAT ACP 20021703 Contact Us For Availability
26
GROMMET-RUBBER ACP 20095701 Contact Us For Availability
× ![]()
